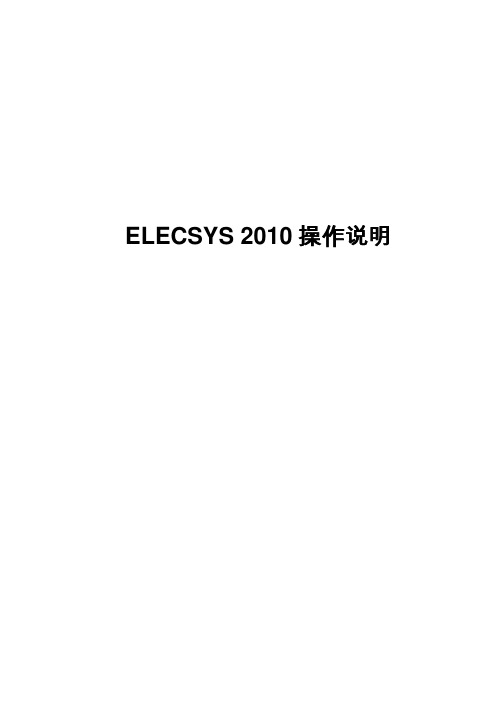

ELECSYS 2010操作说明1. 打开分析仪1.1简介在测试样品前，必须检查样本盘是否存在，是否打开打印机开关和分析仪开关，是否在软件上记录了你的操作号。
1.2检查样本盘打开操纵台前的门，检查样本盘是否在样本盘槽内。
1.3打开打印机如果打印机未开启，打开位于打印机前右侧的开关。
当打印机打开时，绿灯亮。
同时检查打印纸是否足够。
注意：打印机型号可根据国家而不同1.4打开分析仪分析仪的开关通过位于操纵台前的开关来控制。
按开关的右端使之处于ON的位置，小绿灯亮表明系统已打开。
打开分析仪后，打开PROCELL和CLEANCELL瓶盖。
1.5登录开机短时间后，触摸式屏幕显示的是分析仪关闭时的最后一次软件记忆内容。
根据下列程序操作进入操作者ID号码：1.按STATUS进入STATUS屏幕，如下所示。
不管系统是否被使用，OPERATOR ID总在屏幕上的相同位置。
2.按OPERATOR ID，输入你的号码（1－99）。
3.按ENTER。
2.登录检查2.1简介每天测试样品前要进行登录检查。
2.2目测检查×探针是否良好，是否有粘附物。
×管道是否变形和弯曲。
×吸样针是否有气泡，如有，需冲洗。
×吸样管和孵育器表面保持干净，吸样管和孵育器上液体的溢出可能引起顶端或孵育系统阻塞，所以会引起机械臂的警报。
2.3登录屏幕按INBENTORY显示登录屏幕。
2.4PROCELL和CLEANCELL的检查：根据需要更换PROCELL和CLEANCELL。
如果SET1和SET2大于30％，屏幕键显绿色。
如果SET1和SET2大于0％而小于30％，屏幕键显黄色。
如果SET1和SET2等于0％，屏幕键显红色。
注意：SET2（右侧）首先被用完。
如要替换SET2，将左侧试剂瓶（SET1）移至右侧（SET2），然后装上新的试剂瓶于左侧（SET1）2.5装满蒸馏水：当容器空了，键显红色。
2.6清除废物筒：当废物筒满了，键显红色。
