第一步:添加一个用户MA5680T>enable //打开特权EXECMA5680T#config //进入终端配置模式MA5680T(config)#sysname SJZ-HW—OLT—1 //设备命名(一般为开局配置) MA5680T (config) #terminal user name //添加操作用户huaweiUser Name(length<6,15〉):huawei //设置用户名User Password(length<6,15>):huawei123 //要求输入密码Confirm Password(length〈6,15〉): huawei123 //要求再次确认一遍密码User profile name(〈=15 chars)[root]:root //输入用户管理级别User's Level:1. Common User 2。
Operator 3. Administrator:3 //选择用户权限Permitted Reenter Number(0-—4):4 //设置此用户名可重复登录次数,一般选择4 User’s Appended Info(〈=30 chars):HuaweiAdm //添加描述,可不设置。
Adding user succeedsRepeat this operation?(y/n)[n]:(是否重复操作,N)第二步:创建DBA(Dynamically Bandwidth Assignment动态带宽分配)模版类型(type)分为5种,分别是type1,type2,type3,type4,type5。
其中://type1 为固定带宽模式;//type2 为保证带宽模式;//type3 为保证带宽的同时设置最大带宽值;//type4 为仅设定最大带宽模式;//type5 为3种模式的综合,即设置最大带宽,在保证带宽的同时采用固定带宽模式。

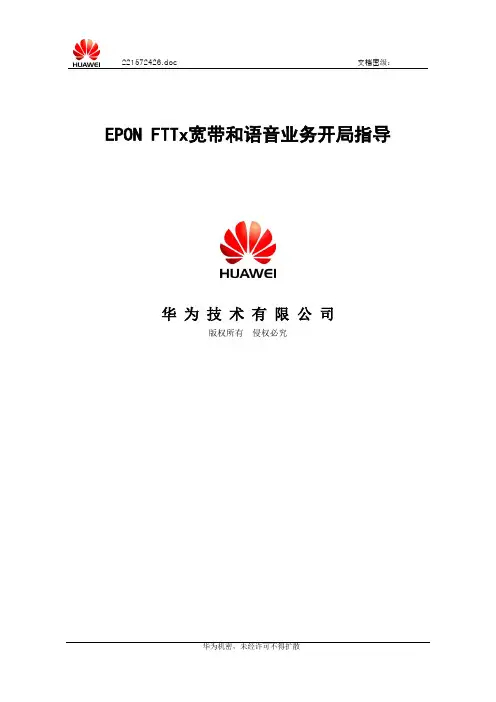

EPON FTTx宽带和语音业务开局指导华为技术有限公司版权所有侵权必究目 录FTTX 基本业务配置实例第一章 基本宽带业务配置1 组网图2 组网说明 以下配置过程使用版本MA5680T :V800R105C33B011;MA5620E :V800R305C01B011,如果使用其它版本,配置命令可能不一样。
1、MA5680T 使用0/20/0上行到会聚交换机,再到BAS2、MA5680T 使用EPON 接口0/15/0下带两个MDU ,MDU1 使用MA5620E ,MAC=0018-8256-3E47,分配ontid 为1,MDU2 使用MA5606T ,MAC= 0018-822A-F4F3,分配ontid 为2,。
3、MA5680T 和MA5620E 的带内网管VLAN 使用VLAN=100。
MA5680T的带内网管地址为:5680T:OLT192.168.100.1/24,MA5620E的带内网管地址为:192.168.100.2/24,网关地址为192.168.100.254/24,MA5606T的带内网管地址为:192.168.100.3/24,网关地址为192.168.100.254/24。
4、PC2、PC3使用的业务VLAN分别为1002、1003,PC2、PC3分别接在MA5620E的0/1/4、0/1/5。
5、PC1通过ADSL或者VDSL接入到MA5606T的0/3/0口。
3 业务配置流程4 系统数据配置4.1 配置能力集模板并确认//添加Profile-ID=30用来支持MA5620EMA5680T(config)#ont-profile add epon profile-id 30 { <cr>|profile-name<K> }: Command: ont-profile add epon profile-id 30 Press 'Q' or 'q' to quit input > Ont Manage Mode<1-SNMP, 2-SNMP-NOPARA, 3-OAM> [3]:1 > Is UNI configuration concerned?<1-not concern, 2-concern> [2]:1 Adding an ONT profile succeeded Profile-ID : 30 Profile-Name : ont-profile_30//添加Profile-ID=21用来支持MA5606TMA5680T(config)#ont-profile add epon profile-id 21 { <cr>|profile-name<K> }: Command: ont-profile add epon profile-id 21 Press 'Q' or 'q' to quit input > Ont Manage Mode<1-SNMP, 2-SNMP-NOPARA, 3-OAM> [3]: 3//针对MA5606T的能力集模板只能选择3,不支持SNMP方式。
文档名称 文档密级:2019-7-8华为机密,未经许可不得扩散 第1页, 共2页 MA5680T 宽带及语音业务配置1.创建VLAN 并添加上行口MA5680T(config)#vlan 100 smart (配置语音VLAN )MA5680T(config)#vlan 101 smart (配置宽带VLAN )MA5680T(config)#port vlan 100 0/19 0 (将语音VLAN 加入上行端口)MA5680T(config)#port vlan 101 0/19 1 (将宽带VLAN 加入上行端口)2.创建DBA 模板MA5680T(config)#DBA-profile add profile-id 100 type3 assure 10240 max 102400( 说明:100--DBA 模板的ID 号,可以取值10--512之间,type3 assure 10240 max 102400 可以固定配置,每一台ONU 的上行带宽平均100M 。
建议和实际的限速值相同,方便记忆。
只需要开局时配置即可,不需要重复配置,可以重复引用,EPON 、GPON 都可以引用。
使用display cur 命令查看)3.配置线路模板MA5680T(config)# ont-lineprofile epon profile-id 1000(说明:epon--线路模板的类型为eopn ,如果是gpon 请先择gpon ,1000--线路模板的ID 号,可以取值1—4096。
)MA5680T(config-epon-lineprofile-1000)#llid dba-profile-id 100(配置1000的线路模板,绑定100的DBA 模板,)MA5680T(config-epon-lineprofile-1000)#commit( 只有提交配置,线路模板与DBA 模板的绑定关系才会生效,此线路模板只需要开局配置即可,所有的EPON 设备都可以重复引用。

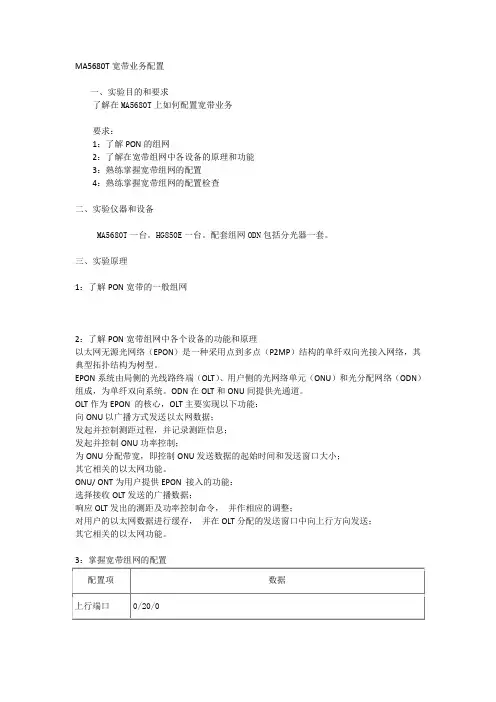

MA5680T宽带业务配置一、实验目的和要求了解在MA5680T上如何配置宽带业务要求:1:了解PON的组网2:了解在宽带组网中各设备的原理和功能3:熟练掌握宽带组网的配置4:熟练掌握宽带组网的配置检查二、实验仪器和设备MA5680T一台。
HG850E一台。
配套组网ODN包括分光器一套。
三、实验原理1:了解PON宽带的一般组网2:了解PON宽带组网中各个设备的功能和原理以太网无源光网络(EPON)是一种采用点到多点(P2MP)结构的单纤双向光接入网络,其典型拓扑结构为树型。
EPON系统由局侧的光线路终端(OLT)、用户侧的光网络单元(ONU)和光分配网络(ODN)组成,为单纤双向系统。
ODN在OLT和ONU间提供光通道。
OLT作为EPON 的核心,OLT主要实现以下功能:向ONU以广播方式发送以太网数据;发起并控制测距过程,并记录测距信息;发起并控制ONU功率控制;为ONU分配带宽,即控制ONU发送数据的起始时间和发送窗口大小;其它相关的以太网功能。
ONU/ ONT为用户提供EPON 接入的功能:选择接收OLT发送的广播数据;响应OLT发出的测距及功率控制命令,并作相应的调整;对用户的以太网数据进行缓存,并在OLT分配的发送窗口中向上行方向发送;其它相关的以太网功能。
3 业务配置流程EPON接入业务配置流程图4、系统数据配置MA5680T(config)#vlan 1001 smartMA5680T(config)#port vlan 1001 0/20 0MA5680T(config)#port vlan 100 0/20 0MA5680T(config)#dba-profile add profile-id 10 type2 assure 10240MA5680T(config)#ont-lineprofile epon profile-id 10 profile-name HG850e MA5680T(config-epon-lineprofile-10)#llid dba-profile-id 10MA5680T(config-epon-lineprofile-10)#commitMA5680T(config-epon-lineprofile-10)#quitMA5680T(config)#ont-srvprofile epon profile-id 10 profile-name HG850e MA5680T(config-epon-srvprofile-10)#ont-port eth 4 pots 2MA5680T(config-epon-srvprofile-10)#port vlan eth 1 1001MA5680T(config-epon-srvprofile-10)#commitMA5680T(config-epon-srvprofile-10)#quitMA5680T(config)#interface epon 0/1MA5680T(config-if-epon-0/1)#port 0 ont-auto-find enableMA5680T(config-if-epon-0/1)#display ont autofind 0------------------------------------------------------------------------Number F/ S/ P MAC Password------------------------------------------------------------------------1 0/ 1/ 0 0073-072E-C1B7------------------------------------------------------------------------ MA5680T(config-if-epon-0/1)#ont add 0 1 mac-auth 0073-072E-C1B7 oamont-lineprofile-id 10 ont-srvprofile-id 10{ <cr>|desc<K> }: Command: ont add 0 1 mac-auth 0073-072E-C1B7 oam ont-lineprofile-id 10 ont-srvprofile-id 10Number of ONTs that can be added: 1, success: 1PortID :0, ONTID :1------------------------------------------------------------------------------F/S/P ONT-ID MAC Control Run Config Matchflag state state state------------------------------------------------------------------------------0/ 1/0 1 0073-072E-C1B7 active up normal match------------------------------------------------------------------------------In port 1, the total of ONTs are: 1MA5680T(config-if-epon-0/1)#ont port native-vlan 0 1 eth 1 vlan 1001 MA5680T(config-if-epon-0/1)#quitMA5680T (config-if-epon-0/1)#quitMA5680T(config)#service-port vlan 1001 epon 0/1/0 ont 1 multi-service user-vlan 1001MA5680T(config)#save四、实验结果和分析实验结果验证检查是否成功此时可给上行设备配置IP地址,并保证下行设备与上行设备在同一网段,若不在同一网段需配置网关或路由,可PING通上行设备。
MA5680T新规范(华为OLT配置模板)1.1MA5680T/MA5683T(待补充)1、配置vlan(OLT侧)MA5680T(config)#vlan 1000 1009 smartMA5680T(config)#vlan 4000 commondMA5680T(config)#vlan attrib 1000 1009 q-in-q MA5680T(config)#port vlan 1000 1009 4000 0/19 02、配置线路相关模板MA5680T(config)#ont-lineprofile gpon profile-id 10 profile-name MDUMA5680T(config)#snmp-profile add profile-id 10 profile-name MDU V1 GPONpublic GPONprivate 162 n20003、配置相关业务的DBA模板MA5680T(config)#dba-profile add profile-id 10 profile-name NMS Type1 FIX 1024 ---网管MA5680T(config)#dba-profile add profile-id 11 profile-name PPPOE Type4 MAx 102400 ---PPPOEMA5680T(config)#dba-profile add profile-id 12 profile-name IMS Type3 Assure 1024 Max 10240 ---IMSMA5680T(config)#dba-profile add profile-id 13 profile-name IPTV Type4 MAx 102400 ---IPTVMA5680T(config)#dba-profile add profile-id 14 profile-name ZHUANXIAN Type3 Assure 5120 Max 102400 ---专线MA5680T(config)#dba-profile add profile-id 15 profile-name VPN Type3 Assure 5120 Max 102400 ---VPN4、增加ONT并绑定相关模板MA5680T(config-if-gpon-0/2)#ont add 0 5 sn-auth AC950C41 snmp ont-lineprofile-id 10MA5680T(config-if-gpon-0/2)#ont snmp-profile 0 all profile-id 105、配置tcont数据MA5680T(config-gpon-lineprofile-10)#tcont 0 dba-profile-id 10 ---网管MA5680T(config-gpon-lineprofile-10)#tcont 1 dba-profile-id 11 ---PPPOEMA5680T(config-gpon-lineprofile-10)#tcont 2 dba-profile-id 12 ---IMSMA5680T(config-gpon-lineprofile-10)#tcont 3 dba-profile-id 13 ---IPTVMA5680T(config-gpon-lineprofile-10)#tcont 4 dba-profile-id 14 ---专线MA5680T(config-gpon-lineprofile-10)#tcont 5 dba-profile-id 15 ---VPN6、配置gem数据MA5680T(config-gpon-lineprofile-10)#gem add 0 eth tcont 0 ---网管MA5680T(config-gpon-lineprofile-10)#gem add 1 eth tcont 1 ---PPPOEMA5680T(config-gpon-lineprofile-10)#gem add 2 eth tcont 2 ---IMSMA5680T(config-gpon-lineprofile-10)#gem add 3 eth tcont 3 ---IPTVMA5680T(config-gpon-lineprofile-10)#gem add 4 eth tcont 4 ---专线MA5680T(config-gpon-lineprofile-10)#gem add 5 eth tcont 5 ---VPN7、建立tcont和gem的映射MA5680T(config-gpon-lineprofile-10)#gem mapping 0 0 priority 7---网管MA5680T(config-gpon-lineprofile-10)#gem mapping 1 1 priority 0 ---PPPOEMA5680T(config-gpon-lineprofile-10)#gem mapping 2 2 priority 6 ---IMSMA5680T(config-gpon-lineprofile-10)#gem mapping 3 3 priority 3---IPTVMA5680T(config-gpon-lineprofile-10)#gem mapping 4 4 priority 1---专线MA5680T(config-gpon-lineprofile-10)#gem mapping 5 5 priority 2 ---VPN8、MA5680T(config-gpon-lineprofile-10)#commit9、自动发现ONT并配置网管数据和业务流MA5680T(config)#interface gpon 0/2MA5680T(config-if-gpon-0/2)#port 0 ont-auto-find enable 网管优限级进行配置MA5616(config)#protocol-8021p-pri 3 vlan xxx(网管VLAN)。

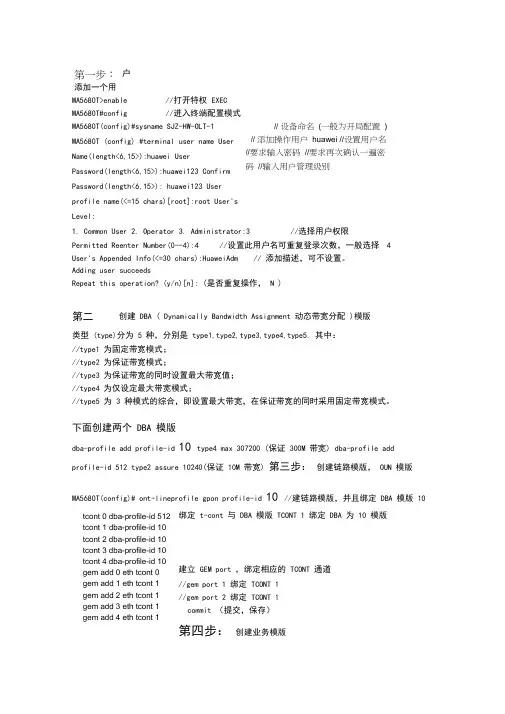

第一步: 添加一个用户MA5680T>enable //打开特权 EXECMA5680T#config //进入终端配置模式MA5680T(config)#sysname SJZ-HW-OLT-1 MA5680T (config) #terminal user name User Name(length<6,15>):huawei User Password(length<6,15>):huawei123 Confirm Password(length<6,15>): huawei123 Userprofile name(<=15 chars)[root]:root User'sLevel:1. Common User2. Operator3. Administrator:3 //选择用户权限Permitted Reenter Number(0--4):4 //设置此用户名可重复登录次数,一般选择 4 User's Appended Info(<=30 chars):HuaweiAdm // 添加描述,可不设置。
Adding user succeedsRepeat this operation? (y/n)[n]: (是否重复操作, N ) 第二创建 DBA ( Dynamically Bandwidth Assignment 动态带宽分配 )模版类型 (type)分为 5 种,分别是 type1,type2,type3,type4,type5. 其中://type1 为固定带宽模式;//type2 为保证带宽模式;//type3 为保证带宽的同时设置最大带宽值;//type4 为仅设定最大带宽模式;//type5 为 3 种模式的综合,即设置最大带宽,在保证带宽的同时采用固定带宽模式。

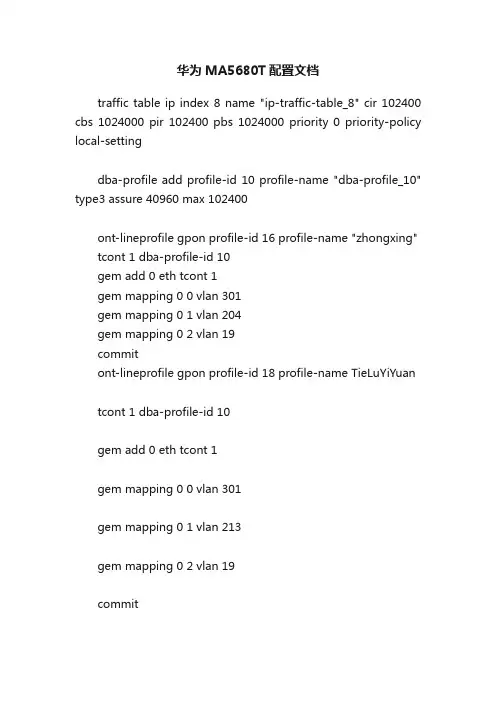

下面创建两个 DBA 模版dba-profile add profile-id 10 type4 max 307200 (保证 300M 带宽) dba-profile add profile-id 512 type2 assure 10240(保证 10M 带宽) 第三步: 创建链路模版, OUN 模版 MA5680T(config)# ont-lineprofile gpon profile-id 10 //建链路模版,并且绑定 DBA 模版10绑定 t-cont 与 DBA 模版 TCONT 1 绑定 DBA 为 10 模版建立 GEM port ,绑定相应的 TCONT 通道//gem port 1 绑定 TCONT 1//gem port 2 绑定 TCONT 1commit (提交,保存)第四步: 创建业务模版 // 设备命名 (一般为开局配置 )// 添加操作用户 huawei //设置用户名//要求输入密码 //要求再次确认一遍密码 //输入用户管理级别tcont 0 dba-profile-id 512 tcont 1 dba-profile-id 10tcont 2 dba-profile-id 10tcont 3 dba-profile-id 10tcont 4 dba-profile-id 10gem add 0 eth tcont 0 gem add 1 eth tcont 1 gem add 2 eth tcont 1 gem add 3 eth tcont 1gem add 4 eth tcont 1gem mapping 0 0 vlan 888 建立GEM Port 端口映射,这里使用索引号与vlan 映射。

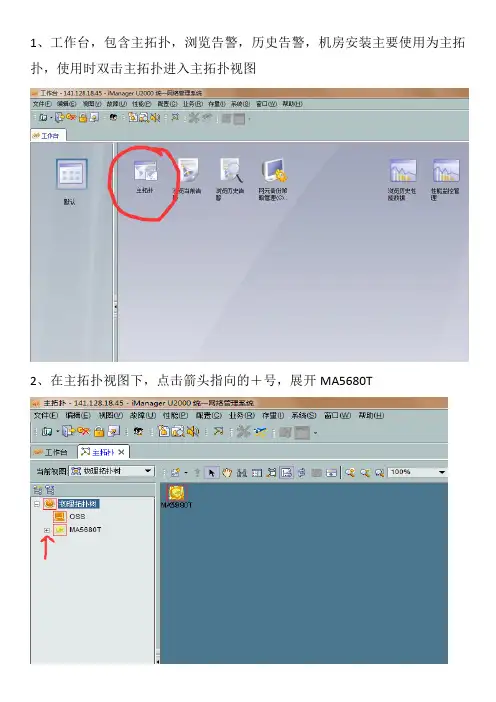

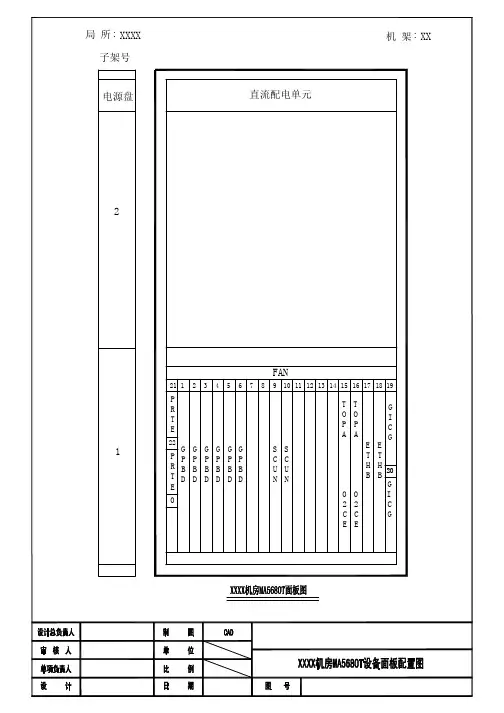

1、工作台,包含主拓扑,浏览告警,历史告警,机房安装主要使用为主拓扑,使用时双击主拓扑进入主拓扑视图2、在主拓扑视图下,点击箭头指向的+号,展开MA5680T3、继续展开MA5680T视图,4、双击框:0,进入西城5680T机框管理5、本视图为西城5680T机框直观视图6、红色箭头所示数字为业务板编号,其中01,02,03为宽带业务板,17为宽带上联板,18为语音上联板7、如需进行单板端口管理,如图所示,双击01板编号上方红色圆圈位置进入1号板端口管理,2号板、3号板端口管理以此类推。
8、进入端口管理视图,可以看到端口名称及别名,别名代表用户所在楼号及单元9、举例说明,如需安装8号楼1单元用户,单击别名8-1,端口所在变为蓝色,然后点击红色圆圈未注册ONU进行光猫注册10、红色箭头即为未注册的光猫,如有多个,请于安装人员联系核对序列号,序列号位于红色箭头所指区域,登记下终端类型11、在未注册ONU(即光猫)上右键单击会出现确认按键,左键单击确认。
12、确认后,出现确认ONU弹出窗口,需要填写4个地方,别名填写用户地址,格式为XCJY-51-2-13-DONG,代表小区-楼号-单元号-楼层-方向,线路模板点击数字2红色箭头所指位置,12M选,20M选,业务模板根据步骤10所示的终端类型选择,然后勾选数字4红色箭头所指(操作成功...),完成后点击确定。
13、点击当前界面红色圆圈区域,查看ServicePort信息。
14、点击当前界面红色圆圈区域内层VlanID按照顺序排列,如最后为2035,新装用户内层VLAN即为203615、点击当前界面红色圆圈区域ONU信息,进入ONU配置16、再次核对用户地址,点击别名所在ONU会变为蓝色,双击刚确认的ONU,进入ONU业务开通17、点击当前页面右下角红色箭头所指位置,进行开通业务18、上网业务SVLAN统一为100,内层VLAN为步骤14确定的数字,VLAN 切换选择Translate and Add,CVLAN按带宽填写,12M为1002,20M为1003,完成后点击右下角确定19、语音SVLAN统一为3000,内层VLAN不用填写,VLAN切换选择Translate,CVLAN统一为3000,完成后点击右下角确定20、如用户未开通电话,将语音及视频点击图示红色圆圈中×进行关闭,只保留上网业务。
1.1MA5680T/MA5683T(待补充)1、配置vlan(OLT侧)MA5680T(config)#vlan 1000 1009 smartMA5680T(config)#vlan 4000 commondMA5680T(config)#vlan attrib 1000 1009 q-in-qMA5680T(config)#port vlan 1000 1009 4000 0/19 02、配置线路相关模板MA5680T(config)#ont-lineprofile gpon profile-id 10 profile-name MDUMA5680T(config)#snmp-profile add profile-id 10 profile-name MDU V1 GPONpublic GPONprivate 162 n20003、配置相关业务的DBA模板MA5680T(config)#dba-profile add profile-id 10 profile-name NMS Type1 FIX 1024 ---网管MA5680T(config)#dba-profile add profile-id 11 profile-name PPPOE Type4 MAx 102400 ---PPPOEMA5680T(config)#dba-profile add profile-id 12 profile-name IMS Type3 Assure 1024 Max 10240 ---IMSMA5680T(config)#dba-profile add profile-id 13 profile-name IPTV Type4 MAx 102400 ---IPTVMA5680T(config)#dba-profile add profile-id 14 profile-name ZHUANXIAN Type3 Assure 5120 Max 102400 ---专线MA5680T(config)#dba-profile add profile-id 15 profile-name VPN Type3 Assure 5120 Max 102400 ---VPN4、增加ONT并绑定相关模板MA5680T(config-if-gpon-0/2)#ont add 0 5 sn-auth AC950C41 snmp ont-lineprofile-id 10MA5680T(config-if-gpon-0/2)#ont snmp-profile 0 all profile-id 105、配置tcont数据MA5680T(config-gpon-lineprofile-10)#tcont 0 dba-profile-id 10 ---网管MA5680T(config-gpon-lineprofile-10)#tcont 1 dba-profile-id 11 ---PPPOEMA5680T(config-gpon-lineprofile-10)#tcont 2 dba-profile-id 12 ---IMSMA5680T(config-gpon-lineprofile-10)#tcont 3 dba-profile-id 13 ---IPTVMA5680T(config-gpon-lineprofile-10)#tcont 4 dba-profile-id 14 ---专线MA5680T(config-gpon-lineprofile-10)#tcont 5 dba-profile-id 15 ---VPN6、配置gem数据MA5680T(config-gpon-lineprofile-10)#gem add 0 eth tcont 0 ---网管MA5680T(config-gpon-lineprofile-10)#gem add 1 eth tcont 1 ---PPPOEMA5680T(config-gpon-lineprofile-10)#gem add 2 eth tcont 2 ---IMSMA5680T(config-gpon-lineprofile-10)#gem add 3 eth tcont 3 ---IPTVMA5680T(config-gpon-lineprofile-10)#gem add 4 eth tcont 4 ---专线MA5680T(config-gpon-lineprofile-10)#gem add 5 eth tcont 5 ---VPN7、建立tcont和gem的映射MA5680T(config-gpon-lineprofile-10)#gem mapping 0 0 priority 7---网管MA5680T(config-gpon-lineprofile-10)#gem mapping 1 1 priority 0 ---PPPOEMA5680T(config-gpon-lineprofile-10)#gem mapping 2 2 priority 6 ---IMSMA5680T(config-gpon-lineprofile-10)#gem mapping 3 3 priority 3---IPTVMA5680T(config-gpon-lineprofile-10)#gem mapping 4 4 priority 1---专线MA5680T(config-gpon-lineprofile-10)#gem mapping 5 5 priority 2 ---VPN8、MA5680T(config-gpon-lineprofile-10)#commit9、自动发现ONT并配置网管数据和业务流MA5680T(config)#interface gpon 0/2MA5680T(config-if-gpon-0/2)#port 0 ont-auto-find enable 网管优限级进行配置MA5616(config)#protocol-8021p-pri 3 vlan xxx(网管VLAN)。
OLT带宽分配范本
1. 固定带宽:OLT会给ONU分配一个固定的带宽,比如100M,那么不管ONU用不用这100M或者够不够用,OLT都不再给ONU额外的带宽,其他的ONU也无法占用这100M。
如果是混合模式的,将超出的带宽进入保证带宽以及最大带宽中。
2.保证带宽:OLT给ONU分配一个保证带宽,比如100M,如果ONU需要的带宽不超过100M则可以保证ONU的带宽需求并且剩余的带宽可以释放,若ONU的需求超过100M则只能保证100M其他的数据会丢失。
3.最大带宽:没有带宽保证,在分配完其他ONU的固定带宽,保证带宽,非保证带宽之后才为这种类型的TCONT分配带宽,分配方法是尽力而为,自己竞争。
【备注】:
A. 优先级:固定带宽>保证带宽>最大带宽
B.带宽模板中算占用带宽的是固定带宽和保证带宽之和,而最大带宽不占用总带宽。
C. 在带宽分配的过程中都不能超出上行带宽上限,EPON和GPON的上行都是1.25G(理论值)。
D.按照EPON和GPON的带宽利用率的不同,EPON的真实上行最大带宽是856M,而GPON是1111M;下行带宽分配按照动态分配,使得带宽利用率更高。
**************************************************************************************
具体分配的带宽模板(EPON):【主推1:8分光】
【分光比为1/8】:"EPON1/8_10m+90m+150m" type5 固定带宽10240 保证带宽92160 最大带宽153600
[注释]:上行总带宽856,实际单个ONU分配的:10m+90m=100m。
【分光比为1/16】:"EPON1/16_5m+45m+80m" type5 固定带宽5120 保证带宽46080 最大带宽81920
[注释]:上行总带宽856,实际单个ONU分配的:5m+45m=50m。
【FTTH】:"FTTH_1m+9m+20m" type5 固定带宽1024 保证带宽9216 最大带宽20480
【备注】:当EPON的板子是EPBC或EPBD时不支持固定带宽,需将固定带宽加到保证带宽上,应用type3的类型。
***************************************************************************************
具体分配的带宽模板(GPON):【主推1:16分光】
【分光比为1/8】:"GPON1/8_PPPOE_100m+180m" type3 保证带宽102400 最大带宽184320
[注释]:上行总带宽1111m,外加分给语言/管理和2个VPN带宽共计30m,实际单个ONU数据分配的:100m。
【分光比为1/16】:"GPON1/16_PPPOE_45m+80m" type3保证带宽46080 最大带宽81920
[注释]:上行总带宽1111m,外加分给语言/管理和2个VPN带宽共计30m,实际单个ONU数据分配的:45m。
【FTTH】:"FTTH_1m+9m+20m" type5 固定带宽1024 保证带宽9216 最大带宽20480
【nms/viop】:"nms/viop _10m" type1 固定带宽10240 //管理和语言是要用固定带宽,确保实施性。
【VPN】:“VPN_10M” type2 保证带宽10240 //VPN用保证带宽,当没有数据流量的时候,带宽可以释放处理用于其他地方【备注】:
A.GPON的ONU带宽分配是线路模板下每个tcont对应带宽模板之和,例如:
dba-profile add profile-id 301 profile-name "GPON1/8_PPPOE_100m+180m" type3 assure 102400 max 184320
//建立一个分光比为1:8的数据拨号带宽模板100M。
dba-profile add profile-id 302 profile-name "nms/viop_10m" type1 fix 10240
//建立一个管理/语言带宽模板,为固定带宽10m。
dba-profile add profile-id 303 profile-name "VPN" type2 assure 10240
//建立一个VPN带宽模板,为保证带宽10m。
ont-lineprofile gpon profile-id 301 profile-name "GPON1/8"
tcont 1 dba-profile-id 302 //管理、语言分配带宽为10m
tcont 2 dba-profile-id 301 //数据分配带宽为100m
tcont 3 dba-profile-id 303 //VPN组1分配带宽为10m
tcont 4 dba-profile-id 303 //VPN组2分配带宽为10m
gem add 0 eth tcont 1 cascade on
gem add 1 eth tcont 2 cascade on
gem add 2 eth tcont 3 cascade on
gem add 3 eth tcont 4 cascade on
gem mapping 0 1 vlan 2611 //管理
gem mapping 0 2 vlan 2711 //语言
gem mapping 1 1 vlan 2206 //PPPOE
gem mapping 1 2 vlan 2159 //PPPOE
gem mapping 1 3 vlan 2232 //PPPOE
gem mapping 1 4 vlan 339 //PPPOE
gem mapping 2 0 vlan 522 //VPN。
gem mapping 2 7 vlan 835 //VPN
gem mapping 3 0 vlan 933 //VPN
.。
gem mapping 3 7 vlan 1180 //VPN
commit
那这个线路模板的总带宽是10m+100m+10m+10m=130m,当一个ONU引用了这个线路模板时,即这个ONU的带宽为130m。
按照一个PON口上行1111m带宽分配,刚好8个ONU,还剩余64m被最大带宽使用了。
