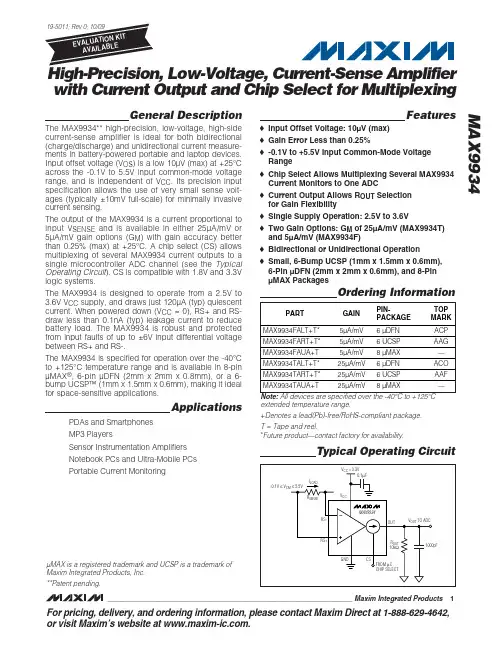

High-Precision, Low-Voltage, Current-Sense Amplifier with Current Output and Chip Select for Multiplexing MAX9934
ABSOLUTE MAXIMUM RATINGS
RS+, RS- to GND......................................................-0.3V to +6V VCC to GND ..............................................................-0.3V to +4V CS, OUT to GND (VCC = 0, or CS < VIL)..................-0.3V to +4V OUT to GND (CS > VIH)................................-0.3V to VCC + 0.3V Differential Input Voltage (RS+ - RS-) ....................................±6V Output Short-Circuit Current Duration OUT to GND or VCC ...............................................Continuous Continuous Input Current into Any Terminal.....................±20mA Continuous Power Dissipation (TA = +70°C) 8-Pin µMAX (derate multilayer 4.8mW/°C above +70°C).............................................................388mW Junction-to-Ambient Thermal Resistance (θJA) (Note 1) ....................................................................206°C/W Junction-to-Case Thermal Resistance (θJC) (Note 1) ......................................................................42°C/W 6-Pin µDFN (derate multilayer 4.5mW/°C above +70°C)..........................................................357.8mW Junction-to-Ambient Thermal Resistance (θJA) (Note 1 ) ................................................................223.6°C/W Junction-to-Case Thermal Resistance (θJA) (Note 1) ....................................................................122°C/W 6-Bump UCSP (derate multilayer 3.9mW/°C above +70°C).............................................................308mW Junction-to-Ambient Thermal Resistance (θJA) (Note 1) ....................................................................260°C/W Operating Temperature Range .........................-40°C to +125°C Junction Temperature ......................................................+150°C Storage Temperature Range .............................-65°C to +160°C Lead Temperature (soldering, 10s) .................................+300°C Reflow Soldering Temperature (UCSP, µDFN, and µMAX) ..........................................................................+260°C

ltc3789芯片中文资料及推荐参数LTC3789 是一款高性能、降压-升压型开关稳压控制器，可以在输入电压高于、低于或等于输出电压的情况下运作。

该器件运用了恒定频率、电流模式架构，故可提供一个高达600kHz 的可锁相频率，而一个输出电流反馈环路则提供了对电池充电的支持。

凭借4V 至38V （最大值为40V）的宽输入和输出范围以及工作区之间的无缝和低噪声转换，LTC3789 成为了汽车、电信和电池供电型系统的理想选择。

在降压或升压模式时，LTC3789 运用专有电流模式控制架构实现恒定频率工作，而且内置了4 个强大的N 沟道MOSFET 栅极驱动器。

LTC3789 还提供一个准确的恒定电流调节环路，用于在宽输入电压范围内调节输入或输出电流。

输入电流限制功能防止输入电源过载，输出电流限制为诸如电池充电器或LED 驱动器等稳定输出电流应用提供了非常容易的解决方案。

该器件在所有工作模式下为过压、过流和短路情况提供了故障保护。

此外，LTC3789 在停机时断开输入电压和输出电压的连接。

用户可以选择连续或脉冲跳跃模式，以最大限度地提高轻负载效率，并允许将IC 同步至一个外部时钟。

脉冲跳跃模式在轻负载条件下可实现最低的纹波，而强制连续模式则工作于一个恒定的频率以满足噪声敏感型应用的需要。

此外，LTC3789 具有可调软启动、电源良好输出，并在-40C 至125C 的工作结温范围内保持1.5% 的基准电压准确度。

当输出位于其设计设定点的10% 以内时，一个电源良好输出引脚将发生指示信号。

LTC3789 采用扁平的28 引脚4mm x 5mm QFN 封装和窄体SSOP 封装。

LTC3789引脚说明LTC3789引脚图1. VFB（PIN1/PIN26）：误差放大器反馈引脚。

LTC3789收到的反馈电压来自于外部电阻分压器输出的电压。

2. SS（PIN2/PIN27）：外部软启动输入引脚。

LTC3789调节VFB电压到较小的0.8V或SS 引脚上的电压。
