MSP430单片机入门例程MSP430单片机是一款低功耗、高性能的16位单片机，广泛应用于各种嵌入式系统。
下面是一个简单的MSP430单片机入门例程，可以让大家初步了解MSP430单片机的基本使用方法。
所需材料：1、MSP430单片机开发板2、MSP430单片机编译器3、MSP430单片机调试器4、电脑和相关软件步骤：1、安装MSP430单片机编译器首先需要安装MSP430单片机的编译器，该编译器可以将C语言代码编译成MSP430单片机可以执行的机器码。
在安装编译器时，需要选择与您的单片机型号匹配的编译器。
2、编写程序下面是一个简单的MSP430单片机程序，可以让LED灯闪烁：c本文include <msp430.h>int main(void)本文P1DIR |= 0x01; //设置P1.0为输出while(1){P1OUT ^= 0x01; //反转P1.0的状态，LED闪烁__delay_cycles(); //延时一段时间，控制闪烁频率}本文上述程序中，首先定义了P1DIR寄存器，将P1.0设置为输出。
然后进入一个无限循环，在循环中反转P1.0的状态，使LED闪烁。
使用__delay_cycles()函数实现延时，控制LED闪烁频率。
3、编译程序使用MSP430单片机编译器将程序编译成机器码，生成可执行文件。
在编译时，需要注意选择正确的编译器选项和单片机型号。
4、调试程序使用MSP430单片机调试器将可执行文件下载到单片机中，并使用调试器进行调试。
在调试时，可以观察单片机的输出口状态和LED灯的闪烁情况，确保程序正常运行。
随着嵌入式系统的发展，MSP430单片机作为一种低功耗、高性能的微控制器，在各种应用领域中得到了广泛的应用。
为了更好地理解和应用MSP430单片机，我在学习过程中积累了一些经验，现在分享给大家。
MSP430单片机是一种超低功耗的微控制器，由德州仪器（Texas Instruments）推出。

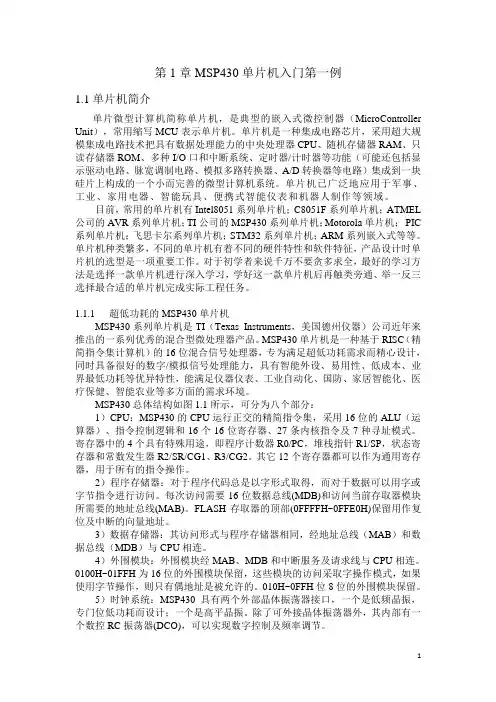

第1章MSP430单片机入门第一例1.1单片机简介单片微型计算机简称单片机，是典型的嵌入式微控制器（MicroController Unit），常用缩写MCU表示单片机。
单片机是一种集成电路芯片，采用超大规模集成电路技术把具有数据处理能力的中央处理器CPU、随机存储器RAM、只读存储器ROM、多种I/O口和中断系统、定时器/计时器等功能（可能还包括显示驱动电路、脉宽调制电路、模拟多路转换器、A/D转换器等电路）集成到一块硅片上构成的一个小而完善的微型计算机系统。
单片机已广泛地应用于军事、工业、家用电器、智能玩具、便携式智能仪表和机器人制作等领域。
目前，常用的单片机有Intel8051系列单片机；C8051F系列单片机；ATMEL 公司的AVR系列单片机；TI公司的MSP430系列单片机；Motorola单片机；PIC 系列单片机；飞思卡尔系列单片机；STM32系列单片机；ARM系列嵌入式等等。
单片机种类繁多，不同的单片机有着不同的硬件特性和软件特征，产品设计时单片机的选型是一项重要工作。
对于初学者来说千万不要贪多求全，最好的学习方法是选择一款单片机进行深入学习，学好这一款单片机后再触类旁通、举一反三选择最合适的单片机完成实际工程任务。
1.1.1超低功耗的MSP430单片机MSP430系列单片机是TI（Texas Instruments，美国德州仪器）公司近年来推出的一系列优秀的混合型微处理器产品。
MSP430单片机是一种基于RISC（精简指令集计算机）的16位混合信号处理器，专为满足超低功耗需求而精心设计，同时具备很好的数字/模拟信号处理能力，具有智能外设、易用性、低成本、业界最低功耗等优异特性，能满足仪器仪表、工业自动化、国防、家居智能化、医疗保健、智能农业等多方面的需求环境。
MSP430总体结构如图1.1所示，可分为八个部分：1）CPU：MSP430的CPU运行正交的精简指令集，采用16位的ALU（运算器）、指令控制逻辑和16个16位寄存器、27条内核指令及7种寻址模式。
