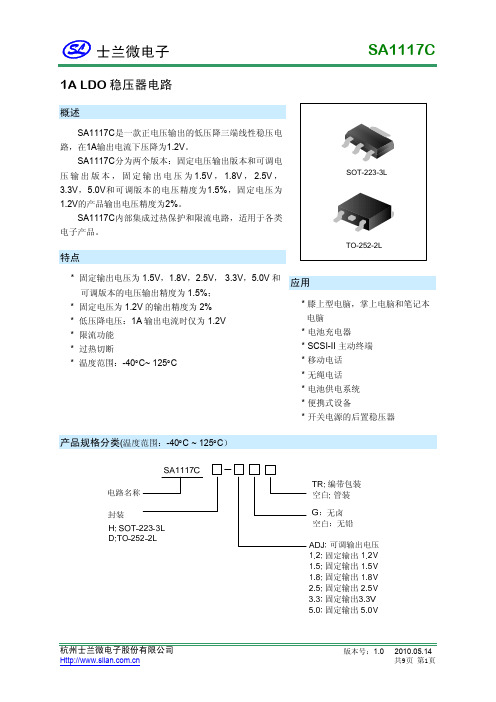

SA1117C1A LDO 稳压器电路概述SA1117C是一款正电压输出的低压降三端线性稳压电 路，在1A输出电流下压降为1.2V。
SA1117C分为两个版本：固定电压输出版本和可调电 压 输 出 版 本 ， 固 定 输 出 电 压 为 1.5V ， 1.8V ， 2.5V ， 3.3V ， 5.0V 和可调版本的电压精度为 1.5% ，固定电压为 1.2V的产品输出电压精度为2%。
SA1117C内部集成过热保护和限流电路，适用于各类 电子产品。
TO-252-2L SOT-223-3L特点* 固定输出电压为 1.5V，1.8V，2.5V， 3.3V，5.0V 和 可调版本的电压输出精度为 1.5%； * 固定电压为 1.2V 的输出精度为 2% * 低压降电压：1A 输出电流时仅为 1.2V * 限流功能 * 过热切断 * 温度范围：-40°C~ 125°C应用* 膝上型电脑，掌上电脑和笔记本 电脑 * 电池充电器 * SCSI-II 主动终端 * 移动电话 * 无绳电话 * 电池供电系统 * 便携式设备 * 开关电源的后置稳压器产品规格分类(温度范围：-40°C ~ 125°C）杭州士兰微电子股份有限公司版本号：1.02010.05.14 共9页 第1页SA1117C产品名称 SA1117CH-ADJTR SA1117CH-1.2TR SA1117CH-1.5TR SA1117CH-1.8TR SA1117CH-2.5TR SA1117CH-3.3TR SA1117CH-5.0TR SA1117CD-ADJ SA1117CD-ADJTR SA1117CD-1.2 SA1117CD-1.2TR SA1117CD-1.5 SA1117CD-1.5TR SA1117CD-1.8 SA1117CD-1.8TR SA1117CD-2.5 SA1117CD-2.5TR SA1117CD-3.3 SA1117CD-3.3TR SA1117CD-5.0 SA1117CD-5.0TR TO-252-2L SOT-223-3L 封 装 打印名称 SA1117CH-ADJ SA1117CH-1.2 SA1117CH-1.5 SA1117CH-1.8 SA1117CH-2.5 SA1117CH-3.3 SA1117CH-5.0 SA1117CD-ADJ SA1117CD-ADJ SA1117CD-1.2 SA1117CD-1.2 SA1117CD-1.5 SA1117CD-1.5 SA1117CD-1.8 SA1117CD-1.8 SA1117CD-2.5 SA1117CD-2.5 SA1117CD-3.3 SA1117CD-3.3 SA1117CD-5.0 SA1117CD-5.0 材料 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 无铅 包装 编带 编带 编带 编带 编带 编带 编带 料管 编带 料管 编带 料管 编带 料管 编带 料管 编带 料管 编带 料管 编带杭州士兰微电子股份有限公司版本号：1.02010.05.14 共9页 第2页SA1117C内部框图3VINTSDCurrent Limit VOUT Fixed: F1 and F2 connect, disconnect A F2 A Adj: A connect, F1 and F2 disconnect 1 ADJ/GNDBandGap F12极限参数参 输入工作电压 引脚温度 (焊接5秒) 工作结温范围 储存温度 功耗 ESD能力 (最小值) 数 符号 VIN TLead TJ Tstg PD ESD 范 围 单位 V °C °C °C mW V15 260 150 -65 ~ +150 内部限制 (注1) 2000注1：最大允许功耗是最大工作结温TJ (max)，结对空热阻θJA 和环境温度Tamb的函数。
