330R272U075HT2中文资料

  • 格式：pdf
  • 大小：369.38 KB
  • 文档页数：5

10,000 h at full load at 85 °C ∆ Capacitance ±20% ESR 200% of limit DCL 100% of limit500 h at 105 °C, capacitance, ESR and DCL, initial requirementsHigh Ripple and Ultra-Long LifeThe Type 330 is the ultra-long-life version of the Type 300 capacitor. With an astonishing, 50,000-hour expected life operating continuously at full load and 65 ºC the 330 is the choice for power supply outputs and UPS battery stiffening. The exceptionally low ESRs enable high ripple-current capability. With series inductance of 12 to 16 nH and ripple currents to 16 amps one of these capacitors can save by replacing three or four of the 12.5 mm diameter capacitors routinely at the output of switching power supplies. Type 330 R delivers even lower ESR and higher ripple. Type 330 has three leads for rugged, reverse-proof mounting. Two leads are available as Types 331 and 331R.Highlights• Expected Life > 20 years @ 45 °C • Ripple Current to 16 amps • ESRs to 6 mΩ• > 90% capacitance at –40 °C • Replaces multiple capacitorsSpecificationsOperating Temperature:Rated Voltage:Capacitance:Capacitance Tolerance:Leakage Current:Cold Impedance:Ripple Current Multipliers:Frequency–55 °C to +105 °C 6.3 to 250 Vdc270 µF to 33,000 µF6.3 to 100 Vdc; –10 + 75%, 160 to 250 Vdc; –10 + 50%–55 °C multiple of 25 °C Z ≤ 4 for 6.3 &7.5 V, 3 for 10 to 50 V, 2 for > 50 VAmbient Temperature45 °C 55 °C 65 °C 75 °C 85 °C 95 °C 105 °C 1.661.521.371.201.000.750.3650 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz 10 kHz & up.77” Diameter 6.3 & 7.5 V 0.820.86 1.00 1.15 1.21 1.24 1.2510 to 40 V 0.780.83 1.00 1.20 1.30 1.35 1.3650V 0.760.81 1.00 1.25 1.38 1.45 1.4763 & 75 V 0.740.80 1.00 1.28 1.43 1.52 1.54100 to 250 V 0.760.811.001.241.371.441.46.895” Diameter 6.3 & 7.5 V 0.820.86 1.00 1.14 1.20 1.23 1.2410 to 40 V 0.800.84 1.00 1.17 1.25 1.29 1.3050V 0.750.80 1.00 1.27 1.42 1.50 1.5263 & 75 V 0.750.80 1.00 1.26 1.40 1.48 1.50100 to 250 V 0.760.811.001.251.381.461.481.02” Diameter 6.3 & 7.5 V 0.840.88 1.00 1.12 1.17 1.19 1.2010 to 40 V 0.810.86 1.00 1.15 1.22 1.25 1.2650V 0.760.81 1.00 1.23 1.35 1.42 1.4463 & 75 V 0.770.81 1.00 1.23 1.35 1.42 1.44100 to 250 V0.760.811.001.241.371.441.46Load Life:Shelf Life:Complies with the EU Directive 2002/95/EC requirementrestricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).Outline Drawings Case DimensionsPart Numbering System330R TypeEEpoxy2InsulationJSCase Code6R3VoltageUTolerance333Capacitance(blank) = no epoxyE = Epoxyendseal0 = Bare Can1 = Polyester2 = PVC8 = PVC w/ Standoffs9 = Polyester w/ Stand-offs6R3 = 6.3 V063 = 63 V100 = 100 VM = ±20%T = –10% +50%U = –10 +75%100 = 10 µF102 = 1000 µF330 - 3 leads330R - 3 leadsLow ESR331 - 2 leads331R - 2 leads, Low ESR 331A - Laydown 3 leadsSee RatingInsulatedD ± 0.015 (0.4 mm) L ± 0.062 (1.6 mm)EpoxyendsealL MaxBare CanD ± 0.015 (0.4 mm)L ± 0.030 (0.8 mm)Lead SpacingLeaddia.DiameterAWGCase CodeType 330 Type 331S1 T S2D x L D x L 0.020 (0.5 mm) 0.020 (0.5 mm)Case Dimensions in InchesGT 0.765 x 3.650 3.7120.750 x 3.625 0.2000.3000.3000.04018 HP 0.890 x 2.650 2.7120.875 x 2.625 0.3000.4000.3000.04018 HS 0.890 x 3.150 3.2120.875 x 3.125 0.3000.4000.3000.04018 HT 0.890 x 3.650 3.7120.875 x 3.625 0.3000.4000.3000.04018 JL 1.015 x 2.150 2.212 1.000 x 2.125 0.3000.4000.4000.04018 JP 1.015 x 2.650 2.712 1.000 x 2.625 0.3000.4000.4000.04018 JS 1.015 x 3.150 3.212 1.000 x 3.125 0.3000.4000.4000.04018 JT 1.015 x 3.650 3.712 1.000 x 3.625 0.3000.4000.4000.04018 Case Dimensions in MillimetersGT 19.4 x 92.7 94.319.1 x 92.1 5.087.627.62 1.0218 HP 22.6 x 67.3 68.922.2 x 66.7 7.6210.167.62 1.0218 HS 22.6 x 80.0 81.622.2 x 79.4 7.6210.167.62 1.0218 HT 22.6 X 92.7 94.322.2 X 92.1 7.6210.167.62 1.0218 JL 25.8 x 54.6 56.225.4 x 54.0 7.6210.1610.16 1.0218 JP 25.8 x 67.3 68.925.4 x 66.7 7.6210.1610.16 1.0218 JS 25.8 x 80.0 81.625.4 x 79.4 7.6210.1610.16 1.0218 JT 25.8 x 92.7 94.325.4 x 92.1 7.6210.1610.16 1.0218Typical Performance Curve RatingsESR Max.25 ºC120 Hz 20 kHzRipple Amps,Max. 85 ºC120 Hz 20 kHzNominalSizeD X L(in)Cap. (µF)CatalogPart Number(mΩ)(mΩ)(A)(A)6.3 Vdc (9 Vdc Surge)150********U6R3GT2 26.615.17.108.860.77 X 3.65 15000330R153U6R3GT2 23.013.17.629.520.77 X 3.65 150********U6R3HP2 27.116.5 6.577.930.895 X 2.65 15000330R153U6R3HP2 19.511.37.759.600.895 X 2.65 180********U6R3JL2 29.620.1 6.08 6.95 1.02 X 2.15 18000330R183U6R3JL2 19.110.97.579.45 1.02 X 2.15 22000330223U6R3HS2 22.413.77.889.510.895 X 3.15 22000330R223U6R3HS2 15.99.29.3511.600.895 X 3.15 22000330223U6R3JP2 23.015.67.668.75 1.02 X 2.65 22000330R223U6R3JP2 14.78.49.5912.00 1.02 X 2.65 27000330273U6R3HT2 19.411.99.0410.900.895 X 3.65 27000330R273U6R3HT2 13.67.910.8013.400.895 X 3.65 27000330273U6R3JS2 19.213.09.1110.40 1.02 X 3.15 27000330R273U6R3JS2 15.18.610.3012.80 1.02 X 3.15 33000330333U6R3JT2 16.711.410.5012.00 1.02 X 3.65 33000330R333U6R3JT2 10.4 5.913.3016.60 1.02 X 3.657.5 Vdc (10 Vdc Surge)12000330123U7R5GT2 27.215.07.018.910.77 X 3.65 12000330R123U7R5GT2 23.613.07.539.570.77 X 3.65 150********U7R5HP2 27.716.6 6.507.910.895 X 2.65 15000330R153U7R5HP2 20.011.07.659.730.895 X 2.65 150********U7R5JL2 30.119.9 6.02 6.99 1.02 X 2.15 15000330R153U7R5JL2 19.610.97.479.41 1.02 X 2.15 180********U7R5HS2 22.913.87.799.480.895 X 3.15 18000330R183U7R5HS2 16.39.09.2311.740.895 X 3.15 22000330223U7R5HT2 19.811.98.9510.890.895 X 3.65 22000330R223U7R5HT2 13.97.710.7013.600.895 X 3.65 22000330223U7R5JP2 23.415.57.598.80 1.02 X 2.65 22000330R223U7R5JP2 15.08.49.4711.90 1.02 X 2.65 27000330273U7R5JS2 19.512.99.0310.50 1.02 X 3.15 27000330R273U7R5JS2 15.58.710.1012.80 1.02 X 3.15ESR Max.25 ºC120 Hz 20 kHzRipple Amps,Max. 85 ºC120 Hz 20 kHzNominalSizeD X L(in) Cap.(µF)CatalogPart Number(mΩ)(mΩ)(A)(A)7.5 Vdc (10 Vdc Surge) (cont'd.)33000330333U7R5JT2 17.011.210.4012.10 1.02 X 3.65 33000330R333U7R5JT2 10.6 5.913.1016.60 1.02 X 3.6510 Vdc (15 Vdc Surge)12000330123U010GT2 28.315.0 6.888.910.77 X 3.65 12000330R123U010GT2 24.513.07.399.570.77 X 3.65 12000330123U010HP2 28.716.6 6.397.910.895 X 2.65 12000330R123U010HP2 20.811.57.499.530.895 X 2.65 12000330123U010JL2 31.019.9 5.93 6.99 1.02 X 2.15 12000330R123U010JL2 20.311.47.339.23 1.02 X 2.15 150********U010HS2 23.713.77.669.490.895 X 3.15 15000330R153U010HS2 17.09.39.0511.500.895 X 3.15 180********U010HT2 20.511.98.8110.900.895 X 3.65 18000330R183U010HT2 14.58.010.5013.300.895 X 3.65 180********U010JP2 24.115.47.488.81 1.02 X 2.65 18000330R183U010JP2 15.68.79.2911.70 1.02 X 2.65 22000330223U010JS2 20.112.88.9010.50 1.02 X 3.15 22000330R223U010JS2 16.19.09.9412.50 1.02 X 3.15 27000330273U010JT2 17.511.210.3012.10 1.02 X 3.65 27000330R273U010JT2 11.0 6.212.9016.30 1.02 X 3.6516 Vdc (25 Vdc Surge)10000330103U016GT2 29.214.9 6.778.940.77 X 3.65 10000330R103U016GT2 25.312.97.279.600.77 X 3.65 10000330103U016HP2 29.517.1 6.307.790.895 X 2.65 10000330R103U016HP2 21.611.97.369.360.895 X 2.65 10000330103U016JL2 31.819.7 5.867.01 1.02 X 2.15 10000330R103U016JL2 21.011.17.219.33 1.02 X 2.15 12000330123U016HS2 24.414.17.559.350.895 X 3.15 12000330R123U016HS2 17.69.78.8911.300.895 X 3.15 150********U016HT2 21.112.28.6910.800.895 X 3.65 15000330R153U016HT2 15.08.210.3013.100.895 X 3.65 150********U016JP2 24.715.37.398.85 1.02 X 2.65RoHS Compliant(in) (µF) Part Number(mΩ)(mΩ)(A)(A)16 Vdc (25 Vdc Surge) (cont'd.)15000330R153U016JP2 16.18.59.1411.80 1.02 X 2.65180********U016JS2 20.512.78.8010.50 1.02 X 3.1518000330R183U016JS2 16.68.89.7912.70 1.02 X 3.1522000330223U016JT2 17.911.110.1012.10 1.02 X 3.6522000330R223U016JT2 11.4 6.012.7016.50 1.02 X 3.6520 Vdc (30 Vdc Surge)8200330822U020GT2 29.214.9 6.778.940.77 X 3.658200330R822U020GT2 25.312.97.279.600.77 X 3.658200330822U020HP2 29.516.5 6.307.930.895 X 2.658200330R822U020HP2 21.612.17.369.280.895 X 2.658200330822U020JL2 31.820.1 5.86 6.96 1.02 X 2.158200330R822U020JL2 21.011.17.219.33 1.02 X 2.1510000330103U020HS2 24.413.77.559.520.895 X 3.1510000330R103U020HS2 17.69.88.8911.200.895 X 3.1512000330123U020HT2 21.111.88.6910.900.895 X 3.6512000330R123U020HT2 15.08.410.3013.000.895 X 3.6512000330123U020JP2 24.715.67.398.77 1.02 X 2.6512000330R123U020JP2 16.18.59.1411.80 1.02 X 2.65150********U020JS2 20.512.98.8010.50 1.02 X 3.1515000330R153U020JS2 13.27.011.0014.20 1.02 X 3.15180********U020JT2 17.911.210.1012.00 1.02 X 3.6518000330R183U020JT2 11.4 6.012.7016.50 1.02 X 3.6525 Vdc (35 Vdc Surge)6800330682U025GT2 31.215.0 6.558.910.77 X 3.656800330R682U025GT2 27.013.07.049.580.77 X 3.656800330682U025HP2 31.316.6 6.117.910.895 X 2.656800330R682U025HP2 23.110.97.119.770.895 X 2.656800330682U025JL2 33.520.1 5.71 6.94 1.02 X 2.156800330R682U025JL2 22.511.3 6.969.29 1.02 X 2.158200330822U025HS2 25.813.77.349.500.895 X 3.158200330R822U025HS2 18.98.98.5911.800.895 X 3.1510000330103U025HT2 22.311.88.4510.900.895 X 3.6510000330R103U025HT2 16.07.59.9613.700.895 X 3.6510000330103U025JP2 26.015.67.208.77 1.02 X 2.6510000330R103U025JP2 17.28.68.8411.80 1.02 X 2.6512000330123U025JS2 21.612.98.5910.50 1.02 X 3.1512000330R123U025JS2 14.17.110.6014.10 1.02 X 3.15150********U025JT2 18.711.29.9012.10 1.02 X 3.6515000330R153U025JT2 12.1 6.012.3016.40 1.02 X 3.6540 Vdc (60 Vdc Surge)4700330472U040GT2 36.416.4 6.068.520.77 X 3.654700330R472U040GT2 31.614.2 6.519.150.77 X 3.654700330472U040HP2 36.217.4 5.687.730.895 X 2.654700330R472U040HP2 27.412.0 6.549.290.895 X 2.654700330472U040JL2 38.120.9 5.35 6.81 1.02 X 2.154700330R472U040JL2 26.512.2 6.428.93 1.02 X 2.15(in) (µF) Part Number(mΩ)(mΩ)(A)(A)40 Vdc (60 Vdc Surge) (cont'd.)5600330562U040HS2 29.714.3 6.849.310.895 X 3.155600330R562U040HS2 22.29.87.9111.200.895 X 3.156800330682U040HT2 25.512.37.8910.700.895 X 3.656800330R682U040HT2 18.98.39.1813.100.895 X 3.656800330682U040JP2 29.416.2 6.778.61 1.02 X 2.656800330R682U040JP2 20.29.38.1711.40 1.02 X 2.658200330822U040JS2 24.313.48.0910.30 1.02 X 3.158200330R822U040JS2 16.57.69.8213.60 1.02 X 3.1510000330103U040JT2 21.011.59.3511.90 1.02 X 3.6510000330R103U040JT2 14.1 6.511.4015.90 1.02 X 3.6550 Vdc (75 Vdc Surge)3300330332U050GT2 44.316.4 5.498.520.77 X 3.653300330R332U050GT2 38.414.2 5.909.150.77 X 3.653300330332U050HP2 43.517.8 5.187.630.895 X 2.653300330R332U050HP2 33.712.1 5.899.260.895 X 2.653900330392U050JL2 44.921.6 4.93 6.71 1.02 X 2.153900330R392U050JL2 32.412.6 5.818.77 1.02 X 2.154700330472U050HS2 35.614.6 6.259.210.895 X 3.154700330R472U050HS2 27.39.87.1411.200.895 X 3.155600330562U050HT2 30.412.57.2310.600.895 X 3.655600330R562U050HT2 23.18.38.3013.000.895 X 3.655600330562U050JP2 34.516.6 6.258.50 1.02 X 2.655600330R562U050JP2 24.69.67.4011.20 1.02 X 2.656800330682U050JS2 28.413.67.4810.20 1.02 X 3.156800330R682U050JS2 20.07.88.9113.40 1.02 X 3.158200330822U050JT2 24.411.78.6711.80 1.02 X 3.658200330R822U050JT2 17.0 6.610.4015.70 1.02 X 3.6563 Vdc (90 Vdc Surge)2200330222U063GT2 49.616.4 5.198.530.77 X 3.652200330R222U063GT2 43.014.2 5.589.160.77 X 3.652700330272U063HP2 48.418.4 4.927.520.895 X 2.652700330R272U063HP2 37.912.5 5.559.110.895 X 2.652700330272U063JL2 49.521.8 4.70 6.68 1.02 X 2.152700330R272U063JL2 36.312.7 5.488.74 1.02 X 2.153300330332U063HS2 39.515.0 5.949.080.895 X 3.153300330R332U063HS2 30.710.1 6.7311.100.895 X 3.153900330392U063HT2 33.712.8 6.8710.500.895 X 3.653900330R392U063HT2 25.98.57.8412.900.895 X 3.653900330392U063JP2 37.916.7 5.968.47 1.02 X 2.653900330R392U063JP2 27.69.7 6.9911.10 1.02 X 2.654700330472U063JS2 31.113.77.1510.20 1.02 X 3.154700330R472U063JS2 22.47.88.4213.40 1.02 X 3.155600330562U063JT2 26.711.78.3011.80 1.02 X 3.655600330R562U063JT2 19.0 6.69.8315.70 1.02 X 3.6575 Vdc (100 Vdc Surge)1800330182U075GT2 62.727.0 4.62 6.640.77 X 3.65(in) (µF) Part Number(mΩ)(mΩ)(A)(A)75 Vdc (100 Vdc Surge) (cont'd.)1800330R182U075GT2 54.323.4 4.967.130.77 X 3.652200330222U075HP2 60.627.9 4.39 6.110.895 X 2.652200330R222U075HP2 48.520.9 4.917.060.895 X 2.652200330222U075JL2 60.830.4 4.24 5.65 1.02 X 2.152200330R222U075JL2 46.220.3 4.86 6.91 1.02 X 2.152700330272U075HS2 49.222.6 5.327.390.895 X 3.152700330R272U075HS2 39.116.8 5.968.570.895 X 3.152700330272U075HT2 41.819.2 6.178.580.895 X 3.652700330R272U075HT2 32.914.2 6.959.990.895 X 3.652700330272U075JP2 46.423.2 5.397.18 1.02 X 2.652700330R272U075JP2 35.015.4 6.218.82 1.02 X 2.653300330332U075JS2 37.919.0 6.478.63 1.02 X 3.153300330R332U075JS2 28.312.57.4910.60 1.02 X 3.153900330392U075JT2 32.416.27.5310.00 1.02 X 3.653900330R392U075JT2 23.910.58.7612.40 1.02 X 3.65100 Vdc (140 Vdc Surge)820330821U100GT2 99.537.8 3.67 5.610.77 X 3.65820330R821U100GT2 86.232.8 3.94 6.020.77 X 3.651000330102U100HP2 94.736.0 3.51 5.380.895 X 2.651000330R102U100HP2 78.129.7 3.87 5.920.895 X 2.651000330102U100JL2 92.737.1 3.43 5.12 1.02 X 2.151000330R102U100JL2 73.828.8 3.85 5.81 1.02 X 2.151200330122U100HS2 76.529.1 4.26 6.520.895 X 3.151200330R122U100HS2 62.823.9 4.717.200.895 X 3.151200330122U100HT2 64.524.5 4.967.590.895 X 3.651200330R122U100HT2 52.620.0 5.508.410.895 X 3.651200330122U100JP2 70.328.1 4.38 6.53 1.02 X 2.651200330R122U100JP2 55.721.7 4.927.43 1.02 X 2.651500330152U100JS2 57.022.8 5.287.87 1.02 X 3.151500330R152U100JS2 44.917.5 5.958.99 1.02 X 3.15(in) (µF) Part Number(mΩ)(mΩ)(A)(A)100 Vdc (140 Vdc Surge) (cont'd.)2200330222U100JT2 48.319.3 6.179.19 1.02 X 3.652200330R222U100JT2 37.714.7 6.9710.50 1.02 X 3.65160 Vdc (200 Vdc Surge)330330331T160GT2 306116 2.09 3.200.77 X 3.65390330391T160HP2 268102 2.09 3.190.895 X 2.65390330391T160JL2 278111 1.98 2.95 1.02 X 2.15470330471T160HS2 22685.7 2.48 3.800.895 X 3.15470330471T160JP2 22891.4 2.43 3.62 1.02 X 2.65560330561T160HT2 18971.8 2.90 4.440.895 X 3.65560330561T160JS2 18473.5 2.94 4.39 1.02 X 3.15680330681T160JT2 15461.6 3.45 5.15 1.02 X 3.65200 Vdc (250 Vdc Surge)330330331T200GT2 384177 1.87 2.590.77 X 3.65330330331T200HP2 358165 1.81 2.510.895 X 2.65390330391T200HS2 288132 2.20 3.060.895 X 3.15390330391T200JL2 339156 1.79 2.49 1.02 X 2.15470330471T200HT2 240111 2.57 3.570.895 X 3.65470330471T200JP2 255117 2.30 3.19 1.02 X 2.65560330561T200JS2 20594.4 2.78 3.87 1.02 X 3.15680330681T200JT2 17279.1 3.27 4.54 1.02 X 3.65250 Vdc (300 Vdc Surge)270330271T250GT2 455191 1.72 2.500.77 X 3.65270330271T250HP2 423178 1.66 2.420.895 X 2.65270330271T250JL2 400168 1.65 2.40 1.02 X 2.15330330331T250HS2 340143 2.02 2.940.895 X 3.15390330391T250HT2 284119 2.37 3.440.895 X 3.65390330391T250JP2 301126 2.12 3.08 1.02 X 2.65470330471T250JS2 242102 2.56 3.73 1.02 X 3.15560330561T250JT2 20285.0 3.01 4.38 1.02 X 3.65。

合集下载

SP730EK-3-075中文资料

SP730EK-3-075中文资料

DD is available in a small 3 pin SOT-23 package. Contact factory for other trip voltage options.TYPICAL APPLICATION CIRCUITV DD .................................................................................................6.0V All inputs and outputs w.r.t. GND ...............................-0.6 to V DD + 1.0V Storage Temperature ..................................................-65°C to +150°C Ambient Temperature with power applied.....................-65°C to +125°C ESD Protection on all pins............................................................≥2kVThese are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.V DD = 1.0V - 5.5V ; -40°C to 85°C. The ♦ denotes the specifications which apply over the full operating temperature range,unless otherwise specified.ABSOLUTE MAXIMUM RATINGSPIN DESCRIPTIONELECTRICAL CHARACTERISTICSFUNCTIONAL DIAGRAMTIMING DIAGRAM ArrayFigure 1: SP730 Timing DiagramTYPICAL PERFORMANCE CHARACTERISTICSTYPICAL PERFORMANCE CHARACTERISTICS3 PIN SOT-23TOP VIEWFRONT VIEWSIDE VIEWORDERING INFORMATIONPart number Top Mark Temperature Vout Package SP730EK-4-375...............V3WW................-40°-85°................4.375V...........3 Pin SOT-23 SP730EK-4-375/TR.........V3WW................-40°-85°................4.375V...........3 Pin SOT-23 SP730EK-3-075...............M4WW................-40°-85°...............3.075V...........3 Pin SOT-23 SP730EK-3-075/TR.........M4WW................-40°-85°................3.075V...........3 Pin SOT-23Contact factory for other trip voltage options./TR = Tape and ReelPack quantity is 2500 for SOT-23.Available in lead free packaging. To order add "-L" suffix to part number.Example: SP730EK-4-375/TR = standard; SP730EK-L-4-375/TR = lead free Sipex Corporation Headquarters and Sales Office233 South Hillview Drive Milpitas, CA 95035TEL: (408) 934-7500FAX: (408) 935-7600Solved By SipexTM。

ATV32H075M2

ATV32H075M2

免责声明：本文档不代表或不用于确定用于特定用户应用产品的适用性或可靠性产品参数表说明书ATV32H075M2ATV32变频器，单相200输入，0.55KW，带散热片主要信息产品系列Altivar 32产品类型变频器产品功能异步电机同步电机应用领域复杂机器可用功能-组装方式带散热片组件名称ATV32EMC 滤波器C2类EMC滤波器电网相数1 相额定电源电压 [Us]200...240 V - 15...10 %电源电压范围170...264 V 供电频率50...60 Hz - 5...5 %网络频率47.5...63 Hz电动机功率 (kW)0.75 kW 200...240 V 电机功率1 hp 200...240 V补充信息线路电流10.1 A 200 V 1 phase 0.75 kW 1 hp 8.5 A 240 V 1 phase 0.75 kW 1 hp 视在功率 2 kVA 240 V 1 phase 0.75 kW 1 hp 预期线路Isc <= 1 kA 1 phase额定输出电流 4.8 A 4 kHz 240 V 0.75 kW 1 hp 最大瞬变电流7.2 A 60 s 0.75 kW 1 hp 输出频率0.0005...0.599 kHz 额定开关频率 4 kHz开关频率 2...16 kHz 可调速度范围1...100 异步电机 在open-loop模式速度精度+/- 10 % 标称滑距 0.2 Tn 至 Tn扭矩精度+/- 15 %瞬时过转矩170...200 %制动力矩<= 170 % 带有制动电阻器异步电机控制配置文件电压/频率比，2点电压/频率比，5点无传感器矢量控制节能无传感器磁链矢量控制标准电压/频率比同步电机控制配置模式无传感器矢量控制调节回路可调的PID调节器电机滑差补偿自动 无论负载情况不可用电压/频率比（2 或 5 点）可调0…300 %本地信号指示 1 个LED 绿色 CANopen 运行1 个LED 红色 CANopen 错误1 个LED 红色 驱动故障1 个LED 红色 设备电压输出电压<= 电源电压噪音等级43 dB 86/188/EEC隔离电源与控制之间的电路电气连接螺钉终端 0.5...1.5 mm² AWG 18...AWG 14 控制可拆卸螺钉端子 1.5...2.5 mm² AWG 14...AWG 12 电机/制动电阻螺钉终端 1.5...4 mm² AWG 14...AWG 10 电源紧固扭矩0.5 N.m 4.4 lb/ft control0.7 N.m 7.1 lb/ft motor/braking resistor0.6 N.m 5.3 lb/ft power supply电源内部电源 用于参考电位计 (1 至 10 kOhm) 10.5 V 直流 +/- 5 % <= 10 mA 过载和短路保护模拟量输入数量3模拟量输入类型电压 AI1 0...10 V 直流 30000 Ω 10 位双极差分电压 AI2 +/- 10 V 直流 30000 Ω 10 位电流 AI3 0...20 mA (或 4-20 mA, x-20 mA, 20-x mA 或其他配置模式) 250 Ω 10 位采样期间 2 毫秒 AI1, AI2, AI3 模拟2 毫秒 AO1 模拟响应时间8 ms +/- 0.7 ms LI1...LI6 逻辑2 ms R1A, R1B, R1C relay2 ms R2A, R2C 继电器精度+/- 0.2 % AI1, AI2, AI3 温度为- 10…60°C+/- 0.5 % AI1, AI2, AI3 25°C的温度+/- 1 % AO1 25°C的温度+/- 2 % AO1 温度为- 10…60°C线性度误差+/- 0.2...0.5 % 最大值 AI1, AI2, AI3+/- 0.3 % AO1模拟量输出数量1模拟量输出 型号软件-可配置电流 AO1 0...20 mA 800 Ω 10 bits软件-可配置电压 AO1 0...10 V 470 Ω 10 bits离散量输出数量3输出型式Configurable relay logic R1A, R1B, R1C NO/NC 100000 cyclesConfigurable relay logic R2A, R2B NO 100000 cycles逻辑 LO最小开关电流 [Imin] 5 mA 24 V DC configurable relay logic最大开关电流 3 A 250 V AC resistive (cos phi = 1 R14 A 30 V DC resistive (cos phi = 1 R12 A 250 V AC inductive (cos phi = 0.4 R1, R22 A 30 V DC inductive (cos phi = 0.4 R1, R25 A 250 V AC resistive (cos phi = 1 R25 A 30 V DC resistive (cos phi = 1 R2离散量输入数量7数字量输入类型可编程（汇/源） LI1...LI4 24...30 V 直流 1 级 PLC可编程脉冲输入20 KPPS LI5 24...30 V 直流 1 级 PLC开关可配置 PTC 探头 LI6 24...30 V 直流Safe torque off STO 24...30 V DC 1500 Ohm离散量输入逻辑负逻辑 (漏) LI1...LI6 > 19 V < 13 V正逻辑(源) LI1...LI6 < 5 V > 11 V加速和减速倾斜SUCUS减速斜坡自动停止直流注入减速匝道适配器线性斜坡切换制动至停止采用直流注入保护类型输入断相 驱动输出相线和接地之间的过流 驱动过热保护 驱动电机各相线之间短路 驱动热保护 驱动通讯端口协议CANopenModbus端口类型 1 RJ45 Modbus/CANopen 前面板物理接口2线制RS485 Modbus传输帧RTU Modbus极化方式No impedance Modbus地址数 1...247 Modbus1...127 CANopen访问方法从（站） CANopen电磁兼容性抗射频场引起的传导波动 级别 3 IEC 61000-4-6电压下降与断路抑制测试 IEC 61000-4-111.2/50和8/20 µs复合波（测试） 级别 3 IEC 61000-4-5抗快速瞬变 级别 4 IEC 61000-4-4静电放电抗干扰 级别 3 IEC 61000-4-2射频电磁场辐射抗扰度试验 级别 3 IEC 61000-4-3宽度45 mm高度325 mm深度245 mm产品重量 2.4 kg选项卡通信卡 CANopen 雏菊链通信卡 CANopen open 类型通信卡 DeviceNet通信卡 Ethernet/IP通信卡 Profibus DP V1环境符合标准EN 55011 A 类第 1 组EN 61800-3 环境 1 级别 C2EN 61800-3 环境 2 级别 C2EN/IEC 61800-3EN/IEC 61800-5-1产品认证CSAC-TickGOSTNOM 117UL标识CE污染等级 2 EN/IEC 61800-5-1IP 保护等级IP20 EN/IEC 61800-5-1抗振动 1 gn 13...200 Hz EN/IEC 60068-2-6波峰至波峰 1.5 mm 3...13 Hz EN/IEC 60068-2-6抗冲击15 gn 11 ms EN/IEC 60068-2-27相对湿度 5...95 % 无冷凝 IEC 60068-2-35...95 % 无滴水 IEC 60068-2-3环境温度-10...50 °C 无降容50...60 °C 带降额因素贮存环境温度-25...70 °C工作海拔<= 1000 m 无降容1000...2000 m 电流降额 1%/100m操作位置垂直方向 +/- 10°可持续性产品类型绿色产品认证标志 产品RoHS法规（日期代码：YYWW）符合 - 自从 1007 - Schneider Electric declaration of conformitySchneider Electric declaration of conformityREACh法规有毒有害物质含量均在REACH规定的范围之内有毒有害物质含量均在REACH规定的范围之内环保符合性提供支持回收利用指南有合同保修阶段18 个月说明Altivar 32 驱动器是一种适用于 200…500 V 三相同步和异步电机的变频器，其中电机额定功率为 0.18 至 15 kW。

330R273U6R3HT2中文资料

330R273U6R3HT2中文资料

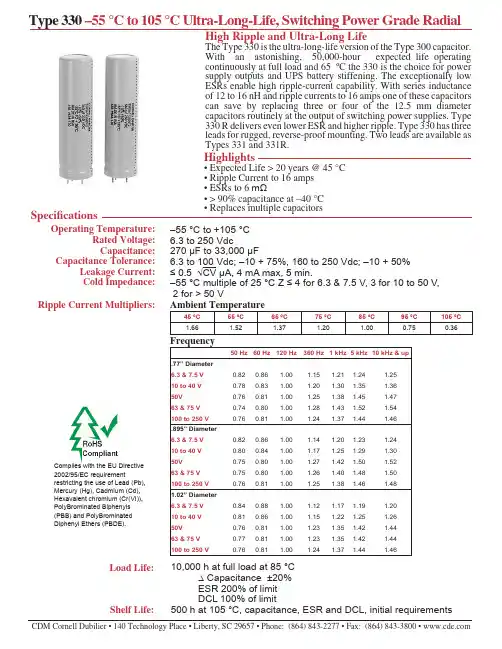

10,000 h at full load at 85 °C ∆ Capacitance ±20% ESR 200% of limit DCL 100% of limit500 h at 105 °C, capacitance, ESR and DCL, initial requirementsHigh Ripple and Ultra-Long LifeThe Type 330 is the ultra-long-life version of the Type 300 capacitor. With an astonishing, 50,000-hour expected life operating continuously at full load and 65 ºC the 330 is the choice for power supply outputs and UPS battery stiffening. The exceptionally low ESRs enable high ripple-current capability. With series inductance of 12 to 16 nH and ripple currents to 16 amps one of these capacitors can save by replacing three or four of the 12.5 mm diameter capacitors routinely at the output of switching power supplies. Type 330 R delivers even lower ESR and higher ripple. Type 330 has three leads for rugged, reverse-proof mounting. Two leads are available as Types 331 and 331R.Highlights• Expected Life > 20 years @ 45 °C • Ripple Current to 16 amps • ESRs to 6 mΩ• > 90% capacitance at –40 °C • Replaces multiple capacitorsSpecificationsOperating Temperature:Rated Voltage:Capacitance:Capacitance Tolerance:Leakage Current:Cold Impedance:Ripple Current Multipliers:Frequency–55 °C to +105 °C 6.3 to 250 Vdc270 µF to 33,000 µF6.3 to 100 Vdc; –10 + 75%, 160 to 250 Vdc; –10 + 50%–55 °C multiple of 25 °C Z ≤ 4 for 6.3 &7.5 V, 3 for 10 to 50 V, 2 for > 50 VAmbient Temperature45 °C 55 °C 65 °C 75 °C 85 °C 95 °C 105 °C 1.661.521.371.201.000.750.3650 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz 10 kHz & up.77” Diameter 6.3 & 7.5 V 0.820.86 1.00 1.15 1.21 1.24 1.2510 to 40 V 0.780.83 1.00 1.20 1.30 1.35 1.3650V 0.760.81 1.00 1.25 1.38 1.45 1.4763 & 75 V 0.740.80 1.00 1.28 1.43 1.52 1.54100 to 250 V 0.760.811.001.241.371.441.46.895” Diameter 6.3 & 7.5 V 0.820.86 1.00 1.14 1.20 1.23 1.2410 to 40 V 0.800.84 1.00 1.17 1.25 1.29 1.3050V 0.750.80 1.00 1.27 1.42 1.50 1.5263 & 75 V 0.750.80 1.00 1.26 1.40 1.48 1.50100 to 250 V 0.760.811.001.251.381.461.481.02” Diameter 6.3 & 7.5 V 0.840.88 1.00 1.12 1.17 1.19 1.2010 to 40 V 0.810.86 1.00 1.15 1.22 1.25 1.2650V 0.760.81 1.00 1.23 1.35 1.42 1.4463 & 75 V 0.770.81 1.00 1.23 1.35 1.42 1.44100 to 250 V0.760.811.001.241.371.441.46Load Life:Shelf Life:Complies with the EU Directive 2002/95/EC requirementrestricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).Outline Drawings Case DimensionsPart Numbering System330R TypeEEpoxy2InsulationJSCase Code6R3VoltageUTolerance333Capacitance(blank) = no epoxyE = Epoxyendseal0 = Bare Can1 = Polyester2 = PVC8 = PVC w/ Standoffs9 = Polyester w/ Stand-offs6R3 = 6.3 V063 = 63 V100 = 100 VM = ±20%T = –10% +50%U = –10 +75%100 = 10 µF102 = 1000 µF330 - 3 leads330R - 3 leadsLow ESR331 - 2 leads331R - 2 leads, Low ESR 331A - Laydown 3 leadsSee RatingInsulatedD ± 0.015 (0.4 mm) L ± 0.062 (1.6 mm)EpoxyendsealL MaxBare CanD ± 0.015 (0.4 mm)L ± 0.030 (0.8 mm)Lead SpacingLeaddia.DiameterAWGCase CodeType 330 Type 331S1 T S2D x L D x L 0.020 (0.5 mm) 0.020 (0.5 mm)Case Dimensions in InchesGT 0.765 x 3.650 3.7120.750 x 3.625 0.2000.3000.3000.04018 HP 0.890 x 2.650 2.7120.875 x 2.625 0.3000.4000.3000.04018 HS 0.890 x 3.150 3.2120.875 x 3.125 0.3000.4000.3000.04018 HT 0.890 x 3.650 3.7120.875 x 3.625 0.3000.4000.3000.04018 JL 1.015 x 2.150 2.212 1.000 x 2.125 0.3000.4000.4000.04018 JP 1.015 x 2.650 2.712 1.000 x 2.625 0.3000.4000.4000.04018 JS 1.015 x 3.150 3.212 1.000 x 3.125 0.3000.4000.4000.04018 JT 1.015 x 3.650 3.712 1.000 x 3.625 0.3000.4000.4000.04018 Case Dimensions in MillimetersGT 19.4 x 92.7 94.319.1 x 92.1 5.087.627.62 1.0218 HP 22.6 x 67.3 68.922.2 x 66.7 7.6210.167.62 1.0218 HS 22.6 x 80.0 81.622.2 x 79.4 7.6210.167.62 1.0218 HT 22.6 X 92.7 94.322.2 X 92.1 7.6210.167.62 1.0218 JL 25.8 x 54.6 56.225.4 x 54.0 7.6210.1610.16 1.0218 JP 25.8 x 67.3 68.925.4 x 66.7 7.6210.1610.16 1.0218 JS 25.8 x 80.0 81.625.4 x 79.4 7.6210.1610.16 1.0218 JT 25.8 x 92.7 94.325.4 x 92.1 7.6210.1610.16 1.0218Typical Performance Curve RatingsESR Max.25 ºC120 Hz 20 kHzRipple Amps,Max. 85 ºC120 Hz 20 kHzNominalSizeD X L(in)Cap. (µF)CatalogPart Number(mΩ)(mΩ)(A)(A)6.3 Vdc (9 Vdc Surge)150********U6R3GT2 26.615.17.108.860.77 X 3.65 15000330R153U6R3GT2 23.013.17.629.520.77 X 3.65 150********U6R3HP2 27.116.5 6.577.930.895 X 2.65 15000330R153U6R3HP2 19.511.37.759.600.895 X 2.65 180********U6R3JL2 29.620.1 6.08 6.95 1.02 X 2.15 18000330R183U6R3JL2 19.110.97.579.45 1.02 X 2.15 22000330223U6R3HS2 22.413.77.889.510.895 X 3.15 22000330R223U6R3HS2 15.99.29.3511.600.895 X 3.15 22000330223U6R3JP2 23.015.67.668.75 1.02 X 2.65 22000330R223U6R3JP2 14.78.49.5912.00 1.02 X 2.65 27000330273U6R3HT2 19.411.99.0410.900.895 X 3.65 27000330R273U6R3HT2 13.67.910.8013.400.895 X 3.65 27000330273U6R3JS2 19.213.09.1110.40 1.02 X 3.15 27000330R273U6R3JS2 15.18.610.3012.80 1.02 X 3.15 33000330333U6R3JT2 16.711.410.5012.00 1.02 X 3.65 33000330R333U6R3JT2 10.4 5.913.3016.60 1.02 X 3.657.5 Vdc (10 Vdc Surge)12000330123U7R5GT2 27.215.07.018.910.77 X 3.65 12000330R123U7R5GT2 23.613.07.539.570.77 X 3.65 150********U7R5HP2 27.716.6 6.507.910.895 X 2.65 15000330R153U7R5HP2 20.011.07.659.730.895 X 2.65 150********U7R5JL2 30.119.9 6.02 6.99 1.02 X 2.15 15000330R153U7R5JL2 19.610.97.479.41 1.02 X 2.15 180********U7R5HS2 22.913.87.799.480.895 X 3.15 18000330R183U7R5HS2 16.39.09.2311.740.895 X 3.15 22000330223U7R5HT2 19.811.98.9510.890.895 X 3.65 22000330R223U7R5HT2 13.97.710.7013.600.895 X 3.65 22000330223U7R5JP2 23.415.57.598.80 1.02 X 2.65 22000330R223U7R5JP2 15.08.49.4711.90 1.02 X 2.65 27000330273U7R5JS2 19.512.99.0310.50 1.02 X 3.15 27000330R273U7R5JS2 15.58.710.1012.80 1.02 X 3.15ESR Max.25 ºC120 Hz 20 kHzRipple Amps,Max. 85 ºC120 Hz 20 kHzNominalSizeD X L(in) Cap.(µF)CatalogPart Number(mΩ)(mΩ)(A)(A)7.5 Vdc (10 Vdc Surge) (cont'd.)33000330333U7R5JT2 17.011.210.4012.10 1.02 X 3.65 33000330R333U7R5JT2 10.6 5.913.1016.60 1.02 X 3.6510 Vdc (15 Vdc Surge)12000330123U010GT2 28.315.0 6.888.910.77 X 3.65 12000330R123U010GT2 24.513.07.399.570.77 X 3.65 12000330123U010HP2 28.716.6 6.397.910.895 X 2.65 12000330R123U010HP2 20.811.57.499.530.895 X 2.65 12000330123U010JL2 31.019.9 5.93 6.99 1.02 X 2.15 12000330R123U010JL2 20.311.47.339.23 1.02 X 2.15 150********U010HS2 23.713.77.669.490.895 X 3.15 15000330R153U010HS2 17.09.39.0511.500.895 X 3.15 180********U010HT2 20.511.98.8110.900.895 X 3.65 18000330R183U010HT2 14.58.010.5013.300.895 X 3.65 180********U010JP2 24.115.47.488.81 1.02 X 2.65 18000330R183U010JP2 15.68.79.2911.70 1.02 X 2.65 22000330223U010JS2 20.112.88.9010.50 1.02 X 3.15 22000330R223U010JS2 16.19.09.9412.50 1.02 X 3.15 27000330273U010JT2 17.511.210.3012.10 1.02 X 3.65 27000330R273U010JT2 11.0 6.212.9016.30 1.02 X 3.6516 Vdc (25 Vdc Surge)10000330103U016GT2 29.214.9 6.778.940.77 X 3.65 10000330R103U016GT2 25.312.97.279.600.77 X 3.65 10000330103U016HP2 29.517.1 6.307.790.895 X 2.65 10000330R103U016HP2 21.611.97.369.360.895 X 2.65 10000330103U016JL2 31.819.7 5.867.01 1.02 X 2.15 10000330R103U016JL2 21.011.17.219.33 1.02 X 2.15 12000330123U016HS2 24.414.17.559.350.895 X 3.15 12000330R123U016HS2 17.69.78.8911.300.895 X 3.15 150********U016HT2 21.112.28.6910.800.895 X 3.65 15000330R153U016HT2 15.08.210.3013.100.895 X 3.65 150********U016JP2 24.715.37.398.85 1.02 X 2.65RoHS Compliant(in) (µF) Part Number(mΩ)(mΩ)(A)(A)16 Vdc (25 Vdc Surge) (cont'd.)15000330R153U016JP2 16.18.59.1411.80 1.02 X 2.65180********U016JS2 20.512.78.8010.50 1.02 X 3.1518000330R183U016JS2 16.68.89.7912.70 1.02 X 3.1522000330223U016JT2 17.911.110.1012.10 1.02 X 3.6522000330R223U016JT2 11.4 6.012.7016.50 1.02 X 3.6520 Vdc (30 Vdc Surge)8200330822U020GT2 29.214.9 6.778.940.77 X 3.658200330R822U020GT2 25.312.97.279.600.77 X 3.658200330822U020HP2 29.516.5 6.307.930.895 X 2.658200330R822U020HP2 21.612.17.369.280.895 X 2.658200330822U020JL2 31.820.1 5.86 6.96 1.02 X 2.158200330R822U020JL2 21.011.17.219.33 1.02 X 2.1510000330103U020HS2 24.413.77.559.520.895 X 3.1510000330R103U020HS2 17.69.88.8911.200.895 X 3.1512000330123U020HT2 21.111.88.6910.900.895 X 3.6512000330R123U020HT2 15.08.410.3013.000.895 X 3.6512000330123U020JP2 24.715.67.398.77 1.02 X 2.6512000330R123U020JP2 16.18.59.1411.80 1.02 X 2.65150********U020JS2 20.512.98.8010.50 1.02 X 3.1515000330R153U020JS2 13.27.011.0014.20 1.02 X 3.15180********U020JT2 17.911.210.1012.00 1.02 X 3.6518000330R183U020JT2 11.4 6.012.7016.50 1.02 X 3.6525 Vdc (35 Vdc Surge)6800330682U025GT2 31.215.0 6.558.910.77 X 3.656800330R682U025GT2 27.013.07.049.580.77 X 3.656800330682U025HP2 31.316.6 6.117.910.895 X 2.656800330R682U025HP2 23.110.97.119.770.895 X 2.656800330682U025JL2 33.520.1 5.71 6.94 1.02 X 2.156800330R682U025JL2 22.511.3 6.969.29 1.02 X 2.158200330822U025HS2 25.813.77.349.500.895 X 3.158200330R822U025HS2 18.98.98.5911.800.895 X 3.1510000330103U025HT2 22.311.88.4510.900.895 X 3.6510000330R103U025HT2 16.07.59.9613.700.895 X 3.6510000330103U025JP2 26.015.67.208.77 1.02 X 2.6510000330R103U025JP2 17.28.68.8411.80 1.02 X 2.6512000330123U025JS2 21.612.98.5910.50 1.02 X 3.1512000330R123U025JS2 14.17.110.6014.10 1.02 X 3.15150********U025JT2 18.711.29.9012.10 1.02 X 3.6515000330R153U025JT2 12.1 6.012.3016.40 1.02 X 3.6540 Vdc (60 Vdc Surge)4700330472U040GT2 36.416.4 6.068.520.77 X 3.654700330R472U040GT2 31.614.2 6.519.150.77 X 3.654700330472U040HP2 36.217.4 5.687.730.895 X 2.654700330R472U040HP2 27.412.0 6.549.290.895 X 2.654700330472U040JL2 38.120.9 5.35 6.81 1.02 X 2.154700330R472U040JL2 26.512.2 6.428.93 1.02 X 2.15(in) (µF) Part Number(mΩ)(mΩ)(A)(A)40 Vdc (60 Vdc Surge) (cont'd.)5600330562U040HS2 29.714.3 6.849.310.895 X 3.155600330R562U040HS2 22.29.87.9111.200.895 X 3.156800330682U040HT2 25.512.37.8910.700.895 X 3.656800330R682U040HT2 18.98.39.1813.100.895 X 3.656800330682U040JP2 29.416.2 6.778.61 1.02 X 2.656800330R682U040JP2 20.29.38.1711.40 1.02 X 2.658200330822U040JS2 24.313.48.0910.30 1.02 X 3.158200330R822U040JS2 16.57.69.8213.60 1.02 X 3.1510000330103U040JT2 21.011.59.3511.90 1.02 X 3.6510000330R103U040JT2 14.1 6.511.4015.90 1.02 X 3.6550 Vdc (75 Vdc Surge)3300330332U050GT2 44.316.4 5.498.520.77 X 3.653300330R332U050GT2 38.414.2 5.909.150.77 X 3.653300330332U050HP2 43.517.8 5.187.630.895 X 2.653300330R332U050HP2 33.712.1 5.899.260.895 X 2.653900330392U050JL2 44.921.6 4.93 6.71 1.02 X 2.153900330R392U050JL2 32.412.6 5.818.77 1.02 X 2.154700330472U050HS2 35.614.6 6.259.210.895 X 3.154700330R472U050HS2 27.39.87.1411.200.895 X 3.155600330562U050HT2 30.412.57.2310.600.895 X 3.655600330R562U050HT2 23.18.38.3013.000.895 X 3.655600330562U050JP2 34.516.6 6.258.50 1.02 X 2.655600330R562U050JP2 24.69.67.4011.20 1.02 X 2.656800330682U050JS2 28.413.67.4810.20 1.02 X 3.156800330R682U050JS2 20.07.88.9113.40 1.02 X 3.158200330822U050JT2 24.411.78.6711.80 1.02 X 3.658200330R822U050JT2 17.0 6.610.4015.70 1.02 X 3.6563 Vdc (90 Vdc Surge)2200330222U063GT2 49.616.4 5.198.530.77 X 3.652200330R222U063GT2 43.014.2 5.589.160.77 X 3.652700330272U063HP2 48.418.4 4.927.520.895 X 2.652700330R272U063HP2 37.912.5 5.559.110.895 X 2.652700330272U063JL2 49.521.8 4.70 6.68 1.02 X 2.152700330R272U063JL2 36.312.7 5.488.74 1.02 X 2.153300330332U063HS2 39.515.0 5.949.080.895 X 3.153300330R332U063HS2 30.710.1 6.7311.100.895 X 3.153900330392U063HT2 33.712.8 6.8710.500.895 X 3.653900330R392U063HT2 25.98.57.8412.900.895 X 3.653900330392U063JP2 37.916.7 5.968.47 1.02 X 2.653900330R392U063JP2 27.69.7 6.9911.10 1.02 X 2.654700330472U063JS2 31.113.77.1510.20 1.02 X 3.154700330R472U063JS2 22.47.88.4213.40 1.02 X 3.155600330562U063JT2 26.711.78.3011.80 1.02 X 3.655600330R562U063JT2 19.0 6.69.8315.70 1.02 X 3.6575 Vdc (100 Vdc Surge)1800330182U075GT2 62.727.0 4.62 6.640.77 X 3.65(in) (µF) Part Number(mΩ)(mΩ)(A)(A)75 Vdc (100 Vdc Surge) (cont'd.)1800330R182U075GT2 54.323.4 4.967.130.77 X 3.652200330222U075HP2 60.627.9 4.39 6.110.895 X 2.652200330R222U075HP2 48.520.9 4.917.060.895 X 2.652200330222U075JL2 60.830.4 4.24 5.65 1.02 X 2.152200330R222U075JL2 46.220.3 4.86 6.91 1.02 X 2.152700330272U075HS2 49.222.6 5.327.390.895 X 3.152700330R272U075HS2 39.116.8 5.968.570.895 X 3.152700330272U075HT2 41.819.2 6.178.580.895 X 3.652700330R272U075HT2 32.914.2 6.959.990.895 X 3.652700330272U075JP2 46.423.2 5.397.18 1.02 X 2.652700330R272U075JP2 35.015.4 6.218.82 1.02 X 2.653300330332U075JS2 37.919.0 6.478.63 1.02 X 3.153300330R332U075JS2 28.312.57.4910.60 1.02 X 3.153900330392U075JT2 32.416.27.5310.00 1.02 X 3.653900330R392U075JT2 23.910.58.7612.40 1.02 X 3.65100 Vdc (140 Vdc Surge)820330821U100GT2 99.537.8 3.67 5.610.77 X 3.65820330R821U100GT2 86.232.8 3.94 6.020.77 X 3.651000330102U100HP2 94.736.0 3.51 5.380.895 X 2.651000330R102U100HP2 78.129.7 3.87 5.920.895 X 2.651000330102U100JL2 92.737.1 3.43 5.12 1.02 X 2.151000330R102U100JL2 73.828.8 3.85 5.81 1.02 X 2.151200330122U100HS2 76.529.1 4.26 6.520.895 X 3.151200330R122U100HS2 62.823.9 4.717.200.895 X 3.151200330122U100HT2 64.524.5 4.967.590.895 X 3.651200330R122U100HT2 52.620.0 5.508.410.895 X 3.651200330122U100JP2 70.328.1 4.38 6.53 1.02 X 2.651200330R122U100JP2 55.721.7 4.927.43 1.02 X 2.651500330152U100JS2 57.022.8 5.287.87 1.02 X 3.151500330R152U100JS2 44.917.5 5.958.99 1.02 X 3.15(in) (µF) Part Number(mΩ)(mΩ)(A)(A)100 Vdc (140 Vdc Surge) (cont'd.)2200330222U100JT2 48.319.3 6.179.19 1.02 X 3.652200330R222U100JT2 37.714.7 6.9710.50 1.02 X 3.65160 Vdc (200 Vdc Surge)330330331T160GT2 306116 2.09 3.200.77 X 3.65390330391T160HP2 268102 2.09 3.190.895 X 2.65390330391T160JL2 278111 1.98 2.95 1.02 X 2.15470330471T160HS2 22685.7 2.48 3.800.895 X 3.15470330471T160JP2 22891.4 2.43 3.62 1.02 X 2.65560330561T160HT2 18971.8 2.90 4.440.895 X 3.65560330561T160JS2 18473.5 2.94 4.39 1.02 X 3.15680330681T160JT2 15461.6 3.45 5.15 1.02 X 3.65200 Vdc (250 Vdc Surge)330330331T200GT2 384177 1.87 2.590.77 X 3.65330330331T200HP2 358165 1.81 2.510.895 X 2.65390330391T200HS2 288132 2.20 3.060.895 X 3.15390330391T200JL2 339156 1.79 2.49 1.02 X 2.15470330471T200HT2 240111 2.57 3.570.895 X 3.65470330471T200JP2 255117 2.30 3.19 1.02 X 2.65560330561T200JS2 20594.4 2.78 3.87 1.02 X 3.15680330681T200JT2 17279.1 3.27 4.54 1.02 X 3.65250 Vdc (300 Vdc Surge)270330271T250GT2 455191 1.72 2.500.77 X 3.65270330271T250HP2 423178 1.66 2.420.895 X 2.65270330271T250JL2 400168 1.65 2.40 1.02 X 2.15330330331T250HS2 340143 2.02 2.940.895 X 3.15390330391T250HT2 284119 2.37 3.440.895 X 3.65390330391T250JP2 301126 2.12 3.08 1.02 X 2.65470330471T250JS2 242102 2.56 3.73 1.02 X 3.15560330561T250JT2 20285.0 3.01 4.38 1.02 X 3.65。
