飞思卡尔s12单片机-动态数码管显示与键盘模块(1)

1、按键中断#include <hidef.h>#include "derivative.h"#define LED PORTA#defineLED_dirDDRA#define KEY1PTIJ_PTIJ0#define KEY2PTIJ_PTIJ1#define KEY3 PTIJ_PTIJ2#define KEY4PTIJ_PTIJ3#define KEY1_dirDDRJ_DDRJ0#define KEY2_dir DDRJ_DDRJ1#define KEY3_dir DDRJ_DDRJ2#define KEY4_dir DDRJ_DDRJ3unsigned char data=0x01;unsigned char direction=1; //设置灯亮的方向，0向左，1向右。

unsigned char time=5; //设置灯闪的速度。

/*************************************************************/ /* 延时函数*/ /*************************************************************/ void delay(unsigned int n){unsignedinti,j;for(j=0;j<n;j++)for(i=0;i<40000;i++);}/*************************************************************/ /* 初始化LED灯*/ /*************************************************************/ voidinit_led(void){LED_dir=0xff; //设置为输出LED=~data; //点亮LED1}/*************************************************************/ /* 初始化按键*/ /*************************************************************/ voidinit_key(void){KEY1_dir =0; //设置为输入KEY2_dir=0;KEY3_dir=0;KEY4_dir=0;PPSJ = 0x00; //极性选择寄存器,选择下降沿;PIFJ = 0x0f; //对PIFJ的每一位写1来清除标志位;PIEJ = 0x0f; //中断使能寄存器;}/*************************************************************/ /* 按键中断函数*/ /*************************************************************/ #pragma CODE_SEG __NEAR_SEG NON_BANKEDinterrupt void PTJ_inter(void){if(PIFJ != 0) //判断中断标志{PIFJ = 0xff; //清除中断标志if(KEY1 == 0) //按键1按下{time-=1;if(time==0)time=1;}if(KEY2 == 0){time+=1;if(time>10)time=10;}if(KEY3 == 0)direction=0;if(KEY4 == 0)direction=1;}}#pragma CODE_SEG DEFAULT/*************************************************************/ /* 主函数*/ /*************************************************************/ void main(void){DisableInterrupts;init_led();init_key();EnableInterrupts;for(;;){delay(time);if(direction==1){data=data<<1; //左移一位if(data==0)data=0x01;}else{data=data>>1; //右移一位if(data==0)data=0x80;}LED = ~data;}}2、按键中断#include <hidef.h>#include "derivative.h"#define LEDCPU PORTD_PD3#define LEDCPU_dirDDRD_DDRD3unsigned char single = 0;/*************************************************************/ /* 初始化锁相环*/ /* 使用外部晶振：16MHz */ /* 设置总线频率：16MHz */ /*************************************************************/ void INIT_PLL(void){CPMUPROT=0x26; //解除时钟配置保护CPMUCLKS_PSTP = 0; //禁止PLLCPMUCLKS_PLLSEL = 1; //设置PLLCLK为系统时钟CPMUOSC_OSCE=1; //使能外部晶振CPMUSYNR=0x01; //SYNDIV的值为1，CPMUREFDIV = 0x81; //REFDIV的值为1CPMUPOSTDIV=0x00;CPMUPLL=0x10; //锁相环调频启用，用以减少噪音while(CPMUFLG_LOCK==0); //等待PLLCLK锁定CPMUPROT=0x01; //使能时钟配置保护}/*************************************************************//* 初始化实时中断*//*************************************************************/void INIT_RTI(void){CPMUPROT=0x26; //解除时钟配置保护CPMUCLKS_RTIOSCSEL = 1; //RTI时钟源为晶振时钟CPMUINT = 0x80; //使能实时中断CPMURTI = 0x6f; //设置实时中断的时间间隔为32.768ms,根据机器周期求得CPMUPROT= 0x01; //使能时钟配置保护}/*************************************************************//* 实时中断函数（声明中断函数）*//*************************************************************/#pragma CODE_SEG __NEAR_SEG NON_BANKED/*中断函数置于非分页区内，由于飞思卡尔16位单片机的中断向量是16位所以中断函数只有被置于非分页区内才能被寻址到，这就是第一行的作用*///#pragma主要作用是设定编译器状态，指示编译器完成一些特定动作interrupt void RTI_inter(void){if(CPMUFLG_RTIF == 1)CPMUFLG_RTIF = 1;single +=1;if (single==15){LEDCPU = ~LEDCPU;single = 0;}}#pragma CODE_SEG DEFAULT/*后续代码置于默认区内,由于单片机内部非分页区大小有限，非中断函数一般置于分页区内，最后一行即为此作用*//*************************************************************//* 主函数*//*************************************************************/void main(void){DisableInterrupts;INIT_PLL();INIT_RTI();LEDCPU_dir = 1;LEDCPU = 0;EnableInterrupts;for(;;){}}以上Demo程序已通过本人亲自验证，可实现相关功能，对代码中有疑问的朋友欢迎在主页区留言交流。

一、前言调试程序，是软件开发过程中的一个必不可少的环节。

这篇帖子，匠人试着来整理一下一些调试的技巧。

说到“技巧”，这个词自从被所长批臭之后，匠人就吓得不敢再提，生怕一不小心就暴露了思想的浅薄和眼光的局限，呵呵。

所以咱们不叫“技巧”，干脆低调点，就叫“雕虫小技”吧。

这里所讨论的“调试”技巧，有些是必须结合开发工具本身的功能来实现，而有些可以通过烧录芯片来验证。

各种开发工具，提供的功能多少强弱也不尽相同，这些方法也未必都能套用。

仅供参考吧。

最后说明一下，这是没有草稿的帖子，匠人仍然以不定期连载的方式，边写边发边改。

可能结构会比较混乱。

欢迎大家一起参与讨论。

二、磨刀不误砍柴功在调试之前，需要掌握以下一些基本功：1、熟悉当前的开发（调试）环境，比如：设置断点、单步运行、全速运行、终止运行，查看RAM、查看堆栈、查看IO口状态……总之，要熟练掌握基本操作的方法，并深刻了解其中意义。

2、了解芯片本身的资源和特性。

3、了解一点汇编语言的知识。

（本来匠人是准备写“精通”的，但考虑到现状，还是“放低”这方面的要求罢了）。

4、掌握基本的电路知识和排错能力。

（软件调试有时也会牵涉到硬件原因。

总不能连三极管的好坏都不能识别吧？）5、万用表、示波器、信号发生器……这些工具总该会用吧？6、搜索、鉴别资料的能力。

（内事问百度、外事问古狗、有事没事上21ic网）7、与人沟通，描述问题的能力。

（调试36计的最后一计——就是向他人讨教。

当然，你得把话说明白才行）差不多了，如果上述7把砍柴刀磨好了，就可以开始调试了。

接下来，请调入你的程序……三、优先调试人机界面面对程序中的一大堆模块，无从下手是吗？好吧，匠人告诉你，先调显示模块，然后是键盘。

为什么要先调显示模块？道理很简单，我们说“眼睛是心灵的窗户”，同样，“显示是程序的窗户”。

一旦把显示模块调试好了，就可以通过这个窗口，偷窥（天呐，这两个居然是敏感字！）程序内部的数据和状态了。

然后紧接着，就是调试键盘模块。

飞思卡尔MC9S12XS128单片机各模块使用方法及寄存器配置手把手教你写S12XS128程序--PWM模块介绍该教程以MC9S12XS128单片机为核心进行讲解，全面阐释该16位单片机资源。

本文为第一讲，开始介绍该MCU的PWM模块。

PWM 调制波有8个输出通道，每一个输出通道都可以独立的进行输出。

每一个输出通道都有一个精确的计数器（计算脉冲的个数），一个周期控制寄存器和两个可供选择的时钟源。

每一个P WM 输出通道都能调制出占空比从0—100% 变化的波形。

PWM 的主要特点有：1、它有8个独立的输出通道，并且通过编程可控制其输出波形的周期。

2、每一个输出通道都有一个精确的计数器。

3、每一个通道的P WM 输出使能都可以由编程来控制。

4、PWM 输出波形的翻转控制可以通过编程来实现。

5、周期和脉宽可以被双缓冲。

当通道关闭或PWM 计数器为0时，改变周期和脉宽才起作用。

6、8 字节或16 字节的通道协议。

7、有4个时钟源可供选择（A、SA、B、SB），他们提供了一个宽范围的时钟频率。

8、通过编程可以实现希望的时钟周期。

9、具有遇到紧急情况关闭程序的功能。

10、每一个通道都可以通过编程实现左对齐输出还是居中对齐输出。

1、PWM启动寄存器PWMEPWME 寄存器每一位如图1所示：复位默认值：0000 0000B图1 PWME 寄存器每一个PWM 的输出通道都有一个使能位P WMEx 。

它相当于一个开关，用来启动和关闭相应通道的PWM 波形输出。

当任意的P WMEx 位置1，则相关的P WM 输出通道就立刻可用。

用法：PWME7=1 --- 通道7 可对外输出波形PWME7=0 --- 通道7 不能对外输出波形注意：在通道使能后所输出的第一个波形可能是不规则的。

当输出通道工作在串联模式时（PWMCTL 寄存器中的CONxx置1），那么）使能相应的16位PWM 输出通道是由PWMEx 的高位控制的，例如：设置PWMCTL_CON01 = 1,通道0、1级联，形成一个16位PWM 通道，由通道 1 的使能位控制PWM 的输出。

实验项目名称：键盘、数码管显示综合实验实验室(中心)：电子实验室实验完成时间： 09 年11 月 5 日1一．实验目的与要求通过实验，掌握单片机在输入输出口线不够用时，怎样扩展接口的方法来支持8位LED 显示和16键盘集成实现。

熟悉8155、8279等芯片性能；掌握其编程方法。

掌握键盘子程序调试方法，掌握按一个键并将键值显示出来的编程方法，这是诊断硬件、测试硬件、产品开发、软件编程必须掌握的方法。

二．实验原理及实验线路(1)通过8155芯片的扩展功能，建立描述线与数据线同步功能，如图三．实验内容①编写并调试出一个键盘实验子程序；②用子程序调用方法，分别调用键盘子程序和显示子程序，将按一个键的键值(0－F)，在数码管上显示出来。

四．实验器材表2.4.5(1):以8155为扩展方式的器件80C51.BUS CRYSTAL PHYC0402NP022P7404 7SEG-MPX6-CC-BLUE RESPACK-88155 HITEMP10U50VBUTTON MINRES10K五、实验程序流程图六．实验步骤1)仿真实验过程:打开Keil程序，执行菜单命令“Project”→“New Project”创建“键盘数码管显示综合实验”项目，并选择单片机型号为AT89C52.BUS。

执行菜单命令“File”→“New”创建文件，输入源程序，保存为“键盘数码管显示综合实验.A51或键盘数码管显示综合实验.c”。

在“Project”栏的File项目管理窗口中右击文件组，选择“Add Files to Group ‘Source Group1’”将源程序“键盘数码管显示综合实验.A51或键盘数码管显示综合实验.c”添加到项目中。

执行菜单命令“Project”→“Options for Target ‘Target 1’”,在弹出的对话框中选择“Output”选项卡，选中“Greate HEX File”。

执行菜单命令“Project”→“Build Target”，编译源程序。

飞思卡尔单片机S12使用方法及程序单片机简介：9S12XS128MAA单片机是16位的单片机80个引脚，CPU是CPU12X，内部RAM 8KB,EEPROM:2KB,FLASH:128KB,外部晶振16M，通过内部PLL可得40M总线时钟。

9S12XS128MAA单片机拥有：CAN:1个，SCI:2个，SPI:1个，TIM：8个，PIT：4个，A/D：8个，PWM:8个下面介绍下我们项目用到的几个模块给出初始化代码1、时钟模块初始化单片机利用外部16M晶振，通过锁相环电路产生40M的总线时钟（9S12XS128系列标准为40M），初始化代码如下：view plaincopy to clipboardprint?/******************系统时钟初始化****************/void Init_System_Clock(){asm { // 这里采用汇编代码来产生40M的总线LDAB #3STAB REFDVLDAB #4STAB SYNRBRCLR CRGFLG,#$08,*//本句话含义为等待频率稳定然后执行下一条汇编语句，选择此频率作为总线频率BSET CLKSEL,#$80}}/******************系统时钟初始化****************/void Init_System_Clock(){asm { // 这里采用汇编代码来产生40M的总线LDAB #3STAB REFDVLDAB #4STAB SYNRBRCLR CRGFLG,#$08,*//本句话含义为等待频率稳定然后执行下一条汇编语句，选择此频率作为总线频率BSET CLKSEL,#$80}上面的代码是汇编写的，这个因为汇编代码量比较少，所以用它写了，具体含义注释已经给出，主函数中调用此函数即可完成时钟初始化，总线时钟为40M.2、SCI模块初始化单片机电路做好了当然少不了和PC之间的通信，通信通过单片机串口SCI链接到PC 端的COM口上去。

用了一年多飞思卡尔MC9S12XS128这款处理器,现在总结下各个功能模块的驱动.//锁相环时钟的初始化总线频率为40MHz(总线时钟为锁相环时钟的一半)//晶振为11.0592MHzvoid PLL_init(void) //PLLCLK=2*OSCCLK*(SYNR+1)/(REFDV+1) { //锁相环时钟= 2*11.0592*(39+1)/(10+1)=80MHz 总线时钟为40MHzREFDV=0x0A;SYNR=0x67; //0110_0111 低6位的值为19,高两位的值为推荐值while(CRGFLG_LOCK != 1);CLKSEL_PLLSEL = 1; //选定锁相环时钟//FCLKDIV=0x0F; //Flash Clock Divide Factor 16M/16=1M}//周期中断定时器的初始化-// //周期中断通道1用于脉冲累加器的定时采样,定时周期为: 10ms= (199+1)*(1999+1)/(40M) (没有使用)//周期中断通道0用于控制激光管的轮流发射,定时周期为: 2000us= (399+1)*(199+1)/(40M)//2011/4/4 15:24 定时时间改为1msvoid PIT_init(void){PITCFLMT_PITE = 0; // 禁止使用PIT模块 PITCFLMT :PIT 控制强制加载微计数器寄存器。

PITCE_PCE0 = 1; // 使能定时器通道0//PITCE_PCE1 = 1; //使能定时器通道1PITMUX = 0; //通道0,和通道1均选择8位微计数器0//修改时间只需要改下面四行PITMTLD0 = 199; //向8位微计数器中加载的值PITLD0 = 199; //向16位计数器中加载的值//PITMTLD1 = 39; //向8位微计数器中加载的值 8位,最大值不要超过255//PITLD1 = 1999; //向16位计数器中加载的值PITINTE |= 0x01; //使能定时器通道0的中断PITCFLMT_PITE = 1;//使能PIT模块}//脉冲累加器的初始化, PT7口外接光电编码器//最新修改: 2011/3/25 16:53void PT7_PulAcc_Init(void){DDRT &= 0x77;//设置PT7,PT3口为输入(硬件上PT7,PT3通过跳线联到了一块)PERT |= 0x80; //使能通道7的上拉电阻PPST &= 0x7f; //电阻设为上拉电阻TCTL4 &= 0x3f; //禁止PT3的输入捕捉功能PACTL = 0x50; //启动脉冲累加计数器,上升沿触发,禁止触发中断和溢出中断,主定时器禁止}//通道1用于控制舵机1 PWM 高电平有效,//通道3用于控制电机1 PWM 低电平有效,这与前两代车高电平有效有区别!!!!!//通道7用于给上排激光管提供PWM信号 PWM高电平有效!!!!!//通道6用于给下排激光管提供PWM信号 PWM高电平有效!!!!!// 2011-03-17 7:56 增加了A端口的使用新增通道6//2011-6-9 23:03 //增加了通道4,5的联合使用，用于控制下排方向舵机 void PWM_init(void){PWME = 0x00;//PWM禁止PWMPRCLK = 0x03; // ClockA=40M/8=5M, Clock B = 40M/1=40M PWMSCLB = 10; // Clock SB= 40/2*10= 2MHz(供电机)PWMSCLA = 5; // SA = Clock A/2*5 = 5M/10 = 500K = SA 用于控制舵机PWMPOL = 0xe2; //1110_0010通道7,通道6与通道1、通道5先输出高电平然后输出低电平,POLx=1先输出高电平后输出低电平； PPOLx=0先输出低电平）PWMCAE = 0x00; // 左对齐输出（CAEx=0为左对齐，反之为中心对齐）//PWMCLK = 0010_1010 (0 1 4 5位控制SA_1；或A_0; 2 3 6 7位控制SB_1 或B_0)//为PWM通道1选择时钟 SA(500KHz),//为PWM通道5选择时钟 SA(500KHz),//为通道3选择时钟 SB(10MHz)//为通道7选择时钟B(40MHz)//为通道6选择时钟B(40MHz)PWMCLK = 0x2A; //0010_1010PWMCTL = 0x70; //0111_0000 CON45=1，把通道4，5联合使用。

飞思卡尔MC9S12XS128各模块初始化程序--超详细注释//**************************************************************************// 武狂狼2014.5.1 整理// 新手入门的助手////***************************************************************************注释不详细/*********************************************************/函数名称：void ATD0_init(void)函数功能：ATD初始化入口参数：出口参数：/***********************************************************/void ATD0_init(void){ATD0DIEN=0x00; //使用模拟输入功能|=1；数字输入功能// ATD0CTL0=0x07; //Bit[3：0]WRAP[3:0] 反转通道选择位ATD0CTL1=0x40; // 12位精度,采样前不放电 Bit[7]ETRIGSEL(外部触发源选择位。

=0选择A/D通道AN[15：0] |=1选择 ERTIG3~0)和Bit[3：0]ETRIGCH[3：0]选择外部触发通道// Bit[6：5]SRES[1：0]A/D分辨率选择位。

Bit[4]SMP_DIS =0采样前不放电|=1采样前内部电容放电，这会增加2个A/D时钟周期的采样时间，有助于采样前进行开路检测ATD0CTL2=0x40; // 快速清零,禁止中断,禁止外部触发ATD0CTL3=0x90; // 右对齐,转换序列长度为2,非FIFOATD0CTL4=0x03; // 采样时间4个周期,PRS=31,F(ATDCLK)=F(BUS)/(2(PRS+1))// ATD0CTL5=0x30; //启动AD转换序列//：对每项数据采集时，用到哪个通道采样可在相应子函数内设置某一通道（见Sample_AD.c）while(!ATD0STAT2L_CCF0);/*********************************************************/函数名称：void PIT_init(void)函数功能：初始化PIT 设置精确定时时间（1s）入口参数：无出口参数：无说明：无/***********************************************************/void PIT_init(void){PITCFLMT=0x00; //禁止PIT模块Bit[7] PITE：PIT模块使能位，0禁用|1使能// Bit[6] PITSWAI:等待模式下PIT停止位，0等待模式下，PIT模块正常运行| 1等待模式下，PIT模块停止产生时钟信号，冻结PIT模块// Bit[5] PITFRZ: 冻结模式下PIT计数器冻结位。

S12(X)单片机BDM调试器使用技巧第五届全国大学生“飞思卡尔”杯智能气车竞赛限制采用最新的MC9S12XS128（以下简称XS128）单片机作为主控芯片，替代MC9S12DG128。

XS128是Freescale公司推出的S12系列单片机中的一款增强型16位单片机。

片内资源丰富，接口模块有SPI、SCI、IIC、A/D、PWM等常见模块，在汽车电子应用领域具有广泛用途。

XS128和以往大赛使用的S12DG128系列单片机一样，调试接口都是使用Freescale公司传统的BD M(Background Debug Module)接口。

1 MC9S12XS128单片机介绍(1)CPU：增强型16位HCS12 CPU，片内总线时钟最高40 MHz；(2)片内资源：8 KB RAM、128 KB程序闪存、2 KB数据闪存；(3)串行接口模块：SCI、SPI；(4)脉宽调制模块(PWM)可设置成4路8位或者2路16位，逻辑时钟选择频率宽；(5)1个16路12位精度A/D转换器；(6)控制器局域网模块（CAN）；(7)增强型捕捉定时器。

MC9S12XS128单片机有112、80和64引脚3种封装形式。

80-pin封装的单片机没有引出用于扩展方式的端口，仅引出了一个8路A/D接口。

竞赛可使用112或80引脚封装器件。

2 BDM接口和使用BDM调试器内部有一个8位的MC9HC08JB16单片机，该单片机有USB接口，可与PC 机信息交互。

HC08单片机和S12单片机间仅使用一根 I/O线通信，这根相连的信号线名为BKGD。

HC08单片机将BKGD置为输出，以串行发送命令，发送完成后转为输入，以接收信息。

S12单片机收到命令后转为输出，根据调试器发来的命令回送信息，然后立即转入接收态。

BDM工具以此方式实现S12单片机的在线调试、内部闪存的烧写等功能。

关于BDM接口的实现，读者可以参考Freescale任何一款S12单片机的器件手册，其对BDM接口的命令字、交互模式等都有详细描述。

单片机系统的数码管显示驱动和键盘扫描以单片机为核心的很多仪器都需要数码管显示驱动和键盘扫描，三种具体方案如下供参考：一、经典方案：使用8279芯片8279是由Intel于80年代首先推出的，参考资料较多，应用比较成熟。

优点：最通用。

缺点：元器件多，面积大，电路复杂，综合成本高。

●8279的驱动电流较小，所以需要加上驱动电路ULN2003，或者使用8个三级管及相应的基极限流电阻。

一般情况下的8279外围电路中，需要16个电阻、一个74LS138芯片、一个ULN2003芯片、8个PNP三极管。

元器件较多，占用较大的PCB面积。

●8279需要外部为其提供上电复位信号和时钟信号，所以电路比较复杂。

●8279在显示驱动方面的功能较少。

二、自由方案：使用辅助单片机也就是在仪器的主控单片机之外，另外使用一个辅助的单片机专门做显示驱动和键盘扫描，最近市面上出现的一些产品就是以PIC系列等单片机实现的，查看其引脚定义尤其是CLK/RTCC/RST引脚都与PIC16C57或PIC16C54相似，另外，这些产品的说明书中都没有标明电流驱动能力。

优点：最灵活。

缺点：元器件多，速度慢，易受干扰，综合成本高。

●由于辅助单片机的驱动电流比较小，按单片机厂商的说明，通常每个引脚不大于20mA，如果长时间驱动大电流则容易损坏。

如果将辅助单片机的引脚直接用作字驱动，则20mA平均到数码管的8个段上，每个段的电流只能分配到3mA，所以只能驱动较小的数码管。

而如果外接驱动电路，例如595芯片或者8个三极管及相应的基级电阻，则电路面积增大，总体成本增加。

●为了节约辅助单片机的端口线，一般使用串行输入输出。

由于辅助单片机一条指令只能处理一位数据，并且在接收到数据后还需要将其移位转换为字节数据或者直接作为命令进行解释，所以速度非常低。

一般要求主控单片机的串行接口的位时钟不能高于200KHz（每个位数据要保持几微秒，才能被辅助单片机检测到并及时处理），所以单片机接口程序需要不断地延时等待。

飞思卡尔学习板可与下面的配件配套飞思卡尔学习板 + 慢速（步进）电机驱动 + 底盘 + 各种液晶显示 + 各种传感器配件名称价格/个同时最大可配个数备注飞思卡尔学习板388 1 主板慢速电机8.9 10 两个电机接H桥，其他为半桥直流电机 3.8 10 两个电机接H桥，其他为半桥步进电机 6.8 2 两个步进电机可同时使用轮子 3.8 2 与慢速电机配套慢速电机紧固件（含紧固螺丝）5.5 2 与慢速电机步进电机配套步进电机紧固件（含紧固螺丝）3.5 2 与步进电机步进电机配套底盘19 2与主板以及慢速、步进等电机配套模拟摄像头OV5116158 1 与主板接口配套模拟摄像头OV7950109 1 与主板接口配套数字摄像头OV7620138 1 与主板接口配套CCD摄像头118 1 通过转接板与主板接口配套电磁传感器28 15 与主板接口配套红外传感器12 15 与主板接口配套激光传感器模块（1接收对3个发射）119 1 与主板接口配套MC9S12XS128MAL单片机最小系统板105 1 与主板接口配套MC9S12XS128MAA单片机最小系统板99 1 与主板接口配套STC89C516RD+单片机最小系统板39 1 与主板接口配套12864液晶48 1 采用并口通信1602液晶12 1 采用并口通信5110液晶18 1 采用串口通信矩阵键盘15 2 与主板接口配套3011舵机139 4 与主板接口配套PWM1，PWM3，WPM5，PWM7小舵机19 4 与主板接口配套（长期使用正极电源需接5v）PWM1，PWM3，WPM5，PWM7 900mah/7.2v电池28 1 固定孔与底盘配套7.2v充电器12 1 与900mah/7.2v电池配套注：以上所列的“同时最大可配个数”是指一块板子可同时使用的配件数目。

手创科技研发团队：十月磨一剑，飞思卡尔综合学习板。

飞思卡尔学习板是广州手之创电子科技结合现有产品以及根据客户的反馈建议所设计的，本版适合中高职，本科及研究等学生使用，本版更适合有志于参加智能车比赛的选手。

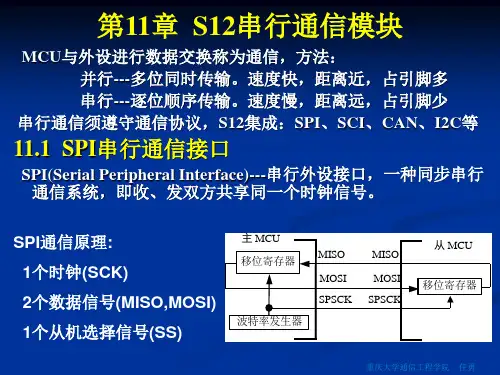

---------------------------------------------------------------最新资料推荐------------------------------------------------------1 / 32s12单片机功能模块六 单 接口和功 块 内容 介、 I/O 接口 块 、 数 换 A/D 块 、 冲宽度制 PWM 4、增强型定时器 ECT 5、同 外设接口 SPI 6、串行信接口 SCI 块 块 块 块 、接口MC9S12DG128B 单 I/O 口 接按接发光二 功 中断 入， 有PJ0-PJ5 中断 入， 有 PP6 有 PM6-PM7 有 PS4-PS7 只 入 、 接口口作为 入使 设 方向寄存器（DDRx ）为 入（0X00） 时取 I/O 口 数据寄存器（PORTx ） 口作为 出使设 方向寄存器（DDRx ）为 出（0XFF ） 设 动 力寄存器（ 必页） 拉 逩择（ 必页） 时写入 I/O 口数据寄存器（PORTx ） 、 接口 口作为外 中断接收使 开 中断（CLI ） 设 方向寄存器为 入 设 中断有效 （上升 、下 ）使 中断 写 关 中断服务 序有效 到杯时，会臧动 入中断服务 序 、 接口 例一 设 一个C 语 序，使教学 上发光二显效显循环效、接口例二使 PORTJ 中断口功例子，例原是：设 A 口为出口，PTA 6 PTJ 6 件，PTB 出，杯控制 8 个 LED ， PTJ 开中断，并且设为上升觲发。

馒先 PTA 初始化为 0，PTB 为 0xFF，时。

在大循环冲设PTA 6 位为平，产中断，低 4 个亮， 4 个不亮。

使单行柧效。

、数换块换基念数换定义：将时縣、幅值也縣拟信号换为散、幅值也散数字信号数换精度数换精度是指二制位数。

9S12 AD 块有两精度可逩，分别为 8 位精度（0255）和10 位精度（01023）。
