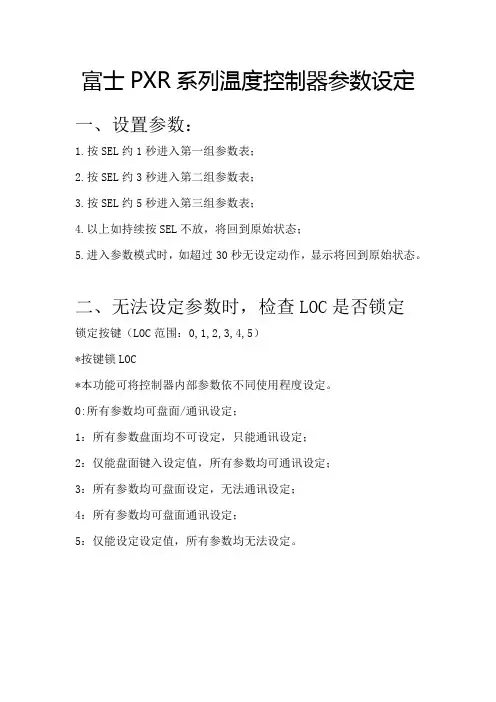

富士PXR系列温度控制器参数设定
一、设置参数：
1.按SEL约1秒进入第一组参数表；
2.按SEL约3秒进入第二组参数表；
3.按SEL约5秒进入第三组参数表；
4.以上如持续按SEL不放，将回到原始状态；
5.进入参数模式时，如超过30秒无设定动作，显示将回到原始状态。
二、无法设定参数时，检查LOC是否锁定
锁定按键（LOC范围：0,1,2,3,4,5）
*按键锁LOC
*本功能可将控制器内部参数依不同使用程度设定。
0:所有参数均可盘面/通讯设定；
1：所有参数盘面均不可设定，只能通讯设定；
2：仅能盘面键入设定值，所有参数均可通讯设定；
3：所有参数均可盘面设定，无法通讯设定；
4：所有参数均可盘面通讯设定；
5：仅能设定设定值，所有参数均无法设定。
− 1 −− 2 −注) 上段(PV)显示消失(无显示)时，请在参数DP13的设定值上加64。
2接线3使用方法(请在使用前阅读)6关于温度调节器的功能− 3 −− 4 −7为熟练使用温度调节器Modbus RTU 是modicon 公司的商标。
8请在显示异常时阅读* DC4-20mA 输入时，除使用250Ω的外置电阻外，还请作为DC1-5V 输入使用。
注1) 仅同一类型中可以变更代码。
注1) 输入精度为±0.5%FS±1digit±1°C 。
但，采用热敏电阻时，则为±1%FS±1digit 。
R 热电偶0～500°CB 热电偶0～400°C注2) 采用测温电阻时，即使低于-150°C ，也不显示LLLL 。
注3)设定低于上表的最小量程时，不能保证输入精度。
的范围内，有时由于传感器的特性，不能正确显示。
*1 微型控制器X 系列与其他机型的不同点如下表所示，请加以注意。
*2 连接计算机时，需要通信变换器。
另行准备(推荐产品) (株)RA 系统公司生产 RC-77(隔离型) http://www.ras.co.jp (株)lineeye 公司生产 SI-30A(隔离型) http://www.lineeye.co.jp (株)系统sacom 公司生产 KS485(非隔离型) http://www.sacom.co.jp 规 格电源电压：AC100(-15%)～240V(+10%)、50/60Hz 、DC/AC 24V(±10%)功耗：10VA 以下(AC100V)，12VA 以下(AC220V)，12VA 以下(AC/DC24V)继电器接点输出：控制输出1 1c 接点AC220V/DC30V ,3A(阻性负载)控制输出2 1a 接点AC220V/DC30V ,3A(阻性负载)SSR/SSC 驱动输出*1(电压脉冲输出)：ON 时 DC24V(DC17～25V)OFF 时 DC0.5V 以下最大电流 DC20mA 以下负载电阻 850Ω以上DC4-20mA 输出：容许负载电阻 600Ω以下报警输出(最多2点)：继电器接点(1a 接点) AC220V/DC30V 1A(阻性负载)加热器断线报警输出：继电器接点(1a 接点) AC220V/DC30V 1A(阻性负载)通信功能*2：RS-485接口传输方式/半双工位串行起止同步传输速度/9600bps通信协议/符合Modbus RTU 或Z-ASCII (PXR 协议)传输距离/最大500m(连接总长度)连接台数/31台数字量输入：输入点数2点 (ON 判定：DC3V 以上，OFF 判定：DC2V 以下)输入接点容量 DC5V / 2mA 输入脉冲宽度 最小0.5秒传送输出：输出精度 ±0.3%以下容许负载电阻 600Ω以下远程SV 输入：输入精度 ±0.5%FS 以下(无输入断线检测功能)设定分辨率 3000以上带输入滤波功能使用及贮存温度：-10°C ～50°C ，90%RH 以下(无结露)-10°C ～45°C(密集安装时)-20°C ～60°C(贮存温度)时间精度：±0.5%以内SSR/SSC 驱动输出DC4-20mA 输出容许负载电阻电压最大电流PXR3DC15V 20mA 100～500ΩPXR4/5/7/9DC24V 20mA 600Ω以下PXV3DC5.5V 20mA 600Ω以下PXV/W/Z DC24V 60mA 600Ω以下[所谓过量程方向]输入在范围之外或异常时的输出方向。
富士PXR系列温度控制器参数设定
一、设置参数：
1.按SEL约1秒进入第一组参数表；
2.按SEL约3秒进入第二组参数表；
3.按SEL约5秒进入第三组参数表；
4.以上如持续按SEL不放，将回到原始状态；
5.进入参数模式时，如超过30秒无设定动作，显示将回到原始状态。
二、无法设定参数时，检查LOC是否锁定
锁定按键（LOC范围：0,1,2,3,4,5）
*按键锁LOC
*本功能可将控制器内部参数依不同使用程度设定。
0:所有参数均可盘面/通讯设定；
1：所有参数盘面均不可设定，只能通讯设定；
2：仅能盘面键入设定值，所有参数均可通讯设定；
3：所有参数均可盘面设定，无法通讯设定；
4：所有参数均可盘面通讯设定；
5：仅能设定设定值，所有参数均无法设定。
T i me rf unct i on H e a t i n g /c o o li n g c on t ro l f u n c t i o n R am p/s o a kf u n c t i o nU L/C -U L /C E m a r k P ID +fu z z y f u n ct i o n Di g i t a l i npu t Co m m u n i c a t i o nf u n c t i o n R e -T r a n s m i s s i o no u t p u t L ar g e L ED d i sp l a y F r o n t w a t e r p r o o fst r u c t u r e (N E M A -4X /I P 66)S el f -t un i ng ECNO:1138cModel:PXR3(1/32 DIN, 24×48mm)Digital Temperature ControllerMicro Controller XSeries2Large LED display and front waterproof structurePID + self-tuning, PID + fuzzy controlFor calculating the optimum PID parameters, the auto tuning and self-tuning functions are installed. Also, fuzzy control function is a standard feature for suppressing the overshoot and improving the response to disturbance. Thanks to these functions,optimum control parameters suitable for each application is munication function (option)With RS-485 (Modbus »protocol) interface, a connection with computer, touch panel or PLC is allowed.Digital input (option)External digital input allows one of the following functions.● Change the set value (front SV0, SV1 to 3)● Start/stop the control action ● Start/reset the ramp/soak ● Start/stop the auto tuning ● Cancel the alarm latch● Start the incorporated timerNote:The alarm latch means to hold thestatus once alarm is output.The front display and operation section is dust-proof and waterproof conforming to NEMA-4X:IP66. The front panel is washable with water.(*NOTE)(*Note) Provided that the panel is installed with our genuine watertightpacking.Easy-to-see, large LED display (1.3 times larger than current models)● Self-tuningAt power on, changing a set value or during external disturbance, tuning is madeautomatically so that the PID parameters arecould not be optimized.1/32 DIN (24 ×48 mm) temperature controller PXR3● Fuzzy controlSuppresses the overshoot without wasting start up time.Also, quickly reverts to set points at the event of Touch panelFuji Programmable Operation Display (UG series)3Timer function (option)By Digital input, ON-delay or OFF delay timer can be started.That is, relay output is turned on/off after certain period of time preset in parameter dLY1/dLY2. As for relay output, alarm output relays are used. Up to 2 timer outputs can be obtained.Ramp/soak function (option)Changes the set value (SV) as the time elapses according to a predetermined program pattern. The instrument can program up to 8 ramp/soak steps.Heating/cooling control (option)By a single controller both heating and cooling control output are obtained. (Both control outputs 1 and 2 are used.)PXR, Suitable for various temperature controlsPXR3Heat control outputRecorder PHRPXR3PXR3Temp inputcool control outputPV TransmissionSpecifications and performance <General specifications>4PXR3Note 1: For current input connect the supplied 2501 resister at theinput terminal.Note 2: When the measuring range exceeds 1000°C (1832°F), decimalpoint cannot be used.Note: Basic insulation (dielectric strength 1500 V AC) between blocksdelimited by line .Functional insulation (dielectric strength 500 V AC) betweenblocks delimited by line .Non isolated between blocks which are not delimited from eachother.<Caution in use>The following table shows the differences among PX-series models.When replacing the device, be sure to use the one with identical outputspecifications.56Note 1No combination with alarm (2 points) (The code F, G of 9th digit should not be ordered.)Note 2No combination with control output 2 (A, C, E of 7th digit should not be ordered.)Note 3Control output 2, communication, external input 2, 24V power supply.The code A, C, E of 7th digit, A, B, C of 10th digit, M, N, T, V, W of 11th digit should not be ordered.When delivering, the input signal, measuring range and set value are as follows:Thermocoupule input : type K, 0 to 400°C, set value at 0°C Resistance bulb input : 0 to 150°C, set value at 0°C Voltage or current input : 0 to 100%, set value at 0%The input signal of thermocouple and each measuring range should be specified except for the above specifications.When delivering, the control output action is set at reverse for control output 1, set at direct for control output e the front key to change the control action between reverse and direct.7Re-Transmission RecorderPrinted in Japan 2002-9/00FISInformation in this catalog is subject to change without notice.Over-temperature ProtectionAny control system design should take into account that any part of the system has the potential to fail.For temperature control systems, continued heating should be considered the most dangerous condition, and the machine should be designed to automatically stop heating if unregulated due to the failure of the control unit or for any other reason.The following are the most likely causes of unwanted continued heating:1) Controller failure with heating output constantly on2) Disengagement of the temperature sensor from the system 3) A short circuit in the thermocouple wiring4) A valve or switch contact point outside the system is locked to keep the heat switched on.In any application where physical injury or destruction of equipment might occur, we recommend the installation of independent safety equipment, with a separate temperature sensor, to disable the heating circuit in case of overheating.The controller alarm signal is not designed to function as a protective measure in case of controller failure.SPECIAL ATTENTION NEEDED for all Micro Controller X series products(Please read carefully the following instructions.)。
