潍柴发动机ECU针角图及常规测量引脚号缩写引脚说明参考引脚电压（ECU开路电压）信号输入有效电压电流电阻101 dnc 未用（下同）102 V_V_BAT+3 ECU电源+_3 1.05 电瓶电压103 V_V_BAT+4 ECU电源+_4 1.05 电瓶电压104 O_V_RH01 电源正极输出1（高端驱动）V2 1.05 电瓶电压105 G_G_BAT-3 ECU电源-_3 车身0V106 G_G_BAT-4 ECU电源-_4 车身0V107 dnc108 V_V_BAT+1 ECU电源+_1 1.05 电瓶电压109 V_V_BAT+2 ECU电源+_2 1.05 电瓶电压110 G_G_BAT-1 ECU电源-_1 车身0V111 G_G_BAT-2 ECU电源-_2 车身0V112 dnc113 O_S_FAN2 风扇继电器2 1.05 电瓶电压-0.26V114 dnc115 dnc116 dnc117 dnc118 dnc119 dnc120 dnc121 dnc122 O_S_DIA 诊断灯1.05 <125mA <380mOhm123 dnc124 G_R_IIBTN1 怠速提升开关1，内部地1.05 0V125 I_S_IIBTN1 怠速提升开关1，信号1.24 4.9~5.1V126 I_S_IIBTN2 怠速提升开关2，信号1.05 4.9~5.1V127 dnc128 G_R_IIBTN2 怠速提升开关2，地1.05 0V129 G_R_DIG 数字地1.05 0V130 G_G_DIA 内部地1.05 0V131 I_S_CRCPOS 巡航控制按钮“设置/加速” 1.05 0~0.0102V 高电平：>3.98V低电平：<1.97V 4.06~4.19kOhm132 I_S_ENGSA 发动机启动开关信号高电平：>3.75V低电平：<2.18V 4.06~4.19kOhm133 O_F_ENGN 发动机转速输出信号1.05 <50mA134 B_D_CANL CAN_L 105/135 2~3V 高电平：>900mV低电平：<500mV 117~121Ohm135 B_D_CANH CAN_H 1.05/1.34 2~3V 高电平：>900mV低电平：<500mV 117~121Ohm136 dnc137 O_S_STRTH 起动继电器高端1.05 接继电器：不启动为3.5V启动为24V138 O_S_CSLP 冷起动灯1.05 2.91~3.91V139 O_S_WLP 报警灯1.05 2.91~3.91V140 I_S_T15 T15 ECU激活电压：3.35～24V; o4 X+ n7 f" T& O0 ?) I ECU由开到关电压：0～2.81V ! e9 ]8 _/ u! f9 J141 I_S_BRKMN 主制动开关1.05 0V 高电平：>3.75V低电平：<2.18V142 I_S_ACSW 空调请求开关1.29 0V 高电平：>3.75V低电平：<2.18V143 I_S_WFLS 油水分离水位传感器1.05 4.9~5.1V144 I_S_BRKPS 驻车制动1.05 4.755～5.25V145 dnc146 I_S_CRCRES 巡航控制按钮“恢复” 1.05 0～0.0102V 高电平：>3.98V 低电平：<1.97V147 I_S_STP 发动机停止开关1.05148 I_S_LIS 低怠速开关1.05/1.29 5.53～5.9V 高电平：>3.75V-低电平：<2.18V149 I_S_BRKRED 冗余制动开关1.05 0V 高电平：>3.75V低电平：<2.18V150 dnc151 O_S_STRTL 起动继电器低端1.05 接继电器：不启动为3.5V启动为0V .152 dnc153 dnc154 dnc155 O_S_IMPH 进气预热继电器1.05 Vbat－0.45V156 O_S_WFLP 油中有水报警灯1.05 2.91～3.91V157 dnc158 G_G_FAN2 风扇继电器2 地159 G_G_IMPH 进气预热继电器地车身0V160 dnc161 I_S_T50 T50 启动开关1.05/1.59 0V 输入高电平：>3.61V输入低电平：<2.33V162 I_A_TL 扭矩限制信号（多态开关）1.65 4.9~5.1V163 dnc164 I_S_CRCNEG 巡航控制按钮“设置/减速” 1.05 0～0.0102V165 G_R_TL 扭矩限制内部地车身0V166 I_S_CONV 离合器开关信号1.05 0V 高电平：>3.75V低电平：<2.18V167 G_R_FSS 风扇转速传感器地车身0V168 V_V_5VFSS 风扇转速传感器电源1.67 4.9~5.1V169 I_F_FSS 风扇转速传感器信号1.67 4.84～5.16V 高电平：>3.69V低电平：<2.25V170 G_R_VSS 车速传感器地车身0V171 I_F_VSS 车速传感器信号1.70 4.05～4.34V172 I_S_DIAREQ 诊断请求开关1.05 0～0.0102V 高电平：>3.69V低电平：<2.25V173 dnc174 I_S_CRCOFF 巡航控制按钮“关闭” 1.05 0～0.0102V 高电平：>3.98V 低电平：<1.97V175 dnc176 G_R_APP2 加速踏板位置传感器2 地车身0V177 V_V_5V APP1 加速踏板位置传感器1 电源1.78 4.9~5.1V178 G_R_APP1 加速踏板位置传感器1 地车身0V179 I_A_APP1 加速踏板位置传感器1 信号1.78 0V 不踩时为0.75V.踩到底时3.84V180 I_A_APP2 加速踏板位置传感器2 信号1.76 0V 不踩时为0.375V踩到底时1.92V181 I_A_FFDPS 燃油滤清压差传感器1.83 5.75~5.85V182 dnc183 G_R_FFDPS 燃油滤清压差传感器地车身0V184 V_V_5V APP2 加速踏板位置传感器2 电源1.83 4.9~5.1V185 I_S_GNSW 空档开关1.05/1.29 0~0.0105V186 dnc187 dnc188 dnc189 B_D_ISOK K线1.05 电瓶电压201 O_T_VTG 风扇电磁阀1.05 2.91~3.91V202 dnc203 O_V_RH02 电源正极输出2（高端驱动）1.05 电瓶电压204 O_S_FLHT 燃油加热电磁阀1.05 Vbat－0.45V205 G_G_FLHT 燃油加热电磁阀内部地车身0V206 O_T_EBRFL 排气制动电磁阀1.05 2.91~3.91V207 dnc208 dnc209 I_F_CAS 凸轮轴转速传感器信号2.10 231~260mV210 G_R_CAS 凸轮轴转速传感器地1.05 0V211 O_S_ACRL Y 空调压缩机继电器1.05 2.91~3.91V212 G_R_RAILPS 轨压传感器地1.05 0V213 V_V_5VRAILPS 轨压传感器电源2.12 4.9~5.1V214 I_A_RAILPS 轨压传感器信号2.12 4.9~5.1V215 I_A_CTS 冷却水温度传感器2.26 4.9~5.1V216 V_V_5VRMTAPP1 远程油门传感器1 电源1.05 4.9~5.1V217 G_R_5VRMTAPP1 远程油门传感器1 地车身0V218 G_R_5VRMTAPP2 远程油门传感器2 地车身0V219 G_R_CRS 曲轴转速传感器地1.05 0V220 dnc221 I_A_RMTAPP1 远程油门传感器1 信号2.17 0V 不踩时为0.75V 踩到底时3.84V222 I_A_RMTAPP2 远程油门传感器2 信号2.18 0V 不踩时为0.375V 踩到底时1.92V223 I_F_CRS 曲轴转速传感器信号2.19 231~260mV224 G_R_OPS 机油压力传感器地车身0V225 G_R_BPS 进气压力、温度传感器地车身0V226 G_R_CTS 冷却水温度传感器地车身0V227 I_A_OPS 机油压力传感器信号2.24 5.243~5.406228 I_A_OTS 机油压力传感器信号2.24 4.9~5.1V229 I_S_EBR 排气制动开关2.17 0V 高电平：>3.57V低电平：<2.35V230 dnc231 V_V_5VRMTAPP2 远程油门传感器2 电源217 4.9~5.1V232 V_V_5VOPS 机油压力传感器电源217 4.9~5.1V233 V_V_5VBPS 进气增压压力传感器电源217 4.9~5.1V234 I_A_BPS 进气增压压力传感器信号2.25 5.243~5.406235 I_A_FTS 燃油温度信号2.26 4.9~5.1V236 I_A_BTS 进气温度传感器信号2.25 4.9~5.1V301 O_P_SVH21 喷油器1 电容高端2 1.02302 O_P_SVH22 喷油器2 电容高端2303 O_P_SVH23 喷油器3 电容高端2304 O_P_SVH11 喷油器1 电容高端1305 O_P_SVH12 喷油器1 电容高端1306 O_P_SV13 喷油器3 电容低端1 1.05307 dnc308 dnc309 O_V_MEU 流量计量单元电源（BAT+）1.05 Vbat－0.26V310 O_T_MEU 流量计量单元电源PWM 1.05 2.91~3.91V311 O_P_SVH13 喷油器3 电容高端1312 O_P_SV12 喷油器2 电容低端1313 O_P_SV11 喷油器1 电容低端1314 O_P_SV23 喷油器3 电容低端2315 O_P_SV22 喷油器2 电容低端2316 O_P_SV21 喷油器1 电容低端2。

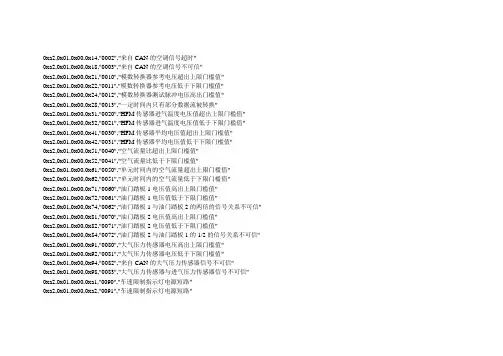

0xa2,0x01,0x00,0x14,"0002","来自CAN的空调信号超时"0xa2,0x01,0x00,0x18,"0003","来自CAN的空调信号不可信"0xa2,0x01,0x00,0x21,"0010","模数转换器参考电压超出上限门槛值"0xa2,0x01,0x00,0x22,"0011","模数转换器参考电压低于下限门槛值"0xa2,0x01,0x00,0x24,"0012","模数转换器测试脉冲电压高出门槛值"0xa2,0x01,0x00,0x28,"0013","一定时间内只有部分数据流被转换"0xa2,0x01,0x00,0x31,"0020","HFM传感器进气温度电压值超出上限门槛值"0xa2,0x01,0x00,0x32,"0021","HFM传感器进气温度电压值低于下限门槛值"0xa2,0x01,0x00,0x41,"0030","HFM传感器平均电压值超出上限门槛值"0xa2,0x01,0x00,0x42,"0031","HFM传感器平均电压值低于下限门槛值"0xa2,0x01,0x00,0x51,"0040","空气流量比超出上限门槛值"0xa2,0x01,0x00,0x52,"0041","空气流量比低于下限门槛值"0xa2,0x01,0x00,0x61,"0050","单元时间内的空气流量超出上限门槛值"0xa2,0x01,0x00,0x62,"0051","单元时间内的空气流量低于下限门槛值"0xa2,0x01,0x00,0x71,"0060","油门踏板1电压值高出上限门槛值"0xa2,0x01,0x00,0x72,"0061","油门踏板1电压值低于下限门槛值"0xa2,0x01,0x00,0x74,"0062","油门踏板1与油门踏板2的两倍的信号关系不可信" 0xa2,0x01,0x00,0x81,"0070","油门踏板2电压值高出上限门槛值"0xa2,0x01,0x00,0x82,"0071","油门踏板2电压值低于下限门槛值"0xa2,0x01,0x00,0x84,"0072","油门踏板2与油门踏板1的1/2的信号关系不可信" 0xa2,0x01,0x00,0x91,"0080","大气压力传感器电压高出上限门槛值"0xa2,0x01,0x00,0x92,"0081","大气压力传感器电压低于下限门槛值"0xa2,0x01,0x00,0x94,"0082","来自CAN的大气压力传感器信号不可信"0xa2,0x01,0x00,0x98,"0083","大气压力传感器与进气压力传感器信号不可信"0xa2,0x01,0x00,0xa1,"0090","车速限制指示灯电源短路"0xa2,0x01,0x00,0xa2,"0091","车速限制指示灯电源短路"0xa2,0x01,0x00,0xa4,"0092","车速限制指示灯没有信号"0xa2,0x01,0x00,0xa8,"0093","车速限制指示灯超外温"0xa2,0x01,0x00,0xb8,"00a3","油门与刹车信号不可信"0xa2,0x01,0x00,0xc1,"00b0","进气量调节器正偏差超过上限门槛值"0xa2,0x01,0x00,0xd2,"00c1","进气量调节器负偏差低于下限门槛值"0xa2,0x01,0x00,0xe1,"00d0","进气加热常开故障"0xa2,0x01,0x00,0xf1,"00e0","进气加热器开时电压高于上限门槛值"0xa2,0x01,0x00,0xf2,"00e1","进气加热器开时电压低于下限门槛值"0xa2,0x01,0x01,0x01,"00f0","进气加热器闭时电压高于上限门槛值"0xa2,0x01,0x01,0x02,"00f1","进气加热器闭时电压低于下限门槛值"0xa2,0x01,0x01,0x11,"0100","进气加热器对电源短路"0xa2,0x01,0x01,0x12,"0101","进气加热器对地短路"0xa2,0x01,0x01,0x21,"0110","增压执行器电源短路故障"0xa2,0x01,0x01,0x32,"0121","增压执行器对地短路故障"0xa2,0x01,0x01,0x44,"0132","增压器没有信号"0xa2,0x01,0x01,0x48,"0133","增压器超温"0xa2,0x01,0x01,0x51,"0140","进气压力传感器电压超出上限门槛值"0xa2,0x01,0x01,0x52,"0141","进气压力传感器电压低于下限门槛值"0xa2,0x01,0x01,0x54,"0142","来自CAN的进气压力传感器信号不可信"0xa2,0x01,0x01,0x58,"0143","进气压力传感器与大气压力传感器信号不可信" 0xa2,0x01,0x01,0x61,"0150","电池电压原始值超出上限门槛"0xa2,0x01,0x01,0x62,"0151","电池电压原始值低于下限门槛"0xa2,0x01,0x01,0x74,"0162","来自CAN的刹车信号不可信"0xa2,0x01,0x01,0x78,"0163","刹车主、辅开关信号不可信"0xa2,0x01,0x01,0x81,"0170","中冷器旁通阀对电源短路"0xa2,0x01,0x01,0x82,"0171","中冷器旁通阀对地短路"0xa2,0x01,0x01,0x84,"0172","中冷器旁通阀没有信号"0xa2,0x01,0x01,0x91,"0180","冷却水水位传感器电压超出上限门槛值"0xa2,0x01,0x01,0x92,"0181","冷却水水位传感器电压低于下限门槛值"0xa2,0x01,0x01,0x94,"0182","冷却水位传感器开路"0xa2,0x01,0x01,0x98,"0183","冷却水水位传感器信号不可信"0xa2,0x01,0x01,0xa1,"0190","CRERCD电源短路"0xa2,0x01,0x01,0xa2,"0191","CRERCD地短路"0xa2,0x01,0x01,0xa4,"0192","CRERCD没有信号"0xa2,0x01,0x01,0xa8,"0193","CRERCD超温"0xa2,0x01,0x01,0xb1,"01a0","冷启动指示灯对电源短路"0xa2,0x01,0x01,0xb2,"01a1","冷启动指示灯对地短路"0xa2,0x01,0x01,0xb4,"01a2","没有冷启动指示灯信号"0xa2,0x01,0x01,0xb8,"01a3","冷启动指示灯超温"0xa2,0x01,0x01,0xc1,"01b0","冷却水温度传感器电压超出上限门槛"0xa2,0x01,0x01,0xc2,"01b1","冷却水温度传感器电压低于下限门槛"0xa2,0x01,0x01,0xc4,"01b2","来自CAN的冷却水温度传感器信号不可信"0xa2,0x01,0x01,0xc8,"01b3","冷却水温与油温信号不可信"0xa2,0x01,0x01,0xd8,"01c3","冷却水温在一定时间内没有达到最小值"0xa2,0x01,0x01,0xe8,"01d3","冷却水温在一定时间内上升幅度没有达到最小值" 0xa2,0x01,0x01,0xf1,"01e0","气缸1失火次数超过门槛值"0xa2,0x01,0x02,0x01,"01f0","气缸2失火次数超过门槛值"0xa2,0x01,0x02,0x11,"0200","气缸3失火次数超过门槛值"0xa2,0x01,0x02,0x21,"0210","气缸4失火次数超过门槛值"0xa2,0x01,0x02,0x31,"0220","气缸5失火次数超过门槛值"0xa2,0x01,0x02,0x41,"0230","气缸6失火次数超过门槛值"0xa2,0x01,0x02,0x51,"0240","多缸失火次数超过门槛值"0xa2,0x01,0x02,0x61,"0250","发动机控制单元内部错误"0xa2,0x01,0x02,0x71,"0260","压缩测试故障"0xa2,0x01,0x02,0x84,"0272","来自CAN的离合器信号不可信"0xa2,0x01,0x02,0x88,"0273","离合器状态信号不可信"0xa2,0x01,0x02,0x91,"0280","环境温度传感器电压超出上限门槛值"0xa2,0x01,0x02,0x92,"0281","环境温度传感器电压低于下限门槛值"0xa2,0x01,0x02,0x94,"0282","来自CAN的环境温度传感器信号不可信"0xa2,0x01,0x02,0xa1,"0290","环境温度传感器BET电压超出上限门槛值"0xa2,0x01,0x02,0xa2,"0291","环境温度传感器BET电压低于下限门槛值"0xa2,0x01,0x02,0xb1,"02a0","环境温度传感器CLgZn电压超出上限门槛值" 0xa2,0x01,0x02,0xb2,"02a1","环境温度传感器CLgZn电压低于下限门槛值" 0xa2,0x01,0x02,0xc1,"02b0","环境温度传感器InAir电压超出上限门槛值"0xa2,0x01,0x02,0xc2,"02b1","环境温度传感器InAir电压低于下限门槛值"0xa2,0x01,0x02,0xd8,"02c3","低怠速开关和刹车开关均激活并超过一段时间" 0xa2,0x01,0x02,0xe1,"02d0","EGR旁通阀对电源短路或超温"0xa2,0x01,0x02,0xe2,"02d1","EGR旁通阀对地短路"0xa2,0x01,0x02,0xe4,"02d2","没有EGR旁通阀信号"0xa2,0x01,0x02,0xf4,"02e2","车下启动/停止按钮卡住"0xa2,0x01,0x03,0x01,"02f0","排气管压力传感器电压超出上限门槛值"0xa2,0x01,0x03,0x02,"02f1","排气管压力传感器电压低于下限门槛值"0xa2,0x01,0x03,0x08,"02f3","排气管压力传感器信号不可信"0xa2,0x01,0x03,0x11,"0300","EGR对电源短路故障"0xa2,0x01,0x03,0x22,"0311","EGR对地短路故障"0xa2,0x01,0x03,0x34,"0322","没有EGR信号"0xa2,0x01,0x03,0x38,"0323","EGR超温"0xa2,0x01,0x03,0x41,"0330","只有凸轮轴信号,进入跛形回家状态"0xa2,0x01,0x03,0x51,"0340","没有凸轮轴信号"0xa2,0x01,0x03,0x52,"0341","凸轮轴信号不可靠"0xa2,0x01,0x03,0x61,"0350","没有曲轴信号"0xa2,0x01,0x03,0x62,"0351","曲轴信号不可信"0xa2,0x01,0x03,0x71,"0360","曲轴与凸轮轴信号偏差超出门槛值"0xa2,0x01,0x03,0x81,"0370","发动机转速超限"0xa2,0x01,0x03,0x91,"0380","排气制动蝶阀对电源短路或者超温"0xa2,0x01,0x03,0xa2,"0391","排气制动蝶阀地短路"0xa2,0x01,0x03,0xb4,"03a2","排气制动蝶阀没有信号"0xa2,0x01,0x03,0xb8,"03a3","排气制动蝶阀超温"0xa2,0x01,0x03,0xc8,"03b3","油量扭矩转化不可信"0xa2,0x01,0x03,0xd1,"03c0","燃油温度传感器电压超出上限门槛值"0xa2,0x01,0x03,0xd2,"03c1","燃油温度传感器电压超出下限门槛值"0xa2,0x01,0x03,0xe1,"03d0","风扇执行器(PWM波)对电源短路"0xa2,0x01,0x03,0xe2,"03d1","风扇执行器(PWM波)对地短路"0xa2,0x01,0x03,0xe4,"03d2","风扇执行器(PWM波)没有信号"0xa2,0x01,0x03,0xe8,"03d3","风扇执行器(PWM波)超温"0xa2,0x01,0x03,0xf1,"03e0","风扇执行器(数字信号)对电源短路"0xa2,0x01,0x03,0xf2,"03e1","风扇执行器(数字信号)对地短路"0xa2,0x01,0x04,0x01,"03f0","冷却风扇速度高出上限门槛值"0xa2,0x01,0x04,0x02,"03f1","冷却风扇速度低于下限门槛值"0xa2,0x01,0x04,0x11,"0400","燃油滤清器压差传感器电压高出上限门槛值" 0xa2,0x01,0x04,0x22,"0411","燃油滤清器压差传感器电压低于下限门槛值" 0xa2,0x01,0x04,0x38,"0423","燃油滤清器压差传感器信号不可信"0xa2,0x01,0x04,0x41,"0430","燃油滤清器加热器对电源短路"0xa2,0x01,0x04,0x42,"0431","燃油滤清器加热器对地短路"0xa2,0x01,0x04,0x51,"0440","油中有水传感器电压超出上限门槛值" 0xa2,0x01,0x04,0x62,"0451","油中有水传感器电压低于下限门槛值" 0xa2,0x01,0x04,0x74,"0462","燃油滤清器堵塞"0xa2,0x01,0x04,0x81,"0470","油中有水传感器检测到油中有水"0xa2,0x01,0x04,0x91,"0480","CAN-EngGsFlRtHtr 通讯错误"0xa2,0x01,0x04,0x92,"0481","CAN-EngGsFlRtHtr 通讯错误"0xa2,0x01,0x04,0x94,"0482","CAN-EngGsFlRtHtr 通讯错误"0xa2,0x01,0x04,0x98,"0483","CAN-EngGsFlRtHtr 通讯错误"0xa2,0x01,0x04,0xa1,"0490","CAN -RxEngTmp2Sens 通讯错误"0xa2,0x01,0x04,0xa2,"0491","CAN -RxEngTmp2Sens 通讯错误"0xa2,0x01,0x04,0xa4,"0492","CAN -RxEngTmp2Sens 通讯错误"0xa2,0x01,0x04,0xa8,"0493","CAN -RxEngTmp2Sens 通讯错误"0xa2,0x01,0x04,0xb1,"04a0","CAN -TODashDspl 通讯错误"0xa2,0x01,0x04,0xc4,"04b2","CAN-TOEBC1 通讯错误" 0xa2,0x01,0x04,0xd1,"04c0","CAN-TOERC1DR 通讯错误" 0xa2,0x01,0x04,0xe4,"04d2","CAN -TOETC1 通讯错误"0xa2,0x01,0x04,0xf4,"04e2","CAN -TOEngGsFlowR 通讯错误"0xa2,0x01,0x05,0x01,"04f0","CAN -TOHRVD 通讯错误" 0xa2,0x01,0x05,0x11,"0500","CAN -TORxAMCON 通讯错误" 0xa2,0x01,0x05,0x24,"0512","CAN-TORxCCVS 通讯错误" 0xa2,0x01,0x05,0x34,"0522","CAN-TORxEngTemp2 通讯错误" 0xa2,0x01,0x05,0x44,"0532","CAN-TOTCO1 通讯错误" 0xa2,0x01,0x05,0x51,"0540","CAN-TOTF 通讯错误" 0xa2,0x01,0x05,0x61,"0550","CAN -OTSC1AE 通讯错误" 0xa2,0x01,0x05,0x64,"0552","CAN -OTSC1AE 通讯错误" 0xa2,0x01,0x05,0x71,"0560","CAN -TOTSC1AR 通讯错误"0xa2,0x01,0x05,0x74,"0562","CAN -TOTSC1AR 通讯错误" 0xa2,0x01,0x05,0x81,"0570","CAN-TOTSC1DE 通讯错误" 0xa2,0x01,0x05,0x84,"0572","CAN-TOTSC1DE 通讯错误" 0xa2,0x01,0x05,0x91,"0580","CAN -TOTSC1DR 通讯错误" 0xa2,0x01,0x05,0x94,"0582","CAN -TOTSC1DR 通讯错误" 0xa2,0x01,0x05,0xa1,"0590","CAN-TOTSC1PE 通讯错误" 0xa2,0x01,0x05,0xa2,"0591","CAN-TOTSC1PE 通讯错误" 0xa2,0x01,0x05,0xb1,"05a0","CAN-TOTSC1TE 通讯错误" 0xa2,0x01,0x05,0xb4,"05a2","CAN-TOTSC1TE 通讯错误" 0xa2,0x01,0x05,0xc1,"05b0","CAN -TOTSC1TR 通讯错误" 0xa2,0x01,0x05,0xc4,"05b2","CAN -TOTSC1TR 通讯错误" 0xa2,0x01,0x05,0xd1,"05c0","CAN-TOTSC1VE 通讯错误" 0xa2,0x01,0x05,0xd4,"05c2","CAN-TOTSC1VE 通讯错误" 0xa2,0x01,0x05,0xe1,"05d0","CAN-TOTSC1VR 通讯错误" 0xa2,0x01,0x05,0xe4,"05d2","CAN-TOTSC1VR 通讯错误" 0xa2,0x01,0x05,0xf1,"05e0","CAN -TOTimeDate 通讯错误"0xa2,0x01,0x06,0x04,"05f2","CAN -TOWSI 通讯错误" 0xa2,0x01,0x06,0x14,"0602","CAN -TxTO通讯错误" 0xa2,0x01,0x06,0x21,"0610","档位提升间隙时间过长"0xa2,0x01,0x06,0x31,"0620","指示灯1电源短路"0xa2,0x01,0x06,0x32,"0621","指示灯1地短路"0xa2,0x01,0x06,0x34,"0622","指示灯1没有信号"0xa2,0x01,0x06,0x38,"0623","指示灯1超温"0xa2,0x01,0x06,0x41,"0630","指示灯2电源短路"0xa2,0x01,0x06,0x42,"0631","指示灯2地短路"0xa2,0x01,0x06,0x44,"0632","指示灯2没有信号"0xa2,0x01,0x06,0x48,"0633","指示灯2超温"0xa2,0x01,0x06,0x51,"0640","指示灯3电源短路"0xa2,0x01,0x06,0x52,"0641","指示灯3地短路"0xa2,0x01,0x06,0x54,"0642","指示灯3没有信号"0xa2,0x01,0x06,0x58,"0643","指示灯3超温"0xa2,0x01,0x06,0x61,"0650","CJ940通讯受干扰"0xa2,0x01,0x06,0x71,"0660","EEPROM报警"0xa2,0x01,0x06,0x72,"0661","EEPROM读错误"0xa2,0x01,0x06,0x74,"0662","EEPROM写错误"0xa2,0x01,0x06,0x78,"0663","EEPROM使用替代值"0xa2,0x01,0x06,0x88,"0673","系统修复故障"0xa2,0x01,0x06,0x98,"0683","系统修复故障"0xa2,0x01,0x06,0xa8,"0693","系统修复故障"0xa2,0x01,0x06,0xb1,"06a0","CJ940电压过高"0xa2,0x01,0x06,0xc2,"06b1","CJ940电压过低"0xa2,0x01,0x06,0xd1,"06c0","空气湿度传感器电压超出上限门槛值"0xa2,0x01,0x06,0xd2,"06c1","空气湿度传感器电压低于下限门槛值"0xa2,0x01,0x06,0xe1,"06d0","进气温度传感器电压超出上限门槛值"0xa2,0x01,0x06,0xe2,"06d1","进气温度传感器电压低于下限门槛值"0xa2,0x01,0x06,0xe4,"06d2","来自CAN进气温度传感器电压信号不可信" 0xa2,0x01,0x06,0xf1,"06e0","理想喷油次数受电流限制"0xa2,0x01,0x06,0xf2,"06e1","理想喷油次数受油量限制"0xa2,0x01,0x06,0xf4,"06e2","理想喷油次数受软件限制"0xa2,0x01,0x07,0x01,"06f0","1、2、3缸中某喷油器高端与电源或地短路" 0xa2,0x01,0x07,0x02,"06f1","1、2、3缸中某喷油器低端与地短路"0xa2,0x01,0x07,0x04,"06f2","看实际应用情况"0xa2,0x01,0x07,0x08,"06f3","没有标定的错误"0xa2,0x01,0x07,0x11,"0700","看实际应用情况"0xa2,0x01,0x07,0x12,"0701","看实际应用情况"0xa2,0x01,0x07,0x14,"0702","1、2、3缸中某喷油器断路"0xa2,0x01,0x07,0x18,"0703","看实际应用情况"0xa2,0x01,0x07,0x21,"0710","4、5、6缸中某喷油器高端与电源或地短路" 0xa2,0x01,0x07,0x22,"0711","4、5、6缸中某喷油器低端与地短路"0xa2,0x01,0x07,0x24,"0712","看实际应用情况"0xa2,0x01,0x07,0x28,"0713","没有标定的错误"0xa2,0x01,0x07,0x31,"0720","看实际应用情况"0xa2,0x01,0x07,0x32,"0721","看实际应用情况"0xa2,0x01,0x07,0x34,"0722","4、5、6缸中某喷油器断路"0xa2,0x01,0x07,0x38,"0723","看实际应用情况"0xa2,0x01,0x07,0x41,"0730","CY33X内部重新起动/时钟丢失/电压太高" 0xa2,0x01,0x07,0x42,"0731","CY33X没有被锁定/初始化错误"0xa2,0x01,0x07,0x44,"0732","CY33X工作在测试模式下"0xa2,0x01,0x07,0x48,"0733","CY33X SPI通讯错误"0xa2,0x01,0x07,0x51,"0740","CY33X内部奇偶错误"0xa2,0x01,0x07,0x52,"0741","CY33X程序错误"0xa2,0x01,0x07,0x54,"0742","CY33X check of inv. YSEL"0xa2,0x01,0x07,0x58,"0743","某缸的CY33X不工作"0xa2,0x01,0x07,0x61,"0750","喷油器1低端与电源短路"0xa2,0x01,0x07,0x62,"0751","看实际应用情况"0xa2,0x01,0x07,0x64,"0752","喷油器1高端与低端短路"0xa2,0x01,0x07,0x68,"0753","没有标定的错误"0xa2,0x01,0x07,0x71,"0760","看实际应用情况"0xa2,0x01,0x07,0x72,"0761","看实际应用情况"0xa2,0x01,0x07,0x74,"0762","喷油器1开路"0xa2,0x01,0x07,0x78,"0763","看实际应用情况"0xa2,0x01,0x07,0x81,"0770","喷油器2低端与电源短路" 0xa2,0x01,0x07,0x82,"0771","看实际应用情况"0xa2,0x01,0x07,0x84,"0772","喷油器2高端与低端短路" 0xa2,0x01,0x07,0x88,"0773","没有标定的错误"0xa2,0x01,0x07,0x91,"0780","看实际应用情况"0xa2,0x01,0x07,0x92,"0781","看实际应用情况"0xa2,0x01,0x07,0x94,"0782","喷油器2开路"0xa2,0x01,0x07,0x98,"0783","看实际应用情况"0xa2,0x01,0x07,0xa1,"0790","喷油器3低端与电源短路" 0xa2,0x01,0x07,0xa2,"0791","看实际应用情况"0xa2,0x01,0x07,0xa4,"0792","喷油器3高端与低端短路" 0xa2,0x01,0x07,0xa8,"0793","没有标定的错误"0xa2,0x01,0x07,0xb1,"07a0","看实际应用情况"0xa2,0x01,0x07,0xb2,"07a1","看实际应用情况"0xa2,0x01,0x07,0xb4,"07a2","喷油器3开路"0xa2,0x01,0x07,0xb8,"07a3","看实际应用情况"0xa2,0x01,0x07,0xc1,"07b0","喷油器4低端与电源短路" 0xa2,0x01,0x07,0xc2,"07b1","看实际应用情况"0xa2,0x01,0x07,0xc4,"07b2","喷油器4高端与低端短路" 0xa2,0x01,0x07,0xc8,"07b3","没有标定的错误"0xa2,0x01,0x07,0xd1,"07c0","看实际应用情况"0xa2,0x01,0x07,0xd2,"07c1","看实际应用情况"0xa2,0x01,0x07,0xd4,"07c2","喷油器4开路"0xa2,0x01,0x07,0xd8,"07c3","看实际应用情况"0xa2,0x01,0x07,0xe1,"07d0","喷油器5低端与电源短路"0xa2,0x01,0x07,0xe2,"07d1","看实际应用情况"0xa2,0x01,0x07,0xe4,"07d2","喷油器5高端与低端短路"0xa2,0x01,0x07,0xe8,"07d3","没有标定的错误"0xa2,0x01,0x07,0xf1,"07e0","看实际应用情况"0xa2,0x01,0x07,0xf2,"07e1","看实际应用情况"0xa2,0x01,0x07,0xf4,"07e2","喷油器5开路"0xa2,0x01,0x07,0xf8,"07e3","看实际应用情况"0xa2,0x01,0x08,0x01,"07f0","喷油器6低端与电源短路"0xa2,0x01,0x08,0x02,"07f1","看实际应用情况"0xa2,0x01,0x08,0x04,"07f2","喷油器6高端与低端短路"0xa2,0x01,0x08,0x08,"07f3","没有标定的错误"0xa2,0x01,0x08,0x11,"0800","看实际应用情况"0xa2,0x01,0x08,0x12,"0801","看实际应用情况"0xa2,0x01,0x08,0x14,"0802","喷油器6开路"0xa2,0x01,0x08,0x18,"0803","看实际应用情况"0xa2,0x01,0x08,0x21,"0810","正常工作的气缸数小于系统运转所需的最小缸数" 0xa2,0x01,0x08,0x22,"0811","未用"0xa2,0x01,0x08,0x24,"0812","未用"0xa2,0x01,0x08,0x28,"0813","未用"0xa2,0x01,0x08,0x38,"0823","巡航信号不可靠"0xa2,0x01,0x08,0x41,"0830","故障灯与电源短路"0xa2,0x01,0x08,0x42,"0831","故障灯与地短路"0xa2,0x01,0x08,0x44,"0832","故障灯没有信号"0xa2,0x01,0x08,0x48,"0833","故障灯超温"0xa2,0x01,0x08,0x51,"0840","主继电器2对电源短路"0xa2,0x01,0x08,0x52,"0841","主继电器2对地短路"0xa2,0x01,0x08,0x61,"0850","巡航开关对电源短路"0xa2,0x01,0x08,0x62,"0851","巡航开关对地短路"0xa2,0x01,0x08,0x68,"0853","巡航开关信号不可信"0xa2,0x01,0x08,0x71,"0860","主继电器1电源短路"0xa2,0x01,0x08,0x82,"0871","主继电器1地短路"0xa2,0x01,0x08,0x98,"0883","系统通讯故障"0xa2,0x01,0x08,0xa1,"0890","CAN通讯错误"0xa2,0x01,0x08,0xb1,"08a0","CAN通讯错误"0xa2,0x01,0x08,0xc1,"08b0","CAN通讯错误"0xa2,0x01,0x08,0xd1,"08c0","机油液位传感器电压电压超出上限"0xa2,0x01,0x08,0xd2,"08c1","机油液位传感器电压电压低于下限"0xa2,0x01,0x08,0xd4,"08c2","来自CAN的机油液位传感器信号不可靠" 0xa2,0x01,0x08,0xd8,"08c3","机油液位传感器信号不可靠"0xa2,0x01,0x08,0xe1,"08d0","机油压力传感器电压电压超出上限"0xa2,0x01,0x08,0xe2,"08d1","机油压力传感器电压电压低于下限"0xa2,0x01,0x08,0xe4,"08d2","机油压力传感器信号不可靠"0xa2,0x01,0x08,0xe8,"08d3","机油压力过高或机油温度信号不可靠"0xa2,0x01,0x08,0xf8,"08e3","机油压力过低"0xa2,0x01,0x09,0x01,"08f0","机油温度传感器电压超出上限门槛值"0xa2,0x01,0x09,0x02,"08f1","机油温度传感器电压低于下限门槛值"0xa2,0x01,0x09,0x04,"08f2","来自CAN的机油温度传感器信号不可信" 0xa2,0x01,0x09,0x08,"08f3","机油温度与冷却水温度信号"0xa2,0x01,0x09,0x18,"0903","机油温度与冷却水温度信号"0xa2,0x01,0x09,0x21,"0910","喷油器加电时间超出超速监视器设定值"0xa2,0x01,0x09,0x31,"0920","发动机转速不可信"0xa2,0x01,0x09,0x41,"0930","压力调节正偏差超出上限"0xa2,0x01,0x09,0x52,"0941","压力调节负偏差低于下限"0xa2,0x01,0x09,0x61,"0950","电动燃油泵对电源短路"0xa2,0x01,0x09,0x62,"0951","电动燃油泵对地短路"0xa2,0x01,0x09,0x64,"0952","电动燃油泵断路"0xa2,0x01,0x09,0x68,"0953","电动燃油泵超温"0xa2,0x01,0x09,0x78,"0963","加速测试错误"0xa2,0x01,0x09,0x82,"0971","看门狗开关错误"0xa2,0x01,0x09,0x84,"0972","冗余断缸测试电压超出上限"0xa2,0x01,0x09,0x88,"0973","冗余断缸测试电压低于下限"0xa2,0x01,0x09,0x91,"0980","传感器电源1电压超出上限门槛值"0xa2,0x01,0x09,0x92,"0981","传感器电源1电压低于下限门槛值"0xa2,0x01,0x09,0xa1,"0990","传感器电源2电压超出上限门槛值"0xa2,0x01,0x09,0xa2,"0991","传感器电源2电压低于下限门槛值"0xa2,0x01,0x09,0xb1,"09a0","传感器电源3电压超出上限门槛值"0xa2,0x01,0x09,0xb2,"09a1","传感器电源3电压低于下限门槛值"0xa2,0x01,0x09,0xc1,"09b0","断缸测试故障"0xa2,0x01,0x09,0xd1,"09c0","系统灯电源短路"0xa2,0x01,0x09,0xd2,"09c1","系统灯地短路"0xa2,0x01,0x09,0xd4,"09c2","没有系统灯信号"0xa2,0x01,0x09,0xd8,"09c3","系统灯超温"0xa2,0x01,0x09,0xe4,"09d2","T15信号错误"0xa2,0x01,0x09,0xf1,"09e0","T50接通时间超限"0xa2,0x01,0x0a,0x08,"09f3","时间处理器与系统计时器间的时间偏差超出门槛值" 0xa2,0x01,0x0a,0x11,"0a00","空气节流阀对电源短路"0xa2,0x01,0x0a,0x22,"0a11","空气节流阀对地短路"0xa2,0x01,0x0a,0x34,"0a22","空气节流阀没有信号"0xa2,0x01,0x0a,0x38,"0a23","空气节流阀超温"0xa2,0x01,0x0a,0x41,"0a30","车速1高于最大门槛值"0xa2,0x01,0x0a,0x42,"0a31","VSS或SPS传感器信号失效"0xa2,0x01,0x0a,0x44,"0a32","车速1的HW信号不可信"0xa2,0x01,0x0a,0x48,"0a33","车速1与喷油量及发动机转速不可信" 0xa2,0x01,0x0a,0x51,"0a40","车速2传感器电压高出上限门槛值" 0xa2,0x01,0x0a,0x52,"0a41","车速2传感器电压低于下限门槛值" 0xa2,0x01,0x0a,0x54,"0a42","来自CAN的车速信号无效"0xa2,0x01,0x0a,0x58,"0a43","车速2传感器电压信号不可信"0xa2,0x01,0x0a,0x61,"0a50","车速3信号脉宽超过上限门槛值"0xa2,0x01,0x0a,0x62,"0a51","车速3信号脉宽低于下限门槛值"0xa2,0x01,0x0a,0x64,"0a52","车速信号平均周期小于门槛值"0xa2,0x01,0x0a,0x74,"0a62","CAN通讯错误"0xa2,0x01,0x0a,0x78,"0a63","CAN通讯错误"0xa2,0x01,0x0a,0x88,"0a73","SPI通讯错误"0xa2,0x01,0x0a,0x91,"0a80","故障指示灯电源短路"0xa2,0x01,0x0a,0x92,"0a81","故障指示灯对地短路"0xa2,0x01,0x0a,0x94,"0a82","没有故障指示灯信号"0xa2,0x01,0x0a,0x98,"0a83","故障指示灯超温"0xa2,0x01,0x0a,0xa1,"0a90","空调压缩机对电源短路"0xa2,0x01,0x0a,0xa2,"0a91","空调压缩机对地短路"0xa2,0x01,0x0a,0xa4,"0a92","空调压缩机没有信号"0xa2,0x01,0x0a,0xa8,"0a93","空调压缩机超温"0xa2,0x01,0x0a,0xb1,"0aa0","BPA的AD转换信号超出上限"0xa2,0x01,0x0a,0xb2,"0aa1","BPA的AD转换信号低于下限"0xa2,0x01,0x0a,0xb4,"0aa2","BPA信号错误"0xa2,0x01,0x0a,0xc1,"0ab0","高压测试错误"0xa2,0x01,0x0a,0xd4,"0ac2","燃油计量器开路"0xa2,0x01,0x0a,0xd8,"0ac3","燃油计量器超温"0xa2,0x01,0x0a,0xe1,"0ad0","燃油计量器电源短路"0xa2,0x01,0x0a,0xf2,"0ae1","燃油计量器对地短路"0xa2,0x01,0x0b,0x01,"0af0","燃油计量器电压超过上限"0xa2,0x01,0x0b,0x02,"0af1","燃油计量器电压低于下限"0xa2,0x01,0x0b,0x11,"0b00","共轨泻压阀打开"0xa2,0x01,0x0b,0x12,"0b01","轨压要求时间超限"0xa2,0x01,0x0b,0x14,"0b02","压力波动时共轨泻压阀没有打开"0xa2,0x01,0x0b,0x21,"0b10","共轨泻压阀打开次数超出技术要求的最大次数"0xa2,0x01,0x0b,0x31,"0b20","轨压传感器电压超出上限门槛值"0xa2,0x01,0x0b,0x32,"0b21","轨压传感器电压低于下限门槛值"0xa2,0x01,0x0b,0x41,"0b30","轨压传感器电压超出最大偏差"0xa2,0x01,0x0b,0x42,"0b31","轨压传感器电压低于最小偏差"0xa2,0x01,0x0b,0x51,"0b40","轨压偏差超出上限门槛值"0xa2,0x01,0x0b,0x61,"0b50","轨压偏差超出上限门槛值并且喷油量超限"0xa2,0x01,0x0b,0x71,"0b60","轨压偏差低于下限门槛值并且喷油量低于门槛值"0xa2,0x01,0x0b,0x81,"0b70","轨压峰值低于下限门槛值"0xa2,0x01,0x0b,0x91,"0b80","轨压峰值超出上限门槛值"0xa2,0x01,0x0b,0xa1,"0b90","轨压下降过快"0xa2,0x01,0x0b,0xb1,"0ba0","超速模式下的油量剂量单元设定不可信"0xa2,0x01,0x0b,0xc1,"0bb0","燃油计量器中的油量超过门槛值"0xa2,0x01,0x0b,0xd1,"0bc0","轨压偏差超出门槛值并且燃油计量器中的油量超过门槛值"0xa2,0x01,0x0b,0xe1,"0bd0","12V传感器电源电压超过上限门槛值"0xa2,0x01,0x0b,0xe2,"0bd1","12V传感器电源低于下限门槛值"0xa2,0x01,0x0b,0xf1,"0be0","起动电机高端电源短路"0xa2,0x01,0x0b,0xf2,"0be1","起动电机高端对地短路"0xa2,0x01,0x0c,0x01,"0bf0","起动电机低端电源短路"0xa2,0x01,0x0c,0x02,"0bf1","起动电机低端对地短路"0xa2,0x01,0x0c,0x04,"0bf2","起动电机开路"0xa2,0x01,0x0c,0x11,"0c00","水温传感器工作正常但水温超出门槛值"0xa2,0x01,0x0c,0x21,"0c10","空转时，识别油量计量单元的变量修正错误"0xa2,0x01,0x0c,0x31,"0c20","制动开关错误的识别错误"0xa2,0x01,0x0c,0x41,"0c30","制动踏板踩下前，巡航控制抑制错误"0xa2,0x01,0x0c,0x51,"0c40","巡航控制要求的识别错误，使得故障灯常亮"0xa2,0x01,0x0c,0x61,"0c50","远程油门踏板1输出电压值超出上限" 0xa2,0x01,0x0c,0x62,"0c51","远程油门踏板1输出电压值低于下限" 0xa2,0x01,0x0c,0x64,"0c52","远程油门踏板1与远程油门踏板2的2倍的信号关系不可信" 0xa2,0x01,0x0c,0x71,"0c60","远程油门踏板2输出电压值超出上限" 0xa2,0x01,0x0c,0x72,"0c61","远程油门踏板2输出电压值低于下限" 0xa2,0x01,0x0c,0x74,"0c62","远程油门踏板2与远程油门踏板1的1/2的信号关系不可信"。
潍柴动力发动机件号一、关于曲轴前油封、曲轴后油封、空压机轴油封、气门油封1、曲轴前油封：目前绝大多数为进口件（3001）标示DGS；极少一部分为青岛基珀(1579)生产，其特征标示（以便区别于进口油封）：商标，油封橡胶颜色为棕红色,油封正面粘贴一圈黑色毛毡。
曲轴前油封的件号有两种61500010046、90003078807，都是通用的。
2、曲轴后油封：目前绝大多数为进口件（3001）；极少一部分为青岛基珀(1579)生产，其特征标示（以便区别于进口油封）：商标，油封橡胶颜色为棕红色。
曲轴后油封的件号有四种：61500010047、90003074377、90003074487、61500010100，都是通用的。
3、空压机轴油封：目前绝大多数为进口件（3001）；极少一部分为青岛基珀(1579)生产，其特征标示（以便区别于进口油封）：商标，油封橡胶颜色为棕红色,油封正面粘贴一圈黑色毛毡。
空压机轴油封的件号为：90003070092。
4、气门杆密封套：目前配套的气门杆密封套均为国产件，大部分为青岛凯通（1595）生产；一小部分为青岛基珀(1579)生产，特征标示: 气门杆密封套橡胶颜色为棕红色。
外圆铁壳略带黄色,注意与青岛凯通区别。
气门杆密封套件号：612600040114（配11mm粗气门）；61500040039（配12mm粗气门）。
二、关于水温表传感器、压力传感器1、水温表传感器件号：常用的是614090067（大）；不常用的是61200090006（小），全是进口件（3001）标示VDO。
2、压力传感器件号：61500090051，全是进口件（3001）标示VDO。
三、飞轮齿圈（配10齿启动机）612600020208，现在多用这个件号。
（配11齿启动机）81400020015，这个件号已逐渐淘汰。
生产厂家有：青岛青齿齿轮有限公司（1552）；青岛建新齿圈有限公司（2716）2005年7月停供；青岛康迪机械设备有限公司（2681）。
页次 1-11实业有限公司版次 1.0产品规格书日期 2013.目 录名 称 页 次目录 (1)产品图纸 (2)产品性能 (3)R-T表 (4)变更记录版次 变更日期 变更内容第1页 共11页24mm*0.31铜带热敏电阻备 注比 例重 量第 2 页图 样 标 记共 11 页名 称材 料 及 规 格温度传感器日期更改文件号签字数量实业有限公司1序号设计（审核）（工艺）处数标注23技术要求：1.表面光滑无毛剌；2.端子与导线连接紧固；4导线1铁氟龙管1 L铁氟龙管 mm 2客户确认56连接器端子C3-2Y白色C31271外胶内纤管 4 ∅L=90mm电子实业有限公司规格书R25℃=XXXKΩ±1% 页码:第3页共11页NTC负温度系数热敏电阻B25/50=XXX±1% 1.电气性能项目技术要求测试条件/测试方法测试仪器1.1 额定零功率电阻R25℃=100KΩ±2%环境温度范围25℃±0.1%放2小时测试仪表精度≤±0.2%测试功率≤±0.2mW1.2 B值B25/50=3950±1%B=Ln(R25/R50)/(1/273.15+50)-1/(273.15+25)环境温度: 25℃±0.1℃. 50℃±0.1℃测试仪表精度; ≤±0.2%1.恒温油槽宁波2. 水银温度计(北京玻璃研究院)3. LCR数字电桥1.3 耐压1500VDC/0.5mA.10S无击穿或飞弧现象耐压测试仪(南京长盛)1.4 绝缘电阻≥100ΜΩ/500VDC绝缘电阻测试仪(常州惠发电子有限公司)1.5 耗散系数δmax2.5mw/℃(静止空气中)δ=W/(T-T0)=l²R/(T-T0)1.6 时间常数τmax 10S (静止空气中)零功率状态下由一个特定温度向另一个特定温度突变时阻值变化63.2%所需时间1.7 工作温度-20℃--+200℃1.8 最大功率Pmax 5mw2.可靠性2.1 高温存放200℃环境中放置1000小时阻值变化不大于±2% 101-1型恒温干燥箱(设备有限公司)2.2 低温存放-20℃环境中放置1000小时阻值变化不大于±冰箱2.3 耐温热60℃95%RH存放1000小时阻值变化不大于±2%2.4 耐温度冲击-20℃30分钟—常温5分钟—70℃30分钟循环冲击3次后,阻值变化不大于±2%.101-1型恒温干燥箱(上海沪越实验设备有限公司)BCD-232容声冰箱2.5 引线强度引线沿轴向施加20N拉力并持续60S后,外观无损伤.阻值变化不大于±1%SLJ型拉力计(温州山度)VD9806型数字万用表2.6 振动元件经受加速10g,振幅1.5mm频率从10HZ到500HZ X.Y方向各15分钟后应无损伤,阻值变化不大于±2%VD9806型数字万用表2.7使用寿命正常使用电阻值年飘移率≤3‰3.其它性能3.1 外观无可见性损伤目测4.使用环境条件相对湿度: ≤±95%HK 振动频率: 10—500HZ 大气压力:40Kpa 加速度: 250m/S 贮存温度: -5℃--40℃R25=100KΩ 精度:±1% B25/50=3950K B25/85=4092K 精度:±1%(P182-6B2) 电阻(KΩ) 电阻精度(%) 温度精度(℃)温度(℃) 最小值 中心值 最大值 △R -△R △T -△T -55 20623.500 21986.100 23436.400 6.596 -6.197 0.715 -0.672 -54 17809.100 18957.600 20178.200 6.438 -6.058 0.712 -0.670 -53 15466.500 16440.600 17474.200 6.287 -5.924 0.709 -0.668 -52 13504.600 14335.400 15215.800 6.141 -5.795 0.706 -0.666 -51 11851.500 12564.000 13318.100 6.001 -5.671 0.703 -0.664 -50 10450.700 11064.900 11714.100 5.867 -5.551 0.699 -0.662 -49 9257.290 9789.400 10351.000 5.737 -5.435 0.696 -0.659 -48 8235.230 8698.310 9186.510 5.612 -5.323 0.692 -0.657 -47 7355.590 7760.350 8186.560 5.492 -5.215 0.689 -0.654 -46 6594.960 6950.200 7323.840 5.375 -5.111 0.685 -0.651 -45 5934.270 6247.250 6576.080 5.263 -5.009 0.681 -0.649 -44 5357.900 5634.670 5925.140 5.155 -4.911 0.678 -0.646 -43 4853.030 5098.620 5356.100 5.049 -4.816 0.674 -0.643 -42 4409.040 4627.670 4856.660 4.948 -4.724 0.670 -0.639 -41 4017.110 4212.340 4416.620 4.849 -4.634 0.666 -0.636 -40 3669.900 3844.740 4027.520 4.753 -4.547 0.662 -0.633 -39 3361.230 3518.250 3682.230 4.660 -4.462 0.657 -0.630 -38 3085.930 3227.300 3374.810 4.570 -4.380 0.653 -0.626 -37 2839.610 2967.200 3100.210 4.482 -4.300 0.649 -0.622 -36 2618.550 2733.970 2854.190 4.397 -4.221 0.644 -0.619 -35 2419.590 2524.220 2633.120 4.314 -4.145 0.640 -0.615 -34 2240.020 2335.070 2433.910 4.232 -4.070 0.635 -0.611 -33 2077.520 2164.020 2253.910 4.153 -3.997 0.631 -0.607-32 1930.090 2008.970 2090.850 4.076 -3.926 0.626 -0.603 -31 1796.020 1868.050 1942.780 4.000 -3.856 0.621 -0.599 -30 1673.800 1739.690 1808.000 3.926 -3.787 0.616 -0.594 -29 1562.140 1622.510 1685.040 3.854 -3.720 0.611 -0.590 -28 1459.910 1515.290 1572.610 3.783 -3.654 0.606 -0.585 -27 1366.120 1417.000 1469.610 3.713 -3.590 0.601 -0.581 -26 1279.910 1326.700 1375.060 3.645 -3.526 0.596 -0.576 -25 1200.520 1243.600 1288.100 3.578 -3.464 0.590 -0.571 -24 1127.280 1166.990 1207.980 3.512 -3.402 0.585 -0.567 -23 1059.590 1096.230 1134.020 3.447 -3.342 0.579 -0.562 -22 996.936 1030.770 1065.650 3.383 -3.282 0.574 -0.557 -21 938.848 970.126 1002.340 3.321 -3.224 0.568 -0.552 -20 884.914 913.850 943.637 3.259 -3.166 0.562 -0.546 -19 834.767 861.555 889.114 3.198 -3.109 0.557 -0.541 -18 788.078 812.895 838.409 3.138 -3.052 0.551 -0.536 -17 744.551 767.557 791.194 3.079 -2.997 0.545 -0.530R---T分度表 :- 传真:- 地址:15座4楼 网址:www..com 电子邮箱：@.comR25=100KΩ 精度:±1% B25/50=3950K B25/85=4092K 精度:±1%(P182-6B2) 电阻(KΩ) 电阻精度(%) 温度精度(℃)温度(℃) 最小值 中心值 最大值 △R -△R △T -△T -16 703.923 725.262 747.173 3.021 -2.942 0.539 -0.525 -15 665.955 685.759 706.082 2.963 -2.887 0.533 -0.519 -14 630.435 648.823 667.681 2.906 -2.834 0.526 -0.513 -13 597.168 614.249 631.756 2.850 -2.780 0.520 -0.507 -12 565.979 581.853 598.112 2.794 -2.728 0.514 -0.502 -11 536.711 551.468 566.575 2.739 -2.675 0.507 -0.496 -10 509.220 522.943 536.983 2.684 -2.624 0.501 -0.490 -9 483.374 496.140 509.192 2.630 -2.573 0.494 -0.483 -8 459.056 470.934 483.071 2.577 -2.522 0.488 -0.477 -7 436.156 447.211 458.499 2.524 -2.471 0.481 -0.471 -6 414.576 424.866 435.367 2.471 -2.421 0.474 -0.465 -5 394.224 403.803 413.574 2.419 -2.372 0.467 -0.458 -4 375.018 383.937 393.028 2.367 -2.322 0.460 -0.452 -3 356.881 365.185 373.645 2.316 -2.274 0.453 -0.445 -2 339.742 347.475 355.348 2.265 -2.225 0.446 -0.438 -1 323.538 330.738 338.065 2.215 -2.177 0.439 -0.431 0 308.207 314.913 321.731 2.165 -2.129 0.432 -0.425 1 293.697 299.940 306.285 2.115 -2.081 0.425 -0.418 2 279.954 285.767 291.671 2.066 -2.034 0.417 -0.411 3 266.934 272.345 277.838 2.017 -1.986 0.410 -0.404 4 254.590 259.627 264.737 1.968 -1.940 0.402 -0.396 5 242.884 247.572 252.325 1.919 -1.893 0.395 -0.389 6 231.778 236.139 240.559 1.871 -1.847 0.387 -0.382 7 221.236 225.293 229.402 1.823 -1.800 0.379 -0.374 8 211.226 214.999 218.817 1.776 -1.754 0.371 -0.367 9 201.717 205.225 208.772 1.728 -1.709 0.364 -0.359 10 192.681 195.941 199.236 1.681 -1.663 0.356 -0.352 11 184.092 187.121 190.180 1.634 -1.618 0.348 -0.344 12 175.925 178.737 181.576 1.588 -1.573 0.340 -0.336 13 168.157 170.767 173.400 1.541 -1.528 0.331 -0.328 14 160.766 163.187 165.628 1.495 -1.483 0.323 -0.320 15 153.731 155.976 158.237 1.449 -1.439 0.315 -0.312 16 147.034 149.114 151.208 1.404 -1.394 0.306 -0.304 17 140.657 142.582 144.520 1.358 -1.350 0.298 -0.296 18 134.582 136.364 138.155 1.313 -1.306 0.289 -0.287 19 128.794 130.442 132.097 1.268 -1.262 0.280 -0.279 20 123.279 124.800 126.328 1.224 -1.219 0.271 -0.270 21 118.021 119.425 120.834 1.179 -1.175 0.262 -0.261 22 113.009 114.303 115.600 1.135 -1.132 0.252 -0.251 23 108.229 109.420 110.614 1.090 -1.089 0.240 -0.240R---T分度表 :- 传真:- 地址:15座4楼 网址:www..com 电子邮箱：@.com。
共轨泻压阀打开
及其线束，
齿圈
足，转速不稳或束
路；油量计量单元；轨
短路或断路或齿圈安装或加工不对
路或与缸盖等短路
、高、低压油路故障 2、轨压传感器故障 3、
油量计量单元故障
阻值～0Ω说明正常；3、测量传感器接头1、2到整车地之间阻值，若阻值＞1MΩ说明正常；4、有示波器测量曲轴、凸轮轴同步是否正常，若有问题则可能齿圈或油泵齿轮安装或加工有问题。
、检查曲轴传感器安装有无松动；2、断电，测
、排查高低压油路 2、确认轨压传感器是否正常；3、确认油量计量单元是否正常。
