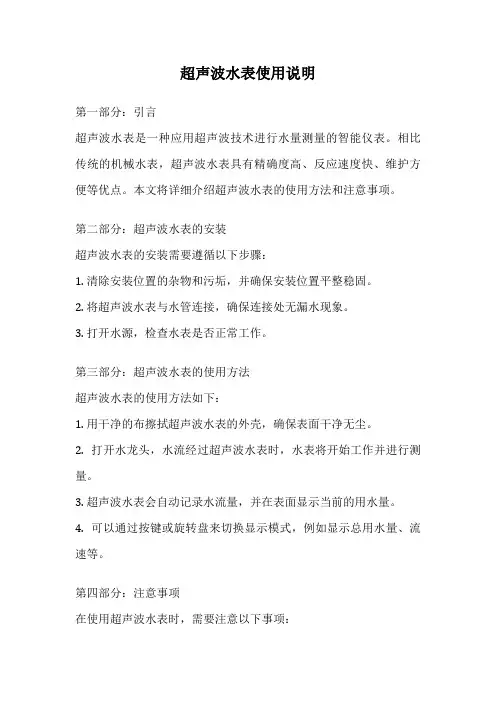

超声波水表使用说明第一部分:引言超声波水表是一种应用超声波技术进行水量测量的智能仪表。
相比传统的机械水表,超声波水表具有精确度高、反应速度快、维护方便等优点。
本文将详细介绍超声波水表的使用方法和注意事项。

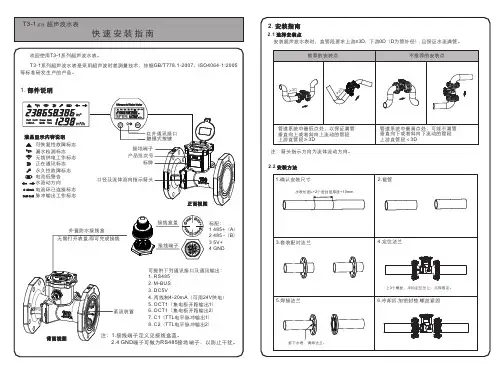

第二部分:超声波水表的安装超声波水表的安装需要遵循以下步骤:1. 清除安装位置的杂物和污垢,并确保安装位置平整稳固。
2. 将超声波水表与水管连接,确保连接处无漏水现象。
3. 打开水源,检查水表是否正常工作。
第三部分:超声波水表的使用方法超声波水表的使用方法如下:1. 用干净的布擦拭超声波水表的外壳,确保表面干净无尘。
2. 打开水龙头,水流经过超声波水表时,水表将开始工作并进行测量。
3. 超声波水表会自动记录水流量,并在表面显示当前的用水量。
4. 可以通过按键或旋转盘来切换显示模式,例如显示总用水量、流速等。
第四部分:注意事项在使用超声波水表时,需要注意以下事项:1. 避免超声波水表长时间暴露在阳光直射下,以防止温度过高影响其正常工作。
2. 定期清洁超声波水表,以防止灰尘和污垢堆积影响测量精度。
3. 如发现超声波水表异常,如显示不正常或测量值异常等情况,应及时联系专业人员进行检修或更换。
4. 注意超声波水表的防水性能,避免水流进入内部造成损坏。
第五部分:总结超声波水表是一种高精度、快速响应的水表,使用方法简单,但仍需注意安装和使用过程中的细节。
合理使用超声波水表可以提高水资源的利用效率,减少浪费,为环境保护和节能做出贡献。
超声波水表的使用说明包括安装、使用方法和注意事项等方面。
通过正确的安装和使用,我们可以充分利用超声波水表的优势,实现对水资源的有效管理和节约使用。
希望本文对超声波水表的使用者有所帮助。

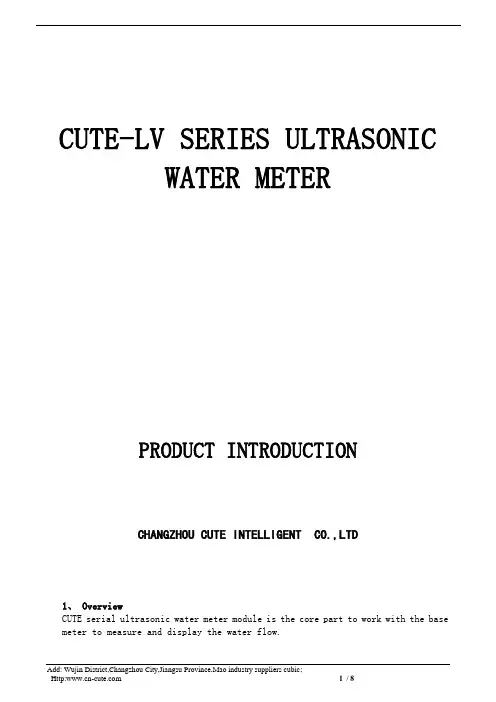

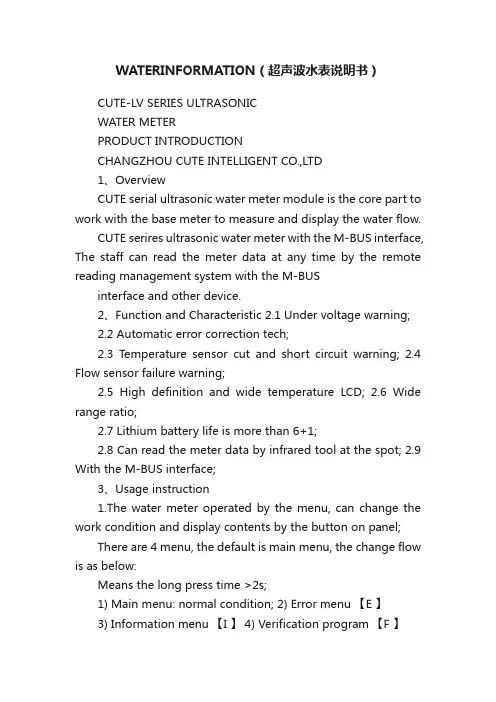

WATERINFORMATION(超声波水表说明书)CUTE-LV SERIES ULTRASONICWATER METERPRODUCT INTRODUCTIONCHANGZHOU CUTE INTELLIGENT CO.,LTD1、OverviewCUTE serial ultrasonic water meter module is the core part to work with the base meter to measure and display the water flow.CUTE serires ultrasonic water meter with the M-BUS interface, The staff can read the meter data at any time by the remote reading management system with the M-BUSinterface and other device.2、Function and Characteristic 2.1 Under voltage warning;2.2 Automatic error correction tech;2.3 Temperature sensor cut and short circuit warning; 2.4 Flow sensor failure warning;2.5 High definition and wide temperature LCD; 2.6 Wide range ratio;2.7 Lithium battery life is more than 6+1;2.8 Can read the meter data by infrared tool at the spot; 2.9 With the M-BUS interface;3、Usage instruction1.The water meter operated by the menu, can change the work condition and display contents by the button on panel;There are 4 menu, the default is main menu, the change flow is as below:Means the long press time >2s;1) Main menu: normal condition; 2) Error menu 【E 】3) Information menu 【I 】 4) Verification program 【F 】The screen is off when stand by, press the button to awake the meter and enter the m ain menu, which show the accumulated flow(above figure), long press to change menu and read the data you need, the screen will be off after 3 minutes without any operation except the verification program 【F 】.Main MenuMain menuxxxxx.xxx m 3【E 】【I 】【F 】Error menu operation 【E 】Press<2s Long press>2sXXXXX.XXX m 3XX.XXX m 3/h AccumulationXXXXXXXX hDN20X.X.X.X.X.XXXInstant flowWork timeTypeFull screen 【E 】1 XX.XX.XX Battery fault (date)Accumulated timeInformation Menu 【I 】Verifivcation Menu 【F 】Press<2sLong press >2s【F 】 XXX.XXXXX m 3FXXX.XXXXX m 3/h F℃ XX.XX Zero clearWater temperature 瞬流 Instant flowAccumulated flow5 XX.XX.XX S6 XX.XX.XX S7 XX.XX.XX STranducer fault flow in (date)Tranducer fault flow out (date)换能器故障出水端发生日期(年月日)8 XX.XX.XXS7 XXXXXXX h8 XXXXXXX hXXXXXX XXXXXXXXXXr XX d -xx.xx.xx Y M D xx.xx.xx H M S 【I 】Main add Second addEditionPresent datePresnet time Last month Readingr-xx.xx.xx Y M DXXXX.XXX m 3Last 2 months Reading4、Characteristics:Accumulated volume definition 0.001m 3 (working )0.00001m 3(verifying )Present flow definition 0.001 m 3/h (working ) 0.001 m 3/h (verifying ) Measure range Q 3/Q 1=400 Quiescentcurrent < 6uABattery life > 6+1 year LCD digits 8Max accumulatedtime4.2x109 hoours (work time>99999999, only display the last 8 valid digits )Max accumulated flow4.2x109m 3 (flow>99999.999 m 3 ,only display the last 8 valid digits )Accuracy class II class5、Failure analysis and solution No. Problem Cause Solution 1 Battery fault Under vlotage or bad connection Check the connector, changethe battery;2 Vacant pipe fault No water or not full in the pipe Fill the pipe full andeliminate the bubble3 Reflux fault The inflow and outflow reverse Adjust the inflow andoutflow4 Surpass range ratio The present instant flow is too high Lower the flow or change themeter 5 Water temperature Water temperature fault Lower the temperature orchange the meter 6 EE fault EE storage invalid Change the PCB 7 Transducer Inflow Change or reinstall thePress<2s Long press>2s 按大于2秒Remark :Under the verification menu, the accumulated flow and heat can be zero clear automatically, when the flow rate is 0,,if detect the flow rate in pipe is higher than the set point, zero clear the present accumulated data; When can't make zero clearunder some extrem conditio, which can be done by manual;Exit the verification menu without any operation in 2 hours;transducer8 Transducer OutflowChange or reinstall thetransducer6、PCB connector and outlineNote :Please read the documents carefully before using the products; If any qutstion, please don ’t hesitate to contact with us;Special instruction for the verification mode(1).Enter the verificaiton modeAfter turning on the water meter, press the button until seeing the 【F 】,then press again to see the below content :Accumulation Flow0.00000 m3ButtonLCDBattery connectorMain menuKW·h 【E 】【I 】【F 】Verification(2).Menu clausePress the button every time, you will see the caluse in order, please see thedetails in page 6;(3).NoteUnder the verification mode, the accumulated flow can be zero clear automatically,when the flow rate is 0, it will be zeroclear and start a new flow inspect automatically;。
超声波水表使用说明超声波水表是一种先进的计量设备,通过超声波技术实现对水流量的精确测量。
本文将为您详细介绍超声波水表的使用方法和注意事项,以确保您能正确、方便地使用超声波水表。
一、安装与连接1. 在安装超声波水表之前,请确保水表安装位置没有任何障碍物,并且具备稳定的水流条件。
2. 将超声波水表安装在水管上,确保连接口紧固,并使用密封胶垫进行密封,以防止漏水。
3. 连接超声波水表与数据采集设备或智能终端,确保连接稳定可靠。
二、使用方法1. 打开水源后,超声波水表会自动开始工作。
您可以通过观察显示屏上的数据来实时了解水流量。
2. 您可以通过按下水表上的按键来切换显示屏上的信息,如总累计流量、瞬时流量、温度等。
3. 如果需要查看更多详细信息或进行设置,您可以使用数据采集设备或智能终端连接超声波水表,并通过对应软件进行操作。
4. 超声波水表具有自动检测功能,当出现故障或异常情况时,水表会自动报警,并显示相应的错误代码。
请及时联系售后服务。
三、注意事项1. 在使用超声波水表之前,请阅读并理解产品说明书。
确保您具备基本的操作知识和安全意识。
2. 超声波水表应安装在通风良好的环境中,避免阳光直射、高温、潮湿等影响测量精度的条件。
3. 定期清洁超声波水表的显示屏和外壳,确保清晰可见,并避免灰尘或污物进入水表内部。
4. 超声波水表具有较高的精度和灵敏度,请避免碰撞或摔落,以免影响正常使用。
5. 如需维修或更换超声波水表,请联系正规渠道的售后服务,切勿自行拆卸或修理。
总结:超声波水表是一种先进的计量设备,通过超声波技术实现对水流量的精确测量。
在安装和使用超声波水表时,我们需要注意安装位置、连接稳固、操作方法以及日常维护等方面的事项。
只有正确、规范地使用超声波水表,我们才能准确地了解和管理水资源的使用情况,做到节约用水、科学用水。
如果在使用过程中遇到问题或需要维修,应及时联系售后服务,切勿私自拆卸或修理。
通过正确使用超声波水表,我们可以更好地保护环境、节约资源。
一概述§1.1 引言欢迎您使用我公司研制生产的新一代TDS-100-1599855-1030-系列超声波流量计/超声波热量计/流量变送器/电池供电性超声波水表新一代TDS-100系列超声波流量计/超声波热量计/流量变送器/电池供电性超声波水表是在TDS-100第七版及第十一版超声波流量计的基础上,集11年专业生产制造超声波流量计的技术与经验,采用TI的MSP430FG4618低功耗单片机,最新开发的高性能、低价格、可靠性好、功能强大的全新系列产品。
新产品无论在测量精度、测量稳定性、通讯协议、使用方便性等方面都较原第7版超声波流量计有了很大的提高。
同时实现了生产过程中元器件参数无调整化,生产工艺更简单更可靠,产品一致性好,从而保证每一台出厂产品都达到最佳性能。
在软件操作菜单上继续延用第七版超声波流量计友好的用户界面,只是个别菜单的功能做了改动或增加,保证了公司的老用户非常简单容易的掌握。
新一代TDS-100系列超声波流量计/超声波热量计 /变送器/电池供电性超声波水表目前有四个不同型号的主板版本供用户选用,这四个版本分别称为第十三版、第十四版、第十五版和第十六版,简称为TDS13,TDS14,TDS15,TDS16。
本说明书适用于TDS-100M(模块型,TDS13主板)、TDS-100S(经济型,TDS14主板)、TDS-100F(固定分体式,TDS13主板、TDS15主板)、TDS-100Y(固定一体式,TDS16主板)TDS-100Z(变送型,TDS16主板)、TDS-100W(水表,TDS16主板)等型号的产品。
并对产品的安装、操作及通讯进行详细介绍。
公司出厂每台产品都使用唯一的8位电子序列号(ESN),用户使用产品前请核对产品出厂编号和电子序列号(第61号窗口)是否一致。
再按版本号和产品型号仔细阅读说明书中对应章节,具体编码规则如下:§1.2 工作原理当超声波束在液体中传播时,液体的流动将使传播时间产生微小变化,其传播时间的变化正比于液体的流速,零流量时,两个传感器发射和接收声波所需的时间完全相同(唯一可实际测量零流量的技术),液体流动时,逆流方向的声波传输时间大于顺流方向的声波传输时间。
超声波水表使用手册感选用TPP-70SW系列超声波水表。
TPP-70SW系列超声波水表是基于超声波时差法原理设计而成的性能卓越的超声波测流产品。
本公司对TPP-70SW系列超声波水表拥有完整的、独立的知识产权。
使用过程中如有任何问题,欢迎来电来函。
执行标准:生产标准:中华人民国国家标准GB/T778-2007《封闭满管道中水流量的测量,饮用冷水水表和热水水表》检定标准:中华人民国国家计量检定规程JJG162-2009《冷水水表》重要提示:1、使用前请详尽阅读使用手册,并妥善保管使用手册,以备查阅;2、本产品为精密测量仪器,在安装与使用过程中尽量远离干扰源,选择合理的安装位置,并避免严重撞击、碰撞;3、本产品出厂前均经过严格的质量检测,严禁非规性操作或私自拆卸,否则后果自负;4、显示图案、提示等均为窗口操作提示,并不能作为产品检定依据;5、产品检定,请选择符合国家计量要求,正规的流量检定装置,并严格按照规操作;6、TPP-70SW会不定期进行升级,产品实际功能与本手册不一致时,请以实际产品为准或向厂家咨询;7、出现错误提示时,请及时联系厂家或经销商,否则会造成流量损失。
一、产品特点:专门用于小区分户或其它场所的小口径用水的精准计量;最小可测流速仅为0.003m/s,真正实现滴水计量;可实现正反流量的双向计量;双行同屏显示,完整的提示功能,方便查询、诊断;机身可自由近360度旋转,方便用户查阅;小体积微功耗设计,实际使用寿命10年以上;优良的线性度,在满量程围,线性一致,无须多点校正;完美的软件扩展功能,可满足不同用户的定制要求;多种计量单位可选,满足不同国家的用户需求;二、产品外形尺寸公称直径(mm) L(mm) H(mm) W(mm) 连接螺纹DN15 110 68.5 90.5 G3/4B DN20 130 85 90.5 G1B DN25 175 93.5 90.5 G1 1/4B三、产品技术参数特性技术参数可测介质水及其它均质液体且充满被测管段准确度等级优于2级最大允许工作压力 1.6Mpa公称通径DN15-DN25工作环境温度:-15~55℃;湿度≤100%(RH)温度等级T30/T50, 出厂默认为T30上游流场敏感度等级U10下游流场敏感度等级D5气候和机械环境安全等级C类电磁兼容性等级E1数据存贮EEPROM/FLASH存储数据数据通讯RS485/红外工作电源 3.6V锂电池,寿命10年防护等级IP68本地显示双行显示9位累积量、4位瞬时流量及流量单位、状态提示符四、流量围公称直径 (mm) 量程比(Q3/Q1)R 始动流量(L/H)最小流量 Q1 (L/H) 分界流量 Q2 (L/H) 常用流量 Q3 (m³/H ) 过载流量Q4 (m³/H ) DN15 400 6.25 10 2.5 3.125 DN20 400 10 16 4 5 DN2540015.7525.26.37.875五、窗口操作用磁棒触碰磁感应区即可实现显示窗口的切换、循环。
CUTE-LV SERIES ULTRASONICWATER METERPRODUCT INTRODUCTIONCHANGZHOU CUTE INTELLIGENT CO.,LTD1、OverviewCUTE serial ultrasonic water meter module is the core part to work with the base meter to measure and display the water flow.CUTE serires ultrasonic water meter with the M-BUS interface, The staff can read the meter data at any time by the remote reading management system with the M-BUSinterface and other device.2、Function and Characteristic 2.1 Under voltage warning;2.2 Automatic error correction tech;2.3 Temperature sensor cut and short circuit warning; 2.4 Flow sensor failure warning;2.5 High definition and wide temperature LCD; 2.6 Wide range ratio;2.7 Lithium battery life is more than 6+1;2.8 Can read the meter data by infrared tool at the spot; 2.9 With the M-BUS interface;3、Usage instruction1.The water meter operated by the menu, can change the work condition and display contents by the button on panel;There are 4 menu, the default is main menu, the change flow is as below:Means the long press time >2s;1) Main menu: normal condition; 2) Error menu 【E 】3) Information menu 【I 】 4) Verification program 【F 】The screen is off when stand by, press the button to awake the meter and enter the m ain menu, which show the accumulated flow(above figure), long press to change menu and read the data you need, the screen will be off after 3 minutes without any operation except the verification program 【F 】.Main MenuMain menuxxxxx.xxx m 3【E 】 【I 】 【F 】Error menu operation 【E 】Press<2s Long press>2sXXXXX.XXX m 3XX.XXX m 3/h AccumulationXXXXXXXX hDN20X.X.X.X.X.XXXInstant flowWork timeTypeFull screen 【E 】1 XX.XX.XX Battery fault (date)Accumulated timeInformation Menu 【I 】Verifivcation Menu 【F 】Press<2sLong press >2s【F 】 XXX.XXXXX m 3FXXX.XXXXX m 3/h F℃ XX.XX Zero clearWater temperature 瞬流 Instant flowAccumulated flow5 XX.XX.XX S6 XX.XX.XX S7 XX.XX.XX STranducer fault flow in (date)Tranducer fault flow out (date)换能器故障 出水端 发生日期(年月日)8 XX.XX.XXS7 XXXXXXX h8 XXXXXXX hXXXXXX XXXXXXXXXXr XX d -xx.xx.xx Y M D xx.xx.xx H M S 【I 】Main add Second addEditionPresent datePresnet time Last month Readingr-xx.xx.xx Y M DXXXX.XXX m 3Last 2 months Reading4、Characteristics:Accumulated volume definition 0.001m 3 (working ) 0.00001m 3(verifying )Present flow definition 0.001 m 3/h (working ) 0.001 m 3/h (verifying ) Measure range Q 3/Q 1=400 Quiescentcurrent < 6uABattery life > 6+1 year LCD digits 8Max accumulatedtime4.2x109 hoours (work time>99999999, only display the last 8 valid digits )Max accumulated flow4.2x109m 3 (flow>99999.999 m 3 ,only display the last 8 valid digits )Accuracy class II class5、Failure analysis and solution No. Problem Cause Solution 1 Battery fault Under vlotage or bad connection Check the connector, changethe battery;2 Vacant pipe fault No water or not full in the pipe Fill the pipe full andeliminate the bubble3 Reflux fault The inflow and outflow reverse Adjust the inflow andoutflow4 Surpass range ratio The present instant flow is too high Lower the flow or change themeter 5 Water temperature Water temperature fault Lower the temperature orchange the meter 6 EE fault EE storage invalid Change the PCB 7 Transducer Inflow Change or reinstall thePress<2s Long press>2s 按大于2秒Remark :Under the verification menu, the accumulated flow and heat can be zero clear automatically, when the flow rate is 0,,if detect the flow rate in pipe is higher than the set point, zero clear the present accumulated data; When can't make zero clear under some extrem conditio, which can be done by manual;Exit the verification menu without any operation in 2 hours;transducer8 Transducer OutflowChange or reinstall thetransducer6、PCB connector and outlineNote :Please read the documents carefully before using the products; If any qutstion, please don ’t hesitate to contact with us;Special instruction for the verification mode(1).Enter the verificaiton modeAfter turning on the water meter, press the button until seeing the 【F 】,then press again to see the below content :Accumulation Flow0.00000 m3ButtonLCDBattery connectorMain menuKW·h 【E 】 【I 】 【F 】Verification(2).Menu clausePress the button every time, you will see the caluse in order, please see thedetails in page 6;(3).NoteUnder the verification mode, the accumulated flow can be zero clear automatically,when the flow rate is 0, it will be zero clear and start a new flow inspect automatically;。
TYPE:LRW-200024 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Dalian Taosonics I nstrument Co.,Ltd is proud to introduce the new revolutionary, precise and super reliable ultrasonic water meter, Which is according to the -4064 778 standard.ISO GBT The water meter be adapted by advanced transit-time measurement technology , with theremarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement.Each components t ake the 68 protection class, to ensure long term operation though water in I P the inside meter. Widely used in t he urban water supply, water resources management, irrigation, landscape management, industrial production and automation industryProtection Class 68IP Whole Machine Waterpr oof whole machine :sealed completely, reach 68 protection class.IP Parts waterproof Circuit board, tr ansducer and :battery also can reach 68 protection level, to IP ensure long term operation though water in the inside meterBuilt-in Batch Controller Built-in Time AccumulatorSet up the time controller by automatically or manually, so as to finish quantitative water supply or quantitative irrigation automatically.Set up the time- sharing flow accumulation at a set period time, to finish a gradient rate.for the refrigeration and air-condition industry.With the two way 1000 temperature transducer, PT which can finish the heat measurement, especially Double beam ultrasonic s ensor for high accuracy.High Accuracy MeasurementUltrasound Measurement,No Rotation, N o Moving PartsLong term measurement with high accuracy, stable and reliable operation.Applicable to variety of water quality, including the gravel and weeds water quality.Heat Measurement24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Support -188 communication, support CJ the M- and communication, BUS MODBUS and support upgrade softwareStandard Configuration:External waterproof junction box, Can complete the wiring connection without opening the water meter cover485RS M-BUS 8~36VDC Two-wired system 4-20mA outputProvide below communication inter face and output 1(open collector output 1)OCT 2(open collector output 2)OCT C1( level pulse output 1)TTL C2( level pulse output 2)TTL when or dering, you can choose any two of the above communicationinterface or output, lead to the external junction boxPs:1-2 485+,485-3-4 V+,V-(8~36V)DC24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:AccuracyFlowrateQ1---Minimum Flowrate Q2---Transitional Flowrate Q3---Permanent FlowrateQ4---Overload Flowrate24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Unite:Nominal Size DN(mm)DimensionThreadConnection Thread LengthWeight PressureWeight PressureDimensionNominal Size DN(mm)Flange DimensionFlange Diameter Bolt Hole Center Bolt hole QuantitySealing surfaceFlange thickness24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Water Resources Settlement, Remote Monitoring and Computer ManagementLow starting flowrate, measure smaller flowrate, increase water charge revenue.High accuracy measur ement, reliable guarantee of the water char ge.Wide measuring range ratio, suitable for large variable situation under the high and low peak flow.No rotation and moving parts, long life expectancy, suitable for variety of water quality, including the gravel and weeds water quality.Convenient communication network, facilitate the management of computer networking,improve the management efficiency, save running costs.Water Resources Management24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Agricultural Irrigation and LandscapingTime control and quantitative control irrigation systemwater meter with built-in batch controller function, can set 5 s cheduled times per day for the program control according to local weather conditions, crop or plant growth habit, in order to achieve water-saving irrigation, s cientific irrigation.Also through the computer networking, to achieve the time and quantitative management irrigationIndustrial Water Measurement Production Water SupplySettlement of external water supply Settlement of internal water usageTwo-wired system 4-20mA power supply, can be used to the plant control system conveniently.24 hours service: +86-186-5435-6933 Tel: +86-543-3382666 Fax: +86-543-3615999E-mail:***************************:LongruncnWebsite:Single channel small ultrasonic water meter (Copper)Dual channel bulk ultrasonic water meter (Casted ductile iron)Dual channel bulk ultrasonic water meter (welded carbon s teel)Ps: you can choose any two of the above communication inter face or output signal, lead to the external junction box Example : -1 – 100 – 1 –1–1–0DN Description: 50 Ultrasonic water meter , Casted ductile iron mater ial , the communication interface t is 485,DN RS external power supply is 8-36V, without the wireless meter reading function.DC LRW-2000LRW-2000。
