LESD9L5.0T5G SOD-923规格书LRC 推荐

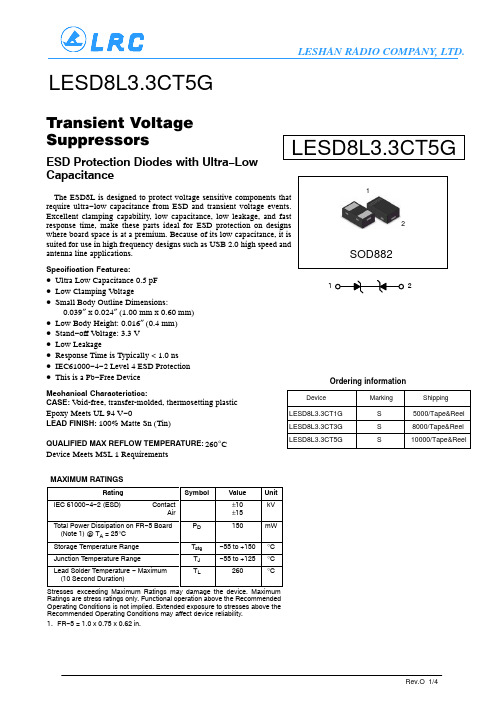

LESD8L3.3CT5GTransient Voltage SuppressorsESD Protection Diodes with Ultra −Low CapacitanceThe ESD8L is designed to protect voltage sensitive components that require ultra −low capacitance from ESD and transient voltage events.Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.Specification Features:•Ultra Low Capacitance 0.5 pF •Low Clamping V oltage•Small Body Outline Dimensions:0.039″ x 0.024″(1.00 mm x 0.60 mm)•Low Body Height: 0.016″ (0.4 mm)•Stand −off V oltage: 3.3 V •Low Leakage•Response Time is Typically < 1.0 ns •IEC61000−4−2 Level 4 ESD Protection •This is a Pb −Free DeviceMechanical Characteristics:CASE: V oid-free, transfer-molded, thermosetting plasticEpoxy Meets UL 94 V −0LEAD FINISH: 100% Matte Sn (Tin)QUALIFIED MAX REFLOW TEMPERATURE: Device Meets MSL 1 RequirementsMAXIMUM RATINGSRatingSymbolValue Unit IEC 61000−4−2 (ESD)ContactAir±10±15kV Total Power Dissipation on FR −5 Board (Note 1) @ T A = 25°C °P D°150mW Storage Temperature Range T stg −55 to +150°C Junction Temperature Range T J −55 to +125°C Lead Solder Temperature − Maximum (10 Second Duration)T L 260°CStresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.1.FR −5 = 1.0 x 0.75 x 0.62 in.260°CLESD8L3.3CT5G12SOD88212Ordering informationLESD8L3.3CT5GELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted, V F = 1.0 V Max. @ I F = 10 mA for all types)Device Device MarkingV RWM (V)I R (m A)@ V RWM V BR (V) @ I T (Note 2)I T C (pF)V C (V)@ I PP = 1 A (Note 3)V CMax Max Min mA Typ Max Max Per IEC61000−4−2(Note 4)LESD8L3.3CT5GS3.31.04.81.00.50.910Figures 1 and 2See Below2.V BR is measured with a pulse test current I T at an ambient temperature of 25°C.3.Surge current waveform per Figure 5.4.For test procedure see Figures 3 and 4 and Application Note AND8307/D.ELECTRICAL CHARACTERISTICS(T A = 25°C unless otherwise noted)Symbol ParameterI PP Maximum Reverse Peak Pulse Current V C Clamping Voltage @ I PP V RWM Working Peak Reverse VoltageI R Maximum Reverse Leakage Current @ VRWM V BR Breakdown Voltage @ I T I T Test Current I F Forward Current V F Forward Voltage @ I F P pk Peak Power DissipationCCapacitance @ V R = 0 and f = 1.0 MHz*See Application Note AND8308/D for detailed explanations of datasheet parameters.Figure 1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2IEC 61000−4−2 Spec.LevelTestVoltage(kV)First PeakCurrent(A)Current at30 ns (A)Current at60 ns (A)127.542 241584 3622.5126 4830168LESHAN RADIO COMPANY, LTD.LESD8L3.3CT5GSOD882DIMENSION OUTLINE:Unit:mm。

派克汉尼汾公司版权所有未经许可不能摘录，翻印。

保留修改权利2021年6月警告销售条件本样本中产品和/或系统或相关产品出现故障，选型不当或使用不当，均可能导致人身伤亡和财产损失。

本文档以及由派克·汉尼汾公司及其子公司和授权经销商提供的其他资料，为具有技术知识的用户提供进一步研究所需的产品和/或系统选项。

重要的是，用户必须对您的应用进行全面的分析，并对当前产品样本中与产品或系统相关的资料进行评估。

由于工作条件以及产品或系统的多样性，用户必须自行分析和测试，并独自承担一切后果，包括:产品和系统的最终选型以及确保满足应用的所有性能、安全和警告等方面的要求。

派克·汉尼汾及其子公司可能会随时对本样本中的产品，包括但不限于:产品的特性、产品的规格、产品的结构、产品的有效性以及产品的价格作出变更而不另行通知.本样本中的所有产品均由派克·汉尼汾公司及其子公司和援权经销商销售。

与派克签订的任何销售合同均按照派克标准条件和销售条件中规定的条款执行(提供复印件备索)。

本公司的密封件，只能在本公司的文件资料述及的应用参数范围与接触介质、压力、温度和存放时间相一致的情况下才能使用。

在规定的应用参数范围外使用以及错误选用不同的材料都可能导致密封件寿命的缩短以及设备的损坏，甚至更严重的后果(如生命安全，环境污染等)。

样本中所列出的工作压力、温度范围、运动速度是极限值，它们之间相互关联、相互影响；在极端的工况下，建议不要同时把各个参数都同时用到极限值。

对于特殊的要求（压力、温度、速度、介质等），请联系派克汉尼汾公司以咨询合适的密封结构、材料、配置、安装建议等。

由于诸多工作参数会影响到流体传动系统及密封元件，这些设备的制造商必须在实际工作条件下测试、验证并批准密封系统的功能与可靠性。

此外，对于不断出现的新的介质（液压油、润滑脂、清洗剂等)，用户特别注意它们与目前所用的密封件弹性体材料的兼容性。

我们建议用户在大批量应用之前，在厂内或现场先做密封材料的兼容性能测试，作为密封产品与系统供应商，我们建议用户遵循我们的这些建议。

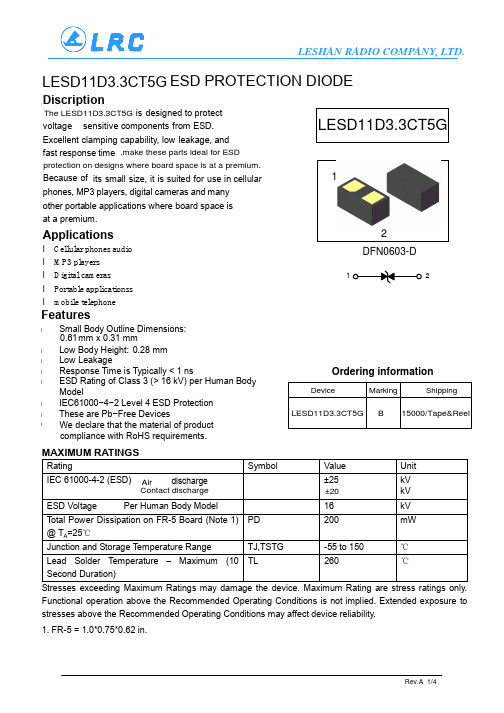

ESD PROTECTION DIODEDiscriptionis designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.Applicationsl Cellular phones audio l MP3 players l Digital camerasl Portable applicationss l mobile telephoneFeatureslSmall Body Outline Dimensions: 0.61 mm x 0.31 mm l Low Body Height: 0.28 mm l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Bod yModel l IEC61000−4−2 Level 4 ESD Protection l These are Pb −Free Devices MAXIMUM RATINGSRatingSymbol Value Unit IEC 61000-4-2 (ESD) ±25kV ESD VoltagePer Human Body Model16 kVT otal Power Dissipation on FR-5 Board (Note 1) @ T A =25℃PD 200mW Junction and Storage T emperature RangeTJ,TSTG-55 to 150 ℃ Lead Solder T emperature – Maximum (10 Second Duration)TL 260℃Stresses exceeding Maximum Ratings may damage the device. Maximum Rating are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR-5 = 1.0*0.75*0.62 in.LESD11D3.3CT5G We declare that the material of product compliance with RoHS requirements.lThe LESD11D3.3CT5G dischargeContact discharge±20kV AirOrdering informationLESD11D3.3CT5G12,make these parts ideal for ESD protection on designs where board space is at a premium.12DFN0603-DELECTRICAL CHARACTERISTICSOther voltage available upon request.2. V BR is measured with a pulse test current IT at an ambient temperature of 25℃3. Surge current waveform per Figure 1.ELECTRICAL CHARACTERISTICS(T A = 25°C unless otherwise noted)Symbol ParameterI PP Maximum Reverse Peak Pulse CurrentV C Clamping Voltage @ I PPV RWM Working Peak Reverse VoltageI R Maximum Reverse Leakage Current @ V RWMV BR Breakdown Voltage @ I TI T Test CurrentP pk Peak Power DissipationC Capacitance @ V R = 0 and f = 1.0 MHzDeviceV BR (V) @ I T(Note 2)I T C (pF)V C (V)@ I PP = 1 A(Note 3)Max Min mA Max LESD11D3.3CT5G 3.3 5.0 1.0167V RWM(V)I R(m A)@ V RWMMax0.1V C (V)@MAX I PP(Note 3)Max10I PP(A)Max6(Note 3)P PK(W)Max60(Note 3)MaxFig1. Pulse Waveform Fig2.Power Derating CurveMax6.5Fig3.Positive 8 kV Contact per IEC61000.4.2Fig4.Negative 8 kV Contact per IEC61000.4.2Fig5.TLP MeasurementOUTLINE AND DIMENSIONSSOLDERING FOOTPRINT。

E22-900M30S产品规格书SX1262 868/915MHz 1W SPI LoRa无线模块第一章概述1.1 简介E22-900M30S是基于Semtech公司生产的全新一代LoRa TM射频芯片SX1262为核心自主研发的最大功率为1W并适用于868/915MHz贴片式LoRa TM无线模块，使用工业级高精度32MHz晶振。

由于采用原装进口的SX1268为模块核心，在原有基础上内置了功率放大器（PA）与低噪声放大器（LNA），使得最大发射功率达到1W的同时接收灵敏度也获得进一步的提升，在整体的通信稳定性上较没有功率放大器与低噪声放大器的产品大幅度提升。

与上一代LoRa TM收发器相比，抗干扰性能与通信距离得到了提升，进一步拉开了与FSK、GFSK调制方式的产品的差距。

该产品已获得FCC、CE、RoHS等国际权威认证报告，用户无需担忧其性能。

该产品可覆盖850～930MHz超宽适用频率范围并向下兼容SX1278、SX1276。

由于该模块是纯射频收发模块，需要使用MCU驱动或使用专用的SPI调试工具。

1.2 特点功能●与SX1276模块相比，SX1262模块具有功耗更低、速度更快、距离更远的显著优势；●理想条件下，通信距离可达12km；●内置PA+LNA，大幅度提升通信距离和通信稳定性；●最大发射功率1W，软件多级可调；●支持全球免许可ISM 868/915MHz频段；●LoRa TM模式下支持0.018k～62.5kbps的数据传输速率；●FSK模式下支持最高300kpbs的数据传输速率；●向下兼容SX1278/SX1276系列射频收发器；●FIFO容量大，支持256Byte数据缓存；●为支持密集网络推出的全新SF5扩频因子；●支持2.5～5.5V供电，大于5V供电均可保证最佳性能；●双天线可选（IPEX/邮票孔），便于用户二次开发，利于集成；1.3 应用场景●家庭安防报警及远程无钥匙进入；●智能家居以及工业传感器等；●无线报警安全系统；●楼宇自动化解决方案；●无线工业级遥控器；●医疗保健产品；●高级抄表架构(AMI)；●汽车行业应用。

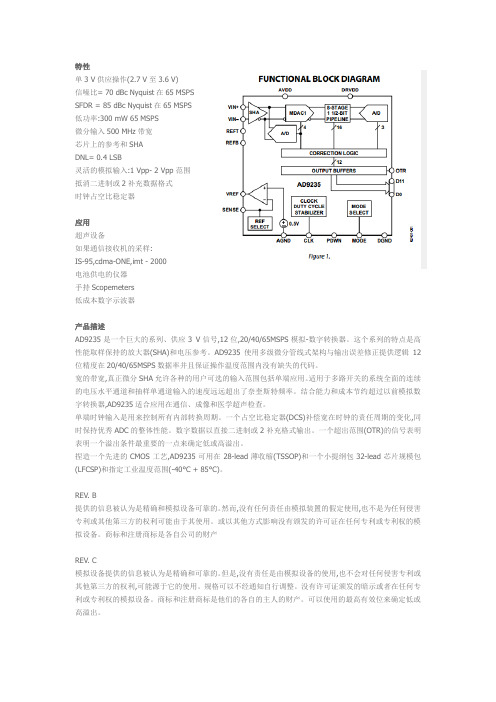

特性单3 V供应操作(2.7 V至3.6 V)信噪比= 70 dBc Nyquist在65MSPSSFDR = 85 dBc Nyquist在65MSPS低功率:300 mW 65MSPS微分输入500 MHz带宽芯片上的参考和SHADNL= 0.4 LSB灵活的模拟输入:1 Vpp- 2 Vpp范围抵消二进制或2补充数据格式时钟占空比稳定器应用超声设备如果通信接收机的采样:IS-95,cdma-ONE,imt - 2000电池供电的仪器手持Scopemeters低成本数字示波器产品描述AD9235是一个巨大的系列、供应3 V信号,12位,20/40/65MSPS模拟-数字转换器。

这个系列的特点是高性能取样保持的放大器(SHA)和电压参考。

AD9235使用多级微分管线式架构与输出误差修正提供逻辑12位精度在20/40/65MSPS数据率并且保证操作温度范围内没有缺失的代码。

宽的带宽,真正微分SHA允许各种的用户可选的输入范围包括单端应用。

适用于多路开关的系统全面的连续的电压水平通道和抽样单通道输入的速度远远超出了奈奎斯特频率。

结合能力和成本节约超过以前模拟数字转换器,AD9235适合应用在通信、成像和医学超声检查。

单端时钟输入是用来控制所有内部转换周期。

一个占空比稳定器(DCS)补偿宽在时钟的责任周期的变化,同时保持优秀ADC的整体性能。

数字数据以直接二进制或2补充格式输出。

一个超出范围(OTR)的信号表明表明一个溢出条件最重要的一点来确定低或高溢出。

捏造一个先进的CMOS工艺,AD9235可用在28-lead薄收缩(TSSOP)和一个小提纲包32-lead芯片规模包(LFCSP)和指定工业温度范围(-40°C + 85°C)。

REV. B提供的信息被认为是精确和模拟设备可靠的。

然而,没有任何责任由模拟装置的假定使用,也不是为任何侵害专利或其他第三方的权利可能由于其使用。

或以其他方式影响没有颁发的许可证在任何专利或专利权的模拟设备。
