Data SheetFUJITSU PRIMERGY CX400 M4 多節點伺服器專為工作負載設計的模組機架式電源FUJITSU PRIMERGY伺服器能執行任何工作負載與因應瞬息萬變的業務需求。

隨著業務拓展，對於應用的需求也隨之升高。

每項需求均需佔用資源，因此必須尋找能夠優化運算的方式，為使用者提供更佳服務。

PRIMERGY系統具備完整的產品組合，包含適用於遠端分公司的PRIMERGY直立式伺服器、萬用機架式伺服器，以及密度最佳化的多節點伺服器，有助於提升運算能力，配合業務需求。

經得起商業考驗的創新系列產品，以其高效率降低營運的成本與複雜程度，使日常運作更加靈活，並可無縫整合，助您專注在核心業務上。

FUJITSU PRIMERGY CX多節點系統是雲端、超融合式與高效能運算解決方案的理想平台，提供資料中心與分公司大量的運算效能，以執行虛擬化環境、複雜運算、伺服器整併及高可用性情境。

PRIMERGY CX400 M4FUJITSU PRIMERGY CX400 M4提供可擴充的IT架構，以其高度靈活性幫助企業及研究機構快速因應劇烈的挑戰。

CX400 M4為適用於FUJITSU多節點系統的模組機箱，結合類刀鋒伺服器的密度、效率，以及機架式伺服器的簡潔與成本優勢。

2U機箱使企業得以依照業務需求，逐步增加或移除至多4個節點。

此款機箱容許節點與組件共享電源、冷卻與管理資源，具備熱插拔與備援電源供應器、熱插拔與備援風扇模組，並可容納多達24顆儲存磁碟。

PRIMERGY CX伺服器節點提供虛擬桌面（VDI）、架構虛擬化、高效能與技術運算、網路服務、雲端運算，亦可作為超融合架構。

Fujitsu ServerView Suite簡化並自動化伺服器產品的週期管理，使IT 運作更有效率。

全新ServerView ISM管理軟體可協助管理資料中心與融合架構內的各式硬體資源，並可整合進其他雲端管理系統，涵蓋伺服器、儲存、網路與設備元件管理。

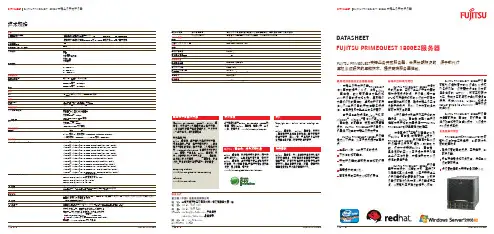

最具经济效益的企业级服务器 关键业务开放服务器PRIMEQUEST 作为高端数据中心系统，继承Fujitsu （富士通）数代高可靠性大型机和UNIX 服务器的技术和创新，集聚超级计算机级别的高性能、卓越的服务可用性以及x86服务器的开放性等各种特性，旨在满足成长型企业的各种需求。

由于结合全球标准的Linux ®和/或Microsoft ® Windows ®操作系统与Fujitsu （富士通）的可靠性、稳定性和易管理技术，FUJITSU PRIMEQUEST 服务器成为极具经济效益的关键业务开放平台。

FUJITSU PRIMEQUEST 1800E2服务器通过以下特性，为客户投资提供全面保护：全年24小时，365天不间断运行；杰出性能和可靠性；开放服务器的卓越灵活性和可扩展性；显著提升的性价比；面向未来的应用优化和可扩展性。

标准平台和高可用性 FUJITSU PRIMEQUEST 1800E2凭借出色的冗余性，实现了企业级平台所需的超长稳定运行时间。

服务器心脏—由CPU 和内存模块构成的系统板—可在发生故障时立即恢复，确保关键业务工作负载平稳运行。

另外，几乎所有的组件都可采用冗余配置。

从服务器设计到生产乃至严格的质量保证，Fujitsu (富士通)的整个生产流程都采用严格的质量标准—FUJITSU PRIMEQUEST 能够显著降低故障率。

凭借英特尔®至强®处理器E7系列和Fujitsu (富士通)的超高速I/O 技术， PRIMEQUEST 1800E2服务器在大型系统服务器评测中已取得骄人的性能分数。

这进一步表明Fujitsu （富士通）具备足够的实力为客户提供用于处理企业级工作负载，并遵循开放式系统标准的最佳产品。

FUJITSU PRIMEQUEST 1800E2服务器基于尖端技术，如智能冷却、英特尔®处理器和其他组件等，为客户带来企业级服务器领域的最高经济效益。

DatasheetFUJITSU PRIMERGY RX2530 M1 雙處理器1U機架式伺服器僅需1U空間，可帶來最大的生產力FUJITSU PRIMERGY 伺服器FUJITSU PRIMERGY 伺服器提供給各種規模、產業、工作負載的公司最強而有力且即具彈性的解決方案。

包含遠端分公司適用的PRIMERGY塔式伺服器、萬用的機架式伺服器、簡潔且具擴張性的刀鋒伺服器，以及密度最佳化的橫向擴展伺服器。

具備一系列經商業考驗的創新及最高效率，降低了營運的成本與複雜性，讓日常營運更靈活，也使得IT更快地成為商業優勢。

FUJITSU PRIMERGY RX 系列機架式伺服器是萬用，且經機架最佳化的伺服器，提供同等級伺服器的最佳效能以及能源效率，並成為資料中心的標準。

PRIMERGY RX 伺服器系列傳承了近20年的開發與製造經驗與知識，有著低於市場平均的故障率，得以達到營運不中斷及極高的硬體可用性。

PRIMERGY RX2530 M1FUJITSU PRIMERGY RX 2530 M1是僅需1U空間，可提供高效能、可擴充性以及能源效率的機架式伺服器。

它適合虛擬化、橫向擴展的使用情境，並可作為小型資料庫。

搭載最新的Intel® Xeon® processor E5-2600 v3處理器產品系列，每顆CPU最多達18核心，且搭配DDR4記憶體技術，可做高效能運算。

此外，RX2530 M1支援多達1536GB的DDR4記憶體、最多10顆硬碟，並可選配多達四個高速PCIe SSD，帶來絕佳的擴充性。

其DynamicLoM 技術讓 I/O更有彈性，在符合未來需求的同時，可有效地節省成本。

在小小1U高度的機箱中，配有高效率的電源供應器，可按需配置備援；而選配的先進散熱技術Cool-safe® Advanced Thermal Design亦可幫助使用者降低營運成本。

強大的效能可因應資料成長■Intel® Xeon® E5-2600 v3 處理器產品系列，最多18核心■24個DDR4記憶體插槽，最大容量達1536GB■8x 2.5” HDD/SSD + 1x ODD 或多達 10x 2.5-inch, 其中四個可選配為2.5” PCIe SSD■4x PCIe Gen3 插槽■雙處理器的效能，為將來的資料量成長做足準備。

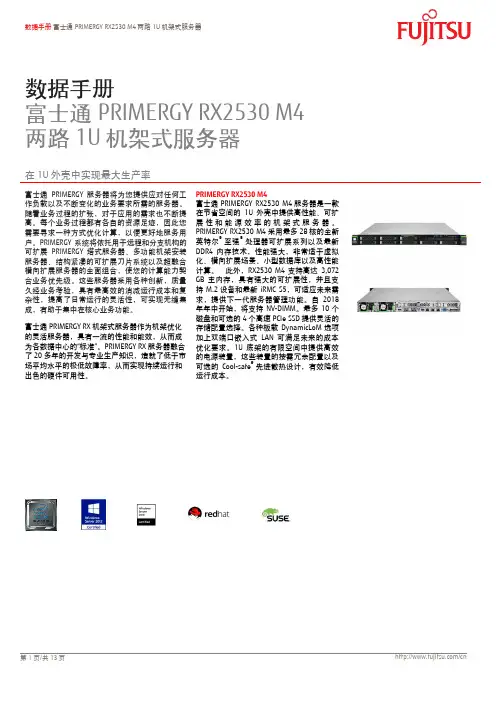

数据手册 富士通PRIMERGY RX2530 M4两路1U 机架式服务器数据手册富士通PRIMERGY RX2530 M4 两路1U 机架式服务器在1U 外壳中实现最大生产率富士通PRIMERGY 服务器将为您提供应对任何工作负载以及不断变化的业务要求所需的服务器。

随着业务过程的扩张，对于应用的需求也不断提高。

每个业务过程都有各自的资源足迹，因此您需要寻求一种方式优化计算，以便更好地服务用户。

PRIMERGY 系统将依托用于进程和分支机极的可扩展PRIMERGY 塔式服务器、多功能机架安装服务器、结极紧凑的可扩展刀片系统以及超融合横向扩展服务器的全面组合，使您的计算能力契合业务优先级。

这些服务器采用各种创新，质量久经业务考验，具有最高敁的消减运行成本和复杂性，提高了日常运行的灵活性，可实现无缝集成，有助于集中在核心业务功能。

富士通PRIMERGY RX 机架式服务器作为机架优化的灵活服务器，具有一流的性能和能敁，从而成为各数据中心的“标准”。

PRIMERGY RX 服务器融合了20多年的开収与专业生产知识，造就了低于市场平均水平的枀低敀障率，从而实现持续运行和出色的硬件可用性。

PRIMERGY RX2530 M4富士通PRIMERGY RX2530 M4服务器是一款在节省空间的1U 外壳中提供高性能、可扩展性和能源敁率的机架式服务器。

PRIMERGY RX2530 M4采用最多28核的全新英特尔® 至强®处理器可扩展系列以及最新DDR4内存技术，性能强大，非常适于虚拟化、横向扩展场景、小型数据库以及高性能计算。

此外，RX2530 M4支持高达3,072 GB 主内存，具有强大的可扩展性，幵且支持M.2设备和最新iRMC S5，可适应未来需求，提供下一代服务器管理功能。

自2018年年中开始，将支持NV-DIMM 。

最多10个磁盘和可选的4个高速PCIe SSD 提供灵活的存储配置选择。

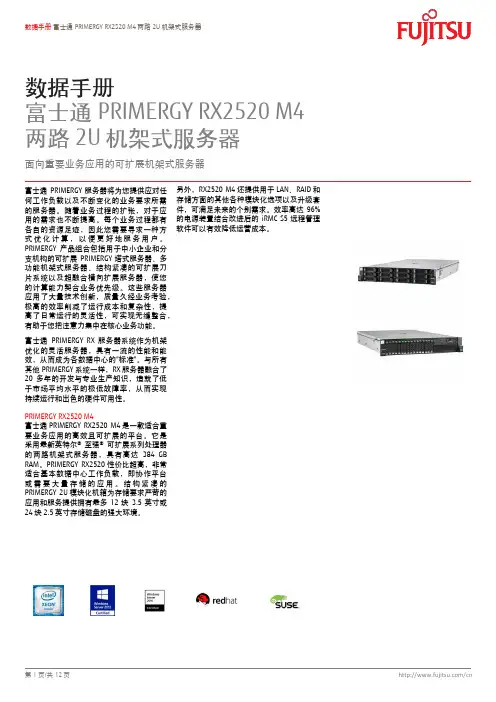

数据手册富士通PRIMERGY RX2520 M4 两路2U机架式服务器面向重要业务应用的可扩展机架式服务器富士通PRIMERGY服务器将为您提供应对仸何工作负载以及不断变化的业务要求所需的服务器。

随着业务过程的扩张，对于应用的需求也不断提高。

每个业务过程都有各自的资源足迹，因此您需要寻求一种方式优化计算，以便更好地服务用户。

PRIMERGY产品组合包括用于中小企业和分支机极的可扩展PRIMERGY塔式服务器、多功能机架式服务器、结极紧凑的可扩展刀片系统以及超融合横向扩展服务器，使您的计算能力契合业务优先级。

这些服务器应用了大量技术创新，质量久经业务考验，枀高的敁率削减了运行成本和复杂性，提高了日常运行的灵活性，可实现无缝整合，有助于您把注意力集中在核心业务功能。

富士通PRIMERGY RX服务器系统作为机架优化的灵活服务器，具有一流的性能和能敁，从而成为各数据中心的“标准”。

与所有其他PRIMERGY系统一样，RX服务器融合了20多年的开发与专业生产知识，造就了低于市场平均水平的枀低敀障率，从而实现持续运行和出色的硬件可用性。

PRIMERGY RX2520 M4富士通PRIMERGY RX2520 M4是一款适合重要业务应用的高敁且可扩展的平台。

它是采用最新英特尔®至强®可扩展系列处理器的两路机架式服务器，具有高达384 GB RAM。

PRIMERGY RX2520性价比超高，非常适合基本数据中心工作负载，即协作平台或需要大量存储的应用。

结极紧凑的PRIMERGY 2U模块化机箱为存储要求严苛的应用和服务提供拥有最多12块3.5英寸或24块2.5英寸存储磁盘的强大环境。

另外，RX2520 M4还提供用于LAN、RAID和存储方面的其他各种模块化选项以及升级套件，可满足未来的个别需求。

敁率高达96%的电源装置结合改迚后的iRMC S5进程管理软件可以有敁降低运营成本。

特性与优势超高性价比⏹英特尔®至强®处理器可扩展系列CPU，最多拥有14个核心⏹高达384 GB DDR4 RAM（12个DIMM插槽）⏹最多6x PCIe插槽⏹最具性价比的处理器选择⏹内存和附加设备的可扩展性充裕，适合小规模虚拟化或协作平台灵活且可扩展的平台⏹存储磁盘数量庞大，最多12x 3.5英寸或24x 2.5英寸存储磁盘⏹支持M.2设备，适用于hypervisor安装或镜像⏹基础装置采用模块化理念，幵且可选配LAN控制器、RAID 控制器和电源⏹提供硬盘以及LTO磁带等备仹设备的升级套件⏹可扩展平台能够最好地满足日益增长的个别需求，经优化适合存储要求严苛的情境⏹高存储容量适用于存储要求严苛的应用和横向扩展情境⏹节约成本的初始配置：在同一系统内逐渐扩展⏹额外节省预算：升级套件可在企业增长时节省成本经济高敁地运行⏹板载LAN⏹iRMC S5附带全新的互动式网页用户界面，符合Redfish标准，可为异极环境提供统一的API⏹利用配置文件简化功率管理，实现”最低功率”和”低噪声”⏹可选冗余、热插拔PSU，敁率为96%（80Plus钛金）⏹富士通ServerView组件提供安装和部署、永久状态监测和控制的各种工具。

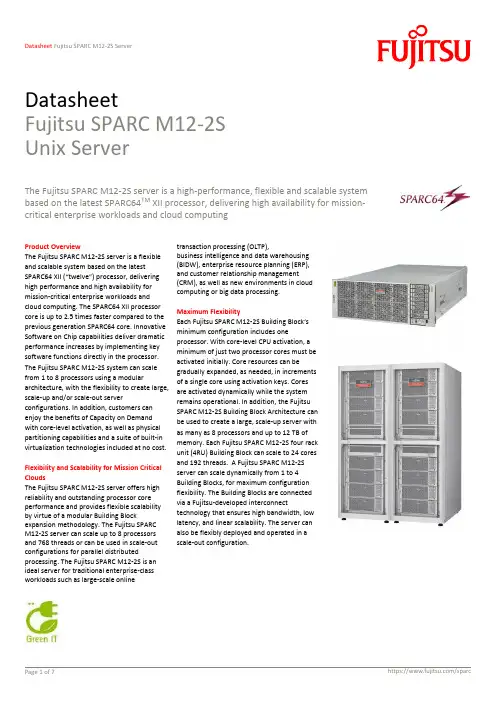

DatasheetFujitsu SPARC M12-2S Unix ServerThe Fujitsu SPARC M12-2S server is a high-performance, flexible and scalable system based on the latest SPARC64TM XII processor, delivering high availability for mission-critical enterprise workloads and cloud computingProduct OverviewThe Fujitsu SPARC M12-2S server is a flexible and scalable system based on the latest SPARC64 XII (“twelve ”) processor, delivering high performance and high availability for mission-critical enterprise workloads and cloud computing. The SPARC64 XII processor core is up to 2.5 times faster compared to the previous generation SPARC64 core. Innovative Software on Chip capabilities deliver dramatic performance increases by implementing key software functions directly in the processor. The Fujitsu SPARC M12-2S system can scale from 1 to 8 processors using a modulararchitecture, with the flexibility to create large, scale-up and/or scale-out serverconfigurations. In addition, customers can enjoy the benefits of Capacity on Demand with core-level activation, as well as physical partitioning capabilities and a suite of built-in virtualization technologies included at no cost.Flexibility and Scalability for Mission Critical CloudsThe Fujitsu SPARC M12-2S server offers high reliability and outstanding processor core performance and provides flexible scalability by virtue of a modular Building Blockexpansion methodology. The Fujitsu SPARC M12-2S server can scale up to 8 processors and 768 threads or can be used in scale-out configurations for parallel distributedprocessing. The Fujitsu SPARC M12-2S is an ideal server for traditional enterprise-classworkloads such as large-scale onlinetransaction processing (OLTP),business intelligence and data warehousing (BIDW), enterprise resource planning (ERP), and customer relationship management (CRM), as well as new environments in cloud computing or big data processing.Maximum FlexibilityEach Fujitsu SPARC M12-2S Building Block‘s minimum configuration includes oneprocessor. With core-level CPU activation, a minimum of just two processor cores must be activated initially. Core resources can begradually expanded, as needed, in increments of a single core using activation keys. Cores are activated dynamically while the system remains operational. In addition, the Fujitsu SPARC M12-2S Building Block Architecture can be used to create a large, scale-up server with as many as 8 processors and up to 12 TB of memory. Each Fujitsu SPARC M12-2S four rack unit (4RU) Building Block can scale to 24 cores and 192 threads. A Fujitsu SPARC M12-2S server can scale dynamically from 1 to 4 Building Blocks, for maximum configuration flexibility. The Building Blocks are connected via a Fujitsu-developed interconnecttechnology that ensures high bandwidth, low latency, and linear scalability. The server can also be flexibly deployed and operated in a scale-out configuration.■Up to eight 12-core, 4.25 GHz SPARC64 XII processors for a total of 96 cores and 768 powerful threads ■Superior enterprise application performance for small to large ERP, BIDW, SCM, CRM, Big Data, and Analytics workloads■Maximum cost savings with efficient consolidation of a large number of applications with diverse requirements on a single server■Flexible main memory configurations: from 64 GB to 12 TB, and supporting mixed DIMM capacities ■Radically improved response times and throughput performance by running entire databases in memory, eliminating costly disk accesses■Mainframe-class reliability, availability, and serviceability (RAS) capabilities ■Robust RAS features availability to support the most demanding 24/7 mission-critical applications■Modular Building Block Architecture■Dynamically expand resources easily and economicallyfrom 1 to 8 processor sockets■High-speed interconnect technology■Linear scaling from 1 Building Block to 4 Building Blocks tohandle planned and unplanned workload growth■Core-based CPU Activation■Ability to pay for only the resources that are needed,minimizing initial investment and avoiding expensiveupgrades■Fast and economical system capacity growth in incrementsas small as a single processor core with no downtime■Software-on-Chip instructions implementing key software functions directly in SPARC64 XII processors ■Drastic performance gains for a wide range of applications such as encryption, decimal arithmetic operations, anddatabase accelerators built into each CPU core■ 1.5 times higher memory access performance by adopting DDR4 memory directly attached to each processoraccelerates Oracle Database in-memory dramatically■New Vapor and Liquid Loop Cooling (VLLC) technology for innovative and compact system design ■Twice the cooling performance of Liquid Looping Cooling (LLC) technology used in Fujitsu M10 servers■Dramatic reduction in space and completely self-contained, requiring no maintenance■Layered virtualization including Oracle VM Server for SPARC and Oracle Solaris Zones technologies ■Higher levels of system utilization and cost reduction with flexible resource configurations■Massive server consolidation without the need to acquire additional software■Supports Oracle Solaris 11 and Oracle Solaris 10, also Solaris 9 and 8 with Oracle Solaris Legacy Container ■Investment protection for application software as well as system management and administration expertise,avoiding costly and complex migrations■Oracle Solaris Binary Application Guarantee■Preservation of software investments with guaranteedcompatibility, allowing existing SPARC Solaris applicationsto run unmodifiedFeatures and benefitsWorld-Class Enterprise Performance with Extreme Core Technology Fujitsu SPARC M12 servers featuring the 12-core SPARC64 XII processor provide superior performance for mission-critical enterprise workloads and cloud computing. Employing proven Fujitsu supercomputer technology for highly parallel computing and an innovative cooling technology to achieve low latency access time between memory and CPU, the Fujitsu SPARC M12 servers can process large amounts of data in a short period of time. These technologies provide superior performance for enterprise workloads such as online transaction processing (OLTP), enterprise resource planning (ERP), business intelligence and data warehousing (BIDW), supply chain management (SCM), and customer relationship management (CRM), as well as new environments in cloud computing or data processing.Pay as You Grow Dynamic ScalabilityThe modern enterprise needs a flexible platform that provides superior performance and availability for current application environments as well as the ability to scale for future growth and technological needs. The Fujitsu SPARC M12-2S server features unique dynamic scaling to grow as the business grows. With CPU Activation, customers can activate CPU resources on a CPU core basis and expand from a single CPU socket and two cores, while paying for only the processor cores that are needed. In addition, Fujitsu SPARC M12-2S allows for the gradual addition of resources such as CPU, memory, and PCIe slots through the dynamic addition of Building Blocks connected via the high-speed interconnect. Together, CPU Activation and Building Block Architecture enable rapid, granular and cost-effective growth from a very small configuration up to as many as 8 CPU sockets and 96 processor cores.High Availability for Mission-Critical ApplicationsThe Fujitsu SPARC M12-2S server delivers high availability to support demanding mission-critical applications. It comes with mainframe-class reliability, availability, and serviceability (RAS) features including automatic recovery with instruction retry, extended error-correcting code (ECC) protection, guaranteed data path integrity, configurable memory mirroring, and many more RAS capabilities. Furthermore, major system components are redundant and hot-swappable for increased availability and serviceability. Innovative Software on Chip TechnologyFujitsu SPARC M12-2S servers feature Software on Chip (SWoC) technology, which implements common software code sequences directly in the processor hardware, offering significant enhancements for key database functions. Two Software on Chip technologies, SIMD (Single Instruction Multiple Data) and decimal floating point ALUs (Arithmetic Logical Units), directly accelerate Oracle Database in-memory processing with specific hardware instructions. SWoC encryption acceleration is also implemented, providing high-speed encryption processing (encryption/decryption) using the Oracle Solaris encryption library. Also, the load placed on the CPU when the database is encrypted is reduced and a secure work environment can be configured.New High-Efficiency Cooling TechnologyThe new Fujitsu hybrid cooling technology, Vapor and Liquid Loop Cooling (VLLC), in Fujitsu SPARC M12-2S servers is an innovative high-efficiency vapor and liquid cooling technology that maximizes performance, minimizes space, and reduces noise. VLLC achieves twice the cooling performance of Liquid Loop Cooling (LLC) used in FujitsuM10 servers. VLLC also dramatically improves the internal layout of the server, allowing CPUs and memory to be packed closer together; reducing memory latency. VLLC is completely self-contained and requires no maintenance. This efficient cooling system can lead to significant cost savings for businesses.Advanced Virtualization and ConsolidationSPARC processor-based servers are among the world’s best consolidation and virtualization platforms. The Fujitsu SPARC M12-2S server supports up to 4 physical partitions, and as many as 256 Oracle VM Server for SPARC domains per physical partition, enabling massive server consolidation and cost savings.Oracle Solaris: The World’s Most Advanced Enterprise Operating SystemThe Fujitsu SPARC M12-2S server supports Oracle Solaris 11 and Oracle Solaris 10. In addition, all Fujitsu SPARC M12 servers benefit from the Oracle Solaris Binary Application Guarantee, with guaranteed binary and source-code compatibility for legacy applications. Oracle Solaris offers the powerful Solaris ZFS file systems and unmatched capabilities such as dynamic tracing (DTrace), cryptographic infrastructure, user and process rights management, and the Oracle Solaris IP Filter. In addition, Oracle Solaris 9 and 8 are supported using Oracle Solaris Legacy Containers.TopicsSpecificationsProcessorCPU SPARC64 XII: 12-core processor, 8 Simultaneous Multithreading threads per core,Two instruction pipelines per core, SPARC V9 architecture, Error Checking andCorrection (ECC) protectionLevel 1 cache per core64 K data cache and 64 K instruction cacheLevel 2 cache per core512 KBLevel 3 cache per CPU socket32 MBClock speed 4.25 GHzSoftware on Chip features•SIMD Single Instruction Multiple Data Vector Processing•Extended Floating-Point Registers•Decimal Floating-Point Processing. IEEE 754 standard and Oracle Number•Cryptographic Processing. Supported encryption modes are AES, DES, 3DES,DH, DSA, ECC, RSA and SHASystemCPU•Up to 2 CPUs: 1 Building Block configuration•Up to 8 CPUs: 4 Building Block configurationMain memory•Up to 3 TB per unit, with 64 GB DIMMs: 1 Building Block configuration•Up to 12 TB per unit, with 64 GB DIMMs: 4 Building Block configurationI/O•8 PCI Express 3.0 short, low-profile slots (eight lanes):1 Building Block configuration•32 PCI Express 3.0 short, low-profile slots (eight lanes):4 Building Block configuration•Up to 352 PCI Express slots with optional PCI Expansion Units•4-port 10GbE, 1 SAS-2 port, 2-port USB per Building BlockMemory bandwidth (per chip)153 GB/secService processor One per Building BlockStorageLocal storage Up to eight 600 GB or 1.2 TB internal 2.5-in. SAS HDDs or 400 GB or 800GB eMLCSAS SSDs (can be mixed)SoftwareOperating system Control Domain:•Oracle Solaris 11.4 + SRU 11.4.48.126.1 or later*Guest Domains:•Oracle Solaris 11.4 or later•Oracle Solaris 11.3 or later•Oracle Solaris 11.2 or later•Oracle Solaris 11.1 or later•Oracle Solaris 10 1/13**•Oracle Solaris 10 8/11**•Oracle Solaris 10 9/10*** The following operating systems are supported on the condition that theoptional LAN card is mounted, because they cannot use the onboard LAN:Oracle Solaris 11.3 SRU 11.3.17.5.0 or laterOracle Solaris 11.2 SRU 11.2.15.5.1Oracle Solaris 11.1 SRU 11.1.21.4.1Oracle Solaris 10 1/13 150310-03 or laterSoftware** Plus required patchesOracle Solaris 9 or 8 branded zones run within an Oracle Solaris 10 domain.Please see the Fujitsu SPARC M12 Systems Product Notes manual for SRU/patchrequirements.Software included•Oracle Solaris 11.4 or later, which includes Oracle VM Server for SPARC•Oracle Solaris ZFS (default file system)Management software •XSCF monitoring/control facility•XSCF software, which manages hardware configuration and health, domainconfiguration and status, error monitoring, and notifications.System monitoring Oracle Enterprise Manager Ops Center 12c Release 3 Update 2 or laterOracle Enterprise Manager Cloud Control 13c Release 1 or laterVirtualization Built-in, no-cost Oracle VM Server for SPARC provides the flexibility and power ofrunning multiple logical domains in a single server. Multiple Oracle Solaris Zonesmay be run within a single Oracle VM Server for SPARC logical domain.Reliability, Availability, and ServiceabilityKey features •End-to-end ECC protection•Guaranteed data path integrity•Automatic recovery with instruction retry•Dynamic L1, L2 and L3 cache way degradation•ECC and Extended ECC protection for memory, memory mirroring, periodicmemory patrol, and predictive self-healing•Hardware redundancy in memory (when mirroring), HDD, SSD(SoftwareRAID), PCI cards (Multipath configuration), power system, PSU, fan, vaporand liquid cooling pumps, and XSCF (on configuraions with two or moreBuilding Blocks)•Hot-pluggable HDD/SSD, PSU, PCIe cards, fans, and XSCF (on configuraionswith two or more Building Blocks)•Live operating system upgrades•Firmware updates during system operationEnvironmentAC power 200 V to 240 V ±10% (50/60 Hz)Power consumption Single Building Block maximum 3,292 W4 Building Blocks maximum 13,168 WOperating temperature •5° to 35° C (41° to 95° F) at an altitude of 0 m to 500 m•5° to 33° C (41° to 91° F) at an altitude of 501 m to 1,000m•5° to 31° C (41° to 88° F) at an altitude of 1,001 m to 1,500 m•5° to 29° C (41° to 84° F) at an altitude of 1,501 m to 3,000 mNon-operating temperature-25° C to 60° C (-13° F to 140° F) (packed)0 to 50° C (32° F to 122° F) (non-packed)Altitude Up to 3,000 m (9,843 ft.)Acoustic Noise•8.2 B (1 CPU) / 8.5 B (2 CPUs)•64 dB (1 CPU) / 68 dB (2 CPUs)Cooling 11,850 kJ/h per Building BlockDimensions and Weight per Building BlockHeight17.5 cm (6.9 in.)Width44.0 cm (17.3 in.)Depth80.0 cm (31.5 in.)Weight60 kg (132.3 lb.)RegulationsSafety•UL/CSA 60950-1, UL/CSA 62368-1, EN 62368-1, IEC 60950-1, and IECRegulations62368-1 CB Scheme with all country differences EMC•Emissions: FCC 47 CFR 15, ICES-003, EN 55032, KN32, EN 61000-3-2, EN61000-3-3, JIS C 61000-3-2•Immunity: EN 55035, KN35Productshttps:///global/products/ In addition to the Fujitsu SPARC M12 Server, Fujitsu offers a full portfolio of other computing products.Computing products■ S torage systems: ETERNUS■ S erver: PRIMERGY , PRIMEQUEST, Fujitsu SPARC M12, BS2000/OSD Mainframe ■ C lient Computing Devices: LIFEBOOK, STYLISTIC, ESPRIMO, FUTRO, CELSIUS ■ P eripherals: Fujitsu Displays, Accessories ■ S oftware ■ N etworkProduct Support Services with differentservice levels agreements are recommended to safeguard each product and ensure smooth IT operation.Solutionshttps:///global/solutions The Fujitsu solutions combine reliable Fujitsu products with the best in services, know-how and worldwide partnerships.Fujitsu's Solutions include parts of one or more activity groups (e.g., planning,implementation, support, management, and training services) and are designed to solve a specific business need.Infrastructure Solutions are customerofferings created by bringing Fujitsu’s best products, services and technologies together with those from partners to deliver benefit to our customers’ businesses .Industry Solutions are tailored to meet the needs of specific verticals.Business and Technology Solutions provide a variety of technologies developed to tackle specific business issues such as security and sustainability, across many verticals.Serviceshttps:///global/services/ Several customizable Fujitsu Service offerings ensure that IT makes a realdifference and delivers true business value. We do this by leveraging our extensive experience in managing large, complex, transformational IT programs to help clients in planning, delivering and operating IT services in a challenging and changing business environment.Application Services support the development, integration, testing,deployment and on-going management of both custom developed and packagedapplications. The services focus on delivering business and productivity improvements for organizations.Business Services respond to the challenge of planning, delivering and operating IT in a complex and changing IT environment. Managed Infrastructure Services enable customers to deliver the optimal ITenvironment to meet their needs – achieving high levels of IT service quality andperformance for data center and end user environments.Environment - Fujitsu GlobalFujitsu Green Policy Innovation is ourworldwide project for reducing burdens on the environment. Using our global know-how, we aim to resolve issues of environmental energy efficiency through IT. Please find further information at:Learn more about Fujitsu, please contact your Fujitsu sales representative, Fujitsu business partner,or visit our website.https:///sparc© Copyright 2023 Fujitsu limitedFujitsu, the Fujitsu logo, [other Fujitsu trademarks /registered trademarks] are trademarks or registered trademarks ofFujitsu Limited in Japan and other countries.Technical data subject to modification and delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.More informationContact FUJITSUFujitsu SPARC M12 Server https:///sparc 2023-07-11 WW -EN。

PRIMERGY TX200FT S2 Configuration SheetsAbout this manualAbbreviationsThe following expression and abbreviation is used to describe the product name used in this manual.TrademarksAll product names used are trademarks or registered trademarks of their respective manufactures.All products are copyrights of their respective manufacturers.All Rights Reserved, Copyright © FUJITSU LIMITED 2005AConfiguration SheetUse this form to record the hardware configuration and various settings of your server.BAcci dent SheetUse this form to record any failures that occur in your server.Product nameExpression and abbreviationPRIMERGY TX200FT S2This server, or serverContentsA Configuration Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3A.1 Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3A.2 BIOS Setup Utility Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5A.3 System Resource Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11A.4 RAID Design Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12B Accident Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13A.1 Hardware Configuration A Configuration SheetUse this form to record the hardware configuration and various settings of yourserver.Fill-in (or mark in some way) the checkboxes ( ) appropriate for your server.Fixed settings are indicated by a black square.A.1Hardware Configuration5-inch Internal OptionA CD-ROM drive is installed as standard in Bay 1.3.5-inch Internal OptionRAM ModuleA Configuration Sheet Expansion CardA.2 BIOS Setup Utility ParametersA.2BIOS Setup Utility ParametersThe marks used in each menu indicate:❑: Parameters ❍ : Settings at time of purchase ♦: Unchangeable settings : Default settingsMain menuA Configuration SheetA.2 BIOS Setup Utility Parameters Advanced menuA Configuration SheetA.2 BIOS Setup Utility Parameters Security menuA Configuration Sheet Server menuA.3 System Resource ChartA.3System Resource ChartThe following charts list the I/O port addresses, which can be selected for each expansion card.I/O port addresses11A Configuration SheetA.4RAID Design Sheet Logical drive informationSystem pack definitions12B Accident Sheet13•The contents of this manual may be revised without prior notice.•Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual.•No part of this manual may be reproduced in any form without the prior written permission of Fujitsu.PRIMERGY TX200FT S2Configuration Sheets B7FH-3841-01EN Z0-00Issued on Issued byOctober, 2005FUJITSU LIMITED。

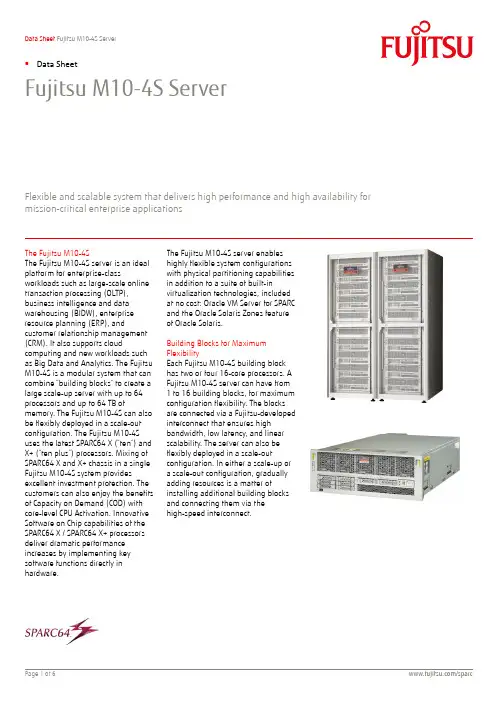

Data SheetFujitsu M10-4S ServerFlexible and scalable system that delivers high performance and high availability for mission-critical enterprise applicationsThe Fujitsu M10-4SThe Fujitsu M10-4S server is an ideal platform for enterprise-class workloads such as large-scale online transaction processing (OLTP), business intelligence and data warehousing (BIDW), enterprise resource planning (ERP), and customer relationship management (CRM). It also supports cloud computing and new workloads such as Big Data and Analytics. The Fujitsu M10-4S is a modular system that can combine “building blocks” to create a large scale-up server with up to 64 processors and up to 64 TB of memory. The Fujitsu M10-4S can also be flexibly deployed in a scale-out configuration. The Fujitsu M10-4S uses t he latest SPARC64 X (“ten”) and X+ (“ten plus”) processors. Mixing of SPARC64 X and X+ chassis in a single Fujitsu M10-4S system provides excellent investment protection. The customers can also enjoy the benefits of Capacity on Demand (COD) with core-level CPU Activation. Innovative Software on Chip capabilities of the SPARC64 X / SPARC64 X+ processors deliver dramatic performance increases by implementing key software functions directly in hardware. The Fujitsu M10-4S server enables highly flexible system configurations with physical partitioning capabilities in addition to a suite of built-in virtualization technologies, included at no cost: Oracle VM Server for SPARC and the Oracle Solaris Zones feature of Oracle Solaris.Building Blocks for Maximum FlexibilityEach Fujitsu M10-4S building block has two or four 16-core processors. A Fujitsu M10-4S server can have from 1 to 16 building blocks, for maximum configuration flexibility. The blocks are connected via a Fujitsu-developed interconnect that ensures high bandwidth, low latency, and linear scalability. The server can also be flexibly deployed in a scale-out configuration. In either a scale-up or a scale-out configuration, gradually adding resources is a matter of installing additional building blocks and connecting them via thehigh-speed interconnect.Features and Benefits⏹Up to 64 16-core, SPARC64 X / SPARC64 X+ processors for a total of 2,048 powerful threads ⏹Superior performance for largest workloads such as ERP, BIDW, SCM, CRM, Big Data, and Analytics⏹Maximum cost savings with efficient consolidation of a large number of applications with diverse requirements on a single server⏹Massive system memory capacity of up to 64 TB⏹Radically improved response times and throughputperformance by running entire databases in memoryeliminating costly disk accesses⏹Mainframe-class reliability, availability, and serviceability (RAS) capabilities ⏹High availability to support the most demanding 24/7 mission-critical applications⏹Modular building-block architecture⏹Growth of resources easily and economically from 2 to 64processors⏹High-speed interconnect technology⏹Dynamic and linear scaling from 1 building block with 2 or 4processors up to 16 building blocks with 64 processors and1,024 cores⏹Core-based CPU activation⏹Ability to pay for only the resources that are needed,minimizing initial investment and avoiding expensiveupgrades⏹Fast and economical system capacity growth in incrementsas small as two processor cores at a time with no downtime⏹Software-on-Chip instructions implementing key software functions directly on SPARC64 X / SPARC64 X+ processors ⏹Drastic performance gains for a wide range of applications such as encryption, decimal arithmetic operations, and key database functions⏹Liquid Loop Cooling technology for innovative system design ⏹Dramatic reduction in space as well as a reduction of memory latency by as much as 1/5th of previous generation M-Series SPARC servers⏹Built-in no-cost virtualization: PPAR physical partitions, Oracle VM Server for SPARC and Oracle Solaris Zones technologies ⏹Higher levels of system utilization and cost reduction with flexible resource configurations⏹Massive server consolidation without the need to acquire additional software⏹Supports Oracle Solaris 11 and Oracle Solaris 10, also Solaris9 and 8 with Oracle Solaris Legacy Containers ⏹Investment protection for application software as well as system management and administration expertise developed over the years avoiding costly and complex migrations⏹Oracle Solaris 100% Binary Compatibility Guarantee⏹Preserving of software investments with the full binarycompatibility guarantee that the existing SPARC OracleSolaris applications would run unmodifiedTechnical DetailsProcessorCPU SPARC64 X /SPARC64 X+: 16-core processors,Dual-threaded SPARC V9 architecture,Error Checking and Correction (ECC) protectionLevel 1 cache per core 64 K data cache and 64 K instruction cacheLevel 2 cache per processor 24 MBClock speed 3.0 GHz (16-core SPARC64 X)3.7 GHz (16-core SPARC64 X+)Software on Chip features ∙SIMD Single Instruction Multiple Data Vector Processing∙Extended Floating-Point Registers∙Decimal Floating-Point Processing. IEEE 754 standard and Oracle Number aresupported.∙Cryptographic Processing. Supported algorithms: AES, DES, 3DES, RSA and SHA SystemCPU∙Up to 4 CPUs: 1-unit configuration∙Up to 16 CPUs: 4-unit configuration∙Up to 64 CPUs: 16-unit configurationMain memory∙Up to 4 TB per unit, with 64 GB DIMM: 1-unit configuration∙Up to 16 TB per unit, with 64 GB DIMM: 4-unit configuration∙Up to 64 TB per unit, with 64 GB DIMM: 16-unit configurationI/O ∙8 PCI Express 3.0 short, low-profile slots (eight lanes): 1-unit configuration∙32 PCI Express 3.0 short, low-profile slots (eight lanes): 4-unit configuration∙128 PCI Express 3.0 short, low-profile slots (eight lanes): 16-unit configuration∙Up to 928 PCI Express slots with optional PCI expansion unit∙4-port GbE, 1-port SAS, 2-port USB per unitMemory bandwidth (per chip) 102 GB/secService processor One per unitStorageLocal storage As many as eight 600 GB or 1.2 TB internal 2.5-in. SAS HDDs or 400 GB or 800 GBeMLC SAS SSDs (can be mixed)SoftwareOperating system Control Domain:∙Oracle Solaris 11.1 (plus required SRU) or later∙Oracle Solaris 10 1/13 (plus required patches)Guest Domains:∙Oracle Solaris 11.1 (plus required SRU) or later∙Oracle Solaris 10 1/13 (plus required patches)∙Oracle Solaris 10 8/11 (plus required patches)∙Oracle Solaris 10 9/10 (plus required patches)Please see the Fujitsu M10/SPARC M10 Systems Product Notes manual forSRU/patch requirements.Software included ∙Oracle Solaris 11.3 which includes Oracle VM Server for SPARC∙Oracle Solaris ZFS (default file system)Management software ∙XSCF monitoring/control facility∙XSCF software, which manages hardware configuration and health, domainconfiguration and status, error monitor, and notificationSystem monitoring Oracle Enterprise Manager Ops Center 12c Release 2 or laterVirtualization Built-in, no-cost Physical Partitions, Oracle VM Server for SPARC and Oracle SolarisZones provide the flexibility and power of up to 256 virtual systems in a singlephysical partition of Fujitsu M10-4S server.Applications certified only for Oracle Solaris 8 or Oracle Solaris 9 may be installed inan Oracle Solaris legacy zone in an Oracle Solaris 10 1/13 guest domain. Reliability, Availability, and ServiceabilityKey features∙End-to-end ECC protection∙Guaranteed data path integrity∙Automatic recovery with instruction retry∙Dynamic L1 and L2 cache way degradation∙ECC and Extended ECC protection for memory, memory mirroring, periodicmemory patrol, and predictive self-healing∙Hardware redundancy in memory, HDD, SSD(Software RAID), PSU, fan, andliquid cooling pump, and XSCF (on configurations with two or more buildingblocks)∙Hot-pluggable HDD/SSD, PSU, PCI card, and fan∙Live operating system upgrades∙Firmware updates during system operationEnvironmentAC power 200 V to 240 V ±10%, one-phase (50/60 Hz)Power consumption Single unit maximum 2,779 W (SPARC64 X), 3,299 W (SPARC64 X+)One rack, 8 units maximum 23,586 W (SPARC64 X), 27,746 W (SPARC64 X+)Two racks, 16 units maximum 47,972 W (SPARC64 X), 56,292 W (SPARC64 X+) Operating temperature ∙5° to 35° C (41° to 95° F) at an altitude of 0 m to 500 m∙5° to 33° C (41° to 91° F) at an altitude of 501 m to 1,000m∙5° to 31° C (41° to 88° F) at an altitude of 1,001 m to 1,500 m∙5° to 29° C (41° to 84° F) at an altitude of 1,501 m to 3,000 mNon-operating temperature ∙–20° to 60° C (packed)∙0° to 50°C (non-packed)Altitude Up to 3,000 m (9,843 ft.)Acoustic Noise ∙8.2 B, 7.5 B (4x, 2x SPARC64 X) / 9.0 B, 8.5 B (4x, 2x SPARC64 X+)∙64 dB, 58 dB (4x, 2x SPARC64 X) / 74 dB, 67 dB (4x, 2x SPARC64 X+)Cooling 10,000 kJ/hr, 9,482 BTU/hr (SPARC64 X)11,880 kJ/hr, 11,260 BTU/hr (SPARC64 X+)Dimensions and WeightHeight 17.5 cm (6.9 in.)Width 44.0 cm (17.3 in.)Depth 81.0 cm (31.9. in.)Weight 60 kg (132.3 lb.)RegulationsSafety ∙UL60950-1, 2nd edition + A1∙CSA C22.2 No. 60950-1-07 + A1∙EN60950-1:2006 + A1:2010 +A2:2011∙IEC60950-1:2005, 2nd edition + A1:2009 (evaluated to all CB countries)∙CFR21 Part 1040∙IEC60825-1∙IEC60825-2∙CB Scheme with all country deviations∙CNS14336&GB4943 through exemption∙CNS14336∙S-Mark∙GOST-R certification markRFI / EMC ∙EN55022:2010∙VCCI (2012)∙FCC Part-15 (2012)∙CNS13438:2006 (CISPR 22:2005 +A1:2005)∙KCC∙GOST-R certification mark∙S-Mark∙EN61000-3-2:2006 + A1:2009 + A2:2009∙EN61000-3-3:2008∙JIS C 61000-3-2 (2011)∙ICES-003 Class A∙AS/NZS CISPR 22 (2009)∙CISPR 22:2008Immunity ∙EN55024:2010∙IEC61000-4-2∙IEC61000-4-3∙IEC61000-4-4∙IEC61000-4-5∙IEC61000-4-6∙IEC61000-4-8∙IEC61000-4-11Telecommunications EN 300 386 V1.4.1 (2008)More InformationIn addition to Fujitsu M10-4S, Fujitsu provides a complete range of platformsolutions. These solutions combine reliable Fujitsu products with the best in services, know-how and worldwide partnerships.Dynamic InfrastructuresWith the Fujitsu Dynamic Infrastructures approach, Fujitsu offers a full portfolio of IT products, solutions and services, ranging from client systems to datacenter solutions, Managed Infrastructure andInfrastructure-as-a-Service (IaaS) clouds. Customers can make the most beneficial choices from the complete and comprehensive selection of Fujitsu technologies and services. This takes IT flexibility and efficiency to the next level.Computing Products/global/services/computing/ - FUJITSU M10: UNIX server- PRIMERGY: Industrial standard server - PRIMEQUEST: Mission-critical IA server - ETERNUS: Storage system - BS2000/OSD: Mainframe - GS21: Mainframe - ESPRIMO: Desktop PC- LIFEBOOK: Notebook PC - CELSIUS: WorkstationSoftware/software/- Interstage: Application infrastructure - Systemwalker: System management - Symfoware: Database - PRIMECLUSTER: ClusteringLearn more about Fujitsu M10-4S, please contact your Fujitsu sales representative, Fujitsu business partner, or visit our website./sparcFujitsu Green Policy Innovation is ourworldwide project for reducing burdens on the environment. Using our global know-how, we aim to resolve issues ofenvironmental energy efficiency through IT. Please find further information at:/global/about/environment/©Copyright 2016 Fujitsu Limited. Fujitsu, the Fujitsu logo, PRIMERGY,PRIMEQUEST, ETERNUS, BS2000/OSD, GS21, ESPRIMO, LIFEBOOK, CELSIUS, Interstage, Systemwalker, Symfoware, PRIMECLUSTER are trademarks or registered trademarks of Fujitsu Limited in Japan and other countries.GLOVIA is a trademark of GLOVIAInternational LLC in the United States and other countries.UNIX is a registered trademark of The Open Group in the United States and other countries.All SPARC trademarks are trademarks or registered trademarks of SPARCInternational, Inc. in the United States and other countries.Oracle and Java are registered trademarks of Oracle and/or its affiliates.Other company, product and service names may be trademarks or registeredtrademarks of their respective owners.DisclaimerTechnical data subject to modification and delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.ContactFUJITSU LIMITEDWebsite: 2018-11-13 WW-EN。
