1、设计任务书1.1设计题目1.2工作条件1.3技术条件2、传动装置总体设计2.1电动机选择2.2分配传动比2.3传动装置的运动和动力参数计算3、传动零件设计计算以及校核3.1减速器以外的传动零件设计计算3.2减速器内部传动零件设计计算4、轴的计算4.1初步确定轴的直径4.2轴的强度校核5、滚动轴承的选择及其寿命验算5.1初选滚动轴承的型号5.2滚动轴承寿命的胶合计算6、键连接选择和验算7、连轴器的选择和验算8、减速器的润滑以及密封形式选择9、参考文献kw p w 2.3= 7888.0=η2.2分配传动比．（1） 总传动比 04.84.1199600===w n n i 查表2.2-1得 取链传动比23i =2.5 则齿轮传动的传动比为216.35.204.82312===i i i 2.3传动装置的运动和动力参数计算2.3.1各轴功率、转速和转矩的计算0轴：即电动机的主动轴 kw p p r 06.40==min /9600r n =m N n p T ⋅=⨯⨯=⨯=39.409601006.455.955.930001轴： 即减速器的高速轴kw p p 02.499.006.40101=⨯=⋅=η min /9600101r i n n ==m N n p T ⋅=⨯⨯=⨯=99.399601002.455.955.93111 2轴：即减速器的低速轴kw p p 3.8697.099.002.41212=⨯⨯==⋅ηmin /298.50216.39601212r i n n ===m N n P T ⋅=⨯⨯=⨯=123.49298.50103.8655.955.932223轴：即传动滚筒轴kw p p 3.4490.099.03.862323=⨯⨯==⋅η查表得，工况系数=A K 1.4 小链轮齿数系数 34.119(08.11==Z K z 取单排链，取p K =1.0 03.40.134.186.34.10=⨯⨯=P kW因为50.2981=n r/min查表得选链号No12A ，节距p=19.05 3)计算链长初选 0a =40p=40⨯19.05=762mm 链长9.12422563(76205.1922563402)2(2222120120=-+++⨯=-+++=ππz z a p z z p a L p 节 取 p L =126节所以实际中心距a ≈772.464)验算链速 369.210006005.1950.2982510006011=⨯⨯⨯=⨯=p n z vV ＜15 m/s 适合5）选择润滑方式按v=2.369m/s,链号12A ，查图选用滴油润滑。

XX 详细设计说明书拟制日期yyyy-mm-dd 评审人日期yyyy-mm-dd 批准日期yyyy-mm-dd<公司或企业图标><公司或企业中英文名称>版权所有侵权必究（仅供内部使用）修订记录分发记录目录1简介 (6)1.1目的 (6)1.2范围 (6)2详细设计 (6)2.1模块1详细设计 (6)2.1.1数据描述 (6)1.简单数据描述； (6)2.结构1 (6)3.结构2 (7)2.1.2函数描述 (8)1.函数1 (8)2.函数2 (9)2.2模块2详细设计 (10)2.3错误处理 (10)2.3.1系统错误 (10)2.3.2接口错误 (10)2.3.3协议错误 (10)表目录Table1 **表........................................................................................... 错误！未定义书签。

表1 **表 ................................................................................................ 错误！未定义书签。

图目录Figure 1 Module 1 Structure Chart 模块1结构图 (8)XX 详细设计说明书关键词：摘要：缩略语清单：<对本文所用缩略语进行说明，要求提供每个缩略语的英文全名和中文解释。

1 简介1.1 目的描述本文的目的，一般详细设计必须能够直接指导编码活动。

1.2 范围本节应描述文档所包括和不包括的内容。

2 详细设计对于在概要设计说明书中给出的软件实体，本节集中描述它们的详细描述部分。

2.1 模块1详细设计描述模块中定义和使用的数据，包括：简单数据，如模块级的全局变量、常量、宏；复合数据，如模块内部的结构、联合...；2.1.1 数据描述在2.1.1.1中描述本模块中的简单变量、常量、宏；从2.1.1.2起描述本模块中的复合数据，如结构、联合等；1. 简单数据描述；描述在本模块中定义和使用的简单变量、常量、宏；按照下列格式进行简单数据的描述功能描述：描述该数据的用途数据定义：定义该数据2. 结构1定义和说明该数据结构(包括联合);按照下列格式进行数据结构的描述数据结构描述：描述该数据结构的用途数据结构定义：用实际的编程语言定义该数据结构数据项描述：3. 结构22.1.2 函数描述本节应按照下列格式进行描述：标识：模块名称类型：模块类型，如，2级设计中的模块，1级设计中的进程功能概述：简要描述本模块功能，要和概要设计文档中相关模块分解的描述一致。

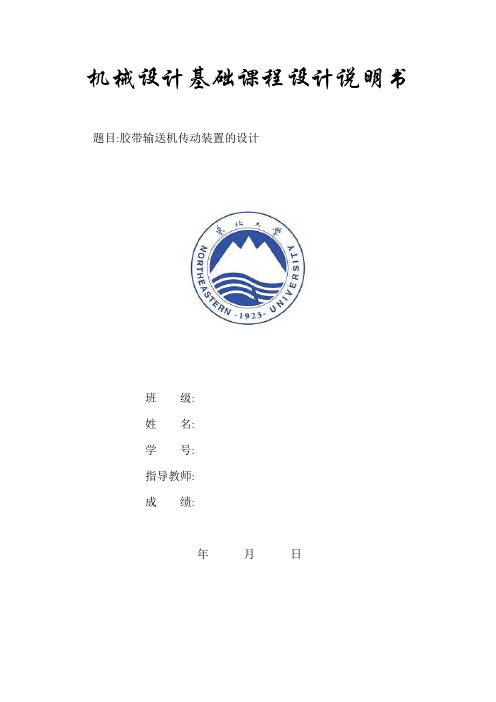

机械设计基础课程设计说明书题目:胶带输送机传动装置的设计班级:姓名:学号:指导教师:成绩:年月日目录目录 (2)1、设计任务书 (4)1、1设计题目 (4)1、2工作条件 (4)1、3技术数据 (4)2、电动机的选择计算 (4)2、1选择电动机系列 (4)2、2滚筒转动所需要的有效功率 (4)2、3选择电动机 (5)3、传动装置的运动及动力参数计算 (6)3、1传动比的分配 (6)3、2各轴功率、转速与转矩的计算 (6)4、传动零件的设计计算 (8)4、1选择V带的型号 (8)4、2验算带速 (8)4、3确定大带轮的标准直径 (9)4、4确定中心距A 与带长L D (9)4、5验算小轮包角Α1 (9)4、6计算带的根数 (9)4、7计算作用在轴上的载荷F R 与初拉力F0 (10)4、8V带传动的参数 (10)5、减速器内传动零件的设计计算 (10)5、1选择材料 (10)5、2按齿面接触强度确定中心距 (11)5、3验算齿面接触疲劳强度 (12)5、4验算齿根弯曲疲劳强度 (13)5、5齿轮主要几何参数 (14)6、轴的设计计算 (15)6、1高速轴的设计计算 (15)6、2低速轴的设计计算及联轴器的选择 (16)7、低速轴的强度校核 (17)8、滚动轴承的选择及其寿命验算 (21)8、1确定轴承的承载能力 (21)8、2计算径向支反力 (21)8、3求轴承轴向载荷 (21)8、4寿命校核 (22)9、键联接的选择与验算 (22)9、1齿轮处 (22)9、2外伸处 (23)10、减速器的润滑及密封形式选择 (23)11、指导参考书 (24)1、设计任务书 1、1设计题目胶带输送机传动装置的设计 1、2工作条件()1、3技术数据2、电动机的选择计算 2、1选择电动机系列根据工作要求及工作条件应选用三相异步电动机, 封闭式结构,电压380伏,Y 系列电动机 2、2滚筒转动所需要的有效功率kw Fv p w 07.210003.29001000=⨯==F=900 v=2、3m/sD=400mm L=500mm根据表2-11-1确定各部分的效率:V 带传动效率 η1 =0、95 一对滚动球轴承效率 η2 = 0、99 闭式(8级精度齿轮)的传动效率 η3 =0、97 弹性联轴器效率 η4 =0、99 滑动轴承传动效率 η5 ＝0、97 传动滚筒效率 η6=0、96 则总的传动总效率η0 = η1*η2*η2 *η3*η4*η5*η6= 0、95×0、99×0、99×0、97×0、99×0、97×0、96 = 0、8326 滚筒的转速min /8.1094.03.26060r D v n w =⨯⨯==ππ 所需的电动机的功率kw p p wr 486.28326.007.2===η2、3选择电动机查表2-9-1可知可选Y100L2-4或Y132S-6,比较传 动比及电动机其她数据,02.138.109143001===w n n i 74.88.10996002===w n n iη=0、8326min /8.109r n w =Pr =2、486kw比较两种方案,为使传动装置结构紧凑,决定选电动机 Y132S-6型 ,额定功率3、0kw, 同步转速1000r/min, 满载转速960r/min 。
