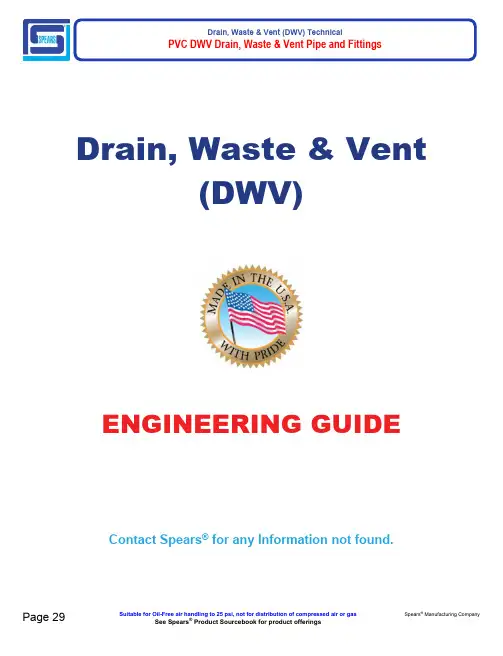

PVC DWV Drain, Waste & Vent Pipe and Fittings Drain, Waste & Vent(DWV)ENGINEERING GUIDEContact Spears® for any Information not found.DWV StandardsSPEARS® LINE OF QUALITY PVCDRAIN, WASTE AND VENT (DWV)FITTINGS ARE MANUFACTURED IN STRICTCOMPLIANCE TO ASTM D 2665.Standards provide greater assurance of product performance and consistency, and are available to assist design engineers in system specification. The most frequently referenced industry standards for plastic piping systems are ASTM Standard Specifications and Practices. Along with ASTM Standards, additional product specifications and certifications form the basis of product conformance to which SPEARS® products are manufactured.ASTM D 2665Poly (Vinyl Chloride) (PVC) Plastic Drain, Waste, and Vent Pipe and Fittings.ASTM D 3311Drain, Waste, and Vent (DWV) Plastic Fittings Patterns.ASTM F 1866Poly (Vinyl Chloride) (PVC) Plastic Schedule 40 Drainage and DWV Fabricated Fittings.ASTM D 1784Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly (Vinyl Chloride) (CPVC) Compounds.NSF International Standard 14 (NSF®-dwv) CertifiedNSF International Certified to Uniform Plumbing Code (NSF®-U.P. Code)The information contained in this publication is based on current information and Product design at the time of publication and is subject to change without notification. Our ongoing commitment to product improvement may result in some variation. No representations, guarantees or warranties of any kind are made as to its accuracy, suitability for particular applications or results to be obtained therefrom. For verification of technical data or additional information not contained herein, please contact SPEARS® Technical Services Department [West Coast:(818) 364-1611 - East Coast: (678) 985-1263].H x SLIP w/Chrome Nut & Washer(Continued)(Continued)ALL HUBSize G 1-1/21-3/16 21- 1/2 31- 7/8 42- 1/2 63-1/2Size G 1-1/21-3/16 21-1/2 31- 7/8ALL HUBALL HUBPage 49Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears® Manufacturing CompanySee Spears® Product Sourcebook for product offerings(Continued) See Spears® Product Sourcebook for product offeringsPage 51Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears® Manufacturing CompanySee Spears® Product Sourcebook for product offeringsMade in the U.S.A.Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gasSee Spears® Product Sourcebook for product offerings Page 52Page 53Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears® Manufacturing CompanySee Spears® Product Sourcebook for product offeringsMade in the U.S.A.Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gasSee Spears ® Product Sourcebook for product offeringsPage 54P815 Flush Closet FlangeFits Over 3" Pipe or Inside 4" PipePage 55Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears ® Manufacturing CompanySee Spears ® Product Sourcebook for product offeringsSize G 4X37- 1/32(Continued) Made in the U.S.A.Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gasPage 56See Spears® Product Sourcebook for product offeringsPage 57Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears ® Manufacturing CompanySee Spears ® Product Sourcebook for product offeringsSize G 1-1/24-1/8Made in the U.S.A.Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gasSee Spears ® Product Sourcebook for product offeringsPage 58Size L-Closed L-Open M M1N-Closed 824-1/230-1/29-11/1610- 3/416-9/161028-7/834-7/812-1/1612- 3/418-7/812344014-1/41622Thermal Expansion CompensationThe change in length of pipe with temperature variation should always be considered when installing pipe lines and provisions made to compensate for this change in length. The table below has been prepared to assist you in determining this expansion. This represents the calculated values of pipe length change (ΔL) in inches based on pipe run lengths of 10 to 100 feet and temperature changes of 30°F to 100°F.Example: Highest temperature expected:Lowest temperature expected:Total change (ΔT): Length of run:120°F 50°F 70°F 40 feetFrom 70° F (ΔT) row, read 1.01 inches length changeSpears ® Sewer Disconnect functions as both cleanout and disconnect device, plus helps prevent sewage backup during hurricanes and floods. Complete unit consists of body and plunger (sold separately - both parts are required for proper use). The plunger can bescrewed into the body to block solids waste flow. The plunger should be removed from the body and stored when not in use to prevent accidental closing (i.e., from ground vibration, etc.).• Connects directly to 4" or 6" SDR-35 (or any ASTM D3034/D2729) PVC Sewer Pipe.• Easily adapted to 4" or 6" Schedule 40 PVC Drainage Pipe with addition of IPS x Sewer Adapters, Socket x Spigot, Spears ® part no. 3729-04013IXS for 4" or 3729-06013IXS for 6".• User-supplied standpipe can be installed to grade using PVC Sewer Pipe connected to the body branch socket and a Sewer Cap to close off (Spears ® part no. 4047-040 for 4" or 4047-060 for 6"). Optionally, user-supplied Schedule 40 Pipe can be used for standpipe with addition of a Schedule 40 DWV Socket Coupling (Spears ® part no. P100-040 for 4" or P100-060 for 6") and Cap (Spears ® part no. P116-040 for 4" or P116-060 for 6").• T-handle for Plunger operation can be easily fabricated from user-supplied 1"Note the unit restricts flow by approximately 85%. As a result, the unit must be located in the sewer line where solids are present. Full disconnect is not achieved without solids in the flow.PVC Pipe Thermal Expansion (in)TEMP. CHANGE ΔT(°F)LENGTH OF RUN (FT)102030405060708090100300.110.220.320.430.540.650.760.860.97 1.08400.140.290.430.580.720.86 1.01 1.15 1.30 1.44500.180.360.540.720.90 1.08 1.26 1.40 1.62 1.80600.220.430.650.85 1.08 1.30 1.51 1.73 1.94 2.16700.250.500.76 1.01 1.26 1.51 1.76 2.02 2.27 2.52800.290.580.86 1.15 1.44 1.73 2.02 2.30 2.59 3.24900.320.650.97 1.30 1.62 1.94 2.27 2.59 2.92 3.241000.360.71.031.44 1.802.162.522.883.243.60Sewer DisconnectAuxiliary Components(Purchased Separately)Standard Valve DimensionsSize A B C D E F 4 2-1/23-1/29-1/24-21/3210-3/412 63-5/85-1/1614-11/166-15/161416Introduction to Backwater ValvesA Backwater Valve is designed to function as a check valve in a drainage pipe to prevent flowing liquid, such as sewage, from reversing its direction. There are other applications for Backwater Valves, such as multi-level pond balancing for Aquascape applications or for storage tank balancing for industrial and agricultural applications. Backwater Valves should not be confused with Backflow Preventers which are used in potable water supply systems.Backwater valves are most important if you are on a public sewer system, especially if you are the lowest home on the line where you could have everyone's sewage above you flow into your home if there is a stoppage in the mainline after your connection. Some jurisdictions require Backwater Valves on new construction:Sewage Application DiagramBackwater Valves are excellent for maintaining equal water levels in multi-level ponds and storage tanks:Pond Application DiagramStorage Tank Application DiagramSpears® Backwater Valves are offered in an economical Utility Backwater Valve or the full featured Industrial Backwater Valve designs, in a variety of sizes and pressure handling capacities.A Backwater Valve is designed to function as a check valve in a drainage pipe to prevent flowing liquid, such as sewage, from reversing its direction. There are other applications for Backwater Valves, such as multi-level pond balancing for Aquascape applications or for storage tank balancing for industrial and agricultural applications. Backwater Valves should not be confused with Backflow Preventers which are used in potable water supply systems.Backwater valves are most important if you are on a public sewer system, especially if you are the lowest home on the line where you could have everyone's sewage above you flow into your home if there is a stoppage in the mainline after your connection. Some jurisdictions require Backwater Valves on new construction.Spears® Utility Backwater Valves feature an easily serviceable and replaceable Flapper Assembly with extendable access using standard piping components. Designed for direct solvent cement connection to ASTM D 2665 DWV drainage pipe or any other IPS size pipe. Spears®IPS x Sewer adapters easily convert valve to ASTM D 3034 SDR 35 Sewer Pipe. Backwater Valves conform to requirements of ASME/ANSI A112.14.1 Utility Backwater Valves are designed to prevent backflow in numerous applications where easy service access for maintenance and cleaning is needed.Features•Replaceable internal flapper assembly•Extension Kit Adapter components allow easy construction of a valve extension with user supplied pipe cut to desired length•Direct Valve Connection to ASTM D 2665 PVC DWV or other IPS size pipe. Spears® IPS DWV x Sewer & Drain Adapter Bushings are available for connection to ASTM D 3034 & ASTM D 2729 Sewer pipe•Standard Valve Adapters Pressure Rated to 50 psi (115 feet of head) @ 73°F (23°C) - Optional 100 psi Adapter (232 feet of head) available•Conforms to ASME/ANSI A112.14.1 for Backwater ValvesSpears® Utility Backwater Valve has been engineered for easier installation with included Extension Kit Adapter components for use with User-Supplied Schedule 40 Class 125 Extension Riser pipe cut to desired length. Utility Backwater Valve package comes with 50 psi (115 feet of head) rated Extension Adapters. Optional Adapter Kits available in 100 psi (232 feet of head) rating. Can also use User-supplied equivalent adapter components..1.Access Plug2.Flapper3.Valve Bodyer Supplied 6" Riser Extension Pipe(SCH 40 or Class 125 - do not use SCH 80 pipe)5.Collar6.DWV Cleanout Adapterer Supplied 1" or 1-1/4" Internal Extension PipeVALVE DIMENSIONSFeatures - PVC GrayBackwater Valves are designed to prevent backflow in numerous applications where easy service access for maintenance and cleaning is needed. Excellent for use in sanitary or storm sewer drainage systems to prevent waste back up due to inadequate drainage, for balancing multi-level ponds, aquaculture features or storage tank systems, and many other applications. Spears ® Backwater Valve has been engineered for improved function and easier service, especially in buried service with use of optional Service-Access Extension Kit.•All PVC Construction with EPDM Flapper Seal •Threaded Top Plug for Convenient Service •Simple Snap-In Internal Flapper Assembly for Easy Replacement•Optional Factory Assembled Service-Access Extension Kits - External Housing with Internal Extension for Convenient Removal, Inspection or Replacement•Optional Extension Components Kits for Assembly with User-Supplied Pipe•Available in Sizes 2", 3", 4", 6", 8" and 10" with Socket Ends •Direct Connection to ASTM D 2665 PVC DWV or other IPS size pipe. Spears ® IPS x Sewer Adapters available for Connection to ASTM 3034 Sewer•Conforms to ASME/ANSI A112.14.1 for Backwater Valves•Pressure Rated to 43 psi (100 feet of head) @ 73°FSample Engineering SpecificationAll thermoplastic valves shall be Backwater type constructed from PVC Type I, ASTM D 1784 Cell Classification 12454. All Valve Seats shall be EPDM. All valves shall have external Arrow Flow Indicator. All valves shall be pressure rated to 43 psi (100 feet of Head) for water @ 73°F as manufactured by Spears ®Manufacturing Company.Quick-View Backwater Valve Selection Chart, Standard ValveValve Size Seat Material PVC Material Pressure RatingSocket 2EPDM S275P 43 psi(100 feet of Head)3EPDM S375P 4EPDM S475P 6EPDM S675P 8EPDM S875P 10EPDMS1075PPVC Service-Access Extension Kit Options:Available as a complete unit, with or without valve, factory assembled to internal flap assembly, extension pipe, and external extension housing with top access adapter in convenient increments of 12", 16", 20", 24", 36", and 48" (measured from top of valve to top of extension). All extension kits can be cut shorter in the field for custom fits. Also available as Extension Components Kits, with or without valve for assembly with user-supplied Class 125 or Schedule 40 pipe. Kits without valve require use of existing valve top Access Plug, all kits require solvent cement assembly to valve. Contact Spears ® for MSRP on custom cut lengths.Quick ViewExtension Components Kit OptionsExtension Adapters and Flap Assembly with or without valve. Must be assembled with user-supplied Class 125 or Schedule 40 Pipe.Valve Size Socket Valve With Extension Component Kit Extension Component KitOnly Pressure Rating2S275P-AK S275P-ECK 43 psi(100 feet of head)3S375P-AK S375P-ECK 4S475P-AK S475P-ECK 6S675P-AK S675P-ECK 8S875P-AK S875P-ECK 10S1075P-AKS1075P-ECKQuick-View Backwater Valves with Extension Kit to Premade LengthsSocket Valve with complete Extension Assembly in precut lengths.Valve x Extension Size 1Socket Valve With Extension Valve x Extension Size 1Socket Valve With Extension Pressure Rating2 x 12HT S275P-120 4 x 12HT S475P-12043 psi (100 feet of head)2 x 16HT S273P-160 4 x 16HT S473P-1602 x 20HT S275P-200 4 x 20HT S475P-2002 x 24HT S275P-240 4 x 24HT S475P-2402 x 36HT S275P-360 4 x 36HT S475P-3602 x 48HT S275P-480 4 x 48HT S475P-4803 x 12HT S375P-120 6 x 12HT S675P-1203 x 16HT S373P-160 6 x 16HT S673P-1603 x 20HT S375P-200 6 x 20HT S675P-2003 x 24HT S375P-240 6 x 24HT S675P-2403 x 36HT S375P-360 6 x 36HT S675P-3603 x 48HTS375P-4806 x 48HTS675P-4801 - Size designates nominal valve size x extension height (HT-top of valve to top of extension, inches).Quick-View Service Access Extension Kit Only In Premade Lengths (valve not included)Extension Assembly in precut lengths. Use existing valve top Access Plug.Size 1Premade Extension Size 1Premade Extension Pressure Rating2 x 12HT SAEK-020-120 4 x 12HT SAEK-040-12043 psi (100 feet of head)2 x 16HT SAEK-020-160 4 x 16HT SAEK-040-1602 x 20HT SAEK-020-200 4 x 20HT SAEK-040-2002 x 24HT SAEK-020-240 4 x 24HT SAEK-040-2402 x 36HT SAEK-020-360 4 x 36HT SAEK-040-3602 x 48HT SAEK-020-480 4 x 48HT SAEK-040-4803 x 12HT SAEK-030-120 6 x 12HT SAEK-060-1203 x 16HT SAEK-030-160 6 x 16HT SAEK-060-1603 x 20HT SAEK-030-200 6 x 20HT SAEK-060-2003 x 24HT SAEK-030-240 6 x 24HT SAEK-060-2403 x 36HT SAEK-030-360 6 x 36HT SAEK-060-3603 x 48HTSAEK-030-4806 x 48HTSAEK-060-4801 - Size designates nominal valve size x extension height (HT-top of valve to top of extension, inches). All extension kits can be cut shorter in the field for custom fits.STANDARD VALVEStandard Valve DimensionsSize A B C E F G H I 21-13/161-3/42-5/85/163-1/45-9/324-3/164-9/1632-5/824-3/1613/324-1/87-3/466-1/843-5/83-3/45-7/1623/325-7/1610-15/168-1/47-15/1664-3/44-5/87-3/413/167-3/1615-3/811-1/410-13/1688-1/88-1/812-1/83/413-1/224-1/415-7/820-7/8109-1/29-1/214-1/2-15-3/16291823-1/4Valve with Extension Kit Dimensions(Inches)HEIGHT-D121620243648D = Top of plug Standard Valve totop of plug with ExtensionVALVE WITH EXTENSION KIT。
给水用硬聚氯乙烯（PVC-U）管道安装使用说明一、前言给水用硬聚氯乙烯（PVC-U）管道系统产品曾经是国内外大力发展、推广和应用的新型化学建材，近年来，随着聚丙烯（PP-R）、聚乙烯（PE）等品质更加优良的最新型化学建材产品的面市和迅猛发展，给水用硬聚氯烯（PVC-U）管道系统产品的推广、应用和发展受到了一定程度的制约，目前仍然在城镇供水、农村安全饮水、农业烟水和喷灌以及中小城镇建筑给水等工程领域中应用。
给水用硬聚氯乙烯（PVC-U）管道系统产品执行GB/T10002.1-2006《给水用硬聚氯乙烯（PVC-U）管材》和GB/T10002.2-2003《给水用硬聚氯乙烯（PVC-U）管件》两个国家标准，其产品具有较好的使用性能和经济效益，但是脆性倾向比较大是系统产品存在的致命弱点，因此在设计选材时要充分考虑管材产品的脆性倾向，特别是在地形条件复杂、环境条件恶劣、弯道多、转弯急、供水落差高程大，虹吸现象严重、经常产生冲击动压、水锤作用明显、管道又无法进行深埋的丘陵山区以及在冬季严重冰冻的环境条件下可能导致管道系统结冰的地区，根据管道系统运行反馈的信息进行分析和评估，均证明不宜选用给水用硬聚氯乙烯（PVC-U）管道系统产品作为管道材料，否则将造成严重的经济损失和恶劣的后果。
我公司生产的“美江”牌给水用硬聚氯乙烯（PVC-U）管材产品，采用德国进口“熊”牌钙锌复合热稳定剂无毒配方生产，管材卫生无毒，各项性能指标均达到GB/T10002.1-2006《给水用硬聚氯乙烯（PVC-U）管材》和GB/T10002.2-2003《给水用硬聚氯乙烯（PVC-U）管件》国家标准的规定。
为了方便用户在给水工程中合理使用材料，确保经济、安全、适用，特编制本安装使用说明书供用户在安装使用时予以参考、避免造成不必要的损失。
用户除执行本安装使用说明书的提示、建议和规定外，还应遵守其他现行的国家和行业标准中的有关规定和规范。
二、管道系统公称压力和规格尺寸①管材产品公称压力、规格尺寸及不圆度见表1。

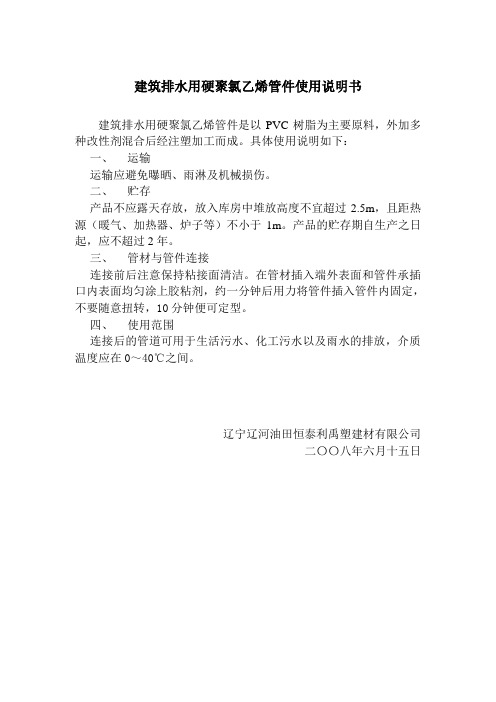

建筑排水用硬聚氯乙烯管件使用说明书
建筑排水用硬聚氯乙烯管件是以PVC树脂为主要原料，外加多种改性剂混合后经注塑加工而成。
具体使用说明如下：
一、运输
运输应避免曝晒、雨淋及机械损伤。
二、贮存
产品不应露天存放，放入库房中堆放高度不宜超过2.5m，且距热源（暖气、加热器、炉子等）不小于1m。
产品的贮存期自生产之日起，应不超过2年。
三、管材与管件连接
连接前后注意保持粘接面清洁。
在管材插入端外表面和管件承插口内表面均匀涂上胶粘剂，约一分钟后用力将管件插入管件内固定，不要随意扭转，10分钟便可定型。
四、使用范围
连接后的管道可用于生活污水、化工污水以及雨水的排放，介质温度应在0～40℃之间。
辽宁辽河油田恒泰利禹塑建材有限公司
二〇〇八年六月十五日。

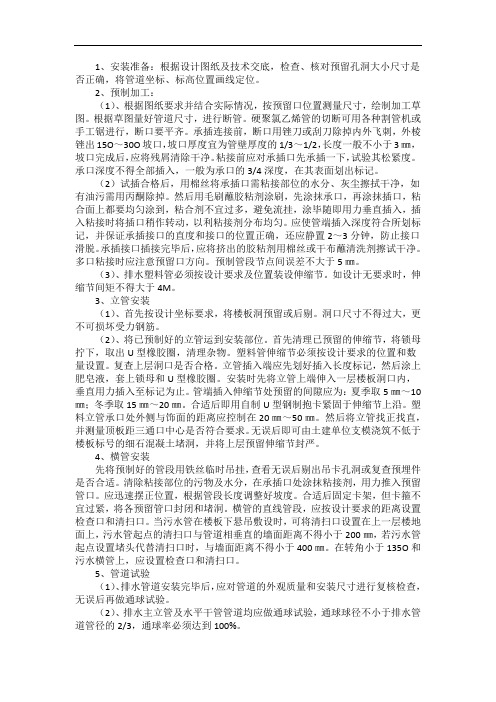

1、安装准备：根据设计图纸及技术交底，检查、核对预留孔洞大小尺寸是否正确，将管道坐标、标高位置画线定位。
2、预制加工：（1）、根据图纸要求并结合实际情况，按预留口位置测量尺寸，绘制加工草图。
根据草图量好管道尺寸，进行断管。
硬聚氯乙烯管的切断可用各种割管机或手工锯进行，断口要平齐。
承插连接前，断口用锉刀或刮刀除掉内外飞刺，外棱锉出15O～30O坡口，坡口厚度宜为管壁厚度的1/3～1/2，长度一般不小于3㎜，坡口完成后，应将残屑清除干净。
粘接前应对承插口先承插一下，试验其松紧度。
承口深度不得全部插入，一般为承口的3/4深度，在其表面划出标记。
（2）试插合格后，用棉丝将承插口需粘接部位的水分、灰尘擦拭干净，如有油污需用丙酮除掉。
然后用毛刷蘸胶粘剂涂刷，先涂抹承口，再涂抹插口，粘合面上都要均匀涂到，粘合剂不宜过多，避免流挂，涂毕随即用力垂直插入，插入粘接时将插口稍作转动，以利粘接剂分布均匀。
应使管端插入深度符合所划标记，并保证承插接口的直度和接口的位置正确，还应静置2～3分钟，防止接口滑脱。
承插接口插接完毕后，应将挤出的胶粘剂用棉丝或干布蘸清洗剂擦试干净。
多口粘接时应注意预留口方向。
预制管段节点间误差不大于5㎜。
（3）、排水塑料管必须按设计要求及位置装设伸缩节。
如设计无要求时，伸缩节间矩不得大于4M。
3、立管安装（1）、首先按设计坐标要求，将楼板洞预留或后剔。
洞口尺寸不得过大，更不可损坏受力钢筋。
（2）、将已预制好的立管运到安装部位。
首先清理已预留的伸缩节，将锁母拧下，取出U型橡胶圈，清理杂物。
塑料管伸缩节必须按设计要求的位置和数量设置。
复查上层洞口是否合格。
立管插入端应先划好插入长度标记，然后涂上肥皂液，套上锁母和U型橡胶圈。
安装时先将立管上端伸入一层楼板洞口内，垂直用力插入至标记为止。
管端插入伸缩节处预留的间隙应为：夏季取5㎜～10㎜；冬季取15㎜～20㎜。
合适后即用自制U型钢制抱卡紧固于伸缩节上沿。
PVC Schedule 80 FittingsPRODUCTContact Spears® for any Information not found.TeesPart Number Size StdPkMstrCtnProdCodeMSRPTeeSocket x Socket x Socket801-0021/45030008019.46 801-0033/82515008019.46 801-0051/22520008019.46 801-0073/41512008020.40 801-010*********.53 801-0121-1/410008070.16 801-0151-1/210008070.16 801-020*********.73 801-0252-1/210008095.36 801-030350080119.20 801-040450080138.11 801-050550080336.89 801-050F514083787.41 801-060620080471.56 801-0808200801093.69 801-080F8100831031.61 801-10010100813613.30 801-100F10100831833.30 801-12012100815102.99 801-120F12100832583.21 801-14014100826424.61 801-140F14100835419.46 801-160F16100837046.96 801-180F181********.51 801-200F201008310822.56 801-240F241008314383.50 Tee - ReducingSocket x Socket x Socket801-1013/4X1/21512008014.94 801-1301X1/215008021.56 801-1311X3/415008021.56 801-1571-1/4X1X3/415008035.61 801-1581-1/4X1X115008035.61 801-1591-1/4X1X1-1/415008035.61 801-16611-1/4X1/210008059.52 801-1671-1/4X3/410008046.83 801-1681-1/4X115008046.83 801-2021-1/2X1-1/4X110008046.83 801-2091-1/2X1/210008046.83 801-2101-1/2X3/415008046.83 801-2111-1/2X110008046.83 801-2121-1/2X1-1/410008046.83 801-2472X1/210008059.32 801-2482X3/410008059.32 801-2492X110008059.32Part Number SizePk Ctn CodeMSRP Tee - Reducing (continued)Socket x Socket x Socket801-2502X1-1/410008090.46 801-2512X1-1/210008059.32 801-25412X2X450080414.42 801-2872-1/2X1/210008090.69 801-2882-1/2X3/410008090.69 801-2892-1/2X110008077.40 801-2902-1/2X1-1/410008077.40 801-2912-1/2X1-1/210008077.40 801-2922-1/2X210008077.40 801-33313X1/250080108.77 801-3343X3/460080122.77 801-3353X150080108.77 801-33613X1-1/450080108.77 801-3373X1-1/250080108.77 801-3383X250080108.77 801-3393X2-1/260080108.77 801-41514X1/250080215.12 801-41614X3/450080215.12 801-4174X150080215.12 801-41814X1-1/450080215.12 801-4194X1-1/250080175.78 801-4204X250080175.78 801-42114X2-1/250080316.42 801-4224X350080175.78 801-42614X640080861.43 801-48215X1-1/440080696.93 801-482F5X1-1/415083465.98 801-48415X1-1/240080759.78 801-484F5X1-1/215083474.78 801-48615X240080661.09 801-486F5X215083474.78 801-48715X2-1/240080769.06 801-487F5X2-1/214083541.38 801-48815X340080661.09 801-488F5X314083559.09 801-49015X440080524.37 801-490F5X414083596.86 801-52316X1/240080457.14 801-52416X3/460080457.14 801-5256X160080351.22 801-525F16X140083406.29 801-52616X1-1/440080457.14 801-52716X1-1/240080457.14 801-527F6X1-1/214083474.78 801-5286X260080351.22 801-52916X2-1/240080456.74 801-5306X350080351.22 801-530F6X313083519.23 801-5326X450080471.56 801-533F6X513083992.62 801-537F6X10100833863.58 801-539F6X12100834289.86 801-57318X1/2200801342.00 801-57518X1200801342.80TeesPart Number Size StdPkMstrCtnProdCodeMSRPTee - Reducing (continued)Socket x Socket x Socket801-57818X2200801276.83 801-578F8X212083875.84 801-57918X2-1/2200801404.88 801-579F8X2-1/212083883.96 801-58018X3200801276.83 801-580F8X312083893.89 801-5828X4200801276.83 801-582F8X412083939.92 801-583F8X5100831270.67 801-5858X6200801093.69 801-59118X12100817802.17 801-621F10X2120831315.67 801-622F10X2-1/2100831374.14 801-623110X3100813366.52 801-623F10X3100831411.03 801-624110X4100813366.52 801-624F10X4100831461.81 801-625F10X5100831572.01 801-62610X6100813179.71 801-626F10X6100831653.21 801-628110X8100813742.09 801-628F10X8100831854.64 801-632F10X12100834568.57 801-661F12X2100831701.29 801-662F12X2-1/2100831774.71 801-663F12X3100831832.63 801-664112X4100816103.62 801-664F12X4100831944.08 801-665F12X5100832037.26 801-666112X6100815758.62 801-666F12X6100832146.64 801-66812X8100814730.49 801-668F12X8100832303.08 801-670112X10100816334.78 801-670F12X10100832559.19 801-678F12X181008311407.49 801-691F14X2100832131.71 801-692F14X2-1/2100832239.48 801-693F14X3100832617.16 801-694F14X4100832884.08 801-696F14X6100833113.37 801-698114X8100827328.99 801-698F14X8100833273.89 801-700114X10100825204.68 801-700F14X10100833497.60 801-70214X12100826058.66 801-702F14X12100833693.23 801-706F14X16100838885.56 801-751F16X2100832733.58 801-752F16X2-1/2100832907.52 801-753F16X3100832949.20Part Number SizePk Ctn CodeMSRP Tee - Reducing (continued)Socket x Socket x Socket801-620F10X1-1/2100833245.37 801-754F16X4100833226.49 801-756F16X6100833432.48 801-758F16X8100833812.51 801-760F16X10100834132.80 801-762F16X12100834554.43 801-764F16X14100835251.63 801-781F18X2100833142.42 801-783F18X3100833826.03 801-784F18X4100835875.80 801-786F18X6100836364.06 801-788F18X8100836636.57 801-790F18X10100837109.79 801-792F18X12100837513.62 801-794F18X14100837985.10 801-796F18X16100838087.12 801-814F20X4100837206.31 801-816F20X6100837609.11 801-818F20X8100837842.99 801-820F20X10100838167.11 801-822F20X12100838757.22 801-824F20X14100839390.93 801-826F20X161008310065.36 801-828F20X181008310579.51 801-904F24X4100838972.80 801-906F24X6100839316.46 801-908F24X8100839558.70 801-910F24X101008310146.97 801-912F24X121008310521.37 801-914F24X141008310955.53 801-916F24X161008311460.94 801-918F24X181008313862.66 801-920F24X201008314126.00 1 Sized with BushingTeeSocket x Socket x Fipt802-0021/42515008045.02 802-0051/22016008030.81 802-0073/42016008039.84 802-010*********.63 802-0121-1/415008049.82 802-0151-1/210008058.58 802-020*********.26 802-0252-1/250080143.58 802-030350080154.18 802-040450080289.67 802-060F620083596.53 802-080F8120841277.44TeesPart Number Size StdPkMstrCtnProdCodeMSRPTee - ReducingSocket x Socket x Fipt802-1013/4X1/21512008028.29 802-1301X1/250008029.40 802-1311X3/415008037.78 802-1661-1/4X1/225008048.07 802-16711-1/4X3/415008048.07 802-1681-1/4X110008095.42 802-20911-1/2X1/225008059.52 802-21011-1/2X3/420008059.52 802-2111-1/2X110008059.52 802-2121-1/2X1-1/410008059.52 802-2472X1/210008067.99 802-2482X3/410008067.99 802-2492X110008090.46 802-25012X1-1/410008090.46 802-25112X1-1/2100080126.14 802-2872-1/2X1/2100080156.54 802-28812-1/2X3/4100080156.54 802-28912-1/2X1100080156.54 802-29012-1/2X1-1/4100080156.54 802-29112-1/2X1-1/2100080156.54 802-29212-1/2X2100080174.78 802-33313X1/250080122.77 802-33413X3/450080122.77 802-33513X150080147.66 802-33613X1-1/450080147.66 802-33713X1-1/250080147.66 802-33813X250080188.54 802-33913X2-1/250080265.17 802-41514X1/250080216.03 802-41614X3/450080216.03 802-41714X150080216.03 802-41814X1-1/450080216.03 802-41914X1-1/250080216.03 802-42014X250080322.90 802-42114X2-1/250080322.90 802-42214X350080361.48 802-52516X140080502.66 802-52616X1-1/440080502.66 802-52716X1-1/240080502.66 802-52816X240080502.66 802-528F26X213083915.40 802-52916X2-1/240080502.66 802-53016X340080701.71 802-53216X420080735.21 802-532F26X4140831134.37 802-57818X2200801370.02 802-578F8X2120831225.94 802-58018X3200801370.02Part Number SizePk Ctn CodeMSRP Tee - Reducing (continued)Socket x Socket x Fipt802-580F8X3120831225.94 802-58218X4200801370.02 802-582F28X4120831358.81 802-621110X2100813498.68 802-621F10X2100831488.66 802-623110X3100803498.68 802-623F10X3100831609.18 802-624110X4100813498.68 802-624F210X4100831787.72 802-661112X2100815543.58 802-661F12X2100831890.92 802-663112X3100815543.58 802-663F12X3100832051.81 802-664112X4100815543.58 802-664F12X4100832264.691 Sized with Bushing2 Fiberglass reinforcedTee - Special ReinforcedSocket x Socket x SR Fipt - Stainless SteelCollar802-005SR1/250008616.83 802-007SR3/41512008623.82 802-010SR115008627.96 802-012SR1-1/425008633.30 802-015SR1-1/210008635.17 802-020SR210008668.81 802-030SR350086148.71 802-040SR450086278.86 Tee - Special Reinforced ReducingSocket x Socket x SR Fipt - Stainless SteelCollar802-072SR1/2X1/42515008616.83 802-098SR3/4X1/42510008621.88 802-101SR3/4X1/250008621.88 802-128SR11X1/4108008651.80 802-130SR1X1/250008626.99 802-131SR1X3/415008651.80 802-164SR11-1/4X1/454008655.22 802-166SR1-1/4X1/225008636.61 802-168SR1-1/4X110008637.34 802-207SR11-1/2X1/410008664.44 802-211SR1-1/2X110008640.44 802-212SR1-1/2X1-1/410008640.44 802-245SR12X1/410008674.42 802-247SR2X1/210008674.42 802-248SR2X3/410008674.42 802-287SR2-1/2X1/210008654.86 802-331SR13X1/450086142.10 802-333SR13X1/250086146.23TeesPart Number Size StdPkMstrCtnProdCodeMSRPTee - Special Reinforced Reducing (continued)Socket x Socket x SR Fipt - Stainless Steel Collar802-413SR14X1/450086195.69 802-415SR14X1/250086212.681 Sized with BushingTee - Brass TransitionSocket x Socket x Fipt With Brass Thread Insert802-005BR1/22012008668.79 802-007BR3/42080086137.84 Not intended to convey or dispense water for human consumption through drinking or cookingTee - Brass Transition ReducingSocket x Socket x Fipt With Brass Thread Insert802-072BR1/2X1/42012008674.14 802-101BR3/4X1/250008685.84 Not intended to convey or dispense water for human consumption through drinking or cookingTee - ReducingSocket x Fipt x Socket803-0953/4X1/2X3/450008026.51 Tee - Special Reinforced ReducingSocket x SR Fipt - Stainless Steel Collar xSocket(See also Gauge & Instrument Fittings for additional configurations)803-095SR3/4X1/2X3/415008627.56TeeFipt x Fipt x Fipt805-0021/42515008022.52 805-0033/82515008022.52 805-0051/22024008022.52 805-0073/41512008025.04 805-010*********.30 805-0121-1/410008058.63 805-0151-1/210008071.08 805-020*********.41 805-0252-1/250080278.26 805-030350080290.60 805-040450080472.24Part Number SizePk Ctn CodeMSRPTee (continued)Fipt x Fipt x Fipt805-060F6120801019.09 805-080F8100802007.19 Tee - Special ReinforcedSR Fipt x SR Fipt x SR Fipt - Stainless SteelCollar805-002SR1/42515008619.62 805-003SR3/82515008619.62 805-005SR1/22515008620.23 805-007SR3/42510008622.23 805-010SR115008652.82 805-015SR1-1/210008661.86 805-020SR210008665.02 Tee - StreetSpigot x Socket x Socket844-0051/22520008024.34 844-0073/41512008025.53 844-010*********.92 844-0121-1/410008087.73 844-0151-1/210008087.73 844-0202100080109.6290° Ells90° EllSocket x Socket806-0021/450300080 6.88 806-0033/825150080 6.88 806-0051/220240080 6.88 806-0073/4201600808.82 806-010*********.22 806-0121-1/410008019.04 806-0151-1/225008020.38 806-020*********.62 806-0252-1/25008057.64 806-03036008064.80 806-04045008098.54 806-045F4-1/212083453.07 806-050540080252.63 806-050F514083505.88 806-060640080280.41 806-080820080772.90 806-080F812083776.54 806-10010100813458.96 806-100F10100831380.41 806-12012100814509.01 806-120F12100832256.3390° EllsPart Number Size StdPkMstrCtnProdCodeMSRP90° Ell (continued)Socket x Socket806-14014100825055.59 806-140F14100832878.21 806-160F16100833579.58 806-180F181********.70 806-200F20100836109.23 806-240F24100839381.49 806-33813X250080158.84 806-42214X350080237.27 1 Sized with Bushing90° Ell SweepSocket x Socket806-005S1/22515008017.22 806-007S3/42510008022.28 806-010S120008035.91 806-012S1-1/425008047.53 806-015S1-1/220008051.04 806-020S225008061.86 90° Ell - Long SweepSocket x Socket806-005LSF1/22520008359.70 806-007LSF3/425008367.01 806-010LSF125008374.92 806-012LSF1-1/4250083126.68 806-015LSF1-1/2125083128.30 806-020LSF2110083138.69 806-025LSF2-1/217083238.16 806-030LSF315083259.81 806-040LSF414083291.34 806-060LSF612083446.27 806-080LSF810083935.26 806-100LSF10100831591.33 Not Listed for Electrical Conduit Use90° EllSocket x Fipt807-0021/42545008027.16 807-0033/82515008027.16 807-0051/22024008027.16 807-0073/42024008031.96 807-010*********.58 807-0121-1/4104008039.84 807-0151-1/210008047.56 807-020*********.56Part Number SizePk Ctn CodeMSRP 90° Ell (continued)Socket x Fipt807-030350080147.08 807-040450080277.38 807-0601630080643.59 1 Thread outlet sized with Female Adapter90° Ell - ReducingSocket x Fipt807-1013/4X1/2106008016.47 807-13011X1/2108008026.28 807-13111X3/4108008026.28 1 Sized with Bushing90° Ell - Special ReinforcedSocket x SR Fipt - Stainless Steel Collar807-005SR1/22024008616.14 807-007SR3/475008619.18 807-010SR150008619.39 807-012SR1-1/425008626.09 807-015SR1-1/210008632.21 807-020SR210008636.93 807-030SR35008693.82 807-040SR450086165.7690° Ell - Special Reinforced ReducingSocket x SR Fipt - Stainless Steel Collar807-101SR3/4X1/250008619.12 807-130SR1X1/250008621.4890° Ell - Brass TransitionSocket x Fipt With Brass Thread Insert807-005BR1/22024008660.44 807-007BR3/420160086106.99 Not intended to convey or dispense water for human consumption through drinking or cooking90° Ell - Brass Transition ReducingSocket x Fipt With Brass Thread Insert807-101BR3/4X1/22012008675.40 Not intended to convey or dispense water for human consumption through drinking or cooking90° EllsPart Number Size StdPkMstrCtnProdCodeMSRP90° EllFipt x Fipt808-0021/42545008017.12 808-0033/82515008017.12 808-0051/22012008015.98 808-0073/42024008019.93 808-01011512008025.04 808-0121-1/4104008026.99 808-0151-1/210008038.28 808-020*********.12 808-0252-1/250080167.94 808-030350080270.84 808-040450080476.53 90° Ell - Special ReinforcedSR Fipt x SR Fipt - Stainless Steel Collar808-003SR3/8251500869.43 808-005SR1/2201200869.43 808-007SR3/42012008611.86 808-010SR150008613.82 808-012SR1-1/425008614.73 808-015SR1-1/210008622.99 808-020SR210008625.88 90° Street EllSpigot x Socket809-0051/2502000808.67 809-0073/450008011.04 809-010*********.80 809-0121-1/425008023.82 809-0151-1/210008025.53 809-020*********.82 809-02512-1/25008073.03 809-03035008086.46 809-040440080131.38 809-0601610080373.89 809-08018200801030.53 809-100110100814610.68 809-100F10100831840.61 809-120112*********.17 809-120F12100833008.46 809-140114*********.52 809-140F14100833676.73 809-160F16100833977.36 809-180F181********.48 809-200F20100839568.28Part Number SizePk Ctn CodeMSRP 90° Street Ell (continued)Spigot x Socket809-240F241008314867.64 1 = Assembled with Molded Components90° Street EllMipt x Fipt812-0021/45030008036.86 812-00511/22515008030.59 812-0073/42515008034.74 812-0101150008047.24 812-01211-1/410008054.28 812-01511-1/210008088.92 1 Sized with AdapterNon 90° Ells11-1/4° EllSocket x Socket811-005F1/215208355.89 811-007F3/412008356.28 811-010F115008361.56 811-012F1-1/412608366.69 811-0151-1/225008055.74 811-020*********.33 811-025F2-1/212508381.71 811-0303100080175.19 811-040440080314.84 811-045F4-1/2118083178.01 811-050F514083213.50 811-060F6110083218.49 811-080F814083357.64 811-100F1012083633.84 811-120F1212083926.40 811-140F14100831418.23 811-160F16100831895.80 811-180F181********.34 811-200F20100834222.22 811-240F24100835037.4930° EllSocket x Socket815-005F1/212508355.89 815-007F3/412508356.28 815-010F113008361.56 815-012F1-1/411508366.69 815-015F1-1/212508367.61 815-020F212508373.73 815-025F2-1/211808381.71Non 90° EllsPart Number Size StdPkMstrCtnProdCodeMSRP30° Ell (continued)Socket x Socket815-030F312008389.12 815-040F416083116.84 815-045F4-1/2118083178.01 815-050F514083213.50 815-060650080396.38 815-080F813083357.64 815-100F1012083633.84 815-120F1212083926.40 815-140F14100831418.23 815-160F16100831895.80 815-180F181********.33 815-200F20100834222.22 815-240F24100835037.49 22-1/2° EllSocket x Socket816-0051/22024008015.34 816-0073/42024008023.39 816-01012016008035.06 816-010F112508333.82 816-015F1-1/212508358.97 816-0121-1/420008044.63 816-0151-1/220008052.77 816-020*********.33 816-0252-1/250080140.43 816-025F2-1/211808381.71 816-030350080175.19 816-040440080314.84 816-045F4-1/2118083178.01 816-050F518083213.50 816-060640080396.38 816-060F618083218.49 816-080840080859.60 816-080F814083357.64 816-100F1012083633.84 816-120F1212083926.40 816-140F14100831418.23 816-160F16100831895.80 816-180F181********.34 816-200F20100834222.22 816-240F24100835037.49 45° EllSocket x Socket817-0021/42545008024.80 817-0033/85030008024.80 817-0051/22024008012.98Part Number SizePk Ctn CodeMSRP 45° Ell (continued)Socket x Socket817-0073/42024008019.87 817-01011512008029.77 817-0121-1/4108008037.92 817-0151-1/210008044.84 817-020*********.14 817-0252-1/250080122.08 817-030350080148.62 817-040450080267.57 817-045F4-1/212083185.37 817-050540080320.13 817-050F514083252.96 817-060640080336.97 817-080820080730.60 817-10010100812300.20 817-100F1012083970.76 817-12012100812967.10 817-120F12100831365.72 817-14014100823483.84 817-140F14100832226.08 817-160F16100832725.26 817-180F181********.07 817-200F20100834556.18 817-240F24100835643.5615° EllSocket x Socket818-005F1/212508355.89 818-007F3/412308356.28 818-010F112008361.56 818-015F1-1/212508367.61 818-020F212508373.73 818-025F2-1/2118083240.69 818-030F313508389.12 818-040F4120083116.84 818-045F4-1/2118083178.01 818-050F514083213.50 818-060F618083218.49 818-080F814083357.64 818-100F1012083633.84 818-120F1212083926.40 818-140F14100831418.23 818-160F16100831895.80 818-180F181********.34 818-200F20100834222.22 818-240F24100835037.4945° EllFipt x Fipt819-0021/42545008028.16Non 90° EllsPart Number Size StdPkMstrCtnProdCodeMSRP45° Ell (continued)Fipt x Fipt819-0033/82515008028.16 819-0051/22515008025.68 819-0073/4106008027.58 819-0101106008034.61 819-0121-1/4108008052.78 819-0151-1/210008066.36 819-020*********.39 819-0252-1/250080194.67 819-030350080313.13 819-040450080449.30 45° Ell - Special ReinforcedSR Fipt x SR Fipt - Stainless Steel Collar819-005SR1/22515008614.82 819-007SR3/42530008616.22 819-010SR1106008626.82 60° EllSocket x Socket824-005F1/217083155.12 824-007F3/4125083183.14 824-010F1125083199.26 824-012F1-1/4116083203.17 824-015F1-1/2116083217.02 824-020F2116083275.31 824-025F2-1/2110083324.11 824-030F314083324.73 824-040F414083417.23 824-060F612083745.18 824-080F812083903.16 824-100F10120831543.11 824-120F12100832015.52 824-140F14100832509.76 824-160F16100832835.76 824-180F181********.89 824-200F20100835540.52 824-240F24100839239.07 45° Street EllSpigot x Socket827-0051/25040008012.98 827-0073/450008019.87 827-010*********.77 827-0121-1/425008037.92 827-0151-1/225008044.84Part Number SizePk Ctn CodeMSRP 45° Street Ell (continued)Spigot x Socket827-020*********.14 827-02512-1/212008076.67 827-0303100080148.62 827-040450080267.57 827-050F512083323.72 827-060640080396.38 827-080820080859.60 827-100110100812706.21 827-120112*********.72 827-140F14100832054.62 827-160F16100833295.88 827-180F181********.46 827-200F20100834847.16 827-240F24100837707.37 1 = Assembled with Molded Components22-1/2° Street EllSpigot x Socket842-0051/25040008015.91 842-0073/450008024.49 842-010*********.46 842-0121-1/420008047.90 842-0151-1/225008054.28 842-020*********.33 842-0252-1/250080178.43 842-030350080195.88 842-040440080344.46 842-040F415084219.46 842-060660080489.58 842-060F616083275.31 842-0808120801058.48 842-080F814083363.34 842-100F1010083742.57 842-120F1212084967.57CrossesCrossSocket x Socket x Socket x Socket820-0021/42515008096.03 820-0051/250008096.03 820-0073/4500080101.03 820-0101500080118.31 820-0121-1/4250080141.96 820-0151-1/2250080153.02 820-0202100080189.49 820-0252-1/2100080258.36 820-030350080322.23 820-040430080560.66CrossesPart Number Size StdPkMstrCtnProdCodeMSRPCross (continued)Socket x Socket x Socket x Socket820-060F6100831347.24 820-080F8100831969.94 820-100F10100833177.33 820-120F12100834474.42 820-140F14100837191.16 820-160F16100838149.83 820-180F181********.39 820-200F201008312447.26 820-240F241008318704.54 Cross - ReducingSocket x Socket x Socket x Socket820-10113/4X1/2500080111.29 820-13011X1/2250080144.19 820-1311X3/4200080144.19 820-16611-1/4X1/2250080138.49 820-1671-1/4X3/4250080127.79 820-16811-1/4X1250080182.10 820-20911-1/2X1/2200080206.53 820-2101-1/2X3/4150080206.53 820-21111-1/2X1250080206.53 820-21211-1/2X1-1/4250080206.53 820-24712X1/2100080264.93 820-24812X3/4100080264.93 820-24912X1100080264.93 820-25012X1-1/4100080264.93 820-25112X1-1/2100080264.93 820-2892-1/2X1150080264.93 820-29012-1/2X1-1/4100080388.11 820-29112-1/2X1-1/2100080388.11 820-29212-1/2X240080388.11 820-33513X140080526.30 820-33613X1-1/440080526.30 820-33713X1-1/240080526.30 820-33813X240080526.30 820-33913X2-1/240080526.30 820-42014X230080845.58 820-420F4X214083825.79 820-42214X330080845.58 820-527F6X1-1/212083979.86 820-528F6X2140831045.56 820-530F6X3120831099.22 820-532F6X4120831310.18 820-533F6X5120831553.34 820-578F8X2120831349.19 820-580F8X3100831420.29 820-582F8X4100831466.86 820-585F8X6100831585.13 820-621F10X2100831796.03Part Number SizePk Ctn CodeMSRP Cross - Reducing (continued)Socket x Socket x Socket x Socket820-622F10X2-1/2100831846.34 820-623F10X3100831947.42 820-624F10X4100832021.44 820-626F10X6100832115.43 820-628F10X8100832720.53 820-661F12X2100832009.42 820-663F12X3100832164.90 820-664F12X4100832304.07 820-666F12X6100832675.62 820-668F12X8100833196.19 820-670F12X10100832173.78 820-691F14X2100832883.31 820-693F14X3100833103.03 820-694F14X4100833407.03 820-696F14X6100833763.12 820-698F14X8100834280.78 820-700F14X10100834946.01 820-702F14X12100835594.37 820-751F16X2100833607.10 820-753F16X3100833884.57 820-754F16X4100834309.28 820-756F16X6100834660.61 820-758F16X8100835212.84 820-760F16X10100835680.43 820-762F16X12100836380.10 820-764F16X14100837990.12 820-784F18X4100836082.96 820-786F18X6100836348.99 820-788F18X8100836813.63 820-790F18X10100837277.97 820-792F18X12100837621.12 820-794F18X14100838074.88 820-796F18X16100838413.97 820-814F20X4100837627.49 820-816F20X6100838785.79 820-818F20X8100838884.48 820-820F20X10100839498.20 820-822F20X121008310184.58 820-824F20X141008311372.04 820-826F20X161008311593.79 820-828F20X181008312220.06 820-904F24X4100839106.12 820-906F24X6100839679.12 820-908F24X81008310057.10 820-910F24X101008310200.77 820-912F24X121008310666.74 820-914F24X141008312691.98 820-916F24X161008313553.70 820-918F24X181008315551.56 820-920F24X201008318595.20 1 Sized with BushingPage 13See MSRP-1 Sheet or Check Spears®****************************.comforPricingCouplingsCodeRepair Coupling- FabricatedGasket x GasketCoupling - No StopSocket x Socket - No Pipe Stop0811360.07CouplingSocket x Socket(continued)0832593.64Coupling - ReducerSocket x SocketMade in the U.S.A.Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gasSee MSRP-1 Sheet or Check Spears®****************************.comforPricing Page 14CouplingsPart Number Size StdPkMstrCtnProdCodeMSRPCoupling - Reducer (continued)Socket x Socket829-491F5X4-1/2110083179.47 829-52816X260080619.33 829-52916X2-1/240080742.72 829-53016X3120080625.69 829-530F6X3110083233.50 829-5326X440080504.51 829-534F6X4-1/215083204.10 829-533F6X515083214.03 829-579F8X2-1/216083807.89 829-580F8X316083592.16 829-5828X4200801528.04 829-582F8X416083552.59 829-583F8X514083607.42 829-5858X6200801528.04 829-621F10X212083953.18 829-623F10X312083892.37 829-624F10X412083842.19 829-625F10X514083765.78 829-62610X6100811788.90 829-626F10X614083690.16 829-62810X8100811788.90 829-628F10X814083359.18 829-663F12X3120831375.86 829-664F12X4120831175.32 829-665F12X5120831090.40 829-666F12X6100831016.69 829-66812X8100812035.61 829-668F12X810083787.21 829-670F12X1010083531.79 829-691F14X2100831253.41 829-694F14X4100831354.11 829-696F14X6100831446.44 829-698F14X8100831323.59 829-700F14X10100831294.54 829-702F14X1210083776.46 829-754F16X4100832542.51 829-756F16X6100832299.49 829-758F16X8100832019.58 829-760F16X10100831793.88 829-762F16X12100831512.08 829-764F16X14100831147.82 829-783F18X3100835516.88 829-784F18X4100835364.63 829-786F18X6100835014.70 829-788F18X8100834748.09 829-790F18X10100834295.18 829-792F18X12100833535.44 829-794F18X14100832393.36 829-796F18X16100832043.28 829-814F20X4100835311.04 829-816F20X6100834889.99Part Number SizePk Ctn CodeMSRP Coupling - Reducer (continued)Socket x Socket829-818F20X8100834673.89 829-820F20X10100834509.97 829-822F20X12100833901.50 829-824F20X14100833891.22 829-826F20X16100833574.47 829-828F20X181********.87 829-904F24X4100838495.49 829-906F24X6100838366.14 829-908F24X8100838184.84 829-910F24X10100837987.41 829-912F24X12100837266.14 829-914F24X14100836702.06 829-916F24X16100836107.99 829-918F24X181********.21 829-920F24X20100835267.91 1 Sized with BushingCoupling - Eccentric ReducerSocket x Socket829-101FE3/4X1/225008380.59 829-130FE1X1/211608356.52 829-131FE1X3/415008382.94 829-168FE1-1/4X111208365.72 829-209FE21-1/2X1/2125083104.11 829-210FE21-1/2X3/4125083107.76 829-211FE1-1/2X112508370.60 829-212FE1-1/2X1-1/412008368.29 829-249FE2X112508397.36 829-250FE2X1-1/412508390.46 829-251FE2X1-1/211008386.32 829-289FE22-1/2X1112083103.51 829-290FE22-1/2X1-1/4120083134.11 829-291FE22-1/2X1-1/2120083130.36 829-292FE2-1/2X2110083100.68 829-335FE23X1120083132.09 829-336FE23X1-1/4110083127.20 829-337FE23X1-1/2110083122.22 829-338E3X2150080131.29 829-338FE3X212008378.07 829-339FE3X2-1/2110083253.49 829-417FE34X1118083321.04 829-418FE34X1-1/4110083315.33 829-419FE34X1-1/2112083305.31 829-420FE24X2110083213.17 829-421FE24X2-1/216083177.77 829-422FE4X3110083266.52 829-490FE5X418083214.51 829-528FE36X216083377.82 829-529FE36X2-1/216083344.83 829-530FE26X316083332.81 829-532FE6X415083240.96Page 15Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas Spears ® Manufacturing CompanySee MSRP-1 Sheet or Check Spears ®****************************.comforPricingCouplingsPart Number SizeStd Pk Mstr Ctn Prod CodeMSRPCoupling - Eccentric Reducer (continued)Socket x Socket 829-533FE 6X515083222.21829-575FE 58X110083770.73829-577FE 58X1-1/210083859.60829-578FE 48X214083876.44829-580FE 38X312083510.22829-582FE 28X412083416.78829-583FE 28X512083415.88829-585FE 8X614083320.48829-624FE 310X410083705.23829-625FE 310X510083802.90829-626FE 210X612083699.57829-628FE 10X812083553.04829-664FE 412X4100831078.44829-666FE 312X610083887.53829-668FE 212X810083766.80829-670FE 12X1012083490.12829-696FE 314X6100831756.77829-698FE 214X8100831444.68829-700FE 14X10100831198.20829-702FE 14X1210083769.77829-756FE 416X6100833245.70829-758FE 316X8100832972.12829-760FE 216X10100832162.14829-762FE 216X12100831919.61829-764FE 16X14100831486.87829-786FE 518X6100834480.40829-788FE 418X8100834288.91829-790FE 318X10100834007.89829-792FE 318X12100833577.34829-794FE 218X14100832949.31829-796FE18X1610832877.82CouplingFipt x Fipt 830-0021/42545008014.98830-0033/82515008014.98830-0051/22515008013.96Part NumberSizePk Ctn CodeMSRPCoupling (continued)Fipt x Fipt 830-0073/42530008019.94830-0101159008021.42830-0121-1/41012008026.49830-0151-1/2108008058.90830-020*********.86830-0252-1/250080147.67830-030350080173.14830-040450080299.83830-060F 618083377.89830-080F 816083555.69830-100F1012083755.79Coupling - Special ReinforcedSR Fipt x SR Fipt - Stainless Steel Collar 830-005SR 1/2251500867.71830-007SR 3/42515008610.97830-010SR 12520008611.72830-012SR 1-1/41012008614.63830-015SR 1-1/2108008632.33830-020SR21008633.89Coupling - ReducerFipt x Fipt 830-07211/2X1/45030008018.83830-07311/2X3/82515008018.83830-1013/4X1/25020008016.62830-21111-1/2X1104008081.081Sized with BushingCoupling - Special Reinforced ReducerSR Fipt x SR Fipt - Stainless Steel Collar 830-101SR 3/4X1/2502000869.97830-130SR 1X1/250008614.80830-131SR 1X3/42520008614.80830-168SR 1-1/4X125008631.78830-210SR 1-1/2X3/425008647.23830-211SR 1-1/2X1108008647.23830-212SR 1-1/2X1-1/4108008647.23830-249SR 2X125008662.60830-251SR2X1-1/210008662.60Grooved Coupling AdapterGroove x Socket 833-0121-1/4106008034.69833-0151-1/2108008038.77。

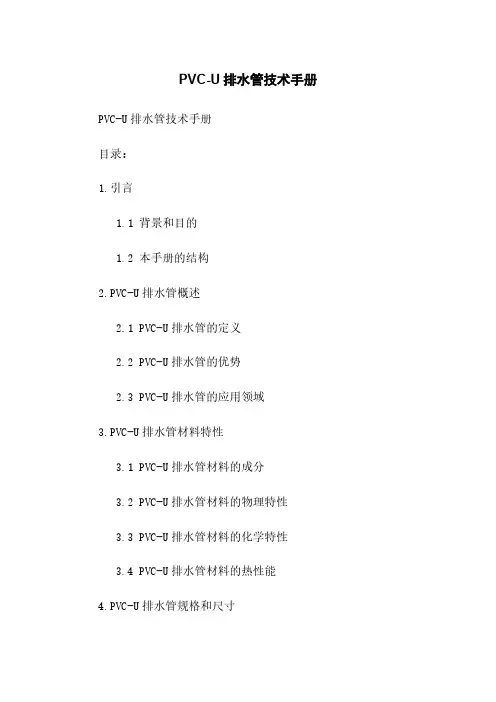

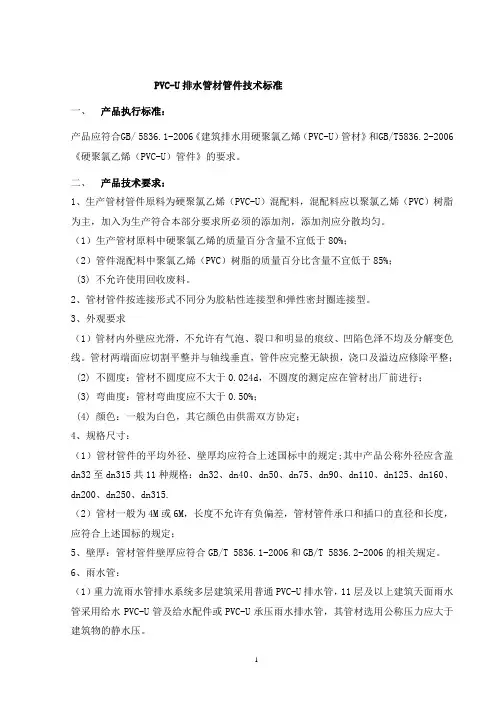

PVC-U排水管技术手册PVC-U排水管技术手册目录：1.引言1.1 背景和目的1.2 本手册的结构2.PVC-U排水管概述2.1 PVC-U排水管的定义2.2 PVC-U排水管的优势2.3 PVC-U排水管的应用领域3.PVC-U排水管材料特性3.1 PVC-U排水管材料的成分3.2 PVC-U排水管材料的物理特性3.3 PVC-U排水管材料的化学特性3.4 PVC-U排水管材料的热性能4.PVC-U排水管规格和尺寸4.1 标准尺寸和常用规格4.2 PVC-U排水管的壁厚和公差4.3 PVC-U排水管的连接方式5.PVC-U排水管的安装和维护5.1 PVC-U排水管的安装方法5.2 PVC-U排水管的支撑和固定5.3 PVC-U排水管的维护和保养6.PVC-U排水管的性能测试与评估6.1 压力测试6.2 渗漏测试6.3 弯曲性能测试6.4 耐化学性能测试7.PVC-U排水管的市场趋势和前景展望 7.1 国内PVC-U排水管市场现状7.2 国际PVC-U排水管市场发展趋势 7.3 PVC-U排水管的未来前景展望附件：1.PVC-U排水管连接方式示意图2.PVC-U排水管安装图示3.PVC-U排水管性能测试报告样本法律名词及注释：1.排水管：用于排放废水或污水的管道系统。
2.PVC-U：聚氯乙烯不塑化剂型，指不含塑化剂的聚氯乙烯材料。
3.壁厚：指管道壁体的厚度。
4.连接方式：指不同管道段之间的连接方式，包括橡胶环、热熔连接等。
本文档涉及附件：1.PVC-U排水管连接方式示意图2.PVC-U排水管安装图示3.PVC-U排水管性能测试报告样本本文所涉及的法律名词及注释：1.排水管：指用于排放废水或污水的管道系统。
2.PVC-U：聚氯乙烯不塑化剂型，指不含塑化剂的聚氯乙烯材料。
3.壁厚：指管道壁体的厚度。
4.连接方式：指不同管道段之间的连接方式，包括橡胶环、热熔连接等。

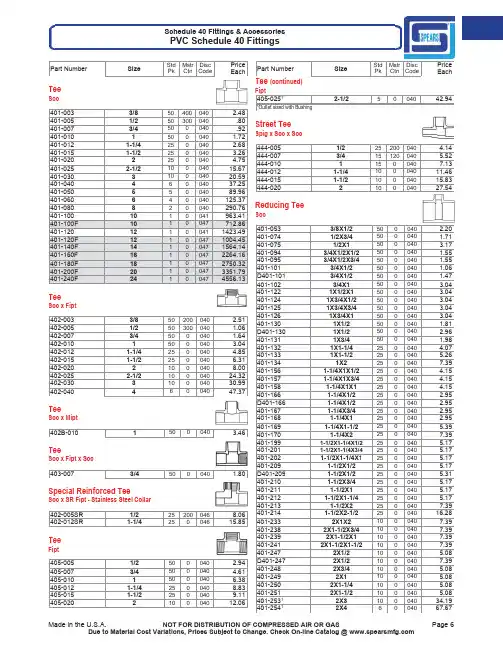

Pk Ctn Code Each TeeSoc401-0033/850400040 2.48 401-0051/250300040.80 401-0073/4500040.92 401-010******* 1.72 401-0121-1/4250040 2.68 401-0151-1/2250040 3.26 401-020******* 4.75 401-0252-1/210004015.67 401-030310004020.59 401-04046004037.25 401-05055004089.96 401-060640040125.37 401-080820040290.76 401-1001010041963.41 401-100F1010047712.86 401-12012100411423.49 401-120F12100471004.45 401-140F14100471564.14 401-160F16100472264.16 401-180F181********.32 401-200F20100473351.79 401-240F24100474556.13 TeeSoc x Fipt402-0033/850200040 2.51 402-0051/250300040 1.06 402-0073/4500040 1.64 402-010******* 3.04 402-0121-1/4250040 4.85 402-0151-1/2250040 6.31 402-020********.00 402-0252-1/210004024.32 402-030310004030.99 402-04046004047.37 TeeSoc x Mipt402B-010******* 3.46 TeeSoc x Fipt x Soc403-0073/4500040 1.80 Special Reinforced TeeSoc x SR Fipt - Stainless Steel Collar402-005SR1/2252000468.06 402-012SR1-1/425004615.85 TeeFipt405-0051/2500040 2.94 405-0073/4500040 4.61 405-010******* 6.38 405-0121-1/42500408.83 405-0151-1/22500409.11 405-020*********.06Pk Ctn Code Each Tee (continued)Fipt405-02512-1/25004042.94¹Outlet sized with BushingStreet TeeSpig x Soc x Soc444-0051/225200040 4.14 444-0073/415120040 5.52 444-010********.13 444-0121-1/410004011.46 444-0151-1/210004015.83 444-020*********.54 Reducing TeeSoc401-0533/8X1/2500040 2.20 401-0741/2X3/4500040 1.71 401-0751/2X1500040 3.17 401-0943/4X1/2X1/2500040 1.55 401-0953/4X1/2X3/4500040 1.55 401-1013/4X1/2500040 1.06 D401-1013/4X1/2500040 1.47 401-1023/4X1500040 3.04 401-1221X1/2X1500040 3.04 401-1241X3/4X1/2500040 3.04 401-1251X3/4X3/4500040 3.04 401-1261X3/4X1500040 3.04 401-1301X1/2500040 1.81 D401-1301X1/2500040 2.96 401-1311X3/4500040 1.98 401-1321X1-1/4250040 4.07 401-1331X1-1/2250040 5.26 401-1341X22500407.39 401-1561-1/4X1X1/2250040 4.15 401-1571-1/4X1X3/4250040 4.15 401-1581-1/4X1X1250040 4.15 401-1661-1/4X1/2250040 2.95 D401-1661-1/4X1/2250040 2.95 401-1671-1/4X3/4250040 2.95 401-1681-1/4X1250040 2.95 401-1691-1/4X1-1/2250040 5.39 401-1701-1/4X22500407.39 401-1991-1/2X1-1/4X1/2250040 5.17 401-2011-1/2X1-1/4X3/4250040 5.17 401-2021-1/2X1-1/4X1250040 5.17 401-2091-1/2X1/2250040 5.17 D401-2091-1/2X1/2250040 5.31 401-2101-1/2X3/4250040 5.17 401-2111-1/2X1250040 5.17 401-2121-1/2X1-1/4250040 5.17 401-2131-1/2X22500407.39 401-2141-1/2X2-1/225004016.28 401-2332X1X21000407.39 401-2382X1-1/2X3/41000407.39 401-2392X1-1/2X11000407.39 401-2412X1-1/2X1-1/21000407.39 401-2472X1/2100040 5.08 D401-2472X1/21000407.39 401-2482X3/4100040 5.08 401-2492X1100040 5.08 401-2502X1-1/4100040 5.08 401-2512X1-1/2100040 5.08 401-25312X310004034.19 401-25412X46004067.67Pk Ctn Code Each Reducing Tee (continued)Soc401-2872-1/2X1/210004015.63 401-2882-1/2X3/410004015.63 401-2892-1/2X110004015.63 401-2902-1/2X1-1/410004015.63 401-2912-1/2X1-1/210004015.63 401-2922-1/2X210004015.63 401-29312-1/2X310004034.93 401-29412-1/2X46004067.67 401-3333X1/210004022.40 401-3343X3/410004022.40 401-3353X110004022.40 401-3363X1-1/410004022.40 401-3373X1-1/210004022.40 401-3383X26004022.36 401-3393X2-1/26004027.97 401-3423X46004038.48 401-34413X640040200.62 401-41514X1/26004038.69 401-4164X3/46004037.25 401-4174X16004037.25 401-4184X1-1/410004037.25 401-4194X1-1/210004037.25 401-4204X210004037.25 401-42114X2-1/26004043.17 401-4224X36004037.25 401-42614X640040200.62 401-42814X820040553.74 401-48615X25004087.34 401-48715X2-1/24004096.09 401-4885X34004087.34 401-4905X43004087.34 401-49215X640040204.87 401-49415X812040704.86 401-52616X1-1/440040128.23 401-52716X1-1/250040128.23 401-5286X230040125.37 401-52916X2-1/250040134.88 401-5306X350040125.37 401-5326X420040125.37 401-53316X540040166.41 401-53516X820040553.74 401-53716X10100411589.98 401-57818X220040303.64 401-57918X2-1/240040303.64 401-5808X340040290.76 401-5828X420040290.76 401-58318X520040335.16 401-5858X620040290.76 401-58918X10100411589.98 401-621110X210041863.35 401-621F10X210047566.63 401-622F10X2-1/212047597.93 401-623110X310041863.35 401-623F10X310047607.77 401-624110X410041863.35 401-624F10X410047629.60 401-625110X510041863.35 401-625F10X510047738.67 401-62610X610041825.62 401-626F10X610047711.99 401-628110X8100411057.06 401-628F10X810047798.78 401-632110X12100411759.45 401-634F10X14100471804.71 401-636F10X16100472247.38Pk Ctn Code Each Reducing Tee (continued)Soc401-661F12X210047732.69 401-662F12X2-1/210047773.08 401-663F12X310047789.23 401-664112X4100411351.39 401-664F12X410047837.26 401-665F12X510047993.12 401-666112X6100411351.39 401-666F12X610047890.59 401-66812X8100411192.86 401-668F12X810047991.93 401-670112X10100411858.69 401-670F12X10100471102.17 401-674F12X14100472083.20 401-676F12X16100472515.47 401-678F12X181********.56 401-691F14X210047918.09 401-693F14X3100471000.22 401-694F14X4100471063.72 401-695F14X5100471110.13 401-696F14X6100471127.21 401-698F14X8100471187.92 401-700F14X10100471390.32 401-702F14X12100471579.24 401-706F14X16100473051.73 401-751F16X2100471020.12 401-753F16X3100471075.91 401-754F16X4100471141.00 401-756F16X6100471216.69 401-758F16X8100471337.32 401-760F16X10100471457.80 401-762F16X12100471698.32 401-764F16X14100472030.45 401-768F16X181********.36 401-781F18X2100471133.67 401-783F18X3100471162.85 401-784F18X4100471176.16 401-786F18X6100471348.82 401-788F18X8100471479.98 401-790F18X10100471759.27 401-792F18X12100471824.32 401-794F18X14100472406.14 401-796F18X16100472762.14 401-811F20X2100471435.19 401-813F20X3100471462.59 401-814F20X4100471484.69 401-816F20X6100471508.23 401-818F20X8100471568.46 401-820F20X10100471943.21 401-822F20X12100472115.47 401-824F20X14100472673.49 401-826F20X16100473156.02 401-828F20X181********.78 401-901F24X2100472372.20 401-903F24X3100472467.92 401-904F24X4100472953.34 401-906F24X6100473033.57 401-908F24X8100473167.79 401-910F24X10100473237.25 401-912F24X12100473328.96 401-914F24X14100473573.79 401-916F24X16100473754.69 401-918F24X181********.93 401-920F24X20100474406.42¹Outlet sized with BushingPk Ctn Code Each Reducing TeeSoc x Fipt402-0711/2X1/850300040 2.28 402-0721/2X1/450200040 2.28 402-0741/2X3/4500040 2.28 402-0943/4X1/2X1/2500040 1.60 402-0953/4X1/2X3/4500040 1.60 402-1013/4X1/2500040 1.41 402-1241X3/4X1/2500040 3.04 402-1251X3/4X3/4500040 3.04 402-1301X1/2500040 2.13 402-1311X3/4500040 3.04 402-1561-1/4X1X1/2250040 4.85 402-1571-1/4X1X3/4250040 4.85 402-1581-1/4X1X1250040 4.85 402-1661-1/4X1/2250040 5.08 402-1671-1/4X3/4250040 5.08 402-1681-1/4X1250040 5.08 402-1991-1/2X1-1/4X1/2250040 6.31 402-2011-1/2X1-1/4X3/4250040 6.31 402-2021-1/2X1-1/4X1250040 6.31 402-2091-1/2X1/2250040 6.31 402-2101-1/2X3/4250040 6.31 402-2111-1/2X1250040 6.31 402-2121-1/2X1-1/4250040 6.31 402-2382X1-1/2X3/41000407.94 402-2392X1-1/2X11000407.94 402-2472X1/21000407.94 402-2482X3/41000407.94 402-2492X11000407.94 402-2502X1-1/41000407.94 402-2512X1-1/21000407.94 402-2872-1/2X1/210004017.18 402-2882-1/2X3/410004017.18 402-2892-1/2X110004017.18 402-2902-1/2X1-1/410004017.18 402-2912-1/2X1-1/210004017.18 402-2922-1/2X210004017.18 402-3333X1/210004024.54 402-3343X3/410004024.54 402-3353X110004024.54 402-3363X1-1/410004024.54 402-3373X1-1/210004024.54 402-3383X26004024.54 402-4174X16004041.01 402-4194X1-1/210004041.01 402-4204X210004041.01 402-4224X36004041.01 402-4905X430040107.13 402-52516X130040139.00 402-5286X230040139.00 402-5306X350040139.00 402-5326X420040139.00 402-57818X230040300.60 402-58018X320040300.60 402-58218X420040300.60 402-621F10X210047584.85 402-622F10X2-1/210047588.97 402-623F10X310047625.91 402-624F10X410047678.69 402-661F12X210047750.88 402-663F12X310047809.00 402-664F12X410047875.84¹Outlet-sized with BushingPk Ctn Code EachReducing TeeSoc x Fipt x Soc403-0953/4X1/2X3/4500040 4.31Special Reinforced Reducing TeeSoc x SR Fipt -Stainless Steel Collar402-072SR1/2X1/4251500468.06 402-098SR3/4X1/42510004610.47 402-101SR3/4X1/250004610.47 402-166SR1-1/4X1/215004617.52 402-168SR1-1/4X110004617.87 402-212SR1-1/2X1-1/410004619.35 402-287SR2-1/2X1/210004623.55 402-288SR2-1/2X3/410004624.88 402-289SR2-1/2X110004625.13 402-290SR2-1/2X1-1/410004624.74 402-291SR2-1/2X1-1/210004625.72 402-292SR2-1/2X210004625.93 402-333SR3X1/210004631.40 402-334SR3X3/410004631.40 402-335SR3X110004632.03 402-336SR3X1-1/410004632.78 402-337SR3X1-1/210004632.49 402-338SR3X26004634.42 402-417SR4X16004641.59 402-419SR4X1-1/210004645.68 402-420SR4X210004647.17 402-422SR4X36004674.11Special Reinforced Reducing TeeSoc x SR Fipt-Stainless Steel Collar x Soc403-095SR3/4X1/2X3/4500046 2.73Manifold TeeSpig x Soc x Mipt476-010******* 5.98Manifold TeeSpig x Soc x Fipt477-010******* 5.98O-ring Sealed Manifold TeeO-ring Sealed MIPT x Fipt x MIPTEPDM O-ring Seal on Tee run451A-010******* 4.49 O-ring end MIPT is designed to assemble to corresponding Manifold Tee FIPT Only. Multiple Mainifold Tee-to-Maniffold Tee assemblies can be made with NO Thread Sealant required. Branch MIPT and Terminal MIPT in manifilold assembly can be joined without O-ring to standard FIPT using thread sealant.Transition Tee for P.E. Hose LateralsSoc x Insert (.580 I.D.)1102-0073/4500040 3.22 1102-1301X1/22000040 3.61 1102-2482X2X3/4100040 5.08 1102-2502X1-1/4100040 5.08Pk Ctn Code Each 90° EllSoc406-0033/850600040 3.23 406-0051/250400040.64 406-0073/450300040.72 406-010******* 1.29 406-0121-1/4250040 2.28 406-0151-1/2250040 2.46 406-020******* 3.85 406-0252-1/210004011.73 406-030310004014.03 406-04048004025.09 406-045F4-1/215047178.54 406-05054004064.84 406-06064004079.80 406-080820040205.47 406-1001010041773.92 406-100F1010047412.87 406-12012100411037.97 406-120F1210047674.80 406-140F1410047972.61 406-160F16100471391.76 406-180F181********.04 406-200F20100472260.04 406-240F24100473386.87 90° EllSoc x Fipt407-0051/250400040.80 407-0073/450300040.92 407-010******* 1.72 407-0121-1/4250040 2.87 407-0151-1/2250040 3.19 407-020********.24 407-0252-1/210004020.37 407-03038004030.54 407-04048004046.29 Special Reinforced 90° Ell & Reducing 90° EllSoc x SR Fipt -Stainless Steel Collar407-005SR1/2504000467.15 407-007SR3/47500469.18 407-010SR15000469.28 407-012SR1-1/425004611.22 407-131SR1X3/4500046 3.94 407-168SR11-1/4X125004615.55 407-249SR2X110004617.68 407-251SR2X1-1/210004618.65 Sized with SR Adapter90° EllFipt408-0051/250400040 1.55 408-0073/4500040 2.29 408-010******* 4.91 408-0121-1/4250040 5.25 408-0151-1/2250040 6.64 408-020*********.07Pk Ctn Code EachReducing 90° EllSoc406-0533/8X1/2500040 1.88 406-1013/4X1/2500040 1.29 D406-1013/4X1/2500040 1.57 406-1301X1/2500040 1.93 D406-1301X1/2500040 2.76 406-1311X3/4500040 2.29 406-1661-1/4X1/2250040 3.67 D406-1661-1/4X1/2250040 4.21 406-1671-1/4X3/4250040 3.67 406-1681-1/4X1250040 3.67 406-2091-1/2X1/2250040 5.80 406-2111-1/2X1250040 5.80 406-2121-1/2X1-1/4250040 5.80 406-2492X11000407.15 406-2502X1-1/41000407.15 406-2512X1-1/21000409.89 406-251N2X1-1/21000159.89 406-2922-1/2X210004011.59 406-292N2-1/2X2 (2-1/2 Spigot)10004011.59Reducing 90° EllSoc x Fipt407-0533/8X1/250600040 2.20 407-0741/2X3/4500040 1.72 407-1013/4X1/250300040.95 407-1301X1/2500040 2.64 407-1311X3/4500040 2.64 407-1681-1/4X1250040 3.85 407-2111-1/2X1250040 6.39 407-2121-1/2X1-1/4200040 6.65 407-2492X110004011.06 407-2502X1-1/410004011.06 407-2512X1-1/210004011.0690° Sweep EllSoc406-005S1/225300040 4.92 406-007S3/425100040 5.63 406-010S12500409.22 406-012S1-1/425004012.16 406-015S1-1/225004013.14 406-020S225004015.84 406-025S2-1/220004018.53Long Sweep 90° EllSoc406-025LSF2-1/21704753.27 406-030LSF31504775.03 406-040LSF41404797.68 406-060LSF612047151.04 406-080LSF810047300.7190° Street EllSpig x Soc409-0051/250400040 1.81 409-0073/4500040 2.23 409-010******* 3.85 409-0121-1/4250040 4.61Pk Ctn Code Each 90° Street Ell (continued)Spig x Soc409-0151-1/2250040 5.08 409-020********.81 409-0252-1/210004017.59 409-03035004021.72 409-04046004040.39 409-05052004096.62 409-060620040122.09 409-080820040312.31 409-10010100411153.13 409-12012100411276.99 409-140F14100471343.31 409-160F16100471411.15 409-180F181********.28 409-200F20100472510.82 409-240F24100473882.56 90° Street EllMipt x Soc410-0051/250750040 1.41 410-0073/4500040 1.64 410-010******* 2.76 410-0121-1/4250040 3.85 410-0151-1/2250040 4.03 410-020********.91 410-030310004035.40 410-1013/4X1/250400040 2.01 410-1023/4X1500040 3.41 90° Street EllMipt x Fipt412-0051/250600040 1.88 412-0073/4500040 2.29 412-010******* 3.96 412-0121-1/4250040 4.91 412-0151-1/2250040 5.33 412-020*********.16 412-03038004036.29 HDPE 90° Street EllMipt x FiptM412-0051/250450040 1.75 M412-0073/4500040 2.12 M412-010******* 3.69 M412-0121-1/4250040 4.87 M412-0151-1/2250040 5.52 High Density Polyethylene -Not NSF-listed -Not pressure rated. For use on open ended irrigation systems.HDPE 90° Street EllMipt x Fipt (Short Pattern)MS412-0051/250700040 1.57 MS412-0073/450400040 1.89 MS412-010******* 3.32 High Density Polyethylene -Not NSF-listed -Not pressure rated. For use on open ended irrigation systems.HDPE Reducing 90° Street EllMipt x Fipt (Short Pattern)MS412-1013/4X1/250400040 2.54Pk Ctn Code Each HDPE Reducing 90° Street Ell (continued)Mipt x Fipt (Short Pattern)High Density Polyethylene -Not NSF-listed -Not pressure rated. For use on open ended irrigation systems.Side Outlet EllSoc413-0051/2500040 3.49 413-0073/4500040 4.75 413-010******* 6.08 413-0151-1/2100040 6.67 413-020********.26 Side Outlet EllSoc x Fipt414-0051/2500040 3.40 414-0073/4500040 5.22 414-1013/4X1/2500040 4.40 414-1301X1/2500040 5.77 60° EllSoc424-005F1/27004769.87 424-007F3/46004777.68 424-010F11304778.89 424-012F1-1/416004784.12 424-015F1-1/216004797.06 424-020F2116047127.54 424-025F2-1/2100047139.81 424-030F318047159.40 424-040F414047187.15 424-045F4-1/214047209.64 424-050F514047215.51 424-060F614047262.04 424-080F812047348.46 424-100F1012047715.66 424-120F1210047911.02 424-140F1410047962.79 424-160F16100471158.63 424-180F181********.01 424-240F24100472895.78 45° EllSoc417-0051/250600040 1.06 417-0073/450300040 1.64 417-010******* 1.98 417-0121-1/4250040 2.76 417-0151-1/2250040 3.46 417-020******* 4.51 417-0252-1/210004011.75 417-030310004018.23 417-04045004032.68 417-045F4-1/211504767.15 417-05055004064.84 417-050F51204787.00 417-06068004080.76 417-080830040194.22 417-080F814047183.81 417-1001010041505.60 417-100F1012047290.39 417-1201210041749.24 417-120F1212047307.99Pk Ctn Code Each 45° Ell (continued)Soc417-140F1410047646.07 417-160F1610047853.85 417-180F1810047902.80 417-200F20100471169.47 417-240F24100471881.75 45° Street EllSpig x Soc427-0051/250400040 1.06 427-0073/4500040 1.64 427-010******* 1.98 427-0121-1/4250040 2.76 427-0151-1/2250040 3.46 427-020******* 4.51 427-0252-1/210004014.68 427-030310004018.23 427-04045004032.68 427-05054004098.27 427-060640040100.94 427-080820040242.78 427-1001010041638.82 427-1201210041936.57 427-140F1410047697.99 427-160F1610047948.73 427-180F181********.62 427-200F20100471314.52 427-240F24100472070.62 30° EllSoc415-005F1/212504721.59 415-007F3/425004721.73 415-010F112504723.78 415-012F1-1/411504725.74 415-015F1-1/212504726.11 415-020F212504727.07 415-025F2-1/225004731.93 415-030F312004734.15 415-040F41604741.13 415-045F4-1/211504765.07 415-050F51604757.03 415-060F611004766.07 415-080F814047111.69 415-100F1012047168.54 415-120F1210047266.62 415-140F1410047419.17 415-160F1610047571.40 415-180F1810047686.21 415-200F2010047848.25 415-240F24100471689.55 22-1/2° EllSoc416-0051/220240040 1.51 416-0073/420240040 2.35 416-010********* 2.81 416-0121-1/4200040 3.93 416-0151-1/2200040 4.93 416-015F1-1/212504726.11 416-020******* 6.45 416-0252-1/25004016.77 416-025F2-1/225004731.93Pk Ctn Code Each 22-1/2° Ell (continued)Soc416-03035004026.01 416-04044004046.72 416-045F4-1/211504765.07 416-050F511004757.03 416-060640040115.34 416-060F61504766.07 416-080840040277.46 416-080F814047111.69 416-100F1010047168.54 416-120F1210047266.62 416-140F1410047419.17 416-160F1610047571.40 416-180F1810047686.21 416-200F2010047848.25 416-240F24100471689.55 22-1/2° Street EllSpig x Soc442-0051/250400040 1.51 442-0073/4500040 2.35 442-010******* 2.81 442-0121-1/4200040 3.93 442-0151-1/2250040 4.93 442-020******* 6.45 442-025F2-1/211804736.53 442-03035004037.68 442-04044004058.15 442-060640040143.56 442-060F61504784.72 442-080814040345.31 442-080F814047127.60 442-100F1010047197.47 442-120F1210047296.41 15° EllSoc418-005F1/212504721.59 418-007F3/423004721.73 418-010F120004723.78 418-012F1-1/415004725.74 418-015F1-1/225004726.11 418-020F212504727.07 418-025F2-1/218004731.93 418-030F313504734.15 418-040F412004741.13 418-045F4-1/211504765.07 418-050F511504757.03 418-060F611004766.07 418-080F814047111.69 418-100F1012047168.54 418-120F1212047266.62 418-140F1410047419.17 418-160F1610047571.40 418-180F1810047686.21 418-200F2010047848.25 418-240F24100471689.55 11-1/4° EllSoc411-005F1/252004721.59 411-007F3/452004721.73 411-010F152004723.78Pk Ctn Code Each 11-1/4° Ell (continued)Soc411-012F1-1/425004725.74 411-0151-1/2250040 5.57 411-015F1-1/225004726.11 411-020******* 6.45 411-025F2-1/212504731.93 411-030310004026.01 411-04044004046.72 411-045F4-1/211504765.07 411-050F511504757.03 411-060F611004766.07 411-080F814047111.69 411-100F1012047168.54 411-120F1212047266.62 411-140F1410047419.17 411-160F1610047571.40 411-180F1810047686.21 411-200F2010047848.25 411-240F24100471689.55WyeSoc1/2" -2" -235 psi Maximum Internal Pressure Rating @ 73°F (23°C)2-1/2" -6" -150 psi Maximum Internal Pressure Rating @ 73°F (23°C) 8" -Larger & All Fabricated Sizes-100 psi Maximum Internal Pressure Rating @ 73°F (23°C)475-0051/225100040 2.76 475-0073/4200040 4.33 475-010******* 6.06 475-0121-1/42000409.32 475-0151-1/220004011.95 475-020*********.85 475-02512-1/24004081.96 475-03035004060.40 475-040440040113.92 475-050F513047444.56 475-060630040241.02 475-080810040387.67 475-10010100411284.57 475-100F*10100471077.91 475-12012100411898.02 475-120F*12100471465.32 475-140F*14100472075.98 475-160F*16100472683.45 475-180F*181********.76 475-200F*20100474062.04 475-240F*24100475051.87¹Sized with Bushing* An asterisk (*) appearing after a fabricated fitting part number indicates the item is fiberglass reinforced.Reducing WyeSoc1/2" -2" -235 psi Maximum Internal Pressure Rating @ 73°F (23°C)2-1/2" -6" -150 psi Maximum Internal Pressure Rating @ 73°F (23°C) 8" -Larger & All Fabricated Sizes -100 psi Maximum Internal Pressure Rating @ 73°F (23°C)475-10113/4X1/22000408.54 475-13011X1/220004010.86 475-13111X3/420004010.86 475-16611-1/4X1/220004014.61 475-16711-1/4X3/420004014.61 475-16811-1/4X120004014.61Pk Ctn Code Each Reducing Wye (continued)Soc475-20911-1/2X1/220004017.39 475-21011-1/2X3/420004017.39 475-21111-1/2X120004017.39 475-21211-1/2X1-1/420004017.39 475-24712X1/210004039.51 475-24812X3/410004039.51 475-24912X110004039.51 475-25012X1-1/410004039.51 475-25112X1-1/210004039.51 475-29212-1/2X24004088.03 475-33413X3/45004068.60 475-33513X15004068.60 475-33613X1-1/45004068.60 475-33713X1-1/25004068.60 475-33813X25004068.60 475-33913X2-1/25004068.60 475-4204X240040131.78 475-42114X2-1/240040131.78 475-42214X340040131.78 475-488F*5X314047353.59 475-490F*5X414047368.20 475-52816X240040284.43 475-52916X2-1/250040284.43 475-53016X350040284.43 475-5326X450040309.89 475-578F*8X212047532.21 475-579F*8X2-1/210047564.77 475-580F*8X312047578.25 475-582F*8X412047596.45 475-585F*8X610047614.53 475-621F*10X210047639.77 475-622F*10X2-1/210047650.77 475-623F*10X310047685.51 475-624F*10X410047725.43 475-62610X6100411100.84 475-626F*10X610047801.01 475-62810X8100411223.16 475-628F*10X810047857.09 475-661F*12X210047868.42 475-663F*12X310047889.14 475-664F*12X410047930.55 475-666F*12X610047935.02 475-668F*12X8100471084.33 475-670F*12X10100471239.80 475-691F*14X2100471032.35 475-693F*14X3100471117.36 475-694F*14X4100471171.81 475-696F*14X6100471320.22 475-698F*14X8100471512.75 475-700F*14X10100471689.82 475-702F*14X12100471893.25 475-751F*16X2100471199.41 475-753F*16X3100471296.59 475-754F*16X4100471348.37 475-756F*16X6100471517.35 475-758F*16X8100471727.99 475-760F*16X10100471923.22 475-762F*16X12100472143.16 475-764F*16X14100472425.75 475-781F*18X2100471308.67 475-783F*18X3100471368.57 475-784F*18X4100471388.89 475-786F*18X6100472661.03 475-788F*18X8100471985.98 475-790F*18X10100472209.00Pk Ctn Code Each Reducing Wye (continued)Soc475-792F*18X12100472562.64 475-794F*18X14100472813.63 475-796F*18X16000472950.83 475-811F*20X2100471376.09 475-813F*20X3100471491.22 475-814F*20X4100471510.54 475-818F*20X8100472080.20 475-816F*20X6100471538.88 475-820F*20X10100472312.57 475-822F*20X12100472787.00 475-824F*20X14100473118.99 475-826F*20X16000473457.07 475-828F*20X180********.88 475-901F*24X2100471737.02 475-903F*24X3100471775.23 475-904F*24X4100471824.16 475-906F*24X6100473210.71 475-908F*24X8100473502.38 475-910F*24X10100473539.38 475-912F*24X12100473746.56 475-914F*24X14100473875.11 475-916F*24X16100474058.18 475-918F*24X181********.72 475-920F*24X20000474822.38¹Sized with Bushing* An asterisk (*) appearing after a fabricated fitting part number indicates the item is fiberglass reinforced.Double WyeSoc100 psi Maximum Internal Pressure Rating @ 73°F (23°C)476-020F*214047278.43 476-030F*313047458.60 476-040F*412047510.84 476-060F*610047581.76 476-080F*810047708.48 476-100F*10100471299.16 476-120F*12100471546.67 * An asterisk (*) appearing after a fabricated fitting part number indicates the item is fiberglass reinforced.For larger sizes please contact your Regional Spears® Distribution Center.Reducing Double WyeSocSize 3" is 150 psi, all Fabricated Sizes-100 psi Maximum Internal Pressure Rating @ 73°F (23°C)476-3383X250040100.68 476-420F*4X214047452.25 476-421F*4X2-1/212047471.85 476-422F*4X313047485.42 476-528F*6X212047455.41 476-529F*6X2-1/212047495.79 476-530F*6X312047515.27 476-532F*6X410047523.33 476-578F*8X212047555.58 476-579F*8X2-1/212047577.67 476-580F*8X310047621.64 476-582F*8X410047629.64 476-585F*8X610047660.09 476-621F*10X210047827.76 476-622F*10X2-1/210047877.01 476-623F*10X310047902.16Pk Ctn Code Each Reducing Double Wye (continued)Soc476-624F*10X410047991.25 476-626F*10X6100471111.88 476-628F*10X8100471159.46 476-661F*12X2100471180.96 476-662F*12X2 1/2100471194.37 476-663F*12X3100471258.47 476-664F*12X4100471283.05 476-666F*12X6100471355.85 476-668F*12X8100471390.63 476-670F*12X10100471473.23 * An asterisk (*) appearing after a fabricated fitting part number indicates the item is fiberglass reinforced.For larger sizes please contact your Regional Spears® Distribution Center.CrossSoc420-0051/2500040 2.46 420-0073/4500040 4.08 420-010******* 5.08 420-0121-1/4250040 6.72 420-0151-1/22500407.62 420-020*********.23 420-0252-1/210004023.82 420-03035004029.22 420-04044004043.28 420-050F513047618.29 420-060F610047609.52 420-080F810047785.12 420-100F1010047950.24 420-120F12100471339.13 420-140F14100472381.20 420-160F16100473018.71 420-180F181********.15 420-200F20100475123.86 420-240F24100477473.22Reducing CrossSoc420-10113/4X1/25000409.48 420-13011X1/225004011.13 420-1311X3/420004011.13 420-16611-1/4X1/24004013.63 420-16711-1/4X3/425004013.63 420-16811-1/4X143204013.63 420-20911-1/2X1/220004014.75 420-21011-1/2X3/44004014.75 420-21111-1/2X14004014.75 420-21211-1/2X1-1/44004014.75 420-24712X1/24004017.33 420-24812X3/410004017.33 420-2492X125004017.33 420-25012X1-1/410004017.33 420-25112X1-1/210004017.33 420-28712-1/2X1/24004033.63 420-28812-1/2X3/44004033.63 420-28912-1/2X110004033.63 420-2902-1/2X1-1/45004033.63 420-29112-1/2X1-1/210004033.63 420-29212-1/2X210004033.63 420-33413X3/45004043.71 420-33513X15004043.71 420-33613X1-1/44004043.71Pk Ctn Code Each Reducing Cross (continued)Soc420-33713X1-1/25004043.71 420-33813X25004043.71 420-33913X2-1/24004043.71 420-42014X23004075.22 420-42114X2-1/23004075.22 420-42214X33004075.22 420-528F6X212047402.74 420-529F6X2 1/212047411.83 420-530F6X312047418.88 420-532F6X412047480.94 420-578F8X212047527.62 420-579F8X2 1/210047542.39 420-580F8X310047549.62 420-582F8X410047577.57 420-585F8X610047657.53 420-621F10X210047666.75 420-622F10X2-1/210047682.88 420-623F10X310047718.69 420-624F10X410047744.78 420-626F10X610047798.31 420-628F10X810047848.22 420-661F12X210047749.45 420-662F12X2-1/210047776.75 420-663F12X310047804.25 420-664F12X410047842.49 420-666F12X610047886.04 420-668F12X810047955.88 420-670F12X10100471089.28 420-691F14X2100471035.99 420-693F14X3100471110.64 420-694F14X4100471134.75 420-696F14X6100471331.76 420-698F14X8100471482.95 420-700F14X10100471685.44 420-702F14X12100471914.46 420-751F16X2100471265.98 420-753F16X3100471361.63 420-754F16X4100471407.23 420-756F16X6100471522.20 420-758F16X8100471783.02 420-760F16X10100471921.55 420-762F16X12100472168.38 420-764F16X14100472399.26 420-781F18X2100471423.39 420-783F18X3100471509.00 420-784F18X4100471524.42 420-786F18X6100471628.94 420-788F18X8100471890.39 420-790F18X10100472403.94 420-792F18X12100472581.58 420-794F18X14100472986.72 420-796F18X16100473076.73 420-811F20X2100471505.92 420-813F20X3100471607.46 420-814F20X4100471701.97 420-816F20X6100471821.69 420-818F20X8100471994.57 420-820F20X10100473397.94 420-822F20X12100473597.97 420-824F20X14100473814.86 420-826F20X16100474450.96 420-828F20X181********.02 420-901F24X2100472509.01 420-903F24X3100472583.73 420-904F24X4100472671.00Pk Ctn Code Each Reducing Cross (continued)Soc420-906F24X6100472823.59 420-908F24X8100473039.72 420-910F24X10100474364.01 420-912F24X12100474449.71 420-914F24X14100474604.69 420-916F24X16100475705.99 420-918F24X181********.36 420-920F24X20100477294.55¹Outlet sized with BushingCrossSoc x Mipt421A-010******* 5.98 CouplingSoc429-0033/850300040 1.16 429-0051/250600040.42 429-005N1/250300040.42 429-0073/450400040.58 429-007N3/450400040.58 429-010******* 1.02 429-010N1500040 1.02 429-0121-1/425150040 1.41 429-0151-1/2250040 1.51 429-020******* 2.29 429-0252-1/2120040 5.08 429-03031000407.96 429-04046004011.52 429-045F4-1/211004751.25 429-05055004021.08 429-06065004036.41 429-08088004067.99 429-1001010041198.15 429-100F1010047123.99 429-1201210041394.79 429-120F1210047131.99 429-1401410041577.23 429-140F1410047214.33 429-160F1610047239.05 429-180F1810047407.66 429-200F2010047711.17 429-240F2410047987.67 CouplingFipt430-0051/250600040.81 430-005G1/250300043.92 430-0073/450400040 1.51 430-010******* 1.98 430-0121-1/410120040 6.66 Special Reinforced CouplingSR Fipt -Stainless Steel Collar430-005SR1/225300046 3.69 430-007SR3/425300046 5.25 430-010SR125200046 5.61 430-012SR1-1/410120046 6.99 430-015SR1-1/2106004615.47 430-020SR210004616.22Pk Ctn Code Each Reducer CouplingSoc429-1013/4X1/250200040 1.06 429-13011X1/225200040 2.53 429-1311X3/4500040 1.81 429-16611-1/4X1/2250040 4.78 429-1671-1/4X3/4250040 4.78 429-1681-1/4X1250040 3.04 429-20911-1/2X1/2848040 3.98 429-2101-1/2X3/4250040 3.22 429-21111-1/2X1250040 4.98 429-2121-1/2X1-1/4250040 3.22 429-24712X1/21000407.02 429-24812X3/41000407.02 429-24912X12500407.39 429-25012X1-1/410800407.02 429-2512X1-1/21040040 5.14 429-29112-1/2X1-1/210004013.73 429-2922-1/2X210004010.57 429-33513X110004031.12 429-33713X1-1/28004031.12 429-3383X28004027.62 429-33913X2-1/28004023.44 429-340F3X2-1/211004729.54 429-41614X3/410004036.13 429-41714X18004057.37 429-4204X24004033.45 429-42114X2-1/26004042.14 429-4224X34004034.51 429-460F4-1/2X41404755.02 429-486F5X2124047121.98 429-487F5X2-1/2110047105.52 429-488F5X31604793.89 429-490F5X41604760.63 429-491F5X4-1/211504758.18 429-528F6X21404789.85 429-530F6X311504778.78 429-5326X44004045.54 429-533F6X511504769.46 429-534F6X4-1/211504783.94 429-578F8X214047200.02 429-580F8X314047178.97 429-5828X412040105.60 429-583F8X514047135.08 429-5858X620040116.62 429-621F10X212047285.19 429-623F10X312047253.38 429-62410X412041559.34 429-624F10X412047211.83 429-62610X610041559.34 429-626F10X614047197.41 429-62810X810041559.34 429-628F10X812047138.17 429-664F12X412047376.89 429-66612X610041636.86 429-666F12X612047347.27 429-66812X810041636.86 429-668F12X810047336.73 429-670F12X1010047201.13 429-693F14X310047716.46 429-694F14X410047627.97 429-696F14X610047570.42 429-698F14X810047565.27 429-700F14X1010047447.31 429-702F14X1210047336.89Pk Ctn Code Each Reducer Coupling (continued)Soc429-751F16X210047792.14 429-754F16X410047734.99 429-756F16X610047727.75 429-758F16X810047558.99 429-760F16X1010047518.37 429-762F16X1210047424.02 429-764F16X1410047404.32 429-786F18X6100471067.38 429-788F18X8100471000.17 429-790F18X1010047894.44 429-792F18X1210047711.55 429-794F18X1410047660.40 429-796F18X1610047597.87 429-814F20X4100471718.56 429-816F20X6100471430.35 429-818F20X8100471404.92 429-820F20X10100471350.91 429-822F20X12100471299.23 429-824F20X14100471217.75 429-826F20X16100471116.02 429-828F20X181********.77 429-906F24X6100472546.73 429-908F24X8100472343.18 429-910F24X10100472137.31 429-912F24X12100472103.63 429-914F24X14100472022.61 429-916F24X16100471945.19 429-918F24X181********.47 429-920F24X20100471549.42¹Outlet sized with BushingReducer CouplingFipt430-1013/4X1/250200040 1.95 Special Reinforced Reducer CouplingSR Fipt -Stainless Steel Collar430-101SR3/4X1/2502000467.96 Eccentric Reducer CouplingSoc429-131FE1X3/411504729.54 429-168FE1-1/4X111204726.81 429-212FE1-1/2X1-1/412504727.78 429-249FE2X112504743.57 429-250FE2X1-1/412504738.18 429-251FE2X1-1/212004736.89 429-290FE22-1/2X1-1/412504756.21 429-291FE22-1/2X1-1/211004756.14 429-292FE2-1/2X211004743.62 429-335FE33X111004760.78 429-336FE23X1-1/411004759.40 429-337FE23X1-1/211004754.85 429-338E3X215004035.05 429-338FE3X212004733.63 429-339FE3X2-1/212404731.96 429-417FE34X111004792.09 429-418FE34X1-1/411204788.96 429-419FE34X1-1/211004784.92 429-420E4X215004050.83 429-420FE24X21604745.67 429-421FE24X2-1/21504744.93。
