利用太阳能板对电池充电的应用本文主要讨论太阳能电池的工作原理和电气输出特性，以及利用CN3063、CN3065和CN3082这三款芯片利用太阳能为电池充电的解决方案。
太阳能电池的I-V 特性太阳能电池一般由p-n 结组成，p-n 结中的光能(光子)通过导致电子和空穴的重新组合而产生电流。
由于p-n 结的特性类似于二极管的特性，我们一般以如图1中所示的电路作为太阳能电池特性的一个简化模型。
IPH图1 太阳能电池简化电路模型电流源IPH 产生的电流和太阳能电池上的光量度成正比。
在没有负载连接的时候，几乎所有产生的电流都流过二极管D ，其正向电压决定着太阳能电池的开路电压(V OC )。
该电压会因各种类型太阳能电池的特性不同而有所差异。
但是，对于大多数硅电池而言，这一电压都在0.5V 到0.6V 之间，这也是p-n 结二极管的正常正向电压。
在实际太阳能电池应用中，并联电阻(RP)的泄漏电流很小，而RS 则会产生连接损耗。
图2展示了太阳能电池在输出上的特性。
由于串联电阻(RS)的原因，电压会稍有下降。
然而，有时如果通过内部二极管的电流太小，会导致偏置不够，并且穿过它的电压会随着负载电流的增加而急剧下降。
最后，如果所有电流都只流过负载而不流过二极管，输出电压就会变为零。
这个电流被称为太阳能电池的短路电流(I SC )。
I SC 和V OC 都是定义太阳能工作性能的主要参数之一。
因此，太阳能电池被认为是“电流限制”型电源。
它的输出电压会随着输出电流的增加而降低，并在负载电流达到短路电流时降为零。
由于太阳能电池的输出电流同光照强度的变化而变化,所以一般不能用太阳能电池给用电系统直接供电,一般需要将太阳能电池的能量先存储在蓄电池中,然后通过电池为系统供电。
这就要求充电电路能够适应太阳能电池的电压-电流输出特性。
CN3063、CN3065和CN3082就是根据太阳能电池的电压-电流输出特性而设计的,芯片内部集成有8位模数转换器,它能够根据输入电压源的电流输出能力自动调节充电电流。
摘要本科毕业设计(论文)手机充电器的设计与仿真毕业设计（论文）原创性声明和使用授权说明原创性声明本人郑重承诺：所呈交的毕业设计（论文），是我个人在指导教师的指导下进行的研究工作及取得的成果。
尽我所知，除文中特别加以标注和致谢的地方外，不包含其他人或组织已经发表或公布过的研究成果，也不包含我为获得及其它教育机构的学位或学历而使用过的材料。
对本研究提供过帮助和做出过贡献的个人或集体，均已在文中作了明确的说明并表示了谢意。
作者签名：日期：指导教师签名：日期：使用授权说明本人完全了解大学关于收集、保存、使用毕业设计（论文）的规定，即：按照学校要求提交毕业设计（论文）的印刷本和电子版本；学校有权保存毕业设计（论文）的印刷本和电子版，并提供目录检索与阅览服务；学校可以采用影印、缩印、数字化或其它复制手段保存论文；在不以赢利为目的前提下，学校可以公布论文的部分或全部内容。
摘要作者签名：期：学位论文原创性声明本人郑重声明：所呈交的论文是本人在导师的指导下独立进行研究所取得的研究成果。
除了文中特别加以标注引用的内容外，本论文不包含任何其他个人或集体已经发表或撰写的成果作品。
对本文的研究做出重要贡献的个人和集体，均已在文中以明确方式标明。
本人完全意识到本声明的法律后果由本人承担。
作者签名：日期：年月日学位论文版权使用授权书本学位论文作者完全了解学校有关保留、使用学位论文的规定，同意学校保留并向国家有关部门或机构送交论文的复印件和电子版，允许论文被查阅和借阅。
本人授权大学可以将本学位论文的全部或部分内容编入有关数据库进行检索，可以采用影印、缩印或扫描等复制手段保存和汇编本学位论文。
涉密论文按学校规定处理。
作者签名：日期：年月日导师签名：日期：年月日摘要1.设计（论文）的内容包括：1）封面（按教务处制定的标准封面格式制作）2）原创性声明3）中文摘要（300字左右）、关键词4）外文摘要、关键词5）目次页（附件不统一编入）6）论文主体部分：引言（或绪论）、正文、结论7）参考文献8）致谢9）附录（对论文支持必要时）2.论文字数要求：理工类设计（论文）正文字数不少于1万字（不包括图纸、程序清单等），文科类论文正文字数不少于1.2万字。
如韵电子CONSONANCE
AN119
充电电流自动调整技术的应用
CN3063/CN3065/CN3082
在实际应用中，经常会遇到一个电子产品需要用两路或两路以上的电源对电池充电的应用，比如，一路电源为电源适配器，另一路电源为USB接口，客户希望这两路电源有任何一路存在时都能为电池充电，电源适配器一般有较强的电流输出能力，可以实现对电池的快速充电；虽然USB接口的输出电流能力比较弱，但因为其随处可用，可以方便地对电池充电。
由于两路电源的输出电流能力不同，导致充电电流的设置陷入两难的境地，如果充电电流根据输出电流能力较强的电源来设置,那么当由较弱输出电流能力的电源供电时，就不能正常充电；反之，如果充电电流根据输出电流能力较弱的电源来设置，那么当由较强输出电流能力的电源供电时，就浪费了该电源的能力，不能实现快速充电。
例如，假设有两路电源，一路为电源适配器，输出电流能力为1安培；另一路为USB接口，其输出电流能力为500毫安，那么如果将充电电流设置在1安培，就不能用USB接口来充电；如果将充电电流设置在500毫安，那么就浪费了电源适配器的能力，不能对电池进行快速充电。
如果用上海如韵电子有限公司的CN3063/CN3065/CN3082就可以很方便地
解决这个问题。
在CN3063/CN3065/CN3082内部集成有8位模拟－数字转换电路，可以根据电源的输出电流能力自动调整充电电流，用户不需要考虑最坏情况，可最大限度地利用输入电源的电流输出能力。
为了解决上面例子的问题，可以使用CN3065，将充电电流设置在1安培，那么当用电源适配器供电时，用1安培的电流向电池充电，当用USB接口供电时，CN3065会自动将充电电流降到500毫安，以适应USB接口的输出电流能力，保证充电能够正常进行。

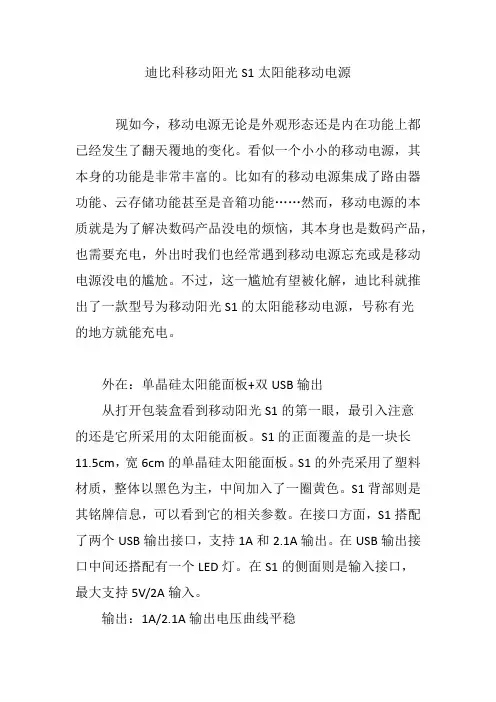

迪比科移动阳光S1太阳能移动电源现如今，移动电源无论是外观形态还是内在功能上都已经发生了翻天覆地的变化。
