S K F轴承知识大全 The pony was revised in January 2021SKF 轴承知识大全SKF 轴承简介，SKF 轴承型号的含义，NSK 公司概述，SKF 轴承故障排除 and so on.1：SKF 轴承简介：SKF 的全称是“Svenska Kullager-Fabriken”中文音译名称为“斯凯孚”；2：SKF 轴承型号的含义SKF 公司的滚动轴承，滚动轴承部件及附件的完整代号由基本代号和补充代号组成。

基本代号由轴承类型代号，尺寸系列代号和内径代号构成。

表示轴承的基本类型，结构和尺寸，是轴承代号的基础。

补充代号是轴承结构形状，尺寸，公差，技术要求有改变时在基本代号左右添加的代号。

在基本代号左边添加的代号为前置代号，用以识别轴承部件，在基本代号右边添加的代号为后置代号，用以表示与原设计有区别或与现行生产的标准有差异的设计问题。

1）前置代号GS——推力圆柱滚子，推力滚针轴承座圈。

例：GS81107-推力圆柱滚子轴承 81107 的座圈。

K——推力滚子和保持架的组合件里。

例：K81170。

K-——符合 AFBMA 标准系列英制圆锥滚子轴承带滚子和保持架组件的内圈（内锥体）或外圈（锥环）。

例：K-09067——系列为 09000 的圆锥滚子轴承的内锥体。

L——分离型轴承的单一内圈或外圈。

例：LNU207——圆柱滚子轴承 NU207 的内圈。

L30207——圆锥滚子轴承 30207 的外圈。

R——除去单一内圈或外圈的分离型轴承。

例：RNU207——圆柱滚子轴承 NU207 带滚子和保持架组合件的外圈。

R30207——圆锥滚子轴承和保持架组件的内圈。

WS——推力圆柱滚子，推力滚针轴圈。

例：WS81107——推力圆柱滚子轴承 81107 的轴圈。

2.后置代号如果轴承代号中有数个后置代号，则这些后置代号按以下顺序分组排列：（1）内部设计，（2）外部设计，（3）保持架，（4）其他特点。

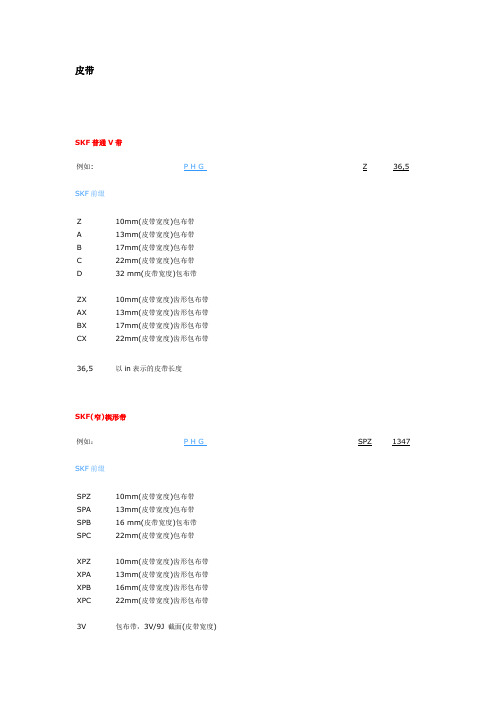

皮带SKF普通V带例如: P H G Z 36,5 SKF前缀Z A B C DZX AX BX CX 10mm(皮带宽度)包布带13mm(皮带宽度)包布带17mm(皮带宽度)包布带22mm(皮带宽度)包布带32 mm(皮带宽度)包布带10mm(皮带宽度)齿形包布带13mm(皮带宽度)齿形包布带17mm(皮带宽度)齿形包布带22mm(皮带宽度)齿形包布带36,5 以in表示的皮带长度SKF(窄)楔形带例如：P H G SPZ 1347 SKF前缀SPZ SPA SPB SPCXPZ XPA XPB XPC3V 10mm(皮带宽度)包布带13mm(皮带宽度)包布带16 mm(皮带宽度)包布带22mm(皮带宽度)包布带10mm(皮带宽度)齿形包布带13mm(皮带宽度)齿形包布带16mm(皮带宽度)齿形包布带22mm(皮带宽度)齿形包布带包布带，3V/9J 截面(皮带宽度)5V 8V3VX 5VX 包布带，5V/15J截面(皮带宽度)包布带，8V/25J截面(皮带宽度)齿形切边带，3VX/9NX截面(皮带宽度) 齿形切边带，5VX/15NX截面(皮带宽度)1347 250 以mm表示的皮带长度(SPZ,SPA,SPB,SPC,XPZ,XPA,XPB,XPC) 以in表示的皮带长度(3V,5V,8V,3VX,5VX)SKF HiTD重载同步带Example: P H G D A - 6 7 0 - 5 M - 2 5 SKF前缀DA DB 对称加强HiTD皮带(仅在要求情况下) 非对称加强HiTD皮带(仅在要求情况下)670 以mm表示的皮带齿距长度3M 5M 8M 14M 3M型皮带(轮齿之间存在3mm距离)5M型皮带(轮齿之间存在5mm距离)8M型皮带(轮齿之间存在8mm距离) 14M型皮带(轮齿之间存在14mm距离)25 以mm表示的皮带宽度SKF六角形皮带例如：P H G AA 1 0 3 SKF前缀AA BB CC AA/HAA 截面双V形皮带BB/HBB 截面双V形皮带CC/HCC 截面双V形皮带103 以in表示的皮带长度SKF普通同步带例如：P H G D 1 9 8 X L 0 2 5 SKF前缀D 双面198 以1/10in表示的皮带节距长度HL XL MXL XH XXH H型皮带L型皮带XL型皮带MXL型皮带(不提供双面型) XH型皮带(不提供双面型) XXH型皮带(不提供双面型)025 以1/100 in表示的皮带宽度SKF公制同步皮带例如：P H G D A T 5 6 2 0 2 0 SKF前缀DA DB 对称双面同步带(仅在要求情况下) 非对称双面同步带(仅在要求情况下)T2,5 T5 T10 T20 2,5型皮带5型皮带10型皮带20型皮带620 以mm表示的皮带齿距长度20 以mm表示的皮带宽度SKF多楔带例如：P H G 4 P J 1 3 1 0 SKF前缀4 楔带数量PJ PK PL PM PJ型皮带PK型皮带PL型皮带PM型皮带1310 以mm表示的皮带长度SKF联组带例如：P H G S P B 2 0 0 0 X 4 SKF前缀SPA SPB SPC ABCD 3V 5V 8V 13mm楔形皮带16mm楔形皮带22mm楔形皮带13mm普通V带17mm普通V带22mm普通V带32 mm普通V带9mm窄楔形皮带15mm窄楔形皮带25mm窄楔形皮带2000 以mm或者in表示的皮带长度4 联接皮带数皮带轮SKF普通V带带轮例如：P H P 2 B 3 4 T B SKF前缀2 带槽数量A B C D A型皮带外形B型皮带外形C型皮带外形D型皮带外形34 皮带轮齿距直径TB 锥形轴套SKF楔形带带轮例如: P H P 1 S PZ5TBSKF前缀1 带槽数SPA SPB SPC SPZ 皮带类型SPA外形皮带类型SPB外形皮带类型SPC外形皮带类型SPZ 外形50 皮带轮节圆直径TB 锥形衬套SKF窄楔带带轮例如：P H P 1 3 V 2 6 5 T B SKF前缀1 槽数3V 5V 8V 3V型皮带外形5V型皮带外形8V型皮带外形265 皮带轮齿距直径TB 锥形衬套SKF HiTD重载同步带带轮例如：P H P 1 0 3 M 0 9 R S B SKF前缀10 轮齿数3M 5M 8M 14M 3M型皮带外形(轮齿之间存在3mm距离)5M型皮带外形(轮齿之间存在5mm距离)8M型皮带外形(轮齿之间存在8mm距离) 14M型皮带外形(轮齿之间存在14mm距离)09 以mm表示的皮带宽度RSB TB 锥形衬套型孔(也称为粗加工孔) 锥形衬套型孔SKF常规正时皮带轮例如：P H P 1 0 X L 0 3 7 R S B SKF前缀10 齿数XL L XH H XL型皮带外形L型皮带类型外形XH型皮带外形H型皮带外形037 以1/100 in表示的皮带宽度RSB TB 孔类型: 导向孔(也称为粗加工孔) 孔类型：锥形轴套SKF公制同步带带轮例如：P H P 1 6 T2.5 1 0 R S B SKF前缀16 以mm表示的皮带轮宽度T2.5 T5T10 AT5 AT10 t2.5型皮带外形T5 型皮带外形T10型皮带外形T10型皮带外形H型皮带外形10 齿数RSB 孔类型：导向孔(也称为粗加工孔) 链条SKF链条(BS-ISO or ANSI)例如: P H C 80-1 C X10FT SKF前缀80-110B-140H-125SH-1 40-1SB 08B-1SLR 16S-1 2040C2040M20A50 81X3939-B4 CL06-13.5 C4-120 AL322BL422FL644LL0822 1256 滚子链条(ANSI链条编号)滚子链条(BS/ISO链条编号)重型滚子链条(ANSI链条编号)超重型滚子链条(链条编号)侧弯滚子链条(链条编号)自润滑滚子链条(链条编号)+G69油田链条(链条编号)双节距传动链条(链条编号)双节距传输链条(ANSI链条编号)传输链条(50mm齿距)(BS/ISO链条编号) 工程链条(链条编号)工程链条(链条编号)齿侧接触面静音链条(链条编号)叉形接触面静音链条(链条编号)板式链条(Ansi链条编号)板式链条(Ansi链条编号)板式链条(链条编号)板式链条(BS/ISO链条编号)板式链条(链条编号)C SS DR NP ZP 开尾销不锈钢达克罗镀镍镀锌+G31 10FT 5MTR 以ft表示的链条长度以m表示的链条长度SKF链条附件例如: P H C 40-1 S L WSA2 X10FTS 2 SKF前缀80-110B-140H-125SH-1 40-1SB 08B-1SLR 16S-1 2040C2040M20A50 81X3939-B4 CL06-13.5 C4-120 AL322BL422FL644LL0822 1256 滚子链条(ANSI链条编号)滚子链条(BS/ISO链条编号)重型滚子链条(ANSI链条编号)超重型滚子链条(链条编号)侧弓滚子链条(链条编号)自润滑滚子链条(链条编号)油田链条(链条编号)双齿距传动链条(链条编号)双齿距传输链条(ANSI链条编号)传输链条(50mm齿距)(BS/ISO 链条编号) 工程链条(链条编号)工程链条(链条编号)齿侧接触面无噪声链条(链条编号)叉形接触面无噪声链条(链条编号)叶片链条(Ansi链条编号)叶片链条(Ansi 链条编号)叶片链条(链条编号)叶片链条(BS/ISO链条编号)叶片链条(链条编号)+G32 CSSDRNPZP 开尾销不锈钢装饰性镀镍镀锌L2 每联节附件数A1,WA1K1,WK1 SA1,WSA1 SK1,WSK1 附件类型：单面弯板附件类型：双面弯板附件类型：单面直板附件类型：双面直板10FT 5MTR 以ft表示的链条长度以m表示的链条长度SKF链条节例如: P H C 10B-1 C/L SKF前缀80-110B-140H-125SH-1 40-1SB 08B-1SLR 16S-1 2040C2040 滚子链条(ANSI链条编号)辊子链条(BS/ISO链条编号)H重载滚子链条(ANSI链条编号) 超重载滚子链条(链条编号)侧弯滚子链条(链条编号)SLR自润滑滚子链条(链条编号) 油田链条(链条编号)双节距传动链条(链条编号)双节距输送链条(ANSI 链条编号)C/L O/L 连接链节偏置链节链轮SKF链轮例如：P H S 08B-1 B S H 10 X11 SKF前缀25-1 05B-1 ANSI链条类型，链条编号BS/ISO链条类型，链条编号A B C BS TB 链轮外形：导向孔A型链轮外形：导向孔B型链轮外形：导向孔C型链轮外形：完工孔链轮外形：锥形衬套H 硬化处理轮齿(仅在要求情况下)10 链轮齿数11 每个完工孔尺寸(仅在要求情况下)SKF双列单排链轮(公制或者ANSI)例如: P H S 08B-1 D S T B H 1 2 H SKF前缀25-1 05B-1 ANSI型链条，链条编号BS/ISO型链条，链条编号DS 双列单排A TB 链轮外形：A型链轮外形：锥形衬套H 硬化处理轮齿(仅在要求的情况下)12 链轮齿数H In表示重型设计(仅在要求的情况下)联轴器SKF弹性联轴器(轮胎)例如：P H E F40 NRTYRE SKF前缀F40 联轴器尺寸NRTYRE FRTYRE 天然橡胶轮胎联轴器F.R.A.S轮胎联轴器SKF弹性联轴器(法兰)例如：P H E F40 RSB FLG SKF前缀F40 联轴器尺寸FTB HTB RSB 锥形衬套轮毂F型(表面)锥形衬套轮毂H型(轮毂)导向孔轮毂(也称为粗加工孔)FLG 法兰联轴器SKF弹性联轴器(调距轴)例如：P H E SM12 80DBSE SKF前缀SM12 调距轴80DBSE 轴端之间最小距离，以mm表示SKF FRC联轴器例如：P H E FRC 70 FTB SKF前缀FRC 联轴器类型70 联轴器尺寸RSB FTB HTB NR FR 导向孔轮毂B(也称为粗加工孔) 锥形衬套轮毂F型(表面)锥形衬套轮毂H型(轮毂)标准元件F.R.A.S 元件SKF爪形联轴节/ SKF爪形调距轴联轴节例如：P H E L 050 H U B 18MM SKF前缀L 联轴节类型050 联轴节尺寸HUBNR NRWRAPURHL RINGKITX100SPACER X140SPACER 轮毂L型腈类标准元件腈类包裹元件氨基甲酸乙酯元件Hytred元件环形组件100mm垫圈(仅用于SKF爪盘垫圈联轴节) 140mm垫圈(仅用于SKF爪形调距轴联轴节)18MM 18MMP 完工孔和键槽轮毂，例如：带18mm孔(仅在要求情况下) 完工孔轮毂(无键槽)，例如：带16mm孔(仅在要求情况下)SKF齿轮联轴器例如：P H E 3 0 G C R S B SKF前缀30 联轴器尺寸GC 联轴器类型typeRSB COVER KIT 导向孔轮毂(也称为粗加工孔) 盖板名称装配组件名称SKF格栅联轴器例如: P H E 1020 T G R S B SKF前缀1020 联轴器尺寸TG 联轴器类型RSB GRID HCOVER VCOVER 导向孔轮毂(也称为粗加工孔) 格栅名称水平剖分式盖板V垂直剖分式盖板SKF链式联轴器例如：P H E I S 1220 F T B X22MM SKF前缀IS 联轴器类型1220 联轴器尺寸RSB FTB HTB CHN COVER 导向孔轮毂(也称为粗加工孔) 锥形轴套轮毂类型F(表面)锥形轴套轮毂类型H (hub) 链条名称盖板型号22MM 孔尺寸，例如：22 mm (仅用于精加工尺寸)联轴节SKF万向节例如：P H E UJMA 1 0 SKF前缀UJMA UJMB 单头万向节双头万向节10 以mm表示的外径轴套和轮毂SKF轴套例如：P H F T B 1 6 1 0 X25MM SKF前缀TB 锥形轴套16 以1/10in表示的最大孔10 以1/10in表示的通孔长度X25MM 以mm表示的孔直径衬套和轮毂SKF轮毂例如：P H H W 1 2 SKF前缀W12 WH12 WM12 BF12 SM12 锥形衬套焊接轮毂W型锥形衬套焊接轮毂WH型锥形衬套焊接轮毂W型锥形衬套固定轮毂BF型锥形衬套固定轮毂SM型SKF轮毂适配器例如：P H H TBA 1008KM SKF前缀TBA 锥形衬套适配器1008KM 适配器。

SKF轴承型号说明SKF轴承型号说明前缀：GS——圆柱滚子推力轴承的座圈K——圆柱滚子-保持架推力组件K-——ABMA标准系列的英制圆锥滚子轴承内圈连滚子-保持架组件（CONE）或外圈（CUP）L——分离型轴承的内圈或外圈R——分离型轴承的内圈或外圈连滚子-保持架组件W——不锈钢深沟球轴承WS——圆柱滚子推力轴承的轴圈ZE——用于电控法安装的轴承后缀：A——经过改进或稍作改变的内部设计。

外形尺寸相同，通常对不同类型或系列的轴承有不同的意义。

例如：4210A-不带装球缺口的双列深沟球轴承；3220A-接触角为30°的双列角接触球轴承AC——接触角为25°的单列角接触球轴承ADA——外圈上的止动槽经过改进，剖分的内圈由一个固定环固定B——经过改进或稍作改变的内部设计。

外形尺的圆柱滚子轴承以上的字母H、M、L和P，同时适用于以下的游隙组别合成对应的意义：C2、C3、C4和C5，如C2HCV——改进内部设计，满装圆柱滚子轴承CS——轴承一侧带具钢骨架的丁腈橡胶（NBR）接触式密封圈CS2——轴承一侧带具钢骨架的氟橡胶（FPM）接触式密封圈CS5——轴承一侧带具钢骨架的氢化丁腈橡胶（HNBR）接触式密封圈2CS——轴承两侧带具钢骨架的丁腈橡胶（NBR）接触式密封圈2CS2——轴承两侧带具钢骨架的氟橡胶（FPM）接触式密封圈2CS5——轴承两侧带具钢骨架的氢化丁腈橡胶（HNBR）接触式密封圈C1——径向游隙小于C2C2——径向游隙小于普通组（CN）C3——径向游隙大于普通组（CN）C4——径向游隙大于C3C5——径向游隙大于C4C02——缩窄的内圈旋转精度公差C04——缩窄的外圈旋转精度公差C08——C02+C04C083——C02+C04+C3C10——缩窄的内径和外径公差D——经过改进或稍作改变的内部设计。

外形尺寸相同，通常对不同类型或系列的轴承有不同的意义。

例如：3310D-剖分内圈的双列接触球轴承DA——外圈上的止动槽经过改进，剖分的内圈由一个固定环固定DB——两个以背对背配对的（1）单列深沟球轴承、（2）单列角接触球轴承、（3）单列圆锥滚子轴承。

滚子介绍如何选择滚子现在互联网这么发达，网络上充斥着各种各样的广告推销，评论，硬性的软性的，滚子供应商哪家好这个问题已经让消费者无从选择了。

这个时候，我们如何去选择滚子非常盲目，但是我们可以从以下几点来分析滚子供应商哪家好？当然，首先要根据自身的需求，去选择相应滚子，既能实用，又能节省更多资源！第一，选购一款放心的滚子之前，首先我们要确认这个企业的资质。

在全国是否属于知名公司，资质如何？用户口碑怎么样？第二，该企业凭什么能够提供生产一个高性能高质量的滚子给用户呢？这就要确认该企业的资源，是否有强大的技术支持，一般能稳定运营十几年以上。

第三，产品性能，性能稳定，用过的客户续费率百分之95以上的企业，产品性能肯定不会差！第四，产品价格透明化，不乱收费，好的怕太贵，便宜的又怕不好，所以要掂量产品的性价比，同等的配置，同样的性能，基本上价格就起决定性的作用了。

第五，售后服务，售后服务是否可以做到7*24小时客服+技术服务，及时到位的服务，用户才会放心。

从以上几点简单分析了滚子供应商哪家好大家需要了解的一些基本情况。

随着市场的发展，以及滚子供应商哪家好，滚子供应商哪家好，也涉及该滚子厂家技术门槛，有实力提供滚子的商家屈指可数，这里列举了一些滚子供应商家，这些都是按照各自规格型号的包装成型机械生产制造企业的在一呼百应平台的综合情况，如企业规模、注册资金、活跃程度、信息完善度等得分进行查询排行靠前的名单。

滚子哪家好想必各位根据自身搭建的需求，也知道该如何选择供应商了。

推荐1：中企瓦轴（北京）轴承制造有限公司推荐2：德国铁达尼工业重工科技有限公司推荐3：郑州沃格模具有限公司郑州沃格模具有限公司（郑州友邦机械有限公司）成立于推荐4：临清海震轴承有限公司公司自2013年成立以来代理销售国内知名品牌轴承；即瓦房店推荐5：广州金双紫机械设备推荐6：哈尔滨轴承集团销售有限公司推荐7：浙江鼎和轴承科技有限公司推荐8：临淸市鑫特冶金轴承有限公司公司创建于2006年，团队卓越，设备先进，可为您提供优质的产品和良好的售后保障；公司经过多年的努力与发展，拥有一批专业的技术人员、多条自动化设备生产线和精密完善的检测设备。

Bearing basicsSpecial Notes for iPad UsersFor iPad users, this course plays in the “Articulate mobile player app”, available free from the App store.The app offers a download option for offline learning, but please note that:1. An on-line connection is required to use the links on the “resources” tab2. If you wish to be able to print your course completion certificate then you need to be on-line when you take the end-of-course testTo continue, you can click the Home icon on the screen to return to the Welcome page of the course.WelcomeWelcome to the Basic introduction to rolling bearings course. This course will give you an introduction to SKF bearings and consists of three sections: Functions and parts,Applications and bearing types,and Designations.Module 1: Functions and partsWhy bearings?Bearings are an essential component of almost all machinery. They transmit loads between, support, guide and locate, machine elements that are required to move relative to each other with a minimum of friction, e.g.a rotating or oscillating shaft, pivot or wheel.Friction: Page 1Friction counteracts the movement between two surfaces. It is essential for the success of many operations, such as a car tyre gripping a road. In most machines however, friction is undesirable since it causes power loss, heat generation, wear and noise. SKF bearings help reduce friction.Friction: Page 2The earliest bearings were mostly made of wood and consisted of a shaft rotating in a hole in a housing, or a wheel rotating on a stationary shaft. Because the components were sliding over each other, friction was relatively high and wear rather rapid.This type of bearing is called a plain bearing and, made of modern materials, is still used in some applications today where speeds and loads are relatively low.Friction: Page 3The introduction of rolling elements between the shaft and the housing greatly reduces friction.Friction: Page 4Today, typical SKF rolling bearings combine maximum load capacity with minimum friction, using hardened steel or ceramic rolling elements, hardened steel inner and outer rings and a cage to guide and separate the rolling elements.Loads: Page 1A bearing can be under radial load, perpendicular to the shaft, or under axial load, acting in the direction along the shaft, or a combination of both radial and axial load, a combined load.Loads: Page 2Large bearings support heavier loads than small bearings can support, and roller bearings support heavier loads than ball bearings can support. Raceway contactThe basic difference between ball bearings and roller bearings is in the contacts between the rolling elements and the raceways. Balls have point contact; rollers have linear contact with relatively larger area.Bearing partsA typical rolling bearing consists of an inner ring, an outer ring and rolling elements contained by a cage. The most common type of rolling bearing is the deep groove ball bearing. These bearings can, as shown here, be supplied with integral seals to retain the lubricant and resist the ingress of contamination.Selection factorsThere are many factors, which will affect the choice of a bearing. These are: Available space, load, required service life, misalignment, speed, stiffness, axial displacement and clearance.Selection factors: SpaceSpace can be an important factor in bearing selection. Where radial space is limited a bearing with small diameter rolling elements, such as a needle roller bearing, may be needed.Selection factors: LoadWhen selecting a bearing, it is important to consider the direction of the load, and the amount of load the bearing will have to carry. A bearing can be under radial load, axial load, or a combination of both.Selection factors: Required service lifeThe life of a bearing can be expressed in terms of: the number of revolutions before failure, the number of operating hours before failure, or the distance covered (for cars and trucks). A bearing is considered to have failed when it shows the first sign of fatigue in a rolling element or raceway, or damage to other parts such as the cage or the seals. Service life is the real life that an individual bearing achieves in a particular application before it has to be replaced. It depends on a variety of influencing factors, including lubrication, the degree of contamination, misalignment, proper installation, and environmental conditions.Because service life cannot be calculated or predicted, bearings are selected using calculated rating life. SKF rating life L10m, a reference value calculated according to statistical methods, using modification factors for lubrication conditions and degree of contamination, and applying the same concept of a fatigue load limit as used in ISO 281, to estimate the life, with 90% reliability, that a sufficiently large population of apparently identical bearings might achieve when all are operating in an identical application.Selection factors: MisalignmentWhere a bearing is likely to be subject to angular misalignment, for example the shaft might bend due to operating loads, appropriate bearings need to be selected. Self-aligning bearings can accept a degree of operational misalignment and can also compensate for limited initial alignment errors in mounting.Selection factors: SpeedThe maximum speed that a bearing can be run in an application is limited by the maximum operating temperature for the materials used in its manufacture, or the lubricant. For high-speed applications minimum possible friction is important, so ball bearings are generally used. Selection factors: StiffnessElastic deformation occurs under load. Usually this deformation is very small and can be ignored. However, in some applications, stiffness is an important factor. Roller bearings have higher stiffness than ball bearings due to the larger area of the line contact.Selection factors: Axial displacementSome applications require bearings that allow the shaft to move axially relative to the bearing. This is called axial displacement. Most often, a shaft is supported by a locating bearing and a non-locating bearing. The locating bearing does not allow axial displacement and keeps the shaft in position. The non-locating bearing supports the shaft and allows displacement to prevent the bearings from being stressed. Cylindrical and CARB toroidalroller bearings can accommodate a limited degree of axial internal displacement.Selection factors: ClearanceThe amount of initial internal radial clearance required in a bearing depends mainly on the fits and temperature gradient between the inner and outer rings of the bearing in the particular application. Operational internal radial clearance is almost always less than initial internal clearance. SKF manufactures bearings with the following ranges of radial internal clearances:•C1 radial internal clearance less than C2•C2 radial internal clearance less than Normal•-- Normal radial internal clearance•C3 radial internal clearance greater than Normal•C4 radial internal clearance greater than C3SummaryIn this lesson, you have learnt about the functions of a bearing. These are: reducing friction, transmitting loads, locating and guiding moving parts. You have also been introduced to the different parts of a bearing: outer and inner rings, rolling elements, cage, and seals and their respective functionalities.Finally, you have also explored the different selection factors, which will affect your choice of bearing: available space, load, required service life, misalignment, speed, stiffness, axial displacement and clearance.Module 2: ApplicationsIntroductionIn this section you will be introduced to the most common bearing types offered by SKF.Electrical motors can be found almost anywhere there is mechanical movement.Motor: Page 2In this drawing you can see that the shaft is supported by two different bearings.Motor: Page 3Cylindrical roller bearings are simply bearings with cylindrical rollers. They can usually accommodate heavy radial loads and can operate at relatively high speeds.Motor: Page 4It is now time to choose the right side bearing.Motor: Page 5Deep groove ball bearings have deep uninterrupted raceways and close osculation between balls and raceways. This enables them to take axial loads in both directions.Pump: Page 1A pump is a device for lifting, transferring or moving fluids by suction or pressure from one position to another. This picture shows a medium-duty process pump, which is often used in refineries.Pump: Page 2In this drawing you can see that the shaft, which is running the impeller, is supported by one deep groove ball bearing to the right, and another bearing or bearings to the left.Single row angular contact ball bearings are widely used in medium and heavy-duty centrifugal pumps. They have raceways arranged at an angle to the bearing axis.Pump: Page 4Single row angular contact ball bearings can only take axial load in one direction. Therefore they are nearly always mounted as pairs in back to back or face to face arrangement at either end of a shaft, or as shown here, universally matchable bearings mounted immediately adjacent to each other.Fan: Page 1This is an industrial fan, in which SKF bearings are commonly used. Industrial fans can either be designed for light loads and high speeds, or for heavy loads and moderate speeds.Fan: Page2A fan is designed with two bearings along its shaft, placed between the fan and the motor. Both bearings carry radial loads and the bearing closest to the fan (on the left hand side here) also needs to be a locating bearing, keeping the shaft and the fan in a fixed position.Fan: Page 3Spherical roller bearings have two rows of rollers with a common raceway in the outer ring. The two inner ring raceways are inclined at an angle to the bearing axis.Fan: Page 4Returning to the fan application again, you now know which bearing is suitable as the locating bearing and here you have to make a guess concerning the non-locating bearing.CARB [ka:b] is a single row toroidal roller bearing with long, slightly crowned, rollers and concave raceways in both the inner and outer rings. Fan: Page 6The complete application looks like this with one spherical roller bearing and one CARB toroidal roller bearing.Separator: Page 1Alfa Laval, a Swedish company, has developed a range of machines specifically designed for rigorous oil processing duties. An example of this would be separators.Separator: Page 2The separation process creates imbalance due to the mud, which is distributed unevenly inside the separator and this makes the spindle bend. Separator: Page 3Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. This makes the bearing insensitive to angular misalignments of the shaft relative to the housing. Self-aligning ball bearings accommodate high speeds due to the point contact between balls and raceways.Refiner: Page 1SKF bearings can be used in refiners in the production of mechanical pulp and other high-yield pulps.Refiner: Page 2In the process wood chips are ground at high mechanical pressure between a stationary disc and a rotating disc, which is powered by an electrical motor. The shaft between the motor and the grinding discs is supported by three bearings.Refiner: Page 3The high production capacity of the refiners is directly related to the demands on the bearing arrangement. The bearings have to provide high stability, operate at high speed, carry high thrust loads and handle deflections of the shaft.Refiner: Page 4The spherical roller thrust bearing incorporates a large number of asymmetrical, spherical rollers and has specially designed raceways. The load is transmitted from one raceway to the other at an angle to the bearing axis and the bearing can carry heavy axial load in one direction and some simultaneously applied radial load as well.Refiner: Page 5This is how the spherical roller thrust bearings are situated in the refiner application.Screw conveyor: Page 1Machines used in the agricultural industry often require bearings that can easily be changed and that can handle misalignments.Screw conveyor: Page 2This is a drawing of a screw conveyor attached to an agricultural machine. The bearings are the only contact between the screw conveyor and the machine.Screw conveyor: Page 3A Y-bearing unit consists of two parts: a housing and a bearing. The bearing is based on the deep groove ball bearing and can carry light radial and axial loads. It has a convex-sphered outside diameter, which allows the bearing to take up misalignment between the shaft and housing at the assembly stage. They are available with a wide range of highly effective,integral seals and a range of different methods for easy mounting to the shaft.Screw conveyor: Page 4This is what the Y-bearing unit looks like in the screw conveyor.Front wheel: Page 1SKF bearings are used in front wheels of commercial vehicles. These applications require bearings that can handle very heavy loads.Front wheel: Page 2This drawing shows how a truck front wheel arrangement is designed and where its bearings are situated. The bearings must carry a large part of the weight of the vehicle and the induced forces when driving, which means that they have to handle heavy loads in both radial and axial directions.Front wheel: Page 3Tapered roller bearings have tapered rollers running in tapered inner and outer ring raceways. This design makes them suitable for handling heavy combined loads.A tapered roller bearing can only carry axial loads in one direction and, for this reason, they are generally fitted in pairs.Front wheel: Page 4See how the tapered roller bearings are mounted in the front wheel of a commercial vehicle.SummaryIn this lesson, you have studied the most common SKF bearing types. Now click on each bearing picture to repeat the most important characteristics of each type. If you want to read more about SKF bearings, enter the SKF Interactive Engineering Catalogue on line at .Module 3: DesignationsIntroductionSKF bearing designations describe a bearing’s or component’s type, design, and variants. The designation can be found both on the box and on the bearing itself.Basic designations: Page 1A bearing designation for metric size bearings can either consist of a basic designation alone or a basic designation plus one or more supplementary designations, called prefixes and suffixes.The basic designation identifies the product type and size, while the supplementary designations identify design, special variants and bearing components.Basic designations: Page 2Each SKF bearing of standard metric design is given a basic designation, which normally consists of three, four or five figures.Basic designations: Page 3For example, the basic designation 22206 denotes a spherical roller bearing with the width series 2, diameter series 2 and a bore diameter of 30 mm.Supplementary designations: Page 1The supplementary designations consist of both prefixes and suffixes. Supplementary designations: Page 2Prefixes are used to identify component parts of a bearing and are usually followed by the designation of the complete bearing.Supplementary designations: Page 3Suffixes are used to identify designs, which differ in some way from the original design. The suffixes are divided into four main groups: Internal design, external design, cage design and variants, all of which are added to the basic designation in this order.End of course testNow it’s time to see what you learned.If you pass the test on-line then you’ll be able to print your course completion certificate.。

Instructions for use Mode d’emploi Bedienungsanleitung Manuale d’istruzioni Instruções de uso 使用说明书SKF TIH 030m目.录符合欧盟相关产品条例的声明 (75)安全需知 (76)1. 简介 (77)1.1 用途 (77)1.2 工作原理 (77)1.3 产品特点 (78)2. 描述 (78)2.1 组件 (78)2.2 技术参数 (79)3. 接上电源接头 (80)4. 用前准备 (80)5. 操作 (81)5.1 显示 (81)5.2 按键功能 (81)5.3 温度模式 (81)5.4 时间模式 (82)5.5 温度测量 (82)5.6 改变温度单位 (82)5.7 退磁 (83)5.8 加热功率选择 (83)6. 安全保护 (84)7. 故障排除 (84)8. 备件 (85)中文符合欧盟相关产品条例的声明我们，SKF 维护产品Kelvinbaan 163439 MT Nieuwegein荷兰在此声明，以下产品：SKF 感应加热器TIH 030m 系列的设计和制造遵从欧盟电磁兼容指令VOL TAGE DIRECTIVE 2014/35/EU欧盟电磁兼容指令EMC DIRECTIVE 2014/30/EU ，以及其它相关条例EN61000-6-3:2007 /A1:2011EN61000-6-2:2005EN61000-4-2EN61000-4-3EN61000-4-4EN61000-4-5EN61000-4-6EN61000-4-8EN61000-4-11欧洲 ROHS 指令 2011/65/EUNieuwegein ，荷兰,2016年5月Sébastien David产品研发与质量经理1. 简介SKF的TIH 030m感应式加热器设计用来加热与轴过盈配合的轴承，加热使轴承膨胀，安装时不再需要加机械安装力。

蛇形弹簧联轴器一、蛇形弹簧联轴器（格珊式联轴器）蛇形弹簧联轴器是一种结构先进的金属性联轴器，靠蛇形弹簧片来传递扭矩。

其减振性好，使用寿命长，载荷变动量大，起动安全；传动效率高，运行可靠；噪声低，润滑好；结构简单，装拆方便，允许有较大的安装偏差。

该联轴器综合了刚性联轴器和弹性联轴器的优点，越来越多的被应用在水泥、采矿、电力、糖厂、化工等行业。

1、蛇形弹簧联轴器的特点：（1）传动效率高，运行可靠。

联轴器的传动效率经测定达99.47％，其短时超载能力为额定扭矩的两倍，运行安全可靠,噪声低，润滑好,蛇簧连轴器铝合金罩壳以保护弹簧避免运转时向外甩出，且壳体内储满黄油，不仅使润滑良好，而且使簧片啮合时的噪声被黄油阻尼吸收而消除。

（2）承受变动载荷范围大，起动安全。

两个半联轴器与簧片接触的齿面是弧形的，当传递扭矩增大时，弹簧片将沿齿弧面变形，使两个半联轴器作用在簧片上的力点靠近。

簧片与齿面的接触点即力矩的变化，是随着传递扭矩的大小而变化的，它的传动特性是变刚度的。

因而它具有比一般弹性联轴器能承受更大的载荷变动量。

传动力使簧片沿齿弧变形时所产生的缓冲作用，尤其在机器起动时或强力冲击载荷时，于一定程度上有保护配套机件的安全性。

（3）减振性好，使用寿命长。

联轴器以蛇形弹簧片轴向嵌入两半36％以上。

梯形截面的蛇形弹簧片采用优质弹簧钢，经严格的热处理，并特殊加工而成，具有良好的机械性能，从而使联轴器的使用寿命远比非金属弹性元件联轴器（如弹性套柱销，尼龙棒销联轴器）大为增长。

（4）允许有较大的安装偏差。

由于弹簧片与齿弧面是点接触的，所以使联轴器能获得较大的挠性。

它能被安装在同时有径向，角向，轴向的偏差情况下正常工作结构简单，装拆方便,蛇簧连轴器整机零件少，体积小，重量轻，被设计成梯形截面的弹簧片与梯形齿槽的吻合尤为方便，紧密，从而使装拆，维护比一般联轴器简便。

2、蛇形弹簧联轴器行业标准：早在1995年国家机械工业部就颁布了蛇形弹簧联轴器行业标注（JB/T 7682－1995），该标准规定了蛇形弹簧联轴器的分类、结构型式、基本参数、主要尺寸、形式代号以及蛇形弹簧的结构及材质等内容。
