文档下载后可定制随意修改，请根据实际需要进行相应的调整和使用，谢谢!并且，本店铺为大家提供各种各样类型的实用资料，如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等，如想了解不同资料格式和写法，敬请关注!Download tips: This document is carefully compiled by theeditor. I hope that after you download them,they can help yousolve practical problems. The document can be customized andmodified after downloading,please adjust and use it according toactual needs, thank you!In addition, our shop provides you with various types ofpractical materials,such as educational essays, diaryappreciation,sentence excerpts,ancient poems,classic articles,topic composition,work summary,word parsing,copy excerpts,other materials and so on,want to know different data formats andwriting methods,please pay attention!1. 准备工作检查印刷机的各个部件是否正常，包括墨盒、纸张、印刷板等。

金谷田uv平板打印机维护指导日常开机维护1.开启电源，确认电压；打开电源总开关，确认稳压器电压220V稳定。

2.机器通电；开启机器电源，再打开uv电源。

3.打开控制软件；检查电脑与主板链接的USB线是否插好，然后打开软件，此时软件将自动检测设备的X，Y，Z三轴的运动，三个“成功”为设备运行正常。

4.打开墨阀，确认负压；将墨水阀门旋转至水平为打开阀门；然后确认负压是否正常。

5.压墨，擦拭喷头；按压墨按钮2-3秒，可重复按几次，然后用无尘布将喷头表面的墨水擦拭干净。

6.打印喷头状态；在控制软件中，“车头升降”页面确定打印高度，在“打印控制”页面设定打印位置，然后点击“喷头状态”，机器将进行打印。

7，确认喷头状态良好；检测每个喷头状态，没有堵喷头，没有斜喷为状态良好，必须保持每天打印的喷头状态良好，如遇喷头状态不佳时需及时处理。

8.生产或待机；通过以上检测和观察，机器的状态为良好便可以进行生产，若机器需要待机，请检查开启“闪喷”状态。

日常关机保湿1.打印喷头状态；机器光机前先确认喷头状态良好，如喷头状态不佳请执行《喷头维护流程》。

2.开启闪喷状态；日常待机建议机器保持通电状态，电脑不关闭，控制软件开启“闪喷”状态；仅关闭uv灯开光。

3.关闭墨阀；当机器需要断电时，需将墨阀旋转45度为关闭墨阀。

4.关闭软件；机器断电前，先正常关闭控制软件以保存软件数据，再关闭电源。

5.机器断电；按“断电开关”，将机器断电，关掉电源总闸，再拨机器电源插头。

6.喷头保湿处理；用一块喷头底板大小的平板或泡沫包好拉伸膜，然后将无尘布摆好放在上面，倒上保湿液，让无尘布完全浸湿，然后放到喷头底板下面。

7.浸泡喷头；将墨车压在浸湿保湿液的无尘布上面，注意每个喷头必须都能压到无尘布上，确保喷头都处于保湿状态。

8.保湿完成。

喷头不能在无尘布上太紧，处于保湿液浸泡即可，保湿完成。

喷头维护1.喷头状态不佳；若喷头状态出现堵头，或斜喷，等不良现象，需要对喷头进行维护。

i安装注意事项对于因安装不当所引起的损坏我公司概不负责软件声明本机所用软件必须支持打印机仿真模式打印机出厂时设定为 PCL仿真仿真模式可以按照第 1 章中所述的操作步骤进行修改本手册声明本手册内容若有变更恕不另行通知在以后版本中可能会插入增补内容对于本版中可能出现的任何技术错误或排版错误敬请用户见谅用户在遵照本手册指示操作时如发生意外我公司概不负责对于打印机固件只读存储器中的内容的故障我公司概不负责本手册页式打印机附带或相关的所有具版权的材料均受到版权保护版权所有未经京瓷公司事先书面许可禁止复印或以其它方式复制本手册及所有具版权的材料全部或部分内容本手册及所有具版权的材料全部或部分内容的复印件必须包含与其原件相同的版权声明关于商标PRESCRIBE是京瓷公司的注册商标KPDL 及KIR 京瓷图像精细技术是京瓷公司的商标Diablo 630 是 Xerox Corporation 的产品IBM Proprinter X24E 是 IBM 公司的产品Epson LQ-850 是 Seiko Epson Corporation 的产品Hewlett-Packard PCL 及 PJL 是惠普公司的注册商标Centronics 是 Centronics Data Computer Inc.的商标PostScript 是 Adobe Systems Incorporated 的注册商标Macintosh 是苹果电脑公司的注册商标Microsoft Windows 及 Windows NT是微软公司的注册商标PowerPC 和Microdrive 是 IBM 公司的商标CompactFlash 是 SanDisk Corporation 的商标E NERGY S TAR 是在美国注册的标记所有其它品名及产品名称是其相关公司的注册商标或商标京瓷公司的此款页式打印机采用 PeerlessPrintXL 提供 HP LaserJet 兼容 PCL6 语言仿真PeerlessPrintXL 是 The Peerless Group 的商标公司地址Redondo Beach CA 90278U.S.A.本机使用 Wind River Systems 公司的 Tornado实时操作系统及工具开发而成Agfa Monotype Corporation 的 UFST及 MicroType2004 京瓷美达株式会社版权所有2004 年 4 月 1.0 修正版iiIBM 程序授权协议您所购买的产品中包含一个或多个属于国际商用机器公司以下称作IBM的软件程序以下称作程序本协议阐明了 IBM 将软件授权于您的条款和条件若不接受本授权协议中的条款和条件可在购买本机后 14 天之内将其退回货款将全额返还若未能在 14 天之内退回产品则将认定您已接受协议的条款和条件程序为授权使用并非出售IBM 或适用国家的 IBM 机构仅授权您在获得该程序的国家内使用您获得的授权只限于本协议下准予的范围程序一词系指正版程序及其全部或部分复制内容包括修改后的复制内容或并入其它程序的部分IBM 保留对程序的所有权程序涉及的版权为 IBM 所拥有或已得到其所有者的授权1. 授权根据此授权协议您仅可在安装此程序的产品上使用程序或将此程序及产品的所有权同时转让另一方若要转让程序则必须将本授权协议的副本及所有其它相关文件同时转让对方对您的授权随即终止另一方在初次使用此程序前应接受本协议的条款和条件您不得1使用复制修改合并或转让程序的复件除非本授权协议载明2对程序进行反安装或反编译或3转授出租租赁或转让程序2. 有限的保证程序依现状提供有关程序再无其它明示或默示的保证条件包括但不限于关于适销性或适用于特定用途的默示保证有些管辖范围不允许排除默示保证因此上述排除规定可能对您并不适用3. 赔偿限制根据本授权协议IBM 的全部责任如下1对于在任何方面与本授权协议相关的任何形式的任何索赔包括根本性违约所致IBM 将只负责实际损失并以以下较高者为限a 与 25000美元等值的当地货币金额或b IBM 当时通用的程序授权使用费此限制条款不适用 IBM 负有法律责任的人身伤害或对个人不动产或有形资产的破坏IBM 将不对任何利润损失储蓄损失或任何偶然损坏或其它间接经济损失承担责任即使 IBM 或其授权供应商已经知悉此种损失的可能性IBM 将不会受理您根据任何第三方索赔所提出的任何赔偿要求此限制条款同样适用 IBM 的所有程序开发商IBM 与开发商的赔偿限额不累计因此开发商是本章节的指定受益人有些管辖范围不允许此类限制或排除规定因此这些条款可能对您并不适用4. 综合您可随时终止授权协议若您未能遵守本授权协议的条款和条件IBM 可以终止对您的授权在任何一种情况下您均必须销毁所有程序的复件您应负责支付由此授权协议而发生的任何税费包括个人财产税任何一方均不得在诉讼原因出现两年以上后提出任何诉讼若您是在美国获得此程序则本授权协议将受纽约州法律的管辖若您是在加拿大获得此程序则本授权协议将受安大略省法律的管辖否则本授权协议将受您获得此程序所在国家法律的管辖iii字体商标声明本机的所有常驻字体均由 Agfa Corporation授权Helvetica Palatino 及 Times 是 Linotype-Hell AG的注册商标ITC Avant Garde Gothic ITC Bookman ITC ZapfChancery 及 ITC Zapf Dingbats 是 International Typeface Corporation的注册商标Agfa Japan 授权协议1.软件系指用专门的格式编码的数字式机器可读可升级数据以及 UFST软件2.您同意接受非独占性授权以在您返回 Agfa Japan 的注册卡上所载明的地址,专门为您自己的常规业务或个人目的使用此软件复制和显示字母数字代码及符号Typefaces 的粗细风格及样式根据本授权协议的条款您有权在最多三台打印机上使用字体若您需要在三台以上打印机上存取字体您应申请多用户授权协议这可从 Agfa Japan获得Agfa Japan 保留对软件及字体的所有权利所有权及权益您的权利范围只限于授权按本协议明确载明的条款使用软件3.为保护 Agfa Japan 的专利权您同意对软件及有关字体的其它专利信息严格保密并制定合理的措施管理软件及字体的存取和使用4.您同意不复制或复印软件或字体但您可进行备份您同意在任何此类备份上应保留原件中的专利声明5.本授权协议应一直延续到软件及字体的使用结束除非协议提前终止若您未能遵守本授权协议的条款而且在 Agfa Japan通知后三十30天内未能予以改正Afga Japan可终止协议当本授权协议期满或终止时您应按要求退还 Agfa Japan 或销毁所有软件字体及文件6.您同意不对软件进行修改变更分解解密反工程或反编译7.Agfa Japan保证在交货后九十90天内软件运行符合 Agfa Japan 发布的标准且软盘在材质及工艺上无缺陷Agfa Japan 不保证软件无缺陷错误和疏忽双方同意所有其它明示或默示保证包括关于适用于特定用途及适销性的保证排除在外8.有关软件及字体对您的专门赔偿亦即 Agfa Japan 的唯一责任为在其退回 Agfa Japan时修理或更换故障部分在任何情况下 Afga Japan 均不会对利润损失数据丢失或任何其它偶然或间接损失或由于滥用软件及字体或对其使用不当所造成的任何损失承担责任9.本协议受美国纽约州法律的管辖10.未经 Agfa Japan 的事先书面许可您不应转授出售租赁或其它方式转让软件和或字体11.政府使用复制或泄漏应视情况受到FAR 252-227-7013b3ii或c1ii 中技术数据与计算机软件权利条款的限制条件制约其它使用复制或泄漏应受到适用FAR 52.227-19c2中所阐明有限权利软件的限制条件制约12.您声明已阅读本协议了解其内容并同意受到其中条款和条件的约束任何一方不应受到未在本协议中所载明的任何声明或陈述约束对本协议的修改除非得到各方授权代表的书面签署否则一概无效打开软盘包装即表示您同意接受本协议的条款和条件墨粉使用注意事项•请勿焚烧墨粉及墨粉盒否则会有火星灼伤的危险•切勿打开墨粉盒或废粉盒•务必防止吸入墨粉或用沾上墨粉的双手擦拭眼睛或碰到嘴唇而且务必要防止其沾在皮肤上•有关用过的墨粉盒与废粉盒的处理请向经销商垂询或遵照国家与地方法规及法令处理墨粉或墨粉盒•墨粉盒与废粉盒应远离儿童目录iv目录简介......................................................................................................................................................x 特点. (xi)欲知详情...................................................................................................................................................................xiv 操作手册指南....................................................................................................................................................................xv 第 1 章使用操作面板...........................................................................................................1-1了解操作面板...................................................................................................................................................................1-2信息显示屏...............................................................................................................................................................1-2接口指示灯...............................................................................................................................................................1-3纸张尺寸指示灯.......................................................................................................................................................1-3纸张类型指示灯.......................................................................................................................................................1-4就绪数据以及注意指示灯...................................................................................................................................1-4按键...........................................................................................................................................................................1-5菜单系统路径图.......................................................................................................................................................1-6打印测试页.....................................................................................................................................................................1-12菜单图.....................................................................................................................................................................1-12状态页.....................................................................................................................................................................1-14维修状态页.............................................................................................................................................................1-18网络卡接口状态页.................................................................................................................................................1-19字体列表.................................................................................................................................................................1-21转储接收的数据.....................................................................................................................................................1-23纸张使用.........................................................................................................................................................................1-24设定纸张尺寸.........................................................................................................................................................1-24设定纸盒中的纸张尺寸 .........................................................................................................................1-24设定 MP 托盘中的纸张尺寸 .................................................................................................................1-28设定纸张类型.........................................................................................................................................................1-30设定纸盒中的纸张类型 .........................................................................................................................1-30设定 MP 托盘中的纸张类型 .................................................................................................................1-31创建自定义纸张类型 .............................................................................................................................1-32重新设定自定义纸张类型 .....................................................................................................................1-36MP 托盘模式...........................................................................................................................................................1-37选择供纸源.............................................................................................................................................................1-38选择接纸盘.............................................................................................................................................................1-39忽略 A4 与 Letter 尺寸的差别...............................................................................................................................1-40目录v页码标记.........................................................................................................................................................................1-41仿真.........................................................................................................................................................................1-41改变仿真 .................................................................................................................................................1-41用于 KPDL 仿真的可选仿真 .................................................................................................................1-42打印 KPDL 故障 .....................................................................................................................................1-43字体.........................................................................................................................................................................1-44默认字体 .................................................................................................................................................1-44默认字号 .................................................................................................................................................1-46改变 Courier/Letter Gothic 的字形 ........................................................................................................1-47设定 Courier/Letter Gothic 的字符间距 ................................................................................................1-48代码集.....................................................................................................................................................................1-49打印份数.................................................................................................................................................................1-50打印方向.................................................................................................................................................................1-51KIR 京瓷图像精细技术...................................................................................................................................1-52省粉打印.................................................................................................................................................................1-54分辨率.....................................................................................................................................................................1-55e-MPS..............................................................................................................................................................................1-56快速打印.................................................................................................................................................................1-57校验保留.................................................................................................................................................................1-59打印个人作业.........................................................................................................................................................1-61打印存储的作业.....................................................................................................................................................1-63打印编码作业.........................................................................................................................................................1-65打印编码作业列表.................................................................................................................................................1-67检索虚拟信箱VMB 中的作业.......................................................................................................................1-68打印 VMB 列表......................................................................................................................................................1-69e-MPS 配置.............................................................................................................................................................1-70接口.................................................................................................................................................................................1-74并行接口模式.........................................................................................................................................................1-74USB 接口模式.........................................................................................................................................................1-75串行接口参数.........................................................................................................................................................1-76网络接口参数.........................................................................................................................................................1-78使用存储装置.................................................................................................................................................................1-81启用 RAM 磁盘......................................................................................................................................................1-81读取数据.................................................................................................................................................................1-83写入数据.................................................................................................................................................................1-84删除数据.................................................................................................................................................................1-86从 CompactFlash 卡读取字体................................................................................................................................1-87格式化存储装置.....................................................................................................................................................1-88打印数据名称列表.................................................................................................................................................1-89目录vi配置.................................................................................................................................................................................1-91页面保护模式.........................................................................................................................................................1-91换行LF 操作....................................................................................................................................................1-92回车CR 操作...................................................................................................................................................1-93宽幅 A4 间距...........................................................................................................................................................1-94打印浓度.................................................................................................................................................................1-95总打印页数.............................................................................................................................................................1-96墨粉计数器复位.....................................................................................................................................................1-96信息语言.................................................................................................................................................................1-97自动换页超时.........................................................................................................................................................1-99睡眠定时器设定...................................................................................................................................................1-100打印机复位...........................................................................................................................................................1-102资源保护...............................................................................................................................................................1-103警告蜂鸣器设定..........................................................................................................................................1-104自动继续设定.......................................................................................................................................................1-105双面打印错误检测设定.......................................................................................................................................1-107第 2 章纸张选择...................................................................................................................2-1一般指示...........................................................................................................................................................................2-2纸张可用性...............................................................................................................................................................2-2纸张规格...................................................................................................................................................................2-2选择适合的纸张.......................................................................................................................................................2-3专用纸...............................................................................................................................................................................2-7投影胶片投影用胶片.......................................................................................................................................2-7不干胶标签...............................................................................................................................................................2-8纸张类型.........................................................................................................................................................................2-12第 3 章保养...........................................................................................................................3-1更换墨粉盒.......................................................................................................................................................................3-2墨粉盒更换周期.......................................................................................................................................................3-2填充墨粉...................................................................................................................................................................3-3更换废粉盒.......................................................................................................................................................................3-6更换废粉盒...............................................................................................................................................................3-6清洁...................................................................................................................................................................................3-9清洁充电器电极丝...................................................................................................................................................3-9清洁充电器栅极.....................................................................................................................................................3-10纸张传送装置.........................................................................................................................................................3-13目录vii第 4 章故障排除...................................................................................................................4-1一般性指导.......................................................................................................................................................................4-2打印质量问题...................................................................................................................................................................4-3指示灯和信息...................................................................................................................................................................4-6指示灯.......................................................................................................................................................................4-6保养信息...................................................................................................................................................................4-7错误信息.................................................................................................................................................................4-10排除卡纸故障.................................................................................................................................................................4-12纸盒或打印机内卡纸.............................................................................................................................................4-14在选购双面器处卡纸.............................................................................................................................................4-16在选购分页器处卡纸.............................................................................................................................................4-18在 MP 托盘处卡纸..................................................................................................................................................4-20第 5 章字体...........................................................................................................................5-1字体列表...........................................................................................................................................................................5-2PCL可升级和位图字体...................................................................................................................................5-2KPDL字体1......................................................................................................................................................5-5KPDL字体2......................................................................................................................................................5-6附录 A 选购件......................................................................................................................A-1可用选购件......................................................................................................................................................................A-2扩展打印机内存..............................................................................................................................................................A-3安装选购件......................................................................................................................................................................A-9PF-60 供纸盒............................................................................................................................................................A-9DU-61 双面器........................................................................................................................................................A-12SO-60 分页器.........................................................................................................................................................A-15EF-60 信封送纸器.................................................................................................................................................A-21PT-4/PT-60 背部托盘 ............................................................................................................................................A-25网络接口卡............................................................................................................................................................A-26Microdrive 硬盘..............................................................................................................................................A-28CompactFlash存储卡....................................................................................................................................A-30附录 B 主机接口..................................................................................................................B-1并行接口..........................................................................................................................................................................B-2并行接口通信模式..................................................................................................................................................B-2接口信号..................................................................................................................................................................B-2USB 接口.........................................................................................................................................................................B-5规格..........................................................................................................................................................................B-5接口信号..................................................................................................................................................................B-5目录viii串行接口选购..........................................................................................................................................................B-6RS-232C 接口...........................................................................................................................................................B-6RS-232C 协议..................................................................................................................................................................B-7PRESCRIBE FRPO D0 命令...................................................................................................................................B-9RS-232C 电缆连接........................................................................................................................................................B-10采用适合的 RS-232C 电缆....................................................................................................................................B-10将打印机连接至计算机........................................................................................................................................B-10附录 C 规格..........................................................................................................................C-1术语表................................................................................................................................... 术语表-1索引........................................................................................................................................... 索引-1。

目录1纸张处理 ..................................................................................................1-1一般性指导 ..............................................................................................1-2选择适合的纸张 ......................................................................................1-4纸张类型 ................................................................................................1-112使用操作面板 ..........................................................................................2-1一般信息 ..................................................................................................2-2了解操作面板 ..........................................................................................2-3使用菜单选择系统 ..................................................................................2-8报告打印 ................................................................................................2-11 USB 存储器（USB 闪存选项） ..........................................................2-17作业文件夹 ............................................................................................2-19计数器（查看计数器值） ....................................................................2-25纸张设定 ................................................................................................2-26打印设定 ................................................................................................2-34网络（网络设定） ................................................................................2-47一般设备（选择／设定一般设备） ....................................................2-52安全 ........................................................................................................2-64部门管理（部门管理选择／设定） ....................................................2-72管理员（管理员设定） ........................................................................2-78调节／保养（调节／保养选择／设定） ............................................2-813选购件 ......................................................................................................3-1一般信息 ..................................................................................................3-2扩展存储器模块 ......................................................................................3-3供纸盒（PF-310） ..................................................................................3-5 CompactFlash（CF）卡 .......................................................................3-6其他选购件 ..............................................................................................3-8 4计算机接口 ..............................................................................................4-1一般信息 ..................................................................................................4-2并行接口 ..................................................................................................4-2 USB 接口 .................................................................................................4-2网络接口 ..................................................................................................4-3术语表 ......................................................................................................5-1索引 ..................................................................................................索引-1iii简介本手册包含下列章节：1纸张处理介绍了如何选择、处理和装入纸张。

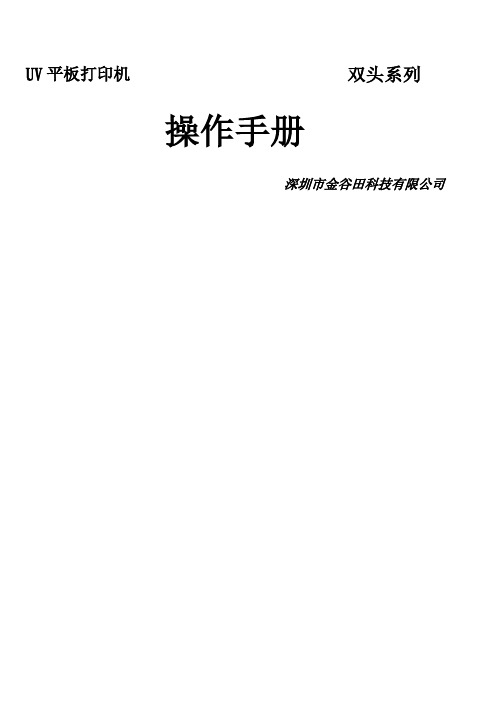

UV平板打印机双头系列操作手册深圳市金谷田科技有限公司双头打印机特色恭喜您购买及使用金谷田UV平板双头打印机双头打印机系列是一款高质量、高精度UV平板打印机，可使用油性及水性墨水：●4色模式：黄色(Y)、品红(M)、青绿(C)及黑色(K)，可以一个喷头四色打印或者两个喷头双四色打印（速度是一个喷头的2倍）●4色加白墨模式：黄色(Y)、品红(M)、青绿(C)、黑色(K)白墨4通道●打印平台及宽幅：打印平台有两种，玻璃平台及吸风平台。

目前A2系列打印机可以打印宽幅为42 x 72CM（具体以实际打印宽幅为准）。

使用安全和注意事项a.机器必须尽量放置到无强气流、无灰尘、无强磁场的环境中（墨水使用适用温度，25o C-30o C）b.电源使用要求，（220伏，稳定电压，必须要接地线）最好配置稳压器.安全注意事项（注意机器机械活动时禁止将手放在机械活动处，以防压伤手指、手臂。

）同时操作机器最好戴上防紫外线眼镜以避免强光对人体的伤害。

此操作手册描述”A2VU平板打印机”的操作及简易维修；使用前请仔细阅读并完全了解此操作手册，需要的话，请随时携带此操作手册在身边，此操作手册是经过我公司很仔细的测试及使用而完成，可让您简单了解；但是如果有不足之处或者不清楚的地方欢迎您与我们金谷田科技有限公司联系。

软件的运用1．A dobe Photoshopcs4软件( 图像处理软件)a.安装软件的安装直接下一步直到安装完即可（目标位置可以自己选择）b. 软件的操作第一步：打开需要打印机图片第二步：白墨处理在普通打印技术中，打印通道为CMYK四色通道。

在图片处理时我们应该存成CMYK模式，在UV打印技术中，有W（白色）这个通道，所以我们做图时应该为图片加上第五个通道，专色通道W但如果我们要做出自己想要的特殊效果，我们就可以选择专色选项，自己动手编辑第五通道。

首先专色必须在CMYK模式中添加，因为打印机是由四色组合，我们添加的专色处在第五个通道时可以方便软件识别。

高精度高速2513UV平板打印机2513 UV平板打印机金谷田UV平板喷印它不仅可以印刷在质地坚韧的水晶、金属、玻璃、塑料、石材等材质上，而且可以印刷在质地松软的皮革、布料、棉质等物料上；它可以印刷在无机物上，也可以印刷在成分复杂，变化多端的有机物上。

对材质有了更多更好的兼容，使用平板喷墨彩印机避免了丝网印刷、水转印选材质的问题，也避免了热转印对皮革、布料、棉料等有机物材质的破坏问题。

它迎合了市场多元化的需求，能更好的为用户提供更为全面的生产服务。

★适用的材质金谷田UV平板彩印机可将高精度的图像喷印在物体材质的表面。

如:塑料（ABS、PC、TPU、PE、PP等）、金属、水晶玻璃、陶瓷、亚克力、皮革、木竹材料、石材类等以及各种成份复杂的有机物体上。

★适用喷印产品瓷器陶瓷背景墙、玻璃移门屏风、3C面板、皮鞋皮靴、皮包、橱柜衣柜面板、U盘、卡片、手机壳、MP3/MP4、移动硬盘、笔记本电脑、礼品、玩具、文具、家私、各类个性化定制品……★应用领域：特种印刷及工艺品、手机壳制作等行业。

可以代替或结合丝网印，移印，转印，水转印，柯式印刷等工艺，充分发挥其优势降低成本，提高效率；2513产品介绍：KGT-2513 UV平板打印机是2013年最新一代大型幅面理光喷头UV平板机机型，提供最优质的喷印方案！采用灰度级喷头，支持灰度级打印技术，标准生产速度高达20平米/小时。

喷印幅面为2500mm*1300mm，具备自动盖白，白底，转白等多种白色打印模式，可配置多个工业喷头。

其特点是印刷幅面大、印刷速度快、精度高、耐用、维护成本低等。

具有大批量生产性能稳定，故障率低，可适应各种环境等优势。

电脑全程操作、无需物理按键操作，精度更高，效率更快！2513技术参数品牌：金谷田型号：KGT-2513打印宽幅：2500mm*1300mm介质类型：板材喷头类型：理光GEN5 高精度压电喷头墨水类型：UV 墨水供墨方式：负压供墨（无需更换墨盒）打印精度：720*1200DPIRIP 软件：Color gate数据传输：USB 2.0喷头数量： 3 heads/4 heads功率：3500W设备尺寸：4400mm*1920mm*1400mm标准配置： 3 个GEN5 压电喷头，色彩配置CMYK+W打印速度：品质模式 4 PASS 24 平方/小时精度模式8 PASS 双向18平方/小时高精模式8 PASS 15 平方/小时最大打印厚度：100mm墨水颜色：C/M/Y/K/W/LC/LM输入电源:AC220V/15A操作环境:Temperature 温度：18~32℃Humidity 湿度46-65%干燥方式UV 灯紫外线照干保修期：一年2513uv平板打印机产品特征：1.理光GEN5喷头日本理光授权、信心保证提供一流的耐磨性，7PL可变点压电式工业级喷头，堵头率低、着墨精度高、使用寿命更长、可变点喷头速度更快；速度和精度兼顾，并且易于装配和校准2.完善的白色墨水应用功能直接输出白墨、专色的功能利用白色墨水让色彩更加鲜艳，依靠白色、专色墨水打印系统，可以专色输出、铺盖白底，为特殊材料提供多种打印模式；白色墨水的应用能够实现在任何深色、透明材料上的真实色彩呈现需要打印到透明介质上时，利用可再现色彩还原性的白墨水进行预处理；白彩同步打印功能白色、彩色的2层打印可以一次进行，支持白彩浮雕效果同出，效率成几何倍数提升；横向纵向均可实现多种打印方式，彩色或白色铺底盖面自由设置。

A4幅面平板打印机使用说明书一、先把机器托盘用手拉出前面位置拉到尽头位置即可（托盘用手可以前后拉动，手拉托盘时候请拉“旋钮”位置）二、先加墨水，外置墨水瓶按颜色加满，再抽吸一下打印机内小墨盒，内小墨盒要抽满墨水为止，详情参照下面1、连续供墨外置墨水瓶2、输墨管线3、内置墨盒4、墨水添加口5、出气口（打印必须打开）6、正确抽吸墨水（墨盒出水口朝上）7、不准斜着抽吸墨水新机外置墨水瓶子加满墨水、打开6个小出气口、拿出墨盒用针筒轻轻插入墨盒出水口，抽吸真空（外置瓶墨水引到内盒里，抽满为止）外置墨水瓶子墨水保持不能低于3厘米容量，低于马上添加三、电源打开、安装驱动1、插好电源、连接好USB接口、打开打印机开关，安装打印机驱动。

2、安装打印机驱动系统（电脑系统要与打印机安装驱动系统要一致，分别XP W732位W764位）。

3、安装好驱动，打开打印机驱动属性点击进行打印头清洗打印头清洗点击进行自动清洗，清洗完毕点喷嘴检查喷嘴检查线打印出来，看下线条是否完整，如图第二排有断线情况下，再次点击打印头清洗直到线条完整后（如图第一排）即可进行打印。

四、打印流程：（1）打印物件放入工作台面上，调节好高度（不要超过限高位置）（2）用手把托盘推到最后面尽头位置。

（3）、打印机自检正常（打印机开关绿灯不闪烁，如有红灯亮属于错误是无法进行打印）按下“打印键”打印工作指示灯亮起，再从电脑设计好图像点击打印，打印完毕托盘自动出来停止后再取出打印物件，每次打印之前都要按下“打印键”注：需要加热打印请按下“加热键”指示灯亮起（加热用途：可以迅速让墨水吸收，打印物件色彩更鲜艳饱和）五、打印质量设置：打印质量选项：优质照片纸张选项—类型：高光相纸、照片级喷墨打印纸、照片纸注意事项：*限高位置不准改动、涂改上面信号检测白条否则无法打印。

六、保养：（1）、超过3天不使用打印机，保湿垫请注些酒精进去，再从后面废墨瓶子管线用针筒抽吸一下，这样重复清洗2-3遍，主要是要把管道里面残留墨水清洗干净，否则墨水干燥硬化在管道内就无法进行清洗，清洗完毕请把喷嘴墨架移回停机位置尽头。

平板打印机使用技巧手册平板打印机，是一种“与物体非接触”的喷墨印刷型高科技数码印制设备，以经济、高效的彩色喷墨打印输出设备，已被众多的用户所熟悉，并广泛应用于各行各业。

在使用过程中，稍不留神的话，就可能出现一些故障问题。

针对一些故障问题，东莞基汇整理了一些平板打印机的使用技巧，以供大家参考。

1、开机换墨盒当我们按照正确的步骤重新为喷墨打印机换上新墨盒后，打印机控制面板上的墨尽指示灯如果仍然闪烁不停，且不能正常工作的话，那么这种现象很有可能是由于更换墨盒不当引起的。

许多操作者在为打印机换新墨盒时，始终觉得在打印机断电状态下，进行更换操作似乎更安全一些，其实在断电状态下为打印机换上新墨盒，是不会被喷墨打印机控制系统认可的，因此我们换上的新墨盒对打印机来说，其实还是那个"旧墨盒"。

此时，要想让打印机继续正常工作的话，只有先将打印机接通电源，然后按照步骤重新进行安装墨盒，这样打印机会自动通过清洗打印头的方式来解决故障的。

2、墨水节约用由于喷打墨水价格不菲，个人用户在使用喷打时，应该时刻注意节约使用墨水。

喷墨打印机也特意为普通用户提供了两种打印模式，一种是经济模式，这种模式是以降低打印质量为代价来节约墨水的，另外一种是标准模式，这种模式可以确保打印效果。

没有特殊要求的话，笔者建议各位尽量使用经济模式来打印材料，甚至还能自定义一种节约墨水的打印模式：在"打印机属性"窗口中，打开"主要"标签页面，从中选择"标准"模式，再单击一下"高级"按钮，在随后出现的对话框中，大家可以根据使用的墨盒型号、介质类型来调整色彩平衡、亮度等参数，也可以直接拖动图中的滑块来降低色彩打印浓度，以便达到节约墨水的目的。

当然同一设置对于不同型号的墨盒和打印纸张来说，输出效果也会有所差异的，因此在更换墨盒或者不同打印纸时，尽量再做些细微调整，以确保达到理想的使用效果。
