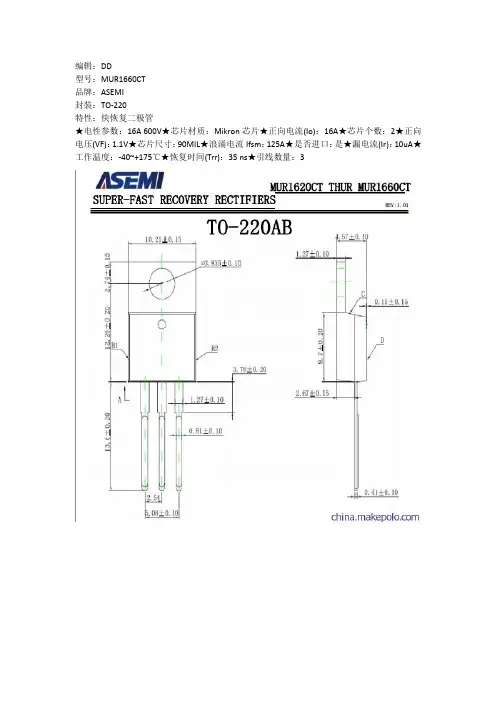

MURF1660CTPreferred Device SWITCHMODE tPower RectifierThese state-of-the-art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.Features•ăUltrafast 60 Nanosecond Recovery Times•ă150°C Operating Junction Temperature•ă*************************•ăHigh Temperature Glass Passivated Junction•ăLow Leakage Specified @ 150°C Case Temperature•ăCurrent Derating @ Both Case and Ambient Temperatures•ăElectrically Isolated. No Isolation Hardware Required.•ăPb-Free Package is Available*Mechanical Characteristics:•ăCase: Epoxy, Molded•ăWeight: 1.9 Grams (Approximately)•ăFinish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable•ăLead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds MAXIMUM RATINGS (Per Leg)Rating Symbol Value UnitPeak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage V RRMV RWMV R600VAverage Rectified Forward Current Total Device, (Rated V R), T C = 150°C Per DiodePer Device I F(AV)816APeak Repetitive Forward Current(Rated V R, Square Wave, 20 kHz),T C = 150°CI FM16ANon-repetitive Peak Surge Current(Surge applied at rated load conditionshalfwave, single phase, 60 Hz)I FSM100A Operating Junction and Storage T emperature TJ, T stg-Ă65 to +150°CRMS Isolation Voltage(t = 0.3 second, R.H. ≤ 30%, T A = 25°C) (Note 1)Per Figure 3V iso14500VStresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above theRecommended Operating Conditions may affect device reliability.1.Proper strike and creepage distance must be provided.*For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.Preferred devices are recommended choices for future use and best overall value.THERMAL CHARACTERISTICS (Per Leg)CharacteristicSymbol Value Unit Maximum Thermal Resistance, Junction-to-CaseR q JC 3.0°C/W Lead Temperature for Soldering Purposes: 1/8″ from Case for 5 SecondsT L260°CELECTRICAL CHARACTERISTICS (Per Leg)CharacteristicSymbol Value Unit Maximum Instantaneous Forward Voltage (Note 2)(i F = 8.0 A, T C = 150°C)(i F = 8.0 A, T C = 25°C)v F1.201.50VMaximum Instantaneous Reverse Current (Note 2)(Rated DC Voltage, T C = 150°C)(Rated DC Voltage, T C = 25°C)i R50010m A Maximum Reverse Recovery Time (I F = 1.0 A, di/dt = 50 A/m s)(I F = 0.5 A, i R = 1.0 A, I REC = 0.25 A)t rr6050ns2.Pulse Test: Pulse Width = 300 m s, Duty Cycle ≤ 2.0%.V R , REVERSE VOLTAGE (V)I R , R E V E R S E C U R R E N T (ăĂA )μ1005020, I N S T A N T A N E O U S F O R W A R D C U R R E N T (A M P S )i F 105210.50.20.1Figure 2. Typical Reverse Current, Per Leg*TEST CONDITION FOR ISOLATION TEST*FULLY ISOLATED PACKAGELEADSFigure 3. Mounting Position* Measurement made between leads and heatsink with all leads shorted together.MOUNTING INFORMATIONClip-MountedFigure 4. Typical Mounting TechniquePACKAGE DIMENSIONSTO-220 FULLPAK CASE 221D-03ISSUE JSTYLE 3:PIN 1.ANODE2.CATHODE3.ANODEDIM A MIN MAX MIN MAX MILLIMETERS0.6170.63515.6716.12INCHES B 0.3920.4199.9610.63C 0.1770.193 4.50 4.90D 0.0240.0390.60 1.00F 0.1160.129 2.95 3.28G 0.100 BSC 2.54 BSC H 0.1180.135 3.00 3.43J 0.0180.0250.450.63K 0.5030.54112.7813.73L 0.0480.058 1.23 1.47N 0.200 BSC 5.08 BSC Q 0.1220.138 3.10 3.50R 0.0990.117 2.51 2.96S 0.0920.113 2.34 2.87U0.2390.2716.06 6.88MBM0.25 (0.010)YSEATING PLANENOTES:1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.2.CONTROLLING DIMENSION: INCH3.221D-01 THRU 221D-02 OBSOLETE, NEW STANDARD 221D-03.ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer's technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATIONSWITCHMODE is a trademark of Semiconductor Components Industries, LLC.。
