高速公路桩基钢筋用量计算表

桩基础钢筋算量公式桩基础钢筋算量有一个非常简易适用的公式：L=√{S^2+[л(R-2C)]^2}/S^2 其中S—螺旋箍筋螺距 R—桩直径 л——3.14，圆周率C—保护层厚度L—螺旋箍筋长度其实其中:(R-2C)为螺旋箍筋的螺旋半径，实际上是被简化了，应该是（R-2C+d/2）是最精确的计算,其中d是箍筋的直径，但是由于箍筋直径d非常小，所以一般计算时可以忽略不计。

这个公式实际上就是把螺旋展开成一个直角三角形，箍筋间距S为三角形一个直角边，螺旋圆周长2л（R-2C+d/2）为三角形的另一个直角边，求斜边长（也就是螺旋箍筋的长度L）。

由三角形公式C^2=A^2+B^2公式推导，L=√[S^2+（R-2C+d）^2]，公式简化后就是L=√{S^2+[л(R-2C)]^2}/S^2。

土建工程工程量的计算是工程审计的重点，重点分类为墙体、门窗、过梁、阳台、挑檐、雨蓬、柱子、梁等八个方面，这里详细汇集这八个方面的计算范围、公式、难点及注意事项，对造价入门有一定的帮助；一、墙体计算方法1、墙体工程量：砖基础与墙身的划分,以首层设计室内地坪为界，设计室内地坪以下为基础，以上为墙身;如墙身与基础为两种不同材质时，按材质不同处为分界线。

（1）墙体体积：砼墙；砖墙。

（2）砼墙模板（3）、砼墙高度超过3.6m增价；（4）、内外脚手架2、墙体工程量计算方法⑴墙体体积＝长×宽×高—门窗洞口体积—墙内过梁—墙内柱—墙内梁等。

①实心砖墙、空心砖墙及石墙均按设计图示尺寸以体积计算。

扣除门窗洞口、过人洞、空圈、嵌入墙内的钢筋混凝土柱、梁、圈梁、挑梁、过梁及凹进墙内的壁龛、管槽、暖气槽、消火栓箱所占体积。

不扣除梁头、板头、檩头、垫木、木楞头、沿缘木、木砖、门窗走头、砖墙内加固钢筋、木筋、铁件、钢管及单个面积0.3m2以内的孔洞所占体积。

凸出墙面的腰线、挑檐、压顶、窗台线、虎头砖、门窗套的体积亦不增加，凸出墙面的砖垛并入墙体体积内。

螺旋钢筋算法螺旋钢筋算法关于螺旋钢筋的长度的计算方法：我学的方法是：总长度L={1+【3.14（D-50）/b】平方}开根号*H嘿嘿D为桩直径b为螺距H钢筋笼高度是在工程概预算中学的具体信息如下：高等学校教材《建筑工程概预算》（第3版修订本）武汉理工大学出版社见笑了螺旋箍筋长度计算在圆形截面的构件中，螺旋箍筋沿圆表面缠绕，其中螺距为p和直径为D，则每米钢筋骨架长的螺旋箍筋长度计算公式：L=2000*(Pai)*ap (1- e4 - 364 e2)式中L为每米钢筋骨架长的螺旋箍筋长度；（Pai）为圆周率，取为3.1416；p 为螺距；a（单位为mm）= p2+4D24 ；e=4a2-D24a2 。

在计算螺旋箍筋下料长度时，D可采用箍筋的中心距，即主筋外皮距离加上箍筋直径。

2.5.3钢筋的重量计算计算钢筋的重量，必须先算出钢筋的体积，再乘以钢筋单位体积的重量。

而1m3的钢材重7.85t(即7850 kg)，则1cm3的钢材重0.00785。

1米长钢筋的体积是0.785*d2*100=78.5*d2cm3;因此1米钢筋的重78.5*d2*0.0785=0.616*d2根据上面的公式得出下面的钢筋重量表，如表2-12表2-12钢筋重量表2.5.4钢筋计算实例例1已知1号楼钢筋混凝土框架梁KL1（2），第一跨跨距为6900，距支座边为200，第二跨为4800，距支座边为200，截面尺寸为300*700，箍筋为A10@100/200，上部通长钢筋为2B25，下部为4B25，支座1为4B25，支座2为4B25/2B20,支座3为4B25，腰筋为2B12，次梁宽为200mm，吊筋为2B22，板厚200mm，如图2-36示，混凝土等级为C25,抗震等级为三级，求各种钢筋的下料长度？图2-36梁实例根据03G101-1和《建筑施工手册》的有关规定，得出：（1）纵向受力筋混凝土保护层为25mm；（2）锚固长度为35d（3）构造钢筋腰筋为B12，hw=700-200=500mm,根据已知条件和上述构造要求，绘制出下表，并进行编号钢筋编号简图规格与直径(mm) 根数下料长度(mm) 重量(kg)1 3001 B252 12700 97.792 2001 B25 2 2867 22.0763 1001 B25 2 4733 36.444 1001 B20 2 3650 18.0315 2001 B25 2 2167 16.6866 2001 B25 4 8075 124.3557 2001 B25 4 5975 92.0158、9、11 4209 A10@100/200 82 2070 104.7310 5010 B22 2 2974 17.5212 1001 B12 2 6860 12.1813 1001 B12 2 4760 8.4514 1202 A8@400 58 366 8.385下料长度计算（1）号上部通长钢筋下料长度为：伸长12050+弯折长度375+弯折长度375-2*2*25=12700 mm（2）号支座1的加强筋下料长度为：[伸长（6900-400）/3+400-25=2542]+弯折长度375-2*25=2867 mm（3）号支座2第一排负筋下料长度为：伸长=（6900-支座200*2）/3*2+400=4733 mm（4）号支座2第二排负筋下料长度为：伸长=（6900-200*2）/4*2+400=3650 mm（5）号支座3第一排负筋下料长度为：[伸长（4800-200*2）/3+375]+弯折长度375-2*25=2167 mm（6）号第一跨下部钢筋下料长度为：弯折长度375+伸长（6900-25+35*25）-2*25=8075 mm（7）号第二跨下部钢筋下料长度弯折长度375+伸长（4800-25+35*25）-25*2=5975 mm（8）箍筋下料长度为：270*2+670*2+250-3*2*10=2070 mm根据03G101-1第63页中框架梁箍筋加密区≥1.5hb≥500的规定,hb为梁截面高度，根数计算如下：根数=第一跨43+第二跨33+附加箍筋3*2=82根（9）、（11）号同（8）号钢筋（10）号吊筋的下料长度为：（次梁宽200+50*2）+斜长919*2+平直段20*22*2-4*0.5*22=2974 mm（12）第一跨腰筋下料长度为：（6900-200*2）+15*12*2=6860 mm（13）（12）号第二跨腰筋下料长度为：（4800-200*2）+15*12*2=4760 mm（14）号梁拉筋下料长度为：伸长（300-25*2+8*2）+6.25*2*8=366 mm钢筋算量基本方法钢筋算量基本方法第一章梁第一节框架梁一、首跨钢筋的计算1、上部贯通筋上部贯通筋（上通长筋1）长度＝通跨净跨长＋首尾端支座锚固值2、端支座负筋端支座负筋长度：第一排为Ln/3＋端支座锚固值；第二排为Ln/4＋端支座锚固值3、下部钢筋下部钢筋长度＝净跨长＋左右支座锚固值注意：下部钢筋不论分排与否，计算的结果都是一样的，所以我们在标注梁的下部纵筋时可以不输入分排信息。

钻孔灌注桩钢筋量计算表一、钻孔灌注桩钢筋的组成钻孔灌注桩中的钢筋主要包括主筋、箍筋和加强筋。

1、主筋主筋通常沿桩身纵向布置，承受桩身的拉力和压力。

其数量和直径根据桩的受力情况和设计要求确定。

2、箍筋箍筋呈螺旋状环绕在主筋周围，起到约束主筋、提高桩身抗剪能力和增强桩身混凝土整体性的作用。

3、加强筋加强筋一般设置在主筋的顶部和底部，用于加强主筋的连接和抵抗桩顶或桩底的集中应力。

二、钢筋量计算的基本原理钢筋量的计算主要基于钢筋的长度和单位长度的重量。

钢筋长度＝设计长度＋锚固长度＋弯钩长度（如有）单位长度钢筋重量（kg/m）＝钢筋直径（mm）×钢筋直径（mm）× 000617三、主筋量计算1、主筋长度计算主筋长度通常分为桩身长度和锚固长度两部分。

桩身长度根据设计桩长确定。

锚固长度则根据相关规范和设计要求，在桩顶或桩底预留一定的长度，以保证主筋与承台或桩底基础的可靠连接。

假设桩身长度为 L1，桩顶锚固长度为 L2，桩底锚固长度为 L3，主筋直径为 d，则单根主筋长度为：L ＝ L1 ＋ L2 ＋ L32、主筋数量计算主筋数量根据桩的截面形状和设计要求确定。

对于圆形桩，主筋数量通常均匀分布在圆周上；对于方形桩，则按照一定的间距布置。

假设圆形桩的直径为 D，主筋间距为 s，则主筋数量 n ＝πD ／ s （向上取整）3、主筋重量计算单根主筋重量＝ L × 000617 × d²主筋总重量＝单根主筋重量 ×主筋数量四、箍筋量计算1、箍筋长度计算箍筋长度的计算较为复杂，需要考虑箍筋的螺旋间距、桩身直径和箍筋的搭接长度（如有）。

对于螺旋箍筋，其长度可以近似按下式计算：L ＝√（πD）²＋s²，其中 D 为桩身直径，s 为箍筋的螺旋间距。

考虑到箍筋的搭接长度（通常为 10d，d 为箍筋直径），则单圈箍筋的实际长度为：L' ＝ L ＋ 10d2、箍筋圈数计算箍筋圈数＝（桩身长度保护层厚度）／箍筋间距（向上取整）3、箍筋重量计算单圈箍筋重量＝ L' × 000617 × d²箍筋总重量＝单圈箍筋重量 ×箍筋圈数五、加强筋量计算1、加强筋长度计算加强筋通常呈环形，其长度等于桩身的周长加上搭接长度。

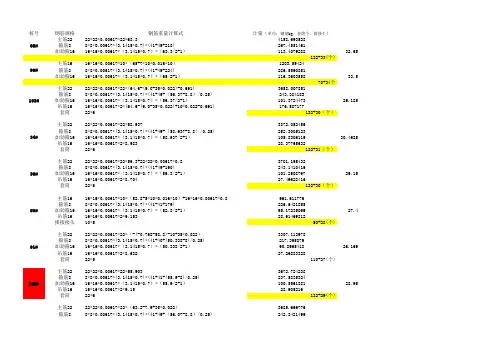

桩号钢筋规格钢筋重量计算式计量（单位：钢筋kg、套筒个、搭接个）主筋2222*22*0.00617*22*63.34158.693528箍筋88*8*0.00617*(3.1415*0.7)*(41+49+218)267.4551461加劲箍1616*16*0.00617*（3.1415*0.7）*（63.3/2+1）113.407928832.65主筋1616*16*0.00617*10*（65+7*10*0.016*10）1203.59424箍筋88*8*0.00617*(3.1415*0.7)*(41+49+224)286.5590851加劲箍1616*16*0.00617*（3.1415*0.7）*（65/2+1）116.360355833.5主筋2222*22*0.00617*22*(64.6-(9.0-35*0.022)-0.691)3658.007851箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（56.37-8.8）/0.25)243.384183加劲箍1616*16*0.00617*（3.1415*0.7）*（56.37/2+1）101.372447329.185吊筋1616*16*0.00617*2*(64.6-(9.0-35*0.022)+10*0.022-0.691)176.587177套筒22*6132+30（个）主筋2222*22*0.00617*22*58.9373872.052456箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（58.937-8.8）/0.25)252.3005123加劲箍1616*16*0.00617*（3.1415*0.7）*（58.937/2+1）105.830611930.4685吊筋1616*16*0.00617*2*8.98328.37765632套筒22*6132+31（个）主筋2222*22*0.00617*22*56.3+22*22*0.00617*0.83701.195432箍筋88*8*0.00617*(3.1415*0.7)*(41+49+190)243.1410419加劲箍1616*16*0.00617*（3.1415*0.7）*（56.3/2+1）101.250876729.15吊筋1616*16*0.00617*2*8.70427.49628416套筒22*6132+30（个）主筋1616*16*0.00617*10*（52.8+5*10*0.016*10）+16*16*0.00617*0.8961.611776箍筋88*8*0.00617*(3.1415*0.7)*(41+41+179)226.6421855加劲箍1616*16*0.00617*（3.1415*0.7）*（52.8/2+1）95.1723506927.4吊筋1616*16*0.00617*2*9.15328.91469312搭接接头10*550+28(个)主筋2222*22*0.00617*22*（-(-0.768-58.8)-10+35*0.022）3307.113978箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(50.338-8)/0.25)217.395879加劲箍1616*16*0.00617*（3.1415*0.7）*（50.338/2+1）90.896541826.169吊筋1616*16*0.00617*2*8.63227.26883328套筒22*5110+27(个)主筋2222*22*0.00617*22*55.9033672.724238箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(55.9-8)/0.25)237.5835324加劲箍1616*16*0.00617*（3.1415*0.7）*（55.9/2+1）100.556188128.95吊筋1616*16*0.00617*2*9.1528.905216套筒22*6132+29(个)主筋2222*22*0.00617*22*（63.2-7.9+35*0.022）3685.666776箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（56.07-8.8）/0.25)242.342149991#162#163#68#90#103#34#36#50#132+33(个)70+34个加劲箍1616*16*0.00617*（3.1415*0.7）*（56.07/2+1）100.851430729.035吊筋1616*16*0.00617*2*8.326.220032套筒22*6132+30（个）主筋2222*22*0.00617*22*（58.3-8.53+35*0.022）3320.385006箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(50.54-8)/0.25)218.9658755加劲箍1616*16*0.00617*（3.1415*0.7）*（50.54/2+1）91.2473595926.27吊筋1616*16*0.00617*2*8.9328.2102272套筒22*5110+27(个)主筋2222*22*0.00617*22*（62.5-8.566+35*0.022）3593.952145箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(54.704-8)/0.25)233.429294加劲箍1616*16*0.00617*（3.1415*0.7）*（54.704/2+1）98.4790688628.352吊筋1616*16*0.00617*2*9.028.43136套筒22*6132+29(个)主筋1616*16*0.00617*10*（67-9.031+35*0.016）924.4772608箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.529-8.8)/0.25)250.8833474加劲箍1616*16*0.00617*（3.1415*0.7）*（58.529/2+1）105.122029530.2645吊筋1616*16*0.00617*2*9.43129.79290624搭接接头10*660+31(个)主筋1616*16*0.00617*10*（59.5-8.676+35*0.016）811.6205568箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（51.384-8）)108.8785586加劲箍1616*16*0.00617*（3.1415*0.7）*（51.384/2+1）92.7131527326.692吊筋1616*16*0.00617*2*9.028.91469312搭接接头10*550+27(个)主筋2222*22*0.00617*22*（65-7.5+35*0.022）3828.231783箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.27-8.8)/0.25)249.9837255加劲箍1616*16*0.00617*（3.1415*0.7）*（58.27/2+1）104.672218530.135吊筋1616*16*0.00617*2*7.924.956416套筒22*6132+31(个)主筋2222*22*0.00617*22*（59.5-8.195+35*0.022）3421.231682箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(52.075-8)/0.25)224.2976112加劲箍1616*16*0.00617*（3.1415*0.7）*（52.075/2+1）93.9132274427.0375吊筋1616*16*0.00617*2*8.59527.1519488套筒22*5110+28(个)主筋1616*16*0.00617*10*（67-8.915+35*0.016）926.309504箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（58.645-8.8）)121.435925加劲箍1616*16*0.00617*（3.1415*0.7）*（58.645/2+1）105.323489230.3225吊筋1616*16*0.00617*2*9.028.91469312搭接接头10*660+31(个)主筋2222*22*0.00617*22*（63.4-8.545+35*0.022）3654.4601549#155#69#44#163#92#39#43#箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(55.625-8.8)/0.25)240.7964676加劲箍1616*16*0.00617*（3.1415*0.7）*（55.625/2+1）100.078589628.8125吊筋1616*16*0.00617*2*8.94528.2576128套筒22*6132+29(个)主筋2222*22*0.00617*22*（59-8.115+35*0.022）3393.638455箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(51.655-8)/0.25)222.8387649加劲箍1616*16*0.00617*（3.1415*0.7）*（51.655/2+1）93.1838043226.8275吊筋1616*16*0.00617*2*8.51526.8992256套筒22*5110+27(个)主筋2222*22*0.00617*22*（64.5-8.4+35*0.022）3736.254359箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.87-8.8)/0.25)245.1209047加劲箍1616*16*0.00617*（3.1415*0.7）*（56.87/2+1）102.240808129.435吊筋1616*16*0.00617*2*8.827.799552套筒22*6132+30(个)主筋2222*22*0.00617*22*（65-8.05+35*0.022）3792.097795箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.72-8.8)/0.25)248.0733316加劲箍1616*16*0.00617*（3.1415*0.7）*（57.72/2+1）103.717021629.86吊筋1616*16*0.00617*2*8.4526.693888套筒22*6132+30(个)主筋2222*22*0.00617*22*（64.8-8.34+35*0.022）3759.905697箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.87-8.8)/0.25)245.1209047加劲箍1616*16*0.00617*（3.1415*0.7）*（57.23/2+1）102.866027929.615吊筋1616*16*0.00617*2*8.7427.6100096套筒22*6132+30(个)主筋2222*22*0.00617*22*（63.8-6.72+35*0.022）3800.638556箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.85-8.8)/0.25)248.5248793加劲箍1616*16*0.00617*（3.1415*0.7）*（57.85/2+1）103.942795429.925吊筋1616*16*0.00617*2*7.1222.4923648套筒22*6132+30(个)主筋1616*16*0.00617*10*69.71100.92544箍筋88*8*0.00617*(3.1415*0.7)*(41+57+（69.7-9.6）)137.2878526加劲箍1616*16*0.00617*（3.1415*0.7）*（69.7/2+1）111.228343135.85吊筋16无搭接接头10*770+36(个)主筋2222*22*0.00617*22*（60.3-3.83+35*0.022）3760.562678箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.24-8.8)/0.25)246.4060788加劲箍1616*16*0.00617*（3.1415*0.7）*（57.24/2+1）102.883395229.62吊筋1616*16*0.00617*2*4.2313.3627392套筒22*6132+30(个)164#154#165#75#72#130#40#64#主筋2222*22*0.00617*22*（64.2-7.76+35*0.022）3758.591734箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.21-8.8)/0.25)246.3018755加劲箍1616*16*0.00617*（3.1415*0.7）*（57.21/2+1）102.831293529.605吊筋1616*16*0.00617*2*8.1625.7777664套筒22*6132+30(个)主筋1616*16*0.00617*10*（61.9-8.8+35*0.016）847.570432箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.66-8）)110.8549479加劲箍1616*16*0.00617*（3.1415*0.7）*（53.66/2+1）96.6659313827.83吊筋1616*16*0.00617*2*9.4429.8213376搭接接头10*550+28(个)主筋1616*16*0.00617*10*（61.3-8.41+35*0.016）844.25344箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.45-8）)110.6725921加劲箍1616*16*0.00617*（3.1415*0.7）*（53.45/2+1）96.3012198227.725吊筋1616*16*0.00617*2*8.8129.8213376搭接接头10*550+28(个)主筋1616*16*0.00617*10*（60.8-8.005+35*0.016）842.752896箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.355-8）)110.5900978加劲箍1616*16*0.00617*（3.1415*0.7）*（53.355/2+1）96.1362312527.6775吊筋1616*16*0.00617*2*8.40526.5517312搭接接头10*550+28(个)主筋2222*22*0.00617*22*（64-6.7+35*0.022）3815.092151箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.07-8.8)/0.25)249.2890368加劲箍1616*16*0.00617*（3.1415*0.7）*（58.07/2+1）104.324874230.035吊筋1616*16*0.00617*2*7.3423.1873536套筒22*6132+30(个)主筋2222*22*0.00617*22*（65-7.4+35*0.022）3834.801599箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.37-8.8)/0.25)250.3310699加劲箍1616*16*0.00617*（3.1415*0.7）*（58.37/2+1）104.845890730.185吊筋1616*16*0.00617*2*8.0425.3986816套筒22*6132+31(个)主筋1616*16*0.00617*10*（67-8.94+35*0.016）925.914624箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（58.62-8.8）)121.414216加劲箍1616*16*0.00617*（3.1415*0.7）*（58.62/2+1）105.280071230.31吊筋1616*16*0.00617*2*9.5830.2636032搭接接头10*660+31(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.427.644876815搭接接头8*324+15(个)45#立柱18#153#25#54#127#74#192#主筋1616*16*0.00617*10*（60.3-7.233+35*0.016）847.0491904箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.627-8）)110.826292加劲箍1616*16*0.00617*（3.1415*0.7）*（53.627/2+1）96.6086195627.8135吊筋1616*16*0.00617*2*7.87324.87112192搭接接头10*550+28(个)主筋1616*16*0.00617*10*（61-8.858+35*0.016）832.4386304箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.702-8）)110.0230582加劲箍1616*16*0.00617*（3.1415*0.7）*（52.702/2+1）95.0021519727.351吊筋1616*16*0.00617*2*9.49830.00456192搭接接头10*550+28(个)主筋1616*16*0.00617*10*（63.16-7.575+35*0.016）886.821504箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（56.145-8.8）)119.2650229加劲箍1616*16*0.00617*（3.1415*0.7）*（56.145/2+1）100.981684929.0725吊筋1616*16*0.00617*2*8.21525.9515136搭接接头10*660+29(个)主筋2222*22*0.00617*22*（64.1-6.052+35*0.022）3864.234375箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.818-8.8)/0.25)251.8871725加劲箍1616*16*0.00617*（3.1415*0.7）*（58.818/2+1）105.623942130.409吊筋1616*16*0.00617*2*9.54630.15619584套筒22*6132+31(个)主筋1616*16*0.00617*10*（65.9-8.906+35*0.016）909.0769408箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（57.554-8.8）)120.4885433加劲箍1616*16*0.00617*（3.1415*0.7）*（57.554/2+1）103.428725829.777吊筋1616*16*0.00617*2*8.21525.9515136搭接接头10*660+30(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.5157.9449856搭接接头8*324+15(个)主筋1616*16*0.00617*10*（60.3-8.648+35*0.016）824.6989824箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.212-8）)109.5975614加劲箍1616*16*0.00617*（3.1415*0.7）*（52.212/2+1）94.1511583227.106吊筋1616*16*0.00617*2*9.28829.34116352搭接接头10*550+28(个)主筋1616*16*0.00617*10*（59.9-8.71+35*0.016）817.4016箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（51.75-8）)109.1963786加劲箍1616*16*0.00617*（3.1415*0.7）*（51.75/2+1）93.3487928826.875吊筋1616*16*0.00617*2*9.3529.53702446#立柱1#53#126#131#26#194#73#搭接接头10*550+27(个)主筋1616*16*0.00617*10*（61-0.46）956.241408箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（60.54-8.8）)123.0814689加劲箍1616*16*0.00617*（3.1415*0.7）*（60.54/2+1）108.614576931.27吊筋16无静载桩无吊筋搭接接头10*660+32(个)主筋2222*22*0.00617*22*（63.3-7.92+35*0.022）3688.951684箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.15-8.8)/0.25)242.6200254加劲箍1616*16*0.00617*（3.1415*0.7）*（56.15/2+1）100.990368529.075吊筋1616*16*0.00617*2*9.0228.4945408套筒22*6132+29(个)主筋1616*16*0.00617*10*（60.5-7.331+35*0.016）848.6603008箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.729-8）)110.9148648加劲箍1616*16*0.00617*（3.1415*0.7）*（53.729/2+1）96.7857651827.8645吊筋1616*16*0.00617*2*8.13125.68615424搭接接头10*550+28(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.5157.9449856搭接接头8*324+15(个)主筋1616*16*0.00617*10*（60.8-7.8+35*0.016）845.990912箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（53.66-8）)110.8549479加劲箍1616*16*0.00617*（3.1415*0.7）*（53.56/2+1）96.4922592127.78吊筋1616*16*0.00617*2*8.928.115456搭接接头10*550+28(个)主筋1616*16*0.00617*10*（66.5-8.865+35*0.016）919.201664箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（58.195-8.8）)121.0451626加劲箍1616*16*0.00617*（3.1415*0.7）*（58.195/2+1）104.541964430.0975吊筋1616*16*0.00617*2*8.76527.6889856搭接接头10*660+30(个)主筋2222*22*0.00617*22*（64.3-7.63+35*0.022）3773.70231箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.44-8.8)/0.25)247.1007675加劲箍1616*16*0.00617*（3.1415*0.7）*（57.44/2+1）103.230739529.72吊筋1616*16*0.00617*2*8.1325.6829952套筒22*6132+30(个)主筋2222*22*0.00617*22*（60.5-8.74+35*0.022）3451.124345箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(52.53-8)/0.25)225.8780279加劲箍1616*16*0.00617*（3.1415*0.7）*（52.53/2+1）94.7034358327.265132#立柱17#7#47#37#65#166#38#吊筋1616*16*0.00617*2*9.2429.1895296套筒22*5110+28(个)主筋1616*16*0.00617*10*（60.6-9.05+35*0.016）823.087872箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.11-8）)109.5089886加劲箍1616*16*0.00617*（3.1415*0.7）*（52.11/2+1）93.974012727.055吊筋1616*16*0.00617*2*9.5530.168832搭接接头10*550+27(个)主筋1616*16*0.00617*10*（60.5-10.18+35*0.016）803.659776箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（50.88-8）)108.4409047加劲箍1616*16*0.00617*（3.1415*0.7）*（50.88/2+1）91.8378449826.44吊筋1616*16*0.00617*2*10.6833.7385472搭接接头10*550+27(个)主筋1616*16*0.00617*10*（60.6-8.7+35*0.016）828.616192箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.46-8）)109.8129149加劲箍1616*16*0.00617*（3.1415*0.7）*（52.11/2+1）93.974012727.055吊筋1616*16*0.00617*2*8.727.483648搭接接头10*550+27(个)主筋1616*16*0.00617*10*（60.6-8.93+35*0.016）824.983296箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.23-8）)109.6131919加劲箍1616*16*0.00617*（3.1415*0.7）*（52.23/2+1）94.1824193127.115吊筋1616*16*0.00617*2*9.4329.7897472搭接接头10*550+28(个)主筋1616*16*0.00617*10*（66.6-8.57+35*0.016）925.440768箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（58.59-8.8）)121.3881652加劲箍1616*16*0.00617*（3.1415*0.7）*（58.59/2+1）105.227969530.295吊筋1616*16*0.00617*2*9.0728.6524928搭接接头10*660+31(个)主筋2222*22*0.00617*22*（66.4-8.15+35*0.022）3877.505403箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(59.02-8.8)/0.25)252.5888081加劲箍1616*16*0.00617*（3.1415*0.7）*（59.02/2+1）105.974759830.51吊筋1616*16*0.00617*2*8.6527.325696套筒22*6132+31(个)主筋1616*16*0.00617*10*（64.2-7.79+35*0.016）899.852544箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（56.97-8.8）)119.9814206加劲箍1616*16*0.00617*（3.1415*0.7）*（56.97/2+1）105.227969529.485吊筋1616*16*0.00617*2*8.2926.1884416搭接接头10*660+30(个)主筋1616*16*0.00617*10*（60.4-9.04+35*0.016）820.086784箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（51.92-8）)109.3441#168#167#176#125#24#48#152#65#加劲箍1616*16*0.00617*（3.1415*0.7）*（51.92/2+1）93.6440355726.96吊筋1616*16*0.00617*2*8.2926.1884416搭接接头10*550+27(个)主筋1616*16*0.00617*10*（60.1-8.64+35*0.016）821.666304箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.02-8）)109.4308361加劲箍1616*16*0.00617*（3.1415*0.7）*（52.02/2+1）93.8177077527.01吊筋1616*16*0.00617*2*9.1428.8736256搭接接头10*550+27(个)主筋1616*16*0.00617*10*（61-8.619+35*0.016）836.2136832箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.941-8）)110.2305964加劲箍1616*16*0.00617*（3.1415*0.7）*（52.941/2+1）95.4172284627.4705吊筋1616*16*0.00617*2*9.11928.80728576搭接接头10*550+28(个)主筋2222*22*0.00617*22*（60.6-8.13+35*0.022）3497.770038箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(53.24-8)/0.25)228.3441728加劲箍1616*16*0.00617*（3.1415*0.7）*（53.24/2+1）95.9365082527.62吊筋1616*16*0.00617*2*8.6327.2625152套筒22*5110+28(个)主筋1616*16*0.00617*10*（61.4-7.39+35*0.016）861.944064箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（54.57-8）)111.6451563加劲箍1616*16*0.00617*（3.1415*0.7）*（54.57/2+1）98.2463481528.285吊筋1616*16*0.00617*2*7.8924.9248256搭接接头10*660+29(个)主筋2222*22*0.00617*22*（65.5-8.13+35*0.022）3819.691022箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.14-8.8)/0.25)249.5321779加劲箍1616*16*0.00617*（3.1415*0.7）*（58.14/2+1）104.446444730.07吊筋1616*16*0.00617*2*8.6327.2625152套筒22*6132+30(个)主筋2222*22*0.00617*22*（64.3-8.07+35*0.022）3744.79512箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57-8.8)/0.25)245.5724523加劲箍1616*16*0.00617*（3.1415*0.7）*（57/2+1）102.46658229.5吊筋1616*16*0.00617*2*8.5727.0729728套筒22*6132+30(个)主筋2222*22*0.00617*22*（63.7-7.91+35*0.022）3715.88793箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.56-8.8)/0.25)244.0441372加劲箍1616*16*0.00617*（3.1415*0.7）*（56.56/2+1）101.702424429.28吊筋1616*16*0.00617*2*8.4126.5675264套筒22*6132+30(个)主筋1616*16*0.00617*10*（61.2-9.2+35*0.016）830.19571270#151#2#168#56#51#122#178#箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.56-8）)109.8997509加劲箍1616*16*0.00617*（3.1415*0.7）*（52.56/2+1）94.7555374827.28吊筋1616*16*0.00617*2*9.730.642688搭接接头10*550+28(个)主筋1616*16*0.00617*10*（61.3-9.2+35*0.016）831.775232箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.66-8）)109.986587加劲箍1616*16*0.00617*（3.1415*0.7）*（52.66/2+1）94.9292096527.33吊筋1616*16*0.00617*2*9.3629.5686144搭接接头10*550+28(个)主筋2222*22*0.00617*22*（64.4-8.3+35*0.022）3736.254359箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.87-8.8)/0.25)245.1209047加劲箍1616*16*0.00617*（3.1415*0.7）*（56.87/2+1）102.240808129.435吊筋1616*16*0.00617*2*8.3226.2832128套筒22*6132+30(个)主筋2222*22*0.00617*22*（60.7-8.7+35*0.022）3466.891903箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(52.77-8.0)/0.25)226.36431加劲箍1616*16*0.00617*（3.1415*0.7）*（52.77/2+1）95.1202490427.385吊筋1616*16*0.00617*2*8.727.483648套筒22*5110+28(个)主筋1616*16*0.00617*10*（61.4-10.2+35*0.016）817.559552箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（51.76-8）)109.2050623加劲箍1616*16*0.00617*（3.1415*0.7）*（51.76/2+1）93.366160126.88吊筋1616*16*0.00617*2*10.733.801728搭接接头10*550+27(个)主筋2222*22*0.00617*22*（63.6-7.87+35*0.022）3711.94604箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.5-8.8)/0.25)243.8357306加劲箍1616*16*0.00617*（3.1415*0.7）*（56.5/2+1）101.598221129.25吊筋1616*16*0.00617*2*8.3726.4411648套筒22*6132+30(个)主筋2222*22*0.00617*22*（61.9-8.3+35*0.022）3572.008959箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(54.37-8)/0.25)232.2691639加劲箍1616*16*0.00617*（3.1415*0.7）*（54.37/2+1）97.8990038128.185吊筋1616*16*0.00617*2*8.827.799552套筒22*6132+29(个)主筋2222*22*0.00617*22*（61.4-8.08+35*0.022）3553.613474箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(54.09-8)/0.25)231.2965997加劲箍1616*16*0.00617*（3.1415*0.7）*（54.09/2+1）97.4127217228.045吊筋1616*16*0.00617*2*8.5827.1045632套筒22*5110+28(个)67#177#3#159#124#169#55#156#主筋2222*22*0.00617*22*（65.8-8.2+35*0.022）3834.801599箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(58.37-8.8)/0.25)250.3310699加劲箍1616*16*0.00617*（3.1415*0.7）*（58.37/2+1）104.845890730.185吊筋1616*16*0.00617*2*8.727.483648套筒22*6132+31(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.02 6.3812608搭接接头8*324+15(个)主筋2222*22*0.00617*22*（65-8.06+35*0.022）3791.440814箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.71-8.8)/0.25)248.0385972加劲箍1616*16*0.00617*（3.1415*0.7）*（57.71/2+1）103.699654429.855吊筋1616*16*0.00617*2*8.5627.0413824套筒22*6132+30(个)主筋2222*22*0.00617*22*（61-8.46+35*0.022）3502.36891箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(53.31-8)/0.25)228.5873138加劲箍1616*16*0.00617*（3.1415*0.7）*（53.31/2+1）96.0580787827.655吊筋1616*16*0.00617*2*8.9628.3049984套筒22*5110+28(个)主筋1616*16*0.00617*10*（61.3-0.18）965.402624箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（61.12-8.8）)123.5851182加劲箍1616*16*0.00617*（3.1415*0.7）*（61.12/2+1）109.621875531.56吊筋16无/搭接接头10*660+32(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.668.4030464搭接接头8*324+15(个)主筋2222*22*0.00617*22*（64.3-8.56+35*0.022）3712.603022箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(56.51-8.8)/0.25)243.870465加劲箍1616*16*0.00617*（3.1415*0.7）*（56.51/2+1）101.615588329.255吊筋1616*16*0.00617*2*9.0628.6209024套筒22*6132+30(个)主筋2222*22*0.00617*22*（64.2-8.44+35*0.022）3713.916985箍筋88*8*0.00617*(3.1415*0.7)*(41+48+(56.53-8.8)/0.25)243.0715731加劲箍1616*16*0.00617*（3.1415*0.7）*（56.53/2+1）101.650322729.265吊筋1616*16*0.00617*2*8.9428.2418176套筒22*6132+30(个)157#立柱09#104#66#78#立柱19#35#71#主筋1616*16*0.00617*10*（61.2-8.98+35*0.016）833.670656箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.78-8）)110.0907903加劲箍1616*16*0.00617*（3.1415*0.7）*（52.78/2+1）95.1376162627.39吊筋1616*16*0.00617*2*9.4829.9476992搭接接头10*550+28(个)主筋1616*16*0.00617*10*（61.3-7.56+35*0.016）857.67936箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（54.3-8）)111.4106989加劲箍1616*16*0.00617*（3.1415*0.7）*（54.3/2+1）97.7774332928.15吊筋1616*16*0.00617*2*8.0625.4618624搭接接头10*660+29(个)主筋2222*22*0.00617*22*（61.2-8.44+35*0.022）3516.822505箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(53.53-8)/0.25)229.3514714加劲箍1616*16*0.00617*（3.1415*0.7）*（53.53/2+1）96.4401575627.765吊筋1616*16*0.00617*2*8.9428.2418176套筒22*5110+28(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.788.7821312搭接接头8*324+15(个)主筋2222*22*0.00617*22*61.84060.146288箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(61.8-8.8)/0.25)262.2449809加劲箍1616*16*0.00617*（3.1415*0.7）*（61.8/2+1）110.802846231.9吊筋16无套筒22*6132+31(个)主筋2222*22*0.00617*22*（65-8.42+35*0.022）3767.789476箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.35-8.8)/0.25)246.7881575加劲箍1616*16*0.00617*（3.1415*0.7）*（57.35/2+1）103.074434629.675吊筋1616*16*0.00617*2*8.9228.1786368套筒22*6132+30(个)主筋2222*22*0.00617*22*64.34224.391688箍筋88*8*0.00617*(3.1415*0.7)*(41+57+(64.3-9.6)/0.25)275.0967217加劲箍1616*16*0.00617*（3.1415*0.7）*（64.3/2+1）115.144650633.15吊筋16无套筒22*7154+34(个)主筋1616*16*0.00617*10*（64.3-9.1+35*0.016）880.740352箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（55.76-8）)112.6785057加劲箍1616*16*0.00617*（3.1415*0.7）*（55.76/2+1）100.31304728.88吊筋1616*16*0.00617*2*9.5130.0424704106#158#27#52#179#121#立柱23#96#搭接接头10*660+29(个)主筋1616*16*0.00617*10*（61.3-9.17+35*0.016）832.249088箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.69-8）)109.9683515加劲箍1616*16*0.00617*（3.1415*0.7）*（52.69/2+1）94.981311327.345吊筋1616*16*0.00617*2*9.6730.5479168搭接接头10*550+28(个)主筋1616*16*0.00617*10*61.1965.08672箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（52.69-8.8）)116.2648361加劲箍1616*16*0.00617*（3.1415*0.7）*（61.1/2+1）109.58714131.55吊筋16无搭接接头10*660+32(个)主筋2222*22*0.00617*22*（68-8.62+35*0.022）3951.744324箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(60.15-8.8)/0.25)256.5137992加劲箍1616*16*0.00617*（3.1415*0.7）*（60.15/2+1）107.937255431.075吊筋1616*16*0.00617*2*9.1228.8104448套筒22*6132+32(个)主筋2222*22*0.00617*22*（65.3-8.21+35*0.022）3801.295538箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(57.86-8.8)/0.25)248.5596137加劲箍1616*16*0.00617*（3.1415*0.7）*（57.86/2+1）103.960162629.93吊筋1616*16*0.00617*2*8.7127.5152384套筒22*6132+30(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.929.2243968搭接接头8*324+15(个)主筋2222*22*0.00617*22*（61.3-8.73+35*0.022）3504.339854箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(53.34-8)/0.25)228.6915171加劲箍1616*16*0.00617*（3.1415*0.7）*（53.34/2+1）96.1101804327.67吊筋1616*16*0.00617*2*9.2329.1579392套筒22*5110+28(个)主筋2222*22*0.00617*22*（62.7-8.46+35*0.022）3614.055782箍筋88*8*0.00617*(3.1415*0.7)*(41+49+(55.01-8.8)/0.25)238.6602999加劲箍1616*16*0.00617*（3.1415*0.7）*（55.01/2+1）99.010*******.505吊筋1616*16*0.00617*2*8.9628.3049984套筒22*6132+29(个)主筋1616*16*0.00617*10*（61.7-7.78+35*0.016）860.522496箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（54.48-8.8）)117.819202加劲箍1616*16*0.00617*（3.1415*0.7）*（54.48/2+1）98.090043228.24105#立柱24#123#144#6#181#23#33#吊筋1616*16*0.00617*2*8.2826.1568512搭接接头10*660+29(个)主筋2222*22*0.00617*22*（61-8.85+35*0.022）3476.746627箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(52.92-8)/0.25)227.2326709加劲箍1616*16*0.00617*（3.1415*0.7）*（52.92/2+1）95.380757327.46吊筋1616*16*0.00617*2*9.3529.537024套筒22*5110+28(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.347.3921536搭接接头8*324+15(个)主筋1616*16*0.00617*10*（60.8-8.8+35*0.016）830.195712箍筋88*8*0.00617*(3.1415*0.7)*(41+41+（52.56-8）)109.8997509加劲箍1616*16*0.00617*（3.1415*0.7）*（52.56/2+1）94.7555374827.28吊筋1616*16*0.00617*2*9.329.379072搭接接头10*550+28(个)主筋1616*16*0.00617*10*（61.6-7.86+35*0.016）857.67936箍筋88*8*0.00617*(3.1415*0.7)*(41+49+（54.3-8.8）)117.6628971加劲箍1616*16*0.00617*（3.1415*0.7）*（54.3/2+1）97.7774332928.15吊筋1616*16*0.00617*2*8.3626.4095744搭接接头10*660+29(个)主筋2222*22*0.00617*22*65.94329.508744箍筋88*8*0.00617*(3.1415*0.7)*(41+57+(52.92-9.6)/0.25)235.5689352加劲箍1616*16*0.00617*（3.1415*0.7）*（65.9/2+1）117.923405333.95吊筋16无套筒22*7154+34(个)主筋2222*22*0.00617*22*（61.8-8.79+35*0.022）3533.247045箍筋88*8*0.00617*(3.1415*0.7)*(41+41+(53.78-8)/0.25)230.2198323加劲箍1616*16*0.00617*（3.1415*0.7）*（53.78/2+1）96.8743379927.89吊筋1616*16*0.00617*2*9.2929.3474816套筒22*5110+28(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.327.3289728搭接接头8*324+15(个)主筋1616*16*0.00617*10*（-(-0.34-62.7)-10.2+35*0.016）843.46368箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(53.61-8)/0.25)228.76098628#4月23日立柱20#180#8#42#4月22日145#4月22日立柱10#4月22日6#95#加劲箍1616*16*0.00617*（3.1415*0.7）*（53.61/2+1）96.5790952927.805吊筋1616*16*0.00617*2*9.3629.5686144搭接接头10*550+28(个)主筋2222*22*0.00617*22*（-(-0.16-64.5)-10+35*0.022）3641.649009箍筋88*8*0.00617*(3.1415*0.7)*(41+48+(55.43-8.8)/0.25)239.2507852加劲箍1616*16*0.00617*（3.1415*0.7）*（55.43/2+1）99.7399288428.715吊筋1616*16*0.00617*2*9.3429.5054336套筒22*6132+29(个)主筋2222*22*0.00617*22*（-(-0.34-60.8)-10+35*0.022）3410.391486箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(51.91-8)/0.25)222.8561321加劲箍1616*16*0.00617*（3.1415*0.7）*（51.91/2+1）93.6266683626.955吊筋1616*16*0.00617*2*9.1929.0315776套筒22*5110+27(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.447.7080576搭接接头8*324+15(个)主筋2222*22*0.00617*22*（-(-0.15-60.3)-10+35*0.022）3365.059755箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(51.22-8)/0.25)220.4594562加劲箍1616*16*0.00617*（3.1415*0.7）*（51.22/2+1）92.4283303626.61吊筋1616*16*0.00617*2*9.3529.537024套筒22*5110+27(个)主筋2222*22*0.00617*22*（-(-0.27-62.2)-10+35*0.022）3497.770038箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(53.24-8)/0.25)227.4758119加劲箍1616*16*0.00617*（3.1415*0.7）*（53.24/2+1）95.9365082527.62吊筋1616*16*0.00617*2*9.1828.9999872套筒22*5110+28(个)主筋2222*22*0.00617*22*（-(-0.03-65.6)-10+35*0.022）3705.376224箍筋88*8*0.00617*(3.1415*0.7)*(41+48+(56.4-8.8)/0.25)242.6200254加劲箍1616*16*0.00617*（3.1415*0.7）*（56.4/2+1）101.424548929.2吊筋1616*16*0.00617*2*9.1228.8104448套筒22*6132+30(个)主筋2222*22*0.00617*22*（-(-0.47-64.2)-9.7+35*0.022）3662.015438箍筋88*8*0.00617*(3.1415*0.7)*(41+48+(55.74-8.8)/0.25)240.3275527加劲箍1616*16*0.00617*（3.1415*0.7）*（55.74/2+1）100.278312628.87吊筋1616*16*0.00617*2*8.6827.4204672套筒22*6132+29(个)主筋2222*22*0.00617*22*（-(-0.31-60.9)-10+35*0.022）3414.99035741#4月25日107#4月26日4月26日28#4月23日108#4月23日120#4月23日立柱2#4月23日94#4月24日142#4月25日箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(51.98-8)/0.25)223.0992732加劲箍1616*16*0.00617*（3.1415*0.7）*（51.98/2+1）93.7482388826.99吊筋1616*16*0.00617*2*9.1428.8736256套筒22*5110+27(个)主筋1616*16*0.00617*10*（-(-0.19-63.5)-10.2+35*0.016）853.73056箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(54.05-8)/0.25)230.2893011加劲箍1616*16*0.00617*（3.1415*0.7）*（54.05/2+1）97.3432528528.025吊筋1616*16*0.00617*2*9.6129.5686144搭接接头10*550+28(个)主筋1616*16*0.00617*10*（-(-0.35-61.7)-9+35*0.016）846.780672箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(53.61-8)/0.25)228.760986加劲箍1616*16*0.00617*（3.1415*0.7）*（53.61/2+1）96.5790952927.805吊筋1616*16*0.00617*2*8.2526.06208搭接接头10*550+28(个)主筋2222*22*0.00617*22*（-(-0.39-61.5)-10+35*0.022）3459.665106箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(52.66-8)/0.25)225.4612147加劲箍1616*16*0.00617*（3.1415*0.7）*（52.66/2+1）94.9292096527.33吊筋1616*16*0.00617*2*9.0628.6209024套筒22*5110+28(个)主筋2020*20*0.00617*8*（37.1-9.1）552.832箍筋88*8*0.00617*(3.1415*0.7)*(（3.24/0.1）+1+（37.1-9.1-3.24)/0.2+1）=8252.7867944加劲箍1616*16*0.00617*（3.1415*0.7）*（（37.1-9.1）/2+1）52.10165184吊筋1616*16*0.00617*2*2.788.7821312搭接接头8*324+15(个)主筋2222*22*0.00617*22*（-(-0.35-62.8)-10+35*0.022）3542.444787箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(53.92-8)/0.25)229.8377535加劲箍1616*16*0.00617*（3.1415*0.7）*（53.92/2+1）97.1174790327.96吊筋1616*16*0.00617*2*9.1028.747264套筒22*5110+28(个)主筋2222*22*0.00617*22*（-(-0.21-66.3)-10+35*0.022）3763.190605箍筋88*8*0.00617*(3.1415*0.7)*(41+48+(57.28-8.8)/0.25)245.6766556加劲箍1616*16*0.00617*（3.1415*0.7）*（57.28/2+1）102.95286429.64吊筋1616*16*0.00617*2*9.2429.1895296套筒22*6132+30(个)主筋2222*22*0.00617*22*（-(-0.29-60.8)-10+35*0.022）3407.106578箍筋88*8*0.00617*(3.1415*0.7)*(41+40+(51.86-8)/0.25)222.68246加劲箍1616*16*0.00617*（3.1415*0.7）*（51.86/2+1）93.53983227吊筋1616*16*0.00617*2*9.1628.936806426.93套筒22*5110+27(个)立柱22#4月27日143#4月28日150#4月29日117#4月29日118#4月26日30#4月27日9#4月27日93#4月27日。

桥梁桩基础课程设计任务书1、桥墩组成：该桥墩基础由两根钻孔灌注桩组成。

桩径采用φ=1.2m ，墩柱直径采用φ=1.0m 。

桩底沉淀土厚度t = (0.2~0.4)d 。

局部冲刷线处设置横系梁。

2、地质资料：标高25m 以上桩侧土为软塑亚粘土，其各物理性质指标为：容量γ=18.5kN /m 3，土粒比重G=2.70g/3cm ，天然含水量%21=ω，液限%7.22=l ω，塑限%3.16=p ω。

标高25m 以下桩侧及桩底土均为硬塑性亚粘土，其物理性质指标为：容量γ=19.5kN /m 3，土粒比重G=2.70g/3cm ，天然含水量%8.17=ω，液限%7.22=l ω，塑限%3.16=p ω。

3、桩身材料：桩身采用25号混凝土浇注，混凝土弹性模量αMP E h 41085.2⨯=，所供钢筋有Ⅰ级钢和Ⅱ级纲。

4、计算荷载⑴ 一跨上部结构自重G=2350kN ；⑵ 盖梁自重G 2=350kN⑶ 局部冲刷线以上一根柱重G 3应分别考虑最低水位及常水位情况；⑷公路Ⅱ级 ：双孔布载，以产生最大竖向力； 单孔布载，以产生最大偏心弯矩。

支座对桥墩的纵向偏心距为3.0=b m （见图2）。

计算汽车荷载时考虑冲击力。

⑸ 人群荷载：双孔布载，以产生最大竖向力； 单孔布载，以产生最大偏心弯矩。

⑹ 水平荷载（见图3）制动力：H 1=22.5kN （4.5）；盖梁风力：W 1=8kN （5）；柱风力：W 2=10kN （8）。

采用常水位并考虑波浪影响0.5m ，常水位按45m计，以产生较大的桩身弯矩。

W2的力臂为11.25m。

活载计算应在支座反力影响线上加载进行。

支座反力影响线见图4。

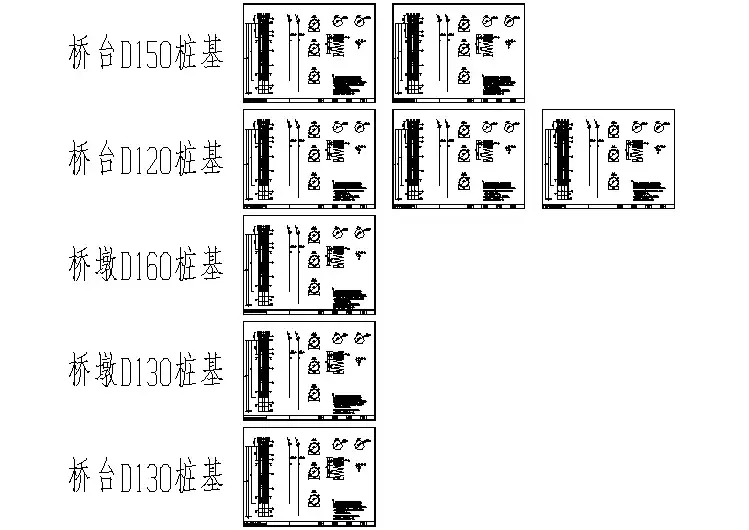

2、桩基础配筋图3、桩基础钢筋数量表桥梁桩基础课程设计计算书一、恒载计算（每根桩反力计算）1、上部结构横载反力N1N1=1/2*G1=1/2*2000(30/20)^1.2=1626.7KN2、盖梁自重反力N2221135017522N G kN=⨯=⨯=3、系梁自重反力N331(0.71)(11) 3.325292N kN =⨯⨯⨯⨯⨯⨯=(?)4、一根墩柱自重反力N4低水位：()22411258.32510 5.1223.8544N kNππ⨯⨯=⨯⨯+-⨯⨯=常水位：()2241125 4.825108.6196.9144N kNππ⨯⨯=⨯⨯+-⨯⨯=5、桩每延米重N5（考虑浮力）()25 1.22510116.964N kN π⨯=-⨯⨯=二、活载反力计算1、活载纵向布置时支座最大反力⑴、公路II 级：7.875/k q kN m =，193.5k p kN =Ⅰ、 单孔布载 1290.76R kN =Ⅲ、双孔布载 2581.52R kN =⑵、人群荷载ϕ人=1.33三、荷载组合1、计算墩柱顶最大垂直反力R组合Ⅰ：R= 恒载 +（1+u ）汽ϕ汽车+ 人ϕ人群 （汽车、人群双孔布载）1175175(10.3) 1.25581.521 1.33 3.524.42408.55R kN =+++⨯⨯⨯+⨯⨯=2、计算桩顶最大弯矩⑴、计算桩顶最大弯矩时柱顶竖向力组合Ⅰ：R= 1N +2N +（1+u ）汽ϕ∑i i y P + 人ϕql 21（汽车、人群单孔布载）11175175 1.3 1.25290.761 1.33 3.524.41879.282R kN =++⨯⨯⨯+⨯⨯⨯=⑵、计算桩顶（最大冲刷线处）的竖向力0N 、水平力0Q 和弯矩0M0N = max R +3N + 4N （常水位）2408.5529196.912631.71kN=++=0Q = 1H + 1W + 2W 22.581040.5kN=++= 0M = 14.71H + 14.051W + 11.252W + 0.3活max R=()14.722.514.05811.25100.32408.551175175873.22kN m⨯+⨯+⨯+⨯--=⋅活max R ——组合Ⅰ中活载产生的竖向力的较大者。
