Router#sh

00:21:46: %SYS-5-CONFIG_I: Configured from console by console run

Building configuration...

Current configuration:

version 12.0

service config

service timestamps debug uptime

service timestamps log uptime

no service password-encryption

hostname Router

enable secret 5 $1$EquO$SRkNp.arQ30KRRWkl8xVV1

ip subnet-zero

no ip finger

interface FastEthernet0/0

ip address 192.168.100.1 255.255.255.0

ip helper-address 10.11.45.3

no ip directed-broadcast

no ip mroute-cache

full-duplex

no cdp enable

no mop enabled

interface FastEthernet0/0.45

encapsulation dot1Q 45

ip address 10.11.45.1 255.255.255.0

ip access-group 100 out

ip helper-address 10.11.45.7

no ip directed-broadcast

interface FastEthernet0/0.46

encapsulation dot1Q 46

ip address 10.11.46.1 255.255.255.0

ip access-group 100 out

ip helper-address 10.11.45.7

no ip directed-broadcast

interface FastEthernet0/0.47

encapsulation dot1Q 47

ip address 10.11.47.1 255.255.255.0

ip access-group 100 out

ip helper-address 10.11.45.7

no ip directed-broadcast

interface FastEthernet0/0.100

encapsulation dot1Q 100

ip address 172.16.100.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.121 encapsulation dot1Q 121

ip address 172.16.121.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.122

encapsulation dot1Q 122

ip address 172.16.122.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.123

encapsulation dot1Q 123

no ip directed-broadcast

interface FastEthernet0/0.131

encapsulation dot1Q 131

ip address 172.16.131.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.132

encapsulation dot1Q 132

ip address 172.16.132.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.133

encapsulation dot1Q 133

ip address 172.16.133.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.141

encapsulation dot1Q 141

ip address 172.16.141.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.142

encapsulation dot1Q 142

ip address 172.16.142.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.143

encapsulation dot1Q 143

ip address 172.16.143.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.151

encapsulation dot1Q 151

ip address 172.16.151.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.152

encapsulation dot1Q 152

ip address 172.16.152.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.161

encapsulation dot1Q 161 ip address 172.16.161.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.162

encapsulation dot1Q 162

ip address 172.16.162.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.163

encapsulation dot1Q 163

ip address 172.16.163.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.171

encapsulation dot1Q 171

ip address 172.16.171.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.172

encapsulation dot1Q 172

ip address 172.16.172.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.173

encapsulation dot1Q 173

ip address 172.16.173.1 255.255.255.0

no ip directed-broadcast

interface FastEthernet0/0.200

encapsulation dot1Q 200

ip address 172.16.200.1 255.255.255.0

no ip directed-broadcast

interface ATM1/0

ip address 10.130.22.2 255.255.255.0

ip access-group 101 in

ip access-group 101 out

no ip redirects

no ip unreachables

no ip directed-broadcast

no atm ilmi-keepalive

pvc 15/50

protocol ip 10.130.22.1 broadcast

ip classless

ip route 0.0.0.0 0.0.0.0 10.130.22.1

no ip http server

access-list 100 permit ip any host 10.11.45.2

access-list 100 permit ip any host 10.11.45.3

access-list 100 permit ip any host 10.11.45.4

access-list 100 permit ip any host 10.11.45.5

access-list 100 permit ip any host 10.11.45.6 access-list 100 permit ip any host 10.11.45.7

access-list 100 permit ip any host 10.11.45.8

access-list 100 permit ip any host 10.11.45.9

access-list 100 permit ip any host 10.11.45.10

access-list 100 permit ip any host 10.11.45.11

access-list 100 permit ip any host 10.11.45.12

access-list 100 permit ip any host 10.11.45.13

access-list 100 permit ip any host 10.11.45.14

access-list 100 permit ip any host 10.11.45.15

access-list 100 deny ip 172.16.0.0 0.0.255.255 any

access-list 100 permit ip any any

access-list 101 deny tcp any any eq 135

access-list 101 deny tcp any any eq 4444

access-list 101 deny tcp any any eq 139

access-list 101 deny udp any any eq 1434

access-list 101 deny tcp any any eq 445

access-list 101 deny tcp any any eq telnet

access-list 101 permit ip any any

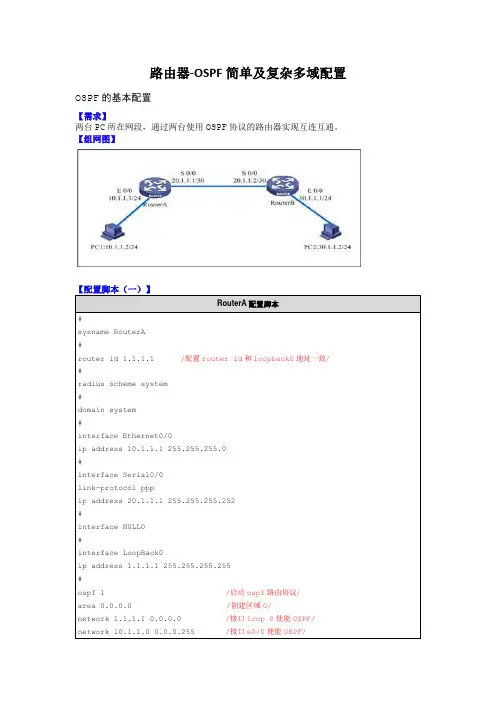

路由器-OSPF简单及复杂多域配置

OSPF的基本配置

【需求】

两台PC所在网段，通过两台使用OSPF协议的路由器实现互连互通。

【组网图】

【配置脚本（一）】

RouterA配置脚本

sysnameRouterA

router id 1.1.1.1 /配置router id和loopback0地址一致/

radius scheme system

domain system

interface Ethernet0/0

ip address 10.1.1.1 255.255.255.0

interface Serial0/0

link-protocol ppp

ip address 20.1.1.1 255.255.255.252

interface NULL0

interface LoopBack0

ip address 1.1.1.1 255.255.255.255

ospf 1 /启动ospf路由协议/

area 0.0.0.0 /创建区域0/

network 1.1.1.1 0.0.0.0 /接口loop 0使能OSPF/

network 10.1.1.0 0.0.0.255 /接口e0/0使能OSPF/ network 20.1.1.0 0.0.0.3 /接口s0/0使能OSPF/

user-interface con 0

user-interface vty 0 4

return

RouterB配置脚本

sysnameRouterB

router id 1.1.1.2 /配置router id和loopback0地址一致/

radius scheme system

domain system

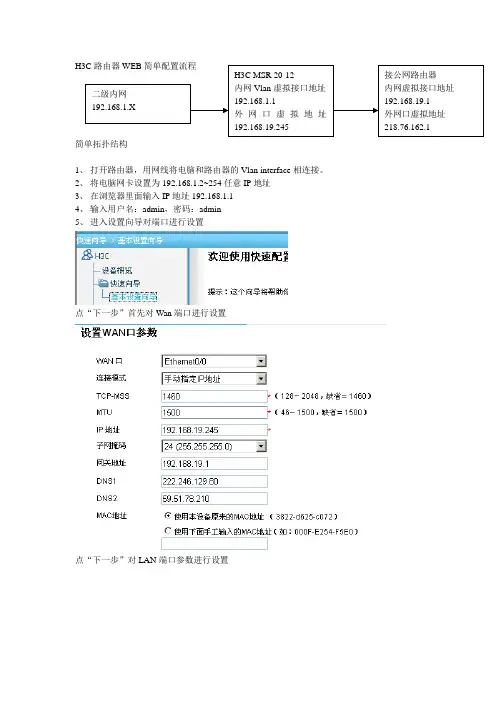

H3C路由器WEB简单配置流程

简单拓扑结构

1、打开路由器，用网线将电脑和路由器的Vlan interface相连接。

2、将电脑网卡设置为192.168.1.2~254任意IP地址

3、在浏览器里面输入IP地址192.168.1.1

4、输入用户名：admin，密码：admin

5、进入设置向导对端口进行设置

点“下一步”首先对Wan端口进行设置

点“下一步”对LAN端口参数进行设置二级内网

192.168.1.X H3C MSR 20-12

内网Vlan虚拟接口地址

192.168.1.1

外网口虚拟地址192.168.19.245 接公网路由器

内网虚拟接口地址

192.168.19.1

外网口虚拟地址

218.76.162.1

6、设置NAT地址转换

外网IP地址：192.168.19.245做NAT地址转换，以满足内网地址利用该地址共享上网。

7、设置静态路由

添加一条静态路由将所有内网地址访问请求指向外网网关192.168.19.1。

完成配置。

夜鹰 AC2600 智能 WiFi 路由器数据表说明书

R7450

Faster for Mobile Devices

Nighthawk

® AC2600 Smart WiFi

Router accelerates your WiFi for

Ultra HD 4K streaming to multiple

devices. It offers extreme WiFi

speed for gaming—up to 2600Mbps and uninterrupted video streaming

with advanced QoS for applications

like YouTube

®, Netflix

®, & others.

Implicit Beamforming improves

WiFi speed & range on all mobile devices like iPhone

®, iPad

® &

Android

®. Nighthawk

® App lets you

get the most out of your router

performance with customized

settings.

Data Sheet |

R7450

Nighthawk

® AC2600 Smart WiFi Router

GAMING | FOR THE WIN

• Extreme WiFi speed for gaming—up to 2600Mbps

• Dual-core processor boosts wireless, wired & WAN-to-LAN performance

• Advanced QoS for lag-free gaming

• Extreme range with three amplifiers & external antennas for best connectivity

• Beamforming+ for improved WiFi range & performance across both

39烽火R2600(R2640)路由器配置

R2640路由器（千兆以太）配置；ena；conf；hostHWJDE；aaaauthenticationloginde；aaaauthenticationenabled；usernamerootpasswordadmi；enablepasswordadmin；interfaceGigaEthernet0/0；descriptionR260；ipaddres

R2640路由器（千兆以太）配置

ena

conf

host HWJDE

aaa authentication login default local

aaa authentication enable default enable

username root password admin

enable password admin

interface GigaEthernet0/0.222

description R260

ip address 222.50.4.6 255.255.255.248

encapsulation dot1Q 222

ip nat outside

interface vl 1

ip address 192.168.100.1 255.255.255.0

ip nat inside

quit

ip route default 222.50.4.5 ip access-list standard fs1

permit 192.168.100.0 255.255.255.0

quit

ip dhcpd pool fs1

network 10.0.0.0 255.255.255.0

range 10.0.0.2 10.0.0.254

default-router 192.168.100.1

dns-server 118.203.123.116 228.136.17.107

quit
