常用功能说明A:前缀及后缀B:数字分机电话拨号及转接：一: 数字分机拨0到话务员或直接拨内线分机号码(如32306)或拨9+外线号码(如9013908047888或986200333)并与之通话;二：数字话机电话转接：外线来电→提起听筒接听→若转内部电话，则直接拨要转接的内线分机号码并挂机即可。

三:数字话机对内线分机三方通话(如数字话机3300)外线来电经过话务员转接到3300分机→3300分机摘机接听→若3300分机将把其他任意一内线分机如3500加入三方通话中→3300分机则直接拨另一分机如3500并与分机3500通话→此时外线来话被保持并听音乐→此时3300分机拨话机键盘上的数字键“3”即可实现三方通话；四:数字话机对外线实现三方通话(如数字话机3300)外线来电经过话务员转接到3300分机→3300分机摘机接听→若3300分机将把其他任意一外线号码如013908047888或86200333加入三方通话中→3300分机则直接拨9013908047888或986200333并与外线通话→此时第一条外线来话被保持并听音乐→3300分机此时拨话机键盘上的数字键“3”即可实现三方通话；C:模拟分机电话拨号及转接：一: 模拟分机拨0到话务员或直接拨内线分机号码(如32306)或拨9+外线号码(如9013908047888或986200333)并与之通话;二：模拟分机电话转接：外线来电→提起听筒接听→若转内部分机，则轻轻的快速拍叉簧听语音提示“请拨您要的分机号码”并直接拨要转接的内线分机号码并挂机即可。

三:模拟分机对内线分机三方通话(如模拟分机3301)外线来电经过话务员转接到3301分机→3301分机摘机接听→若3301分机将把其他任意一内线分机如3500加入三方通话中→3301分机则轻轻的快速拍叉簧听语音提示“请拨您要的分机号码”并直接拨要转接的内线分机号码并与之通话→此时外线来话被保持并听音乐→此时3301分机需要再次轻轻的快速拍叉簧重新与外线通话→此时内线分机被保持并听音乐→3301分机拨话机键盘上的数字键“3”即可实现三方通话；四:模拟分机对外线实现三方通话(如模拟分机3301)外线来电经过话务员转接到3301分机→3301分机摘机接听→若3301分机将把其他任意一外线号码如013908047888或86200333加入三方通话中→则3301分机轻轻的快速拍叉簧听语音提示“请拨您要的分机号码”并直接拨9013908047888或986200333并与外线通话→此时第一条外线来话被保持并听音乐→此时3301分机需要再次轻轻的快速拍叉簧重新与第一条外线通话→此时第二条外线被保持并听音乐→3301分机拨话机键盘上的数字键“3”即可实现三方通话；4400交换机功能板CPU3 CPU5 (20\6榜)主控板 (板上有CPU\硬盘\内存条等主控设备)Z12\Z24 模拟用护板(板上有12-24个模拟端口)VA16\VA32 数字用户板(板上有16—32数字端口)VG 语言板SUVG SU语音板MMSFD (11)软驱板(用于数据的备份和恢复)GPA 功能辅助板(提供29方会议功能及SUVG功能内部链路连接电路板:交换机通过电路板连接多个ACTRT4 (提供一个2M通路)INTOF (提供一个8M通路可接光纤)。

阿尔卡特IP话机使用手册适用范围:公司内部所有IP话机一、基本功能：1.1、转接功能：双方通话完毕后，需要将对方电话转到第三方，则使用转接功能具体操作：通话过程当中，拨打需要转接到的第三方号码，按下转接键，即可完成转接功能。

操作案例：（133）通话过程当中，将对方电话转给第三方158的操作）4008话机操作：133通话中，拨打158分机号，按下右下角的6个功能键的倒数第二个“”，完成转接操作。

4068/4028话机操作：133通话中，拨打158分机号，按下屏幕上显示的“转接”对应的功能键，完成转接操作。

1.2、呼叫代接/驻留：其他分机振铃时，可以在本机上接听该分机的来电。

驻留/取回：在通话过程中，可以保持该通话，而对方无法听到本机这方，可在本机或其他分机上取回该通话。

使用操作：如133在振铃，无人接听和转移的状态下，在本机上按下*72→133即可接听该来电。

[驻留]133与158在通话过程当中，158按下*75→133驻留与133的通话，在163分机上再按下*75→133取回该通话，继续同133通话。

1.3、转移服务：可以将拨打至本机的所有来电转移到指定的电话号码（其他同事分机/本人手机/家庭电话等）1.立即转移(*61)：立刻将所有来电进行转移到指定的电话号码，直至取消转移为止。

2.遇忙转移(D01)：正在通话中，有其他号码呼叫本分机时，可转移到指定的电话号码。

（本功能未定义快捷键方式。

）3.无应答转移(*62)：其他电话呼叫本机，而本机长时间未应答时，自动将来电转到指定的号码。

4.忙/无应答转移(*63)：其他电话呼叫本机，本机忙或者长时间未应答时，自动将来电转到指定的号码。

5.取消转移(*64)：取消在话机上设置的转移。

6.取消跟随(D05)：取消在话机上设置的跟随（本功能未定义快捷键方式。

）7.远程转移(*88)：指定本机拨打某个号码时，转移到另外一个指定的号码。

（相当于远程操控将某个分机立即转移到其他的分机。

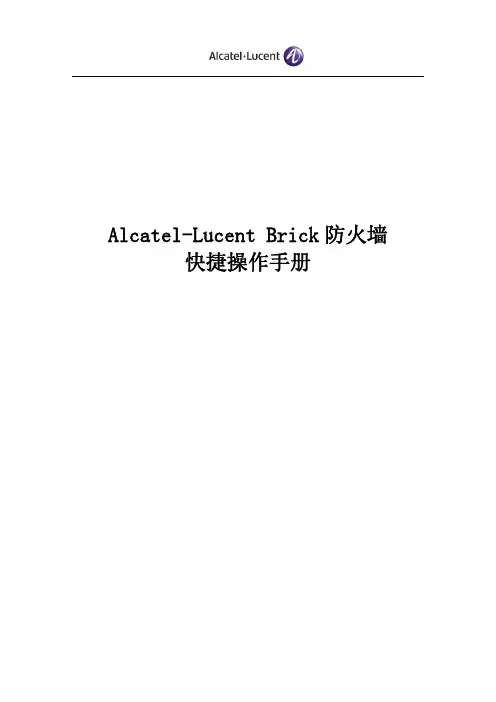

Alcatel-Lucent Brick防火墙快捷操作手册目录一、简介 (4)二、安装管理软件（SMS） (5)2.1最低硬件需求： (5)2.2软件需求： (5)2.3预安装需求： (6)2.4安装SMS： (6)三、SMS管理 (8)3.1、开始 (8)3.1.1、登陆 (8)3.1.2、使用导航视窗 (9)3.2、配置并激活一个B RICK (11)3.2.1、Brick工作模式 (11)3.2.2、配置Brick (11)3.2.3、激活Brick (14)3.2.4、检查Brick状态 (14)四、策略管理 (16)4.1、B RICK Z ONE R ULESET (16)4.1.1、什么是Zone Ruleset (16)4.1.2、Zone Ruleset规划 (16)4.1.3、创建Zone Ruleset (18)4.1.4、应用Zone Ruleset (20)4.1.5、检查Zone Ruleset (21)4.2、H OST G ROUPS (22)4.2.1、什么是Host Groups (22)4.2.2、Host Groups用途 (22)4.2.3、创建Host Groups (22)4.3、S ERVICE G ROUPS (23)4.3.1、什么是Service Groups (23)4.3.2、Service Groups用途 (24)4.3.3、创建Service Groups (24)4.4、网络地址翻译（NAT） (26)4.3.1、什么是NAT (26)4.3.2、源地址映射 (27)4.3.3、目的地址映射 (29)4.3.4、目的端口映射 (30)五、排错、日志和报表 (31)5.1日志 (31)5.2排错 (31)5.2.1 Brick快照（Brick Snapshot） (32)5.2.2 状态监查工具 (32)5.3生成报表 (34)5.4报警触发 (36)六、配置实例 (39)一、简介Alcatel-Lucent Brick防火墙可提供丰富的企业级和运营商级安全解决方案，保障公司和服务提供商网络的安全。

Alcatel 程控交换机操作一、修改权限（1）xa000000>mgr上面通过回车键来选择在Directory Number：输入你所要修改的分机号码，然后按F1确定出局权限修改：找到Public Network Category : 这一项，输入你要修改的等级对应表：4---内线3---市话2---国内1---国际分机互打权限修改：找到Connection Category Id：这一项输入你要修改的等级对应表：1：表示客房的连接等级0、3、4：表示办公的连接等级1可以拨打1、3、40可以拨打0、3、43可以拨打0、3、44可以拨打0、1、3、4修改好后按F1键确定出现如上的对话框表示成功退出按F2键即可二、代答组1、设置代答组（1）xa000000>mgr上面通过回车键来选择在Directory Number：输入你所要修改的分机号码，然后按F1确定找到Pick up Group Name : 输入组名即可。

2、查看代答组成员mgr----users------Consult/Modify双击回车键，把 All instances 选中光标下移，在Set filters这一项回车，出现如下图光标往下移找到 Pick up Group Name,回车，在Pick up Group Name前面会出现一个+号然后按F1键确认光标移到虚线位置，输入你要查找的代答组名按2下F1键就会出现如下图这样就可以看到在这个代答组里的成员了退出用F2键3、删除代答组删除代答组只能在分机上一个一个的删除找到Pick up Group NamePick up Group Name : ""在后面输入双引号（Shift+双引号）两次然后按F1键确认即可三、直拨号码设定1、创建号码呼出mgr ----users-----Consult/Modify-----在Directory Number：输入你要直拨的号码如134找到Use Personal Calling Number + 改成True然后按F1键确定在Private Calling Number : 输入电信的号码按F1确认号码呼入mgr --在First External Number：输入电信号码First Internal Number：输入内线号码然后按F1键确认即可2、删除照上面的操作，之前选择create 现在选择delete在First External Number：输入电信号码然后按F1确认在usres--- Consult/Modify----- Use Personal Calling Number:原先为True，把其改成Flase 然后按2次F1键即可删除。

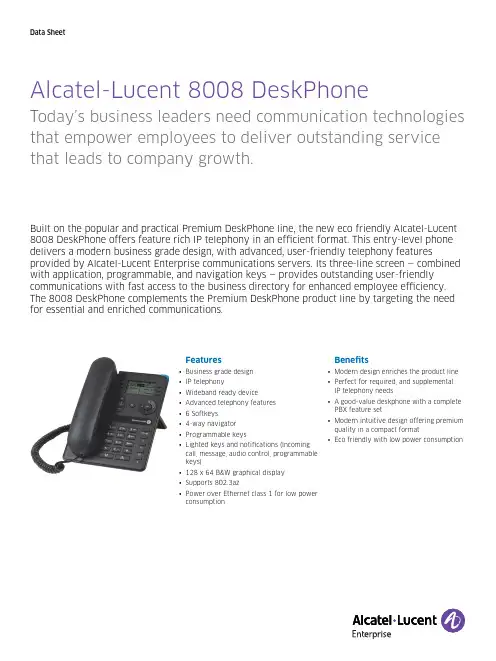

Data SheetAlcatel-Lucent 8008 DeskPhoneToday’s business leaders need communication technologies that empower employees to deliver outstanding service that leads to company growth.Built on the popular and practical Premium DeskPhone line, the new eco friendly Alcatel-Lucent 8008 DeskPhone offers feature rich IP telephony in an efficient format. This entry-level phone delivers a modern business grade design, with advanced, user-friendly telephony features provided by Alcatel-Lucent Enterprise communications servers. Its three-line screen — combined with application, programmable, and navigation keys — provides outstanding user-friendly communications with fast access to the business directory for enhanced employee efficiency. The 8008 DeskPhone complements the Premium DeskPhone product line by targeting the need for essential and enriched communications.Features• Business grade design• IP telephony• Wideband ready device• Advanced telephony features• 6 Softkeys• 4-way navigator• Programmable keys• Lighted keys and notifications (Incoming call, message, audio control, programmable keys)• 128 x 64 B&W graphical display• Supports 802.3az• Power over Ethernet class 1 for low power consumptionBenefits• Modern design enriches the product line • Perfect for required, and supplemental IP telephony needs• A good-value deskphone with a complete PBX feature set• Modern intuitive design offering premium quality in a compact format•Eco friendly with low power consumption Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of Alcatel-Lucent. To view other trademarks used by affiliated companies of ALE Holding, visit: /en/legal/trademarks-copyright. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Neither ALE Holding nor any of its affiliates assumes any responsibility for inaccuracies contained herein. © 2017 ALE International. All rights reserved. 201706300003EN (September 2017)Technical specificationsPhysical characteristics• Height: 195 mm (7.68 in)• Width: 150 mm (5.91 in)• Depth: 34.8 mm (1.37 in)• Weight: 508 g (1.12 lbs) including handset • Color: Moon grey • Fixed foot stand: 45°• Wall-mountableDisplay• Visible area: 2.4 in 128(W) x 64(H) pixels graphical black/white LCD display • Viewing area (WxH): 52 x 26 mm (2.05 x 1.02 in)• Contrast +/-Keys• Volume control keys (+ and -)• Hands-free on/off key • Navigator: 4-way navigation • OK, cancel keys• Numeric to alpha keypad: To switch toalpha character and perform dial-by-name, for example • F1, F2 (or hold/transfer) with LED • Mute and Message keys• Dial pad and call/redial/release key • 6 Contextual keys around the screenAudio characteristics• Wideband G722• G711 (A-law and Mu-law), G.729AB • VAD (Voice activity detection), Comfort noise generation (CNG)• Group listening• Acoustic echo cancellation • Volume controls • Mute control• Hearing aid compatible (HAC)• Wideband comfort handsetPower• Power over Ethernet (IEEE 802.3af) • Class 1 support (<3.84W)• Power supply: Optional accessoryNetwork and provisioning• IP NOE and SIP v2 (RFC3261)• DHCP and static IP manual or dynamic host configuration protocol (DHCP) network setup • IEEE 802.1 AB/LLDP-MED client (automatic VLAN acquisition, PoE management, inventory information)• QoS support (IEEE 802.1p/Q tagging [VLAN], Layer-3 TOS, DSCP, and QoS tickets)Connectivity• RJ-45 LAN: 10/100 Ethernet• RJ-45 PC through 10/100 Ethernet switch • RJ-9 connector for corded handset • RJ-9 connector for headsetSecurity• Supports IPsec VPN• Authentication: Basic or digest, 802.1x • Denial of service (DoS) attack protection: Flooding • ARP spoofing protection • Transport: TLS 1.2/1.0 and SRTP• Shipped with (X509v3) certificateinstalled. Certificates for 802.1x EAP-TLS (either ALE or customer certificates)Languages• Multi-language support (menu): Arabic, Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English (American), English (British), Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norvegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, Taiwanese, TurkishRegulatory StandardsSafety• EN 60950-1, IEC 60950-1, ANSI/UL60950-1, CAN/CSA-C22.2 NO. 60950-1-07EMC• EN 55032 Class B, CISPR 32 Class B • 47 CFR Part 15 B Class B • ICES-003 Class B • EN 55024• EN 61000-3-2, EN 61000-3-3Telecom• TIA/EIA 810-B, TIA 920-A, AS/CA S004Eco-design• ErP 2009/125/EC, ROHS 2011/65/EU, WEEE 2012/19/EUHearing aid compatibility• FCC 47 CFR Part 68, Industry Canada CS-03, Australia AS/ACIF S040Environmental conditions• Operating temperature: -5°C to +45°C • Relative humidity: 5% to 95% • Storage/transportation temperature: -25°C/+70°CServiceability• Syslog mode • Port mirroringProduct ships with• DeskPhone with handset and foot • Safety sheetAccessories• 3MG08011AA External power adapter • 3MG08012AA Wideband handset • 3MG08013AA Wall mounting kit • 3MG08014AA Plastic foot (x10)。

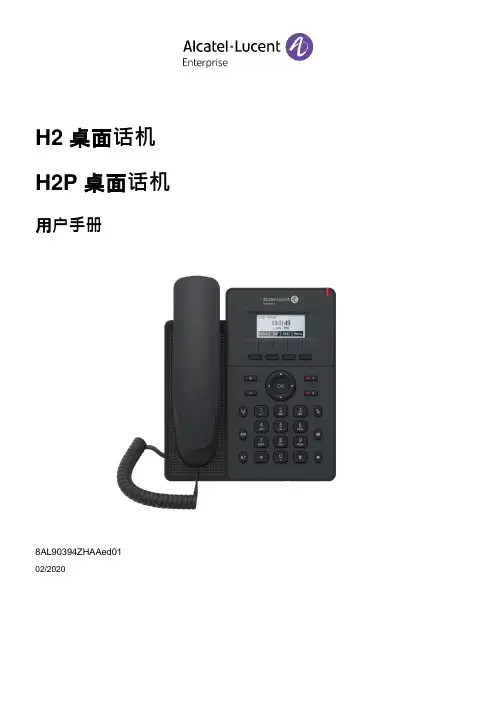

H2 桌面话机H2P 桌面话机用户手册8AL90394ZHAAed0102/2020目录目录 (2)1图片 (6)2表格 (10)3安全须知 (11)4概述 (12)4.1概述 (12)4.2配件说明 (13)5安装向导 (14)5.1PoE及外部电源适配器的使用 (14)5.2桌面及壁挂式安装方法 (15)6附录 (17)6.1附录I - 图标 (17)6.2附录II –键盘字符查询表 (18)6.3附录 III –LED 状态定义 (21)7用户入门 (22)7.1按键说明 (22)7.2手柄、耳机、免提扬声器的使用 (23)7.3待机界面 (24)7.4话机状态 (24)7.5网页管理 (25)7.6网络设置 (26)7.7线路配置 (27)8基本功能 (28)8.1拨打电话 (28)8.2接听来电 (29)8.2.1通话界面 (29)8.2.2拨打/ 接听第二路电话 (30)8.3通话结束 (30)8.4重拔 (30)8.5自动应答 (31)8.6回拨 (31)8.7静音 (32)8.7.1通话中静音 (32)8.8呼叫保持/恢复 (33)8.9免打扰 (33)8.10呼叫前转 (35)8.11呼叫转移 (35)8.11.1盲转 (35)8.11.2半出席转 (36)8.11.3出席转 (36)8.12呼叫等待 (36)8.13会议 (37)8.13.1本地会议 (37)8.13.2网络会议 (38)8.14呼叫驻留 (38)8.15抢接 (39)8.16匿名呼叫 (40)8.16.1匿名呼叫 (40)8.16.2禁止匿名呼叫 (40)8.17热线 (41)8.18紧急呼叫 (42)9高级功能 (43)9.1BLF (Busy Lamp Field) (43)9.1.1配置BLF 功能 (43)9.1.2使用BLF 功能 (44)9.2BLF List (45)9.3录音 (46)9.3.1网络录音 (46)9.3.2SIP INFO录音 (46)9.4代理 (47)9.5对讲 (48)9.6组播 (49)9.7SCA（Shared Call Appearance） (50)9.8信息 (53)9.8.1语信信息MWI（Message Waiting Indicator） (53)10话机设置 (54)10.1基本设置 (54)10.1.1语言 (54)10.1.2时间 (54)10.1.3屏幕 (56)10.1.5音量 (57)10.1.6欢迎词 (57)10.1.7重启 (57)10.2电话本 (58)10.2.1本地联系人 (58)10.2.2黑名单 (59)10.2.3远程电话本 (60)10.3通话记录 (61)10.4功能键 (62)10.5耳机 (63)10.5.1有线耳机 (63)10.6高级设置 (63)10.6.1线路设置 (63)10.6.2网络设置 (64)10.6.3设置秘钥 (67)10.6.4维护 (68)10.6.5在线升级 (70)10.6.6恢复出厂设置 (71)11网页配置 (72)11.1网页的认证 (72)11.2状态>> 信息 (72)11.3状态>> 用户配置 (72)11.4状态>> 系统配置 (72)11.5状态>> 升级 (73)11.6状态>> 自动部署 (73)11.7状态>> 辅助工具 (73)11.8状态>> 重启话机 (73)12网络 >> 基本 (74)12.1网络>> 服务端口 (74)12.2网络>> VPN (75)12.3网络>> 高级 (75)12.4线路>> SIP (75)12.5线路>>拨号规则 (79)12.6线路>> 基本设定 (82)12.7电话设置>> 功能设定 (83)12.8电话设置>> 媒体设置 (85)12.9电话设置>> 组播 (86)12.11电话设置>> 时间/日期 (87)12.12电话设置>> 提示音 (88)12.13电话设置>> 高级 (88)12.14电话本>> 联络人 (89)12.15电话本>> 云电话本 (89)12.16电话本>> 通话名单 (91)12.17电话本>> 网页拨号 (91)12.18电话本>> 高级 (91)12.19通话记录 (91)12.20快捷键>> 快捷键 (92)12.21快捷键>> Softkey设置 (93)12.22快捷键>> 高级 (94)12.23应用>> 录音管理 (94)12.24安全>> 网页过滤 (94)12.25安全>> 信任证书 (95)12.26安全>> 设备证书 (95)12.27安全>> 网络防火墙 (96)12.28设备日志>> 设备日志 (97)13故障排除 (98)13.1获取话机系统信息 (98)13.2重启话机 (98)13.3话机恢复出厂设置 (98)13.4屏幕截图 (98)13.5网络数据抓包 (99)13.6获取log信息 (99)13.7常见故障案例 (100)1 图片图 1 - 桌面式话机安装 (15)图 2 - 壁挂式安装 (15)图 3 - 设备连接 (16)图 4 - 按键说明 (22)图 5 - 屏幕布局 / 默认主界面 (24)图 6 - 卷动图标 (24)图 7 - 话机状态 (25)图 8 - 网页话机状态 (25)图 9 - 网页的登陆页面 (26)图 10 - 话机线路SIP地址及账号信息 (27)图 11 - 网页线路注册 (27)图 12 - 默认线路 (28)图 13 - 开启语音通道前拨号 (28)图 14 - 开启语音通道后拨打号码 (28)图 15 - 呼叫号码 (29)图 16 - 接听来电 (29)图 17 - 通话界面 (29)图 18 - 第二通来电界面 (30)图 19 - 双路通话 (30)图 20 - 重拨设置 (31)图 21 - 线路已启用自动应答 (31)图 22 - 网页启动自动应答 (31)图 23 - 话机设置回拨键 (32)图 24 - 网页设置回拨键 (32)图 25 - 通话中静音 (32)图 26 - 铃声静音 (33)图 27 - 呼叫保持界面 (33)图 28 - 开启免打扰功能 (33)图 29 - 免扰设置界面 (34)图 30 - 启用免打扰定时器 (34)图 31 - 设置DND选项 (34)图 32 - 启用某一线路的勿打扰 (34)图 33 - 设置呼叫前转 (35)图 34 - 转移界面 (35)图 35 - 半出席转 (36)图 37 - 网页设置呼叫等待 (36)图 38 - 网页设置呼叫等待音 (37)图 39 - 设置本地会议 (37)图 40 - 本地会议（1） (37)图 41 - 本地会议（2） (37)图 42 - 网络会议 (38)图 43 - 话机设置通话驻留 (38)图 44 - 网页设置通话驻留 (39)图 45 - 话机抢接设置 (39)图 46 - 网页抢接设置 (39)图 47 - 网页匿名呼叫启用 (40)图 48 - 匿名通话记录 (40)图 49 - 话机禁止匿名呼叫 (40)图 50 - 网页设置禁止匿名呼叫 (41)图 51 - 话机热线设置界面 (41)图 52 - 网页热线设置 (41)图 53 - 设置紧急呼叫号码 (42)图 54 - 呼叫紧急呼叫号码 (42)图 55 - 网页配置BLF功能键 (43)图 56 - 话机配置BLF功能键 (43)图 57 - 配置BLF List功能 (45)图 58 - BLF List 号码显示 (45)图 59 - 网页网络录音 (46)图 60 - 网页 SIP info录音 (46)图 61 - 配置代理账号-normal模式 (47)图 62 - 配置代理账号-Hotel Guest模式 (47)图 63 - 代理登录页面 (48)图 64 - 网页对讲设置 (48)图 65 - 网页对讲键设置 (48)图 66 - 组播快捷键设置 (49)图 67 - 组播设置页面 (49)图 68 - 网页注册BroadSoft (50)图 69 - 网页指定BroadSoft服务器 (51)图 70 - 网页开启SCA (51)图 71 - 网页设置Private Hold功能键 (51)图 72 - 新语音留言通知 (53)图 73 - 语音留言屏幕界面 (53)图 76 - 网页语言设置 (54)图 77 –在网页设置时间&日期 (55)图 78 - 话机设置屏幕参数 (56)图 79 - 网页屏幕设置 (56)图 80 - 话机屏保 (56)图 81 - 话机铃声设定 (57)图 82 - 语音音量设定 (57)图 83 - 电话本界面 (58)图 84 - 本地电话本 (58)图 85 - 添加新的联系人 (58)图 86 - 群组列表 (59)图 87 - 浏览一个群组中的联系人 (59)图 88 - 添加群组联系人 (59)图 89 - 添加黑名单 (59)图 90 - 网页上的黑名单列表 (60)图 91 - 云电话本列表 (60)图 92 - 加载云电话本 (61)图 93 - 浏览云电话本中的联系人 (61)图 94 - 通话记录 (61)图 95 - 筛选通话记录类型 (61)图 96 - 话机 DSSkey设置界面 (62)图 97 - 网页 DSS设置 (62)图 98 - 网页上耳机功能设置 (63)图 99 - 线路账号配置信息 (63)图 100 - 高级设置选项 (63)图 101 - 网络模式设置 (64)图 102 - DHCP网络模式 (64)图 103 - PPPoE网络模式 (64)图 104 - 静态IP模式 (64)图 105 - IPv6静态IP设置 (65)图 106 - 配置网页服务器类型 (66)图 107 –网页菜单密码设置 (67)图 108 –网页键盘锁密码设置 (67)图 109 - 网页自动部署设置 (68)图 110 - 网页在线升级页面 (70)图 111 - 在线升级 (71)图 112 - 服务端口设置界面 (74)图 115 - 拨号规则表（1） (81)图 116 - 拨号规则表（2） (81)图 117 - 拨号规则表（3） (82)图 118 - 拨号规则表（4） (82)图 119 - 网页提示音 (88)图 120 - 网页云电话本管理 (89)图 121 - 网页LDAP配置 (90)图 122 - 网页云电话本浏览 (91)图 123 - DSSkey全局设置 (94)图 124 –可编程键设置 (94)图 125 - 网页过滤设置 (94)图 126 - 网页过滤表 (95)图 127 - 证书设置 (95)图 128 - 设备证书设置 (95)图 129 - 网络防火墙设置 (96)图 130 - 防火墙规则列表 (97)图 131 - 删除防火墙规则 (97)图 132 - 网页屏幕截图 (98)图 133 - 网页抓包工具 (99)2 表格表 1 - 硬件接口说明 (16)表 2 - 按键丝印说明 (17)表 3 - 状态提示及通知图标 (17)表 4 - 字符查询表 (18)表 5 - LED 状态 (21)表 6 - 按键说明 (22)表 7 - 通话模式 (29)表 8 - BLF功能键子类型参数列表 (44)表 9 - 代理模式 (47)表 10 - 对讲模式 (49)表 11 - 网页组播参数 (50)表 12 - 启用SCA的LED状态 (52)表 13 - 时间参数设置 (55)表 14 - 服务质量与虚拟局域网 (65)表 15 - 自动升级 (68)表 16 - 在线升级 (70)表 17 - 服务器端口 (74)表 18 - 网页上的线路配置 (75)表 19 - 话机7种拨号方式 (79)表 20 - 拨号规则配置表 (80)表 21 - 网页上设置线路全局配置 (82)表 22 - 网页上常见的话机功能设置 (83)表 23 - 网页上的语音设置 (85)表 24 - 网页组播参数 (86)表 25 - 时间/日期在网页上设置参数 (87)表 26 - 快捷键配置 (92)表 27 - Softkey配置 (93)表 28 - 网络防火墙 (96)表 29 - 故障案例 (100)3 安全须知请在安装使用话机前仔细阅读安全需知。

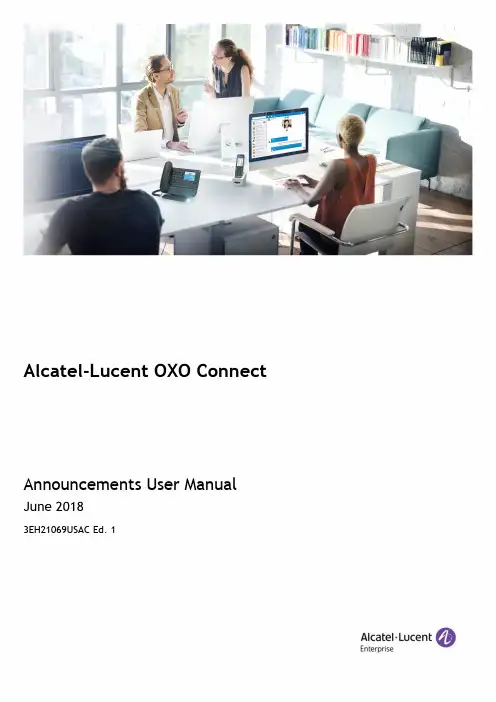

Alcatel-Lucent OXO Connect Announcements User ManualJune 20183EH21069USAC Ed. 1Legal noticeThe Alcatel-Lucent name and logo are trademarks of Nokia used under license by ALE. To view other trademarks used by affiliated companies of ALE Holding, visit: /en/legal/ trademarks-copyright. All other trademarks are the property of their respective owners.The information presented is subject to change without notice. Neither ALE Holding nor any of its affiliates assumes any responsibility for inaccuracies contained herein.© 2018 ALE International. All rights reserved. DisclaimerWhile efforts were made to verify the completeness and accuracy of the information contained in this documentation, this document is provided “as is”. To get more accurate content concerning Cross Compatibilities, Product Limits, Software Policy and Feature Lists, please refer to the accurate documents published on the Business Partner Web Site.In the interest of continued product development, ALE International reserves the right to make improvements to this documentation and the products it describes at any time, without notice or obligation.The CE mark indicates that this product conforms to the following Council Directives:•2014/53/EU for radio equipment•2014/35/EU and 2014/30/EU for non radio equipment (including wired Telecom Terminal Equipment)•2014/34/EU for ATEX equipment•2011/65/EU (RoHS)•2012/19/EU (WEEE)Chapter 1Overview1.1Description of the Announcements (4)Chapter 2Operation2.1Selecting Announcements (5)2.2Creating Announcement Messages (6)2.2.1Recording announcements (.wav) on a PC (6)2.2.2Recording Automatic Call Distribution messages using a phone set (7)2.2.3Converting an announcement file (7)2.2.4Recording Automatic Call Distribution messages using a professional studio (7)This document is the user manual of the Announcements application. It applies to OXO Connect and OXO Connect Evolution.Announcements are broadcast while telephone traffic is being processed. No default announcements are provided by the call center, but default announcements (A-law and µ-law) designed for test purposes are available for download in OMC. For a running system, customized announcements must be created and downloaded.1.1 Description of the AnnouncementsThe different types of announcement are:•Welcome announcement This announcement is broadcast when a call arrives in the group.•Queue announcements (Waiting 1, Waiting 2, Estimated Waiting Time)•Waiting 1 is used when the call joins the queue for the first time; it is broadcast once only.•Waiting 2 is used after Waiting 1 or Estimated Waiting Time; it is broadcast continuously until the call leaves the queue (this announcement may contain music).•Estimated Waiting Time is broadcast to advise the caller that they are likely to have a certain minimum waiting time in the queue before their call is answered.•Deterrence announcement This announcement is broadcast when the queue is saturated. It can also be broadcast when the Automatic Call Distribution ports dedicated to Automatic Call Distribution traffic are saturated (this depends on the configuration of the Automatic Call Distribution ports dedicated to deterrence).•Closing announcement This announcement is broadcast when the Automatic Call Distribution group is closed.•Customer code announcement This announcement is broadcast to ask the caller to enter a customer code.On the system, a set of announcements for each Automatic Call Distribution group is permitted. The minimum and maximum durations of the announcements in a set are shown in the table below.Announcement Minimum Duration Maximum DurationWelcome0 seconds60 secondsWaiting 10 seconds60 secondsWaiting 220 seconds300 secondsEstimated Waiting Time0 seconds60 secondsDeterrence0 seconds60 secondsClosing0 seconds60 secondsCustomer code0 seconds60 seconds2.1 Selecting AnnouncementsTo select the announcement you want to use, do the following:1.Click ACD Voice Messages. The ACD Voice Messages window appears. This window has thefollowing two areas:•The ACD Groups area is used to select the announcements for each group or all the groups.•The Transfer selected messages area is used to import or export announcements to the call center or to the system.The ACD Groups area contains a table allowing you to:•see which announcements are present in the system,•select an announcement to be added or replaced.To change from Transfer mode to Delete mode, click on the button Mode.It is not possible to delete announcements at the same time as adding or replacing announcements.Note:Default messages are available which take into account the coding (A-law or µ-law) used in your country.2.In the Transfer selected messages area, click the button to the right of the field Load from thisdirectory and transfer.The Select Folder window is displayed.The announcements are by default saved in:C:/Program Files/PCXTools/OMC/R500_xxx/VoiceMessages/a_law56 messages are available (7 for each Automatic Call Distribution group). Each message isidentified by a file made up of 3 figures x, y and z and with the extension .wav:•x corresponds to the number of the Automatic Call Distribution group (1 to 8)•y is always equal to 0•z corresponds to the message of the Automatic Call Distribution group (1 to 7)The messages types are as follows:•1 corresponds to the Welcome message•2 to the Waiting 1 message•3 to the Waiting 2 message•4 to the Deterrence message•5 to the Closing message•6 to the Estimated Waiting Time message•7 to the Customer code messageFor example, file 305.wav corresponds to the Closing message for group 3.Remark:on starting the Automatic Call Distribution, the system does not contain any messages. To conduct tests, it is therefore essential to load the default Automatic Call Distribution messages.3.Select the announcements and click the transfer button ( => ). The messages selected aretransferred to the call center.4.Click OK. The ACD Voice Messages window disappears.Note:When deleting an announcement, the action is not executed using the transfer button ( => ) but using the delete button (X) instead (this button is only accessible in Delete mode).2.2 Creating Announcement MessagesTo create your own announcement messages, you can use the recording software available on your PC (Window/Accessories/Multimedia/Sound Recorder) or any multimedia application.2.2.1 Recording announcements (.wav) on a PCProceed as follows:1.On your PC, open a recording tool by clicking Start > Programs > Accessories > Multimedia (orEntertainment) > Sound Recorder. The following window is displayed:In order to record the message, your computer must be fitted with a sound card. Otherwise, a message informs you that the recorder is operating in restricted mode.2.If the sound card is available and configured, start to record your message by clicking on the redbutton in the bottom right of the window.3.To stop the recording, click the rectangular button.4.To check and listen to the recorded message, click the triangular button.5.If you are happy with the message, record it by clicking File > Save. Give it a file name and checkthe message format.Caution:announcements must have the format CCITT A-law/µ-law 8 KHz, 8 bits, mono. The announcements created must have the same name as the default messages.6.If the format is not correct, click Change and select the format CITT A-law/µ-law 8 KHz, 8 bits,mono. Click OK to confirm and OK again to save the message.2.2.2 Recording Automatic Call Distribution messages using a phone setYou can record Automatic Call Distribution messages using any one of the following telephones:•8038 Premium DeskPhone•8058s Premium DeskPhone•8039 Premium DeskPhone,•8068 Premium DeskPhone•8068s Premium DeskPhone•8078s Premium DeskPhoneA special menu allows you to record each announcement message for each Automatic Call Distributiongroup. To access this menu:•on a 8038 Premium DeskPhone/8058s Premium DeskPhone, 8039 Premium DeskPhone, 8068 Premium DeskPhone/8068s Premium DeskPhone or 8078s Premium DeskPhone, follow the path Menu/operator/Advanced/Voice/Automatic Call Distribution.•2.2.3 Converting an announcement fileIf the format of your file is not compatible, convert it using the following procedure:•Open the .wav file to be modified in Sound Recorder and click File > Properties to check the file format.•If the format shown is different from CCITT A-Law/µ-law 8 kHz, 8 bits, mono, click Convert Now....A window opens; select the format CCITT A-Law or CCITT µ-law and click OK to confirm.•Save your file.2.2.4 Recording Automatic Call Distribution messages using a professional studioFor optimum quality, the services of a professional recording studio should be used. If this option is chosen, observe the file format required.。
