CKD-VP3000中文说明书

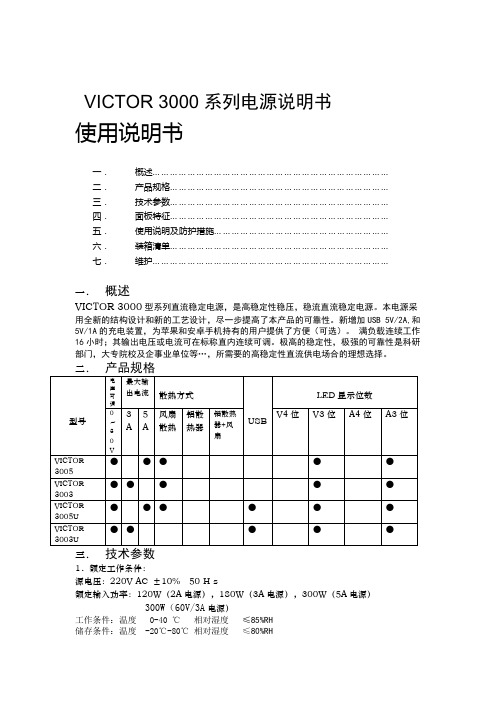

VICTOR 3000系列电源说明书使用说明书一．概述………………………………………………………………………二．产品规格…………………………………………………………………三．技术参数…………………………………………………………………四．面板特征…………………………………………………………………五．使用说明及防护措施……………………………………………………六．装箱清单…………………………………………………………………七．维护………………………………………………………………………一．概述VICTOR 3000型系列直流稳定电源，是高稳定性稳压，稳流直流稳定电源。

本电源采用全新的结构设计和新的工艺设计，尽一步提高了本产品的可靠性。

新增加USB 5V/2A,和5V/1A的充电装置，为苹果和安卓手机持有的用户提供了方便（可选）。

满负载连续工作16小时；其输出电压或电流可在标称直内连续可调。

极高的稳定性，极强的可靠性是科研部门，大专院校及企事业单位等…，所需要的高稳定性直流供电场合的理想选择。

三．1．额定工作条件：源电压：220V AC ±10% 50Ｈｚ额定输入功率：120W（2A电源），180W（3A电源），300W（5A电源）300W（60V/3A电源）工作条件：温度 0-40 ℃相对湿度≤85%RH储存条件：温度 -20℃-80℃相对湿度≤80%RH四．前后面板特征1.POWER电源开关：电源开关按下时，电源在开机状态，2. CV稳压工作壮态指示灯：在稳压工作壮态下此灯点亮。

3. CC稳流工作壮态指示灯：在稳流工作壮态下此灯点亮。

4.电压值显示面板表：分数字显示（三位或四位数字显示）面板表和指针显示面板表，依据具体型号而定。

5.电流值显示面板表：分数字显示（三位或四位数字显示）面板表和指针显示面板表，依据具体型号而定。

6．稳压输出值粗调旋钮COARSE：顺时针旋动，输出电压增大，逆时针旋动，输出电压减小。
