BTU回流炉培训-2

  • 格式：pdf
  • 大小：737.33 KB
  • 文档页数：12

Corrosive Warning
Certified Europe
Prop Location
For Training Use Only
Emergency Stop Buttons (EMO’s)
The heater power will be turned off, which will cause the zone temperature to slowly drop. This furnace configuration also turns off, the conveyor and rail systems, blower system, flux system, gas controls and monitoring, cooling system, recirculating water system, hood, oiler and case cooling. Note: PC & FCU still operate.
For Training Use Only
Over-Temperature Protection Heated Zone(Software)
WINCON Temperature Deviation Alarm (Software Alarm Only)
Alarm Level Alert Level Setpoint 10°C 5° C 180°C 190°C 185°C 180°C
DANGER
Danger indicates imminently hazardous situations where a potential hazard or unsafe practice will cause death or serious personal injury.
WARNING
For Training Use Only
MSDS
Material
Safety
Data
Sheet
Three questions to ask
1. What is the Hazard ? 2. How do you protect yourself ? 3. What is the First Aid ?
Warning indicates imminently hazardous situations where a potential hazard or unsafe practice could cause death or personal injury.
CAUTION
Caution indicates situations where a potential hazard or unsafe practice could cause equipment or product to be damaged or minor injury if the instructions that follow the notice are not strictly observed. Notes relate to additional information about a procedure but do not usually relate to safety. They have a light frame border with no shading. An example of a not is illustrated below: NOTE: Note indicates any additional information about a procedure.
For Training Use Only
Safety Conventions - Used
Safety precautions and notes described in the e-doc are identified within the text using the following four types of headers. Danger, Warning, and Cautions are designated by a dark frame with a colored background. The level of safety hazard for each heading is described in the following example illustrations:
A010-DISC
For Training Use Only
System Alarms (Internal)
Link Failure Product Drop Temperature Deviation High Temperature Pressure Deviation O2 Deviation Conveyor Speed Deviation Conveyor Motion Loss of Communication between PC & FCU The exit sensor did not detect an expected board Temperature is outside the recipe alarm band Temperature in a zone exceeded 360ºC or Cooler exceeded 90ºC Pressure is outside the recipe alarm band Oxygen level exceeds the recipe alarm limit Conveyor speed is outside the recipe alarm band Encoder to Proximity Switch ratio is outside of tolerance
For Training Use Only
WINCON High Temperature Alarm
Alarm Level – Alarm level is set on the temperature configuration control limits page to 360 °C.When the FCU senses 360°C it will de-energizes the Heater Power Contactor.
For Training Use Only
Safety Labels
Electrical
Crush
Crush
Pinch
Heat
Inhalation
EMO
Electrical under UPS
Safety Glasses
ห้องสมุดไป่ตู้
See Manual
Safety Gloves Lifting Point
Refractory Warning
For Training Use Only
Over-Temperature Protection Hardware
BLS overtemperature modules show you which heater is above setpoint by turning on a light-emitting diode (LED). Each OT has 12 red LEDs for 12 channels. The channels are labeled along the side of the module. A red LED indicates an alarm condition and the channel associated with the alarm. The green LED indicates instrument power is turned on supplied to the OT module.
Furnace Safety Features
The model Pyramax furnace contains the following safety features:
1. 2. 3. 4. 5. Emergency Stop Buttons Over Temperature Protection Conveyor Protection Lockable Power Disconnect Switch System Interlocks/Alarms
Cooler Monitoring T/C
For Training Use Only
Conveyor Protection Hardware Setup & Circuit
Conveyor Motion Detector
Proximity switch with l.e.d. Detects sprocket ‘teeth’. If conveyor is jammed by a boat it is this detector that gives the alarm called ‘Conveyor Motion’
Normal Position
Line Power exceeded 175 Amps
Only Position which allows access to Bay 1 internal components
While Disconnect is in the locked position panel access is secured
For Training Use Only
Lockable Power Disconnect Switch
Disconnect in the ON Position Disconnect in the TRIPPED Position Disconnect in the OFF Position Disconnect in the Lock Position

合集下载

BTU操作规范

BTU操作规范


關机步驟---(二)
• 5 關閉爐子內部電源 • 6 關閉電源開關 • 7 關閉穩壓電源
注意事項---(一)
• 1 爐子加熱生產時,手.身體不要伸入爐中 • 2 爐子蓋子在平時生產時不能隨便打開 • 3 正常生產時,四個E- Stop不能隨便按下,要特別注意 • 4 機器出現異常情況,應立即通知工程帥處理
回焊爐BTU操作規范
開机步驟---(一)
• 1 打開穩壓器開關 • 2 打開回焊爐主電源開關 • 3 打開爐子內部電源UPS • 4 打開電腦 • 5 等待Wincon聯接 • 6 選擇所需程式投入生產
關机步驟---(一)
• 1 執行Cool down程序 • 2 等待約45分鍾,使爐內溫度均低於1000Ｃ • 3 執行Shut off程序 • 4 退出Wincon及Window
注意事項---(二)
• 5 生產線需要換線時若為最後一片， 爐前人員需將在此板子上空白處貼上防焊 標簽，並標明பைடு நூலகம்“最後一片”，爐後人員見 到板子上有此標示方可收線
爐前日常事務
• 保養表的填寫 • 正確認識N2流量，并如實填寫到N2流量表中
BTU培训

BTU培训

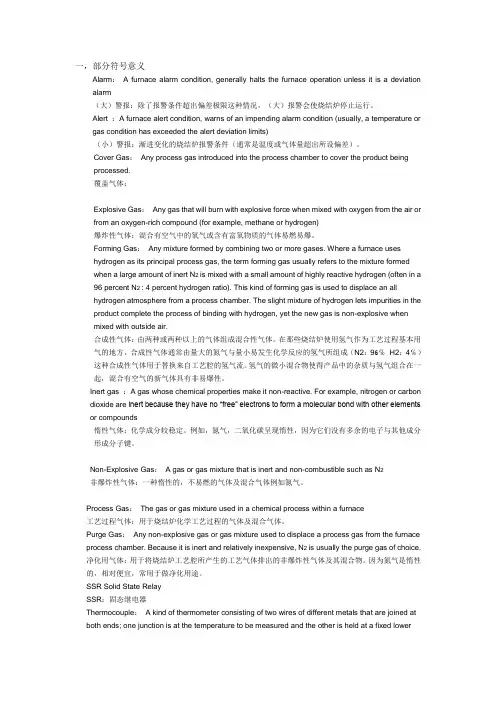

一，部分符号意义Alarm：A furnace alarm condition, generally halts the furnace operation unless it is a deviation alarm（大）警报：除了报警条件超出偏差极限这种情况，（大）报警会使烧结炉停止运行。

Alert ：A furnace alert condition, warns of an impending alarm condition (usually, a temperature or gas condition has exceeded the alert deviation limits)（小）警报：渐进变化的烧结炉报警条件（通常是温度或气体量超出所设偏差）。

Cover Gas：Any process gas introduced into the process chamber to cover the product being processed.覆盖气体：Explosive Gas：Any gas that will burn with explosive force when mixed with oxygen from the air or from an oxygen-rich compound (for example, methane or hydrogen)爆炸性气体：混合有空气中的氧气或含有富氧物质的气体易燃易爆。

Forming Gas：Any mixture formed by combining two or more gases. Where a furnace useshydrogen as its principal process gas, the term forming gas usually refers to the mixture formed when a large amount of inert N2 is mixed with a small amount of highly reactive hydrogen (often in a96 percent N2 : 4 percent hydrogen ratio). This kind of forming gas is used to displace an allhydrogen atmosphere from a process chamber. The slight mixture of hydrogen lets impurities in the product complete the process of binding with hydrogen, yet the new gas is non-explosive when mixed with outside air.合成性气体：由两种或两种以上的气体组成混合性气体。

回流焊培训

回流焊培训

无铅回流焊系统培训资料目录1概述2培训纲要3安全生产4内容简介1．概述本培训资料仅是目录和纲要,其具体内容将参考该设备的操作说明书。

2．培训纲要设备简介设备操作按钮介绍设备操作的注意事项设备的操作系统启动与退出计算机各窗及菜单使用说明温度曲线分析及标准炉温设置设备的日常维护和保养设备常见故障及检修3．安全生产一，人身安全实际使用本机和附属装置的操作人员以及保养、维修人员为了避免发生人身伤害事故，须注意以下事项：1．为了防止触电事故，在打开电源的情况下请不要打开电器箱。

2．为了防止人身伤害，请不要在卸掉安全外罩、装置等情况下运转机器。

3．为了防止人身伤害，请不要把头发、衣服等卷进传送带链条中。

4．注意高温表面，必要时须戴手套。

5．为了防止人身伤害，维修时（加油、调整、日常维修）请关掉电源。

6．为了防止人身伤害，请在供电电路上安装漏电断路器。

7．机器运转时，注意手不要碰到驱动部分。

8．为了防止炎症，皮肤皱裂，如果眼睛或身体上沾到润滑油请立即清洗。

9．为了防止突然启动造成事故，维修之前请卸掉空气供给源的管子，排放出内部的空气后再进行维修。

10．为了防止人身伤害，进行修理、调整、更换零件的作业后，请一定确认螺丝、螺母是否拧紧。

11．拔掉电源时，请手拿插头，不要拿电线拔。

12．机器运转时，请不要将身体探入机器内。

二、设备安全1．设备只能由专业维护及维修人员或培训合格的人员进行操作2．电之前，应确认外接输入电源与该设备的额定电压及电流相符3．设备内含高温装置及机械传动，操作时应注意人身安全4．操作本设备前请仔细阅读用户手册；5．请按用户手册对本设备进行维护与保养；6．请不要把本设备安装在电磁干扰源附近；7．勿改变本设备电控箱内的软体及硬体设置；8．请勿将设备放置于湿度过高处。

9．请勿将液体及杂物注入设备内部。

10．请勿将UPS插头插入家用电器，如吹风机。

11．UPS内含的电压具潜在危险性，维修必须由合格的技术人员执行。

回转炉工艺培训及操作要点

回转炉工艺培训及操作要点

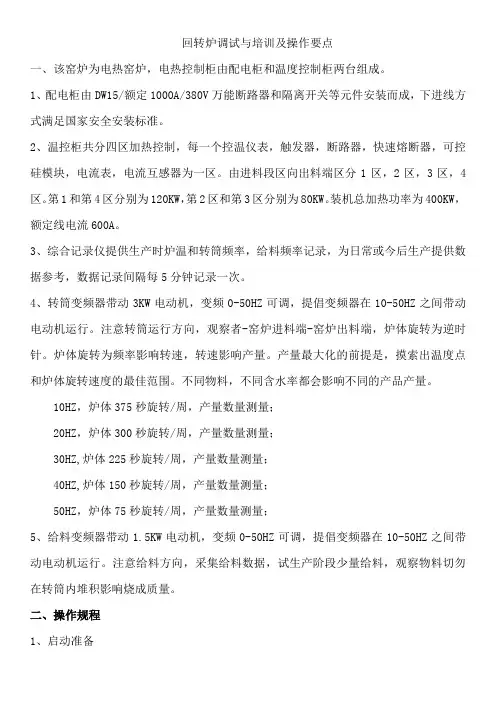

回转炉调试与培训及操作要点一、该窑炉为电热窑炉，电热控制柜由配电柜和温度控制柜两台组成。
