Integrated | 13
outputs. Therefore, after PC board assembly, the Machine Model is less relevant to I/O ports.Applications Information
Capacitor Selection The capacitor type used for C1–C4 is not critical for
proper operation. The MAX202E, MAX206–MAX208E,
MAX211E, and MAX213E require 0.1µF capacitors,
and the MAX232E and MAX241E require 1µF capaci-
tors, although in all cases capacitors up to 10µF can
be used without harm. Ceramic, aluminum-electrolytic,
or tantalum capacitors are suggested for the 1µF
capacitors, and ceramic dielectrics are suggested for
the 0.1µF capacitors. When using the minimum recom-
mended capacitor values, make sure the capacitance
value does not degrade excessively as the operating
temperature varies. If in doubt, use capacitors with a
larger (e.g., 2x) nominal value. The capacitors’ effec-
tive series resistance (ESR), which usually rises at low
temperatures, influences the amount of ripple on V+
and V-.
Use larger capacitors (up to 10µF) to reduce the output
impedance at V+ and V-. This can be useful when
“stealing” power from V+ or from V-. The MAX203E and
MAX205E have internal charge-pump capacitors.
Bypass V CC to ground with at least 0.1µF. In applica-
tions sensitive to power-supply noise generated by the charge pumps, decouple V CC to ground with a capaci-tor the same size as (or larger than) the charge-pump capacitors (C1–C4).V+ and V- as Power Supplies A small amount of power can be drawn from V+ and V-,although this will reduce both driver output swing and noise margins. Increasing the value of the charge-pump capacitors (up to 10µF ) helps maintain performance when power is drawn from V+ or V-.Driving Multiple Receivers Each transmitter is designed to drive a single receiver.Transmitters can be paralleled to drive multiple receivers.Driver Outputs when Exiting Shutdown The driver outputs display no ringing or undesirable transients as they come out of shutdown.High Data Rates These transceivers maintain the RS-232 ±5.0V mini-mum driver output voltages at data rates of over 120kbps. F or data rates above 120kbps, refer to the Transmitter Output Voltage vs. Load Capacitance graphs in the Typical Operating Characteristics .Communication at these high rates is easier if the capacitive loads on the transmitters are small; i.e.,
short cables are best.
Table 2. Summary of EIA/TIA-232E, V.28 Specifications PARAMETER
CONDITIONS EIA/TIA-232E, V.28 SPECIFICA-TIONS 0 Level
3k Ωto 7k Ωload +5V to +15V Data Rate 3k Ω≤R L ≤7k Ω, C L ≤2500pF
Up to 20kbps +3V to +15V Instantaneous Slew Rate, Max 3k Ω≤R L ≤7k Ω, C L ≤2500pF 30V/µs
Driver Output Short-Circuit Current, Max 100mA
Transition Rate on Driver Output V.28
1ms or 3% of the period Driver Output Resistance
-2V < V OUT < +2V 300ΩEIA/TIA-232E
4% of the period Driver Output Level, Max No load
±25V Driver Output Voltage 3k Ωto 7k Ωload
-5V to -15V 0 Level
1 Level 1 Level Receiver Input Level ±25V
Receiver Input Voltage -3V to -15V
找MEMORY 、二三极管上美光存储
Integrated | 14
MAX202E–MAX213E,MAX232E/MAX241E ±15kV ESD-Protected, 5V RS-232 Transceivers Pin Configurations and Typical Operating Circuits (continued)
Table 3. DB9 Cable Connections
Commonly Used for EIA/TIA-232E and
V.24 Asynchronous Interfaces。

合集下载

MEMORY存储芯片TMS320DM368ZCE48中文规格书

MEMORY存储芯片TMS320DM368ZCE48中文规格书

TMS320C6745, TMS320C6747
SPRS377F – SEPTEMBER 2008 – REVISED JUNE 2014
6.19 Enhanced Quadrat745/6747 device contains up to two enhanced quadrature encoder (eQEP) modules. See the TMS320C6745/C6747 DSP Peripherals Overview Reference Guide. (SPRUFK9) for more details.
Quadrature decoder (QDU)
PCSOUT
32
32
16
EQEPxAIN EQEPxBIN
EQEPxA/XCLK
EQEPxIIN EQEPxIOUT EQEPxIOE EQEPxSIN
EQEPxB/XDIR
GPIO MUX
EQEPxI
EQEPxSOUT EQEPxSOE
EQEPxS
QPOSCNT QPOSINIT QPOSMAX
Peripheral Information and Electrical Specifications 157
Submit Documentation Feedback
Product Folder Links: TMS320C6745 TMS320C6747
QPOSCMP
QEINT QFRC QCLR QPOSCTL
Enhanced QEP (eQEP) Peripheral
Figure 6-43. eQEP Functional Block Diagram
Table 6-73 is the list of the EQEP registers. Table 6-74 shows the eQEP timing requirement and Table 6-75 shows the eQEP switching characteristics.
MEMORY存储芯片MAX4051ACSE中文规格书

MEMORY存储芯片MAX4051ACSE中文规格书

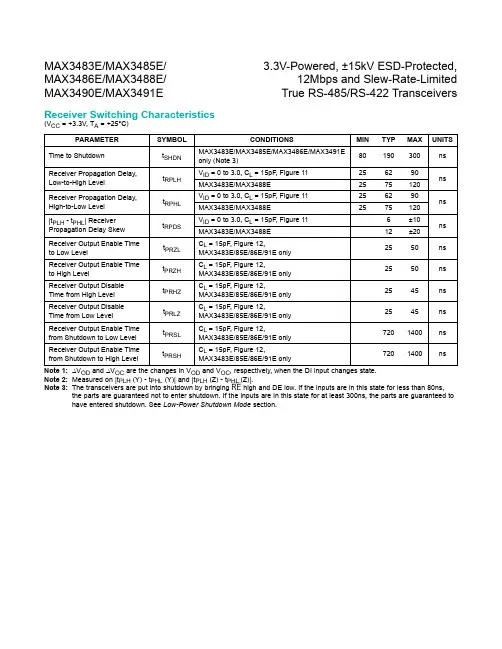

(V CC = +3.3V, T A = +25°C)Note 1: ∆V OD and ∆V OC are the changes in V OD and V OC , respectively, when the DI input changes state.Note 2: Measured on |t PLH (Y) - t PHL (Y)| and |t PLH (Z) - t PHL (Z)|.Note 3: The transceivers are put into shutdown by bringing RE high and DE low. If the inputs are in this state for less than 80ns, the parts are guaranteed not to enter shutdown. If the inputs are in this state for at least 300ns, the parts are guaranteed tohave entered shutdown. See Low-Power Shutdown Mode section.PARAMETERSYMBOL CONDITIONS MIN TYP MAX UNITS Time to Shutdownt SHDN MAX3483E/MAX3485E/MAX3486E/MAX3491E only (Note 3)80190300ns Receiver Propagation Delay,Low-to-High Levelt RPLH V ID = 0 to 3.0, C L = 15pF, Figure 11256290ns MAX3483E/MAX3488E 2575120Receiver Propagation Delay,High-to-Low Levelt RPHL V ID = 0 to 3.0, C L = 15pF, Figure 11256290ns MAX3483E/MAX3488E 2575120|t PLH - t PHL | ReceiverPropagation Delay Skewt RPDS V ID = 0 to 3.0, C L = 15pF, Figure 116±10ns MAX3483E/MAX3488E 12±20Receiver Output Enable Timeto Low Levelt PRZL C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 2550ns Receiver Output Enable Timeto High Levelt PRZH C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 2550ns Receiver Output DisableTime from High Levelt PRHZ C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 2545ns Receiver Output DisableTime from Low Levelt PRLZ C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 2545ns Receiver Output Enable Timefrom Shutdown to Low Levelt PRSL C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 7201400ns Receiver Output Enable Timefrom Shutdown to High Level t PRSH C L = 15pF, Figure 12,MAX3483E/85E/86E/91E only 7201400nsMAX3483E/MAX3485E/MAX3486E/MAX3488E/MAX3490E/MAX3491E3.3V-Powered, ±15kV ESD-Protected, 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers Receiver Switching CharacteristicsGeneral DescriptionDevices in the MAX3483E family (MAX3483E/MAX3485E/MAX3486E/MAX3488E/MAX3490E/MAX3491E) are ±15kV ESD-protected, +3.3V, low-power transceivers for RS-485 and RS-422 communications. Each device con-tains one driver and one receiver. The MAX3483E and MAX3488E feature slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly termi-nated cables, allowing error-free data transmission at data rates up to 250kbps. The partially slew-rate-limited MAX3486E transmits up to 2.5Mbps. The MAX3485E, MAX3490E, and MAX3491E transmit at up to 12Mbps.All devices feature enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guar-antees a logic-high output if both inputs are open circuit.The MAX3488E, MAX3490E, and MAX3491E feature full-duplex communication, while the MAX3483E, MAX3485E, and MAX3486E are designed for half-duplex communication.Applications ●Telecommunications ●Industrial-Control Local Area Networks ●Transceivers for EMI-Sensitive Applications ●Integrated Services Digital Networks ●Packet Switching Features ●ESD Protection for RS-485 I/O Pins •±15kV—Human Body Model •±8kV—IEC 1000-4-2, Contact Discharge •±15kV—IEC 1000-4-2, Air-Gap Discharge ●Operate from a Single +3.3V Supply—No Charge Pump Required ●Interoperable with +5V Logic ●Guaranteed 12Mbps Data Rate (MAX3485E/MAX3490E/MAX3491E)●Slew-Rate Limited for Errorless Data Transmission (MAX3483E/MAX3488E)●2nA Low-Current Shutdown Mode (MAX3483E/MAX3485E/MAX3486E/MAX3491E)●-7V to +12V Common-Mode Input Voltage Range ●Full-Duplex and Half-Duplex Versions Available ●Industry-Standard 75176 Pinout (MAX3483E/MAX3485E/MAX3486E)●Current-Limiting and Thermal Shutdown for Driver Overload Protection Ordering Information continued at end of data sheet.PARTTEMP . RANGE PIN-PACKAGE MAX3483E CSA0°C to+70°C 8 SO MAX3483ECPA0°C to+70°C 8 Plastic DIP MAX3483EESA-40°C to+85°C 8 SO MAX3483EEPA -40°C to+85°C 8 Plastic DIP PART NUMBERGUARANTEED DATA RATE (Mbps)SUPPLY VOLTAGE (V)HALF/FULL DUPLEX SLEW-RATE LIMITED DRIVER/RECEIVER ENABLE SHUTDOWN CURRENT (nA)±15kV ESD PROTECTION PIN COUNT MAX3483E0.25 3.0 to 3.6Half Yes Yes 2Yes 8MAX3485E12Half No Yes 2Yes 8MAX3486E2.5Half Yes Yes 2Yes 8MAX3488E0.25Full Yes No —Yes 8MAX3490E12Full No No —Yes 8MAX3491E 12Full No Yes 2Yes 14MAX3483E/MAX3485E/MAX3486E/MAX3488E/MAX3490E/MAX3491E3.3V-Powered, ±15kV ESD-Protected, 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers Selector GuideOrdering InformationClick here for production status of specific part numbers.。

MEMORY存储芯片M29W128GL70ZA6F中文规格书

MEMORY存储芯片M29W128GL70ZA6F中文规格书

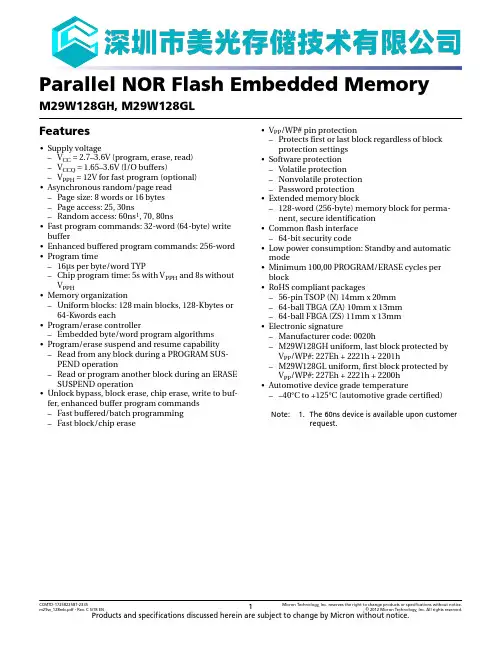

Parallel NOR Flash Embedded Memory M29W128GH, M29W128GLFeatures•Supply voltage–V CC = 2.7–3.6V (program, erase, read)–V CCQ = 1.65–3.6V (I/O buffers)–V PPH = 12V for fast program (optional)•Asynchronous random/page read–Page size: 8 words or 16 bytes–Page access: 25, 30ns–Random access: 60ns 1, 70, 80ns•Fast program commands: 32-word (64-byte) writebuffer•Enhanced buffered program commands: 256-word•Program time–16µs per byte/word TYP–Chip program time: 5s with V PPH and 8s withoutV PPH •Memory organization–Uniform blocks: 128 main blocks, 128-Kbytes or64-Kwords each•Program/erase controller–Embedded byte/word program algorithms•Program/erase suspend and resume capability–Read from any block during a PROGRAM SUS-PEND operation–Read or program another block during an ERASESUSPEND operation•Unlock bypass, block erase, chip erase, write to buf-fer, enhanced buffer program commands–Fast buffered/batch programming–Fast block/chip erase •V PP /WP# pin protection –Protects first or last block regardless of block protection settings •Software protection –Volatile protection –Nonvolatile protection –Password protection •Extended memory block –128-word (256-byte) memory block for perma-nent, secure identification •Common flash interface –64-bit security code •Low power consumption: Standby and automatic mode •Minimum 100,00 PROGRAM/ERASE cycles per block •RoHS compliant packages –56-pin TSOP (N) 14mm x 20mm –64-ball TBGA (ZA) 10mm x 13mm –64-ball FBGA (ZS) 11mm x 13mm •Electronic signature –Manufacturer code: 0020h –M29W128GH uniform, last block protected by V PP /WP#: 227Eh + 2221h + 2201h –M29W128GL uniform, first block protected by V PP /WP#: 227Eh + 2221h + 2200h •Automotive device grade temperature ––40°C to +125°C (automotive grade certified)Note: 1.The 60ns device is available upon customerrequest.CCMTD-1725822587-2335m29w_128mb.pdf - Rev. C 5/18 EN 1Micron Technology, Inc. reserves the right to change products or specifications without notice.© 2012 Micron Technology, Inc. All rights reserved.Products and specifications discussed herein are subject to change by Micron without notice.The main memory array is divided into uniform blocks that can be erased independent-ly so that valid data can be preserved while old data is purged. PROGRAM and ERASE commands are written to the command interface of the memory. An on-chip program/erase controller simplifies the process of programming or erasing the memory by taking care of all special operations required to update the memory contents. The end of a PROGRAM or ERASE operation can be detected and any error condition can be identi-fied. The command set required to control the device is consistent with JEDEC stand-ards.CE#, OE#, and WE# control the bus operation of the device and enable a simple con-nection to most microprocessors, often without additional logic.The M29W supports asynchronous random read and page read from all blocks of the array. It features a write to buffer program capability that improves throughput by pro-gramming a buffer of 32 words in one command sequence. Also, in x16 mode, the en-hanced buffered program capability improves throughput by programming 256 words in one command sequence. The device V PP /WP# signal enables faster programming.The device contains a 128-word (x16) and 256-byte (x8) extended memory block. The user can program this additional space and then protect it to permanently secure the contents. The device also features different levels of hardware and software protection to secure blocks from unwanted modification.Figure 1: 128 Logic DiagramVV A[22:0]V /WP#DQ[14:0]SS 128Mb 3V Embedded Parallel NOR Flash General DescriptionCCMTD-1725822587-2335m29w_128mb.pdf - Rev. C 5/18 EN 8Micron Technology, Inc. reserves the right to change products or specifications without notice.© 2012 Micron Technology, Inc. All rights reserved.Figure 4: Data Polling FlowchartNotes: 1.Valid address is the address being programmed or an address within the block beingerased.2.Failure results: DQ5 = 1 indicates an operation error; DQ1 = 1 indicates a WRITE TO BUF-FER PROGRAM ABORT operation.128Mb 3V Embedded Parallel NOR Flash Status RegisterCCMTD-1725822587-2335m29w_128mb.pdf - Rev. C 5/18 EN 17Micron Technology, Inc. reserves the right to change products or specifications without notice.© 2012 Micron Technology, Inc. All rights reserved.Figure 25: Chip/Block Erase AC Timing (8-Bit Mode)A[22:0]/A-1CE#OE#WE#DQ[7:0]Notes: 1.For a CHIP ERASE command, addresses and data are AAAh and 10h, respectively, whilethey are BAd and 30h for a BLOCK ERASE command.2.BAd is the block address.3.See the following tables for timing details: Read AC Characteristics, WE#-Controlled Write AC Characteristics, and CE#-Controlled Write AC Characteristics.128Mb 3V Embedded Parallel NOR Flash Write AC Characteristics。

MEMORY存储芯片MAX488ECPA中文规格书

MEMORY存储芯片MAX488ECPA中文规格书

4.8
4.6 IRO = 8mA
4.4
4.2
4.0
3.8
3.6
3.4
3.2
3.0 -60 -40 -20 0 20 40 60
TEMPERATURE (°C)
80 100
MAX481E-05
OUTPUT LOW VOLTAGE (V)

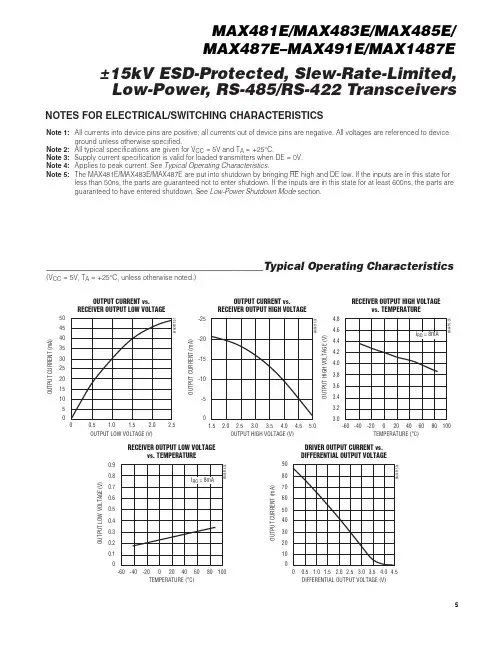

RECEIVER OUTPUT LOW VOLTAGE vs. TEMPERATURE
