cob标准模组规格一、概述本标准模组规格适用于我们公司生产的COB（ChipOnBoard）标准模组，该模组广泛应用于各类电子产品中。

本规格旨在确保COB模组的品质和性能符合客户要求，同时也为用户提供一致、可靠的产品体验。

二、产品描述1.组成：COB模组主要由芯片、支架、荧光粉、胶水等组成。

2.结构：COB模组采用倒装结构，将芯片直接贴装在支架上，荧光粉与芯片通过高温固化胶水固定。

3.尺寸：COB模组尺寸根据客户需求定制，通常为5mmx5mm或8mmx8mm。

4.颜色：COB模组通常为白色，也可根据客户需求定制其他颜色。

三、规格要求1.亮度：COB模组的亮度应不低于客户要求的最低标准。

2.稳定性：COB模组在温度、湿度等环境条件下应保持稳定，无脱落、损坏等现象。

3.抗老化：COB模组应具备一定的抗老化性能，确保长时间使用不褪色。

4.安全性：COB模组应符合相关安全标准，确保用户在使用过程中不会受到伤害。

5.寿命：COB模组的寿命应不低于客户要求的最低标准。

6.包装：COB模组应按照要求进行包装，确保在运输、存储过程中不受损害。

四、生产流程1.准备阶段：根据客户需求定制尺寸和数量，并对材料进行检测。

2.贴装芯片：将芯片按照设计要求贴装在支架上。

3.固定荧光粉：将荧光粉与胶水混合后，通过高温固化将其固定在芯片上。

4.质量检测：对COB模组进行质量检测，确保符合规格要求。

5.包装发货：对合格产品进行包装，并按照约定时间发货。

五、检验标准1.外观检验：对COB模组的外观进行检查，确保无脱落、损坏等现象。

2.亮度测试：使用专业仪器对COB模组的亮度进行测试，确保符合规格要求。

3.稳定性测试：在不同温度、湿度等环境下对COB模组进行测试，确保其稳定性。

4.抗老化测试：对COB模组进行长时间老化测试，确保其抗老化性能符合要求。

5.安全性能测试：对COB模组进行安全性能测试，确保符合相关安全标准。

六、包装与运输1.包装材料：采用防震、防摔的包装材料对COB模组进行包装，确保在运输过程中不受损害。

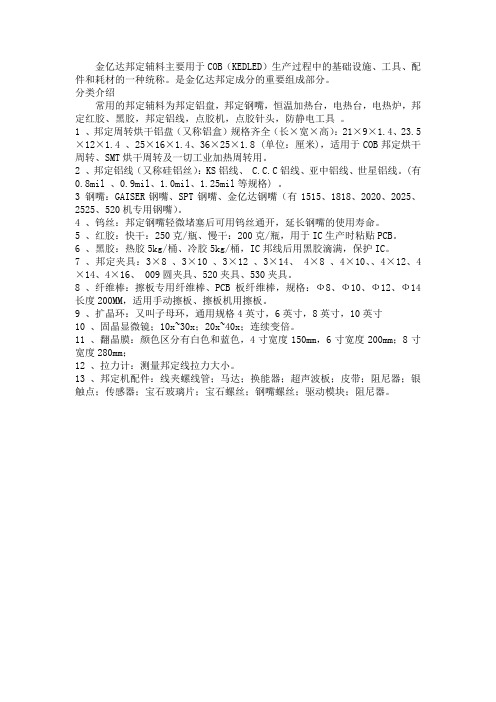

金亿达邦定辅料主要用于COB（KEDLED）生产过程中的基础设施、工具、配件和耗材的一种统称。

是金亿达邦定成分的重要组成部分。

分类介绍常用的邦定辅料为邦定铝盘，邦定钢嘴，恒温加热台，电热台，电热炉，邦定红胶、黑胶，邦定铝线，点胶机，点胶针头，防静电工具。

1 、邦定周转烘干铝盘（又称铝盒）规格齐全（长×宽×高）：21×9×1.4、23.5×12×1.4 、25×16×1.4、36×25×1.8 (单位：厘米)，适用于COB邦定烘干周转、SMT烘干周转及一切工业加热周转用。

2 、邦定铝线（又称硅铝丝）：KS铝线、 C.C.C铝线、亚中铝线、世星铝线。

(有0.8mil 、0.9mil、1.0mil、1.25mil等规格) 。

3 钢嘴：GAISER钢嘴、SPT钢嘴、金亿达钢嘴（有1515、1818、2020、2025、2525、520机专用钢嘴）。

4 、钨丝：邦定钢嘴轻微堵塞后可用钨丝通开，延长钢嘴的使用寿命。

5 、红胶：快干：250克/瓶、慢干：200克/瓶，用于IC生产时粘贴PCB。

6 、黑胶：热胶5kg/桶、冷胶5kg/桶，IC邦线后用黑胶滴满，保护IC。

7 、邦定夹具：3×8 、3×10 、3×12 、3×14、 4×8 、4×10、、4×12、4×14、4×16、 009圆夹具、520夹具、530夹具。

8 、纤维棒：擦板专用纤维棒、PCB板纤维棒，规格：Ф8、Ф10、Ф12、Ф14长度200MM，适用手动擦板、擦板机用擦板。

9 、扩晶环：又叫子母环，通用规格4英寸，6英寸，8英寸，10英寸10 、固晶显微镜；10x~30x；20x~40x；连续变倍。

11 、翻晶膜：颜色区分有白色和蓝色，4寸宽度150mm，6寸宽度200mm；8寸宽度280mm；12 、拉力计：测量邦定线拉力大小。

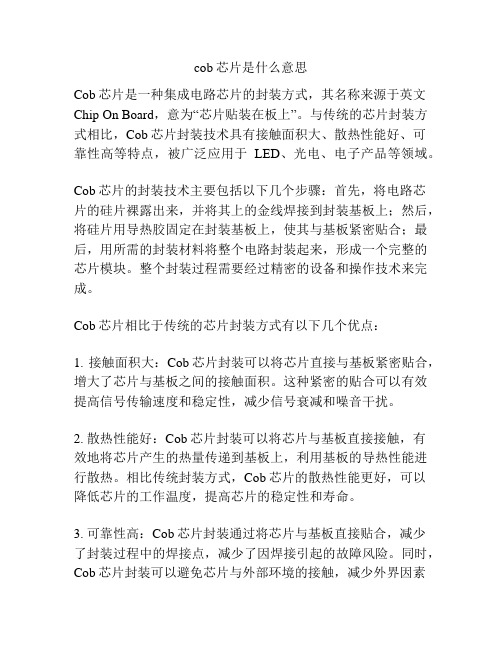

cob芯片是什么意思Cob芯片是一种集成电路芯片的封装方式，其名称来源于英文Chip On Board，意为“芯片贴装在板上”。

与传统的芯片封装方式相比，Cob芯片封装技术具有接触面积大、散热性能好、可靠性高等特点，被广泛应用于LED、光电、电子产品等领域。

Cob芯片的封装技术主要包括以下几个步骤：首先，将电路芯片的硅片裸露出来，并将其上的金线焊接到封装基板上；然后，将硅片用导热胶固定在封装基板上，使其与基板紧密贴合；最后，用所需的封装材料将整个电路封装起来，形成一个完整的芯片模块。

整个封装过程需要经过精密的设备和操作技术来完成。

Cob芯片相比于传统的芯片封装方式有以下几个优点：1. 接触面积大：Cob芯片封装可以将芯片直接与基板紧密贴合，增大了芯片与基板之间的接触面积。

这种紧密的贴合可以有效提高信号传输速度和稳定性，减少信号衰减和噪音干扰。

2. 散热性能好：Cob芯片封装可以将芯片与基板直接接触，有效地将芯片产生的热量传递到基板上，利用基板的导热性能进行散热。

相比传统封装方式，Cob芯片的散热性能更好，可以降低芯片的工作温度，提高芯片的稳定性和寿命。

3. 可靠性高：Cob芯片封装通过将芯片与基板直接贴合，减少了封装过程中的焊接点，减少了因焊接引起的故障风险。

同时，Cob芯片封装可以避免芯片与外部环境的接触，减少外界因素对芯片性能的影响，提高了芯片的可靠性。

4. 结构简单：Cob芯片封装的结构相对简单，封装过程中无需使用额外的封装材料，减少了封装工艺的复杂性和成本。

这使得Cob芯片封装可以适用于各种尺寸和类型的芯片，提高了封装的灵活性和适应性。

Cob芯片的应用领域非常广泛，其中最主要的应用领域之一是LED照明。

由于Cob芯片封装技术的优点，如散热性能好、可靠性高、接触面积大等，使得Cob芯片成为了LED照明领域的首选封装方式。

在LED照明产品中，Cob芯片可以将多个LED芯片集成在一起，形成一个高亮度、高稳定性的光源，广泛应用于室内照明、舞台照明、汽车照明等领域。
