宏碁（Acer）笔记本的型号解析在近两年中，宏碁笔记本的表现十分抢眼，通过一系列成功的经营策略（收购Gateway、首推CULV本、升级主流本显卡），它的市场份额快速增长，目前已经稳居全球第二的位置，目标直指龙头老大惠普公司。
此外，它还是2012年奥运会PC行业唯一的赞助商，因此在未来的几年里，我们有理由对这个品牌寄予更多的期待。
需要注意的是，“碁”字的读音应该是“qí”（二声），它是简体中文里“棋”的繁体写法。
“碁”是个象形字，因为古代的棋盘都画在石板上；施振荣本人爱好围棋，所以当初创办宏碁的时候起了“碁”这个名字。
我们既可以称呼它为“hóng qí”，也可以直呼其英文名Acer（A读“eī”、而不是“啊”）。
宏碁笔记本目前主要有四个系列：注重多媒体影音娱乐的Aspire系列、偏重商务办公的TravelMate系列、充满个性的Ferrari系列、面向3C卖场渠道的Extensa系列。

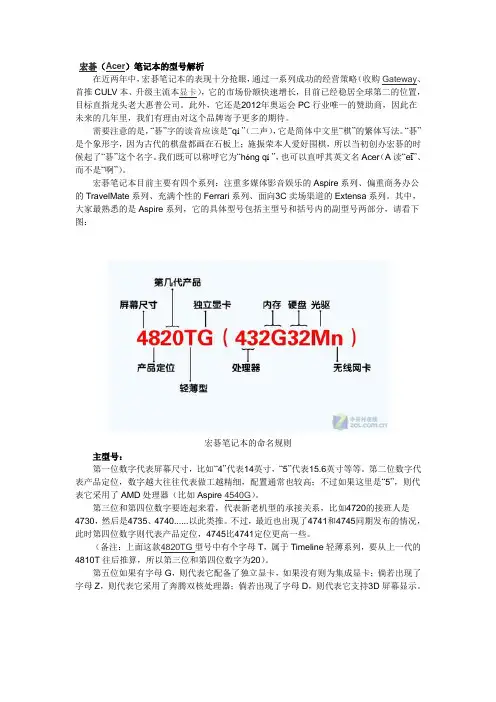

其中，大家最熟悉的是Aspire系列，它的具体型号包括主型号和括号内的副型号两部分，请看下图：宏碁笔记本的命名规则主型号：第一位数字代表屏幕尺寸，比如“4”代表14英寸，“5”代表15.6英寸等等。
第二位数字代表产品定位，数字越大往往代表做工越精细，配置通常也较高；不过如果这里是“5”，则代表它采用了AMD处理器（比如Aspire 4540G）。
第三位和第四位数字要连起来看，代表新老机型的承接关系，比如4720的接班人是4730，然后是4735、4740......以此类推。
不过，最近也出现了4741和4745同期发布的情况，此时第四位数字则代表产品定位，4745比4741定位更高一些。
（备注：上面这款4820TG型号中有个字母T，属于Timeline轻薄系列，要从上一代的4810T往后推算，所以第三位和第四位数字为20）。
第五位如果有字母G，则代表它配备了独立显卡，如果没有则为集成显卡；倘若出现了字母Z，则代表它采用了奔腾双核处理器；倘若出现了字母D，则代表它支持3D屏幕显示。

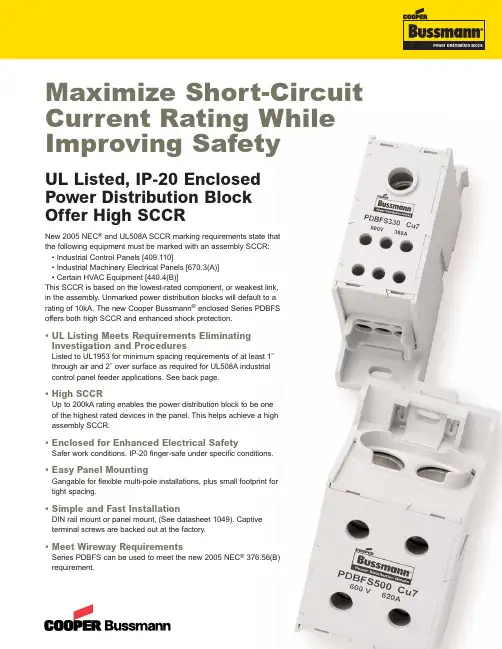

UL Listed,IP-20 Enclosed Power Distribution Block Offer High SCCRNew 2005 NEC ®and UL508A SCCR marking requirements state that the following equipment must be marked with an assembly SCCR:• Industrial Control Panels [409.110]• Industrial Machinery Electrical Panels [670.3(A)]• Certain HVAC Equipment [440.4(B)]This SCCR is based on the lowest-rated component, or weakest link,in the assembly. Unmarked power distribution blocks will default to a rating of 10kA. The new Cooper Bussmann ®enclosed Series PDBFS offers both high SCCR and enhanced shock protection.• UL Listing Meets Requirements Eliminating Investigation and ProceduresListed to UL1953 for minimum spacing requirements of at least 1˝through air and 2˝ over surface as required for UL508A industrial control panel feeder applications. See back page.• High SCCRUp to 200kA rating enables the power distribution block to be one of the highest rated devices in the panel. This helps achieve a high assembly SCCR.• Enclosed for Enhanced Electrical SafetySafer work conditions. IP-20 finger-safe under specific conditions.• Easy Panel MountingGangable for flexible multi-pole installations, plus small footprint for tight spacing.• Simple and Fast InstallationDIN rail mount or panel mount, (See datasheet 1049). Captive terminal screws are backed out at the factory.• Meet Wireway RequirementsSeries PDBFS can be used to meet the new 2005 NEC ®376.56(B)requirement.Maximize Short-Circuit Current Rating While Improving SafetyCooper Bussmann UL Listed PDBs With High SCCRsFeature/Benefits• UL Listed 1953. File E256146• CSA Certified, Class 6228-01, File 15364• 600Vac or dc (UL1953), 690Vac or dc (IEC)• SCCR up to 200,000kA, see table for details• Single pole, gang for multiple pole applications with accessory part 2A1279 interlocking dovetail• Datasheet #1049 located at Line LoadAmpacities 75C per NEC® Table 310.16 and UL508A Table 28.1*Class L 800A (KRP-C 800_SP) or less fuses suitable for this particular SCCR case.** Class G 60A (SC-60) or less or Class CC 30A (LP-CC-30, FNQ-R-30, KTK-R-30) or less are suitable for all these SCCRs in this table.†Higher SCCR may be available, check latest datasheet 1049.Series PDBFSDimensions inches (mm)Part No.Width (A)Length (B)Height (C)PDBFS204 1.030 (26.16) 3.372 (94.80) 2.146 (54.50)PDBFS220 1.030 (26.16) 3.372 (94.80) 2.146 (54.50)PDBFS303 1.550 (39.37) 4.665 (118.50) 2.874 (73.00)PDBFS330 1.550 (39.37) 4.665 (118.50) 2.874 (73.00)PDBFS377 1.875 (47.62) 4.665 (118.50) 2.933 (74.50)PDBFS500 2.380 (60.45) 4.665 (118.50) 2.598 (66.00)PDBFS5042.560 (65.02) 4.665 (118.50)3.150 (80.00)UL Listed 1953 vs.UL Recognized 1059Listed products require simply checking to ensure that the product is used in accordance with its listing and labeling.However ,for recognized products,such as power terminal blocks,the “Conditions of Acceptability”must beinvestigated to ensure the product is suitable for the specific application,and then the procedure description must be documented in the manufacturer’s procedure for the assembly .For additional information see Datasheet #1049 located at /products/datasheet.aspHAB。
