COMPASS-WALCS-BASIC波浪载荷中文电子版

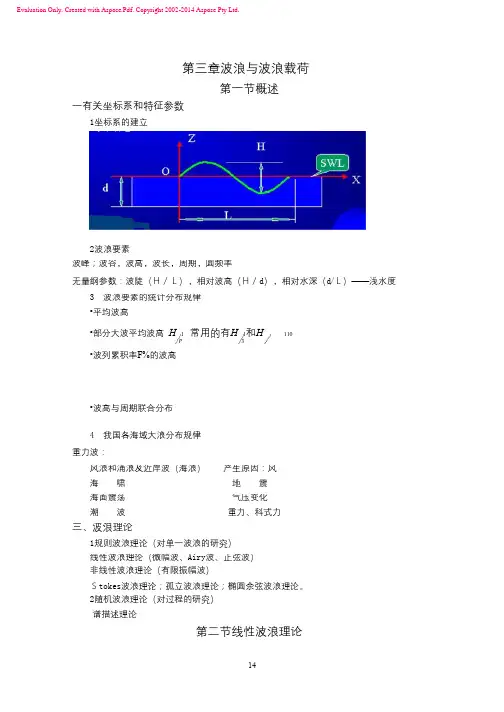

波浪荷载的计算理论波浪是发生在海洋表面的一种波动现象，其波动性质因受浅水区域海底地形影响和水深的变浅，发生波浪破碎现象，成为影响海岸侵蚀和变形以及海岸带污染物迁移与扩散的最主要的水动力环境之一。

破浪破碎与冲击现象对海上工程设施的安全也十分重要。

由于波浪破碎及冲击作用的机理极其复杂，至今仍然是海岸工程领域没有解决的困难课题之一。

因此，开展近海波浪破碎与冲击过程数值模型的研究，就有着重要的理论意义和工程意义。

波浪荷载,也称波浪力，是波浪对港口码头和海洋平台等结构所产生的作用。

目前按绕射理论进行分析。

波浪对结构物的作用由四部分组成：水流粘滞性所引起的摩阻力（与水质点速度平方成正比）；不恒定水流的惯性或结构物在水流中作变速运动所产生的附加质量力（与波浪中水质点加速度成正比）；结构物的存在对入射波浪流动场的辐射作用所产生的压力和结构物运动对入射波浪流动场的辐射作用所引起的压力。

包括上述全部作用影响的波浪力理论称为绕射理论。

在目前实际工作中，常用只考虑了结构受到波浪摩阻力和质量力影响的半经验半理论的莫里森方程分析波浪力。

波浪荷载是由波浪水质点与结构间的相对运动所引起的。

波浪是一随机性运动，很难在数学上精确描述。

当结构构件（部件）的直径小于波长的20％时，波浪荷载的计算通常用半经验半理论的美国莫里森方程；大于波长的20％时，应考虑结构对入射波场的影响,考虑入射波的绕射,计算时用绕射理论求解。

影响波浪荷载大小的因素很多，如波高、波浪周期、水深、结构尺寸和形状、群桩的相互干扰和遮蔽作用以及海生物附着等。

波浪荷载常用特征波法和谱分析法确定。

对一些特殊形状或特别重要的海洋工程结构，除了用上述的方法进行计算分析外，还应进行物理模型试验，以确定波浪力。

①特征波法。

选用某一特征波作为单一的规则波，并以它的参数（有效波高、波浪周期、水深）和结构的有关尺寸代入莫里森方程或绕射理论的公式，求出作用在结构上的波浪力。

此法简便易行，在海洋工程设计广泛应用。

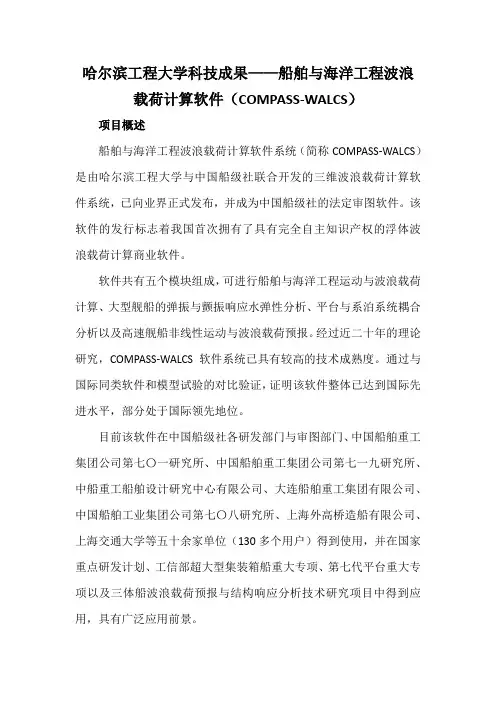

哈尔滨工程大学科技成果——船舶与海洋工程波浪载荷计算软件（COMPASS-WALCS）项目概述
船舶与海洋工程波浪载荷计算软件系统（简称COMPASS-WALCS）是由哈尔滨工程大学与中国船级社联合开发的三维波浪载荷计算软件系统，已向业界正式发布，并成为中国船级社的法定审图软件。

该软件的发行标志着我国首次拥有了具有完全自主知识产权的浮体波浪载荷计算商业软件。

软件共有五个模块组成，可进行船舶与海洋工程运动与波浪载荷计算、大型舰船的弹振与颤振响应水弹性分析、平台与系泊系统耦合分析以及高速舰船非线性运动与波浪载荷预报。

经过近二十年的理论研究，COMPASS-WALCS软件系统已具有较高的技术成熟度。

通过与国际同类软件和模型试验的对比验证，证明该软件整体已达到国际先进水平，部分处于国际领先地位。

目前该软件在中国船级社各研发部门与审图部门、中国船舶重工集团公司第七〇一研究所、中国船舶重工集团公司第七一九研究所、中船重工船舶设计研究中心有限公司、大连船舶重工集团有限公司、中国船舶工业集团公司第七〇八研究所、上海外高桥造船有限公司、上海交通大学等五十余家单位（130多个用户）得到使用，并在国家重点研发计划、工信部超大型集装箱船重大专项、第七代平台重大专项以及三体船波浪载荷预报与结构响应分析技术研究项目中得到应用，具有广泛应用前景。

项目成熟情况
COMPASS-WALCS软件已商业化推广，并在实际工程项目中得到应用，技术成熟度达到7级以上。

应用范围
COMPASS-WALCS是一款功能高度集成的软件系统，具有船舶与海洋平台运动与载荷响应计算、长短期统计分析、结构分析载荷计算和有限元结构模型自动加载一体化处理功能，可应用于船舶与海洋工程的船型开发、结构设计与优化、强度评估等方面。

共 19 页平台波浪力计算书二、平台基本数据和环境条件平台主尺度：长57.75 m，宽34.5 m，型深5 m桩腿尺度：Φ2.3*45 m桩腿间距：横向28.5 m 纵向44.55 m基线距海底：28.5 m设计水深：d = 20 m最大天文潮高：d t= 4 m最大波高：H = 6.5 m波浪周期：T = 7.0 ~ 13.0S最大流速：U = 1.5 m/S最大风速：V = 41.15 m/S作业工况波高：H1= 4 m作业工况风速：V1 = 25.8 m/S迁航波高：H C = 4 m迁航航速：V C = 4 knot迁航时桩腿在基线下：0.75m (Min.)图1 荷载方向三、自存工况(一)波浪荷载和海流荷载1．计算原理因为桩腿的直径和波长之比小于0.2，桩腿所受的波浪与海流荷载按Morison公式进行计算，单根桩腿单位长度所受的波流力为：F W＝F D＋F I (1)＝C d×ρ×D×| U|×U/2＋C m×ρ×π×D2/4×a＝C d×ρ×D×( | u＋v| )×( u＋v )/2＋C m×ρ×π×D2/4×a式中: F W ＝波流力，N。

F D＝阻力，N。

F I＝惯性力，N。

ρ＝海水密度。

ρ=1. 025*103 kg/m3。

C d＝垂直于构件轴线的阻力系数。

按照规范规定取值为1.0。

C m ＝惯性力系数。

按照规范规定取值为2.0 。

D ＝构件的直径。

D =2.3m 。

U ＝垂直于构件轴线的水质点相对于构件的总速度分量，m/s 。

u ＝垂直于构件轴线的波浪引起的水质点相对于构件的速度分量，m/s 。

v ＝垂直于构件轴线的海流引起的水质点速度分量。

计算中海流的方 向取和波浪相同的方向，v = 1.5m/s 。

a ＝垂直于构件轴线的水质点相对于构件的加速度分量，m/s 2。

第21卷第4期装备环境工程2024年4月EQUIPMENT ENVIRONMENTAL ENGINEERING·109·某海域极端环境下15万吨级FPSO波浪荷载数值研究刘中柏1，高宁波2*，唐鑫彤3，徐业峻1（1.中海油能源发展股份有限公司采油深圳分公司，广东 深圳 518052；2.武汉船舶职业技术学院，武汉 430050；3.中国船级社海工技术中心，天津 300457）摘要：目的评估在役15万吨级FPSO在某海域百年一遇极端波浪作用下典型横剖面的水动力特性，进而得到FPSO的极值荷载，作为FPSO返坞改造的关键控制参数。

方法基于国产自主三维频域线性势流软件COMPASS-WALCS，建立15万吨级FPSO湿表面网格模型，根据三维绕射-辐射理论，计算湿表面上的水动力荷载，将每个绕射单元上的水动压力直接映射到结构模型上进行计算。

采用谱分析方法对百年一遇海况进行分析，得到短期运动极值响应。

对响应幅值算子（RAO）和波能谱密度进行谱分析，得到极端波浪下的响应谱，进而得到浮体运动和波浪荷载短期预报各种统计值，利用统计方法求得短期响应的最大值。

结果计算了船中部Fr143横剖面的载荷极值，即垂向弯矩、垂向剪力、剖面型心加速度等，发现船舶迎浪时弯矩值最大，随着浪向角增大，弯矩值逐渐减小，剖面垂向剪力则随着浪向角增大逐渐增大。

结论 FPSO 在极端波浪作用下，其大迎浪角条件下荷载更加危险，需要给予格外关注。

关键词：浮式生产储卸油装置；势流理论；极端波浪；响应幅值算子；水平弯矩；加速度中图分类号：TG630 文献标志码：A 文章编号：1672-9242(2024)04-0109-07DOI：10.7643/ issn.1672-9242.2024.04.013Wave Loads of a 150 000-ton FPSO in Extreme Environment of a Sea AreaLIU Zhongbai1, GAO Ningbo2*, TANG Xintong3, XU Yejun1(1. CNOOC Energy Technology & Service-Oil Production Services Co., Guangdong Shenzhen 518052, China;2. Wuhan Institute of Shipbuilding Technology, Wuhan 430050, China;3. China Classification SocietyOcean Engineering Technology Center, Tianjin 300457, China)ABSTRACT: The work aims to evaluate the hydrodynamic characteristics of a typical cross section of a 150 000-ton FPSO un-der extreme wave conditions, occurring in a once-in-a-century wave climate in the South China Sea to obtain the extreme load imposed on the FPSO and use it as a critical control parameter for the FPSO’s dry-dock retrofit. Based on the domestically de-veloped 3D frequency-domain linear potential flow software COMPASS-WALCS, a wet surface grid model of the 150 000-ton FPSO was constructed. The three-dimensional diffraction-radiation theory was used to calculate the hydrodynamic loads on wet收稿日期：2024-03-05；修订日期：2024-04-01Received：2024-03-05；Revised：2024-04-01基金项目：中国博士后科学基金（2017M612541）Fund：China Postdoctoral Science Foundation (2017M612541)引文格式：刘中柏, 高宁波, 唐鑫彤, 等. 某海域极端环境下15w吨级FPSO波浪荷载数值研究[J]. 装备环境工程, 2024, 21(4): 109-115. LIU Zhongbai, GAO Ningbo, TANG Xintong, et al.Wave Loads of a 150,000-ton FPSO in Extreme Environment of a Sea Area[J]. Equipment Environmental Engineering, 2024, 21(4): 109-115.*通信作者（Corresponding author）·110·装备环境工程 2024年4月surface and the water pressure results on each diffraction unit were directly mapped onto the structural model for computation.Spectral analysis was employed to analyze the once-in-a-century wave climate resulting in short-term extreme motion responses.By analyzing the response amplitude operator (RAO) and wave energy spectral density, the response spectrum under extreme waves was obtained to predict various statistical values for the short-term vessel motion and wave loads. Statistical method was used to determine the maximum short-term response. The extreme load values of Fr143 cross section in the middle of the ship, namely vertical bending moment, vertical shear force and profile center acceleration, were calculated. It was found that the bending moment of the ship was the largest when facing the wave, and the bending moment gradually decreased with the in-crease of the wave angle, while the vertical shear force of the cross section gradually increased with the increase of the wave an-gle. It can be concluded that the FPSO experiences more hazardous loads when facing extreme waves at large wave angles which require special attention and consideration.KEY WORDS: FPSO; potential theory; extreme wave; RAO; horizontal bending moment; acceleration海上油气开采是海洋经济的重要组成部分，其依赖于各种海洋平台完成油气钻探和生产作业。
