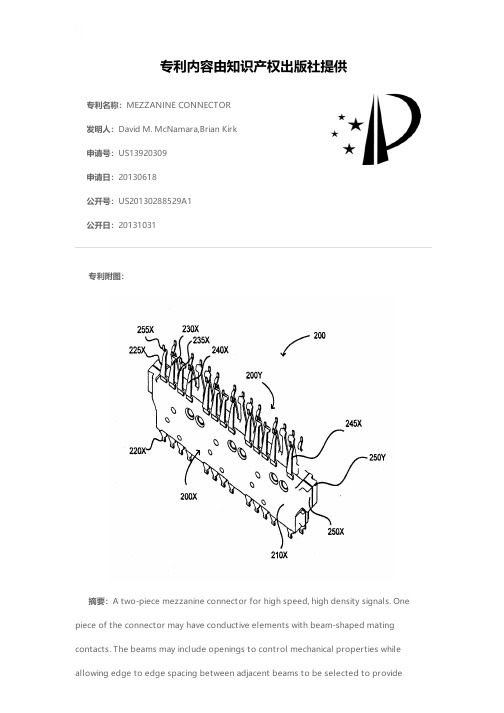

专利名称：MEZZANINE CONNECTOR发明人：David M. McNamara,Brian Kirk申请号：US13920309申请日：20130618公开号：US20130288529A1公开日：20131031专利内容由知识产权出版社提供专利附图：摘要：A two-piece mezzanine connector for high speed, high density signals. One piece of the connector may have conductive elements with beam-shaped mating contacts. The beams may include openings to control mechanical properties while allowing edge to edge spacing between adjacent beams to be selected to providedesired electrical properties. The openings may be teardrop shaped, with a larger width at a distal end of the beams. Beams associated with signal conductors may have openings that are shaped differently from openings of beams associated with ground conductors. For a first connector piece, mating contact regions of signal conductors may be wider than mating contact regions of ground conductors. For a second connector piece adapted to mate with the first connector piece, mating contact regions of signal conductors may be narrower than mating contact regions of ground conductors. These contact shapes may provide float while maintaining a high contact density.申请人：Amphenol Corporation地址：Wallingford Center CT US国籍：US更多信息请下载全文后查看。

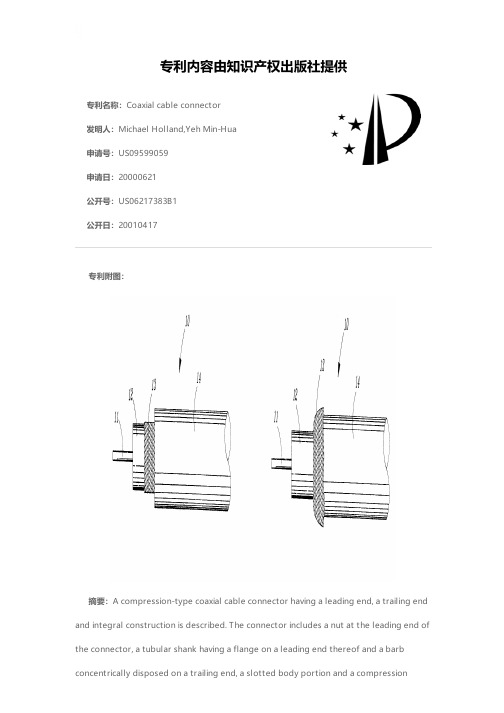

专利名称：Coaxial cable connector发明人：Michael Holland,Yeh Min-Hua申请号：US09599059申请日：20000621公开号：US06217383B1公开日：20010417专利内容由知识产权出版社提供专利附图：摘要：A compression-type coaxial cable connector having a leading end, a trailing end and integral construction is described. The connector includes a nut at the leading end of the connector, a tubular shank having a flange on a leading end thereof and a barb concentrically disposed on a trailing end, a slotted body portion and a compressionsleeve slidably attached to the body portion forming the trailing end of the connector. The connector, and each of the components associated therewith, has an axial conduit coextensive with the length thereof. When the prepared end of a coaxial cable is inserted into the trailing end of the connector conduit and advanced through the conduit into the body portion, the shank separates the outer protective jacket and conductive braid of the cable from the dielectric core and interposes the barbed portion of the tubular shank therebetween. Subsequent advancement of the compression sleeve over the body portion, with the assistance of a compression tool, compresses the cable jacket and braid in two locations providing secure attachment. Following compression, further advancement of the compression sleeve is stopped when an annular ridge within the compression sleeve engages a groove in the outer surface of the slotted body portion, thereby providing a stable mechanical connection between the cable and connector. A first “O” ring disposed between the tubular shank and the nut, and a second “O” ring disposed between the slotted body portion and compression sleeve, provide a moisture seal. The construction of the slotted body portion and the compression sleeve minimizes the possibility of installation errors.申请人：HOLLAND ELECTRONICS, LLC代理人：Michael G. Petit更多信息请下载全文后查看。

专利名称：CONNECTOR发明人：Nobuyuki NAKAJIMA,Ryoichi MANABE申请号：US17433544申请日：20200221公开号：US20220158374A1公开日：20220519专利内容由知识产权出版社提供专利附图：摘要：A connector () according to the present disclosure includes a holder () holding a cable () including a conductor () and an insulating coat () covering the conductor (), and a socket () with which the holder () is to be engaged and including a contact (). The holder ()includes a base portion () holding the cable () by being integrally molded with the cable ()and in which a portion of each of the insulating coat () and the conductor () of the cable () is embedded, and an extension portion () covering at least a portion of the conductor () and extending from the base portion () toward a side of connect with the socket (). The holder () exposes a part of the conductor () of the cable () in contact with the contact () in an engaged state in which the holder () and the socket () are engaged with each other.申请人：KYOCERA CORPORATION地址：Kyoto JP国籍：JP更多信息请下载全文后查看。

专利名称：ELECTRICAL CONNECTOR FOR ACONTROLLER发明人：Michael Zheng,Ke Zhang,Haitao Li,YongMu,Kun Wang,Wei Guo,Yingjie Zhang,XinyanZheng申请号：US17519139申请日：20211104公开号：US20220059960A1公开日：20220224专利内容由知识产权出版社提供专利附图：摘要：An electronic device including a plurality of ports for electrically connecting thedevice to another device. The electronic device may include a housing including a front, a back and at least a first side and an opposing second side extending between the front and the back, a printed circuit board housed by the housing, and an electrical connector electrically connected to the printed circuit board. The electrical connector may include a first spring contact, a second spring contact, and an electrically conductive bridge mechanically and electrically connecting the first spring contact and the second spring contact. The electrically conductive bridge may be housed by the housing. The first and second spring contacts may extend outside of the housing and may be accessible from the first and second sides of the housing, respectively.申请人：Honeywell International Inc.地址：Charlotte NC US国籍：US更多信息请下载全文后查看。

专利名称：ELECTRICAL CONNECTOR FOR ACONTROLLER发明人：Michael Zheng,Ke Zhang,Haitao Li,YongMu,Kun Wang,Wei Guo,Yingjie Zhang,XinyanZheng申请号：US17519139申请日：20211104公开号：US20220059960A1公开日：20220224专利内容由知识产权出版社提供专利附图：摘要：An electronic device including a plurality of ports for electrically connecting thedevice to another device. The electronic device may include a housing including a front, a back and at least a first side and an opposing second side extending between the front and the back, a printed circuit board housed by the housing, and an electrical connector electrically connected to the printed circuit board. The electrical connector may include a first spring contact, a second spring contact, and an electrically conductive bridge mechanically and electrically connecting the first spring contact and the second spring contact. The electrically conductive bridge may be housed by the housing. The first and second spring contacts may extend outside of the housing and may be accessible from the first and second sides of the housing, respectively.申请人：Honeywell International Inc.地址：Charlotte NC US国籍：US更多信息请下载全文后查看。
