LHE6031软件使用简易说明

3)亮度模式：有两种模式可供选择：固定亮度和继承亮度。固定亮度：改变该组亮度后，切换到其它组再切换回该组时亮度值还原为改变前的值：继承亮度：改变该组亮度，切换到其它组再切换回该组时亮度值保持为改变后的亮度值。建议设置为固定亮度。
5.1.3灯光模式复制
此选项可以将一个场景的灯光参数完全复制到当前场景，渐变与声控参数不能复制，如图10所示可将左边组复制到当前组。
2)红外码：在此可对红外码进行学习，有两种学习方式：
直接输入红外码值，点“写入”按钮进行写入。
点“学习”按钮，再用遥控器对准智能控制器显示屏的位置进行学习，学习成功后点“退出学习”按钮退出学习状态。
3)串口墙板1：在此可对墙板与组号进行学习关联，有两种学习方式：
直接输入墙板码值，点“写入”按钮进行写入；
制热模式时当室温度大于设定温度时，电子阀自动，并把空调置为空档，当室温下降到小于设定温度时电子阀再次打开，并自动调到设定风速档位。
送风模式时不对温度与电子阀进行关联控制，设定温度与当前温度均无效，空调随设定的档位持续工作。
制冷、制热模式必须正确设定，否则会导致空调工作不正常，若使用不带温度控制的墙板时，需设置为送风模式，否则可能会导致空调不工作。
5.1.2全局控制
全局控制所有参数设定界面如图8所示
图8
1)全局亮度：在此设置当前场景模式的默认全局亮度，默认亮度对该场景模式所有灯有效，每一路可调灯的亮度是由默认亮度与该路灯单独控制的亮度决定。选项如图9所示。
图9
2)开关模式：有两种模式可供选择：固定模式和开关模式。固定模式：按墙板上对应按键时，受控的各路灯打开，再次按下时保持不变；开关模式：按墙板上对应按键时，受控的各路灯打开，再次按下时受控的各路灯关闭。
2)全局控制

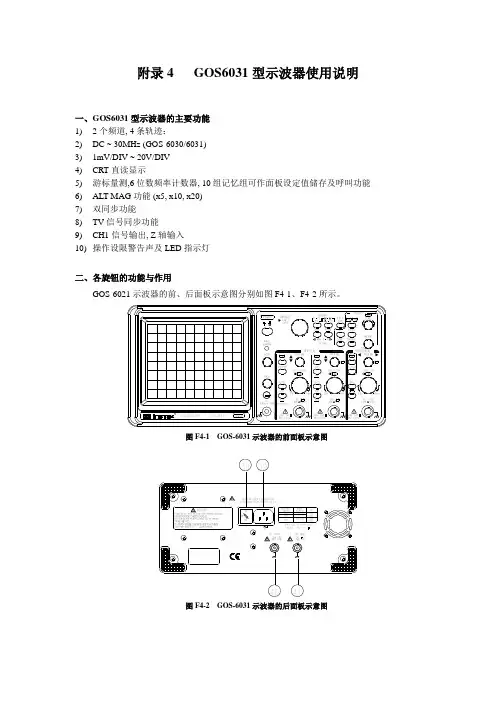

附录4 GOS6031型示波器使用说明一、GOS6031型示波器的主要功能1) 2 个频道, 4 条轨迹：2)DC ~ 30MHz (GOS-6030/6031)3)1mV/DIV ~ 20V/DIV4)CRT 直读显示5)游标量测,6 位数频率计数器, 10组记忆组可作面板设定值储存及呼叫功能6)ALT MAG 功能 (x5, x10, x20)7)双同步功能8)TV 信号同步功能9)CH1 信号输出, Z 轴输入10)操作设限警告声及 LED 指示灯二、各旋钮的功能与作用GOS-6021示波器的前、后面板示意图分别如图F4-1、F4-2所示。

图F4-1 GOS-6031示波器的前面板示意图图F4-2 GOS-6031示波器的后面板示意图打开电源后，所有的主要面板设定都会显示在屏幕上，LED位于前面板用于辅助和指示附加资料的操作。

对于不正确的操作、或将控制钮转到底时，蜂鸣器都会发出警讯。

所有的按钮、TIME/DIV控制钮都是电子式选择，它们的功能和设定都可以被存储。

前面板可以分成四大部分：显示器控制，垂直控制，水平控制，触发控制。

1．显示器控制显示器控制钮调整屏幕上的波形，提供探棒补偿的信号源。

其旋钮如图4-3所示。

（1）POWER：电源接通时，屏幕上LED全部会亮，一会儿以后，一般的操作程序会显示，然后执行上次开机前的设定，LED显示进行中的状态。

（2）TRACE ROTATION：是使水平轨迹与刻度线成平行的调整钮，这个电位器可用小螺丝来调整。

（3）INTEN：用于调节波形轨迹亮度，顺时针方向调整增加亮度，逆时针方向减低亮度。

图F4-3 显示器控制旋钮（4）FOCUS：聚焦控制钮，用于调节光迹的清晰度。

（5）CAL：此端子输出一个0.5V P-P、1kHz的参考信号，给探棒使用。

（6）Ground socket：香蕉接头接到安全的地线。

此接头可作为直流的参考电位和低频信号的测量。

（7）TEXT/ILLUM：具有双重功能的控制钮，用于选择TEXT读值亮度功能和刻度亮度功能。
