堡狮龙HCD133(2)TSDL电话机说明书(通用)

回拨电话机使用说明书回拨电话机使用说明书●FSK/DTMF双制式兼容●不改变拨号习惯●来电显示60组，去电15组●具有防雷功能●具有MSG提示功能●来电和去电号码查询、回拨●删除、消号功能●液晶亮度可调●键盘锁控制功能一、拨打方式不改变拨号习惯，提机拨打即可。

二、直拨按“直拨”+电话号码，话机直接电话拨出去而不走IP。

三、亮度调节挂机状态，按“设置”键+“上翻”，用上翻调节显示亮度，按“设置”确定并退出。

四、来电显示功能当有新的来电时，显示屏左上角出现“新的来电”字符，并显示新的来电次数和重复来电次数，本机可存储60组电话号码，存满后新的来电号码抵消最先收到的号码。

※查询功能：按“上翻”、“下翻”键，查询新的来电。

※删除功能当查到某组来电信息，如果删除，按“删除”次，屏幕会闪烁，再按“删除”一次即删除该来电号码。

※FSK/DTMF来电制式调节设置：连续按设置键两次注：话机初装是一种制式，启动一组制式，则关闭另外一种制式。

五、去电查询※本机可记忆15组打出的电话号码和通话的时间，存满后新打出的代替最前面的号码及通话时间。

※在挂机状态，按“去电查询”，再按“上翻”和“下翻”键，可依次查询打出号码，及通话时间。

※查到需拨打的号码后，按“回拨”键，即可拨出该号码。

※删除号码翻查来电时，按“删除”三秒，既可删除所有来电号码。

六、预置号码拨打方式在挂机状态下，输入电话号码，拨错了可按“删除”键进行修改，待号码确认后摘机或按“回拨”键，即可将此号码拨出去。

七、闪断、重拨及暂停功能※闪断（F）、重拨功能：对方线路忙，按“闪断”，话机可快速切断外线一次，按“重拨”键，可将刚发出的号码重拨出去。

※免提功能在挂机的状态下，直接按“免提”键，即可进行免提通话，通话完毕，再按“免提”，即可挂机。

八、键盘锁：1、键盘功能设置+直拨+初始密码（4位）+“设置”设置成功之后，屏幕左上角显示“上锁”注：本机出厂密码：88882、解锁方法：设置+直拨+初始密码（4位）+“设置”设置密码成功后，屏幕左上角显示“上锁”自动消失。

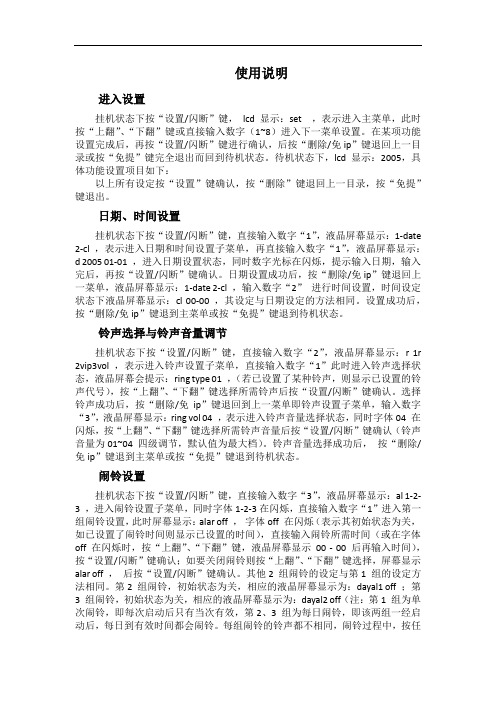

使用说明进入设置挂机状态下按“设置/闪断”键，lcd 显示：set ，表示进入主菜单，此时按“上翻”、“下翻”键或直接输入数字（1~8）进入下一菜单设置。

在某项功能设置完成后，再按“设置/闪断”键进行确认，后按“删除/免ip”键退回上一目录或按“免提”键完全退出而回到待机状态。

待机状态下，lcd 显示：2005，具体功能设置项目如下：以上所有设定按“设置”键确认，按“删除”键退回上一目录，按“免提”键退出。

日期、时间设置挂机状态下按“设置/闪断”键，直接输入数字“1”，液晶屏幕显示：1-date 2-cl ，表示进入日期和时间设置子菜单，再直接输入数字“1”，液晶屏幕显示：d 2005 01-01 ，进入日期设置状态，同时数字光标在闪烁，提示输入日期，输入完后，再按“设置/闪断”键确认。

日期设置成功后，按“删除/免ip”键退回上一菜单，液晶屏幕显示：1-date 2-cl ，输入数字“2”进行时间设置，时间设定状态下液晶屏幕显示：cl 00-00 ，其设定与日期设定的方法相同。

设置成功后，按“删除/免ip”键退到主菜单或按“免提”键退到待机状态。

铃声选择与铃声音量调节挂机状态下按“设置/闪断”键，直接输入数字“2”，液晶屏幕显示：r 1r 2vip3vol ，表示进入铃声设置子菜单，直接输入数字“1”此时进入铃声选择状态，液晶屏幕会提示：ring type 01 ，（若已设置了某种铃声，则显示已设置的铃声代号），按“上翻”、“下翻”键选择所需铃声后按“设置/闪断”键确认。

选择铃声成功后，按“删除/免ip”键退回到上一菜单即铃声设置子菜单，输入数字“3”，液晶屏幕显示：ring vol 04 ，表示进入铃声音量选择状态，同时字体04 在闪烁，按“上翻”、“下翻”键选择所需铃声音量后按“设置/闪断”键确认（铃声音量为01~04 四级调节，黩认值为最大档）。

铃声音量选择成功后，按“删除/免ip”键退到主菜单或按“免提”键退到待机状态。

telephonealarmManual说明书电话报警器使用说明1 总则本规范用户安装设备并正确使用设备时应遵守的规范。

2. 主机安装2.1 主机安装步骤2.1.1 打开包装盒并检查。

检查所有随机物品是否齐全，完好，并打开包装，摆放整齐。

参考标配情况如下（根据各个市场需求不同会有所变化）：（1）神鹰天卫报警电话主机1部；（2）电源1个（输入100-240VAC，输出9V/300mA）；（3）遥控器2个；（4）主门磁1个（特别注意配件上有?主门磁?字样）；（5）普通门磁2个（可安装在门、窗）；（6）双面胶3套（和门磁配套使用，用于和门、窗粘接）；（7）7号电池6节（分别安装在主门磁和普通门磁中，往上推开盖子即可安装，安装好后合盖即可）；（8）话机线二根（一根螺旋线，一根直线）；（9）用户手册1本。

标准配置如图1.所示2.1.2 向用户简单介绍话机。

按键语音功能及工作原理，配件(无线红外探测器、门磁）组成及遥控器功能等。

2.1.3 安装话机主机。

接通手柄线、电话线。

用螺旋线连接话机的手柄和主机时，注意螺旋二端的直线长度不一样，长端接主机，短端接手柄，否则会导致话机安放不平整（见下图2.）。

2.1.4 先插上外接电源，再接上电话线（如图3.所示），如主机液晶屏能点亮，表示电源接通。

同时【低电/故障提示】键灯发红光闪烁。

按该键，语音提示?当前时间为初始时间，请重新设置！?可按【设置】键或者【定时时间设置】键设置当前时间。

2.1.5可以试拨一下电话，检查线路是否正常？如不正常应检查线路或更换主机。

2.1.6 向用户介绍话机尽量安装电池使用，否则在市电停电如无电池和电源供电情况下不能正常报警。

2.1.7 完成上述操作后，表示主机/电源/线路没有问题。

测试配件确认无线发射配件已经对码。

2.2 主机安装注意事项2.2.1 主机应安装在干燥通风无腐蚀性气体的地方。

2.2.2 注意检查电话线路是否为智能公话等特殊线路。

HA007（42）使用说明书目录1．本机特点2．主要技术指标3．电话机功能图示说明4．安装5．使用方法接听电话——————————————————————手柄拨打电话————————————————————免提拨打电话————————————————————手柄通话与免提通话间的转换—————————————时钟设置——————————————————————拨号方式开关转换和音频键——————————————铃声大小开关转换——————————————————重拨键/暂停键/闪断键————————————————R键/静音键/计时键/查时键——————————————暂存键———————————————————————拨号限制——————————————————————6．存贮、运输和售后服务7．维护、保养和注意事项8．电话机原理图一、本机特点HA007（42）P/TSDL（LCD）型液晶显示多功能按键电话机，是采用先进电子线路设计而成的免提式液晶显示电话机。

本机标准话机部分均采用专用电路，组成完善的发送、接收系统，免提通话部分采用特殊电路设计，其音质清晰宏亮，铃声悦耳，工作可靠，适合于邮电、工矿企业、行政事业单位、家庭以及宾馆酒店等部门作通讯联络。

■ 脉冲/双音频兼容拨号方式免提按键电话机，可与48-60伏的市话网自动电话交换机和用户自动小型交换机配接使用。

■ 标准电话机的送、受话电路采用专用电路，噪声小、性能稳定，电路设计合理，由于有自动增益控制（AGC）电路，受外线长短变化影响小，因此远近距离通话声音大小基本不变。

■ 免提通话部分采用特殊电路设计，功耗低、输出大。

利用电话线路直接馈电，无需自备电源，既方便又可靠。

■ 采用电子音乐铃，铃声清脆悦耳，高低可调。

■ 本机设有手柄指示灯和免提指示灯，分别指示手柄通话和免提通话的工作状态。

■ 本电话机线路设计优越，功能强大，具体总结如下：（1） P/T（脉冲/双音频）开关转换和按键软转换功能。

—、使用注意事项1、电话机应安装在干燥、通风、无腐蚀气体的地方．2、来电显示功能必须要本地电信局开通并向电信局申请才能显示对方号码．没有开通来电显示的地方不影响话机普通功能使用．二、主要功能1、8种普通铃声+ 1组贵宾铃声，普通铃声可选。

2、DTMF／FSK多制式兼容，来电自动识别。

3、来电30组(16位显示)，去电5组(16位显示)，贵宾35组，回拨功能．4、键盘设置防盗功能．5，全自动IP(32位)快速、保密拨号．6、机械锁―0 ‖．7、预拨号及消号、回拨功能．8、2位出局码，适应虚拟网．9、本地区号过滤功能．三、操作说明1、铃声设置挂机状态下连续按―铃声选择‖犍，当LCD屏幕显示―TING 1至8 ‖，表示有八种铃声可选．2、功能设置挂机状态按―设置‖键进入设置菜单，LCD显示―SET 1 DRTE ‖ ，此时用上、下查健可改变设置项，再按设置键进入该项设置。

在设置完成该项后，按设置键进入下一项设置。

所有设置均用上、下查键修改该具体设置项．用―删除‖键退出设置状态．具体设置如下：(1)日期／时间设置：按―设置‖键LCD显示―SET 1 DRTE ‖，此时按设置键确认。

进入设置后，年的显示闪烁，可按上、下查键修改，完成后再按设置健进入月的设置，修改方法与年的设置相同，再按设置键可依次修改日、小时和分钟。

小时和分钟的设置可分十位和个位分别设置．(2)设置区域码(即本地区号)：LCD会提示―SET 2 CODE ‖ ，此时按设置键确认，LCD会显示―CODE - - - - - ‖，进入区号的设置，第一个―-‖闪烁(若已设置了区号，则显示设置的区号，区号第一个号码闪烁)。

按上、下查健可设置或修改为0－9，完成第一位设置后，按设置键进入第二位设置，以此类推。

如北京用户则设置区域码为：CODE 010--。

(3)设置出局码：LCD提示―SEt 3 PCODE‖，按设置键确认，LCD会显示―PCODE - - ‖，第一个―-‖闪烁(若已设置了出局码，则显示已设置的号码，号码的第一位闪烁)。

狮龙功放说明书篇一：狮龙8105功放说明书contents－－－－－目录introduction－－－－－介绍read this before operating your unit | 1－－－－－操作前请阅读safety instruction | 2－－－－－安全教育system connections | 4－－－－－系统连接front panel controls | 11－－－－－前板控制键universal remote controls | 13－－－－－通用摇控器remote control operation range | 15－－－－－摇控器控制范围loading batteries | 15－－－－－安装电池using functions of remote control | 16－－－－－控制器按键功能使用speaker setup | 19－－－－－扬声器设置setting the speaker setup manually | 20－－－－－扬声器手动设置setting the speaker setup automatically (auto speaker setup) | 22－－－－－－扬声器自动设置operations－－－－－操作listening to a program source | 25－－－－－音乐信号源欣赏（听音）surround sound | 28－－－－－环绕声enjoying surround sound | 30－－－－－享受环绕效果listening to radio broadcasts | 35－－－－－收听广播电台recording | 37－－－－－录音digital audio recording with minidisc recorder | 38－－－－－用md录音机进行数字录音other functions | 39－－－－－其它功能using the osd (on－－－－－屏幕显示器screen display)．current status display | 40－－－－－显示屏实时显示osd (on screen display) menu settings | 40－－－－－在显示设备屏幕上进行菜单设置setting the speaker setup | 42－－－－－扬声器设置selecting the function | 45－－－－－功能选择selecting the surround mode | 47－－－－－环绕效果模式选择setting the ch level setup | 48－－－－通路电平设置（音量设置）troubleshooting guide | 50－－－－－故障排除指南specifications |51－－－－－规格setup code table| 53－－－－－摇控器安装代码表第4页systemconnections－－－－系统连接所有的连接完成前，不要将其插头插入插座内使连接牢固，正确。

堡狮龙HCD133（2）TSDL电话机说明书（通用）铃声音量调节在挂机状态下，按『音量』键可循环调节铃声音量大小，共有4级音量可选，“IN9U0L 4”为最大、“IN9U0L 4”为最小“CrESC”为声音渐强。

免提音量调节在按『免提』键摘机状态下，按『音量』键可循环调节免提接收音量大小，共有2级音量可选，“HFU0L 2”为最大、“HFU0L 1”为最小。

显示亮度调节在挂机状态下，按『亮度调节』键可循环调节显示屏亮度，共有5级亮度可选，“LCD 5”为最大，“LCD 1”为最小。

菜单设置（设置菜单如有出错可按﹡#06﹡恢复默认设置，清除存储）挂机状态下按『设置』键进入设置状态，LCD显示“SE￡ 1 DA￡E”，此时可以按上查键或下查键选择设置项，LCD同时显示对应的设置项，再按『设置』键进入该项设置。

在某项设置完成后，按『设置』键确认同时将会进入下项设置，所以设置都已按『设置』键确认完成并转到下一项，用上查键或下查键修改具体设置项，按『删除』键退出设置状态，具体设置如下：设置日期/时间1.显示屏显示“SE￡1 DA￡E”，按『设置』键确认进入日期/时间设置。

2.看到年份后两位字体闪烁，此时按上查或下查键修改，完成后按『设置』键确认，并进到月的设置，修改方法与年的设置相同也是按上查键或下查键修改。

3.重复以上步骤可依次修改日、小时、分钟4.按『删除/R』键退出设置区域码1.显示屏显示“SE￡ 2 CODE”，按『设置』键确认，显示屏显示“CODE-----”2.按上查键或下查键，设置第一区域吗3.第一位设置好后，再按『设置』键确认，进入第二位设置，同上方法一样依次设置4.按『删除/R』键退出设置出局码1.显示屏显示“SE￡ 3 PCODE”，按『设置』键确认，显示屏显示“CODE—”2.按上查键或下查键设置出局码，再按『设置』键确认3.按『删除/R』退出例如：用户是公司内线直拨打外，前面需先拔“9”再拨外线电话号码的，那么“9”就是出局码，按上设置好出局码，再回拨来电，预拨号时，若号码大于或等于6位且首位与出局码不同，按『重播/回拨』键，滑稽会自动加拨9，回拨去电则不考虑添加出局码。

USER MANUALPlug & Play with built-in OGMsPermanent memories: no tape,no battery14 minutes memory capacityCuckoo new-messageaudio reminderOne-touch Do Not Disturb functionRecordable ringerBuilt-in selectable ringing melodiesDo Not Disturb Ringer Light IndicatorDigital Receiver Volume Control3 Direct Memories and 10 Indirectphone memoriesApproved useThis telephone is approved for connection to direct exchange lines of the Public Switched Telephone Network (PSTN) and compatible PBXs (please ask your supplier for an up-to-date list) but not for connection in the following manner: • as an extension to a payphone• on a shared service line or 1 + 1 carrier system.This apparatus has been approved for the use of the following facilities:• Call screening/intercept • Memo recording• Audible and visual indication of messages • Power/message indicator • Remote accessAny other usage will invalidate the approval of the apparatus if as a result it then ceases to conform to the standards against which the approval was granted. It cannot be guaranteed that this apparatus will operate correctly under all possible conditions of connection to compatible PBXs. Any cases of difficulty should be referred in the first instance to your supplier. This apparatus is suitable for connection to PBXs that return secondary proceed indication.Please note that when connection is made to any PBX, the last number redial facility must not be used.While listening to the message playback, you can do the following:Press [7] to repeat a messagePress [8] to play/stop message playback Press [9] to skip forward to next message Press [7] [7] to play previous messagePress [0] to erase the message being played Press [1] to select Mailbox 1Press [2] to select Mailbox 2Press [3] to select Mailbox 3Press [4] to select Mailbox 4Press [5] to exit from a MailboxPress [6] to access for OTHER COMMANDS Press [] to listen to menu functionsThe Other CommandsPress [1] to switch to Answer Record mode.Press [2] to switch to Answer Only.Press [3] to switch the Answer off.Press [4] to record a new Answer Record message or to stop recording Press [5] to record a new Answer Only message or to stop recording Press [6] to activate the room monitoring function.Press [7] to change the PIN Code.Press [8] to stop/playback messages or to return to first set of commands.Press [] to listen Help Commands.Press [#] to exit the remote control functions.Note:Please use the power adaptor and telephone line cord provided in this package.Technical SpecificationPower Requirement:9V AC, 400mA Length of messages:Outgoing messages Incoming messages MemoNumber of messages:Memory Capacity (total recording time):14 minutes (approximately)minimum maximum 3 seconds-- 3 minutes 3 minutesmemory capacity60 (max.)Dear Customer,Thank you for purchasing this Philips product which has been designed and manufactured to the highest quality standards.If, unfortunately, something should go wrong with this product Philips guarantees free of charge labour and replacement parts irrespective of the country where it is repaired during a period of 12 months from date of purchase. This international Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of purchase and does not affect your statutory rights as a customer.The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.The Philips guarantee may not apply if:•the documents have been altered in any way or made illegible;•the model or production number on the product has been altered, deleted,removed or made illegible;•repairs or product modifications and alterations have been executed by unauthorised service organisations or persons;•damage is caused by accidents including but not limited to lightning, water or fire,misuse or neglect.Please note that the product is not defectiveunder this guarantee in the case where modifications become necessary in order for the product to comply with local or national technical standards which apply in countries for which the product was not originally designed and/or manufactured.Therefore always check whether a product can be used in a specific country.In case your Philips product is not working correctly or is defective, please contact your Philips dealer. In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting your dealer. If you have questions which your dealer cannot answer or any related question please write or call:Philips Consumer Help DeskUnit 4, Elmwood, Chineham Business Park,Crockford Lane, Basingstoke, Hampshier RG24 8WG, United Kingdom.Phone : 0645 282828Fax : 01256 707335Philips Electronics Ireland Ltd Newstead Clonskeagh Dublin 14IRELANDPhone : (01)-7640000Fax : (01)-7640175U K & IRELANDyour international guaranteeOperating the remote-control featureYou can give commands to your answering machine from another telephone by entering the 4-digit remote code.1.Dial the telephone number.2.The answer machine will answer after the number of set rings. (If it is set in Answer-Off mode, it will answer after 9 rings).3.Press to activate the remote functions.4.Enter your personal remote pin code then the messages will start to playback.5.Once all the messages have been played, the voice prompt will say “No more messages ”.6.Press to listen to the Help commands.Note :If an incorrect PIN code is entered, the voice prompt will say “Incorrectcode, please try again ”. Please enter your remote code again.-There is only three attempts to enter your PIN code.-If silence is maintained for 7 seconds, the voice prompt will say “press the for help ”.-Accessing your remote control, the display will show “00”.Listening to Incoming messages from the mailboxesThere are 4 mailboxes.To listen to messages from mailbox:1.Press the , then the display will show “01”.2.If there are any new messages, the mailbox symbol will flash.3.After 2 seconds, the display will change to show a flashing number of new messages in the mailbox.4.Play the messages.5.Press the Button to skip back to the previous message or press the next button to forward to next message.To listen to messages from other mailboxes:1.To listen to messages from mailbox 2, press the again.2.The display will show the mailbox symbol and the number 2.3.Please follow the same procedure as stated above for all mailboxes.To exit from the mailboxes and return to main store:After listening to last message in mailbox 4, press the and you ’ll return to main store.Note:During the time-out after the playback of messages in a mailbox, if you donot press any keys for 30 seconds, the answering machine will return to main store.Erasing the messagesTo erase old and listened messages:1.Press the erase key for 2 seconds while no messages are playing.Note: No new messages will be erased in order to prevent accidental erase.To erase individual messages:1.Press the erase key while the message is playing or at the end of the message before the next message starts.Operating the Cuckoo FunctionThe “Cuckoo ” function is an audio reminder that will ring every 10 minutes to remind you that there is a new message.1.Press the to turn this function “On ”, then the LED light up.2.Press theagain if you wish to turn off this function.Operating the Do Not Disturb FunctionDo not disturb function offers privacy and convenience.This function switches off all audio functions from the answering machine ringer and “cuckoo ” function.1.Press the “Do Not Disturb ” button, to turn on this function, then the LED will light up.2.If you wish to turn off this function and reactivate the other functions, press “Do Not Disturb ” button.Note:When the Do Not Disturb function is “On ”, thefunction is automaticallydeactivated, and the LED is switched off.Volume ControlIf you wish to change the volume, just push the slider up or down to the desired level.Recording a MemoYou are able to leave a message for your household members through this feature.During recording, the telephone line must be inactive and the machine must be in Answer Off mode.1.Press Answer Mode Button to Answer Off mode and the Answer Off Indicator is light up.2.Press Record button.3.After the beep and the displays shows “uc ”, speak your memo.4.Press Play/Stop or Record button to stop recording.5.After the rotating “uc ” stops, the memo will playback.6.Press Answer Mode Button once or twice to restore to previous setting.LowHighSetting the Remote CodeWhen using the answering machine for the first time, the remote code is “0000”.For the sake of security, please record and use your own 4-digits Remote Code.1.Press and the VoiceHelp will say “ PIN Code is...” and the display will show “PC ”2.Press or to change each number in your code, then once the digit you desire is displayed, press to confirm. Repeat this step for all 4 digits.3.After the fourth digit is selected, press to confirm.4.Then the VoiceHelp will repeat the selected 4-digits New Remote assess code.5.The system will exit the Menu setting mode and return to stand-by mode.Note:During the setting, system will exit the Menu mode in case of:no subsequence commend for more than 30 seconds, or pressing the PLAY / STOP key, or there is an incoming call.Return to the Menu settings, press .Answer/Record mode:If you want the machine to answer as well as record the incoming calls:1.Press once or twice, then LED - ANS/REC will light up.2.After 2 seconds, the OGM will be played.Note: During playback, the display shows “A1”Answer Only:If you want the machine announce the outgoing message to the incoming calls without recording.1.Press MODE once or twice until the LED - ANS ONLY is light up.2.After 2 seconds, the OGM will be played.Note : During playback, the display shows “A2”Answer Off:To turn off the Answering Machine:1.Press once or twice until the LED - ANS OFF is light up.2.The display shows “- -”3.VoiceHelp will announce:“Answer Off mode, to record your memo, please press , to stop recording,press STOP.”4. In case of no further command within 30 seconds, the display will show the number of messages in the machine.ANS/RECANS ONLYThank you for calling, you are connected to an answering machine, please leave your message after the beep.Thank you for calling, you are connected to an answering machine, please call later.Select your answering modeELEGANCE 99 is defaulted to answer and record the incoming calls, Answer/Record mode. To hear the default Outgoing Message (OGM), press the MODE key until the display shows “A1” and the Answer/Record Indicator is light up.ANS/REC ANS ONLY ANS OFFHow to record your outgoing message:Before recording an outgoing message, please select an corresponding mode either “Answer/Record ” mode or “Answer Only ” mode:To record Answer Record message:1.Press once then Answer/Record indicator will light up2.Press during playback or within 30 seconds of completion.3.After the beep, speak your message. You will have maximum 3 minutes for your announcement.4.Press to stop recording.5.You will hear the recorded outgoing message playback.6.To record again, press and repeat step (2) to (4).7.To confirm, press and return to stand by mode.8.To erase, press during playback. Then the pre-recorded outgoing announcement will be resumed and playback.To record Answer Only:1.Press twice to select Answer Only, then Answer Only indicator will light up and you ’ll hear the current outgoing message.2.Press during playback or within 30 seconds of completion.3.After the beep, speak your message. You will have maximum 3 minutes for your announcement.4.Press to stop recording.5.You will hear the recorded outgoing message playback.6.To record again, press and repeat step (2) to (4).7.To confirm, press and return to stand by mode.Note:When the memory is full, the machine will automatically switch from AnswerRecord to Answer Only.To erase your recorded outgoing message, press during playback.Listening to incoming messagesThe display will flash, indicating the number of new messages in main store.1.Press to listen the new messages. The messages will playback from first one recorded to the last one recorded.2. If you wish to repeat the message, press to repeat the message.3. If you wish to skip the message, press .4. If you wish to erase the message, press the button while the message is playing or before the next message.Note:If there are new messages in both main store and mailboxes, the 2 digit LEDwill only signaled.- If there are no new messages in the main store but in the mailboxes, a mail box symbol will flash in the display.-If there are no new messages either in the main store or the mailbox,then the display will show the number of old messages in the main store but it will not flash.-If there are no new or old messages at all, the display will show “0”motionless.To record Incoming message in Mailboxes4 Mailboxes are providedNot only to leave message in main store, the caller can choose to leave a message in a particular mail box by pressing the mailbox key.1.The OGM message will be played after the set number of rings.2.Press the mailbox key after the OGM e.g. press (1) for Mailbox 1, press (2) for Mailbox 2. It is the same for Mailbox 3 & 4.3.The machine will start recording incoming calls in particular mailbox.or。

1820C型电话机使用说明书一、简要说明感谢您选择1820C型电话机，此产品可用于家庭分机使用及酒店专用电话机。

您可以通过阅读本手册，全面地了解901电话机的使用，领略其完善的功能和简洁的操作方法。

二、产品功能1）拨号暂停功能2）最后一组号码重拨3）静音功能三、产品安装及使用1.打开彩盒，取出电话机与2根电话线，把话筒曲线一头（两头不分）插入主机左侧面的插孔，另一头插入话筒手柄的插孔；将另外一根电话线（两头不分）一头插入电话机后面的插孔，另外一头插入墙板的电话口。

2.打开主机背后的电池盒后盖，按照正确的+-极性装入3节7号电池，盖上后盖，此时电话机屏幕应该有显示，否则电池没有装好请重新检查直至屏幕显示正常；3.提起话筒，听筒应该听到“嘟--”拨号提示音，说明接通，可以正常使用了。

如果无声，请检查电话进线是否接触正常。

看图：四、产品常见故障现象及维护方法1、铃声异常（1）电话机挂机时铃响不断。

一般是电话机振铃电路中的电容被击穿短路，使收铃器输入失去直流作用。

挂机时外线直流外线馈电电压为振铃集成IC提供工作电源，所以挂机时铃响不断。

一般只要更换打振铃电容就可以了。

如果振铃电容没坏，应检查抑制电路板是否漏电或是否由于焊点处理不当而短路。

（2）铃声小。

检查在收铃状态下集成IC的直流电压是否为25~27V。

若低于正常值较多，应检查输出耦合电容是否漏电或击穿短路，若电压基本正常，应检测输出衰减电阻阻值是否变大，开关、线圈是否局部短路，否则就是IC性能不良。

2、无振铃当电话机出现无振铃故障时，要在振铃状态下按以下步骤检查。

①测量整流桥输入交流电压。

正常时约为60V；若接近0V，应检测振铃电容和降压电阻是否断路，开关是否损坏或引线是否脱焊。

②测量振铃IC的直流电压。

正常时为25~27V；若接近0V，应检查整流、滤波电路是否被击穿短路，整流桥是否有二极管损坏，否则就是振铃IC内部短路。

3、无送话用镊子碰通话集成IC时，从受话放大器中听到感应交流杂音，说明是送话输入电路有问题，应检查话筒线、送话器及供电可调电阻是否良好；外围元件是否接触不良。
