Abaqus 使用日记Abaqus标准版共有“部件（part）”、“材料特性（propoterty）”、“装配（assemble）”、“计算步骤（step）”、“交互（interaction）”、“加载（load）”、“单元划分（mesh）”、“计算（job）”、“后处理（visualization）”、“草图（sketch）”十大模块组成。
建模方法：一个模型（model）通常由一个或几个部件（part）组成，“部件”又由一个或几个特征体（feature）组成，每一个部分至少有一个基本特征体（base feature），特征体可以是所创建的实体，如挤压体、切割挤压体、数据点、参考点、数据轴，数据平面，装配体的装配约束、装配体的实例等等。
1．首先建立“部件”（1）根据实际模型的尺寸决定部件的近似尺寸，进入绘图区。
绘图区根据所输入的近似尺寸决定网格的间距，间距大小可以在edit菜单sketcher options选项里调整。
（2）在绘图区分别建立部件中的各个特征体，建立特征体的方法主要有挤压、旋转、平扫三种。
同一个模型中两个不同的部件可以有同名的特征体组成，也就是说不同部件中可以有同名的特征体，同名特征体可以相同也可以不同。
部件的特征体包括用各种方法建立的基本特征体、数据点（datum point）、数据轴（datum axis）、数据平面（datum plane）等等。
（3）编辑部件可以用部件管理器进行部件复制，重命名，删除等，部件中的特征体可以是直接建立的特征体，还可以间接手段建立，如首先建立一个数据点特征体，通过数据点建立数据轴特征体，然后建立数据平面特征体，再由此基础上建立某一特征体，最先建立的数据点特征体就是父特征体，依次往下分别为子特征体，删除或隐藏父特征体其下级所有子特征体都将被删除或隐藏。
××××特征体被删除后将不能够恢复，一个部件如果只包含一个特征体，删除特征体时部件也同时被删除×××××2．建立材料特性（1）输入材料特性参数弹性模量、泊松比等（2）建立截面（section）特性，如均质的、各项同性、平面应力平面应变等等，截面特性管理器依赖于材料参数管理器（3）分配截面特性给各特征体，把截面特性分配给部件的某一区域就表示该区域已经和该截面特性相关联3．建立刚体（1）部件包括可变形体、不连续介质刚体和分析刚体三种类型，在创建部件时需要指定部件的类型，一旦建立后就不能更改其类型。

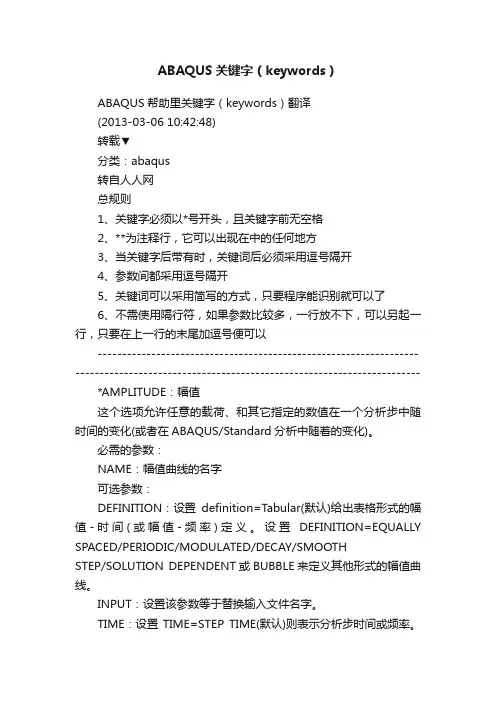

ABAQUS关键字（keywords）ABAQUS帮助里关键字（keywords）翻译(2013-03-06 10:42:48)转载▼分类：abaqus转自人人网总规则1、关键字必须以*号开头，且关键字前无空格2、**为注释行，它可以出现在中的任何地方3、当关键字后带有时，关键词后必须采用逗号隔开4、参数间都采用逗号隔开5、关键词可以采用简写的方式，只要程序能识别就可以了6、不需使用隔行符，如果参数比较多，一行放不下，可以另起一行，只要在上一行的末尾加逗号便可以----------------------------------------------------------------------------------------------------------------------------------------- *AMPLITUDE：幅值这个选项允许任意的载荷、和其它指定的数值在一个分析步中随时间的变化(或者在ABAQUS/Standard分析中随着的变化)。
必需的参数：NAME：幅值曲线的名字可选参数：DEFINITION：设置definition=Tabular(默认)给出表格形式的幅值-时间(或幅值-频率)定义。
设置DEFINITION=EQUALLY SPACED/PERIODIC/MODULATED/DECAY/SMOOTHSTEP/SOLUTION DEPENDENT或BUBBLE来定义其他形式的幅值曲线。
INPUT：设置该参数等于替换输入文件名字。
TIME：设置TIME=STEP TIME(默认)则表示分析步时间或频率。
TIME=TOTAL TIME表示总时间。
VALUE：设置VALUE=RELATIVE(默认)，定义相对幅值。
VALUE=ABSOLUTE表示绝对幅值，此时，行中载荷选项内的值将被省略，而且当温度是指定给已定义了温度TEMPERATURE=GRADIENTS(默认)梁上或壳上的，不能使用ABSOLUTE。
最先进的大型通用非线性有限元分析软件——ABAQUS1、概述美国ABAQUS软件公司成立于1978年，总部位于美国罗德岛博塔市，专门从事非线性有限元力学分析软件ABAQUS的开发与维护。
公司总部雇员400余人，其中近130余人具有工程或计算机博士学位，近120人具有硕士学位，被公认为世界上最大且最优秀的固体力学研究团体。
ABAQUS公司不断吸取最新的分析理论和计算机技术，领导着全世界非线性有限元技术的发展。
ABAQUS是国际著名的CAE软件，它以其强大的非线性分析功能以及解决复杂和深入的科学问题的能力赢得广泛称誉。
ABAQUS软件已被全球工业界广泛接受，并拥有世界最大的非线性力学用户群。
ABAQUS已成为国际上最先进的大型通用非线性有限元分析软件。
ABAQUS软件，除普通工业用户外，也在以高等院校、科研院所等为代表的高端用户中得到广泛。
研究水平的提高引发了用户对高水平分析工具需求的加强，作为满足这种高端需求的有力工具，ABAQUS软件在各行业用户群中所占据的地位也越来越突出。
ABAQUS是一个推崇技术的公司，它始终走在结构力学研究和软件化领域的前沿，它良好的品质和服务得到业界的广泛认可。
制造业是ABAQUS最重要的应用领域之一，拥有NASA、罗克希德-马丁、波音、空中客车等长期合作的用户。
对制造业很多复杂和特殊的问题，如热传导、爆炸冲击、流固耦合、疲劳断裂、复合材料损伤、接触连接、金属塑性等，在所有的CAE软件中，ABAQUS是最有优势的。
目前ABAQUS软件在中国的用户已超过800家，涵盖汽车、航空航天、船舶、武器、工程机械、建筑、电子、石化和核能源等各个领域，如宝山钢铁集团、长春一汽、上海泛亚、中国船级社、北京石化设计院、江钻股份、摩托罗拉和诺基亚等。
2、功能介绍ABAQUS软件的功能可以归纳为线性分析、非线性分析和机构分析三大块。
•线性静力学、动力学和热传导–静强度/刚度、动力学和模态、热力学和声学等–金属和复合材料、应力、振动、 声场、压电效应等•非线性和瞬态分析–汽车碰撞、飞机坠毁、电子器件跌落, 冲击和损毁等–复合材料损伤、接触, 塑性失效, 断裂和磨损, 橡胶超弹性等 •多体动力学分析–起落架收放、副翼展开、汽车悬架、微机电系统MEMS、医疗器械等–结合刚体和柔体模拟各种连接件，进行运动过程的力学分析3、模块介绍ABAQUS软件主要由ABAQUS/CAE，ABAQUS/Standard，ABAQUS/Explicit三个模块组成。
ABAQUS入门使用手册一、前言ABAQUS是国际上最先进的大型通用有限元计算分析软件之一，具有惊人的广泛的模拟能力.它拥有大量不同种类的单元模型、材料模型、分析过程等。
可以进行结构的静态与动态分析，如：应力、变形、振动、冲击、热传递与对流、质量扩散、声波、力电耦合分析等；它具有丰富的单元模型，如杆、梁、钢架、板壳、实体、无限体元等;可以模拟广泛的材料性能，如金属、橡胶、聚合物、复合材料、塑料、钢筋混凝土、弹性泡沫，岩石与土壤等.对于多部件问题,可以通过对每个部件定义合适的材料模型，然后将它们组合成几何构形。
对于大多数模拟，包括高度非线性问题，用户仅需要提供结构的几何形状、材料性能、边界条件、荷载工况等工程数据。
在非线性分析中，ABAQUS能自动选择合适的荷载增量和收敛准则,它不仅能自动选择这些参数的值，而且在分析过程中也能不断调整这些参数值,以确保获得精确的解答。
用户几乎不必去定义任何参数就能控制问题的数值求解过程.1.1 ABAQUS产品ABAQUS由两个主要的分析模块组成,ABAQUS/Standard和ABAQUS/Explicit。
前者是一个通用分析模块，它能够求解广泛领域的线性和非线性问题，包括静力、动力、构件的热和电响应的问题。
后者是一个具有专门用途的分析模块,采用显式动力学有限元格式，它适用于模拟短暂、瞬时的动态事件，如冲击和爆炸问题，此外,它对处理改变接触条件的高度非线性问题也非常有效，例如模拟成型问题。
ABAQUS/CAE(Complete ABAQUS Environment）它是ABAQUS的交互式图形环境。
通过生成或输入将要分析结构的几何形状，并将其分解为便于网格划分的若干区域,应用它可以方便而快捷地构造模型,然后对生成的几何体赋予物理和材料特性、荷载以及边界条件。
ABAQUS/CAE具有对几何体划分网格的强大功能，并可检验所形成的分析模型.模型生成后，ABAQUS/CAE可以提交、监视和控制分析作业。

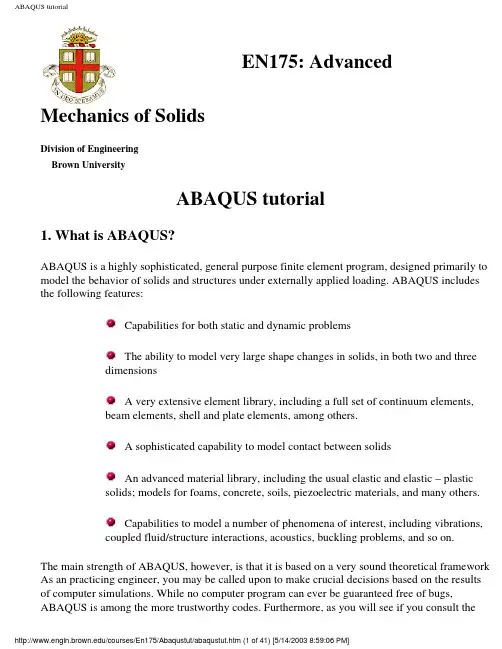

EN175: Advanced Mechanics of SolidsDivision of EngineeringBrown UniversityABAQUS tutorial1. What is ABAQUS?ABAQUS is a highly sophisticated, general purpose finite element program, designed primarily to model the behavior of solids and structures under externally applied loading. ABAQUS includes the following features:Capabilities for both static and dynamic problemsThe ability to model very large shape changes in solids, in both two and threedimensionsA very extensive element library, including a full set of continuum elements,beam elements, shell and plate elements, among others.A sophisticated capability to model contact between solidsAn advanced material library, including the usual elastic and elastic – plasticsolids; models for foams, concrete, soils, piezoelectric materials, and many others.Capabilities to model a number of phenomena of interest, including vibrations,coupled fluid/structure interactions, acoustics, buckling problems, and so on.The main strength of ABAQUS, however, is that it is based on a very sound theoretical framework As an practicing engineer, you may be called upon to make crucial decisions based on the results of computer simulations. While no computer program can ever be guaranteed free of bugs, ABAQUS is among the more trustworthy codes. Furthermore, as you will see if you consult theABAQUS theory manual, HKS developers really understand continuum mechanics (since many of them are Brown Ph.Ds, this goes without saying). For this reason, ABAQUS is used by a wide range of industries, including aircraft manufacturers, automobile companies, oil companies and microelectronics industries, as well as national laboratories and research universities.ABAQUS is written and maintained by Hibbitt, Karlsson and Sorensen, Inc (HKS), which has headquarers in Pawtucket, RI. The company was founded in 1978 (by graduates of Brown’s Ph.D. program in solid mechanics), and today has several hundred employees with offices around the world.2. Tutorial OverviewIn this tutorial, you will learn how to run ABAQUS/Standard, and also how to useABAQUS/Post to plot the results of a finite element computation.First, you will use ABAQUS to solve the following problem. A thin plate, dimensions, contains a hole of radius 1cm at its center. The plate is made fromsteel, which is idealized as an elastic—strain hardening plastic solid, with Young’s modulusE=210GPa and Poisson’s ratio . The uniaxial stress—strain curve for steel isidealized as a series of straight line segments, as shown below.The plate is loaded in the horizontal direction by applying tractions to its boundary.The magnitude of the loading increases linearly with time, as shown.You may recall that a circular hole in a plate has a stress concentration factor of about 3. At time t=1, therefore, the stress at point A should just reach yield (the initial yield stress of the plate is 200MPa). At time t=3, the load should be enough to cause a significant portion of the plate to yield.We will specifically request ABAQUS to print the state of the solid at time t=1, t=2 andt=3, to see the development of plasticity in the plate.Observe that the plate and the loading is symmetrical about horizontal and vertical axes through the center of the plate. We only need to model ¼ of the plate, therefore, and can apply symmetry boundary conditions on the the bottom and side boundaries. The finite element mesh you will use for your computations is shown below. The elements are plane stress, 4 noded quadrilaterials. Symmetry boundary conditions are applied as shown, and distributed tractions are applied to the rightmost boundary.The ABAQUS input file that sets up this problem will be provided for you. You will run ABAQUS, and then use ABAQUS/Post to look at the results of your analysis. Next, youwill take a detailed look at the ABAQUS input file, and start setting up input files of yourown. After completing this tutorial, you should be in a position to do quite complex two andthree dimensional finite element computations with ABAQUS, and will know how to viewthe results. We will continue using ABAQUS to solve various problems throughout the restof this course.3. Steps in running ABAQUSCreate an input file. ABAQUS works by reading and responding to a set of commands(called KEYWORDS) in an input file. The keywords contain the information to define the mesh, the properties of the material, the boundary conditions and to control output from the program. To see the ABAQUS input file for the plate problem, click here.Run the program. On Windows NT, ABAQUS is controlled by typing commands into aDOS type window.Post processing. There are two ways to look at the results of an ABAQUS simulation. You can ask the program to print results to a file, which you can look at with a text editor. This is painful… Alternatively, you can use a program called ABAQUS/Post, which can be used to plot various quantities that may be of interest.We will begin this tutorial by running through all these stages with a pre-existing input file, then look in more detail at how to set up an input file.BEFORE RUNNING ABAQUS FOR THE FIRST TIME:1. Open an MS/DOS window on your workstation (the command to openthe window is located in the Start menu on your toolbar).2. Type mk_ABAQUS in the MS/DOS window. If the commandexecutes correctly, icons to start ABAQUS and to open the ABAQUSdocumentation should appear on your desktop. In addition, a directorycalled ABAQUS should be created in your home directory.4. Downloading the sample ABAQUS input file.1. If you completed the preceding step correctly , a directory called ABAQUS shouldhave been created in your home directory. Within your ABAQUS directory, create a subdirectory called tutorial to store your input files and results. ABAQUS will generatea vast number of output files, and to keep track of them, it is convenient to keep all the filesassociated with a particular problem in one directory.2. Download the example ABAQUS file. To do so, click here. You will see the input fileappear in the frame. Click anywhere on the frame, then select Save Frame As… from the File menu on the top left hand corner of your browser. In the popup window, find thedirectory called ABAQUS\tutorial , and save the file as tutorial.inp3.Open tutorial.inp with a text editor. Take a quick look at the file and make sure that itdownloaded correctly.4. Exit the text editor.In future, you will create your own ABAQUS input file, by typing in appropriate keywords with a text editor. The easiest thing to do will be to copy an existing file, and modify it for other problems.5. Running ABAQUS.1. Double click the ABAQUS icon on your desktop. A window with a black backgroundshould appear.2. In the Abaqus Command window, change directories to ABAQUS\tutorial.3. In the Abaqus Command window, typeYour Prompt > abaqus [return]Identifier: tutorial [return]User routine file: [return](The identifier should always be the name of the .inp file, without the .inp extension. The user routine file will always be blank in anything we run in this course. It is needed onlywhen you start to write your own subroutines to run within ABAQUS). This starts theABAQUS program running. Note that the program runs in the background, so although the prompt comes right back in the ABAQUS window, this does not mean the program hasfinished. Note also that some special computations (e.g. using the *SYMMETRIC MODEL GENERATION key) will cause ABAQUS to ask you some more questions duringexecution.4. Using explorer, or by opening a directory window, examine the files in the directorytutorial. (Click here if you don’t know how to do this). You should see the following files: tutorial.inptutorial.dattutorial.logtutorial.restutorial.battutorial.statutorial.msgtutorial.filFortunately, you can happily ignore most of these files. The only ones you need to look at are tutorial.log, tutorial.sta, tutorial.msg and tutorial.dat. We will also use tutorial.res and tutorial.fil later.5. Open the file called tutorial.log with a text editor. You will see some information aboutthe time it took to for ABAQUS to complete execution. You should also see that the fileends withABAQUS JOB tutorial COMPLETEDThis means that ABAQUS is done and you can safely look at the results.6. Open the file called tutorial.sta with a text editor. You will see columns of numbers, headed bySUMMARY OF JOB INFORMATION:STEP INC ATT SEVERE EQUIL TOTAL TOTAL STEP INC OF DOF IFDISCON ITERS ITERS TIME/ TIME/LPF TIME/LPF MONITOR RIKSITERS FREQThis file is continuously updated by ABAQUS as it runs, and tells you how much of the computation has been completed. You can monitor this file while ABAQUS is running. We will discuss the meaning of data in this file in more detail later.7. Open the file called tutorial.dat. This file contains all kinds of information about the computations that ABAQUS has done. In particular, if ABAQUS encounters any problems during the computation, error and warning messages will be written to this file. You should first check the end of the file to see if the computation was successful. If the program ran successfully, you should see a message sayingANALYSIS COMPLETEWITH 7 WARNING MESSAGES ON THE MSG FILEJOB TIME SUMMARYUSER TIME (SEC) = 20.000SYSTEM TIME (SEC) = 3.0000TOTAL CPU TIME (SEC) = 23.000WALLCLOCK TIME (SEC) = 36The times listed above may differ on your computer, depending on the speed of theprocessor and the memory available. The warning message is a bit scary, but is actuallynothing to worry about. We’ll see why it appears later.You can explore the rest of this file to see what else is there. MAKE SURE YOU CLOSE THE FILE BY EXITING THE TEXT EDITOR BEFORE PROCEEDING.6. ABAQUS ERRORS1. Next, we will deliberately introduce an error into the ABAQUS input file tutorial.inp, tosee what an unsuccessful run looks like. Open the file tutorial.inp with a text editor, andchange the line near the top that says*RESTART, WRITE, FREQ=1 to*RESTART, WONK, FREQ=1 Save the file in Text Only format. Now, repeat step 3 in Running ABAQUS to runABAQUS again. You will get an additional prompt as follows.Old job files exist. Overwrite (y/n)? : y [return]2. Check the files in the directory ABAQUS\tutorial again. This time, not all the files willbe there, because the run was unsuccessful.3. Open the file called tutorial.log with a text editor. Note the error message there.4. Open the file called tutorial.dat with a text editor. You will see that the end of the filecontains the following statementsTHE PROGRAM HAS DISCOVERED 3 FATAL ERRORS** EXECUTION IS TERMINATED **END OF USER INPUT PROCESSINGJOB TIME SUMMARYUSER TIME (SEC) = 0.0000SYSTEM TIME (SEC) = 0.0000TOTAL CPU TIME (SEC) = 0.0000WALLCLOCK TIME (SEC) = 2This again shows that ABAQUS ran into trouble during execution. Search the file backwards for the occurrence of ERROR to find the lines***ERROR: UNKNOWN PARAMETER WONKCARD IMAGE: *RESTART, WONK, FREQ=1***NOTE: DUE TO AN INPUT ERROR THE ANALYSIS PRE-PROCESSOR HAS BEEN UNABLE TOINTERPRET SOME DATA. SUBSEQUENT ERRORS MAY BE CAUSED BY THIS OMISSION***ERROR: EITHER THE PARAMETER READ OR WRITE MUST BE SPECIFIEDCARD IMAGE: *RESTART, WONK, FREQ=1***ERROR: PARAMETER FREQUENCY IS ONLY MEANINGFUL IF THE WRITE PARAMETER IS ALSO SPECIFIEDCARD IMAGE: *RESTART, WONK, FREQ=1This will tell you what part of the input file is causing problems, and if you are lucky, you will understand the error message. Notice that ABAQUS programmers still seem to beusing punch cards. ABAQUS is coded in FORTRAN, too (for real).5. Try another error. Change the line*RESTART, WONK, FREQ=1 back to*RESTART, WRITE, FREQ=1 This time, change the line1031, 5.E-02, 5.E-02to1031, 5.E-02, -5.E-02Re-run ABAQUS (don’t forget to save the .inp file first), then check the file tutorial.datagain. ABAQUS really freaks out with this problem. You should see 96 fatal errors. If you have no life, you might like to try and see if you can produce more errors than this byinserting a single character in the input file.6. Before proceeding, correct the input file, and re-run ABAQUS. Check the .dat file and.log file to make sure that the job ran properly.7. Running ABAQUS/Post.1. If you have not already done so, run ABAQUS with a correct input filetutorial.inp. You can download an error free copy of the tutorial file by clicking hereif you need to.2. To run ABAQUS/Post, you will need to start a program called Exceed first. FindExceed on the Start menu of your desktop, and select it to start it running. A windowwill be displayed briefly and an icon should appear on your toolbar if the programstarted properly.3. Make sure you have an ABAQUS command window open, set to the appropriatedirectory. In the ABAQUS command window, typeabaqus post4. A window should appear, which will be used to display results of the ABAQUSrun. To do so, you type commands in the bottom left hand corner of the window. Wewill try a few useful commands in the next section8. Online help with ABAQUS/PostIn the ABAQUS/Post window, typehelp [return]A black window will open, with a list of ABAQUS/Post commands. To get helpwith any command, just type the command name.9. ABAQUS/Post Mesh and Boundary Condition Display1.The first step is to read the results of an analysis into ABAQUS/Post. Our examplesimulation created two files that can be read into ABAQUS/Post:tutorial.restutorial.filThe file named tutorial.res is called a `restart file’ (the file always has .resextension). This file contains full information about the analysis. The restart file ismost useful if you want to plot the finite element mesh, or contours of stress, displacement, etc. The file named tutorial.fil is called a `results file’ (the file always has a .fil extension). This file contains data that were specifically requested in the ABAQUS input file. The results file is most useful when you want to create x-y plots of stress-v-time, stress-v-strain, or similar.To read the restart file, typerestart, file=tutorial [return]A black window will pop up, with lots of interesting information in it. Ignore the useful information and type [return] anywhere in the window. When you read the restart file with this syntax, all quantities displayed will represent the state of the solid at the very end of the analysis. We will see how to display data at other times lower down.2. Now, we can start plotting things. Typedraw [return]in the ABAQUS/Post window. This will plot the undeformed finite element mesh.3. To display node numbers with the mesh, typeset, n numbers=on [return]draw [return]4. To display element numbers with the mesh, typeset, el numbers=on [return]draw [return]5. To zoom in and out of the mesh, right click on the mesh and drag the mouse left or right, while continuing to hold the mouse button down.6. To move the mesh around on the window, center click on the mesh and drag the mouse.7. To rotate the FEM mesh, left click and drag the mouse, and/or left click with the shift key held down while dragging the mouse. (This is not too helpful with a 2D mesh, but is very useful in 3D).8. Another useful way to zoom in on a small region iszoom, cursor [return]Now, click on the mesh at two points. The two points define opposite corners of a box. When you typedraw [return]the region within the box will be scaled to fit the full window.9. To turn off element numbers and node numbers again, typeset, el numbers=off, n numbers=off [return]draw [return]10. To get back to the original view of the mesh, typereset, all [return]draw [return]11. Another useful option for checking a mesh isset, fill=on [return]draw [return]report elements [return]Now, click on any element in the mesh, and information concerning the element will be displayed at the bottom of the window. To exit this option, click on the little X at the bottom left hand corner of the black window. The keyreport nodes [return]tells you about nodes.12. You can also display the boundary conditions applied to the mesh, by typingset, bc display=ondrawIf you have superb eyesight, you will see some little dots on the left and bottomedges of the mesh. Zoom in, and you will see arrows representing the constraintsapplied to the bottom of the mesh.13. Before proceeding to the next section, typereset, all [return]10. ABAQUS/Post Field PlotsIf you have not already done so, start up ABAQUS/Post and read in tutorial.res1. To view the deformed shape of the solid after loading, typedraw, displaced [return]You can use the mouse to drag the mesh away from the text message that appears onthe window. Note that the deformation is grossly exaggerated to show it clearly: thescale factor is displayed on the text message.2. Recall that, by default, ABAQUS/Post will display the state of the solid at thevery end of whatever load history was specified in the input file. To see the results atother times, you can typerestart, step=1 [return]draw, displaced [return]This will display the deformed mesh at the end of the first load step. In this case, thedeformed mesh doesn’t look very different at the end of the first step, but you shouldsee a message in the bottom left hand corner of the screen telling you that the currentstep is 1.3. To remove the undeformed mesh, typeset, undeformed=off [return]draw, displaced [return]4. To see the actual displacements (without magnification), typeset, d magnification=1.0 [return]draw, displaced [return]5. To plot a contour of the horizontal component of stress , typecontour, v=s11 [return]6. To show the contours as solid colors instead of lines, typeset, fill=on [return]contour, v=s11 [return]7. To remove the mesh to see the contours more clearly, typeset, outline=perimeter[return] or set, outline=off [return]contour, v=s11 [return]8. To turn the mesh back on again, typeset, outline=element [return]9. You can plot all field quantities the same way. Examples includev=s22; v=s12, v=s33, etc plot various stress componentsv=mises plots von Mises stress.10. You can do vector plots too. For examplevector plot, v=u [return]shows arrows whose length and orientation correspond to the vector displacement at each node. Obviously, you can only do a vector plot of a vector valued function…11. You can also display numerical values of variables (stress, displacements, etc) at nodes or integration points (whichever applies) by typingreport values, v=s11 [return]Then, click with the mouse on any element. Values of stress at each elementintegration point will be printed at the bottom of the screen. To exit this option, clickon the little cross at the bottom left hand corner of the black window. To seedisplacements, typeReport values, v=u1 [return]Then, click on any node to see the horizontal component of displacement there.11. ABAQUS STEPS AND INCREMENTSYou may have noticed when reading the restart file that ABAQUS was telling youwhich step was being read, and which increment. This is somewhat mysterious, sowe will explore how ABAQUS controls time during an analysis next.When you set up an ABAQUS/Standard input file, you tell ABAQUS to apply loadto a solid in a series of steps. For the hole in a plate problem, we applied load to thesolid in three steps, from t=0 to t=1 (step 1); from t=1 to t=2 (step 2) and finallyfrom t=2 to t=3. ABAQUS will always print out the state of the solid at the end ofeach step. When you type restart, step=2in ABAQUS/Post and then plotsomething, you will see the state of the solid at the end of step 2 – in this case, at time t=2.Let’s check this out. We will compare the plastic zone size in the solidat times t=1, t=2 and t=3.1. If you have not already done so, start up ABAQUS/Post, and read intutorial.res.2. Now, we will open up three windows to display all three times onthe same picture. Typewindow, name=first, maximum=(0.4,1.0),minimum=(0.0,0.6) [return]window, name=second, maximum=(0.7,0.7),minimum=(0.3,0.3) [return]window, name=third, maximum=(1.0,1.0),minimum=(0.6,0.6) [return]Here, the maximum=… specifies the coordinates of the upper righthand corner of the window, while the minimum specifies the lowerleft hand corner. You can also use window, name=..., cursor and thenclick on the screen with the mouse to define the corners of thewindow, but don’t try that now or else you will have an extra windowopen that you don’t want.3. Now, we will plot contours of plastic strain at t=1¸t=2 and t=3 inthe three windows. Typewindow, name=first [return]set, fill=on [return]restart, step=1 [return]contour, v=pemag [return]window, name=second [return]restart, step=2 [return]contour, v=pemag [return]window, name=third [return]restart, step=3 [return]contour, v=pemag [return]You should see three contour plots at the end, showing plastic straincontours. The deep blue color is the contour level for zero plasticstrain, showing areas that have not yet yielded. The red color has thehighest plastic strains. In the first window, there will only be a smallplastic zone at the edge of the hole. This plastic zone grows as the loadis increased. You can see this in the other two windows. On the thirdwindow, most, but not quite all, of the plate has started to deformplastically.So, what’s the deal with the increments? Well, because the plate isdeforming plastically, this is a nonlinear problem – the stress is anonlinear function of the nodal displacements. This means thatABAQUS needs to iterate to find the correct solution (a Newton-Raphson iteration is used to solve the nonlinear equilibriumequations), and also means that ABAQUS cannot accurately computethe plastic strain that results from a large change in loads. Indeed, ifABAQUS tries to take a very large time step, it may not be able tofind a solution at all.To get around this problem, ABAQUS automatically subdivides alarge time step into several smaller `increments’ if it finds that thesolution is nonlinear. This process is completely automatic, andABAQUS will always take the largest possible time increments thatwill reach the end of the step and still give an accurate, convergentsolution. You don’t know a priori how many increments ABAQUSwill take.You can find out, however, by looking at some of the output files. Youcan look at tutorial.sta, for example which shows the followinginformation:SUMMARY OF JOB INFORMATION:STEP INC ATT SEVERE EQUIL TOTAL TOTAL STEP INC OF DOF IFDISCON ITERS ITERS TIME TIME TIME MONITOR RIKS1 1 1 0 4 4 1.00 1.00 1.0002 1 2 0 4 4 1.25 0.250 0.25002 2 1 03 3 1.50 0.500 0.25002 3 1 0 4 4 1.88 0.875 0.37502 4 1 0 4 4 2.00 1.00 0.12503 1 3 0 5 5 2.06 0.0625 0.062503 2 1 0 3 3 2.13 0.125 0.062503 3 1 0 3 3 2.19 0.188 0.062503 4 1 0 3 3 2.28 0.281 0.093753 5 1 0 3 3 2.42 0.422 0.14063 6 1 04 4 2.63 0.633 0.21093 7 1 04 4 2.95 0.949 0.31643 8 1 0 1 1 3.00 1.00 0.05078This file is continually updated and can be monitored during and ABAQUS computation. The first column shows which step ABAQUS is currently analyzing. The second column shows which time increment ABAQUS has reached. The seventh column shows the current time.From this information, we learn that the first step was completed in one increment (this is because the plate did not reach yield until the end of the increment, so very large time steps could be taken). The second step was completed in four increments, and the third step was completed in 8 increments.The file named tutorial.msg contains much more information concerning the increments used, the iterative process, and the tolerances that ABAQUS has applied to determine whether a solution has converged. You need a Ph.D to be able to figure most of that stuff out. We can see the meaning of the warning messages that were referred to in the .dat file, however – every time ABAQUS has to reduce the time increment due to convergence problems, a warning message is printed to the .msg file. This is nothing to worry about – everything is working perfectly.ABAQUS prints information concerning the state of the solid to the .res and .fil files at the end of each increment.4. To go back to a single window, typewindow, remove=all [return]4. To look at the plastic zone at time t=2.42 (step 3, increment 5), typerestart, step=3, increment=5 [return]contour, v=pemag [return]12. ABAQUS/Post X-Y PlotsABAQUS/Post can also be persuaded to plot variations of stress, displacement, etcwith position within the solid, or can display stresses, strains, etc as a function oftime at a point in the solid, or can even plot stress as a function of strain (or anythingelse, for that matter). The procedure to do this is rather weird.We will begin by plotting x-y graphs of field quantities with position in the solid.If you have not already done so, start up ABAQUS/Post and read in tutorial.res.1. First, we will plot the variation of with distance along the base.First, we define a set of data known as a `curve,’ by using the path keywordpath, node list, variable=s22, name=syy, distance, absolute [return]>119 [return]>120 [return]>121 [return]… Continue typing in numbers in increasing order until you get to>131 [return]>[return]This procedure defines a set of (x,y) data pairs at each node entered in the list. The xcoordinate is zero at the first node, and is incremented by the distance between nodesfor each subsequent node in the list. The y coordinate is s22.The group of all the data pairs generated by this command has been given the name`syy’. To find the list of nodes you need for the path of interest, it is simplest to plotthe mesh with node numbers.2. Now, we can plot these (x,y) data pointsdisplay curve [return]> syy [return]> [return]3. We can define and plot other data on the same graph. Instead of typing in a list of nodes this time, we will use the `generate’ key to generate the list automatically path, node list, generate, variable=s11, name=sxx, distance, absolute [return] >119,131,1 [return]>[return]display curve [return]> syy [return]> sxx [return]> [return]Do you see anything wrong with the value of sxx at x=0? Why? What could cause this error?4. For a 3D analysis, you can ask for curves to be generated along a straight line, instead of entering a list of node numbers. To produce the results we want here, we would enterpath, start=(0.01,0.0), end=(0.05,0.0), variable=s22, name=syy,distance, absolute [return]Unfortunately, this does not work in 2D, so you are stuck entering node lists.5. There are various commands you can use to change the appearance of the x-y plot. For examplegraph axes, x title=x, y title=normal stress, x grid=solid, y grid=solid [return] display curve [return]>syy [return]> [return]Unfortunately, no matter how hard you try, x-y plots output from ABAQUS/Post look pretty shitty. If you want publication quality output, your best bet is to print the data and plot it with something else, or print out a postscript file and then edit it with another graphics package.6. The path defined by the node list need not be a straight line. For example, to plot the variation of Mises stress around the perimeter of the hole, usepath, node list, generate, variable=mises, name=sm, distance, absolute [return]。

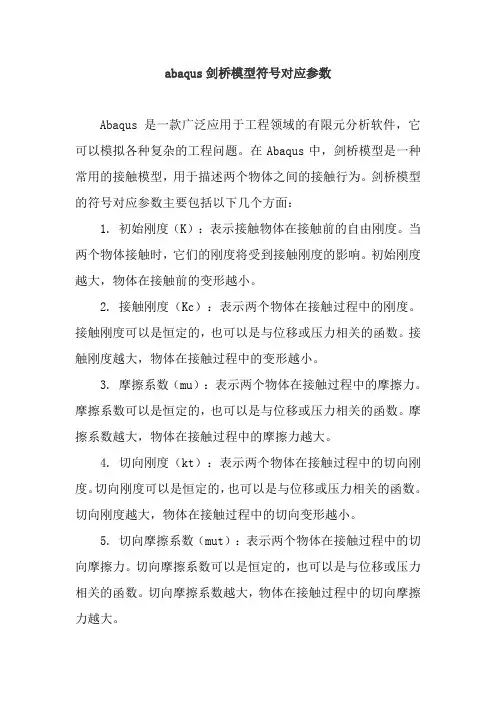

abaqus剑桥模型符号对应参数Abaqus是一款广泛应用于工程领域的有限元分析软件，它可以模拟各种复杂的工程问题。
在Abaqus中，剑桥模型是一种常用的接触模型，用于描述两个物体之间的接触行为。
剑桥模型的符号对应参数主要包括以下几个方面：1. 初始刚度（K）：表示接触物体在接触前的自由刚度。
当两个物体接触时，它们的刚度将受到接触刚度的影响。
初始刚度越大，物体在接触前的变形越小。
2. 接触刚度（Kc）：表示两个物体在接触过程中的刚度。
接触刚度可以是恒定的，也可以是与位移或压力相关的函数。
接触刚度越大，物体在接触过程中的变形越小。
3. 摩擦系数（mu）：表示两个物体在接触过程中的摩擦力。
摩擦系数可以是恒定的，也可以是与位移或压力相关的函数。
摩擦系数越大，物体在接触过程中的摩擦力越大。
4. 切向刚度（kt）：表示两个物体在接触过程中的切向刚度。
切向刚度可以是恒定的，也可以是与位移或压力相关的函数。
切向刚度越大，物体在接触过程中的切向变形越小。
5. 切向摩擦系数（mut）：表示两个物体在接触过程中的切向摩擦力。
切向摩擦系数可以是恒定的，也可以是与位移或压力相关的函数。
切向摩擦系数越大，物体在接触过程中的切向摩擦力越大。
6. 法向刚度（kn）：表示两个物体在接触过程中的法向刚度。
法向刚度可以是恒定的，也可以是与位移或压力相关的函数。
法向刚度越大，物体在接触过程中的法向变形越小。
7. 法向摩擦系数（mup）：表示两个物体在接触过程中的法向摩擦力。
法向摩擦系数可以是恒定的，也可以是与位移或压力相关的函数。
法向摩擦系数越大，物体在接触过程中的法向摩擦力越大。
8. 阻尼系数（d）：表示两个物体在接触过程中的阻尼效应。
阻尼系数可以是恒定的，也可以是与位移或速度相关的函数。
阻尼系数越大，物体在接触过程中的阻尼效应越明显。
9. 粘性系数（v）：表示两个物体在接触过程中的粘性效应。
粘性系数可以是恒定的，也可以是与位移或速度相关的函数。

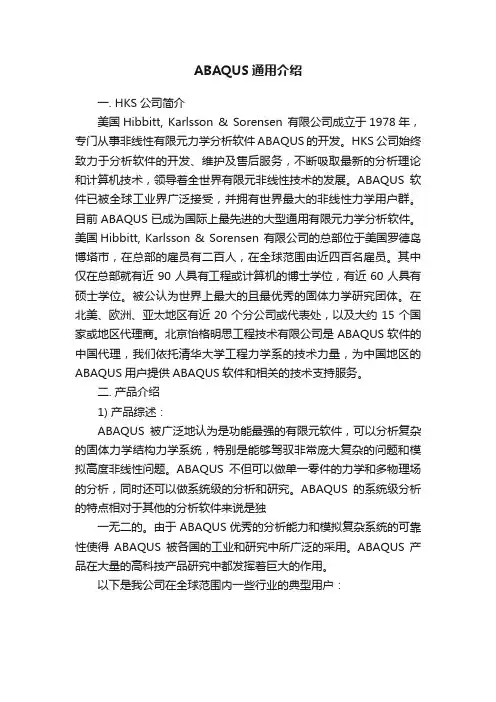

ABAQUS通用介绍一. HKS公司简介美国Hibbitt, Karlsson & Sorensen 有限公司成立于1978年，专门从事非线性有限元力学分析软件ABAQUS的开发。
HKS公司始终致力于分析软件的开发、维护及售后服务，不断吸取最新的分析理论和计算机技术，领导着全世界有限元非线性技术的发展。
ABAQUS软件已被全球工业界广泛接受，并拥有世界最大的非线性力学用户群。
目前ABAQUS已成为国际上最先进的大型通用有限元力学分析软件。
美国Hibbitt, Karlsson & Sorensen 有限公司的总部位于美国罗德岛博塔市，在总部的雇员有二百人，在全球范围由近四百名雇员。
其中仅在总部就有近90人具有工程或计算机的博士学位，有近60人具有硕士学位。
被公认为世界上最大的且最优秀的固体力学研究团体。
在北美、欧洲、亚太地区有近20个分公司或代表处，以及大约15个国家或地区代理商。
北京怡格明思工程技术有限公司是ABAQUS软件的中国代理，我们依托清华大学工程力学系的技术力量，为中国地区的ABAQUS用户提供ABAQUS软件和相关的技术支持服务。
二. 产品介绍1) 产品综述：ABAQUS被广泛地认为是功能最强的有限元软件，可以分析复杂的固体力学结构力学系统，特别是能够驾驭非常庞大复杂的问题和模拟高度非线性问题。
ABAQUS不但可以做单一零件的力学和多物理场的分析，同时还可以做系统级的分析和研究。
ABAQUS的系统级分析的特点相对于其他的分析软件来说是独一无二的。
由于ABAQUS优秀的分析能力和模拟复杂系统的可靠性使得ABAQUS被各国的工业和研究中所广泛的采用。
ABAQUS产品在大量的高科技产品研究中都发挥着巨大的作用。
以下是我公司在全球范围内一些行业的典型用户：现在HKS公司在中国已有20多个国内商业用户，有近60所大学采用ABAQUS作为教学和科研的工具。
2) 产品的质量与管理：提供优质可靠的分析软件是HKS公司的一贯宗旨，为此公司做了大量的人力和物力的投资。
Abaqus基本操作中文教程目录1 Abaqus软件基本操作........................................1.1 常用的快捷键.............................................1.2 单位的一致性.............................................1.3 分析流程九步走...........................................1.3.1 几何建模（Part）....................................1.3.2 属性设置（Property）................................1.3.3 建立装配体（Assembly）..............................1.3.4 定义分析步（Step）..................................1.3.5 相互作用（Interaction）............................1.3.6 载荷边界（Load）....................................1.3.7 划分网格（Mesh）...................................1.3.8 作业（Job）.........................................1.3.9 可视化（Visualization）.............................1 Abaqus软件基本操作1.1 常用的快捷键旋转模型—Ctrl+Alt+鼠标左键平移模型—Ctrl+Alt+鼠标中键1.2 单位的一致性CAE软件其实是数值计算软件，没有单位的概念，常用的国际单位制如下表1所示，建议采用SI (mm)进行建模。
