®1/6Table 1: Main Product CharacteristicsI F(AV) 2 x 30 A V RRM 170 V T j 175 °C V F (max)0.76 VSTPS60170CHIGH VOLTAGE POWER SCHOTTKY RECTIFIERREV. 1September 2005FEATURES AND BENEFITS■High junction temperature capability ■Low leakage current■Good trade off between leakage current and forward voltage drop ■Low thermal resistance ■High frequency operation ■Avalanche specificationDESCRIPTIONDual center tab Schottky rectifier suited for High Frequency Switched Mode Power Supplies.Packaged in TO-220AB, this device is intended for use to enhance the reliability of the application.Table 2: Order CodePart Number Marking STPS60170CTSTPS60170CTTable 3: Absolute Ratings (limiting values, per diode)Symbol ParameterValue Unit V RRM Repetitive peak reverse voltage 170V I F(RMS)RMS forward current 60A I F(AV)Average forward currentT c = 150 °C δ = 0.5Per diode Per device3060A I FSM Surge non repetitive forward current t p = 10 ms sinusoidal 270A P ARM Repetitive peak avalanche power t p = 1 µs T j = 25 °C17300W T stg Storage temperature range-65 to + 175°C T j Maximum operating junction temperature *175°C dV/dtCritical rate of rise of reverse voltage10000V/µs* : thermal runaway condition for a diode on its own heatsink dPtot dTj---------------1Rth j a –()-------------------------<STPS60170C2/6Table 4: Thermal Parameters Table 5: Static Electrical Characteristics (per diode)Pulse test:* tp = 5 ms, δ < 2%** tp = 380 µs, δ < 2%To evaluate the conduction losses use the following equation: P = 0.60 x I F(AV) + 0.053 I F 2(RMS)Symbol ParameterValue Unit R th(j-c)Junction to casePer diode Total 1.00.7°C/WR th(c)Coupling0.4When the diodes 1 and 2 are used simultaneously:∆ Tj(diode 1) = P(diode 1) x R th(j-c)(Per diode) + P(diode 2) x R th(c)Symbol ParameterTests conditions Min.Typ Max.Unit I R *Reverse leakage currentT j = 25 °C V R = V RRM35µA T j = 125 °C 835mAV F **Forward voltage dropT j = 25 °CI F = 30 A0.94VT j = 125 °C 0.720.76T j = 25 °C I F = 60 A0.97 1.05T j = 125 °C0.860.92STPS60170C3/6Figure 1: Average forward power dissipation versus average forward current (per diode)Figure 2: Average forward current versus ambient temperature (δ = 0.5, per diode)Figure 3: Normalized avalanche power derating versus pulse durationFigure 4: Normalized avalanche power derating versus junction temperatureFigure 5: Non repetitive surge peak forward current versus overload duration (maximum values, per diode)Figure 6: Relative variation of thermal impedance junction to case versus pulse durationTd =t /Tt pTd =t /Tt ptTd =t /Tt pSTPS60170C4/6Figure 7: Reverse leakage current versus reverse voltage applied (typical values, per diode)Figure 8: Junction capacitance versus reverse voltage applied (typical values, per diode)Figure 9: Forward voltage drop versus forward current (per diode, low level)Figure 10: Forward voltage drop versus forward current (per diode, high level)STPS60170C5/6Figure 11: TO-220AB Package Mechanical DataIn order to meet environmental requirements, ST offers these devices in ECOPACK® packages. Thesepackages have a Lead-free second level interconnect . The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: .Table 6: Ordering Information■Epoxy meets UL94, V0■Cooling method: by conduction (C)■Recommended torque value: 0.55 Nm.■Maximum torque value: 0.7 Nm.Ordering type Marking Package Weight Base qtyDelivery mode STPS60170CTSTPS60170CTTO-220AB2.20 g50TubeTable 7: Revision HistoryDate RevisionDescription of Changes16-Sep-20051First issue.STPS60170CInformation furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.The ST logo is a registered trademark of STMicroelectronics.All other names are the property of their respective owners© 2005 STMicroelectronics - All rights reservedSTMicroelectronics group of companiesAustralia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America6/6分销商库存信息: STMSTPS60170CT。

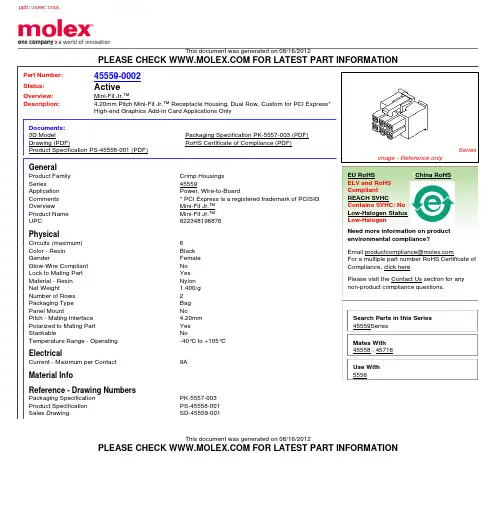

This document was generated on 08/16/2012PLEASE CHECK FOR LATEST PART INFORMATIONPart Number:45559-0002Status:ActiveOverview:Mini-Fit Jr.™Description:4.20mm Pitch Mini-Fit Jr.™ Receptacle Housing, Dual Row, Custom for PCI Express*High-end Graphics Add-In Card Applications OnlyDocuments:3D ModelPackaging Specification PK-5557-003 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)Product Specification PS-45558-001 (PDF)GeneralProduct Family Crimp Housings Series45559Application Power, Wire-to-BoardComments * PCI Express is a registered trademark of PCISIG OverviewMini-Fit Jr.™Product Name Mini-Fit Jr.™UPC822348196876PhysicalCircuits (maximum)6Color - Resin Black GenderFemale Glow-Wire Compliant No Lock to Mating Part Yes Material - Resin Nylon Net Weight1.400/g Number of Rows 2Packaging Type Bag Panel MountNoPitch - Mating Interface 4.20mm Polarized to Mating Part Yes StackableNoTemperature Range - Operating-40°C to +105°C ElectricalCurrent - Maximum per Contact9AMaterial InfoReference - Drawing NumbersPackaging Specification PK-5557-003Product Specification PS-45558-001Sales DrawingSD-45559-001Seriesimage - Reference onlyEU RoHSChina RoHSELV and RoHS Compliant REACH SVHCContains SVHC: No Low-Halogen Status Low-HalogenNeed more information on product environmental compliance?Email productcompliance@For a multiple part number RoHS Certificate of Compliance, click herePlease visit the Contact Us section for any non-product compliance questions.Search Parts in this Series 45559Series Mates With 45558 , 45718Use With 5556This document was generated on 08/16/2012PLEASE CHECK FOR LATEST PART INFORMATION/分销商库存信息: MOLEX 0455590002。

This document was generated on 08/13/2012PLEASE CHECK FOR LATEST PART INFORMATIONPart Number:19013-0034Status:ActiveDescription:(No Suggestions)™ Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 10-12 AWG,YellowDocuments:Drawing (PDF)Product Specification PS-19902-015 (PDF)Product Specification PS-19902-008 (PDF)RoHS Certificate of Compliance (PDF)Product Specification PS-19902-011 (PDF)Agency CertificationCSA LR18689ULE79133GeneralProduct Family Quick Disconnects Series19013Crimp Quality Equipment YesProduct Name InsulKrimp™Type Quick Disconnect UPC822350973595PhysicalBarrel Type Closed - Brazed Color - Resin Natural Flammability 94V-2GenderFemale Glow-Wire Compliant NoInsulationNylon (PA)Lock to Mating Part No Material - Resin Nylon Net Weight 1.705/g OrientationStraightPackaging TypeAdhesive Tape on Reel Polarized to Mating Part Yes Tab Thickness 0.81mm Tab Width6.35mm Temperature Range - Operating 105°CWire Insulation Diameter 7.03mm max.Wire Size AWG 10, 12Wire Size mm²3.30 - 5.00ElectricalVoltage - Maximum600V AC Material InfoOld Part NumberC-2319TReference - Drawing NumbersProduct Specification PS-19902-008, PS-19902-011, PS-19902-015Sales DrawingSD-19013-001Seriesimage - Reference onlyEU RoHSChina RoHSELV and RoHS Compliant REACH SVHCContains SVHC: No Low-Halogen Status Low-HalogenNeed more information on product environmental compliance?Email productcompliance@For a multiple part number RoHS Certificate of Compliance, click herePlease visit the Contact Us section for any non-product compliance questions.Search Parts in this Series 19013SeriesApplication Tooling | FAQTooling specifications and manuals are found by selecting the products below.Crimp Height Specifications are then contained in the Application Tooling Specification document.GlobalDescription Product #ATP-301 Perishable Tool Kit 0198132030Mini-Mac™Applicator0638852500This document was generated on 08/13/2012PLEASE CHECK FOR LATEST PART INFORMATION/分销商库存信息: MOLEX 0190130034。

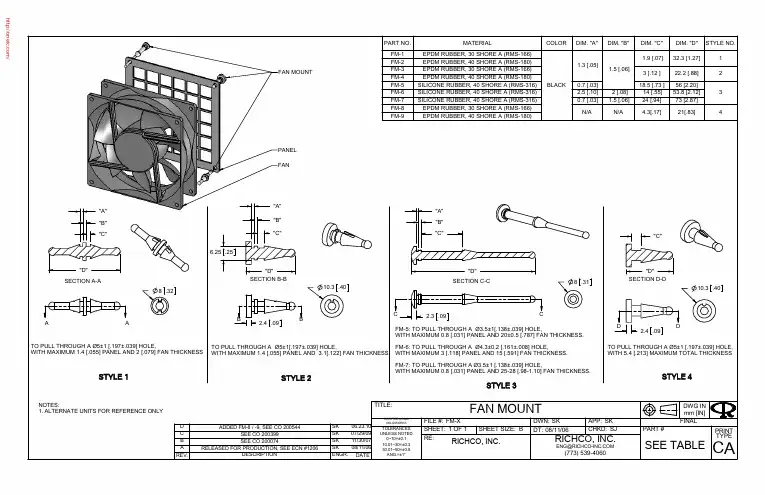

PRINT AC TYPEA RELEASED FOR PRODUCTION, SEE ECN #1206SK 08/11/0630.01~50=±0.5TOLERANCES UNLESS NOTED 0~10=±0.110.01~30=±0.3ANG.=±1°B SEE CO 200074SK 11/30/07C SEE CO 200399SK 07/29/09D ADDED FM-8 / -9, SEE CO 200544SK 06.23.1010.3.40A ASTYLE 32.3.09CC2.4.09BB8.31SEE TABLERE:FILE #:SHEET:REV.DESCRIPTIONENGR.DATETITLE:PART #DWN:DT:SHEET SIZE:RICHCO, INC.1 OF 1FM-X BFAN MOUNTAPP:CHKD:RICHCO, INC.(773) 539-4060ENG@08/11/06SK SJSK FINALDWG IN mm [IN]CREATED USING SOLIDWORKSPANEL FAN MOUNTFANSECTION B-B"C""D""A"6.25.25"B"STYLE 1STYLE 28.32TO PULL THROUGH A Ø5±1 [.197±.039] HOLE,WITH MAXIMUM 1.4 [.055] PANEL AND 2 [.079] FAN THICKNESS10.3.40SECTION D-D"D""C"NOTES:1. ALTERNATE UNITS FOR REFERENCE ONLYWITH 5.4 [.213] MAXIMUM TOTAL THICKNESSTO PULL THROUGH A Ø5±1 [.197±.039] HOLE, WITH MAXIMUM 1.4 [.055] PANEL AND 3.1[.122] FAN THICKNESS TO PULL THROUGH A Ø5±1[.197±.039] HOLE,WITH MAXIMUM 3 [.118] PANEL AND 15 [.591] FAN THICKNESS.FM-6: TO PULL THROUGH A Ø4.3±0.2 [.161±.008] HOLE,WITH MAXIMUM 0.8 [.031] PANEL AND 20±0.5 [.787] FAN THICKNESS.FM-5: TO PULL THROUGH A Ø3.5±1[.138±.039] HOLE,WITH MAXIMUM 0.8 [.031] PANEL AND 25-28 [.98-1.10] FAN THICKNESS.STYLE 4FM-7: TO PULL THROUGH A Ø3.5±1 [.138±.039] HOLE,PART NO.MATERIALCOLOR DIM. "A"DIM. "B"DIM. "C"DIM. "D"STYLE NO.FM-1EPDM RUBBER, 30 SHORE A (RMS-166)BLACK1.3 [.05]1.5 [.06]1.9 [.07]32.3 [1.27]1FM-2EPDM RUBBER, 40 SHORE A (RMS-180)FM-3EPDM RUBBER, 30 SHORE A (RMS-166) 3 [.12 ]22.2 [.88]2FM-4EPDM RUBBER, 40 SHORE A (RMS-180)FM-5SILICONE RUBBER, 40 SHORE A (RMS-316) 0.7 [.03]18.5 [.73 ]56 [2.20]3FM-6SILICONE RUBBER, 40 SHORE A (RMS-316) 2.5 [.10] 2 [.08] 14 [.55]53.8 [2.12]FM-7SILICONE RUBBER, 40 SHORE A (RMS-316) 0.7 [.03] 1.5 [.06]24 [.94]73 [2.87]FM-8EPDM RUBBER, 30 SHORE A (RMS-166)N/AN/A4.3[.17]21[.83]4FM-9EPDM RUBBER, 40 SHORE A (RMS-180)SECTION C-C"D""B""A""C"2.4.09DDSECTION A-A"B""D""A""C"/分销商库存信息:RICHCO-INCFM-4FM-3。
