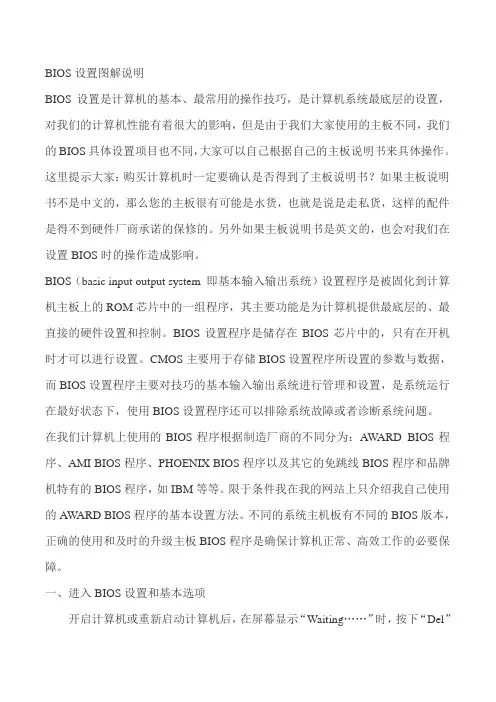

BIOS设置图解说明BIOS设置是计算机的基本、最常用的操作技巧，是计算机系统最底层的设置，对我们的计算机性能有着很大的影响，但是由于我们大家使用的主板不同，我们的BIOS具体设置项目也不同，大家可以自己根据自己的主板说明书来具体操作。
这里提示大家：购买计算机时一定要确认是否得到了主板说明书？如果主板说明书不是中文的，那么您的主板很有可能是水货，也就是说是走私货，这样的配件是得不到硬件厂商承诺的保修的。
另外如果主板说明书是英文的，也会对我们在设置BIOS时的操作造成影响。
BIOS（basic input output system 即基本输入输出系统）设置程序是被固化到计算机主板上的ROM芯片中的一组程序，其主要功能是为计算机提供最底层的、最直接的硬件设置和控制。
BIOS设置程序是储存在BIOS芯片中的，只有在开机时才可以进行设置。
CMOS主要用于存储BIOS设置程序所设置的参数与数据，而BIOS设置程序主要对技巧的基本输入输出系统进行管理和设置，是系统运行在最好状态下，使用BIOS设置程序还可以排除系统故障或者诊断系统问题。
在我们计算机上使用的BIOS程序根据制造厂商的不同分为：AW ARD BIOS程序、AMI BIOS程序、PHOENIX BIOS程序以及其它的免跳线BIOS程序和品牌机特有的BIOS程序，如IBM等等。
限于条件我在我的网站上只介绍我自己使用的AW ARD BIOS程序的基本设置方法。
不同的系统主机板有不同的BIOS版本，正确的使用和及时的升级主板BIOS程序是确保计算机正常、高效工作的必要保障。
一、进入BIOS设置和基本选项Waiting……”时，按下“Del”键就可以进入CMOS的设置界面（图1）。
要注意的是，如果按得太晚，计算机将会启动系统，这时只有重新启动计算机了。
大家可在开机后立刻按住Delete 键直到进入CMOS。
进入后，你可以用方向键移动光标选择CMOS设置界面上的选项，然后按Enter进入副选单，用ESC键来返回父菜单，用PAGE UP和PAGE DOWN键来选择具体选项，F10键保留并退出BIOS设置。
BIOS 使用说明一、使用Configuration/Setup Utility 程序使用Configuration/Setup Utility 程序可以：查看配置信息查看并更改设备和I/O 端口的分配设置日期和时间设置并更改密码和Remote Control Security 设置设置服务器的启动特点和启动设备的顺序设置并更改高级硬件功能的设置查看并清除错误日志更改中断请求（IRQ）设置启用USB 键盘和鼠标支持解决配置冲突二、启动Configuration/Setup Utility 程序请完成以下步骤来启动Configuration/Setup Utility 程序。
注：当您首次使用服务器时，可能想要使用Configuration/Setup Utility 程序主菜单选项Load Default Settings来将Configuration/Setup Utility 菜单选项重置为出厂时的缺省设置。
否则，某些项可能不会在菜单选项的列表中出现。
1. 开启服务器。
2. 当提示Press F1 for Configuration/Setup 出现时，请按F1 键。
如果您设置了开机密码和管理员密码，则必须输入管理员密码以访问完整的Configuration/Setup Utility 菜单。
如果您不输入管理员密码，则只可以访问有限的Configuration/Setup Utility 菜单。
3. 选择要查看或更改的设置。
三、Configuration/Setup Utility 菜单选项Configuration/Setup Utility 主菜单中包含以下选项。
根据服务器中BIOS 代码的版本，某些菜单选项可能会与这些描述稍有不同。
System Summary选择此选项以查看配置信息，包括微处理器的类型和速度以及安装的内存数量。
当您通过Configuration/Setup Utility 程序中的其它选项更改配置时，System Summary 中将反映出更改情况；但您无法直接更改System Summary 中的设置。
BIOS设置功能与操作方式说明(doc 21页)更多企业学院：《中小企业管理全能版》183套讲座+89700份资料《总经理、高层管理》49套讲座+16388份资料《中层管理学院》46套讲座+6020份资料《国学智慧、易经》46套讲座《人力资源学院》56套讲座+27123份资料《各阶段员工培训学院》77套讲座+ 324份资料《员工管理企业学院》67套讲座+ 8720份资料《工厂生产管理学院》52套讲座+ 13920份资料《财务管理学院》53套讲座+ 17945份资料《销售经理学院》56套讲座+ 14350份资料《销售人员培训学院》72套讲座+ 4879份资料更多企业学院：《中小企业管理全能版》183套讲座+89700份资料《总经理、高层管理》49套讲座+16388份资料《中层管理学院》46套讲座+6020份资料《国学智慧、易经》46套讲座《人力资源学院》56套讲座+27123份资料《各阶段员工培训学院》77套讲座+ 324份资料《员工管理企业学院》67套讲座+ 8720份资料《工厂生产管理学院》52套讲座+ 13920份资料《财务管理学院》53套讲座+ 17945份资料《销售经理学院》56套讲座+ 14350份资料《销售人员培训学院》72套讲座+ 4879份资料更多企业学院：《中小企业管理全能版》183套讲座+89700份资料《总经理、高层管理》49套讲座+16388份资料《中层管理学院》46套讲座+6020份资料《国学智慧、易经》46套讲座《人力资源学院》56套讲座+27123份资料《各阶段员工培训学院》77套讲座+ 324份资料《员工管理企业学院》67套讲座+ 8720份资料《工厂生产管理学院》52套讲座+ 13920份资料《财务管理学院》53套讲座+ 17945份资料《销售经理学院》56套讲座+ 14350份资料《销售人员培训学院》72套讲座+ 4879份资料BIOS设置功能及操作方式说明:【Standard CMOS Setup】系统基本参数设定此选项功能主要为设定系统基本参数。
