公路圬工桥涵设计规范中对“圬工桥涵”的建筑材料的要求

棚洞设计要点一、主要设计依据1、根据《公路桥涵设计通用规范》（JTG D60-2015）要求，公路桥涵结构的设计基准期为100年，棚洞据此采用设计基准期100年，各类主要构件及其使用材料应保证其设计基准期要求。

2、环境类别根据《公路钢筋混凝土及预应力混凝土桥涵设计规范》（JTG D62-2012）确定，适用环境类别为Ⅰ（对应环境条件为温暖或寒冷地区的大气环境、与无侵蚀性的水或土接触的环境）。

3、泥石流计算依据《泥石流灾害防治工程勘察规范》（DZ/T 0220-2006）进行。

雨洪资料查云南省水文手册获得。

二、材料一般要求1、混凝土标号：C50。

2、钢筋要求：钢筋：采用HRB335。

3、石材：强度不得低于《公路圬工桥涵设计规范》(JTG D61-2005)）第3.2条和第3.3条的要求。

三、耐久性要求1、混凝土宜采用非碱活性集料，掺合料中如有硅灰，其含量应小于胶凝材料质量的8%，混凝土各技术标准应符合交通部部颁标准的有关规定。

2、混凝土配制应选用优质水泥和级配良好的优质骨料。

水泥及骨料品质应符合交通部部颁标准的规定及其他相关技术规范要求，要严格控制骨料及拌和水的氯离子含量。

3、水泥要求：尽量采用水化热较低的水泥，控制水泥细度及C2S（硅酸二钙）含量，水泥中的C3A （铝酸三钙）含量不宜超过5%，水泥细度不宜超过350m2/Kg,游离氧化钙不宜超过1.5%。

宜采用C2S（硅酸二钙）含量较高而水化热较低的硅酸盐类水泥品种。

选用耐腐蚀性能较好的水泥品种。

不宜单独采用硅酸盐或普通硅酸盐水泥作为胶凝材料配置混凝土，也不宜单独采用抗硫酸盐的硅酸盐水泥配置混凝土，建议掺加大掺量或较大掺量矿物掺和料，并宜加入少量的硅灰。

4、骨料要求：骨料应洁净、质地坚硬（压碎指标不大于14%，吸水率不大于2%）、级配合格（针片状颗粒含量小于7%）、粒径形状好。

粗骨料堆积密度大于1450Kg/m3，即孔隙率不超过43%，混凝土所选粗骨料压碎值不大于10%，吸水率不大于2%，不宜采用有潜在碱活性物质的粗骨料。

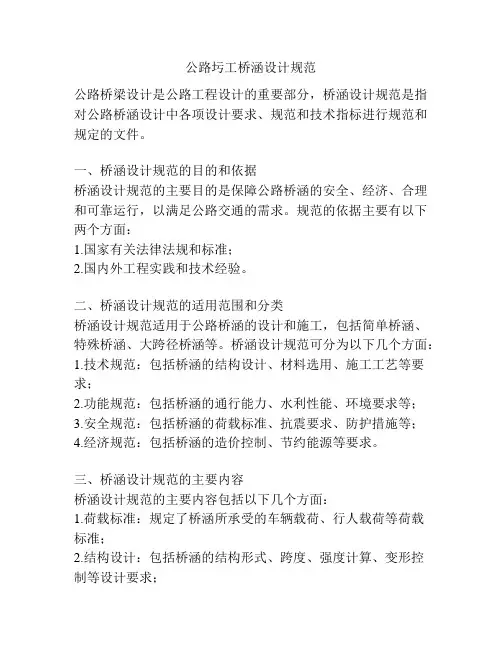

公路圬工桥涵设计规范公路桥梁设计是公路工程设计的重要部分，桥涵设计规范是指对公路桥涵设计中各项设计要求、规范和技术指标进行规范和规定的文件。

一、桥涵设计规范的目的和依据桥涵设计规范的主要目的是保障公路桥涵的安全、经济、合理和可靠运行，以满足公路交通的需求。

规范的依据主要有以下两个方面：1.国家有关法律法规和标准；2.国内外工程实践和技术经验。

二、桥涵设计规范的适用范围和分类桥涵设计规范适用于公路桥涵的设计和施工，包括简单桥涵、特殊桥涵、大跨径桥涵等。

桥涵设计规范可分为以下几个方面：1.技术规范：包括桥涵的结构设计、材料选用、施工工艺等要求；2.功能规范：包括桥涵的通行能力、水利性能、环境要求等；3.安全规范：包括桥涵的荷载标准、抗震要求、防护措施等；4.经济规范：包括桥涵的造价控制、节约能源等要求。

三、桥涵设计规范的主要内容桥涵设计规范的主要内容包括以下几个方面：1.荷载标准：规定了桥涵所承受的车辆载荷、行人载荷等荷载标准；2.结构设计：包括桥涵的结构形式、跨度、强度计算、变形控制等设计要求；3.施工工艺：规定了桥涵的施工过程、施工顺序、施工方法等；4.水利性能：包括桥涵的过水能力、抗洪能力、防渗措施等；5.环境要求：包括桥涵的噪音控制、颜色、景观设计等；6.抗震要求：规定了桥涵在地震作用下的抗震能力；7.安全措施：包括桥涵的防护设施、照明设施等安全要求。

四、桥涵设计规范应遵守的原则桥涵设计规范应遵守以下几个原则：1.科学合理原则：设计要符合工程力学原理和工程经济原则，既满足功能要求，又要充分考虑经济性；2.安全可靠原则：设计要保证桥涵的安全和可靠性，能够承受设计荷载和各种外力的作用；3.环境友好原则：设计要符合环境保护要求，包括噪音、颜色、景观等方面；4.便捷实用原则：设计要考虑桥涵的使用者和维护者的实际需求，便于施工和维修；5.审查遵从原则：设计要符合国家有关法律法规和标准，经过审查后方可施工。

一.盖板计算1.设计资料适用涵洞桩号:BK1+746；公路-Ⅰ级； 安全结构重要性系数γ0：0.93m；Ⅱ类环境；3.2m；0.2m；26cm； 1.992m；0.99m；3cm；C30；13.8Mpa； 1.39Mpa；12根直径为228cm；0.0045616m²；280Mpa； 26kN/m³；20kN/m³根据《公路圬工桥涵设计规范》(JTG D61-2005)中7.0.6关于涵洞结构的计算假定： 盖板按两端简支的板计算，可不考虑涵台传来的水平力.钢筋间距:1-3.0m×1.6m盖板涵洞身断面路面结构层和填土平均容重γ2=盖板涵计算书盖板宽b=净保护层厚度c=砼强度等级：砼轴心抗压强度fcd=环境类别： 汽车荷载等级： 盖板厚d= 净跨径：L 0= 计算跨径：L= 填土高：H=单侧搁置长度：钢筋总面积As= 盖板容重γ1=砼轴心抗拉强度ftd=mm的HRB335钢筋,受力主筋：钢筋轴心抗压强度fsd=2.外力计算1) 永久作用 (1) 竖向土压力46.43kN/m(2) 盖板自重6.69kN/m 2) 由车辆荷载引起的垂直压力（可变作用）根据《公路桥涵设计通用规范》(JTG D60-2015)中4.3.4的规定：计算涵洞顶上车辆荷载引起的竖向土压力时，车轮按其着地面积的边缘向下做30°角分布。

当几个车轮的压力扩散线相重叠时，扩散面积以最外面的扩散线为准。

根据《公路桥涵设计通用规范》(JTG D60-2015)中4.3.1关于车辆荷载的规定： 车辆荷载顺板跨长3.90m车辆荷载垂直板跨长7.30m 车轮重 PP=560kN车轮重压强L19.68kN/m²3.内力计算及荷载组合1) 由永久作用引起的内力 跨中弯矩67.99kN.m边墙内侧边缘处剪力79.68kN 2) 由车辆荷载引起的内力 跨中弯矩边墙内侧边缘处剪力跨中弯矩γ0q=K·γ2·H·b= p=P/La/Lb= V1=(q+g)·L 0/2= M1=(q+g)·L²/8= g=γ1·d·b/100= La=1.6+2·H·tan30°= Lb=5+2·H·tan30°= M2=p·L²·b/8= V2=p·L 0·b/2=γ01) 砼受压区高度0.093m根据《公路钢筋混凝土及预应力混凝土桥涵设计规范》(JTG D62-2004)中5.2.1关于 相对界限受压区高度ξb的规定:HRB335钢筋的相对界限受压区高度ξb=0.56。

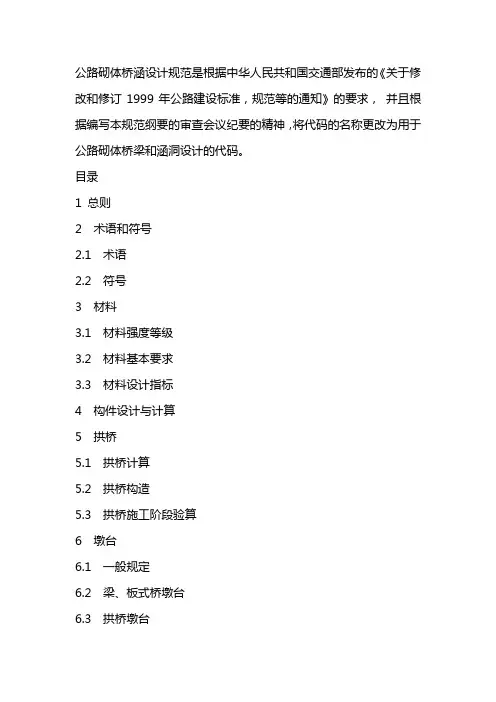

公路砌体桥涵设计规范是根据中华人民共和国交通部发布的《关于修改和修订1999年公路建设标准，规范等的通知》的要求，并且根据编写本规范纲要的审查会议纪要的精神，将代码的名称更改为用于公路砌体桥梁和涵洞设计的代码。

目录
1 总则
2 术语和符号
2.1 术语
2.2 符号
3 材料
3.1 材料强度等级
3.2 材料基本要求
3.3 材料设计指标
4 构件设计与计算
5 拱桥
5.1 拱桥计算
5.2 拱桥构造
5.3 拱桥施工阶段验算
6 墩台
6.1 一般规定
6.2 梁、板式桥墩台
6.3 拱桥墩台
7 涵洞
附录A 石材试件强度的换算系数及石砌体分类
附录B 拱桥预拱度的计算与设置
本规范用词说明
附件《公路圬工桥涵设计规范》（JTG D61-2005）条文说明
修订版
在修订过程中，规范修订小组借鉴了国内有关单位的研究成果和实际工程设计经验，借鉴了国际先进标准和规范，并与国内有关规范进行了比较和协调。

编写准则初稿后，通过各种方式广泛征求了有关单位和个人的意见，并通过试算对规范的主要内容进行了比较。

经过反复讨论，修改和充实，最终草案由通信部和有关部门审查并定稿。

修订后的规范有7章和2个附录
1.根据公路工程结构可靠性设计统一标准（GB / T 50283-1999），采用基于概率论的极限状态设计方法。

2.根据工程结构设计基本术语和通用符号（GBJ 132-90）的规定，对符号进行修改并列出基本术语。

3.添加了有关加筋土基的内容。

SFX Dial-Up ProgramSETXPROGRAM EXPLANATIONSThank you for purchasing SFX Dial-Up Software for SETX.•Before using the instrument, please read this manual carefully.•Some of the diagrams and screen displays shown in this manual are simplified for easier understanding.•Sokkia continually conducts research and development in order to make its products easier to use and enhance their precision. The specifications and general appearance of the instrument may be altered without prior notifi-cation.•This manual is protected by copyright and all rights are reserved by Sokkia Co., Ltd.•Sokkia Co., Ltd. will not be liable to you for any profit or loss resulting from the use of this manual.•Except as permitted by Copyright law, this manual may not be copied, and no part of this manual may be repro-duced in any form or by any means.•This manual may not be modified, adapted or otherwise used for the production of derivative works.•Manuals 1, and 3 below are electronic manuals delivered on a CD-ROM in PDF format (). Adobe Reader is necessary in order to view these documents. The latest version of Acrobat Reader can be downloaded from the Adobe homepage.How to read this manual•The SETX comes equipped with 3 manuals for operation information:1. SFX Dial-Up Program Explanations (SETX) (this manual): Explains how to send and receive datausing the SFX function2. Operator’s Manual: Explains basic operation and functions of the total station.3. SDR Software Reference Manual (SETX): explains advanced measurement operations using theSETX in Program mode, and methods for managing measured data.•For switching between modes on the SETX, see "1.2 Mode Structure".•For information on key operation and using the SETX screen, see “Chapter 5. BASIC OPERATION” of the Oper-ator’s Manual for your total station.SymbolsThe following conventions are used in this manual.[Softkey]Indicates softkeys on the display.{KEY}Indicates a keyboard key that causes an immediate action.Examples: {1}, {F1}, {ESC}, {Y}, {N}. If you must press multiplekeys to initiate an action, the combination will be shown with aplus sign between the keystrokes; for example, {FUNC CTRL}+{I}.Contents Indicates the content in each window.G Indicates precautions and important items, which should be readbefore operation.C Indicates the manual or chapter title to refer to for additional informa-tion.$Indicates supplementary explanations.&Indicates an explanation for a particular term or operation.<Dial-up>Indicates screen titles.Notes regarding manual style•Except where stated, “SETX” means SET1X/2X/3X/5X in this manual.•The text, items, and tabs displayed on the total station can be modified by the user. Those used in this manual are the factory settings. For more information, see “Chapter 20. CHANGING THE SETTINGS” of the Operator’s Manual for your total station.•Bluetooth®is a registered trademark of Bluetooth SIG, Inc.•Adobe Reader is a registered trademark of Adobe Systems Incorporated.•All other company and product names featured in this manual are trademarks or registered trademarks of each respective organization.Contents1. Product Outline (1)1.1SFX Functions (1)1.2Mode Structure (2)2. Connecting All Equipment (3)2.1Necessary Items (3)2.2Connecting All Equipment (4)3. Dial-Up Connection (5)3.1Booting Up and Quitting (5)3.2Setting Communication Settings (5)3.3Registering an E-mail Address (8)4. Sending and Receiving E-mail (9)4.1Sending E-mail (Coordinate Data/JOB Data) (9)4.2Receiving E-mail with the Surveying Instrument (Coordinate Data) (11)4.3FTP Server Connection (Coordinate Data/JOB Data) (12)4.4Sending E-mail to the Surveying Instrument (17)4.5Receiving E-mail from the Surveying Instrument (18)5. Error Messages (19)6. Troubleshooting (21)1.1SFX FunctionsThe SFX Dial-up program allows the operator to connect the total station to a cellular phone in order to exchange data by connecting to an FTP server or to transfer data as email attachments between the surveying instrument and a computer, while in the field. Coordinate data transferred to the total station in this way can be added into JOB data in Program mode.All data needed for surveying can be exchanged at the worksite.As data can be sent to a computer via e-mail, there is no need to return to the office to handover surveyed data.All data needed for surveying can be transferred via e-mail so there is no need to waste time downloading before heading for the worksite.Surveyed data can be sent promptly back to the office for processing allowing the operator to get feedback on the quality of the surveyed data quickly and without having to leave theworksite. The operator can respond to deficiencies in the data much faster as a result.Coordinate data can be exchanged between total stations using the SFX function allowinggreater flexibility when allocating tasks in the field.•A program designed to allow Internet provider information, e-mail address, and FTP server information to be set on an operator’s PC is available free of charge. For details, ask your Sokkia agent.Total station 21. P RODUCT O UTLINE1.2Mode StructureG•Switching between modes is not possible during distance measurement.TLT-OFSTLT-OFSEDMTILTMENU OFFSETMLMEDMTILTMENU OFFSETMLM“5.4 SETTINGS Mode”Status screen[Version][OK]{ESC}Meas Mode (Navigable with tabs)Menu modeConfiguration Mode{SETTINGS}Settings mode{PROGRAM}Operator’s ManualC“5.2 DisplayC Operator’s ManualFunctions”Reference ManualC Operator’s Manual C Operator’s ManualChapters 14-19Chapter 20(SETX)2.1Necessary ItemsThe following items are necessary in order to use the SFX dial-up program with the surveying instrument.• Internet provider serviceAn Internet provider service is necessary in order to be able to send and receive e-mail. The access details supplied by your provider are input when configuring the e-mail settings on the surveying instrument.When using Bluetooth technologyBluetooth equipped cellular phoneWhen using a modem•Cellular phone with built-in modem•Interface cableDedicated optional accessory for connecting the surveying instrument and your cellular phone.G•Sokkia cannot guarantee that all cellular phones with built-in modems are compatible with the SFX system. Therefore, to check the compatibility of your cellular phone, please consult your Sokkia agent.2. C ONNECTING A LL E QUIPMENT2.2Connecting All EquipmentConnect all equipment as shown below. Make sure that the power of both the surveying instrument and the cellular phone is off before connecting.When using a modemC For connecting the cellular phone to the dedicated interface cable, see the operator's manual foryour cellular phone/interface cable.Combined communications and3.1Booting Up and QuittingX PROCEDURE Booting up1.Select Dial-up from the Functions menu.G The following cannot be operated while dial-upis in progress.• {SETTINGS}• Status bar• Power OFFX PROCEDURE Quitting1.Press {ESC} repeatedly to return to Program mode.3.2Setting Communication SettingsInternet provider information must be registered on the surveying instrument in order to use the e-mail function.•Registering Internet provider information•Communication settings$Saving settings•All settings are saved when the operator quits the program. SFX will function according to these new and modified settings once the program has been shut down then rebooted.3. D IAL-U P C ONNECTIONX PROCEDURE Registering Internet provider information1.Press [Config] in <Dial-up Send Mail>/<Dial-up ReceiveMail> to display <Dial-up ISP Config>2.Set the following items. The information marked with *is supplied by your Internet provider. For any inquiriesregarding this information, ask your Internet provider.•Phone 1 to 3*Input the telephone number for the access point. Up to 3 telephone numbers may be registered. Spaces and hyphens may be omitted.•PPP login*Input the ISP connection login name.•PPP password*Input the ISP connection password.•IP address*Input the IP address when allocated. When using an address automatically assigned by the server input "0.0.0.0.".•DNS1, DNS2*Input the primary (DNS1) and secondary (DNS2) addresses for the DNS server.•POP server*Input the POP server name using no more than 64 characters.•SMTP server*Input the SMTP server name using no more than 64 characters.•Mail address*Input the e-mail address allocated to that instrument.•POP login*Input the login name for the POP server using no more than 64 characters.•POP password*Input the POP server password using no more than 64 characters.•TimeoutSet the timeout, in seconds, for the connection to the server.•Leave on serverCheck the check box to leave received e-mail on the server. To delete received e-mail, clear the box.•POP before SMTPCheck the box to activate user authentication.3.Press [OK] on page 3 to finish settings.X PROCEDURE Communication Settings1.Press [COM] in a Config screen to display <Dial-upCOM Config>.2.Select a device in Device, then set communicationsettings.A Bluetooth device that has already been registeredcan also be selected in Device.C Operator’s Manual “11.1 Wireless Communica-tion using Bluetooth Technology”$•Check “PC COM” when connecting to a computerusing Sokkia’s configuration software in order toregister provider and mail address information.3.Press [OK] on page 3 to finish settings.3.3Registering an E-mail AddressRegister the outgoing e-mail address (no more than 64 characters) beforehand. Up to 3 e-mail addresses can be registered.$Saving settings•All settings are saved when the operator quits the program. SFX will function according to these new and modified settings once the program has been shut down then rebooted.X PROCEDURE1.Press [Address] in <Dial-up ISP Config> or <Dial-up COMConfig> to display <Dial-up Mail Address Config>.All the currently registered e-mail addresses aredisplayed.2.Input the e-mail address and press [OK] on page 3 tofinish settings.•Press [ISP] on page 2 to continue registering Internet provider information.•Press [COM] on page 2 to continue communication settings.•Press [SendMail] on page 1 to send an e-mail.•Press [RecvMail] on page 1 to receive e-mail.4.1Sending E-mail (Coordinate Data/JOB Data)Coordinate data and JOB data can be sent from the surveying instrument as e-mail attachments. When using Bluetooth wireless technology for SFX communication, complete Bluetooth settings before starting transmission.C Operator’s Manual “11. CONNECTING TO EXTERNAL DEVICES”X PROCEDURE1.Press [SendMail] in page 1 of a Config screen to dis-play <Dial-up Send Mail>.2.Select a data format from Format.3.Highlight the JOB to be sent from JOB and press[YES] to confirm selection. Press [NO] to cancelselection.Multiple JOBs can be selected.Press [ALL] to select all JOBs.Press [Create] when JOB selection is complete.G•Do not select multiple JOBs with the same name.4. S ENDING AND R ECEIVING E-MAIL104.Highlight a destination address in Address and press[YES] to confirm selection. Press [NO] to cancelselection.Multiple destination addresses can be selected.Press [ALL] to select all addresses.Press [NEXT] when address selection is complete.5.Select a device in Device .6.Select an access point telephone number fromPhone .7.Press [Connect] to start transmission. “PPP dialing...”is displayed.4. S ENDING AND R ECEIVING E-MAIL8.The name of the JOB, data format, and the number ofrecords currently being transmitted is displayed on thescreen during transmission.•Multiple JOBs are sent one JOB per e-mail.When all selected JOBs have been successfullytransmitted, SFX disconnects from the Internet andreturns to the screen in step 1. The cellular phone dis-play returns to the standby screen.Pressing [Disc] during transmission will forcibly cutthe connection and stop transmission. The transmis-sion of the JOB being transmitted at that point may notbe successfully completed as a result.4.2Receiving E-mail with the Surveying Instrument (CoordinateData)After reading in a coordinate file sent as an e-mail attachment in SDR format, the surveying instrument records it as coordinate data at the end of the currently selected JOB.X PROCEDURE1.Press [RecvMail] in <Dial-up Send Mail> or page 1 ofa Config screen to display <Dial-up Receive Mail>.2.Select a device in Device and an access point tele-phone number from Phone.C"3.2 Setting Communication Settings"3.Press [Connect] to start reception. “PPP dialing...” isdisplayed.4. S ENDING AND R ECEIVING E-MAIL12When a connection has been established the followingmessage is displayed and reception starts.4.SFX will automatically search the server for all e-mailfor the surveying instrument. A list of all incoming e-mail with csv/sdr data file attachments and therespective data type will be listed on the screen.5.Highlight the desired coordinate data in Maillist andpress [YES] to confirm selection. Press [NO] to cancelselection.Multiple sets of coordinate data can be selected.Press [ALL] to select all JOBs.G•SDR data and CSV data cannot be read in at thesame time. Make sure that selected files are eitherall SDR or all CSV data.Press [Recv] when data selection is complete.The number of records currently being read in is dis-played on the screen as the e-mail containing theattached data is being received.•Pressing [Disc] during transmission will forcibly cutthe connection and stop transmission. All the databeing received at that point will be lost.When all selected data have been successfullytransmitted, SFX disconnects from the Internet, thecellular phone display returns to the standby screenand data is recorded. Once data has been recorded,the display returns to the screen in step 1.4. S ENDING AND R ECEIVING E-MAIL4.3FTP Server Connection (Coordinate Data/JOB Data)The surveying instrument accesses an office or PC FTP server in order to write or read in JOB data or coordinate data.G•The file to be sent is converted to SDR format and written to the server as "Job Name.sdr".•When a file with the same name already exists on the server, a letter (from a to z) is appended to the end of the most recent file name (JOB name).•The surveying instrument can only read in files with the file extensions ".sdr" and “.csv”.•From the files with the extension ".sdr", only coordinate data is read in. The surveying instrument records it as coordinate data at the end of the currently selected JOB.X PROCEDURE Writing (sending) a file1.Press [FTP con] in <Dial-up Send Mail> to display<Dial-up FTP Server>.2.Select the relevant server in FTPserver.3.Press [Connect] to start reception. “FTP connect-ing...” is displayed.When a connection has been established the followingscreen is displayed.Press [SendFile].4. S ENDING AND R ECEIVING E-MAIL144.Select a data format from Format .5.Highlight the JOB to be sent from JOB and press[YES] to confirm selection. Press [NO] to cancel selection.Multiple JOBs can be selected.Press [ALL] to select all JOBs.Press [Send] when JOB selection is complete to start transmission.G•Do not select multiple JOBs with the same name.The name of the JOB currently being transmitted and the number of records (JOB data records, coordinate points) successfully transmitted are displayed on the screen during transmission.•Pressing [Disc] during transmission will forcibly cut the connection and stop transmission. All the data being received at that point will be lost.When all selected data have been successfullytransmitted, data is recorded and SFX returns to the second screen in step 3. Further files can now be sentor read in.4. S ENDING AND R ECEIVING E-MAIL X PROCEDURE Reading in (receiving) a file1.Press [FTP con] in <Dial-up Send Mail> to display<Dial-up FTP Server>.2.Select the relevant server in FTPserver.3.Press [Connect] to start reception. “FTP connect-ing...” is displayed.When a connection has been established the followingscreen is displayed.Press [RecvFile].4.SFX will automatically search the server for all datafiles for the surveying instrument. A list of all csv/sdrdata files and the respective data type will be listed onthe screen.4. S ENDING AND R ECEIVING E-MAIL165.Highlight the desired file in File and press [YES] to confirm selection. Press [NO] to cancel selection. Multiple sets of data can be selected.Press [ALL] to select all JOBs.G•SDR data and CSV data cannot be read in at the same time. Make sure that selected files are either all SDR or all CSV data.Press [Recv] when data selection is complete to start transmission.The name of the file currently being read in and the number of coordinate points in the current file are dis-played.When all selected files have been successfullyread in, data is recorded and SFX returns to the sec-ond screen in step 3. Further files can now be read in or sent.•Pressing [Disc] during transmission will forcibly cut the connection and stop transmission. All the databeing received at that point will be lost.4. S ENDING AND R ECEIVING E-MAIL4.4Sending E-mail to the Surveying InstrumentE-mail is sent from the computer to the surveying instrument using standard e-mail programs.The method for sending an e-mail from the computer to the surveying instrument is the same as that for sending a normal e-mail.Compose an e-mail addressed to the address assigned to the surveying instrument.So that the surveying instrument can distinguish which e-mails to receive, input "SDR>" or ”CSV>” followed by a user-specified title in the subject line.G•Text input in the body of the message will not be displayed on the surveying instrument.•Even if multiple files are attached to a single e-mail, the surveying instrument can only receive the first attachment.•SDR-format coordinate data appended as an attachment. The file extension for attachment files should be ".sdr".The surveying instrument selects incoming e-mail with a subject line starting with “SDR>” or “CSV>” and displays them in a list.C For more details on sending and receiving e-mails, see the operator’s manual for your e-mailprogram.4. S ENDING AND R ECEIVING E-MAIL184.5Receiving E-mail from the Surveying InstrumentThe method for receiving an e-mail from the surveying instrument on a computer is the same as that for receiving a normal e-mail.The subject line of the e-mail sent from the surveying instrument will be in the format "SDR>JOB Name." or “CSV>JOB Name.”, and the file name of the attached e-mail in the format, "JOB name .sdr" or "JOB name .csv".Microsoft Outlook Express 6.0 Example·C For more details on sending and receiving e-mails, see the operator ’s manual for your e-mailprogram.The following is a list of the error messages displayed by the surveying instrument and the meaning of each message. If the same error message is repeated or if any message not shown below appears, the instrument has malfunctioned. Contact your Sokkia agent.Message Cause SolutionBluetooth Parameter Error A Bluetooth connectioncould not be estab-lished.Check settings.Bluetooth Timeout A Bluetooth connectioncould not be estab-lished.Check that the Bluetooth device(s) is switched on and the settings are correct.Connection aborted A Bluetooth connectioncould not be estab-lished.Check that the Bluetooth device(s) is switched on and the settings are correct.CSV Import Err (DLL)An error occurred whileconverting the attachedfile.Check the format of the attached file.File Read Err An error occurred whilereading in a file from theFTP server.Try again. If the problem persists, contact the administrator of your FTP server.File ReadOpen Err File WriteOpen Err An error occurred whiletrying to open a file onthe FTP server.Try again. If the problem persists, contact theadministrator of your FTP server.File Write Err An error occurred whilewriting a file to the FTPserver.Try again. If the problem persists, contact the administrator of your FTP server.FTP Change Dir Err An error occurred whiletrying to move a direc-tory on the FTP server.Try again. If the problem persists, contact the administrator of your FTP server.FTP Connect Err An error occurred whileconnecting to the FTPserver.Check the FTP server settings and try again. If the problem persists, contact the administrator of your FTP server.FTP Search Err An error occurred whileobtaining a list from theFTP server.Try again. If the problem persists, contact the administrator of your FTP server.Invalid Mail Address No sender e-mailaddress entered.Register an e-mail address in <Dial-up Mail Address Config>.Invalid POP server Login name or pass-word No POP server loginname/passwordentered.Register the POP server login name and pass-word in <Dial-up ISP Config>.Invalid POP server name No POP server nameentered.Register the POP server IP address in <Dial-upISP Config>.Invalid SMTP server name No SMTP server nameentered.Register the SMTP server name in <Dial-up ISPConfig>.JobList Read Err (DLL)An error occurred whilesearching the server fore-mail for the SETX.Try receiving the e-mail again.5. Error Messages20Mail Delete ErrAn error occurred while trying to delete received e-mail.Try receiving and deleting the same e-mail again. Alternatively, try to delete using Telnet.No mail available There is no file attached to the selected e-mail.Attach a file and send the e-mail again.POP Connect ErrConnection to the POP server failed.Check the settings in <Dial-up ISP Config>. If a connection still cannot be established try again later.POP Connect ErrConnection to the POP server failed.There was an error in the server response or login failed due to a mistake in POP server set-tings. Check parameters and try again.PPP Start ErrA dial-up connection could not be estab-lished using the dis-played phone number.Check that the phone and cable are connected correctly. If a connection still cannot be estab-lished try again later.SDR Import Err (DLL)An error occurred while converting the attached file.Check the format of the attached file.SendFile Rename ErrThere is a problem with the file to be sent.Files with the same JOB name cannot be sentsimultaneously. Files with the same JOB name should be sent separately.SMTP Connect ErrUser authentication for the SMTP server is required.Check “POP before SMTP” in <Dial-up ISP Config>.Message CauseSolutionWhat follows is a list of foreseeable problems the operator may encounter while using SFX. Under each heading is a description of items to check and possible solutions. When a problem not listed here occurs or the suggested solution is ineffective, contact your Sokkia agent.Loss of power during communicationA depleted battery cannot be replaced during communication. Check the remaining battery powerbefore starting communication.If the battery power is completely depleted during communication, the instrument will switch off but will still be connected to the Internet. Disconnect the Internet connection before replacing the battery.It is possible that e-mail has not been successfully transferred. If necessary transfer the e-mail again. Failed connectionCellular phone receptionWhenever possible, perform communication in areas where there is good cellular phone reception.When performing communication indoors radio field intensity is weak and the connection is unstable.For the service area of your cellular phone, contact your telecoms operator. For other details, see the operator’s manual for your cellular phone.File sizeReduce the size of the file being sent/received by dividing into multiple sections and sending/ receiving attached to multiple e-mails. File sizes causing delays in transmission will vary depending on communication conditions and devices being used. As the maximum file size that can besuccessfully transmitted will vary depending on these conditions file size should be set accordingly (the recommended maximum range is from 2000 to 3000 records).If the size of a file received from the FTP server is large, writing to a JOB will take a long time, possibly resulting in the server timing out before completion.E-mail program settingsCertain e-mail program settings may result in communication failure. Please consult the settings screen shown below. If the "No mail available" error message is displayed even when a file has been attached, type a message in the body section of the e-mail.(1)Using Microsoft Outlook Express 6Select [Tools] - [Options] to open the following window.6. T ROUBLESHOOTING Set "Mail Sending Format" in the Send tab to "Plain Text". Press Plain Text Settings to open the next window.Set "message format" to "MIME".(2)When using Mozilla 1.7.5Select [Options] - [Format] - [Plain Text Only]JAPAN1st ed. 01-0710 ©2007 SOKKIA CO., LTD.。

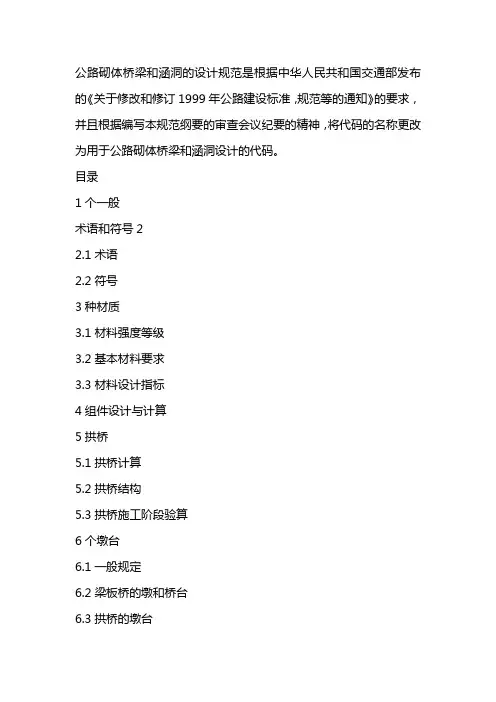

公路砌体桥梁和涵洞的设计规范是根据中华人民共和国交通部发布的《关于修改和修订1999年公路建设标准，规范等的通知》的要求，并且根据编写本规范纲要的审查会议纪要的精神，将代码的名称更改为用于公路砌体桥梁和涵洞设计的代码。

目录
1个一般
术语和符号2
2.1术语
2.2符号
3种材质
3.1材料强度等级
3.2基本材料要求
3.3材料设计指标
4组件设计与计算
5拱桥
5.1拱桥计算
5.2拱桥结构
5.3拱桥施工阶段验算
6个墩台
6.1一般规定
6.2梁板桥的墩和桥台
6.3拱桥的墩台
7涵
附录A试件强度换算系数和砌体分类
附录B拱桥外倾角的计算和设置
本规范中使用的词
公路砌体桥涵设计附录规范（JTG d61-2005）[1]
修订版
在修订过程中，规范修订小组借鉴了国内有关单位的研究成果和实际工程设计经验，借鉴了国际先进标准和规范，并与国内有关规范进行了比较和协调。

编写准则初稿后，通过各种方式广泛征求了有关单位和个人的意见，并通过试算比较了规范的主要内容。

经过反复讨论，修改和充实，最终草案由通信部和有关部门审查并定稿。

修订后的规范有7章和2个附录
1.根据公路工程结构可靠性设计统一标准（GB / T 50283-1999），采用基于概率论的极限状态设计方法。

2.根据工程结构设计基本术语和通用符号的规定（GBJ 132-90），对符号进行修改并列出基本术语。

3.添加了有关加筋土基的内容。

公路圬工桥涵设计规范
交通运输部关于发布《公路桥涵设计通用规范》的公告
现发布《公路桥涵设计通用规范》(JTGD60-2015)，作为公路工程行业标准，自2015年12月1日起施行，原《公路桥涵设计通用规范》(JTGD60-2004)同时废止。

《公路桥涵设计通用规范》(JTGD60-2015)的管理权和解释权归交通运输部，日常解释和管理工作由主编单位中交公路规划设计院有限公司负责。

请各有关单位在实践中注意总结经验，及时将发现的问题和修改意见函告中交公路规划设计院有限公司(地址:北京市德胜门大街83号德胜国际中心B座407室，邮编:100088)，以便修订时研用。

特此公告。

交通运输部
2015年9月9日。

3.3.5车行天桥桥面净空按交通量和通行农业机械类型可选用4.5m或7.0m；其汽车荷载应符合本规范第4.3.1条有关四级公路汽车荷载的规定。

人行天桥桥面净宽应大于或等于3.0m；其人群荷载应符合本规范第4.3.5条的规定。

3.3.6电讯线、电力线、电缆、管道等的设置不得侵入公路桥涵净空限界，不得妨害桥涵交通安全，并不得损害桥涵的构造和设施。

严禁天然气输送管道、输油管道利用公路桥梁跨越河流。

天然气输送管道离开特大、大、中桥的安全距离不应小于100m，离开小桥的安全距离不应小于50m。

高压线跨河搭架的轴线与桥梁的最小间距，不得小于一倍塔高。

高压线与公路桥涵的交叉应符合现行《公路路线设计规范》的规定。

3.4桥上线形及桥头引道3.4.1桥上及桥头引道的线形应与路线布设相互协调，各项技术指标应符合路线布设的规定。

桥上纵坡不宜大于4%，桥头引道纵坡不宜大于5%；位于市镇混合交通繁忙处，桥上纵坡和桥头引道纵坡均不得大于3%。

桥头两端引道线形应与桥上线形相配合。

3.4.2在洪水泛滥区域以内，特大、大、中桥桥头引道的路肩高程应高出桥梁设计洪水频率的水位加壅水高、波浪爬高、河弯超高、河床淤积等影响0.5m以上。

小桥涵引道的路肩高程，宜高出桥涵前壅水水位（不计浪高）0.5m以上。

3.4.3桥头锥体及引道应符合以下要求：1桥头锥体及桥台台后5～10m长度内的引道，可用砂性土等材料填筑。

在非严寒地区当无透水性土时，可就地取土经处理后填筑。

2锥坡与桥台两侧正交线的坡度，当有铺砌时，路肩边缘下的第一个8m高度内不宜陡于1:1；在8～12m高度内不宜陡于1:1.25；高出12m的路基，其12m以下的边坡坡度应由计算确定，但不应陡于1:1.5，变坡处台前宜设宽0.5～2.0m的锥坡平台；不受洪水冲刷的锥坡可采用不陡于1:1.25的坡度；经常受水淹没部分的边坡坡度不应陡于1:2。

埋置式桥台和钢筋混凝土灌注桩式或排架桩式桥台，其锥坡坡度不应陡于1:1.5，对不受洪水冲刷的锥坡，加强防护时可采用不陡于1:1.25的坡度。

说 明一、技术标准与设计规范：1、交通部部颁标准《公路工程技术标准》JTG B01-20032、交通部部颁标准《公路桥涵设计通用规范》JTG D60-20043、交通部部颁标准《公路圬工桥涵设计规范》JTG D61-20054、交通部部颁标准《公路桥涵地基及基础设计规范》JTJ 024-855、交通部部颁标准《公路桥涵施工技术规范》JTJ 041-20006、交通部部颁标准《公路工程抗震设计规范》JTJ 004-897、《公路桥涵设计手册（涵洞）》 人民交通出版社（1994年）8、《铁路桥涵设计基本规范》TB10002·1—20059、河北省交通厅公路管理局文件冀交公路字（2005）218号《关于印发 “河北省公路桥涵设计通用图编制工作会议”有关文件的通知》二、技术指标：1、净跨径：2.00、2.50、3.00、4.00、5.00米2、斜度：0°/30°（涵洞轴线与路线法线之夹角）3、荷载等级：公路－Ⅰ级 公路－Ⅱ级4、涵洞净跨径、净空及地基土的容许承载力：三、主要材料材料强度应满足《公路圬工桥涵设计规范》（JTG D61—2005）所规定的各项指标。

主要材料中，满足受冰冻影响地区(一月份平均气温低于－10℃)所使用材料的抗冻性指标要求。

四、设计要点1、拱圈计算采用等截面无铰拱。

2、在计算拱圈内力时，不考虑曲率、剪切变形、弹性压缩时对内力的影响，也不计温度变化影响力。

3、拱上恒载按土柱压力计算。

4、路面车辆活载对涵顶的压力：当填土高度为0.5m 时，按45°角分布；当填土高度大于0.5m 时，按30°角分布。

填土内摩擦角为35°，土容重18KN/m 。

5、涵洞过水流量按无压力式涵洞设计。

确定涵底坡度时，一般应小于本图册水力计算表中设定流速下的最大坡度i max ，同时应大于表中的临界坡度i k 。

当设计涵底坡度小于临界坡度时，泄水能力应予折减。

公路圬工桥涵设计规范--JTG_D61--2005--附条文说明公路圬工桥涵设计规范--JTG_D61--2005--附条文说明 1 总则1(0(1 为在圬工桥涵设计中贯彻执行国家的技术经济政策，合理地选择桥涵结构方案和建筑材料，做到技术先进、安全可靠、适用耐久、经济合理，制定本规范。
