毕业设计(论文)外文资料翻译学院(系)：机械工程系专业：机械工程及自动化姓名：学号：外文出处：High-speed machining and demandFor the development附件：1.外文资料翻译译文;2.外文原文附件1：外文资料翻译高速切削加工的发展及需求高速切削加工是当代先进制造技术的重要组成部分，拥有高效率、高精度及高表面质量等特征。

本文介绍此技术的定义、发展现状、适用领域以及中国的需求情况。

高速切削加工是面向21世纪的一项高新技术，它以高效率、高精度和高表面质量为基本特征，在汽车工业、航空航天、模具制造和仪器仪表等行业中获得了愈来愈广泛的应用，并已取得了重大的技术经济效益，是当代先进制造技术的重要组成部分。

高速切削是实现高效率制造的核心技术，工序的集约化和设备的通用化使之具有很高的生产效率。

可以说，高速切削加工是一种不增加设备数量而大幅度提高加工效率所必不可少的技术。

高速切削加工的优点主要在于：提高生产效率、提高加工精度及降低切削阻力。

有关高速切削加工的含义，目前尚无统一的认识，通常有如下几种观点：切削速度很高，通常认为其速度超过普通切削的5-10倍；机床主轴转速很高，一般将主轴转速在10000-20000r/min以上定为高速切削；进给速度很高，通常达15-50m/min，最高可达90m/min；对于不同的切削材料和所釆用的刀具材料，高速切削的含义也不尽相同；切削过程中，刀刃的通过频率(Tooth Passing Frequency)接近于“机床－刀具－工件”系统的主导自然频率(Dominant Natural Frequency)时，可认为是高速切削。

可见高速切削加工是一个综合的概念。

1992年，德国Darmstadt工业大学的H. Schulz教授在CIRP上提出了高速切削加工的概念及其涵盖的范围，如图1所示。

认为对于不同的切削对象，图中所示的过渡区(Transition)即为通常所谓的高速切削範围，这也是当时金属切削工艺相关的技术人员所期待或者可望实现的切削速度。

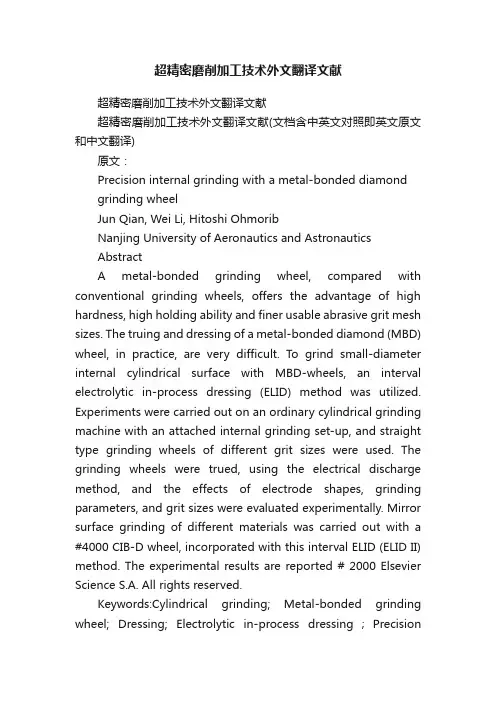

超精密磨削加工技术外文翻译文献超精密磨削加工技术外文翻译文献超精密磨削加工技术外文翻译文献(文档含中英文对照即英文原文和中文翻译)原文：Precision internal grinding with a metal-bonded diamondgrinding wheelJun Qian, Wei Li, Hitoshi OhmoribNanjing University of Aeronautics and AstronauticsAbstractA metal-bonded grinding wheel, compared with conventional grinding wheels, offers the advantage of high hardness, high holding ability and finer usable abrasive grit mesh sizes. The truing and dressing of a metal-bonded diamond (MBD) wheel, in practice, are very difficult. To grind small-diameter internal cylindrical surface with MBD-wheels, an interval electrolytic in-process dressing (ELID) method was utilized. Experiments were carried out on an ordinary cylindrical grinding machine with an attached internal grinding set-up, and straight type grinding wheels of different grit sizes were used. The grinding wheels were trued, using the electrical discharge method, and the effects of electrode shapes, grinding parameters, and grit sizes were evaluated experimentally. Mirror surface grinding of different materials was carried out with a #4000 CIB-D wheel, incorporated with this interval ELID (ELID II) method. The experimental results are reported # 2000 Elsevier Science S.A. All rights reserved.Keywords:Cylindrical grinding; Metal-bonded grinding wheel; Dressing; Electrolytic in-process dressing；Precisiongrinding1. IntroductionAlong with the technological advancement of ultra-precision grinding, applications and requirements for precision cylindrical surfaces have increased significantly in the recent years [1]. As a principal processing method for an internal surface, cylindrical grinding has been commonly utilized as a final operation in the production of precision components. Since grinding is usually the most costly of all manufacturing processes, considerable attempts have been focused on the analysis and optimization of the grinding process to minimize machining time [2-6], and on various compensatory control strategies to improve workpiece quality[7-10]in the cylindrical grinding. However, few researches on mirror-surface internal grinding have been reported [5,6,11], probably due to the limitation of abrasive grit size applicable to non-metallic bond grinding wheels [5,7,8,10].Research on high efficiency grinding of advanced materials, by utilizing high-rigidity grinding machines and tough metal-bonded superabrasive wheels, has led to the successful development of cast iron bonded diamond (CIB-D) grinding wheels [12]. These wheels are manufactured by mixing diamond grits, cast iron powder or fiber, and a small amount of carbonyl iron powder. The wheels are compacted to a desired form under high pressure and then sintered in an atmosphere of ammonia. These wheels are not suitable for continuous grinding for a long period of time for the following reasons: (1) As tougher metal-bonded wheels exhibit poor dressing ability, it is difficult to achieve efficient and stable dressing simultaneously. (2) Higher rate of material removal in the grinding promotes wear of the abrasive grains, therefore, more frequent redressing of thegrinding wheel will be required by stopping the grinding process.(3) While machining metals such as steel, wheel loading (embedding of swarf) occurs, making effective dressing of metallic bond wheel difficult in practice. Although a diamond slab incorporated with an abrasive jet sharpening method is able to dress a bronze-bonded wheel to the same topography as an electroplated wheel [12], complex equipment must be added inevitably which cause working-environment problem. Dressing by electrical discharge is a good method, but it is difficult to conduct on-line dressing, and dressing stripes appear on the wheel periphery when a pair of parallel electrodes is used [13,14]. Electrolytic in-process dressing (ELID) has so far served as the most successful dressing method for metal-bonded wheels. It has been devised and applied successfully in precision surface grinding [15-17]. However, its application to internal grinding has not been well investigated; especially when the internal diameter of the workpiece is just slightly larger than that of the grinding wheel, it is very difficult or even impossible to fix a dressing electrode mounted parallel to the wheel surface as in ordinary ELID grinding [15]. A novel method to carry out ELID grinding of internal cylindrical surfaces on an ordinary grinding tool is presented in this paper. The principle and process of this method, namely interval ELID (ELID II) grinding, is also discussed. Applying ELID II grinding to an ordinary grinding machine, some preliminary experiments have been carried out. Two types of dressing electrodes were used and their dressing effects were investigated. With this technology, four specimens of alumina ceramic, hardened steels SKH51 and SKD11 and bearing steel, were ground to mirror finish. The results of this research are presented in the following sections.2. Principle of interval ELID grindingThe interval dressing of an abrasive grinding wheel itself is not a new technology. In fact, using the common mechanical dressing methods, the wheel is usually dressed at intervals. The grinding process is stopped to dress the wheel after grinding one workpiece or several work pieces. The tool life limit can be chatter vibration, surface roughness and burning marks, etc. [2]. However, with the ELID II method, the wheel is dressed at intervals and the abrasives remain protruding, enabling the grinding process to go on without any interruption and consequently realizing high efficiency grinding.The interval ELID system is essentially composed of thefollowing elements: (i) a metal-bonded grinding wheel, (ii)an ELID power source, (iii) electrolytic coolant, and (iv) a pipe dressing electrode.The most important feature of this process is that no special machine is required, and in fact the experimental system we used is an auxiliary internal cylindrical grinding attachment on an external cylindrical grinder.The fundamental principle of interval ELID grinding is same as that of ordinary ELID grinding [15]. Fig. 1 shows a schematic diagram of the interval ELID grinding system. The metal-bonded grinding wheel, which is electrically conductive, is connected to the positive terminal of a DC-pulse power supplFig. 1. Schematic diagram of interval ELID grinding.-y with a smooth brush contact, and a fixed electrode is made negative. A proper clearance of approximately 0.1 mm is originally set between the positive pole (wheel) and the negative one (dressing electrode). By virtue of electrolysis between twoelectrodes, the wheel and the dressing electrode, the grinding wheel is dressed and a non-conductive film is formed on the wheel periphery. This occurs upon the supply of current from the power source and the electrically conductive coolant. During the interval ELID grinding process, the protruding grains grind the workpiece and as a result, the grains and the oxide layer wear down. The wheel's electrical conductivity increases, due to the wear of the non-conductive oxide layer. The current in the circuit increases, thus increasing the electrolysis. The abrasive grains therefore become more protruding and an insulating layer is formed.3. Experimental procedureUsually, interval ELID grinding consists of the following steps.(i) Truing: truing is required to reduce the initial eccentricity of the wheel, especially when a new wheel is used for the first time. It is difficult to apply conventional truing methods, such as brake dresser, to metallic bond wheels due to the high bond strength. In this investigation, the cast iron bonded wheel was trued by the electrical discharge (ED) process. (ii) ELID dressing, also known as pre-dressing by electrolysis, presently performed at a much lower wheel rotation speed and higher electric settings. (iii) Grinding: intervalELID grinding. The conditions of electrolysis, during the last two steps, differ due to change in the wheel state and grinding conditions.3.1. ED-truingTo true a cast iron bonded diamond wheel at high speed and with high precision, an electrical discharge truing (ED-truing) method was used in this study. Fig. 2 shows the details of this method. A special ED-truing wheel,made of high temperaturealloy and insulated from its central shaft, was mountFig. 2. View of the ED-truing set-up.-ed on the three-jaw chuck of the grinding tool. The ED-truing wheel was connected to the negative pole of an ELID power source originating from ordinary ED power supply, whilst the grinding wheel was linked to the positive pole. Both the ED-truing wheel and the grinding wheel, especially the latter, rotated at a fairly low speed and the ED truing wheel reciprocated along with the machine's saddle. Little and sometimes even no coolant was supplied to the working area to prevent electrolysis to the full and to pursue high truing precision.3.2. Pre-dressingFollowing the ED-truing, pre-dressing was carried out before starting ELID grinding (see Fig. 1). When the pre-dressing began, the surface of the trued wheel showed a good electrical conductivity. Therefore, the current would be very high and the voltage between the wheel and electrode would be low, varying in accordance with the wheel size and dressing settings. After several minutes, the cast iron fiber bond material, which is mostly ionized into Fe+2, is dissolved by electrolysis. The ionized Fe+2 will react with nonconductive ferrous hydroxides and oxides to form a layer on the wheel periphery. This insulating oxide layer would grow on the wheel surface, whereby its electrical conductivity would be reduced. Consequently, the current would decrease and the working voltage would remain quite high (90 V, in case that the originally set open voltage is 100 V) after 20 min. The color of the wheel change-d to dark pink, due to the formation of ferrous oxide.3.3. Interval ELID grindingDuring the grinding process, the protruding grains grind the workpiece and as a result, the grains and the oxide layer, wear down. The wheel's electrical conductivity increases, due to the wear of the oxide layer. The current in the circuit increases, accelerating the electrolysis, making the abrasive grains more protruding and forming an insulating layer. In the case of internal cylindrical grinding, the metal-bonded grinding wheel is dressed at intervals, i.e. the wheel is dressed when it departs away from the workpiece. When very fine grit size abrasive wheel is used and the infeed rate is very low, the insulating layer and the abrasive can finish the work surface in a way similar to lapping, achieving a super smooth surface.4. ConclusionsInternal surface grinding with metallic bond grinding wheels, incorporated with electrolytic in-process dressing, was carried out on an ordinary grinding tool. Pipe and arcdressing electrodes were used first to verify their dressing effects and some experiments were conducted to optimize the grinding parameters. Finally, mirror internal surface grinding was accomplished on both metallic materials and alumina ceramic. Based on these experiments, the following conclusion were down:(1) The pipe dressing electrode is superior to electrodes of other shapes in the case of internal grinding with ELID.(2) The grinding conditions have the same effects on grinding qualities in ELID II grinding as in ordinary cylindrical grinding.(3) Mirror internal surface grinding is practicable on ordinary grinding machine using cast iron bonded diamond (CIB-D) wheels with ELID II.5.References[1] B. Komanduri, D.A. Lucca, Y. Tani, Technological advances in fine abrasive processes, Ann.CIRP 46 (2) (1997) 545-589.[2] J. Peters, R. Aerens, Optimization procedure of three phase grinding cycles of a series withoutintermediate dressing, Ann. CIRP 29 (1) (1980) 195-199.[3] S. Malkin, Y. Koren, Optimization infeed control for accelerated spark-out in plunge grinding,ASME J. Eng. Ind. 106 (1984) 70-74.[4] H.K. Toenshoff, M. Zinngrebe, M. Kemmerling, Optimization of internal grinding bymicrocomputer-based force control, Ann. CIRP 35 (1) (1986) 293-296.[5] G. Xiao, S. Malkin, K. Danai, Autonomous system for multistage cylindrical grinding, ASME J.Dyn. Syst. Meas Control 115 (1993) 667-672.[6] G. Xiao, S. Malkin, On-line optimization for internal grinding, Ann. CIRP 45 (1) (1996) 287-292.[7] I. Inasaki, Monitoring and optimization of internal grinding process, Ann. CIRP 40 (1) (1991)359-362.[8] H. Kato, Y. Nakano, Transfer of roundness error from center and center hole to workpiece incylindrical grinding and its control, Ann. CIRP 34 (1) (1985) 287-290.[9] Y.S. Liao, L.C. Shiang, Computer simulation of self-excited and forced vibrations in the externalcylindrical plunge grinding process, ASME J. Eng. Ind. 113 (1991) 297-304.[10] K.H. Kim, K.F. Eman, S.M. Wu, Development of aforecasting compensatory control system forcylindrical grinding, ASME J. Eng. Ind. 109 (1987) 385-391.[11] E. Salje, H.-H. Damlos, H. Mohlen, Internal grinding of high strength ceramic workpiece materialswith diamond grinding wheels, Ann. CIRP 34 (1) (1985) 263-266.[12] T. Nakagawa, Y. Hagiuda, K. Karimori, Cast iron bonded diamond grinding tool and itsapplication to hard materials, in: Proceedings of the Fifth ICPE, Tokyo, 1984.[13] K. Suzuki, T. Uematsu, T. Nakagawa, On-machine truing/dressing of metal bond grinding wheelsby electric-discharge machining, Ann. CIRP 36 (1) (1987) 115-118.[14] J.Tamaki,K.Takahashi,M.Kubota, Electrical dressing of metal bonded grinding wheels, in:Proceedings of the ISEM-X, 1992, pp. 510-515.[15] H.Ohmori, T.Nakagawa, Mirror surface grinding of silicon wafers with electrolytic in-processdressing, Ann. CIRP 39 (1) (1990) 329-332.[16] H. Ohmori, Electrolytic in-process dressing (ELID) gridning technique for ultraprecision mirrorsurface machining, Int. J. Jpn. Soc. Prec. Eng. 26 (4) (1992) 273-278.[17] H. Ohmori, I. Takahashi, B.P. Bandyopadhyay, Ultra-precision grinding of structural ceramics byelectrolytic in-process dressing (ELID) grinding, J. Mater. Process. Technol. 57 (1996) 272-277.金属结合剂金刚石砂轮的精密内圆磨削摘要金属结合剂砂轮与传统砂轮相比，具有高硬度、高抓底能力以及更好的磨料粒度尺寸的优势。

外文翻译高速切削加工的发展及需求毕业设计(论文)外文资料翻译系部: 机械工程系专业: 机械工程及自动化姓名:学号:外文出处:Foreign Patent Documemts . 15，35.(用外文写)2002附件: 1.外文资料翻译译文,2.外文原文。

指导教师评语:此译文简单介绍了高速切削加工的发展及需求，从高速切削加工对机床、刀具和切削工艺过程的要求三方面进行阐述。

翻译用词比较准确，文笔也较为通顺，为在以后工作中接触英文资料打下了基础。

签名:2009年3 月 18日注:请将该封面与附件装订成册。

附件1:外文资料翻译译文高速切削加工的发展及需求高速切削加工是当代先进制造技术的重要组成部分，拥有高效率、高精度及高表面质量等特征。

本文介绍此技术的定义、当前的发展现状、中国的适用领域以及需求情况。

高速切削加工是面向21世纪的一项高新技术，它以高效率、高精度和高表面质量为基本特征，在汽车工业、航空航天、模具制造和仪器仪表等行业中获得了愈来愈广泛的应用，并已取得了重大的技术和经济效益，是当代先进制造技术的一个重要组成部分。

高速切削是实现高效率制造的核心技术，工序的集约化和设备的通用化使之具有很高的生产效率。

可以说，高速切削加工是一种增加设备质量而大幅度地改善加工效率的必需技术。

高速切削加工的优点主要在于:提高生产效率、加工精度及降低切削阻力。

有关高速切削加工的含义，目前尚无统一的认识，通常有如下几种观点:切削速度很高，通常认为其速度超过普通切削的5-10倍;机床主轴转速很高，一般将主轴转速在10000-20000r/min以上定为高速切削;进给速度很高，通常达15-50m/min，最高可达90m/min;对于不同的切削材料和所釆用的刀具材料，高速切削的含义也不一定相同;切削过程中，刀刃的通过频率(Tooth Passing Frequency)接近于“机床,刀具,工件”系统的主导自然频率(Domine Natural Frequency)时，所以能够被认为是高速切削。

毕业设计(论文)外文资料翻译学院：机械工程专业：机械设计制造及其自动化姓名：学号：3082108330外文出处：Lecture Notes in Computer science (用外文写)附件： 1.外文资料翻译译文；2.外文原文。

注：请将该封面与附件装订成册。

附件1：外文资料翻译译文高速加工和现代模具制造一、概述1 目前模具制造的发展现状和趋势模具作为重要的工艺装备，在消费品、电器电子、汽车、飞机制造等工业部门中，占有举足轻重的地位。

工业产品零件粗加工的75%，精加工的50%及塑料零件的90%将由模具完成。

目前中国模具市场需求已达500亿元之规模。

汽车模具、特别是覆盖件模具年增长速度将超过20%；建材模具也迅速发展，各种异型材模具、墙面和地面模具成为模具的新增长点，今后几年塑料门窗和塑料排水管增长将超过30%；家电模具年增长速度将超过10%；IT业年均增长速度超过20%，对模具的需求占模具市场的20%。

2004年中国机床工具工业产值将继续增长。

我国模具制造市场潜力巨大。

根据资料统计，近年来，我国模具的年总产值达到30亿美元，进口超过10亿美元，出口超过1亿美元。

增长从1995年的25%增加到2005年的50%。

国外专家预言：亚洲在全球模具制造中占据的份额，将从1995年的25%增加至2005年的50%。

中国模具工业发展迅速，形成了华东和华南两人基地，并且逐渐扩大到其他省份。

（山东，安徽，四川) 1996年~2002年，模具制造业产值年平均增长14%, 2003年增长25%。

2003年我国模具产值为450亿人民币总产量位居世界第3，出口模具3.368亿美元，比上年增长33.5%。

但是，我国技术含量低的模具已供过于求，精密、复杂的高档模具很大部分依靠进口。

每年进口模具超过10亿美元。

出口超过1亿美元，精密模具精度要求在2~3u m，大型模具需要满足8000kN合模力注塑机的要求；小型模具需满足直径1mm 塑料管的要求。

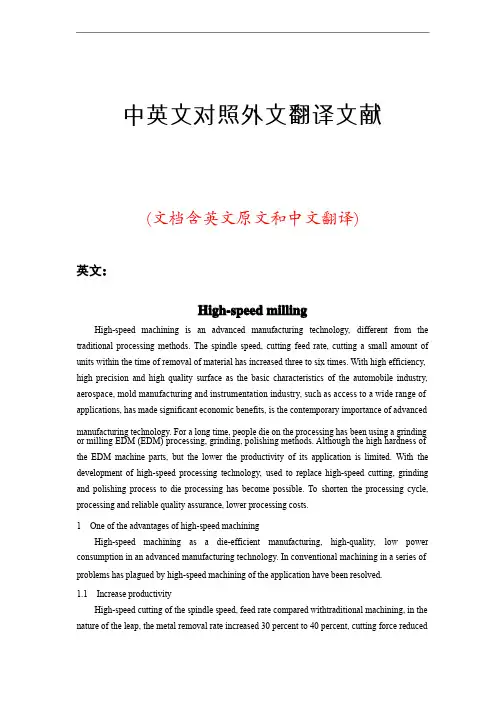

中英文对照外文翻译文献(文档含英文原文和中文翻译)英文:High-speed millingHigh-speed machining is an advanced manufacturing technology, different from the traditional processing methods. The spindle speed, cutting feed rate, cutting a small amount of units within the time of removal of material has increased three to six times. With high efficiency, high precision and high quality surface as the basic characteristics of the automobile industry, aerospace, mold manufacturing and instrumentation industry, such as access to a wide range of applications, has made significant economic benefits, is the contemporary importance of advanced manufacturing technology. For a long time, people die on the processing has been using a grinding or milling EDM (EDM) processing, grinding, polishing methods. Although the high hardness of the EDM machine parts, but the lower the productivity of its application is limited. With the development of high-speed processing technology, used to replace high-speed cutting, grinding and polishing process to die processing has become possible. To shorten the processing cycle, processing and reliable quality assurance, lower processing costs.1 One of the advantages of high-speed machiningHigh-speed machining as a die-efficient manufacturing, high-quality, low power consumption in an advanced manufacturing technology. In conventional machining in a series of problems has plagued by high-speed machining of the application have been resolved.1.1 Increase productivityHigh-speed cutting of the spindle speed, feed rate compared withtraditional machining, in the nature of the leap, the metal removal rate increased 30 percent to 40 percent, cutting force reducedby 30 percent, the cutting tool life increased by 70% . Hardened parts can be processed, a fixture in many parts to be completed rough, semi-finishing and fine, and all other processes, the complex can reach parts of the surface quality requirements, thus increasing the processing productivity and competitiveness of products in the market.1.2 Improve processing accuracy and surface qualityHigh-speed machines generally have high rigidity and precision, and other characteristics, processing, cutting the depth of small, fast and feed, cutting force low, the workpiece to reduce heat distortion, and high precision machining, surface roughness small. Milling will be no high-speed processing and milling marks the surface so that the parts greatly enhance the quality of the surface. Processing Aluminum when up Ra0.40.6um, pieces of steel processing at up to Ra0.2 ~ 0.4um.1.3 Cutting reduce the heatBecause the main axis milling machine high-speed rotation, cutting a shallow cutting, and feed very quickly, and the blade length of the workpiece contacts and contact time is very short, a decrease of blades and parts of the heat conduction. High-speed cutting by dry milling or oil cooked up absolute (mist) lubrication system, to avoid the traditional processing tool in contact with the workpiece and a lot of shortcomings to ensure that the tool is not high temperature under the conditions of work, extended tool life.1.4 This is conducive to processing thin-walled partsHigh-speed cutting of small cutting force, a higher degree of stability, Machinable with high-quality employees compared to the company may be very good, but other than the company's employees may Suanbu Le outstanding work performance. For our China practice, we use the models to determine the method of staff training needs are simple and effective. This study models can be an external object, it can also be a combination of internal and external. We must first clear strategy for the development of enterprises. Through the internal and external business environment and organizational resources, such as analysis, the future development of a clear business goals and operational priorities. According to the business development strategy can be compared to find the business models, through a comparative analysis of the finalization of business models. In determining business models, a, is the understanding of its development strategy, or its market share and market growth rate, or the staff of the situation, and so on, according to the companies to determine the actual situation. As enterprises in different period of development, its focus is different, which means that enterprises need to invest the manpower and financial resources the focus is different. So in a certain period of time, enterprises should accurately selected their business models compared with the departments and posts, so more practical significance, because the business models are not always good, but to compare some aspects did not have much practical significance, Furthermore This can more fully concentrate onthe business use of limited resources. Identify business models, and then take the enterprise of the corresponding departments and staff with the business models for comparison, the two can be found in the performance gap, a comparative analysis to find reasons, in accordance with this business reality, the final identification of training needs. The cost of training is needed, if not through an effective way to determine whether companies need to train and the training of the way, but blind to training, such training is difficult to achieve the desired results. A comparison only difference between this model is simple and practical training.1.5 Can be part of some alternative technology, such as EDM, grinding high intensity and high hardness processingHigh-speed cutting a major feature of high-speed cutting machine has the hardness of HRC60 parts. With the use of coated carbide cutter mold processing, directly to the installation of a hardened tool steel processing forming, effectively avoid the installation of several parts of the fixture error and improve the parts of the geometric location accuracy. In the mold of traditional processing, heat treatment hardening of the workpiece required EDM, high-speed machining replace the traditional method of cutting the processing, manufacturing process possible to omit die in EDM, simplifying the processing technology and investment costs .High-speed milling in the precincts of CNC machine tools, or for processing centre, also in the installation of high-speed spindle on the general machine tools. The latter not only has the processing capacity of general machine tools, but also for high-speed milling, a decrease of investment in equipment, machine tools increased flexibility. Cutting high-speed processing can improve the efficiency, quality improvement, streamline processes, investment and machine tool investment and maintenance costs rise, but comprehensive, can significantly increase economic efficiency.2 High-speed millingHigh-speed milling the main technical high-speed cutting technology is cutting the development direction of one of it with CNC technology, microelectronic technology, new materials and new technology, such as technology development to a higher level. High-speed machine tools and high-speed tool to achieve high-speed cutting is the prerequisite and basic conditions, in high-speed machining in the performance of high-speed machine tool material of choice and there are strict requirements.2.1 High-speed milling machine in order to achieve high-speed machiningGeneral use of highly flexible high-speed CNC machine tools, machining centers, and some use a dedicated high-speed milling, drilling. At the same time a high-speed machine tool spindle system and high-speed feeding system, high stiffness of the main characteristics of high-precision targeting and high-precision interpolation functions, especially high-precision arc interpolation function. High-speed machining systems of the machine a higher demand, mainly in the followingareas:General use of highly flexible high-speed CNC machine tools, machining centers, and some use a dedicated high-speed milling, drilling. At the same time a high-speed machine tool spindle system and high-speed feeding system, high stiffness of the main characteristics of high-precision targeting and high-precision interpolation functions, especially high-precision arc interpolation function. High-speed machining systems of the machine a higher demand, mainly in the following areas:High-speed milling machine must have a high-speed spindle, the spindle speed is generally 10000 ~ 100000 m / min, power greater than 15 kW. But also with rapid speed or in designated spots fast-stopping performance. The main axial space not more than 0 .0 0 0 2 m m. Often using high-speed spindle-hydrostatic bearings, air pressure-bearing, mixed ceramic bearings, magnetic bearing structure of the form. Spindle cooling general use within the water or air cooled.High-speed processing machine-driven system should be able to provide 40 ~ 60 m / min of the feed rate, with good acceleration characteristics, can provide 0.4 m/s2 to 10 m/s2 acceleration and deceleration. In order to obtain good processing quality, high-speed cutting machines must have a high enough stiffness. Machine bed material used gray iron, can also add a high-damping base of concrete, to prevent cutting tool chatter affect the quality of processing. A high-speed data transfer rate, can automatically increase slowdown. Processing technology to improve the processing and cutting tool life. At present high-speed machine tool manufacturers, usually in the general machine tools on low speed, the feed of the rough and then proceed to heat treatment, the last in the high-speed machine on the half-finished and finished, in improving the accuracy and efficiency at the same time, as far as possible to reduce processing Cost.2.2 High-speed machining toolHigh-speed machining tool is the most active one of the important factors, it has a direct impact on the efficiency of processing, manufacturing costs and product processing and accuracy. Tool in high-speed processing to bear high temperature, high pressure, friction, shock and vibration, such as loading, its hardness and wear-resistance, strength and toughness, heat resistance, technology and economic performance of the basic high-speed processing performance is the key One of the factors. High-speed cutting tool technology development speed, the more applications such as diamond (PCD), cubic boron nitride (CBN), ceramic knives, carbide coating, (C) titanium nitride Carbide TIC (N) And so on. CBN has high hardness, abrasion resistance and the extremely good thermal conductivity, and iron group elements between the great inertia, in 1300 ℃ would not have happened significant role in the chemical, also has a good stability. The experiments show that with CBN cutting toolHRC35 ~ 67 hardness of hardened steel can achieve very high speed. Ceramics have good wear resistance and thermal chemical stability, its hardness, toughness below the CBN, can be used for processing hardness of HRC <5 0 parts. Carbide Tool good wear resistance, but thehardness than the low-CBN and ceramics. Coating technology used knives, cutting tools can improve hardness and cutting the rate, for cutting HRC40 ~ 50 in hardness between the workpiece. Can be used to heat-resistant alloys, titanium alloys, hightemperature alloy, cast iron, Chungang, aluminum and composite materials of high-speed cutting Cut, the most widely used. Precision machining non-ferrous metals or non-metallic materials, or the choice of polycrystalline diamond Gang-coated tool.2.3 High-speed processing technologyHigh-speed cutting technology for high-speed machining is the key. Cutting Methods misconduct, will increase wear tool to less than high-speed processing purposes. Only high-speed machine tool and not a good guide technology, high-speed machining equipment can not fully play its role. In high-speed machining, should be chosen with milling, when the milling cutter involvement with the workpiece chip thickness as the greatest, and then gradually decreased. High-speed machining suitable for shallow depth of cut, cutting depth of not more than 0.2 mm, to avoid the location of deviation tool to ensure that the geometric precision machining parts. Ensure that the workpiece on the cutting constant load, to get good processing quality. Cutting a single high-speed milling path-cutting mode, try not to interrupt the process and cutting tool path, reducing the involvement tool to cut the number to be relatively stable cutting process. Tool to reduce the rapid change to, in other words when the NC machine tools must cease immediately, or Jiangsu, and then implement the next step. As the machine tool acceleration restrictions, easy to cause a waste of time, and exigency stop or radical move would damage the surface accuracy. In the mold of high-speed finishing, in each Cut, cut to the workpiece, the feed should try to change the direction of a curve or arc adapter, avoid a straight line adapter to maintain the smooth process of cutting.3 Die in high-speed milling processing ofMilling as a highly efficient high-speed cutting of the new method,inMould Manufacturing has been widely used. Forging links in the regular production model, with EDM cavity to be 12 ~ 15 h, electrodes produced 2 h. Milling after the switch to high-speed, high-speed milling cutter on the hardness of HRC 6 0 hardened tool steel processing. The forging die processing only 3 h20min, improve work efficiency four to five times the processing surface roughness of Ra0.5 ~ 0.6m, fully in line with quality requirements.High-speed cutting technology is cutting technology one of the major developments, mainly used in automobile industry and die industry, particularly in the processing complex surface, the workpiece itself or knives rigid requirements of the higher processing areas, is a range of advanced processing technology The integration, high efficiency and high quality for the people respected. It not only involves high-speed processing technology, but also including high-speed processing machine tools, numerical control system, high-speed cutting tools and CAD / CAMtechnology. Die-processing technology has been developed in the mold of the manufacturing sector in general, and in my application and the application of the standards have yet to be improved, because of its traditional processing with unparalleled advantages, the future will continue to be an inevitable development of processing technology Direction.4 Numerical control technology and equipping development trend and countermeasureEquip the engineering level, level of determining the whole national economy of the modernized degree and modernized degree of industry, numerical control technology is it develop new developing new high-tech industry and most advanced industry to equip (such as information technology and his industry, biotechnology and his industry, aviation, spaceflight, etc. national defense industry) last technology and getting more basic most equipment. Marx has ever said "the differences of different economic times, do not lie in what is produced, and lie in how to produce, produce with some means of labor ". Manufacturing technology and equipping the most basic means of production that are that the mankind produced the activity, and numerical control technology is nowadays advanced manufacturing technology and equips the most central technology. Nowadays the manufacturing industry all around the world adopts numerical control technology extensively, in order to improve manufacturing capacity and level, improve the adaptive capacity and competitive power to the changeable market of the trends. In addition every industrially developed country in the world also classifies the technology and numerical control equipment of numerical control as the strategic materials of the country, not merely take the great measure to develop one's own numerical control technology and industry, and implement blockading and restrictive policy to our country in view of " high-grade, precision and advanced key technology of numerical control " and equipping. In a word, develop the advanced manufacturing technology taking numerical control technology as the core and already become every world developed country and accelerate economic development in a more cost-effective manner, important way to improve the overall national strength and national position. Numerical control technology is the technology controlled to mechanical movement and working course with digital information, integrated products of electromechanics that the numerical control equipment is the new technology represented by numerical control technology forms to the manufacture industry of the tradition and infiltration of the new developing manufacturing industry, namely the so-called digitization is equipped, its technological range covers a lot of fields: (1)Mechanical manufacturing technology; (2)Information processing, processing, transmission technology; (3)Automatic control technology; (4)Servo drive technology;(5)Technology of the sensor; (6)Software engineering ,etc..Development trend of a numerical control technologyThe application of numerical control technology has not only brought the revolutionary change to manufacturing industry of the tradition, make the manufacturing industry become the industrialized symbol , and with the constant development of numerical control technology andenlargement of the application, the development of some important trades (IT , automobile , light industry , medical treatment ,etc. ) to the national economy and the people's livelihood of his plays a more and more important role, because the digitization that these trades needed to equip has already been the main trend of modern development. Numerical control technology in the world at present and equipping the development trend to see, there is the following several respect [1- ] in its main research focus.5 A high-speed, high finish machining technology and new trend equippedThe efficiency, quality are subjavanufacturing technology. High-speed, high finish machining technology can raise the efficiency greatly , improve the quality and grade of the products, shorten production cycle and improve the market competitive power. Japan carries the technological research association first to classify it as one of the 5 great modern manufacturing technologies for this, learn (CIRP) to confirm it as the centre in the 21st century and study one of the directions in international production engineering.In the field of car industry, produce one second when beat such as production of 300,000 / vehicle per year, and many variety process it is car that equip key problem that must be solved one of; In the fields of aviation and aerospace industry, spare parts of its processing are mostly the thin wall and thin muscle, rigidity is very bad, the material is aluminium or aluminium alloy, only in a situation that cut the speed and cut strength very small high, could process these muscles, walls. Adopt large-scale whole aluminium alloy method that blank " pay empty " make the wing recently, such large-scale parts as the fuselage ,etc. come to substitute a lot of parts to assemble through numerous rivet , screw and other connection way, make the intensity , rigidity and dependability of the component improved. All these, to processing and equipping the demand which has proposed high-speed, high precise and high flexibility.According to EMO2001 exhibition situation, high-speed machining center is it give speed can reach 80m/min is even high , air transport competent speed can up to 100m/min to be about to enter. A lot of automobile factories in the world at present, including Shanghai General Motors Corporation of our country, have already adopted and substituted and made the lathe up with the production line part that the high-speed machining center makes up. HyperMach lathe of U.S.A. CINCINNATI Company enters to nearly biggest 60m/min of speed, it is 100m/min to be fast, the acceleration reaches 2g, the rotational speed of the main shaft has already reached 60 000r/min. Processing a thin wall of plane parts, spend 30min only, and same part general at a high speed milling machine process and take 3h, the ordinary milling machine is being processed to need 8h; The speed and acceleration of main shaft of dual main shaft lathes of Germany DMG Company are up to 120000r/mm and 1g.In machining accuracy, the past 10 years, ordinary progression accuse of machining accuracy of lathe bring 5μm up to from 10μm already, accurate grades of machining center from 3～5μm, rise to 1～1.5μm, and ultrap recision machining accuracy is it enter nanometer grade to begin already(0.01μm).In dependability, MTBF value of the foreign numerical control device has already reached above 6 000h, MTBF value of the servo system reaches above 30000h, demonstrate very high dependability .In order to realize high-speed, high finish machining, if the part of function related to it is electric main shaft, straight line electrical machinery get fast development, the application is expanded further .5.2 Link and process and compound to process the fast development of the lathe in 5 axesAdopt 5 axles to link the processing of the three-dimensional curved surface part, can cut with the best geometry form of the cutter , not only highly polished, but also efficiency improves by a large margin . It is generally acknowledged, the efficiency of an 5 axle gear beds can equal 2 3 axle gear beds, is it wait for to use the cubic nitrogen boron the milling cutter of ultra hard material is milled and pared at a high speed while quenching the hard steel part, 5 axles link and process 3 constant axles to link and process and give play to higher benefit. Because such reasons as complicated that 5 axles link the numerical control system , host computer structure that but go over, it is several times higher that its price links the numerical control lathe than 3 axles , in addition the technological degree of difficulty of programming is relatively great, have restricted the development of 5 axle gear beds.At present because of electric appearance of main shaft, is it realize 5 axle complex main shaft hair structure processed to link greatly simplify to make, it makes degree of difficulty and reducing by a large margin of the cost, the price disparity of the numerical control system shrinks. So promoted 5 axle gear beds of head of complex main shaft and compound to process the development of the lathe (process the lathe including 5).At EMO2001 exhibition, new Japanese 5 of worker machine process lathe adopt complex main shaft hair, can realize the processing of 4 vertical planes and processing of the wanton angle, make 5 times process and 5 axles are processed and can be realized on the same lathe, can also realize the inclined plane and pour the processing of the hole of awls. Germany DMG Company exhibits the DMUVoution series machining center, but put and insert and put processing and 5 axles 5 times to link and process in once, can be controlled by CNC system or CAD/CAM is controlled directly or indirectly.5.3 Become the main trend of systematic development of contemporary numerical control intelligently, openly, networkedly.The numerical control equipment in the 21st century will be sure the intelligent system, the intelligent content includes all respects in the numerical control system: It is intelligent in order to pursue the efficiency of processing and process quality, control such as the self-adaptation of the processing course, the craft parameter is produced automatically; Join the convenient one in order to improve the performance of urging and use intelligently, if feedforward control , adaptiveoperation , electrical machinery of parameter , discern load select models , since exactly makes etc. automatically; The ones that simplified programming , simplified operating aspect are intelligent, for instance intelligent automatic programming , intelligent man-machine interface ,etc.; There are content of intelligence diagnose , intelligent monitoring , diagnosis convenient to be systematic and maintaining ,etc..Produce the existing problem for the industrialization of solving the traditional numerical control system sealing and numerical control application software. A lot of countries carry on research to the open numerical control system at present, such as NGC of U.S.A. (The Next Generation Work-Station/Machine Control), OSACA of European Community (Open System Architecture for Control within Automation Systems), OSEC (Open System Environment for Controller) of Japan, ONC (Open Numerical Control System) of China, etc.. The numerical control system melts to become the future way of the numerical control system open. The so-called open numerical control system is the development of the numerical control system can be on unified operation platform, face the lathe producer and end user, through changing, increasing or cutting out the structure target(numerical control function), form the serration, and can use users specially conveniently and the technical know-how is integrated in the control system, realize the open numerical control system of different variety , different grade fast, form leading brand products with distinct distinction. System structure norm of the open numerical control system at present, communication norm , disposing norm , operation platform , numerical control systematic function storehouse and numerical control systematic function software development ,etc. are the core of present research.The networked numerical control equipment is a new light spot of the fair of the internationally famous lathe in the past two years. Meeting production line , manufacture system , demand for the information integration of manufacturing company networkedly greatly of numerical control equipment, realize new manufacture mode such as quick make , fictitious enterprise , basic Entrance that the whole world make too. Some domestic and international famous numerical control lathes and systematic manufacturing companies of numerical control have all introduced relevant new concepts and protons of a machine in the past two years, if in EMO2001 exhibition, " Cyber Production Center " that the company exhibits of mountain rugged campstool gram in Japan (Mazak) (intellectual central production control unit, abbreviated as CPC); The lathe company of Japanese big Wei (Okuma ) exhibits " IT plaza " (the information technology square , is abbreviated as IT square ); Open Manufacturing Environment that the company exhibits of German Siemens (Siemens ) (open the manufacturing environment, abbreviated as OME),etc., have reflected numerical control machine tooling to the development trend of networked direction.5.4 Pay attention to the new technical standard, normal setting-up5.4.1 Design the norm of developing about the numerical control systemAs noted previously, there are better common ability, flexibility, adaptability, expanding in theopen numerical control system, such countries as U.S.A. ,European Community and Japan ,etc. implement the strategic development plan one after another , carry on the research and formulation of the systematic norm (OMAC , OSACA , OSEC ) of numerical control of the open system structure, 3 biggest economies in the world have carried on the formulation that nearly the same science planned and standardized in a short time, have indicated a new arrival of period of change of numerical control technology. Our country started the research and formulation of standardizing the frame of ONC numerical control system of China too in 2000.5.4.2 About the numerical control standardThe numerical control standard is a kind of trend of information-based development of manufacturing industry. Information exchange among 50 years after numerical control technology was born was all because of ISO6983 standard, namely adopt G, M code describes how processes, its essential characteristic faces the processing course, obviously, he can't meet high-speed development of modern numerical control technology's needs more and more already. For this reason, studying and making a kind of new CNC system standard ISO14649 (STEP-NC) in the world, its purpose is to offer a kind of neutral mechanism not depending on the concrete system, can describe the unified data model in cycle of whole life of the products, thus realize the whole manufacture process, standardization of and even each industrial field product information.The appearance of STEP-NC may be a revolution of the technological field of the numerical control, on the development and even the whole manufacturing industry of numerical control technology, will exert a far-reaching influence. First of all, STEP-NC puts forward a kind of brand-new manufacture idea, in the traditional manufacture idea, NC processes the procedures to all concentrate on individual computer. Under the new standard, NC procedure can be dispersed on Internet, this is exactly a direction of open , networked development of numerical control technology. Secondly, STEP-NC numerical control system can also reduce and process the drawing (about 75%), process the procedure to work out the time (about 35%) and process the time (about 50%) greatly.At present, American-European countries pay much attention to the research of STEP-NC, Europe initiates IMS plan (1999.1.1-2001.12.3) of STEP-NC. 20 CAD/CAM/CAPP/CNC users, manufacturers and academic organizations from Europe and Japan participated in this plan. STEP Tools Company of U.S.A. is a developer of the data interchange software of manufacturing industry in the global range, he has already developed the super model (Super Model ) which accuses of information exchange of machine tooling by counting, its goal is to describe all processing courses with the unified norm. Such new data interchange form has already been verified in allocating the SIEMENS, FIDIA and European OSACA-NC numerical control at present.6 pairs of basic estimations of technology and industry development of numerical control of our country。
