城市污水处理厂的设计

城镇污水处理厂设计方案引言城镇污水处理厂是为了解决城市污水处理问题而建设的重要设施。

它可以将城镇污水经过一系列的处理工艺，降低其对水体和环境的污染程度，保障人民群众的健康和生活质量。

本文档将详细介绍城镇污水处理厂的设计方案。

设计目标城镇污水处理厂的设计目标是实现对城镇污水进行高效、稳定、安全的处理，将污水中的有害物质和污染物去除或减少到符合国家排放标准的要求，并能够满足城镇的污水排放量及水质要求。

处理工艺城镇污水处理厂的处理工艺主要包括以下几个环节：1.污水进流及初级处理：–污水进入处理厂后，通过进水口进入初级处理区域。

–初级处理主要包括格栅池、沉砂池和调节池等，用来去除大颗粒杂质和沉淀悬浮物。

2.生化处理：–经过初级处理后的污水，进入生化处理系统。

–生化处理采用活性污泥法或厌氧发酵法，利用微生物对污水中的有机物进行降解和分解。

3.深度处理：–经过生化处理的污水，进入深度处理环节，以进一步降低污水中的有害物质和污染物。

–深度处理采用常见的工艺包括曝气池、沉淀池、过滤池等。

4.出水处理：–经过深度处理的污水经过最后一道工艺，以达到国家排放标准的要求。

–出水处理主要包括消毒和除臭等环节，以确保出水的安全和无臭。

设备选型城镇污水处理厂的设备选型要根据工艺流程和处理规模来确定，主要包括以下几个方面：•初级处理设备：包括格栅机、沉砂池、调节池等。

•生化处理设备：包括曝气池、好氧池、厌氧池等。

•深度处理设备：包括曝气池、沉淀池、过滤器等。

•出水处理设备：包括消毒装置、臭氧装置等。

在设备选型时，要综合考虑设备的性能、可靠性、维护成本和运行成本等因素。

操作控制城镇污水处理厂的操作控制是保证处理工艺正常运行和处理效果的关键。

主要包括以下几个方面：1.流程控制：根据处理工艺和污水水质，调整处理工艺参数，保证处理效果和稳定性。

2.设备操作：对处理设备进行日常操作、维护和保养，及时处理设备故障。

3.水质监测：对进水、出水和处理过程中的各个环节进行水质监测和分析，及时掌握处理效果。

城镇污水处理厂设计标准城镇污水处理厂是城市环境保护的重要设施，其设计标准直接关系到城市污水处理效果和环境质量。

在设计城镇污水处理厂时，需要严格遵循相关的设计标准，以确保污水处理设施的安全、高效运行。

本文将从设计标准的角度，对城镇污水处理厂的设计要求进行详细介绍。

首先，城镇污水处理厂的设计应符合国家相关的环保法律法规和标准。

设计人员需要了解并遵守《城镇污水处理厂污水综合排放标准》、《城镇污水处理厂污泥利用标准》等相关标准文件，确保设计方案符合国家环保要求。

其次，城镇污水处理厂的设计应充分考虑当地的污水水质和水量特点。

根据不同地区的水质情况和污水排放量，合理确定处理工艺和设备选型，保证污水处理效果达标，同时尽量减少能耗和化学品使用，降低运行成本。

另外，城镇污水处理厂的设计应考虑未来的城市发展规划。

随着城市人口和工业生产的增加，污水处理厂的处理能力需要具备一定的扩展性，以适应未来的污水处理需求。

因此，在设计阶段就需要考虑到未来的扩建和改造方案，确保污水处理厂的可持续发展。

此外，城镇污水处理厂的设计还需要考虑安全和环保要求。

在设计过程中，需要充分考虑设施的安全性和环保性，采取相应的防护措施，避免对周围环境和居民造成影响，确保污水处理过程安全可靠。

最后，城镇污水处理厂的设计还需要考虑运行管理的便利性。

在设计阶段就需要考虑到设备的维护和管理，合理布局设施，确保设备的维修和更换工作能够顺利进行，同时也需要考虑到运行管理的智能化和自动化，提高设施的运行效率。

总之，城镇污水处理厂的设计标准是保障城市环境卫生和居民健康的重要保障，设计人员在设计城镇污水处理厂时，需要充分考虑国家环保标准、当地水质特点、未来发展规划、安全环保要求和运行管理便利性等方面的要求，确保设计方案科学合理，满足城市污水处理的需要。

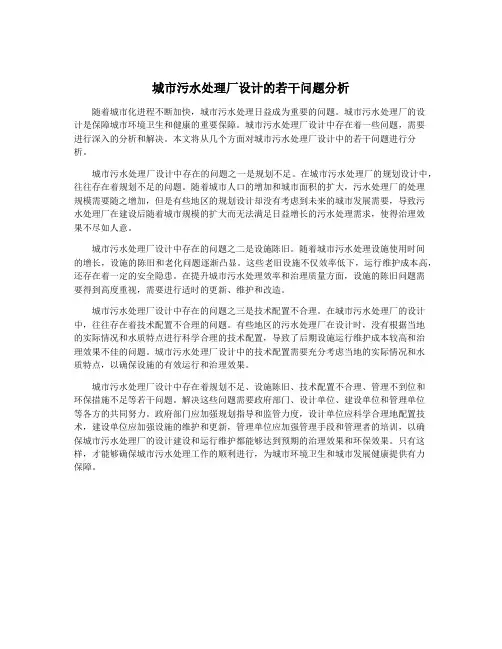

城市污水处理厂设计的若干问题分析随着城市化进程不断加快，城市污水处理日益成为重要的问题。

城市污水处理厂的设计是保障城市环境卫生和健康的重要保障。

城市污水处理厂设计中存在着一些问题，需要进行深入的分析和解决。

本文将从几个方面对城市污水处理厂设计中的若干问题进行分析。

城市污水处理厂设计中存在的问题之一是规划不足。

在城市污水处理厂的规划设计中，往往存在着规划不足的问题。

随着城市人口的增加和城市面积的扩大，污水处理厂的处理规模需要随之增加，但是有些地区的规划设计却没有考虑到未来的城市发展需要，导致污水处理厂在建设后随着城市规模的扩大而无法满足日益增长的污水处理需求，使得治理效果不尽如人意。

城市污水处理厂设计中存在的问题之二是设施陈旧。

随着城市污水处理设施使用时间的增长，设施的陈旧和老化问题逐渐凸显。

这些老旧设施不仅效率低下，运行维护成本高，还存在着一定的安全隐患。

在提升城市污水处理效率和治理质量方面，设施的陈旧问题需要得到高度重视，需要进行适时的更新、维护和改造。

城市污水处理厂设计中存在的问题之三是技术配置不合理。

在城市污水处理厂的设计中，往往存在着技术配置不合理的问题。

有些地区的污水处理厂在设计时，没有根据当地的实际情况和水质特点进行科学合理的技术配置，导致了后期设施运行维护成本较高和治理效果不佳的问题。

城市污水处理厂设计中的技术配置需要充分考虑当地的实际情况和水质特点，以确保设施的有效运行和治理效果。

城市污水处理厂设计中存在着规划不足、设施陈旧、技术配置不合理、管理不到位和环保措施不足等若干问题。

解决这些问题需要政府部门、设计单位、建设单位和管理单位等各方的共同努力。

政府部门应加强规划指导和监管力度，设计单位应科学合理地配置技术，建设单位应加强设施的维护和更新，管理单位应加强管理手段和管理者的培训，以确保城市污水处理厂的设计建设和运行维护都能够达到预期的治理效果和环保效果。

只有这样，才能够确保城市污水处理工作的顺利进行，为城市环境卫生和城市发展健康提供有力保障。

本设计污水处理厂综合设计包括15个图纸，十分全面，具体详见报告后附图。

本报告附图全面详细。

图纸内容如下：A2O池，初沉池，幅流式二沉池，隔栅，工艺简单图，工艺流程图（高程图），回转耙式格栅除污机图，平面布置图，污泥浓缩池，厌氧消化池，钟式沉砂池等。

全为CAD制图。

下载后复制放大或打印可看清！题目20000m3/d城市污水处理厂综合设计专业: 环境工程年级: 2005级学号: 3105001286姓名: 莫笑伟指导教师:2008年12 月摘要我国水体污染主要来自两方面，一是工业发展超标排放工业废水，二是城市化中由于城市污水排放和集中处理设施严重缺乏，大量生活污水未经处理直接进入水体造成环境污染。

工业废水近年来经过治理虽有所减少，但城市生活污水有增无减，占水质污染的51%以上。

我国水体污染主要来自两方面，一是工业发展超标排放工业废水，二是城市化中由于城市污水排放和集中处理设施严重缺乏，大量生活污水未经处理直接进入水体造成环境污染。

工业废水近年来经过治理虽有所减少，但城市生活污水有增无减，占水质污染的51%以上。

本设计要求处理水量为20000m3/d的城市生活污水，设计方案针对已运行稳定有效的A2/O活性污泥法工艺处理城市生活污水。

A2O工艺由于不同环境条件，不同功能的微）能生物群落的有机配合，加之厌氧、缺氧条件下，部分不可生物降解的有机物（CODNB被开环或断链，使得N、P、有机碳被同时去除，并提高对COD的去除效果。

它可以同NB－－时完成有机物的去除，硝化脱氮、磷的过量摄取而被去除等功能，脱氮的前提是NH3N应完全硝化，好氧池能完成这一功能，缺氧池则完成脱氮功能。

厌氧池和好氧池联合完成除磷功能。

关键词：城市生活污水，活性污泥，A2/O目录摘要 (III)目录 (IV)第一章设计概述 ······································································- 7 -1设计任务 ······································································- 7 - 2设计原则 ······································································- 7 - 3设计依据 ······································································- 8 - 第二章工艺流程及说明 ·····························································- 8 -1工艺方案分析 ································································- 8 - 2工艺流程 ······································································- 9 - 3流程各结构介绍 ·····························································- 9 -3.1格栅······························································································· - 9 -3.2沉砂池··························································································- 10 -3.3初沉池··························································································- 10 -3.4生物化反应池··············································································- 10 -3.5二沉池··························································································- 12 -3.6浓缩池··························································································- 12 - 第三章构筑物设计计算 ··························································· - 12 -1格栅 ·········································································· - 12 -1.1设计说明······················································································- 12 -1.2设计计算······················································································- 13 -2沉砂池 ······································································· - 16 -2.1设计说明······················································································- 16 - 3初沉池 ······································································· - 17 -3.1设计说明······················································································- 17 -3.2设计计算······················································································- 17 - 4生化池 ······································································· - 19 -4.1设计说明······················································································- 19 -4.2设计计算······················································································- 19 - 5二沉池 ······································································· - 26 -5.1设计说明······················································································- 26 -5.2设计计算······················································································- 26 - 6液氯消毒 ···································································· - 29 -6.1设计说明······················································································- 29 -6.2设计计算······················································································- 29 - 7污泥浓缩池 ································································· - 30 -7.1设计说明······················································································- 30 -7.2设计计算······················································································- 30 -8 污泥消化池 ································································· - 31 -8.1设计说明······················································································- 31 -8.2设计计算······················································································- 32 - 9浓缩污泥提升泵房 ························································ - 38 -9.1设计选型······················································································- 38 -9.2提升泵房······················································································- 38 -9.3污泥回流泵站··············································································- 38 -10污泥脱水间 ······························································· - 39 -10.1设计说明······················································································- 39 -11鼓风机房 ·································································· - 39 - 12恶臭处理系统 ···························································· - 39 -12.1设计说明······················································································- 39 -12.2设计计算······················································································- 39 -12.3风机选型······················································································- 40 - 第四章污水处理厂总体布置 ····················································· - 41 -1总平面布置 ································································· - 41 -1.1总平面布置原则··········································································- 41 -1.2总平面布置结果··········································································- 41 -2高程布置································································································- 42 -2.1高程布置原则··············································································- 42 - 第五章参考文献 ···································································· - 42 -第一章设计概述1设计任务本次课程设计的主要任务是完成某城市污水厂的A2/O工艺设计处理生活污水，处理水量为20000m3/d，按近期规划人口10万人计算（自定）。
