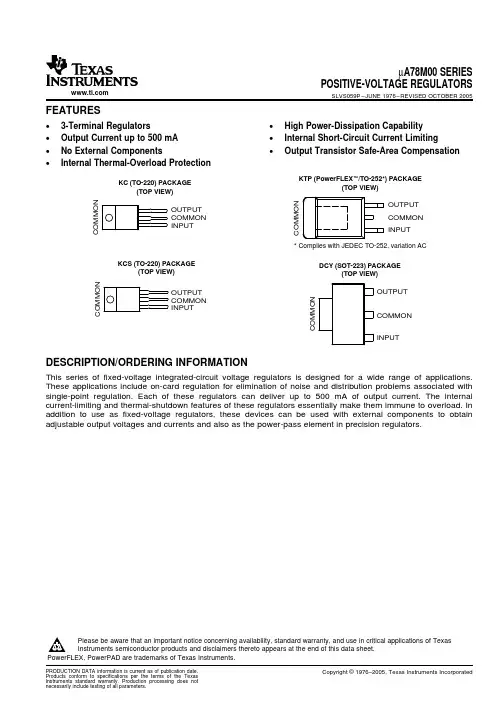

FEATURESKTP (PowerFLEX E/TO-252*) PACKAGE(TOP VIEW)OUTPUTCOMMONINPUTDCY (SOT-223) PACKAGE(TOP VIEW)OUTPUTCOMMONINPUTCOMMONOUTPUTKC (TO-220) PACKAGE(TOP VIEW)INPUTCOMMONCOMMONOUTPUTKCS (TO-220) PACKAGE(TOP VIEW)INPUTCOMMONCOMMONCOMMON* Complies with JEDEC TO-252, variation AC DESCRIPTION/ORDERING INFORMATIONµA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE1976–REVISED OCTOBER2005•3-Terminal Regulators•High Power-Dissipation Capability•Output Current up to500mA•Internal Short-Circuit Current Limiting•No External Components•Output Transistor Safe-Area Compensation •Internal Thermal-Overload ProtectionThis series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.Each of these regulators can deliver up to500mA of output current.The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload.In addition to use as fixed-voltage regulators,these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.Please be aware that an important notice concerning availability,standard warranty,and use in critical applications of TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet.PowerFLEX,PowerPAD are trademarks of Texas Instruments.PRODUCTION DATA information is current as of publication date.Copyright©1976–2005,Texas Instruments Incorporated Products conform to specifications per the terms of the TexasInstruments standard warranty.Production processing does notnecessarily include testing of all parameters.µA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE 1976–REVISED OCTOBER 2005ORDERING INFORMATIONV O (NOM)ORDERABLE TOP-SIDE T APACKAGE (1)(V)PART NUMBER MARKING PowerFLEX™/TO-252(2)–KTPReel of 3000µA78M33CKTPR UA78M33C Tube of 80µA78M33CDCY 3.3SOT-223–DCY C3Reel of 2500µA78M33CDCYR TO-220–KCTube of 50µA78M33CKC UA78M33C PowerFLEX/TO-252(2)–KTPReel of 3000µA78M05CKTPR UA78M05C Tube of 80µA78M05CDCY SOT-223–DCY C55Reel of 2500µA78M05CDCYR TO-220–KCTube of 50µA78M05CKC UA78M05C TO-220,short shoulder –KCSTube of 20µA78M05CKCS 0°C to 125°C6PowerFLEX/TO-252(2)–KTP Reel of 3000µA78M06CKTPR UA78M06C PowerFLEX/TO-252(2)–KTPReel of 3000µA78M08CKTPR UA78M08C Tube of 80µA78M08CDCY 8SOT-223–DCY C8Reel of 2500µA78M08CDCYR TO-220–KCTube of 50µA78M08CKC UA78M08C 9PowerFLEX/TO-252(2)–KTP Reel of 3000µA78M09CKTPR UA78M09C 10PowerFLEX/TO-252(2)–KTP Reel of 3000µA78M10CKTPR UA78M10C PowerFLEX/TO-252(2)–KTP Reel of 3000µA78M12CKTPR UA78M12C 12TO-220–KCTube of 50µA78M12CKC UA78M12C PowerFLEX/TO-252(2)–KTPReel of 3000µA78M05IKTPR UA78M05I Tube of 80µA78M05IDCY SOT-223–DCY J5–40°C to 125°C5Reel of 2500µA78M05IDCYR TO-220–KCTube of 50µA78M05IKC UA78M05ITO-220,short shoulder –KCSTube of 20µA78M05IKCS(1)Package drawings,standard packing quantities,thermal data,symbolization,and PCB design guidelines are available at /sc/package.(2)Complies with JEDEC TO-252,variation AC2140 kINPUTOUTPUT ΩCOMMONResistor values shown are nominal.µA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE1976–REVISED OCTOBER2005 SCHEMATIC3Absolute Maximum Ratings (1)Package Thermal Data (1)Recommended Operating ConditionsµA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE 1976–REVISED OCTOBER 2005over virtual junction temperature range (unless otherwise noted)MINMAX UNIT V I Input voltage35V T J Operating virtual junction temperature 150°C T stg Storage temperature range–65150°C(1)Stresses beyond those listed under "absolute maximum ratings"may cause permanent damage to the device.These are stress ratings only,and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions"is not implied.Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.PACKAGEBOARD θJP (2)θJC θJA PowerFLEX/TO-252–KTP High K,JESD 51-5 1.4°C/W19°C/W 28°C/W SOT-223–DCY High K,JESD 51-730.6°C/W 53°C/W TO-220–KC/KCS High K,JESD 51-53°C/W 17°C/W19°C/W(1)Maximum power dissipation is a function of T J (max),θJA ,and T A .The maximum allowable power dissipation at any allowable ambient temperature is P D =(T J (max)–T A )/θJA .Operating at the absolute maximum T J of 150°C can affect reliability.(2)For packages with exposed thermal pads,such as QFN,PowerPAD™,or PowerFLEX,θJP is defined as the thermal resistance between the die junction and the bottom of the exposed pad.MINMAX UNITµA78M33 5.325µA78M05725µA78M06825µA78M0810.525V IInput voltageV µA78M0911.526µA78M1012.528µA78M1214.530µA78M1517.530I O Output current500mA µA78MxxC 0125T JOperating virtual junction temperature°C µA78MxxI–401254Electrical Characteristics Electrical CharacteristicsµA78M00SERIES POSITIVE-VOLTAGE REGULATORS SLVS059P–JUNE1976–REVISED OCTOBER2005at specified virtual junction temperature,VI =8V,IO=350mA,TJ=25°C(unless otherwise noted)µA78M33CPARAMETER TEST CONDITIONS(1)UNITMIN TYP MAX3.2 3.3 3.4I O=5mA to350mA,Output voltage(2)VV I=8V to20V TJ=0°C to125°C 3.1 3.3 3.5V I=5.3V to25V9100Input voltage regulation I O=200mA mVV I=8V to25V350I O=100mA,T J=0°C to125°C62V I=8V to18V,Ripple rejection dBf=120Hz IO=300mA6280Output voltage regulation V I=8V,I O=5mA to500mA20100mVTemperature coefficientI O=5mA,T J=0°C to125°C–1mV/°C of output voltageOutput noise voltage f=10Hz to100kHz40200µV Dropout voltage2V Bias current 4.56mAI O=200mA,V I=8V to25V,T J=0°C to125°C0.8Bias current change mAI O=5mA to350mA,T J=0°C to125°C0.5Short-circuit output current V I=35V300mA Peak output current700mA (1)All characteristics are measured with a0.33-µF capacitor across the input and a0.1-µF capacitor across the output.Pulse-testingtechniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.(2)This specification applies only for dc power dissipation permitted by absolute maximum ratingsat specified virtual junction temperature,VI =10V,IO=350mA,TJ=25°C(unless otherwise noted)µA78M05CPARAMETER TEST CONDITIONS(1)UNITMIN TYP MAX4.855.2I O=5mA to350mA,Output voltage VV I=7V to20V TJ=0°C to125°C 4.75 5.25V I=7V to25V3100Input voltage regulation I O=200mA mVV I=8V to25V150I O=100mA,T J=0°C to125°C62V I=8V to18V,Ripple rejection dBf=120Hz IO=300mA6280I O=5mA to500mA20100Output voltage regulation mVI O=5mA to200mA1050Temperature coefficientI O=5mA,T J=0°C to125°C–1mV/°Cof output voltageOutput noise voltage f=10Hz to100kHz40200µV Dropout voltage2V Bias current 4.56mAI O=200mA,V I=8V to25V,T J=0°C to125°C0.8Bias current change mAI O=5mA to350mA,T J=0°C to125°C0.5Short-circuit output current V I=35V300mA Peak output current0.7A (1)All characteristics are measured with a0.33-µF capacitor across the input and a0.1-µF capacitor across the output.Pulse-testingtechniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.5Electrical CharacteristicsElectrical CharacteristicsµA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE 1976–REVISED OCTOBER 2005at specified virtual junction temperature,V I =10V,I O =350mA,T J =25°C (unless otherwise noted)µA78M05I PARAMETERTEST CONDITIONS (1)UNIT MIN TYP MAX 4.855.2I O =5mA to 350mA,Output voltage V V I =7V to 20V T J =–40°C to 125°C 4.755.25V I =7V to 25V 3100Input voltage regulation I O =200mA mV V I =8V to 25V150I O =100mA,T J =–40°C to 125°C 62V I =8V to 18V,Ripple rejectiondB f =120HzI O =300mA6280I O =5mA to 500mA 20100Output voltage regulation mV I O =5mA to 200mA 1050Temperature coefficient I O =5mA,T J =–40°C to 125°C –1mV/°C of output voltage Output noise voltage f =10Hz to 100kHz40200µV Dropout voltage 2V Bias current 4.56mA I O =200mA,V I =8V to 25V,T J =–40°C to 125°C 0.8Bias current change mA I O =5mA to 350mA,T J =–40°C to 125°C0.5Short-circuit output current V I =35V300mA Peak output current 0.7A(1)All characteristics are measured with a 0.33-µF capacitor across the input and a 0.1-µF capacitor across the output.Pulse-testing techniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.at specified virtual junction temperature,V I =11V,I O =350mA,T J =25°C (unless otherwise noted)µA78M06C PARAMETER TEST CONDITIONS (1)UNIT MIN TYP MAX 5.7566.25Output voltage I O =5mA to 350mA,V I =8V to 21V V T J =0°C to 125°C5.76.3V I =8V to 25V 5100Input voltage regulationI O =200mAmVV I =9V to 25V 1.550I O =100mA,59T J =0°C to 125°C Ripple rejectionV I =8V to 18V,f =120HzdBI O =300mA5980I O =5mA to 500mA 20120Output voltage regulation mV I O =5mA to 200mA 1060Temperature coefficient I O =5mA,T J =0°C to 125°C–1mV/°C of output voltage Output noise voltage f =10Hz to 100kHz45µV Dropout voltage 2V Bias current 4.56mA V I =9V to 25V,I O =200mA,T J =0°C to 125°C0.8Bias current change mA I O =5mA to 350mA,T J =0°C to 125°C0.5Short-circuit output current V I =35V270mA Peak output current 0.7A(1)All characteristics are measured with a 0.33-µF capacitor across the input and a 0.1-µF capacitor across the output.Pulse-testing techniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.6Electrical Characteristics Electrical CharacteristicsµA78M00SERIES POSITIVE-VOLTAGE REGULATORS SLVS059P–JUNE1976–REVISED OCTOBER2005at specified virtual junction temperature,VI =14V,IO=350mA,TJ=25°C(unless otherwise noted)µA78M08CPARAMETER TEST CONDITIONS(1)UNITMIN TYP MAX7.788.3Output voltage V I=10.5V to23V,I O=5mA to350mA VT J=0°C to125°C7.68.4V I=10.5V to25V6100Input voltage regulation I O=200mA mVV I=11V to25V250I O=100mA,T J=0°C to125°C56V I=11V to21.5V,Ripple rejection dB f=120Hz IO=300mA5680I O=5mA to500mA25160Output voltage regulation mVI O=5mA to200mA1080Temperature coefficientI O=5mA,T J=0°C to125°C–1mV/°C of output voltageOutput noise voltage f=10Hz to100kHz52µV Dropout voltage2V Bias current 4.66mAV I=10.5V to25V,I O=200mA,T J=0°C to125°C0.8Bias current change mAI O=5mA to350mA,T J=0°C to125°C0.5Short-circuit outputV I=35V250mA currentPeak output current0.7A (1)All characteristics are measured with a0.33-µF capacitor across the input and a0.1-µF capacitor across the output.Pulse-testingtechniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.at specified virtual junction temperature,VI =16V,IO=350mA,TJ=25°C(unless otherwise noted)µA78M09CPARAMETER TEST CONDITIONS(1)UNITMIN TYP MAX8.699.4Output voltage V I=11.5V to24V,I O=5mA to350mA VT J=0°C to125°C8.59.5V I=11.5V to26V6100Input voltage regulation I O=200mA mVV I=12V to26V250I O=100mA,T J=0°C to125°C56V I=13V to23V,Ripple rejection dB f=120Hz IO=300mA5680I O=5mA to500mA25180Output voltage regulation mVI O=5mA to200mA1090Temperature coefficientI O=5mA,T J=0°C to125°C–1mV/°C of output voltageOutput noise voltage f=10Hz to100kHz58µV Dropout voltage2V Bias current 4.66mAV I=11.5V to26V,I O=200mA,T J=0°C to125°C0.8Bias current change mAI O=5mA to350mA,T J=0°C to125°C0.5Short-circuit outputV I=35V250mA currentPeak output current0.7A (1)All characteristics are measured with a0.33-µF capacitor across the input and a0.1-µF capacitor across the output.Pulse-testingtechniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.7Electrical CharacteristicsElectrical CharacteristicsµA78M00SERIESPOSITIVE-VOLTAGE REGULATORSSLVS059P–JUNE 1976–REVISED OCTOBER 2005at specified virtual junction temperature,V I =17V,I O =350mA,T J =25°C (unless otherwise noted)µA78M10C PARAMETER TEST CONDITIONS (1)UNIT MIN TYP MAX 9.61010.4Output voltage V I =12.5V to 25V,I O =5mA to 350mA V T J =0°C to 125°C9.510.5V I =12.5V to 28V 7100Input voltage regulation I O =200mA mV V I =14V to 28V 250I O =100mA,T J =0°C to 125°C59V I =15V to 25V,Ripple rejectiondB f =120HzI O =300mA5580I O =5mA to 500mA 25200Output voltage regulation mV I O =5mA to 200mA 10100Temperature coefficient I O =5mA,T J =0°C to 125°C –1mV/°C of output voltage Output noise voltage f =10Hz to 100kHz64µV Dropout voltage 2V Bias current 4.76mA V I =12.5V to 28V,I O =200mA,T J =0°C to 125°C0.8Bias current change mA I O =5mA to 350mA,T J =0°C to 125°C0.5Short-circuit output V I =35V245mA currentPeak output current 0.7A(1)All characteristics are measured with a 0.33-µF capacitor across the input and a 0.1-µF capacitor across the output.Pulse-testing techniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.at specified virtual junction temperature,V I =19V,I O =350mA,T J =25°C (unless otherwise noted)µA78M12C PARAMETER TEST CONDITIONS (1)UNIT MIN TYP MAX 11.51212.5Output voltage V I =14.5V to 27V,I O =5mA to 350mA V T J =0°C to 125°C11.412.6V I =14.5V to 30V 8100Input voltage regulation I O =200mA mV V I =16V to 30V 250I O =100mA,T J =0°C to 125°C55V I =15V to 25V,Ripple rejectiondB f =120HzI O =300mA5580I O =5mA to 500mA 25240Output voltage regulation mV I O =5mA to 200mA 10120Temperature coefficient I O =5mA,T J =0°C to 125°C –1mV/°C of output voltage Output noise voltage f =10Hz to 100kHz75µV Dropout voltage 2V Bias current 4.86mA V I =14.5V to 30V,I O =200mA,T J =0°C to 125°C0.8Bias current change mA I O =5mA to 350mA,T J =0°C to 125°C0.5Short-circuit output V I =35V240mA currentPeak output current 0.7A(1)All characteristics are measured with a 0.33-µF capacitor across the input and a 0.1-µF capacitor across the output.Pulse-testing techniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.8Electrical CharacteristicsµA78M00SERIES POSITIVE-VOLTAGE REGULATORS SLVS059P–JUNE1976–REVISED OCTOBER2005TheµA78M15is obsolete and no longer supplied.at specified virtual junction temperature,VI =23V,IO=350mA,TJ=25°C(unless otherwise noted)µA78M15CPARAMETER TEST CONDITIONS(1)UNITMIN TYP MAX14.41515.6Output voltage V I=17.5V to30V,I O=5mA to350mA VT J=0°C to125°C14.2515.75V I=17.5V to30V10100Input voltage regulation I O=200mA mVV I=20V to30V350I O=100mA,T J=0°C to125°C54V I=18.5V to28.5V,Ripple rejection dB f=120Hz IO=300mA5470I O=5mA to500mA25300Output voltage regulation mVI O=5mA to200mA10150Temperature coefficientI O=5mA,T J=0°C to125°C–1mV/°C of output voltageOutput noise voltage f=10Hz to100kHz90µV Dropout voltage2V Bias current 4.86mAV I=17.5V to30V,I O=200mA,T J=0°C to125°C0.8Bias current change mAI O=5mA to350mA,T J=0°C to125°C0.5Short-circuit output current V I=35V240mA Peak output current0.7A (1)All characteristics are measured with a0.33-µF capacitor across the input and a0.1-µF capacitor across the output.Pulse-testingtechniques maintain T J as close to T A as possible.Thermal effects must be taken into account separately.9PACKAGING INFORMATIONOrderable Device Status (1)PackageType Package Drawing Pins Package Qty Eco Plan (2)Lead/Ball FinishMSL Peak Temp (3)UA78M05CDCY ACTIVE SOT-223DCY 480TBD CU SN Level-2-235C-1YEAR UA78M05CDCYG3ACTIVE SOT-223DCY 480Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M05CDCYR ACTIVE SOT-223DCY 42500TBDCU SN Level-2-235C-1YEAR UA78M05CDCYRG3ACTIVE SOT-223DCY 42500Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M05CKC NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M05CKCS ACTIVE TO-220KCS 350TBD CU SN N /A for Pkg Type UA78M05CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M05CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M05CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M05IDCY ACTIVE SOT-223DCY 480TBD CU SN Level-2-235C-1YEAR UA78M05IDCYG3ACTIVE SOT-223DCY 480Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M05IDCYR ACTIVE SOT-223DCY 42500TBDCU SN Level-2-235C-1YEAR UA78M05IDCYRG3ACTIVE SOT-223DCY 42500Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M05IKC NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M05IKCE3NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M05IKCS ACTIVE TO-220KCS 350TBD CU SN N /A for Pkg Type UA78M05IKCSE3ACTIVE TO-220KCS 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M05IKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M05IKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M05IKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M06CKC OBSOLETE TO-220KC 3TBD Call TI Call TIUA78M06CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M06CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M06CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M08CDCY ACTIVE SOT-223DCY 480TBD CU SN Level-2-235C-1YEAR UA78M08CDCYG3ACTIVE SOT-223DCY 480Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M08CDCYR ACTIVE SOT-223DCY 42500TBDCU SN Level-2-235C-1YEAR UA78M08CDCYRG3ACTIVE SOT-223DCY 42500Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M08CKC NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M08CKCE3NRNDTO-220KC350Pb-FreeCU SNN /A for Pkg TypePACKAGE OPTION ADDENDUM27-Oct-2006Addendum-Page 1OrderableDeviceStatus (1)Package Type Package Drawing Pins Package QtyEco Plan (2)Lead/Ball FinishMSL Peak Temp (3)(RoHS)UA78M08CKCS ACTIVE TO-220KCS 350TBD CU SN N /A for Pkg Type UA78M08CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M08CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M08CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M09CKC OBSOLETE TO-220KC 3TBD Call TI Call TI UA78M09CKTP OBSOLETE PFM KTP 2TBD Call TI Call TIUA78M09CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M09CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M09CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M10CKC OBSOLETE TO-220KC 3TBD Call TI Call TIUA78M10CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M10CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M10CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M12CKC NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M12CKCS ACTIVE TO-220KCS 350TBD CU SN N /A for Pkg Type UA78M12CKTPR NRND PFM KTP 23000TBDCU SNPB Level-1-220C-UNLIM UA78M12CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M12CKVURG3ACTIVE PFM KVU 32500Green (RoHS &no Sb/Br)CU SN Level-3-260C-168HR UA78M15CKC OBSOLETE TO-220KC 3TBD Call TI Call TI UA78M15CKTPR OBSOLETE PFM KTP 2TBD Call TI Call TI UA78M20CKC OBSOLETE TO-220KC 3TBD Call TI Call TI UA78M20CKTPR OBSOLETE PFM KTP 2TBD Call TI Call TI UA78M20Y OBSOLETE XCEPT Y 0TBD Call TI Call TI UA78M24CKTPR OBSOLETE PFM KTP 2TBD Call TI Call TIUA78M33CDCY ACTIVE SOT-223DCY 480TBD CU SN Level-2-235C-1YEAR UA78M33CDCYG3ACTIVE SOT-223DCY 480Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M33CDCYR ACTIVE SOT-223DCY 42500TBDCU SN Level-2-235C-1YEAR UA78M33CDCYRG3ACTIVE SOT-223DCY 42500Green (RoHS &no Sb/Br)CU SN Level-2-260C-1YEAR UA78M33CKC NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M33CKCE3NRND TO-220KC 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M33CKCS ACTIVE TO-220KCS 350TBD CU SN N /A for Pkg Type UA78M33CKCSE3ACTIVE TO-220KCS 350Pb-Free (RoHS)CU SN N /A for Pkg Type UA78M33CKTPRNRNDPFMKTP23000TBDCU SNPBLevel-1-220C-UNLIM27-Oct-2006Orderable Device Status (1)Package Type Package Drawing Pins Package Qty Eco Plan (2)Lead/Ball FinishMSL Peak Temp (3)UA78M33CKTPRG3NRND PFM KTP 23000Green (RoHS &no Sb/Br)CU SN Level-1-260C-UNLIM UA78M33CKVURG3ACTIVEPFMKVU32500Green (RoHS &no Sb/Br)CU SNLevel-3-260C-168HR(1)The marketing status values are defined as follows:ACTIVE:Product device recommended for new designs.LIFEBUY:TI has announced that the device will be discontinued,and a lifetime-buy period is in effect.NRND:Not recommended for new designs.Device is in production to support existing customers,but TI does not recommend using this part in a new design.PREVIEW:Device has been announced but is not in production.Samples may or may not be available.OBSOLETE:TI has discontinued the production of the device.(2)Eco Plan -The planned eco-friendly classification:Pb-Free (RoHS),Pb-Free (RoHS Exempt),or Green (RoHS &no Sb/Br)-please check /productcontent for the latest availability information and additional product content details.TBD:The Pb-Free/Green conversion plan has not been defined.Pb-Free (RoHS):TI's terms "Lead-Free"or "Pb-Free"mean semiconductor products that are compatible with the current RoHS requirements for all 6substances,including the requirement that lead not exceed 0.1%by weight in homogeneous materials.Where designed to be soldered at high temperatures,TI Pb-Free products are suitable for use in specified lead-free processes.Pb-Free (RoHS Exempt):This component has a RoHS exemption for either 1)lead-based flip-chip solder bumps used between the die and package,or 2)lead-based die adhesive used between the die and leadframe.The component is otherwise considered Pb-Free (RoHS compatible)as defined above.Green (RoHS &no Sb/Br):TI defines "Green"to mean Pb-Free (RoHS compatible),and free of Bromine (Br)and Antimony (Sb)based flame retardants (Br or Sb do not exceed 0.1%by weight in homogeneous material)(3)MSL,Peak Temp.--The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications,and peak solder temperature.Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided.TI bases its knowledge and belief on information provided by third parties,and makes no representation or warranty as to the accuracy of such information.Efforts are underway to better integrate information from third parties.TI has taken and continues to take reasonable steps to provide representative and accurate informationbut may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.TI and TI suppliers consider certain information to be proprietary,and thus CAS numbers and other limited information may not be available for release.In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s)at issue in this document sold by TI to Customer on an annual basis.27-Oct-2006IMPORTANT NOTICETexas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. T esting and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. T o minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions:Products ApplicationsAmplifiers Audio /audioData Converters Automotive /automotiveDSP Broadband /broadbandInterface Digital Control /digitalcontrolLogic Military /militaryPower Mgmt Optical Networking /opticalnetwork Microcontrollers Security /securityLow Power Wireless /lpw Telephony /telephonyVideo & Imaging /videoWireless /wirelessMailing Address:Texas InstrumentsPost Office Box 655303 Dallas, Texas 75265Copyright 2006, Texas Instruments Incorporated。

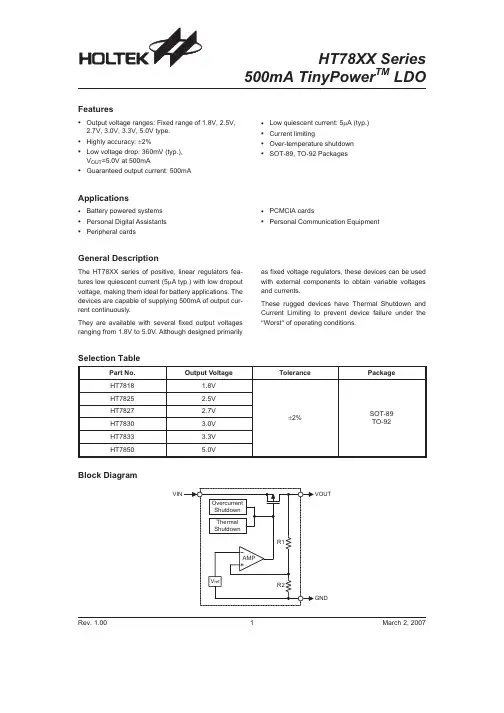

HT78XX Series500mA TinyPower TM LDOSelection TablePart No.Output VoltageTolerancePackageHT7818 1.8V ±2%SOT-89TO-92HT7825 2.5V HT7827 2.7V HT7830 3.0V HT7833 3.3V HT78505.0VBlock DiagramRev.1.001March 2,2007Features·Output voltage ranges:Fixed range of 1.8V,2.5V,2.7V,3.0V,3.3V,5.0V type.·Highly accuracy:±2%·Low voltage drop:360mV (typ.),V OUT =5.0V at 500mA·Guaranteed output current:500mA·Low quiescent current:5m A (typ.)·Current limiting·Over-temperature shutdown ·SOT-89,TO-92PackagesApplications·Battery powered systems ·Personal Digital Assistants ·Peripheral cards·PCMCIA cards·Personal Communication EquipmentGeneral DescriptionThe HT78XX series of positive,linear regulators fea-tures low quiescent current (5m A typ.)with low dropout voltage,making them ideal for battery applications.The devices are capable of supplying 500mA of output cur-rent continuously.They are available with several fixed output voltages ranging from 1.8V to 5.0V.Although designed primarilyas fixed voltage regulators,these devices can be used with external components to obtain variable voltages and currents.These rugged devices have Thermal Shutdown and Current Limiting to prevent device failure under the ²Worst ²of operatingconditions.Pin AssignmentAbsolute Maximum Ratings*Maximum Supply Voltage ............................up to 8.5V Storage Temperature ..........................-50°C to 125°COperating Temperature .........................-40°C to 85°CNote:These are stress ratings only.Stresses exceeding the range specified under ²Absolute Maximum Ratings ²maycause substantial damage to the device.Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.²*²Absolute maximum ratings indicate limits beyond which damage to the device may occur.Operating Ratings in-dicate conditions for which the device is intended to be functional,but do not guarantee specific performance limits.The guaranteed specifications apply only for the test conditions listed.Thermal InformationSymbolParameterPackage Max.Unit q JAThermal Resistance (Junction to Ambient)(Assume no ambient airflow,no heat sink)SOT-89200°C/W TO-92200°C/W P DPower DissipationSOT-890.50W TO-920.50WNote:P D is measured at Ta=25°CRev.1.002March 2,2007Electrical Characteristics Tj=25°C,V IN=V OUT+1.0V,I O=1mA,unless otherwise specified Symbol Parameter Test Conditions Min.Typ.Max.UnitV IN Input Voltage¾¾¾8VD V OUT Output Voltage Tolerance¾-2¾2%I SS Quiescent Current I O=0mA¾57m AD V LOAD Load Regulation(Note1)1mA£I OUT£500mA¾0.0040.008%/mAV DROP Dropout Voltage(Note2)D V OUT=2%I OUT=500mAV O£1.8V¾8001200mV2.5V£V O£2.7V¾5006503.0V£V O£5.0V¾360500D V LINE Line Regulation V OUT+1.0V£V IN£8.0V¾0.20.3%/VI LIM Current Limit(Note3)D V OUT=10%500¾¾mATemperature Coefficient-40°C<Ta<85°C¾±0.8¾mV/°C Note: 1.Load regulation is measured at a constant junction temperature,using pulse testing with a low ON time and is guaranteed up to the maximum power dissipation.Power dissipation is determined by the input/outputdifferential voltage and the output current.Guaranteed maximum power dissipation will not be available over the full input/output range.The maximum allowable power dissipation at any ambient temperature isP D=(T J(MAX)-Ta)/q JA.2.Dropout voltage is defined as the input voltage minus the output voltage that produces a2%change in theoutput voltage from the value at V IN=V OUT+1V with a fixed load.3.Current limit is measured by pulsing for a short time.Application CircuitsBasic CircuitsTypical Application Circuits·High output current positive voltage regulatorRev.1.003March2,2007·Increased Output voltage CircuitV=V(1+R2R1)+I R2OUT XX SS ·Dual Supply CircuitV=V+VOUT1XX2XX1V=VOUT2XX2·Tracking Voltage Regulator-V=V x R RO O A BRev.1.004March2,2007Package Information3-Pin SOT-89Outline DimensionsSymbolDimensions in milMin.Nom.Max.A173¾181B64¾72C90¾102D35¾47E155¾167F14¾19G17¾22H¾59¾I55¾63J14¾17Rev.1.005March2,20073-Pin TO-92Outline DimensionsSymbolDimensions in milMin.Nom.Max.A170¾200B170¾200C500¾¾D11¾20E90¾110F45¾55G45¾65H130¾160I8¾18a4°¾6°Rev.1.006March2,2007Product Tape and Reel SpecificationsReel DimensionsSOT-89Symbol Description Dimensions in mmA Reel Outer Diameter180±1.0B Reel Inner Diameter62±1.5C Spindle Hole Diameter12.75+0.15D Key Slit Width 1.9±0.15T1Space Between Flange12.4+0.2T2Reel Thickness17-0.4Rev.1.007March2,2007TO-92Reel Dimensions(Unit:mm)Rev.1.008March2,2007Carrier Tape DimensionsSOT-89Symbol Description Dimensions in mmW Carrier Tape Width 12.0+0.3-0.1P Cavity Pitch8.0±0.1E Perforation Position 1.75±0.1F Cavity to Perforation(Width Direction) 5.5±0.05D Perforation Diameter 1.5+0.1D1Cavity Hole Diameter 1.5+0.1P0Perforation Pitch 4.0±0.1P1Cavity to Perforation(Length Direction) 2.0±0.10A0Cavity Length 4.8±0.1B0Cavity Width 4.5±0.1K0Cavity Depth 1.8±0.1t Carrier Tape Thickness0.30±0.013C Cover Tape Width9.3Rev.1.009March2,2007TO-92Carrier Tape DimensionsTO-92Symbol Description Dimensions in mm I1Taped Lead Length(2.5)P Component Pitch12.7±1.0P0Perforation Pitch12.7±0.3P2Component to Perforation(Length Direction) 6.35±0.4F1Lead Spread 2.5+0.4-0.1F2Lead Spread 2.5+0.4-0.1D h Component Alignment0±0.1W Carrier Tape Width 18.0+1.0-0.5W0Hold-down Tape Width 6.0±0.5W1Perforation Position9.0±0.5W2Hold-down Tape Position(0.5)H0Lead Clinch Height16.0±0.5H1Component Height Less than24.7D0Perforation Diameter 4.0±0.2t Taped Lead Thickness0.7±0.2H Component Base Height19.0±0.5Note:Thickness less than0.38±0.05mm~0.5mmP0Accumulated pitch tolerance:±1mm/20pitches.()Bracketed figures are for consultation onlyRev.1.0010March2,2007HT78XX SeriesRev.1.0011March 2,2007Holtek Semiconductor Inc.(Headquarters)No.3,Creation Rd.II,Science Park,Hsinchu,TaiwanTel:886-3-563-1999Fax:886-3-563-1189Holtek Semiconductor Inc.(Taipei Sales Office)4F-2,No.3-2,YuanQu St.,Nankang Software Park,Taipei 115,TaiwanTel:886-2-2655-7070Fax:886-2-2655-7373Fax:886-2-2655-7383(International sales hotline)Holtek Semiconductor Inc.(Shanghai Sales Office)7th Floor,Building 2,No.889,Yi Shan Rd.,Shanghai,China 200233Tel:86-21-6485-5560Fax:86-21-6485-0313Holtek Semiconductor Inc.(Shenzhen Sales Office)5/F,Unit A,Productivity Building,Cross of Science M 3rd Road and Gaoxin M 2nd Road,Science Park,Nanshan District,Shenzhen,China 518057Tel:86-755-8616-9908,86-755-8616-9308Fax:86-755-8616-9722Holtek Semiconductor Inc.(Beijing Sales Office)Suite 1721,Jinyu Tower,A129West Xuan Wu Men Street,Xicheng District,Beijing,China 100031Tel:86-10-6641-0030,86-10-6641-7751,86-10-6641-7752Fax:86-10-6641-0125Holtek Semiconductor Inc.(Chengdu Sales Office)709,Building 3,Champagne Plaza,No.97Dongda Street,Chengdu,Sichuan,China 610016Tel:86-28-6653-6590Fax:86-28-6653-6591Holtek Semiconductor (USA),Inc.(North America Sales Office)46729Fremont Blvd.,Fremont,CA 94538Tel:1-510-252-9880Fax:1-510-252-9885Copyright Ó2007by HOLTEK SEMICONDUCTOR INC.The information appearing in this Data Sheet is believed to be accurate at the time of publication.However,Holtek as-sumes no responsibility arising from the use of the specifications described.The applications mentioned herein are used solely for the purpose of illustration and Holtek makes no warranty or representation that such applications will be suitable without further modification,nor recommends the use of its products for application that may present a risk to human life due to malfunction or otherwise.Holtek ¢s products are not authorized for use as critical components in life support devices or systems.Holtek reserves the right to alter its products without prior notification.For the most up-to-date information,please visit our web site at .元器件交易网。

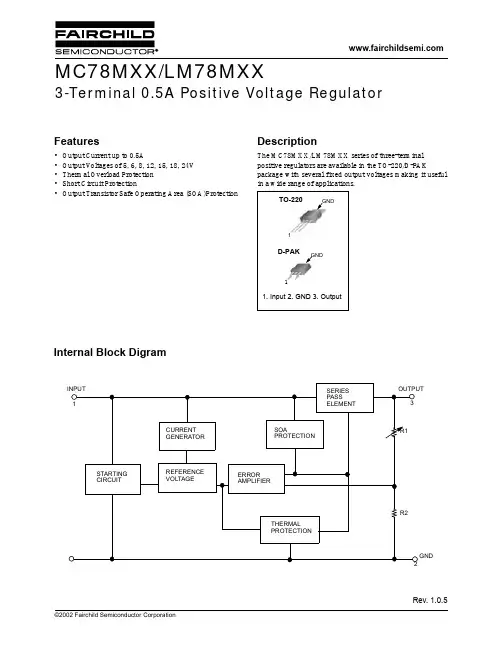

Rev. 1.0.5Features•Output Current up to 0.5A•Output V oltages of 5, 6, 8, 12, 15, 18, 24V •Thermal Overload Protection •Short Circuit Protection•Output Transistor Safe Operating Area (SOA)ProtectionDescriptionThe MC78MXX/LM78MXX series of three-terminal positive regulators are available in the TO-220/D-PAKpackage with several fixed output voltages making it useful in a wide range of applications.TO-220D-PAK1. Input2. GND3. Output11GNDGNDInternal Block DigramOUTPUT3R1R2GND 21INPUT SERIES PASSELEMENTSOAPROTECTIONCURRENT GENERATOR STARTING CIRCUITREFERENCE VOLTAGEERROR AMPLIFIERTHERMAL PROTECTIONMC78MXX/LM78MXX3-Terminal 0.5A Positive Voltage RegulatorMC78MXX/LM78MXXAbsolute Maximum RatingsNote:1. Thermal resistance test boardSize: 76.2mm * 114.3mm * 1.6mm(1S0P)JEDEC standard: JESD51-3, JESD51-72. Assume no ambient airflowElectrical Characteristics (MC78M05/LM78M05)(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =10V, unless otherwise specified, C I = 0.33µF, C O =0.1µF)Note:3. Load and line regulation are specified at constant junction temperature. Change in V o due to heating effects must be takeninto account separately. Pulse testing with low duty is used.ParameterSymbol Value Unit Input Voltage (for V O = 5V to 18V)(for V O = 24V)V I V I 3540V V Thermal Resistance Junction-Case (Note1)TO-220 (Tc = +25°C)R θJC 2.5°C/W Thermal Resistance Junction-Air (Note1, 2)TO-220 (Ta = +25°C)D-PAK (Ta = +25°C)R θJA 6692°C/W Operating Junction Temperature Range T OPR 0 ~ +150°C Storage Temperature RangeT STG-65 ~ +150°CParameter Symbol ConditionsMin.Typ.Max.UnitOutput VoltageV OT J = +25°C 4.85 5.2V I O = 5mA to 350mA V I = 7V to 20V 4.755 5.25Line Regulation (Note3)∆V O I O = 200mA T J =+25°CV I = 7V to 25V --100mV V I = 8V to 25V--50Load Regulation (Note3)∆V O I O = 5mA to 0.5A, T J =+25°C --100mV I O = 5mA to 200mA, T J =+25 °C --50Quiescent Current I Q T J =+25°C- 4.0 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA --0.5mA I O = 200mA V I = 8V to 25V --0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to +125°C --0.5-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz -40-µV/VoRipple Rejection RR f = 120Hz, I O = 300mA V I = 8V to 18V, T J =+25 °C -80-dB Dropout Voltage V D T J =+25°C, I O = 500mA -2-V Short Circuit Current I SC T J =+25°C, V I = 35V -300-mA Peak CurrentI PKT J =+25°C-700-mAMC78MXX/LM78MXXElectrical Characteristics (MC78M06) (Continued)(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =11V, unless otherwise specified, C I =0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V o due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter Symbol ConditionsMin.Typ.Max.UnitOutput VoltageV OT J = +25°C 5.756 6.25V I O = 5mA to 350mA V I = 8V to 21V 5.76 6.3Line Regulation (Note1)∆V O I O = 200mA T J = +25°CV I = 8V to 25V --100mV V I = 9V to 25V--50Load Regulation (Note1)∆V O I O = 5mA to 0.5A, T J = +25°C --120mV I O = 5mA to 200mA, T J = +25°C --60Quiescent Current I Q T J = +25°C - 4.0 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA --0.5mA I O = 200mA V I = 9V to 25V --0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to +125°C --0.5-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz -45-µV/VoRipple Rejection RR f = 120Hz, I O = 300mA V I = 9V to 19V, T J =+25 °C -80-dB Dropout Voltage V D T J =+25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J =+25°C-700-mAMC78MXX/LM78MXXElectrical Characteristics (MC78M08) (Continued)(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =14V, unless otherwise specified, C I = 0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V O due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter SymbolConditionsMin.Typ.Max.UnitOutput VoltageV OT J =+25°C7.788.3V I O = 5mA to 350mA V I = 10.5V to 23V 7.688.4Line Regulation (Note1)∆V O I O = 200mA T J =+25°CV I = 10.5V to 25V --100mV V I = 11V to 25V --50Load Regulation (Note1)∆V O I O = 5mA to 0.5A, T J =+25°C --160mV I O = 5mA to 200mA, T J =+25°C --80Quiescent Current I Q T J = +25°C - 4.0 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA --0.5mA I O = 200mAV I = 10.5V to 25V --0.8Output Voltage Drift RR I O = 5mAT J = 0 to +125°C -−0.5-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz-52-µV/VoRipple Rejection RR f = 120Hz, I O = 300mAV I = 11.5V to 21.5V, T J =+25 °C -80-dB Dropout Voltage V D T J = +25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J = +25°C-700-mA(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =19V, unless otherwise specified, C I =0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V o due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter SymbolConditionsMin.Typ.Max.UnitOutput VoltageV OT J = +25°C11.51212.5V I O = 5mA to 350mA V I = 14.5V to 27V 11.41212.6Line Regulation (Note1)∆V O I O = 200mA T J = +25°CV I = 14.5V to 30V --100mV V I = 16V to 30V --50Load Regulation (Note1)∆V O I O = 5mA to 0.5A, T J = +25°C --240mV I O = 5mA to 200mA, T J = +25°C --120Quiescent Current I Q T J =+25°C- 4.1 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA --0.5mA I O = 200mAV I = 14.5V to 30V --0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to +125°C --0.5-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz-75-µV/VoRipple Rejection RR f = 120Hz, I O = 300mAV I = 15V to 25V, T J =+25 °C -80-dB Dropout Voltage V D T J =+25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J = +25°C-700-mA(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =23V, unless otherwise specified, C I =0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V O due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter Symbol ConditionsMin.Typ.Max.UnitOutput VoltageV OT J = +25°C 14.41515.6V I O = 5mA to 350mA V I = 17.5V to 30V 14.251515.75Line Regulation (Note1)∆V O I O = 200mA T J =+25°CV I = 17.5V to 30V --100mV V I = 20V to 30V--50Load Regulation (Note1)∆V O I O = 5mA to 0.5A, T J =+25°C --300mV I O = 5mA to 200mA, T J =+25°C --150Quiescent Current I Q T J = +25°C - 4.1 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA --0.5mA I O = 200mAV I = 17.5V to 30V --0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to +125°C --1-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz-100-µV/VoRipple Rejection RR f = 120Hz, I O = 300mAV I = 18.5V to 28.5V, T J =+25 °C -70-dB Dropout Voltage V D T J =+25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J = +25°C-700-mAMC78MXX/LM78MXXElectrical Characteristics (MC78M18) (Continued)(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =26V, unless otherwise specified, C I =0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V O due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter SymbolConditionsMin.Typ.Max.UnitOutput VoltageV OT J = +25°C17.31818.7V I O = 5mA to 350mA V I = 20.5V to 33V 17.11818.9Line Regulation (Note1)∆V O I O = 200mA T J = +25°CV I = 21V to 33V --100mV V I = 24V to 33V --50Load Regulation (Note1)∆V ΟI O = 5mA to 0.5A, T J = +25°C --360mV I O = 5mA to 200mA, T J = +25°C --180Quiescent Current I Q T J = +25°C - 4.2 6.0mAQuiescent Current Change ∆I Q I O = 5mA to 350mA --0.5mA I O = 200mA V I = 21V to 33V--0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to 125°C --1.1-mV/°C Output Noise Voltage V N f = 10Hz to 100kHz-100-µV/Vo Ripple Rejection RR f = 120Hz, I O = 300mA , V I = 22V to 32V T J =+25 °C-70-dB Dropout Voltage V D T J = +25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J = +25°C-700-mAElectrical Characteristics (MC78M24) (Continued)(Refer to the test circuits, 0 < T J < +125°C, I O =350mA, V I =33V, unless otherwise specified, C I =0.33µF, C O =0.1µF)Note:1. Load and line regulation are specified at constant junction temperature. Change in V O due to heating effects must be takeninto account separately. Pulse testing with low duty is used.Parameter Symbol ConditionsMin.Typ.Max.UnitOutput VoltageV OT J =+25°C 232425V I O = 5mA to 350mA V I = 27V to 38V22.82425.2Line Regulation (Note1)∆V O I O = 200mA T J =+25°C V I = 27V to 38V --100mV V I = 28V to 38V --50Load Regulation (Note1)∆V O I O = 5mA to 0.5A, T J =+25°C --480mV I O = 5mA to 200mA, T J =+25°C --240Quiescent CurrentI QT J = +25°C - 4.2 6.0mAQuiescent Current Change∆I Q I O = 5mA to 350mA--0.5mA I O = 200mA V I = 27V to 38V --0.8Output Voltage Drift ∆V/∆T I O = 5mAT J = 0 to +125°C --1.2-mV/°COutput Noise Voltage V N f = 10Hz to 100kHz-170-µV/VoRipple Rejection RR f = 120Hz, I O = 300mAV I = 28V to 38V, T J =+25 °C -70-dB Dropout Voltage V D T J = +25°C, I O = 500mA -2-V Short Circuit Current I SC T J = +25°C, V I = 35V -300-mA Peak CurrentI PKT J = +25°C-700-mATypical ApplicationsFigure 1.Fixed Output RegulatorFigure 2.Constant Current RegulatorNotes:1.To specify an output voltage, substitute voltage value for "XX"2.Although no output capacitor is needed for stability, it does improve transient response.3.C I is required if regulator is located an appreciable distance from power Supply filterFigure 3.Circuit for Increasing Output Voltage0.1µFC OC I0.3µFV OV IMC78MXX LM78MXX1320.1µFC OC I0.33µFI OV IMC78MXX LM78MXX132VXXI O R 1I O = R 1 +I OVxx 0.1µFC OC I0.33µFI OV IMC78MXX LM78MXX132V XXV OR 1R 2I R1 ≥ 5I OV O = V XX (1+R 2/R 1) +I O R 2MC78MXX/LM78MXXFigure 4.Adjustable Output Regulator (7 to 30V)Figure 5.0.5 to 10V Regulator0.1µFC OC I0.33µFV OV IMC78M05LM78M0513210k Ω32476LM7410.1µFC2C10.33µFV OV IMC78M05LM78M0513210k Ω32476LM741R3R1VXXR4R5910Ω9.1k Ω13V < V I < 25V-7 < -VI < 17V_+VO = VxxR 1R 4Mechanical DimensionsPackageDimensions in millimetersTO-22011Mechanical Dimensions (Continued)PackageDimensions in millimetersD-PAK1213Ordering InformationProduct Number Package Operating TemperatureLM78M05CT TO-2200 ~ +125°C Product Number PackageOperating TemperatureMC78M05CT TO-2200 ~ +125°CMC78M06CT MC78M08CT MC78M12CT MC78M15CT MC78M18CT MC78M24CT MC78M05CDT D-PAKMC78M06CDT MC78M08CDT MC78M12CDT11/12/02 0.0m 001Stock#DSxxxxxxxx2002 Fairchild Semiconductor CorporationLIFE SUPPORT POLICYFAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:1.Life support devices or systems are devices or systemswhich, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can bereasonably expected to result in a significant injury of the user.2. A critical component in any component of a life supportdevice or system whose failure to perform can bereasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.DISCLAIMERFAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANYLIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.。

MC78M00, MC78M00A Series500 mA Positive Voltage RegulatorsThe MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices,the MC78M00 three-terminal regulators are intended for local,on-card voltage regulation.Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions.Maximum output current, with adequate heatsinking is 500 mA.Features•ăNo External Components Required •ăInternal Thermal Overload Protection •ăInternal Short Circuit Current Limiting •ăOutput Transistor Safe-Area Compensation •ăMC78M00A High Accuracy (±2%)Available for 5.0 V , 8.0 V , 12 V and 15 V •ăPb-Free Packages are Available*Figure 1. Representative Schematic DiagramThis device contains 28 active transistors.*For additional information on our Pb-Free strategy and soldering details, please See detailed ordering and shipping information in the package dimensions section on page 10-14 of this data sheet.ORDERING INFORMATIONSee general marking information in the device marking section on page 10 of this data sheet.DEVICE MARKING INFORMATIONMAXIMUM RATINGS (T A = 25°C, unless otherwise noted) (Note 1)Rating Symbol Value UnitInput Voltage(5.0 V-18 V)V I35Vdc(20 V-24V)40Power Dissipation (Package Limitation)Plastic Package, T SuffixT A = 25°C P D Internally LimitedThermal Resistance, Junction-to-Air q JA70°C/W Thermal Resistance, Junction-to-Case q JC 5.0°C/W Plastic Package, DT SuffixT A = 25°C P D Internally LimitedThermal Resistance, Junction-to-Air q JA92°C/W Thermal Resistance, Junction-to-Case q JC 5.0°C/W Operating Junction Temperature Range T J+150°C Storage Temperature Range T stg-65 to +150°C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.1.This device series contains ESD protection and exceeds the following tests:Human Body Model 2000 V per MIL-STD-883, Method 3015.Machine Model Method 200 V.MC78M05C/AC/B/AB ELECTRICAL CHARACTERISTICS (V I = 10 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 2)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O Vdc MC78M05B/MC78M05C 4.8 5.0 5.2MC78M05AB/MC78M05AC 4.9 5.0 5.1Output Voltage Variation V O Vdc(7.0 Vdc ≤ V I≤ 20 Vdc, 5.0 mA ≤ I O≤ 350 mA)MC78M05B/MC78M05C 4.75- 5.25MC78M05AB/MC78M05AC 4.80- 5.20Line Regulation Reg line- 3.050mV (T J = 25°C, 7.0 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-20100(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-1050Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(8.0 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-40-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 8.0 V ≤V I≤ 18 V)62--(I O = 300 mA, f = 120 Hz, 8.0 ≤ V I≤ 18 V, T J = 25°C)6280-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.2-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)2.T low=0°C for MC78MxxAC, C T high = +125°C for MC78MxxAB, AC, B, CMC78M06C ELECTRICAL CHARACTERISTICS (V I = 11 V, I O = 350 mA, 0°C < T J < 125°C, P D≤ 5.0 W, unless otherwise noted)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O 5.75 6.0 6.25Vdc Output Voltage Variation V O 5.7- 6.3Vdc(8.0 Vdc ≤ V I≤ 21 Vdc, 5.0 mA ≤ I O≤ 350 mA)Line Regulation Reg line- 5.050mV (T J = 25°C, 8.0 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-20120(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-1060Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(9.0 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-45-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 9.0 V ≤V I≤ 19 V)59--(I O = 300 mA, f = 120 Hz, 9.0 V ≤V I≤ 19 V, T J = 25°C)5980-Dropout Voltage V I - V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.2-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)MC78M08C/AC/B/AB ELECTRICAL CHARACTERISTICS (V I = 14 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 3)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O Vdc MC78M08B/MC78M08C7.708.08.30MC78M08AB/MC78M08AC7.848.08.16Output Voltage Variation V O Vdc(10.5 Vdc ≤ V I≤ 23 Vdc, 5.0 mA ≤ I O≤ 350 mA)MC78M08B/MC78M08C7.6-8.4MC78M08AB/MC78M08AC7.7-8.3Line Regulation Reg line- 6.050mV (T J = 25°C, 10.5 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-25160(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-1080Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(10.5 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-52-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 11.5 V ≤V I≤ 21.5 V)56--(I O = 300 mA, f = 120 Hz, 11.5 V ≤V I≤ 21.5 V, T J = 25°C)5680-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.2-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)3.T=0°C for MC78MxxAC, C T = +125°C for MC78MxxAB, AC, B, CMC78M09C/B ELECTRICAL CHARACTERISTICS (V I = 15 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W, unless otherwise noted) (Note 4)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O8.649.09.45Vdc Output Voltage Variation V O8.55-9.45Vdc(11.5 Vdc ≤ V I≤ 23 Vdc, 5.0 mA ≤ I O≤ 350 mA)Line Regulation Reg line- 6.050mV (T J = 25°C, 11.5 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-25180(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-1090Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(11.5 Vdc ≤ V I≤ 25 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-52-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 12.5 V ≤V I≤ 22.5 V)56--(I O = 300 mA, f = 120 Hz, 12.5 V ≤V I≤ 22.5 V, T J = 25°C)5680-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.2-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)MC78M12C/AC/B/AB ELECTRICAL CHARACTERISTICS (V I = 19 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 4)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O Vdc MC78M12B/MC78M12C11.501212.50MC78M12AB/MC78M12AC11.761212.24Output Voltage Variation V O Vdc(14.5 Vdc ≤ V I≤ 27 Vdc, 5.0 mA ≤ I O≤ 350 mA)MC78M12B/MC78M12C11.4-12.6MC78M12AB/MC78M12AC11.5-12.5Line Regulation Reg line-8.050mV (T J = 25°C, 14.5 Vdc ≤ V I≤ 30 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-25240(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-10120Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(14.5 Vdc ≤ V I≤ 30 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-75-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 15 V ≤V I≤ 25 V)55--(I O = 300 mA, f = 120 Hz, 15 V ≤V I≤ 25 V, T J = 25°C)5580-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.3-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)4.T low=0°C for MC78MxxAC, C T high = +125°C for MC78MxxAB, AC, B, C=-40°C for MC78MxxAB, BMC78M15C/AC/B/AB ELECTRICAL CHARACTERISTICS (V I = 23 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 5)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O Vdc MC78M15B/MC78M15C14.41515.6MC78M15AB/MC78M15AC14.71515.3Output Voltage Variation V O Vdc(17.5 Vdc ≤ V I≤ 30 Vdc, 5.0 mA ≤ I O≤ 350 mA)MC78M15B/MC78M15C14.25-15.75MC78M15AB/MC78M15AC14.40-15.60Input Regulation Reg line-1050mV (T J = 25°C, 17.5 Vdc ≤ V I≤ 30 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-25300(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-10150Input Bias Current (T J = 25°C)I IB- 3.2 6.0mA Quiescent Current Change D I IB mA(17.5 Vdc ≤ V I≤ 30 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-90-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 18.5 V ≤V I≤ 28.5 V)54--(I O = 300 mA, f = 120 Hz, 18.5 V ≤V I≤ 28.5 V, T J = 25°C)5470-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.3-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)MC78M18C/B ELECTRICAL CHARACTERISTICS (V I = 27 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 5)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O17.31818.7Vdc Output Voltage Variation V O17.1-18.9Vdc(21 Vdc ≤ V I≤ 33 Vdc, 5.0 mA ≤ I O≤ 350 mA)Line Regulation Reg line-1050mV (T J = 25°C, 21 Vdc ≤ V I≤ 33 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-30360(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-10180Input Bias Current (T J = 25°C)I IB- 3.2 6.5mA Quiescent Current Change D I IB mA(21 Vdc ≤ V I≤ 33 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-100-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 22 V ≤V I≤ 32 V)53--(I O = 300 mA, f = 120 Hz, 22 V ≤V I≤ 32 V, T J = 25°C)5370-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.3-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)5.T low=0°C for MC78MxxAC, C T high = +125°C for MC78MxxAB, AC, B, CMC78M20C/B ELECTRICAL CHARACTERISTICS (V I = 29 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 6)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O19.22020.8Vdc Output Voltage Variation V O19-21Vdc(23 Vdc ≤ V I≤ 35 Vdc, 5.0 mA ≤ I O≤ 350 mA)Line Regulation Reg line-1050mV (T J = 25°C, 23 Vdc ≤ V I≤ 35 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-30400(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-10200Input Bias Current (T J = 25°C)I IB- 3.2 6.5mA Quiescent Current Change D I IB mA(23 Vdc ≤ V I≤ 35 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-110-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 24 V ≤V I≤ 34 V)52--(I O = 300 mA, f = 120 Hz, 24 V ≤V I≤ 34 V, T J = 25°C)5270-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C, V I = 35 V)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.5-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)MC78M24C/B ELECTRICAL CHARACTERISTICS (V I = 33 V, I O = 350 mA, T J = T low to T high, P D≤ 5.0 W,unless otherwise noted) (Note 6)Characteristics Symbol Min Typ Max Unit Output Voltage (T J = 25°C)V O232425Vdc Output Voltage Variation V O22.8-25.2Vdc(27 Vdc ≤ V I≤ 38 Vdc, 5.0 mA ≤ I O≤ 350 mA)Line Regulation Reg line-1050mV (T J = 25°C, 27 Vdc ≤ V I≤ 38 Vdc, I O = 200 mA)Load Regulation Reg load mV (T J = 25°C, 5.0 mA ≤ I O≤ 500 mA)-30480(T J = 25°C, 5.0 mA ≤ I O≤ 200 mA)-10240Input Bias Current (T J = 25°C)I IB- 3.27.0mA Quiescent Current Change D I IB mA(27 Vdc ≤ V I≤ 38 Vdc, I O = 200 mA)--0.8(5.0 mA ≤ I O≤ 350 mA)--0.5Output Noise Voltage (T A = 25°C, 10 Hz ≤ f ≤ 100 kHz)V n-170-m V Ripple Rejection RR dB(I O = 100 mA, f = 120 Hz, 28 V ≤V I≤ 38 V)50--(I O = 300 mA, f = 120 Hz, 28 V ≤V I≤ 38 V, T J = 25°C)5070-Dropout Voltage V I-V O- 2.0-Vdc (T J = 25°C)Short Circuit Current Limit (T J = 25°C)I OS-50-mA Average Temperature Coefficient of Output Voltage D V O/D T-±0.5-mV/°C(I O = 5.0 mA)Peak Output Current I O-700-mA (T J = 25°C)6.T low=0°C for MC78MxxAC, C T high = +125°C for MC78MxxAB, AC, B, CDEFINITIONSLine Regulation - The change in output voltage for a change in the input voltage. The measurement is made under conditions of low dissipation or by using pulse techniques such that the average chip temperature is not significantly affected.Load Regulation - The change in output voltage for a change in load current at constant chip temperature.Maximum Power Dissipation - T he maximum total device dissipation for which the regulator will operate within specifications.Input Bias Current - That part of the input current that is not delivered to the load.Output Noise Voltage - T he rms AC voltage at the output, with constant load and no input ripple, measured over a specified frequency range.Long Term Stability - Output voltage stability under accelerated life test conditions with the maximum rated voltage listed in the devices' electrical characteristics and maximum power dissipation.Figure 3. Worst Case Power Dissipation versus Ambient Temperature (TO-220), P O W E R D I S S I P A T I O N (W )D P R , T HE R M A L R E S I S T A N C EJ A θJ U N C T I O N -T O -A I R ( C /W )°P D , M A X I M U M P O W E R D I S S I P A T I O N (W )T A , AMBIENT TEMPERATURE (°C)Figure 4. Peak Output Current versusDropout Voltage Figure 5. Dropout Voltage versusJunction TemperatureFigure 8. Bias Current versus Input Voltage R R , R I P P L E R E J E C T I O N (d B ), D R O P O U T V O L T A G E (V )I O T J , JUNCTION TEMPERATURE (°C)-V V , B I A S C U R R E N T (m A )B V I , INPUT VOLTAGE (Vdc)I I O , OUTPUT CURRENT (A)Figure 9. Bias Current versus Output Current, O U T P U T C U R R E N T (A )O V I - V O , DROPOUT VOLTAGE (V)1.00.90.80.70.60.50.40.30.20.10IAPPLICATIONS INFORMATIONDesign ConsiderationsT he MC78M00/MC78M00A Series of fixed voltage regulators are designed with Thermal Overload Protection that shuts down the circuit when subjected to an excessive power overload condition, Internal Short Circuit Protection that limits the maximum current the circuit will pass, and Output T ransistor Safe-Area Compensation that reduces the output short circuit current as the voltage across the pass transistor is increased.In many low current applications, compensation capacitors are not required. However, it is recommended that the regulator input be bypassed with a capacitor if theregulator is connected to the power supply filter with long wire lengths, or if the output load capacitance is large. An input bypass capacitor should be selected to provide good high frequency characteristics to insure stable operation under all load conditions. A 0.33 m F or larger tantalum,mylar, or other capacitor having low internal impedance at high frequencies should be chosen. The bypass capacitor should be mounted with the shortest possible leads directly across the regulator's input terminals. Normally good construction techniques should be used to minimize ground loops and lead resistance drops since the regulator has no external sense lead.m FThe MC78M00 series can be current boosted with a PNP transistor. The MJ2955 provides current to 5.0 A. Resistor R in conjunction with the V BE of the PNP determines when the pass transistor begins conducting; this circuit is not short circuit proof. Input-output differential voltage minimum is increased by V BE of the pass transistor.InputThe circuit of Figure 12 can be modified to provide supply protection against short circuits by adding a short circuit sense resistor, R sc ,and an additional PNP transistor. The current sensing PNP must be able to handle the short circuit current of the three-terminal regulator .Therefore, a 4.0 A plastic power transistor is specified.XX = 2 digits of type number indicating voltage.Figure 12. Current Boost RegulatorFigure 13. Current Boost with Short Circuit ProtectionORDERING INFORMATIONDevice OutputVoltage Temperature Range Package Marking Shipping†MC78M05CDT5.0 V T J = 0° to +125°CDPAK-378M0575 Units / RailMC78M05CDTG DPAK-3(Pb-Free)78M05MC78M05CDTRK DPAK-378M052500 Units / Tape & Reel MC78M05CDTRKG DPAK-3(Pb-Free)78M05MC78M05ACDT DPAK-38M05D75 Units / RailMC78M05ACDTG DPAK-3(Pb-Free)8M05DMC78M05ACDTRK DPAK-38M05D2500 Units / Tape & Reel MC78M05ACDTRKG DPAK-3(Pb-Free)8M05DMC78M05CT TO-22078M05CT50 Units / RailMC78M05CTG TO-220(Pb-Free)78M05CTMC78M05ACT TO-22078M05ACT50 Units / RailMC78M05ACTG TO-220(Pb-Free)78M05ACTMC78M05ABDTT J = -40° to +125°C DPAK-38M05A75 Units / RailMC78M05ABDTG DPAK-3(Pb-Free)8M05AMC78M05ABDTRK DPAK-38M05A2500 Units / Tape & ReelMC78M05ABDTRKG DPAK-3(Pb-Free)8M05AMC78M05ABT TO-22078M05ABT50 Units / RailMC78M05ABTG TO-220(Pb-Free)78M05ABTMC78M05BDT DPAK-38M05B75 Units / RailMC78M05BDTG DPAK-3(Pb-Free)8M05BMC78M05BDTRK DPAK-38M05B2500 Units / Tape & ReelMC78M05BDTRKG DPAK-3(Pb-Free)8M05BMC78M05BT TO-22078M05BT50 Units / RailMC78M05BTG TO-220(Pb-Free)78M05BT†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.DeviceVoltageTemperature RangePackage Marking Shipping †MC78M06CDT 6.0 VT J = 0° to +125°CDPAK-378M0675 Units / Rail MC78M06CDTG DPAK-3(Pb-Free)78M06MC78M06CDTRK DPAK-378M062500 Units / Tape & ReelMC78M06CDTRKG DPAK-3(Pb-Free)78M06MC78M06CT TO-22078M06CT 50 Units / Rail MC78M06CTG TO-220(Pb-Free)78M06CT MC78M06BT T J = -40° to +125°CTO-22078M06BT MC78M06BTG TO-220(Pb-Free)78M06BT MC78M08CDT 8.0 VT J = 0° to +125°C DPAK-378M0875 Units / Rail MC78M08CDTG DPAK-3(Pb-Free)78M08MC78M08CDTRK DPAK-378M082500 Units / Tape & ReelMC78M08CDTRKG DPAK-3(Pb-Free)78M08MC78M08ACDT DPAK-38M08D 75 Units / Rail MC78M08ACDTG DPAK-3(Pb-Free)8M08D MC78M08ACDTRK DPAK-38M08D 2500 Units / Tape & ReelMC78M08ACDTRKG DPAK-3(Pb-Free)8M08D MC78M08CT TO-22078M08CT 50 Units / Rail MC78M08CTG TO-220(Pb-Free)78M08CT MC78M08ACT TO-22078M08ACT MC78M08ACTG TO-220(Pb-Free)78M08ACT MC78M08ABDT T J = -40° to +125°CDPAK-38M08A 75 Units / Rail MC78M08ABDTG DPAK-3(Pb-Free)8M08A MC78M08ABDTRK DPAK-38M08A 2500 Units / Tape & ReelMC78M08ABDTRKG DPAK-3(Pb-Free)8M08A MC78M08ABT TO-22078M08ABT 50 Units / Rail MC78M08ABTG TO-220(Pb-Free)78M08ABT MC78M08BDT DPAK-38M08B 75 Units / Rail MC78M08BDTG DPAK-3(Pb-Free)8M08B MC78M08BDTRK DPAK-38M08B 2500 Units / Tape & ReelMC78M08BDTRKG DPAK-3(Pb-Free)8M08B MC78M08BT TO-22078M08BT 50 Units / Rail MC78M08BTGTO-220(Pb-Free)78M08BT†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.DeviceVoltageTemperature RangePackage Marking Shipping †MC78M09CDT 9.0 VT J = 0° to +125°CDPAK-378M0975 Units / Rail MC78M09CDTG DPAK-3(Pb-Free)78M0975 Units / Rail MC78M09CDTRK DPAK-378M092500 Units / Tape & Reel MC78M09CDTRKG DPAK-3(Pb-Free)78M092500 Units / Tape & ReelMC78M09CT TO-22078M09CT 50 Units / Rail MC78M09CTG TO-220(Pb-Free)78M09CT 50 Units / Rail MC78M09BDT T J = -40° to +125°CDPAK-38M09B 75 Units / Rail MC78M09BDTG DPAK-3(Pb-Free)8M09B 75 Units / Rail MC78M09BDTRK DPAK-38M09B 2500 Units / Tape & Reel MC78M09BDTRKG DPAK-3(Pb-Free)8M09B 2500 Units / Tape & ReelMC78M12CDT 12 VT J = 0° to +125°CDPAK-378M1275 Units / Rail MC78M12CDTG DPAK-3(Pb-Free)78M12MC78M12CDTRK DPAK-378M122500 Units / Tape & ReelMC78M12CDTRKG DPAK-3(Pb-Free)78M12MC78M12ACDT DPAK-38M12D 75 Units / Rail MC78M12ACDTGDPAK-3(Pb-Free)8M12D MC78M12ACDTRK DPAK-38M12D 2500 Units / Tape & ReelMC78M12ACDTRKG DPAK-3(Pb-Free)8M12D MC78M12CT TO-22078M12CT 50 Units / Rail MC78M12CTG TO-22078M12CT MC78M12ACT TO-22078M12ACT MC78M12ACTG TO-220(Pb-Free)78M12ACT MC78M12ABDT T J = -40° to +125°CDPAK-38M12A 75 Units / Rail MC78M12ABDTG DPAK-3(Pb-Free)8M12A MC78M12ABDTRK DPAK-38M12A 2500 Units / Tape & ReelMC78M12ABDTRKG DPAK-3(Pb-Free)8M12A MC78M12ABT TO-22078M12ABT 50 Units / Rail MC78M12ABTG TO-220(Pb-Free)78M12ABT MC78M12BDT DPAK-38M12B 75 Units / Rail MC78M12BDTG DPAK-3(Pb-Free)8M12B MC78M12BDTRK DPAK-38M12B 2500 Units / Tape & ReelMC78M12BDTRKG DPAK-3(Pb-Free)8M12B MC78M12BT TO-22078M12BT 50 Units / Rail MC78M12BTGTO-220(Pb-Free)78M12BT†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.DeviceVoltageTemperature RangePackage Marking Shipping †MC78M15CDT 15 VT J = 0° to +125°CDPAK-378M1575 Units / Rail MC78M15CDTG DPAK-3(Pb-Free)78M15MC78M15CDTRK DPAK-378M152500 Units / Tape & ReelMC78M15CDTRKG DPAK-3(Pb-Free)78M15MC78M15ACDT DPAK-38M15D 75 Units / Rail MC78M15ACDTG DPAK-3(Pb-Free)8M15D MC78M15ACDTRK DPAK-38M15D 2500 Units / Tape & ReelMC78M15ACDTRKG DPAK-3(Pb-Free)8M15D MC78M15CT TO-22078M15CT 50 Units / Rail MC78M15CTG TO-220(Pb-Free)78M15CT MC78M15ACT TO-22078M15ACT MC78M15ACTG TO-220(Pb-Free)78M15ACT MC78M15ABDT T J = -40° to +125°CDPAK-38M15A 75 Units / Rail MC78M15ABDTG DPAK-3(Pb-Free)8M15A MC78M15ABDTRK DPAK-38M15A 2500 Units / Tape & ReelMC78M15ABDTRKG DPAK-3(Pb-Free)8M15A MC78M15ABT TO-22078M15ABT 50 Units / Rail MC78M15ABTG TO-220(Pb-Free)78M15ABT MC78M15BDT DPAK-38M15B 75 Units / Rail MC78M15BDTG DPAK-3(Pb-Free)8M15B MC78M15BDTRK DPAK-38M15B 2500 Units / Tape & ReelMC78M15BDTRKG DPAK-3(Pb-Free)8M15B MC78M15BT TO-22078M15BT 50 Units / Rail MC78M15BTGTO-220(Pb-Free)78M15BT†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.DeviceVoltageTemperature RangePackage Marking Shipping †MC78M18CDT 18 VT J = 0° to +125°CDPAK-378M1875 Units / Rail MC78M18CDTG DPAK-3(Pb-Free)78M18MC78M18CDTRK DPAK-378M182500 Units / Tape & ReelMC78M18CDTRKG DPAK-3(Pb-Free)78M18MC78M18CT TO-22078M18CT 50 Units / Rail MC78M18CTG TO-220(Pb-Free)78M18CT MC78M18BT T J = -40° to +125°CTO-22078M18BT MC78M18BTG TO-220(Pb-Free)78M18BT MC78M20CT 20 VT J = 0° to +125°C TO-22078M20CT 50 Units / Rail MC78M20CTG TO-220(Pb-Free)78M20CT MC78M20BT T J = -40° to +125°C TO-22078M20BT MC78M24CT 24 VT J = 0° to +125°CTO-22078M24CT MC78M24CTG TO-220(Pb-Free)78M24CT MC78M24BT T J = -40° to +125°C TO-22078M24BT MC78M24BTGTO-220(Pb-Free)78M24BT†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.DPAK-3 DT SUFFIX CASE 369C-01 ISSUE OV SDIM MIN MAX MIN MAXMILLIMETERSINCHESA0.2350.245 5.97 6.22B0.2500.265 6.35 6.73C0.0860.094 2.19 2.38D0.0270.0350.690.88E0.0180.0230.460.58F0.0370.0450.94 1.14G0.180 BSC 4.58 BSCH0.0340.0400.87 1.01J0.0180.0230.460.58K0.1020.114 2.60 2.89L0.090 BSC 2.29 BSCR0.1800.215 4.57 5.45S0.0250.0400.63 1.01U0.020---0.51---V0.0350.0500.89 1.27Z0.155--- 3.93---NOTES:1.DIMENSIONING AND TOLERANCINGPER ANSI Y14.5M, 1982.2.CONTROLLING DIMENSION: INCH.ǒmminchesǓSCALE 3:1*For additional information on our Pb-Free strategy and solderingdetails, please download the ON Semiconductor Soldering andMounting Techniques Reference Manual, SOLDERRM/D.SOLDERING FOOTPRINT*TO-220, SINGLE GAUGET SUFFIXCASE 221AB-01ISSUE ONOTES:1.DIMENSIONING AND TOLERANCING PER ANSION Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer's technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATION。
