Nighthawk® M1 Mobile RouterData SheetAdvance the way you WiFi on-the-go – the Nighthawk M1 Mobile Router byNETGEAR is the world’s first commercial Gigabit Class LTE Mobile Router to achieve maximum download speeds of 1 Gbps, bringing our mobile broadband experience to unparalleled new heights. Combining ultrafast download speeds, support for Cat. 16 LTE Advanced and 4-band Carrier Aggregation into one device, this premium Mobile Router provides the best Internet connection experience possible whether it is used on-the-go, at home, or during your travels.As an ultimate mobile router fit for travels, the Nighthawk M1 can provide a secure LTE connection to share with up to 20 WiFi devices in your family, stream and play multimedia to keep everyone entertained, and work as a portable base station with Arlo security cameras to monitor your surroundings at any destination. With a simple and intuitive app-driven user experience, parental control options, an improved JumpBoost feature and a long-lasting battery for all day continuous use,the Nighthawk M1 meets Gigabit LTE class at its fullest potential, and delivers a mobile broadband experience like never before.Introducing the World’s First Gigabit Class LTE Mobile RouterKey Features and Benefits• Superfast Mobile Broadband Internet to deliver incredible download speeds up to 1 Gbps and upload speeds up to 150Mbps • Supports 4GX LTE Advanced Category 16 with 4-band Carrier Aggregation • Media Streaming from microSD, USB or external hard drive to all connected devices • Supports the Arlo Smart Home Security System as the base station for Arlo camera • Travel Router with WiFi/Ethernet offloading capabilities • Always-on connection you can count on and share with up to 20 WiFi devices on-the-go • Parental controls to protect or guard access to online content • Increase network performance and reduce interference with 802.11ac and Dual-Band 2.4GHz/5GHz dual concurrent WiFi • Simple, intuitive NETGEAR app-driven user experience to monitor data usage, manage device and network settings • Powerful, long-lasting battery for all day continuous use • Improved JumpBoost feature to charge smartphones and small portable USB devices • Two TS-9 connectors available for optional 4G/3G antennas • Simple setup with no software to install – just power on and connectTechnical SpecificationsTechnology/Bands• Max 1 Gbps download speeds, and 150 Mbps upload speeds • LTE CAT 16, 4-band CA and 4x4 MIMO • Up to 4X Carrier Aggregation• LTE/4GX 700/900/1800/2100/2600 MHz • 3G 850/900/1900/2100 MHz Chipset• Qualcomm MDM9x50WiFi• Full Dual-Band/Dual-Concurrent WiFi • WiFi 802.11 b/g/n 2.4 GHz; WiFi 802.11 a/n/ac 5 GHz Data Usage Meter• Manage your data and how much you use Media• Micro SD with Media Server/ NAS capabilities Max Theoretical Downlink Speed • 1 Gbps Dimensions• 105.5 (L) x 105.5 (W) x 20.35 (H) mm WeightExternal Display • 2.4” LCD panel Battery Life• All day & Night - 5040mAh battery for all day use External Ports • Ethernet Port • USB-C Port• Dual TS-9 external3G/4G antennas connectors Package Contents• NETGEAR Nighthawk M1 Mobile Router • Removable Lithium Ion (Li-ion) Battery • AC charger and USB Type-C cable • Quick Start Guide• Manufacturer’s warranty cardNighthawk® M1 Mobile RouterData SheetUSB Type-CUSB Type-A TS-9Connector (Main)TS-9Connector (Secondary)As your ultimate travel router, the Nighthawk M1 is apremium mobile WiFi router , plus MORESUPER FAST WIRELESS INTERNETPARENTAL CONTROLARLO SUPPORTTRAVEL ROUTER MEDIA STREAMINGLONG LASTING BATTERYDUAL BAND DUAL CONCURRENT WIFIIMPROVED JUMPBOOSTSIMPLE INTUITIVE APP DRIVEN USER EXPERIENCEALL DAYNighthawk® M1 Mobile RouterData SheetIN THE HOMEIN THE HOTELStream with your Nighthawk® M1 and Telstra TV™(sold separately) to watch your favourites on demandDURING TRAVELS OR UPON ARRIVAL Keep your Nighthawk® M1 and entireteam connectedHOME AWAY FROM HOMEPortable camera monitoring with themobile router as a base station for Arlo camerasON THE ROADPortable for taking it with you anywhereON THE WAYUsing your Nighthawk® M1 as a mediahubOpt for WiFi/Ethernet offloadingIdeal UsesEthernet CableTr ansfer to RouterDownload MoviesHotelSecured Interneton an WiFi devicesWatch Movies on Any WiFi Devices。

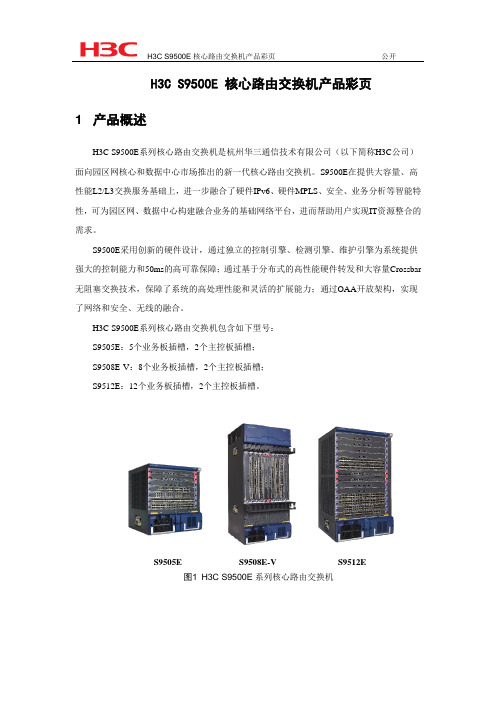

H3C S9500E 核心路由交换机产品彩页1 产品概述H3C S9500E系列核心路由交换机是杭州华三通信技术有限公司（以下简称H3C公司）面向园区网核心和数据中心市场推出的新一代核心路由交换机。
S9500E在提供大容量、高性能L2/L3交换服务基础上，进一步融合了硬件IPv6、硬件MPLS、安全、业务分析等智能特性，可为园区网、数据中心构建融合业务的基础网络平台，进而帮助用户实现IT资源整合的需求。
S9500E采用创新的硬件设计，通过独立的控制引擎、检测引擎、维护引擎为系统提供强大的控制能力和50ms的高可靠保障；通过基于分布式的高性能硬件转发和大容量Crossbar 无阻塞交换技术，保障了系统的高处理性能和灵活的扩展能力；通过OAA开放架构，实现了网络和安全、无线的融合。
H3C S9500E系列核心路由交换机包含如下型号：S9505E：5个业务板插槽，2个主控板插槽；S9508E-V：8个业务板插槽，2个主控板插槽；S9512E：12个业务板插槽，2个主控板插槽。
S9505E S9508E-V S9512E图1H3C S9500E系列核心路由交换机2 产品特点●创新的体系架构保障业务的高可靠S9500E采用了创新的硬件设计，通过独立的控制引擎、检测引擎、维护引擎为系统提供强大的控制能力和50ms的高可靠保障。
独立的控制引擎，提供强大的主控CPU，轻松处理各种协议报文及控制报文，并支持协议报文精细控制，为系统提供完善的抗协议报文攻击的能力；独立的检测引擎，提供高可靠和高性能的FFDR（Fast Fault Detection and Restoration-快速故障检测及恢复）CPU系统，该CPU系统专门用于BFD、OAM等快速故障检测，并与控制平面的协议实行联动，支持快速保护切换和快速收敛，可以实现50ms的故障检测，保障业务不中断；独立的维护引擎，智能化的EMS（Embedded Maintenance Subsystem-嵌入式维护子系统）CPU系统，该CPU系统支持电源智能管理，可以支持单板顺序上电（降低单板同时上电带来的电源冲击，提高设备寿命，降低电磁辐射，降低系统功耗），设备在线状态检查。
SWMRCR-01载波硬路由核心模块产品说明书SWMRCR-01载波路由核心模块产品说明书珠海中慧微电子有限公司2013年1月版权声明本资料是为了让用户根据用途选择合适的珠海中慧微电子有限公司（以下简称中慧微电子）的产品而提供的参考资料，不转让属于中慧微电子或者第三方所有的知识产权以及其他权利的许可。
在使用本资料所记载的信息并对有关产品是否适用做出最终判断前，请您务必将所有信息作为一个整体系统来评价。
对于本资料所记载的信息使用不当而引起的损害、责任问题或者其他损失，中慧微电子将不承担责任。
未经中慧微电子的许可，不得翻印或者复制全部或部分本资料的内容。
今后日常产品的更新会在适当的时候发布，恕不另行通知。
在购买本资料所记载的产品时，请预先向中慧微电子确认最新信息，并请您通过各种方式关注中慧微电子公布的信息，包括中慧微电子的网站（）。
如果您需要了解有关本资料所记载的信息或产品的详情，请与珠海中慧微电子有限公司的技术服务部门联系，我们会为您提供全方位的技术支持。
版权所有：珠海中慧微电子有限公司© Copyright 2012珠海中慧微电子有限公司保留随时修改本说明书的权利是珠海市中慧微电子有限公司的注册商标。
本说明书中出现的其它商标，归商标所有者所有。
目录1产品概述 (1)1.1简介 (1)1.2主要技术指标 (1)1.3主要应用 (1)1.4主要特点 (1)2工作原理框图 (2)3接插座 (2)3.1接插座与集中器相连 (3)3.2接插座与电力猫相连 (3)4结构尺寸 (4)5安装说明 (4)6贮存与运输 (5)7保证期限 (5)1产品概述1.1简介为了简化与规范集中器的载波通信与路由管理接口，中慧微电子研发了载波硬路由核心模块SWMRCR-01，简称路由板(见图1)。
其符合了国家电网公司和南方电网公司的电力用户用电信息采集系统相关规范。
通过自组网通信路由算法，它记忆并存储各个子节点的相位、中继路径等节点路由信息，并根据信道状态以及信号品质对各电表的中继节点进行动态维护、优化路由表，满足了载波系统对网络路由管理的高度智能化要求。

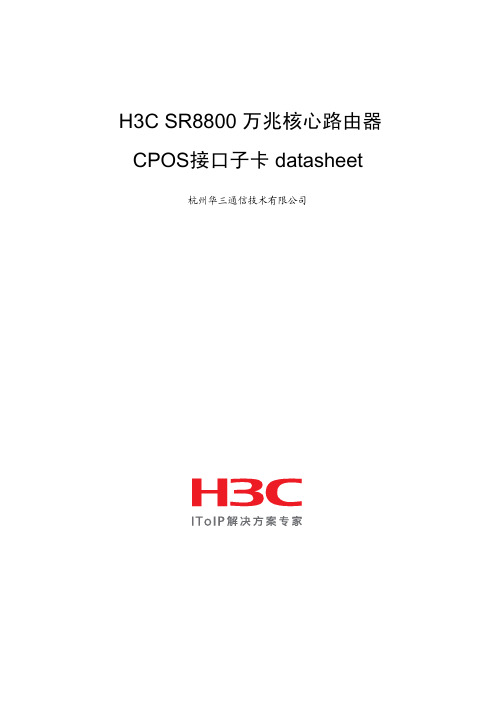

H3C SR8800万兆核心路由器CPOS接口子卡 datasheet杭州华三通信技术有限公司目录1 概述 (1)2 主要特点 (1)2.1 通道化指定带宽 (1)2.2 支持多链路捆绑 (1)3 业务特性 (1)4 子卡规格 (2)4.1 子卡类型列表 (2)4.2 PIC-CL1G8L (2)4.2.1 子卡实物图 (2)4.2.2 子卡属性 (2)4.3 PIC-CL2G8L (3)4.3.1 子卡实物图 (3)4.3.2 子卡属性 (3)4.4 PIC-CLF2G8L (4)4.4.1 子卡实物图 (4)4.4.2 子卡属性 (4)4.5 PIC-CLF4G8L (4)4.5.1 子卡实物图 (4)4.5.2 子卡属性 (4)5 运行环境与标准 (5)1 概述H3C SR8800产品是H3C公司自主研发的新一代万兆核心路由器。
H3C SR8800万兆核心路由器提供4种155M支持通道化到E1/T1的CPOS接口子卡：z PIC-CL1G8L：提供1个OC-3 CPOS光接口（可通道化到E1/T1）和8个千兆以太网光接口z PIC-CL2G8L：提供2个OC-3 CPOS光接口（可通道化到E1/T1）和8个千兆以太网光接口z PIC-CLF2G8L：提供2个OC-3 CPOS光接口（可通道化到E3/T3/E1/T1）和8个千兆以太网光接口z PIC-CLF4G8L：提供4个OC-3 CPOS光接口（可通道化到E3/T3/E1/T1）和8个千兆以太网光接口2 主要特点2.1 通道化指定带宽PIC-CL1G8L 、PIC-CL2G8L CPOS接口子卡的每个端口可以通道化到E1/T1，支持时隙捆绑功能。
PIC-CLF2G8L 、PIC-CLF4G8L CPOS接口子卡的每个端口可以通道化到E3/T3/E1/T1，E1/T1支持时隙捆绑功能。
2.2 支持多链路捆绑CPOS接口支持多链路PPP的捆绑(MP-Group)，每个CPOS接口支持捆绑84个MP-Group，每个MP-Group支持12个相同速率的串口捆绑。
Nighthawk ®—AC1900 WiFi Cable Modem Router Performance & Use• AC1900 WiFi—up to 1.9 Gbps• 1.6GHz processor speed boosts performance for streaming & gaming• Two-in-One—Cable Modem + WiFi Router • Save up to $120 a year 1—No rental fees• I deal for XFINITY ® Blast/Extreme, Spectrum ® data plans • Beamforming+ for whole home HD coverage • 24x8 Channel Bonding enables up to 960 Mbps ‡ download speeds• W orks with cable Internet providers like XFINITY ® from Comcast, Spectrum ®, Cox ®, Cablevision & moreFastest Cable SpeedUp to 960 Mbps ‡24x8CHANNEL BONDINGWIFI CABLE MODEM ROUTER• Two-in-One—Cable Modem + WiFi Router• Save up to $120 a year—No rental fees • Required for the fastest Internet speed tiers from Cable service providers • Highly reliable—Maintains download speeds during peak Internet usage hours • 24x8 Channel Bonding technology enables up to 960 Mbps ‡ download speeds•S upports XFINITY ® from Comcast, Spectrum ®, Cox ®, Cablevision & moreSTREAMING & GAMING• Max WiFi speed up to 1.9 Gbps with AC1900• P owerful 1.6GHz processor boosts performance for streaming & gaming • E njoy uninterrupted HD video streaming with AC1900 WiFi and 24x8 channel bonding • Beamforming+ for whole home HD coverage• Access & share stored media via USB port• Find & play stored media on TVs & game consoles via DLNA ® server • Parental Controls for safer web surfingMOBILE• Beamforming+ boosts speed & range for all your mobile WiFi devices • High-powered amplifiers increase range for mobile devices throughout your home• Print from an iPad ® or iPhone ® with NETGEAR genie ® making any printer AirPrint ® compatible• EZ Mobile Connect—Scan QR code to connect to your home Network1Nighthawk ®—AC1900 WiFi Cable Modem RouterData SheetC7000Get the fastest WiFi currently available on WiFi cable modem routers & enjoy a blazing-fast, lag-free WiFi experience for gaming, video streaming or surfing.SpeedEXTREMELY FAST WIFI—Up to 1.9 Gpbs combined WiFi speed for extreme gaming and streamingAC WiFiGIGABIT WIFI—Next-generation WiFi now at Gigabit speeds GIGABIT WIRED—Ideal for HD gaming & videoPROCESSOR—1.6GHz processor speed boosts wireless, wired, and WAN-to-LAN1.6GHzWiFi RangeULTIMATE RANGE—WiFi coverage throughout very large homes Homes come in all shapes & sizes & Nighthawk AC1900 WiFi Cable Modem Router provides WiFi coverage no matter where you connect in your home.With NETGEAR, sharing across your network is fun & easy, anything from accessing stored data, media, photos & music to wireless printing.SharingDLNA ®—Find & play your media on DLNA TVs & game consoles READYSHARE ® USB—Share your USB hard drive & printerBEAMFORMING+—Boosts speed, reliability, & range of WiFi connectionsANTENNAS—High-powered amplifiers & three dual band internal antennasDOCSIS ® 3.0—Up to 24 times faster cable Internet speeds than 2.0CHANNEL BONDING—Extremely fast cable Internet speeds during peak hours 24x8Nighthawk ®—AC1900 WiFi Cable Modem RouterData SheetC7000There’s nothing more frustrating than dropped connections! With NETGEAR’s advanced features & best-in-class technology, you’ll reduce interference & enjoy more reliable WiFi connectivity.Reliable ConnectionsSIMULTANEOUS DUAL BAND—Reduces interference for better connections to more WiFi devicesBEAMFORMING+—Boosts speed, reliability, & range of WiFi connectionsNighthawk ®—AC1900 WiFi Cable Modem RouterData SheetC7000BEAMFORMING+—FOR MORE RELIABLE CONNECTIONSNETGEAR genie ®—HOME NETWORKING SIMPLIFIEDUnlike typical WiFi routers that just blast the WiFi signals in all directions, with Beamforming+ the router & device communicate with each other, so the router can directly beam the WiFi signal to the device. The result is a stronger, faster, more reliable connection that is locked in even when the device is moved around the home.• Focuses WiFi signals from the wireless router to WiFi devices like smartphones, tablets & laptops• Automatic signal management checks with your device to keep WiFi signal at its optimal strength• Designed for home environments to support multiple WiFi device connections for highest quality• Extends WiFi coverage, reduces dead spots, & boosts signal strength • Beamforming+ boosts speed, reliability & range for WiFi devicesNETGEAR genie makes getting the most out of your home network fun & easy. Installation is almost effortless - just by opening a browser, genie helps you setup your NETGEAR WiFi Router & connect all of your WiFi devices. Genie also allows you to easily monitor, connect & control your home network from a PC, Mac, tablet or smartphone. With NETGEAR genie you can share & stream music or videos, diagnose & repair network issues, set up parental controls & more.• Home network manager• Makes any printer AirPrint ® compatible to print from an iPad ® or iPhone ®• MyMedia—Find & play media files in your network• EZ Mobile Connect—Scan QR code to connect to your home network • Turbo Transfer—Quickly transfer files within your home network across various devices 40% faster than normal file transfers • For PC, Mac ®, iPhone ®, iPad ®, & Android ® devicesNighthawk ®—AC1900 WiFi Cable Modem Router Data SheetC7000 Connection DiagramUSB 2.0 portGigabitEthernetCoaxNighthawk ®—AC1900 WiFi Cable Modem RouterData SheetC7000This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller.*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.†Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput and wireless coverage will vary.Network conditions and environmental factors, including volume of network traffic, interference, and building construction may lower actual data throughput and wireless coverage. NETGEAR makes no express or implied representations or warranties about this product's compatibility with any future standards. 802.11ac 1900 Mbps is approximately 3x faster than 802.11n 450 Mbps. Up to 1900 Mbps wireless speeds achieved when connecting to other 802.11ac 1900 Mbps devices.‡Maximum rate is derived from DOCSIS® 3.0 specifications and actual throughput will vary depending on your Internet subscription with your provider. NETGEAR makes no express or implied representations or warranties about this product's compatibility with any future standards.Customer-owned modems may not be compatible with certain cable networks. Please check with your cable provider to confirm this NETGEAR modem is allowed on your cable network. This product is not compatible with Cable bundled voice services.For indoor use only.NETGEAR, and the NETGEAR Logo, ReadySH ARE and genie are trademarks of NETGEAR, Inc. Mac, Mac OS, the Mac logo, iPad and iPhone are trademarks of Apple Inc. Any other trademarks mentioned herein are for reference purposes only. ©2017 NETGEAR, Inc.NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, /supportD-C7000-5Package Contents•N ighthawk ® AC1900 WiFi Cable Modem Router (C7000)• Ethernet cable • Quick install guide • Power adapterPhysical Specifications• Dimensions: 9.66 x 8.31 x 1.7 in • Weight: 1.6 lbWarranty• /warrantyTechnical Specifications• Built-in high-speed DOCSIS ® 3.0 Channel Bonding Cable Modem • 24 downstream & 8 upstream channels • AC1900(************************ support +1300 Mbps @5GHz 11ac)†• Simultaneous Dual Band WiFi—Tx/Rx 3x3 (2.4GHz) + 3x3 (5GHz)• B eamforming+—For more reliable connections on 2.4 and 5GHz bands • Powerful 1.6GHz processor• Memory: 128 MB flash and 256 MB RAM • ReadySH ARE ® USB—Share your USB hard drive and printer• IPv6 support (Internet Protocol Version 6)System Requirements• Microsoft ® Windows 7, 8, 10, Vista ®, XP ®, 2000, Mac OS ®, UNIX ®, or Linux ®• Microsoft ® Internet Explorer ® 5.0, Firefox ® 2.0, Safari ® 1.4, or Google Chrome ™ 11.0 browsers or higherSecurity• C ustomized free URL to set up personal FTP server • Guest network access—separate & secure • WiFi Protected Access ® (WPA/WPA2—PSK)• Double firewall protection (SPI and NAT)• Denial-of-service (DoS) attack preventionStandards• USB 2.0 port• IEEE ® 802.11 b/g/n 2.4GHz + 256 QAM support • IEEE ® 802.11 a/n/ac 5GHz • Four (4) 10/100/1000 Mbps—(4 LAN) Gigabit Ethernet ports。
资料版本: T1-08231X-20071109-C-1.01 BOM: 3123A11XSR02SRP2E3单板手册1 单板标识前面板上标有丝印：SR02SRP2E3。
2 单板简介交换路由板，适用于SR8805/SR8808/SR8812核心路由器。
z单板规格表1SR02SRP2E3单板规格属性规格CPU MPC7447AFlash 64MBBootROM 1MBSDRAM 1GB（缺省），2GB（可选）CF卡 256MB（缺省），1GB（可选）单板尺寸（W×D） 366.7mm×340mm对外接口1个Console口，支持路由器的本地配置管理1个AUX口，支持路由器的远程拨号配置管理1个网管口：支持10/100/1000BASE-T接口1个RS232/485口，RS485支持级联。
1个CF卡插槽2个SMB同轴三级时钟输出接口2个SMB同轴三级时钟输入接口2个USB接口最大功耗135Wz面板及指示灯面板和指示灯如下图所示。
查询SR8808供应商捷多邦，专业PCB打样工厂，24小时加急出货资料版本: T1-08231X-20071109-C-1.01 BOM: 3123A11X(7)(8)(1)(9)(10)(11)(4)(5)(6)(3)(2)(1): SMB同轴时钟接口 (2):CF卡接口(3): CF卡状态指示灯（CFS） (4):10/100/1000BASE-T接口(5): USB接口 (6):RS232/485口(7): Console口 (8):AUX口(9): 系统复位键 (10):业务处理板状态指示灯(11): SR02SRP2E3状态指示灯Figure 1 SR02SRP2E3面板示意图说明：各接口及指示灯的详细说明请参见“产品安装手册”。
单板指示灯含义参见下表。
表2SR02SRP2E3单板指示灯说明指示灯状态含义灯亮表示交换网处于工作状态SFS灯灭表示交换网处于备用状态灯常亮表示单板有故障灯常灭表示单板有故障RUN（绿）灯闪烁表示单板正常工作灯灭表示单板无告警ALM（红）灯亮表示单板有告警灯亮表示该单板为主用ACT（绿）灯灭表示该单板为备用常亮表示CF卡在位，CF卡处于操作空闲状态，CF卡不能热插拔。
H3C SR8800万兆核心路由器接口管理配置指导杭州华三通信技术有限公司资料版本：5PW101-20100910产品版本：SR8800-CMW520-R3328Copyright © 2010 杭州华三通信技术有限公司及其许可者版权所有，保留一切权利。
未经本公司书面许可，任何单位和个人不得擅自摘抄、复制本书内容的部分或全部，并不得以任何形式传播。
H3C、、Aolynk、、H3Care、、TOP G、、IRF、NetPilot、Neocean、NeoVTL、SecPro、SecPoint、SecEngine、SecPath、Comware、Secware、Storware、NQA、VVG、V2G、V n G、PSPT、XGbus、N-Bus、TiGem、InnoVision、HUASAN、华三均为杭州华三通信技术有限公司的商标。
对于本手册中出现的其它公司的商标、产品标识及商品名称，由各自权利人拥有。
由于产品版本升级或其他原因，本手册内容有可能变更。
H3C保留在没有任何通知或者提示的情况下对本手册的内容进行修改的权利。
本手册仅作为使用指导，H3C尽全力在本手册中提供准确的信息，但是H3C并不确保手册内容完全没有错误，本手册中的所有陈述、信息和建议也不构成任何明示或暗示的担保。
前言H3C SR8800万兆核心路由器配置指导共分为十三本手册，介绍了SR8800万兆核心路由器各软件特性的原理及其配置方法，包含原理简介、配置任务描述和配置举例。
《接口管理配置指导》主要介绍了以太网端口、WAN接口、POS接口、CPOS接口、E-CPOS接口、Loopback接口和Null 接口等内容。
前言部分包含如下内容：z读者对象z本书约定z产品配套资料z资料获取方式z技术支持z资料意见反馈读者对象本手册主要适用于如下工程师：z网络规划人员z现场技术支持与维护人员z负责网络配置和维护的网络管理员本书约定1.命令行格式约定格式意义粗体命令行关键字（命令中保持不变、必须照输的部分）采用加粗字体表示。
WY-MT7620A核心板邮票口用户手册 (2)1 简介 (2)2 性能特点 (3)3 尺寸与管脚定义 (3)4 电气特性 (9)5 设计指南 (9)6 Recommended Reflow Profile Recommended (14)WY-MT7620A核心板邮票口用户手册1 简介WY-MT7620A是无涯物联科技最新推出的一款基于MT7620A的高性能嵌入式WiFi模组。
MT7620A是一款SOC芯片，也就是常说的的“片上系统”，顾名思义，这款芯片集成了CPU、Baseband、Radio等功能。
通俗点讲，这要给这款芯片加上一些外围电路，就很方便的设计一款无线路由出来。
这也是联发科一直讲的Turn Key的思路。
为了缩短大家的产品开发时间和减小开发难度，我们特意开发出了这么一款核心板，不需要其他任何外围电路，上电就能工作起来。
自2013年，智能路由突然成为曝光度超高的词汇，从极路由，到目前形形色色的各种智能路由。
伴随着智能路由的曝光度提升，联发科的路由芯片也越来越为人所知，而最为人知的就是MT7620这款芯片。
极一S、小米路由、百度路由、磊科Ni360都采用MT7620作为主控芯片。
当然，除了做路由，MT7620A也广泛用于智能家居、医疗、农业、工业等各处需要联网的地方。
2 性能特点·超小体积，长宽仅40mm × 40mm（市面上最小最紧凑功能最全的7620A模块）·300Mbps WiFi，580MHz主频，引出MT7620A的所有接口·标配32MB Flash、128MB DDR23 尺寸与管脚定义封装信息：we will supply the reference pads design.pins reference size:管脚定义：Pin Ouer Name Description1 ND_GND These pin shared withNand and SD interface2 ND_WP/SD_WP3 ND_RB_N/SD_CLK4 ND_CLE/SD_CD5 ND_ALE/SD_CMD6 ND_D7/BT_ANT7 ND_D6/BT_WACT8 ND_D5/BT_AUX9 ND_D4/BT_STAT 10 ND_D3/SD_D3 11 ND_D2/SD_D2 12 ND_D1/SD_D1 13 ND_D0/SD_D014 TXD Uart Full15 RXD 16 DSR_N 17 DCD_N 18 DTR_N 19 RIN 20CTS_N4 电气特性5 设计指南This part contains the schematic and PCB design notes for the customer who use the Core moudle for their own production. You can see our reference design and the MT7620A Spec for more detail design information.5.1 PowerThere is only one external power 3.3VDC for the Core Moudle. Other powers as 1.8VDC,1.5VDC and 1.2VDC are all generated from the Core Moudle internally.Power consumption:For the 3.3VDC,the main board should supply at least 1A current for the module, for security use ,the Margin should be 30% at least.Power Ripple:Small ripple is necessary for better performance, especially for the RF property. The 3.3VDC ripple should be ≤50mV at idle state and ≤100mV at full load.5.2 Ethernet PortThere are 5 10/100M Ethernet port available form the Core moudle. For the MT7620A chip has already integrated the 10/100M Ethernet PHY, so the customer can only connect the ports to the Transformer directly. These Port are changed to Current type. As seen in the below.5.3 Ethernet PortThere are 2 RGMII(1000M) Ethernet port available form the Core moudle.Plz Follow the reference Design.5.4 USBUSB 2.0 interface are available, customer can configure them to host orhost/device by change the software configuration. Careful layou include equal length, appropriate space and 90ohm differential resistor for the differential USB signal is necessary.ESD protection can be reserved.5.5 UART PortThere are two UART port One is UART Lite ，The other one is UART Full，Both can be used as the serial port for system debug or used as communication with Zigbee For attention, the external UART chip like RS232 is necessary when using the port.The connector on your main board can be usb,DB9,and any other kinds. Pull up to 3.3V on the RXD is necessary.One I2C port can be use. External pull up to 3.3V is necessary.6.7 PCMThe PCM Pin be share with UARTF/I2S，detailed Info Plz refer Datasheet.6.8 PCIEOne PCIE interface ，Can be used as expand the PCIE wifi card(802.11a/802.11ac)and storage.The Core Module Supply One Standard GPIO(GPIO0)，But almost 45 GPIO be used with UART Full,RGMII,I2C,ETH,at all。
产品简介Cisco ASR 9000系列汇聚多业务路由器产品概述Cisco® ASR 9000系列具备卓越的可扩展性、运营商级可靠性、出色的环保设计、高度的灵活性，以及富有吸引力的全新性价比，它为运营商以太网传输领域树立了一个全新的标杆，同时还重新定义了了运营商以太网演进路线。
Cisco ASR 9000系列有两种型号（图1）：Cisco ASR 9010路由器和Cisco ASR 9006路由器。
Cisco ASR 9000系列路由器采用Cisco IOS® XR操作系统，并拥有全面的系统冗余特性和完善的网络永续性机制，旨在提供真正的运营商级可靠性。
Cisco ASR 9000系列还提供了服务和应用级智能特性，致力于实现优化的视频交付和移动汇聚。
最后，Cisco ASR 9000系列还可简化并增强服务交付网络的运营和部署工作。
图1. Cisco ASR 9000系列Cisco ASR 9000系列是一款操作简单、面向未来进行优化的平台，采用了下一代硬件和软件。
这款下一代平台的部分亮点包括：•Cisco IOS XR模块化操作系统：Cisco ASR 9000系列采用了Cisco IOS XR操作系统，后者因在核心网部署中大获成功的Cisco CRS运营商级路由系统平台而闻名。
Cisco IOS XR操作系统专为Cisco ASR 9000系列等分布式系统而构建，使用微内核架构来实现真正的模块化。
这种模块化特性可支持软件映像升级或模块变更期间的不间断操作，而丝毫不会影响正常的平台运行。
•完全分布式系统：“Cisco ASR 9000系列以完全分布的方式运行，即所有数据包转发决定和动作都在各个线卡上完成。
这些高密度以太网线卡配备了专门的网络处理器，可提供灵活的编程基础设施以及高密度分层服务质量(H-QoS)服务、安全性、以及集成同步以太网。
Cisco ASR 9000系列的分布式特性通过相应地扩大规模有效改进了永续性，支持诸如双向转发检测(BFD)和以太网运行、管理和维护(E-OAM)等特性。
