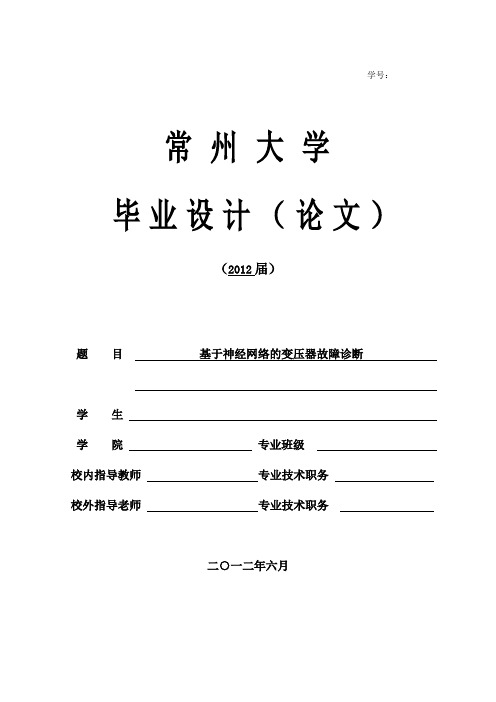

学号：常州大学毕业设计（论文）（2012届）题目基于神经网络的变压器故障诊断学生学院专业班级校内指导教师专业技术职务校外指导老师专业技术职务二○一二年六月摘要现代设备技术水平不断提高，生产率、自动化要求越来越高，相应地，故障也随之增加。
变压器作为电力系统中非常复杂而且非常重要的设备，其工作状态对电力系统、企事业单位生产及居民生活具有十分重要的影响。
如何提前对变压器故障进行预测和在故障发生后迅速判断故障原因是提高工作效率、减少经济损失的一个重要途径。
因此研究变压器故障诊断对保证系统安全、可靠、经济运行，提高经济效益具有重要意义。
概率神经网络（probabilistic neural networks）结构简单、训练简洁，利用概率神经网络模型的强大的非线性分类能力，将故障样本空间映射到故障模式空间中，可形成一个具有较强容错能力和结构自适应能力的诊断网络系统，从而提高故障诊断的准确率。
本文在对油中溶解气体分析法进行深入分析后，以改良三比值法为基础，建立基于概率神经网络的故障诊断模型。
然后，选取23组变压器故障原始样本数据对概率神经网络模型进行“学习”训练，获得了具有预测诊断功能的网络模型；选取10组变压器在线监测数据作为测试数据，并查看了训练数据网络的分类效果图和预测数据网络的分类效果图，结果只有两个样本判断错误，即只有两种变压器的故障类型判断错误，验证了基于概率神经网络在变压器故障预测诊断处理中的有效性。
关键词故障诊断概率神经网络变压器油中溶解气体分析THE STUDY OF POWER TRANSFORMER FAULT DIAGNOSIS BASED ON ARTIFICIAL NEURAL NETWORKAbstractWith the technical level of modern facility improves continually, the fault probability increases greatly. Power transformer has a very significant influence to power system, enterprise s production and people s life. How to forecast transformer s fault ahead and find the fault reason quickly after the fault is a good way to increase work efficiency and lighten the economy losing.Probabilistic neural network has the advantages of simple structure, simple training, the use of a probabilistic neural network model for strong nonlinear classification, fault sample space is mapped to a fault in the pattern space, can form a strong fault tolerant ability and structure of adaptive diagnosis system, so as to improve the accuracy of fault diagnosis. Based on the dissolved gas in oil analysis in-depth analysis, in order to improve the ratio of three as the basis, establish the fault diagnosis based on probabilistic neural network model. Then, select 23 group of transformer fault original sample data on the probabilistic neural network model of" learning" training, obtain the predictive diagnosis of functional network model; select 10 group of transformer on-line monitoring data as test data, and show the training data network classification effect diagram and the predicted data network classification effect chart, only the results of a sample of two errors of judgment, that only two transformer fault type judgement error, verification based on probabilistic neural network in transformer fault forecast and diagnosis treatment effectiveness.Keywords fault diagnosis, probability neural networks（PNN）,power transformer,Dissolved Oas Analysis（DGA）摘要 (1)目录 (3)1 绪论 (4)1.1 国内外发展状况 (4)1.2 研究目的和意义 (4)1.3 论文工作介绍 (5)2 变压器故障诊断 (6)2.1 诊断工程概述 (6)2.2 故障诊断运作机理研究 (6)2.3 变压器故障诊断系统相关背景 (7)2.4 变压器故障诊断方法 (8)3 神经网络 (12)3.1 神经网络概述 (12)3.2神经网络的应用 (12)3.3神经网络的发展方向 (13)3.4 神经网络的结构 (14)3.5 概率神经网络概述 (16)3.6 概率神经网络与BP网络的比较选择 (17)4 基于概率神经网络的变压器故障诊断研究 (19)4.1 仿真环境简介 (19)4.2故障诊断模型建立 (20)4.3 基于概率神经网络的变压器故障诊断实现 (21)4.4 仿真结果及讨论 (22)5 总结 (25)参考文献 (26)致谢 (27)故障诊断（FD，Fault Diagnosis）始于机械设备故障诊断。

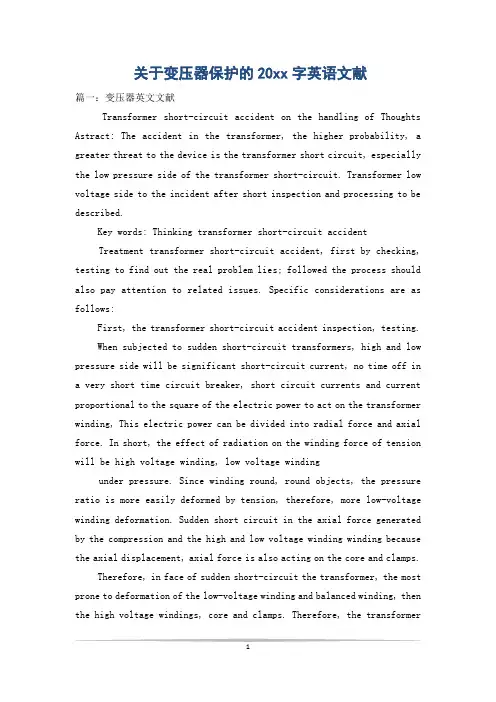

关于变压器保护的20xx字英语文献篇一：变压器英文文献Transformer short-circuit accident on the handling of Thoughts Astract: The accident in the transformer, the higher probability, a greater threat to the device is the transformer short circuit, especially the low pressure side of the transformer short-circuit. Transformer low voltage side to the incident after short inspection and processing to be described.Key words: Thinking transformer short-circuit accidentTreatment transformer short-circuit accident, first by checking, testing to find out the real problem lies; followed the process should also pay attention to related issues. Specific considerations are as follows:First, the transformer short-circuit accident inspection, testing. When subjected to sudden short-circuit transformers, high and low pressure side will be significant short-circuit current, no time off in a very short time circuit breaker, short circuit currents and current proportional to the square of the electric power to act on the transformer winding, This electric power can be divided into radial force and axial force. In short, the effect of radiation on the winding force of tension will be high voltage winding, low voltage windingunder pressure. Since winding round, round objects, the pressure ratio is more easily deformed by tension, therefore, more low-voltage winding deformation. Sudden short circuit in the axial force generated by the compression and the high and low voltage winding winding because the axial displacement, axial force is also acting on the core and clamps. Therefore, in face of sudden short-circuit the transformer, the most prone to deformation of the low-voltage winding and balanced winding, then the high voltage windings, core and clamps. Therefore, the transformershort-circuit accident, the inspection is to check the main winding, core, clamps and other parts.First, the winding of the inspection and testWhen the transformer short-circuit in the electric power under the action of winding the same time by pressing, pulling, bending and other forces acting, concealment caused by the failure of its strong, is not easy to check and repair, so the short circuit fault should focus on checking winding situation.(A) of the transformer DC resistance measurementAccording to the transformer DC resistance measurements to check the winding DC resistance unbalance and compared with previous measurements, can effectively examine the transformer winding damage. For example, a low voltage transformer short-circuit side after the accident to the DC resistance ofC increased by about 10% of new shares which may be winding to determine the situation, and finally winding hanging out, it was discovered off one phase winding C shares.(2) measurement of transformer winding capacitance.By the winding capacitance between the windings, and the cake layer capacitance and the winding-fat capacitor. This capacitor and the winding and core and in the gap, winding and core of the gap between the windings, the gap between cake layers and on. When the winding deformation, the general was “S”-shaped bend, which leads to winding on the core of the gap distance smaller, winding capacitance to ground will be larger, but the smaller the gap, the greater the capacitance changes, so winding electrical capacity can indirectly reflect the degree of winding deformation.(3) check after hanging hood.After lifting the transformer cover, check out the transformer ifinternal molten slag or copper slag or aluminum pieces of paper, high-density cable, you can determine the occurrence of a greater degree of winding deformation and off shares, etc. In addition, the shift from the winding Pad or off, clips and other bits, the pressure screw displacement can also determine the extent of the damage the windings. 2, core and clamps checks.Transformer core should have sufficient mechanical strength. Core of the mechanical strength is by all clamping on the core strength of their connections to guarantee. When the electric power generated when the winding, winding clamping axial force of the reaction will be offset, if the clamps, pull strength of less than the axial force plate when the clamps, pull board and the winding will be damaged. Therefore, we should carefully check the core, clamps, pull the state board and its connections.(1) Check the yoke iron core chips have ran up and down situation.(2) should be measured through the core and the core of the insulation resistance of the screw, check whether the damaged wearing coat-core screw; check the drawing board, drawing board connector for damage.(3) because of short circuit in the transformer, the plate and the clamps mayoccur between the displacement pressure of the nail plate and the yoke pulled off the ground connection, or over-current chip burning, so the plate for the winding, in addition to check the pressure screw, plate damaged, we must also check the winding and the pressure on the yoke screw and the ground connection is reliable.3, the analysis of transformer oil and gas.After suffering the impact of transformer short-circuit in the gas relay large amounts of gas may accumulate, it can be taken after the accident in the transformer gas relay the gas and oil inside the transformer for laboratory analysis, to determine the nature of theincident.Second, the transformer short-circuit fault handling precautions. 1, pieces of insulation should be replaced to ensure the performance of insulators.When dealing with the replacement of insulation parts should be tested for performance, and meet the requirements before use. In particular insulation on the lead frame wood attention should be paid. Wood should be placed before instal lation of about 80 ℃ hot transformer oil immersion period of time to ensure that the insulation of wood. 2, transformer oil filling the transformer insulation test should be conducted after 24 hours of rest.Because some of the moisture in the insulation pieces soak in the hot oil a longer time, the water will spread to the surface of insulation, if the fuelinjection after the test check the insulation defects often do not come out. For example, a 31.5MVA the 110kV transformer low voltage side of thereplacement of the treatment of a stent kV copper block, transformer filling of all the normal tests, 10kV low voltage side of the core, clamps, and insulation resis tance is reduced to about 1MΩ. Cover by hanging after examination, found that the stent 10kV copper block insulation is very low. Therefore, the transformer insulation test should be conducted 24 hours after the grease still more reliable.3, the core back to the equipment should be noted that the sharp corners.Installed in the back yoke, attention should be angular core chip, and timely measurement of oil duct insulation, in particular, pay attention to the oil channel at the chip corners, to prevent overlap resulting core chip multi-point grounding. For example, one of the 220kV120MVA transformers, replacementof the low pressure side of the winding back yoke installed, due to back loaded in the chip did not pay attention to sharp corners, and no timely measure the oil duct insulation, after installation of insulation to measure the oil channel 0Finally, take a long time to find the core chip, due to short circuit the oil channel sharp corners.关于处理变压器短路事故的几点思考摘要：在变压器事故中，发生概率较高、对设备威胁较大的就是变压器短路事故，特别是变压器低压侧发生短路。
基于人工神经网络的电力系统故障诊断技术研究人工神经网络技术在电力系统的应用中具有广泛的应用前景。
其中，电力系统故障诊断技术是电力系统运行中最为重要的技术之一。
本文将探讨基于人工神经网络的电力系统故障诊断技术研究，以及在电力系统故障诊断方面进行改进的方法。
一、人工神经网络人工神经网络(简称ANN)是模拟人脑神经元之间相互连接的计算系统，以实现信息处理和知识存储，并能自适应地从经验中学习。
ANN的结构与人脑的结构相似，包括输入层、隐含层和输出层。
一般采用BP神经网络进行模型训练，训练完成后可以用于诊断设备故障。
二、基于ANN的电力系统故障诊断方法在电力系统的诊断过程中，ANN具有很好的特征提取和模式识别能力，可以有效地解决复杂设备故障的问题。
目前基于ANN的电力系统故障诊断方法主要分为以下几种：1. BP神经网络模型BP神经网络是一种典型的ANN模型，其训练和预测过程都比较简单。
在电力系统故障诊断方面，BP神经网络可以处理包括高压开关、变压器、发电机等在内的多种设备的故障。
2. RBF神经网络模型RBF神经网络是一种具有高度非线性特征的ANN模型。
在电力系统故障诊断中，RBF神经网络可以有效地处理低压电力设备的故障。
并且，该模型具有很强的学习能力和泛化能力，可以在复杂环境下进行预测和诊断。
3. SOM神经网络模型SOM神经网络是一种具有很强的自组织特征的ANN模型。
在电力系统故障诊断中，SOM神经网络主要用于电力监控系统中，可以对设备的状态进行实时监测和处理。
三、改进基于ANN的电力系统故障诊断方法无论是BP神经网络、RBF神经网络还是SOM神经网络，都存在着一些缺点和不足。
为了使其在电力系统故障诊断方面发挥更大的作用，需要进行改进。
当前，主要有如下改进方法：1. 搭建深度神经网络模型深度神经网络(Deep Neural Network)可以通过多层隐藏层来提高模型的非线性拟合能力。
在应用于电力系统故障诊断时，搭建深度神经网络模型可以提高模型的准确率和诊断精度。
毕业论文（设计）题目基于神经网络的变压器故障检测姓名文学号 0817014004所在院(系)电气工程学院专业班级自控081班指导教师侯波完成地点理工学院（北区）501楼2012年 5 月20日基于神经网络的变压器故障检测文（理工学院电气工程学院自动化专业081班， 723003）指导教师：侯波[摘要]:电力变压器作为电力系统中最为重要的设备之一，对电力系统安全、可靠、优质、经济的运行起着决定性作用，因而，必须尽量减少变压器故障的产生。
电力变压器故障检测对电力系统的经济安全运行有着重要的意义。
油中溶解气体法，是最有效的发现和检测变压器故障的方法之一。
神经网络对外界具有很强的模式识别分类能力和联想记忆能力，因此神经网络可以用于变压器故障检测。
基于神经网络的以变压器油中溶解气体为特征量的故障检测方法为变压器故障检测提供了新的途径。
本文将采用三种不同的神经网络（BP网络、RBF网络、支持向量机）应用于变压器故障检测中，分别介绍这几种网络的基本结构和原理，并进行模型设计和仿真。
[关键词]:变压器故障检测神经网络 BP算法 RBF算法支持向量机Based on neural network of transformer fault detectionAuthor：Yang wen(Grade 08， Class 01，Major Automation，Department of Electrical Engineering ，Shaanxi University of Technology ，Hanzhong ，723003，Shaanxi )Tutor :Hou BoAbstract :as the most important part of the power system equipment,the power transformer to the safety of the electricity system, reliable and high quality, and the operation of the economy plays a decisive role, therefore, we must try to reduce the of transformer faults. Power transformer of electric power system fault detection of the economic security has important significances. The dissolved gas method, is one the most effective and found that one of the ways to detect transformer faults. Neural network has a strong pattern recognition classification ability and associative memory ability to the outside world, so neural network can be used for the transformer fault detection. Based on neural network to gases dissolved in transformer oil for the characteristic features of fault detection method for transformer fault detection offers a new way. Therefore.This article will use three different neural network (BP network, RBF network, support vector machine) used in transformer fault detection, are introduced the basic structure of the network and the principle and design and simulation model.key words : transformer ,fault detection ,neural network ,BP algorithm ,RBF algorithm ,support vector machine.目录1 绪论 (1)1.1课题研究的目的和意义 (1)1.2国外发展状况 (1)1.3变压器故障种类 (1)1.4目前变压器故障诊断的主要方法 (3)1.5本文研究的主要容 (4)2 基于神经网络的变压器故障检测机理和基本理论 (5)2.1 故障诊断技术 (5)2.2神经网络 (5)2.3 变压器故障与油中溶解气体的关系 (7)3 基于BP神经网络的变压器故障检测模型 (9)3.1 BP网络 (9)3.2 BP网络模型设计 (13)3.2.1 BP网络参数的确定 (13)3.2.2基于BP神经网络变压器故障检测模型 (15)3.2.3数据归一化处理 (15)3.3 系统仿真，训练与测试 (16)3.3.1网络训练 (16)3.3.2网络测试 (18)4 基于RBF神经网络的变压器故障检测模型 (20)4.1 RBF网络 (20)4.1.1 RBF网络概述 (20)4.1.2 RBF网络原理 (20)4.2 RBF网络模型设计 (21)4.2.1 RBF网络模型 (21)4.2.2 RBF网络参数的选取 (22)4.2.3 RBF网络训练方法的确定 (22)4.3 仿真结果 (22)5 基于支持向量机的变压器故障检测模型 (24)5 .1 支持向量机（SVM） (24)5 .1.1 支持向量机（SVM）基本理论 (24)5.1.2 支持向量机在故障诊断中的应用现状 (28)5.1.3 基于支持向量机变压器故障多分类算法 (28)5.2 变压器故障特征诊断模型设计 (29)5.2.1 变压器故障特征诊断参数选取 (29)5.2.2 故障诊断流程 (29)5.3系统仿真 (29)5.3.1 故障模型训练和参数寻优 (29)5.3.2 测试结果与分析 (33)6 结论与展望 (35)致 (36)参考文献 (37)英文文献 (39)1 绪论1 .1课题研究的目的和意义现代设备技术水平不断提高，生产率、自动化要求越来越高，相应地，故障也随之增加。
……………………. ………………. …………………毕业设计装题目：基于BP神经网络的变压器故障诊断研究订线……………….……. …………. …………. ………毕业设计（论文）原创性声明和使用授权说明原创性声明本人郑重承诺：所呈交的毕业设计（论文），是我个人在指导教师的指导下进行的研究工作及取得的成果。
尽我所知，除文中特别加以标注和致谢的地方外，不包含其他人或组织已经发表或公布过的研究成果，也不包含我为获得及其它教育机构的学位或学历而使用过的材料。
对本研究提供过帮助和做出过贡献的个人或集体，均已在文中作了明确的说明并表示了谢意。
作者签名：日期：指导教师签名：日期：使用授权说明本人完全了解大学关于收集、保存、使用毕业设计（论文）的规定，即：按照学校要求提交毕业设计（论文）的印刷本和电子版本；学校有权保存毕业设计（论文）的印刷本和电子版，并提供目录检索与阅览服务；学校可以采用影印、缩印、数字化或其它复制手段保存论文；在不以赢利为目的前提下，学校可以公布论文的部分或全部内容。
作者签名：日期：学位论文原创性声明本人郑重声明：所呈交的论文是本人在导师的指导下独立进行研究所取得的研究成果。
除了文中特别加以标注引用的内容外，本论文不包含任何其他个人或集体已经发表或撰写的成果作品。
对本文的研究做出重要贡献的个人和集体，均已在文中以明确方式标明。
本人完全意识到本声明的法律后果由本人承担。
作者签名：日期：年月日学位论文版权使用授权书本学位论文作者完全了解学校有关保留、使用学位论文的规定，同意学校保留并向国家有关部门或机构送交论文的复印件和电子版，允许论文被查阅和借阅。
本人授权大学可以将本学位论文的全部或部分内容编入有关数据库进行检索，可以采用影印、缩印或扫描等复制手段保存和汇编本学位论文。
涉密论文按学校规定处理。
作者签名：日期：年月日导师签名：日期：年月日注意事项1.设计（论文）的内容包括：1）封面（按教务处制定的标准封面格式制作）2）原创性声明3）中文摘要（300字左右）、关键词4）外文摘要、关键词5）目次页（附件不统一编入）6）论文主体部分：引言（或绪论）、正文、结论7）参考文献8）致谢9）附录（对论文支持必要时）2.论文字数要求：理工类设计（论文）正文字数不少于1万字（不包括图纸、程序清单等），文科类论文正文字数不少于1.2万字。

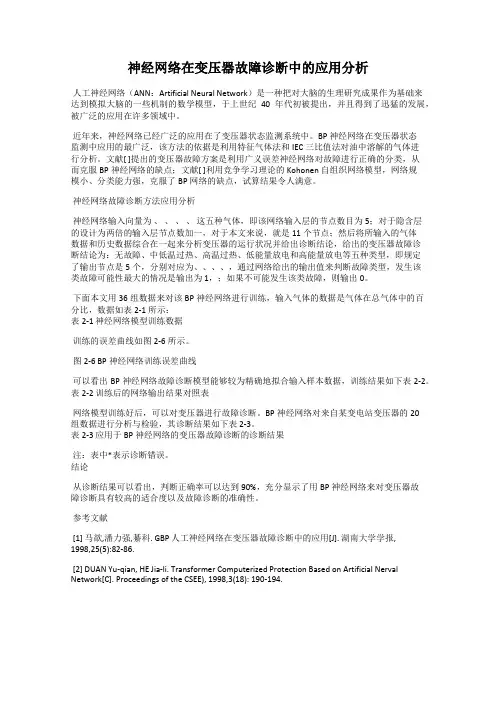

神经网络在变压器故障诊断中的应用分析人工神经网络（ANN：Artificial Neural Network）是一种把对大脑的生理研究成果作为基础来达到模拟大脑的一些机制的数学模型，于上世纪40年代初被提出，并且得到了迅猛的发展，被广泛的应用在许多领域中。
近年来，神经网络已经广泛的应用在了变压器状态监测系统中。
BP神经网络在变压器状态监测中应用的最广泛，该方法的依据是利用特征气体法和IEC三比值法对油中溶解的气体进行分析。
文献[ ]提出的变压器故障方案是利用广义误差神经网络对故障进行正确的分类，从而克服BP神经网络的缺点；文献[ ]利用竞争学习理论的Kohonen 自组织网络模型，网络规模小、分类能力强，克服了BP网络的缺点，试算结果令人满意。
神经网络故障诊断方法应用分析神经网络输入向量为、、、、这五种气体，即该网络输入层的节点数目为5；对于隐含层的设计为两倍的输入层节点数加一，对于本文来说，就是11个节点；然后将所输入的气体数据和历史数据综合在一起来分析变压器的运行状况并给出诊断结论，给出的变压器故障诊断结论为：无故障、中低温过热、高温过热、低能量放电和高能量放电等五种类型，即规定了输出节点是5个，分别对应为、、、、，通过网络给出的输出值来判断故障类型，发生该类故障可能性最大的情况是输出为1，；如果不可能发生该类故障，则输出0。
下面本文用36组数据来对该BP神经网络进行训练，输入气体的数据是气体在总气体中的百分比，数据如表2-1所示：表2-1 神经网络模型训练数据训练的误差曲线如图2-6所示。
图2-6 BP神经网络训练误差曲线可以看出BP神经网络故障诊断模型能够较为精确地拟合输入样本数据，训练结果如下表2-2。
表2-2 训练后的网络输出结果对照表网络模型训练好后，可以对变压器进行故障诊断。
BP神经网络对来自某变电站变压器的20组数据进行分析与检验，其诊断结果如下表2-3。
表2-3 应用于BP神经网络的变压器故障诊断的诊断结果注：表中*表示诊断错误。
基于BP人工神经网络的变压器故障诊断杨蕾【期刊名称】《河南科技》【年(卷),期】2015(000)018【摘要】电力变压器是电网中最重要的电力设备,对变压器故障及时和准确的预测是确保电网安全稳定运行的必要前提.本文针对变压器故障的特点和类型,利用油中气体含量分析的方法,通过对其故障数据的采集,使用BP人工神经网络方法对变压器进行故障诊断.最后,通过实例仿真,验证了BP神经网络可以有效地运用到变压器故障诊断中.%Transformer is the main power equipment in power system, the in-time and accurate prediction of trans?former faults is the premise to guarantee the safe and stable operation of power system.In view of characteristics and?types of transformers faults,through the fault data collection,BP neural network is used to diagnose transformer fault by the method of gas content analysis in oil.Finally, simulation results indicate that BP neural network can be effec?tively applied to transformer fault diagnosis.【总页数】3页(P136-138)【作者】杨蕾【作者单位】国网河南省电力公司电力科学研究院计量中心,河南郑州 450000【正文语种】中文【中图分类】TP183;TM407【相关文献】1.基于BP人工神经网络的电力变压器故障诊断研究 [J], 谭子兵;黄秀超;钟建伟2.基于BP人工神经网络平潭海域赤潮叶绿素a浓度模型演算研究 [J], 许阳春; 张明峰; 苏玉萍; 洪颐; 苏金洙; 陈晶晶3.GBP人工神经网络在变压器故障诊断中的应用 [J], 马歆;潘力强;綦科4.基于BP人工神经网络喷射成形7055铝合金的本构模型 [J], 罗锐;曹赟;邱宇;崔树刚;周皓天;周易名;袁飞;张肖佩佩;程晓农5.基于BP人工神经网络的快速工程估算研究综述 [J], 韩思淼;黄剑因版权原因，仅展示原文概要，查看原文内容请购买。

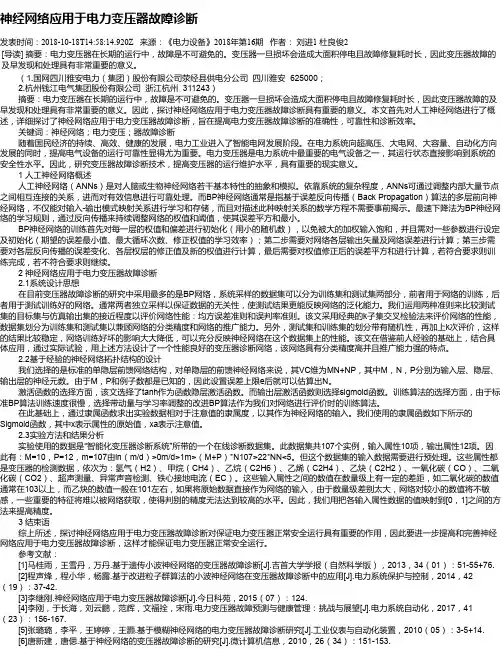

神经网络应用于电力变压器故障诊断发表时间：2018-10-18T14:58:14.920Z 来源：《电力设备》2018年第16期作者：刘进1 杜良俊2[导读] 摘要：电力变压器在长期的运行中，故障是不可避免的。
变压器一旦损坏会造成大面积停电且故障修复耗时长，因此变压器故障的及早发现和处理具有非常重要的意义。
（1.国网四川雅安电力（集团）股份有限公司荥经县供电分公司四川雅安 625000；2.杭州钱江电气集团股份有限公司浙江杭州 311243）摘要：电力变压器在长期的运行中，故障是不可避免的。
变压器一旦损坏会造成大面积停电且故障修复耗时长，因此变压器故障的及早发现和处理具有非常重要的意义。
因此，探讨神经网络应用于电力变压器故障诊断具有重要的意义。
本文首先对人工神经网络进行了概述，详细探讨了神经网络应用于电力变压器故障诊断，旨在提高电力变压器故障诊断的准确性，可靠性和诊断效率。
关键词：神经网络；电力变压；器故障诊断随着国民经济的持续、高效、健康的发展，电力工业进入了智能电网发展阶段。
在电力系统向超高压、大电网、大容量、自动化方向发展的同时，提高电气设备的运行可靠性显得尤为重要。
电力变压器是电力系统中最重要的电气设备之一，其运行状态直接影响到系统的安全性水平。
因此，研究变压器故障诊断技术，提高变压器的运行维护水平，具有重要的现实意义。
1 人工神经网络概述人工神经网络（ANNs）是对人脑或生物神经网络若干基本特性的抽象和模拟。
依靠系统的复杂程度，ANNs可通过调整内部大量节点之间相互连接的关系，进而对有效信息进行可靠处理。
而BP神经网络通常是指基于误差反向传播（Back Propagation）算法的多层前向神经网络，不仅能对输入-输出模式映射关系进行学习和存储，而且对描述此种映射关系的数学方程不需要事前揭示。
最速下降法为BP神经网络的学习规则，通过反向传播来持续调整网络的权值和阈值，使其误差平方和最小。

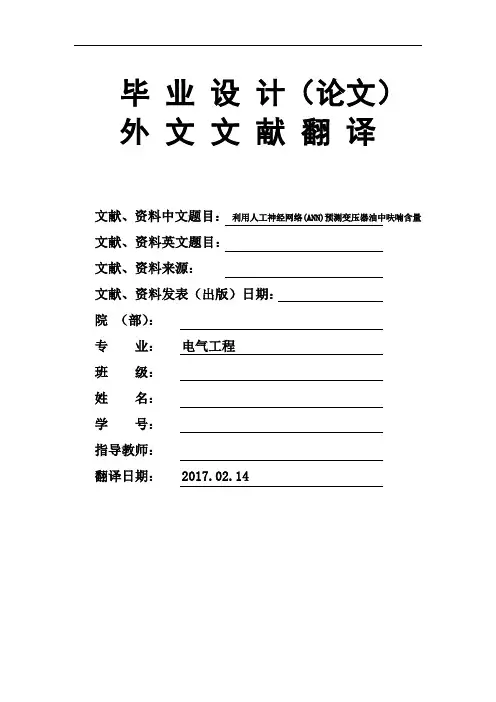

毕业设计（论文）外文文献翻译文献、资料中文题目：利用人工神经网络(ANN)预测变压器油中呋喃含量文献、资料英文题目：文献、资料来源：文献、资料发表（出版）日期：院（部）：专业：电气工程班级：姓名：学号：指导教师：翻译日期： 2017.02.14利用人工神经网络(ANN)预测变压器油中呋喃含量阿联酋沙迦，美国沙迦大学，摘要-在变压器中，变压器油中对油浸渍纸的老化状态评估的呋喃化合物浓度能有效的测量，呋喃含量浓度变化率对纤维素绝缘材料恶化率及其严重性的评估至关重要，这促进了变压器油中呋喃含量作为变压器状态评估及相应的资产管理的有效参数，在本文中，利用人工神经网络(ANN)对油参数和呋喃含量之间联系的研究，神经网络根据不同输入参数的组合已知纤维素纸降解相关的变压器来预测呋喃含量，这些输入参数是一氧化碳（CO）、二氧化碳(CO2)，水含量，酸度，击穿电压(BDV)。
