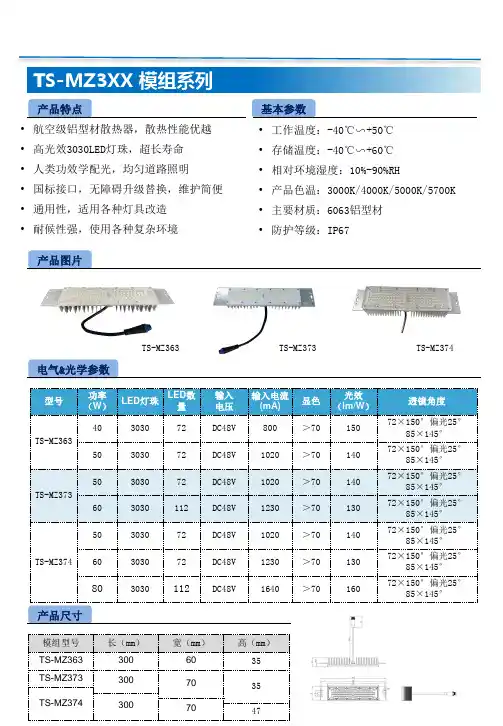

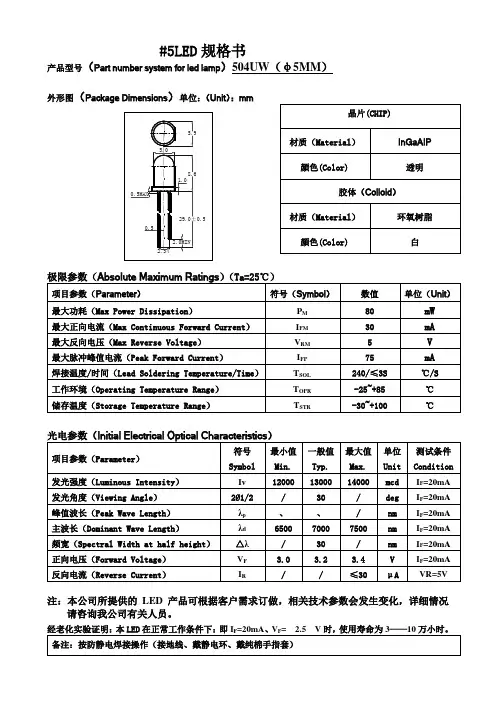

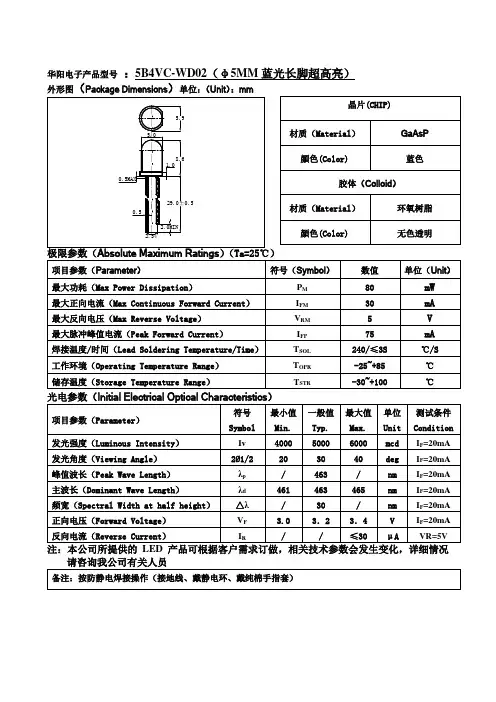

led规格书模板

Features :*Low power consumption *Small efficiency.V ersatile mounting on p.c board Unit :mmdimensions are in millimeters (inches).Tolerance is ±0.25mm (.010”)unless otherwise Specifications are subject to change without2(+)G 3(+)R 1(+)B 5(-)4(-)6(-)5(-)4(-)6(-)2(+)G3(+)R1(+)BAbsolute Maximum Ratings at Ta=25℃Parameter Rating UnitPower Dissipation(Pd)70mW Peak Forward Current(1/10Duty Cycle0.1mspulse Width100mAForward Current(IF)20mAReverse V oltage(VR)5V Operating Temperature Range-20℃~+80℃Storage Temperature Range-30℃~+100℃Lead Soldering Temperature210℃for5SecondsSelection Guide`Parameter Min Tvo Max Unit Test ConditionLuminous Intensity(IV)Red750----Mcd If=20mA Green1600——Mcd If=20mA Blue350450Mcd If=20mAThe wavelengthRed620----630nm If=20mA Green517——530nm If=20mA Blue460——475nm If=20mAForward V oltage(VF)Red 1.8---- 2.4V If=20mA Green 3.0---- 3.4V If=20mA Blue 3.0 3.4V If=20mAReverse Current(IR)----5µA Vr=5V Selection Guide：Lens color ChipWater clearMaterial Emittedcolorλp(nm) InGaN/GaNRed620Green525Blue472１９００900Typical Electrical/Optical Characteristics Curves (R):：Typical Electrical/Optical Characteristics Curves (G):LabeP/N:The product model IV:Luminous intensity rank VF:Forward voltage rank TC:Color temperature Q`T:numberQC:Production orderMoisture Resistant PackagingNote:unless mentioned,tolerance of +/-0.1mm,unit:LableAluminum moisture-proof bagDesiccantSMDThe produc ts take note1；Graph one ：Hands material taking ：1.Hand have sweat ，Sweat on silicon surface existing optical pollution ，Influence luminous 。

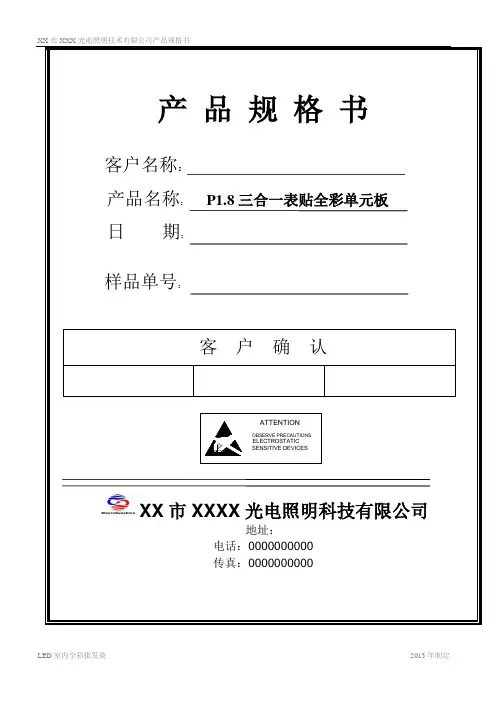

产品规格书客户名称：产品名称：P1.8三合一表贴全彩单元板日期：样品单号：客户确认ATTENTIONOBSERVE PRECAUTIONSELECTROSTATICSENSITIVE DEVICESXX市XXXX光电照明科技有限公司地址：电话：0000000000传真：0000000000产品规格书型号：P4三合一表贴全彩单元板MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH4) 技术参数（Technical parameters）单位UNIT 参数值（parameters values ）物理点间距（Pixel pitch）mm 1.846模块尺寸（Panel size）mm L192*H96物理密度（Physical density）/m2294982像素基色（Pixel configuration）R/G/B 1,1,1驱动方式（Driving method）动态扫描Dynamic scanning LED封装方式（LED Encapsulation）SMD 1010黑灯显示分辨率（Display resolution）DOTS 104(W)*52(H)LED参数（LED Parameter) MCDNMR:120-140 G:360-435 B:80-100R:622.5-625 G:525-527.5 B:462.5-465模块工作电压（Module working voltage）VDc 5平均功耗（Module consumption ）W 180-250模块视角（Viewing angle）Deg. 160 度换帧频率（Frame Frequency）Hz ≥60刷新频率（Refresh frequency）Hz ≥900白平衡亮度（Equilibrium brightness）cd/ m2≥1200工作环境温度（Working environmenttemperature）0C -10~60工作环境湿度（Working environmenthumidity）RH10%～70%白场色温（Colour temperature）7500K-10000K 灰度/颜色（Gray scale/color）≥16.7M color输入信号（Input signal）RF\ S-Video\ RGB etc 平均无故障时间（Mean free error time）Hours ＞5000寿命（Life）Hours 100000杂点率（Lamp failure frequency）＜0.0001图片（Picture）。

Technical Data Sheet Top View LEDs67-21/X2C-BXXXXXXXXX/2TCarrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel.Note: Tolerance unless mentioned is ±0.1mm; Unit = mmMoisture Resistant PackagingLabelAluminum moisture-proof bagDesiccantLabelEverlight Electronics Co., Ltd. Device No. : DSE-0002584 Prepared date: 12-Oct.-2009Rev. 1Page: 11 of 16Prepared by: Ryan ChenTechnical Data Sheet Top View LEDs67-21/X2C-BXXXXXXXXX/2TReliability Test Items and ConditionsThe reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Test Hours/Cycles 6 Min. Sample Size 22 PCS.No. 1Items Reflow SolderingTest Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RHAc/Re 0/12Temperature Cycle300 Cycles22 PCS.0/13Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs.22 PCS.0/14 5 6 722 PCS. 22 PCS. 22 PCS. 22 PCS.0/1 0/1 0/1 0/1Everlight Electronics Co., Ltd. Device No. : DSE-0002584 Prepared date: 12-Oct.-2009Rev. 1Page: 12 of 16Prepared by: Ryan ChenTechnical Data Sheet Top View LEDs67-21/X2C-BXXXXXXXXX/2TPrecautions for Use1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life are 168 hours under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile1~5 °C / Sec. 260°C. Max. 10 Sec. Max. 1~5 °C / Sec. Pre-heating 180~200°C 60 Sec. Max. Above 220°C120 Sec. Max.3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board.Everlight Electronics Co., Ltd. Device No. : DSE-0002584 Prepared date: 12-Oct.-2009Rev. 1Page: 13 of 16Prepared by: Ryan ChenTechnical Data Sheet Top View LEDs67-21/X2C-BXXXXXXXXX/2T4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.CTel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 Everlight Electronics Co., Ltd. Device No. : DSE-0002584 Prepared date: 12-Oct.-2009Rev. 1Page: 14 of 16Prepared by: Ryan Chen。

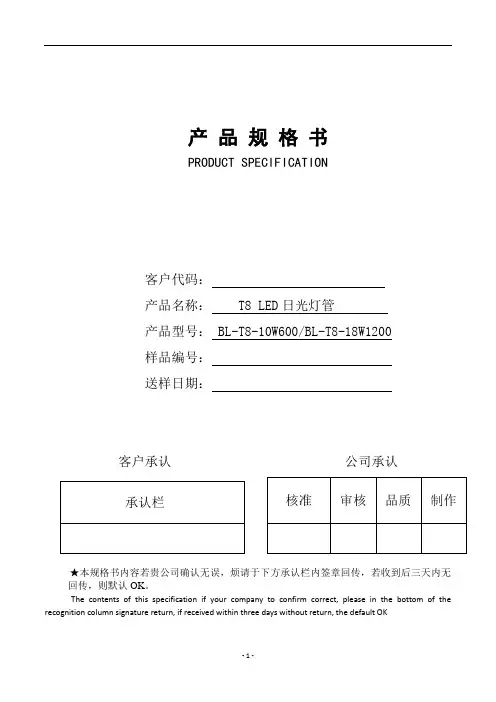

产 品 规 格 书PRODUCT SPECIFICATION客户代码：产品名称： T8 LED 日光灯管 产品型号： BL-T8-10W600/BL-T8-18W1200 样品编号： 送样日期：客户承认 公司承认★本规格书内容若贵公司确认无误，烦请于下方承认栏内签章回传，若收到后三天内无回传，则默认OK 。

The contents of this specification if your company to confirm correct, please in the bottom of the recognition column signature return, if received within three days without return, the default OK●产品特性Features1.采用1/2铝塑管结构，外观精致，散热效果好。

Using 1/2 aluminum pipe structure, good appearance ，good heat dissipating capacity 2.内置恒流驱动，高效，稳定。

Built-in constant current driver, high efficiency, stability3.采用进口贴片LED作为光源，光效高、寿命长。

Using the imported SMD as light source, high light efficiency, long life span.4. 响应时间快, LED的响应时间为纳秒级。

Quick response time, the LED response time is nanosecond.5.环保，没有重金属和有害气体。

Environmental protection, no heavy metals and harmful gas .6. 节能，比传统荧光灯节能80﹪。

*****工程招标物资技术规格书物资名称：LED灯包件号：ZM-01招标人（盖章）：********************二零一五年五月目录第一节总则 (1)1.大体要求 (1)2.技术规格一样规定 (2)3.技术文件及清单 (3)4.设备的备品备件及专用工具、仪表 (4)5.技术效劳与培训 (5)6.实验、查验、验收 (7)7.质量保证 (9)8.标志、铭牌、包装、运输、贮存 (10)9.供货保证 (12)10.附那么 (12)第二节一起条款 (13)1.工程概况 (13)2.隧道照明子系统工程概况 (13)3.利用环境条件 (13)4.接口 (17)5.其它 (19)第三节技术条件 (20)1.总那么 (20)2.概述 (21)3.采纳标准 (22)4.要紧技术参数 (23)5.铭牌及标识 (26)6.供货范围 (27)7.实验 (27)8.包装 (28)9.联络及技术效劳（含培训及现场效劳） (29)10.工厂实验 (29)11.标准及质量治理 (30)12.其它要求 (30)第四节需求一览表及报价要求 (30)1.需求一览表 (30)2.技术效劳 (30)3.备品备件、专用工具 (31)4.报价要求 (31)第一节总那么1. 大体要求1.1投标人应认真阅读招标人发出的招标书中所规定的各项条款，包括各项技术规格。

要求对技术规格书逐条应答，如有误差，必需提供详细的技术规格误差表并说明缘故。

1.2投标人必需保证其用于本工程产品的技术完整性，同时要求投标人对本招标书中未包括但工程应用所必需的内容进行补充。

1.3投标人应保证制造进程中的所有工艺、设备、材料等（包括外购件在内)均应符合本规格书的规定。

＊1.4 业绩和资质要求1.4.1投标人应有良好信誉，其产品近三年内没有发生过重大质量责任事故，生产企业无合同违约现象。

1.4.2投标物资须具有国家权威机构出具的产品型式实验报告和2012年以来质量查验报告（除型式实验报告之外）。

产品名称：
平板灯输入电压：
AC85-265V 客户编号：厂内编号： YY-GS24-31
1/4页
LED平板灯规格书
客户承认盖章签名
煜耀照明科技有限公司批准审核批准审核制作
余小芳
★产品特征
●高效节能：节能达到60%
●长寿命：可达到5年
●所用电源为高功率因数（0.94-0.99）电流谐波小，对电网运行干扰小，损耗小
●电源通过CE认证 EMC EMI符合欧盟要求，并通过LVD安全认证
●形状：方形
●尺寸：600 mm * 600 mm * 16 mm
●特殊光效设计，视角广
●宽电压输入，无辐射，无频闪
●特殊电路设计，每个LED的工作分开，避免单一灯珠损坏的影响问题
★应用
●宾馆照明
●会议室展览厅照明
●工厂及办公室照明
●商业展示馆照明
●会所及博物馆照明
●学校及事业单位照明
●医院照明
●需要节能照明的场所2/4页
★特性参数
●光源：SMD LED
●功率：30W
●光通量：3056Lm
●色温：5500～6200K
●重量：3.38KG
●使用环境温度：-20°～ 40°
●储藏温度：-20°～ 60°
电性及光特性参数
LED光衰
3/4页
★特性参数
备注：
1.所有尺寸的单位为毫米。

2.如没有特别的说明，产品公差定为±2mm.
注意：
1.安装之前请确保天花的承受重量。

2.安装之前请确保切断电源，必需按规格书要求来使用本产品。

3.此灯不防水。

4/4页。

led2835绿光规格书2835GREEN SPECIFICATION产品型号 Model NO.:YLT-led2835GC-520描述:2835绿光贴片发光二极管是行业内标准的封装产品，此类产品为高可靠性及应用范围非常广泛，此高可靠性的产品非常适用于半户外及户外灯具相关,高可靠性要求的应用场合。

特性:1.外形尺寸D imensions单位(Units):毫米(mm)2.光电特性Electrical / Optical characteristics1/10周期, 0.1 msec脉宽IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.½ Rja = Heat resistance from Dice to Ambient temperature (Ta) Rjs = Heat resistance from Dice to Solder temperature of Cathode Side (Ts) (3) 原始光电参数Initial Electrical/Optical Characteristics (TA=25ºC)(4)发光强度范围Luminous Intensity Ranking (TA=25ºC)允许误差± 10%Luminous Intensity Measurement allowance is ± 10%.(5)颜色范围Color Ranking (TA=25ºC)允许误差± 0.01Color Coordinates Measurement allowance is ± 0.01.3.包装PACKAGING(1)LEDS在装带之后纸箱包装. The LEDs are packed in cardboard boxes after taping.(2)装带规格Taping Specifications (单位:毫米Units:mm)(3)卷轴尺寸Reel Dimension装带数量2000个/卷2000Pcs/Reel(3) 最小包装标签注明以下:产品名称.批号.光电范围.数量.The label on the minimum packing unit shows ; Part Number, Lot Number, Ranking, Quantity.(4)请注意防水防潮Keep away from wate r, moisture in order to protect the LEDs.(5) 须采取适当防护措施,以防包装箱跌落或受到强力撞击造成对产品的损伤.The LEDS may be damaged if the boxes are dropped or receive a strong impact against them. so precautions must be taken to prevent any damage.4.可靠性RELIABILITY*) U.S.L.：Upper Standard Level **) L.S.L.：Lower Standard Level5.注意事项Cautions(1) 焊接条件Soldering Conditions本产品最多只可回焊两次,且在首次回焊后须冷却至室温之后方可进行第二次回焊.Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process. 推荐焊接条件(Recommended soldering conditions)有铅回焊（Lead Solder ）无铅回焊(Lead-Free Solder)推荐焊盘式样(Recommended Soldering Pattern ) 单位:毫米( Units:mm )(2)静电Static Electricity触摸LED时,推荐使用防静电手腕带或防静电手套.It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.所有装置、设备、机器均应接地.All devices, equipment and machinery must be properly grounded.静电损坏的LED会显示出异常特征:正向电压变低或在低电流时死灯.标准: I F=0.5mA时, V F > 2.0VDamaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (V F > 2.0V at I F=0.5mA)(3)防潮包装Moisture Proof Package使用防潮包装It is recommended that moisture proof package be used .(4)储藏Storage打开包装袋之前,LED在温度为30°C或更低湿度70%RH以下,可保存一年.Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.（5）打开包装之后,应在24hrs 内焊接完毕.After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package. If unused LEDs remain, they should be stored in moisture proof packages, such as sealed containers with packages of moisture absorbent material (silica gel).下列情况发生时，须要在焊接前重新烘烤60 ± 5°C,24小时以上。
