目录目录 (1)1、N9340B简介 (2)1.1前端面板概述 (2)1.2顶部面板介绍 (3)1.3显示屏幕简介 (4)1.4设置N9340B (5)1.5进行基本测量 (5)1.6文件保存及查看 (6)1.7按键结构及功能 (7)2、南京现场扫描结果及分析 (13)2.1 初步分析： (13)2.2 GSM信号： (14)2.3 PHS信号： (16)2.4 TDL信号： (18)3、南京干扰情况定位结果 (20)3.1干扰定位结论 (20)3.2存在的问题 (24)1、N9340B简介1.1前端面板概述1.2顶部面板介绍1.3显示屏幕简介1.4设置N9340B(1)按[SYS] > {设置} > {通用} 来设置时间和电源节能模式。
按{时间/日期} 来设置频谱仪的时间和日期。
按{电源管理} 来选择节能模式：关闭背景灯或显示屏，以及同时关闭背景灯和显示屏。
(2)按[SYS] > {设置} > {语言} 来选择屏幕显示语言。
共有11种语言供您选择。
(3)按[SYS] > {亮度} 手动调节N9340B频谱仪的显示亮度(4)按[SYS] > {按键音} 来开关按键音。
1.5进行基本测量(1)用信号源产生一个连续波信号(1 GHz, 0 dBm)。
(2)按[SYS] > {设置} > {开机/复位} ，选择默认定为出厂设置。
(3)选择面板上绿色的[PRESET] 键可将仪器恢复至出厂设置。
(4) 将频谱仪顶部的RF IN与信号源的RF OUT连接上。
(5)按[FREQ] > {中心频率} > 1> {GHz}将中心频率设置为1 GHz。
(6)按[SPAN] > 5 > {kHz} 将扫宽设置为5KHz。
(7)按[MARKER] > {搜索峰值} > {峰值}为显示的最高峰值（1 GHz处）作标记（标记为1）。
Agilent N9330B 手持式天馈线测试仪
Agilent N9330B 手持式天馈线测试仪
主要特点：
可在频域中测试驻波比、电缆损耗和回波损耗，在时域中测试驻波比和电缆损耗测量速度快，精度高，能在不足2 秒时间内完成全频段最高分辨率的扫描内置USB 接口，能够进行无限量的测试结果的拷贝和存储，可以和计算机直接连接通信大尺寸，防反光超亮度液晶显示屏适合室内外测试的显示和观察仪表按键采用背光设计，无论环境明亮还是黑暗都可以方便地操作仪表严密的金属屏蔽层使仪表具有极强的抗干扰能力和极高的稳定性和可靠性特有的锂离子电池和节电工作模式，延长了电池的使用寿命技术指标：
测试功能
频域：驻波比，电缆损耗，回波损耗
时域：驻波比，电缆损耗，故障定位
频率范围（Hz）
25M ~ 4G
频率分辨率（Hz）
100K
输出功率（dBm）
0 ~ -20
测量速度
2 秒/屏幕（全扫描，521 数据点，CW 扫描方式）。
AgilentPXA信号分析仪N9030A技术资料C类认证可用的频率范围N9030A-5033Hz至3.6GHzN9030A-5083Hz至8.4GHzN9030A-5133Hz至13.6GHzN9030A-5263Hz至26.5GHz目录定义和条件 (3)频率和时间技术指标 (4)频率范围 (4)频段 (4)频率参考 (4)频率读出精度 (4)标记频率计数器 (4)频段扫宽 (5)扫描时间和触发 (5)时间选通 (5)扫描(迹线)点范围 (5)分辨率带宽(RBW) (5)分析带宽 (6)视频带宽(VBW) (6)测量速度 (6)幅度精度与范围技术指标 (7)幅度范围 (7)电子衰减器 (7)最大安全输入电平 (7)显示范围 (7)频率响应 (8)输入衰减转换不确定度 (8)总体绝对幅度精度 (8)输入电压驻波比(VSWR) (8)分辨率带宽转换不确定度 (9)参考电平 (9)显示刻度转换不确定度 (9)显示刻度保真度 (9)迹线探测器 (9)前置放大器 (9)动态范围技术指标 (10)1dB增益压缩(双音频) (10)显示的平均噪声电平(DANL) (10)杂散响应 (11)二次谐波失真(SHI) (12)三阶互调失真(TOI) (12)相位噪声 ...........................................13PowerSuite测量技术指标 . (15)信道功率 (15)占用带宽 (15)相邻信道功率 (15)功率统计CCDF (15)谐波失真 (15)三阶互调失真(TOI) (15)猝发脉冲功率 (15)一般技术指标 (16)温度范围 (16)EMC (16)安全性 (16)噪声 (16)环境压力 (16)电源要求 (17)数据存储 (17)重量 (17)尺寸 (17)保修期 (17)校准周期 (17)输入和输出 (18)前面板 (18)后面板 (18)二次中频输出 (19)任意中频输出 (19)I/Q 分析仪 (20)频率 (20)幅度精度 (20)中频相位线性 (20)动态范围 (21)数据采集 (21)I/Q分析仪-选件B25 (22)中频频率响应 (22)动态范围 (22)数据采集 (22)I/Q分析仪-选件B40 (23)中频频率响应 (23)动态范围 (23)数据采集 (25)I/Q分析仪-选件B1X (26)中频频率响应 (26)动态范围 (26)数据采集 (28)其他输出选件 (28)通用端口技术指标 (28)快速对数视频输出 (28)选件YAV Y轴输出 (29)通用端口技术指标 (29)屏幕视频 (29)对数视频输出 (29)线性视频输出 (29)订货信息 (30)硬件 (30)应用软件 (30)附件 (31)保修和服务 (31)校准 (31)其他信息 (31)安捷伦面向未来的PXA是现有高性能信号分析仪的更新换代产品。
AgilentPXA信号分析仪N9030A技术资料C类认证可用的频率范围N9030A-5033Hz至3.6GHzN9030A-5083Hz至8.4GHzN9030A-5133Hz至13.6GHzN9030A-5263Hz至26.5GHz目录定义和条件 (3)频率和时间技术指标 (4)频率范围 (4)频段 (4)频率参考 (4)频率读出精度 (4)标记频率计数器 (4)频段扫宽 (5)扫描时间和触发 (5)时间选通 (5)扫描(迹线)点范围 (5)分辨率带宽(RBW) (5)分析带宽 (6)视频带宽(VBW) (6)测量速度 (6)幅度精度与范围技术指标 (7)幅度范围 (7)电子衰减器 (7)最大安全输入电平 (7)显示范围 (7)频率响应 (8)输入衰减转换不确定度 (8)总体绝对幅度精度 (8)输入电压驻波比(VSWR) (8)分辨率带宽转换不确定度 (9)参考电平 (9)显示刻度转换不确定度 (9)显示刻度保真度 (9)迹线探测器 (9)前置放大器 (9)动态范围技术指标 (10)1dB增益压缩(双音频) (10)显示的平均噪声电平(DANL) (10)杂散响应 (11)二次谐波失真(SHI) (12)三阶互调失真(TOI) (12)相位噪声 ...........................................13PowerSuite测量技术指标 . (15)信道功率 (15)占用带宽 (15)相邻信道功率 (15)功率统计CCDF (15)谐波失真 (15)三阶互调失真(TOI) (15)猝发脉冲功率 (15)一般技术指标 (16)温度范围 (16)EMC (16)安全性 (16)噪声 (16)环境压力 (16)电源要求 (17)数据存储 (17)重量 (17)尺寸 (17)保修期 (17)校准周期 (17)输入和输出 (18)前面板 (18)后面板 (18)二次中频输出 (19)任意中频输出 (19)I/Q 分析仪 (20)频率 (20)幅度精度 (20)中频相位线性 (20)动态范围 (21)数据采集 (21)I/Q分析仪-选件B25 (22)中频频率响应 (22)动态范围 (22)数据采集 (22)I/Q分析仪-选件B40 (23)中频频率响应 (23)动态范围 (23)数据采集 (25)I/Q分析仪-选件B1X (26)中频频率响应 (26)动态范围 (26)数据采集 (28)其他输出选件 (28)通用端口技术指标 (28)快速对数视频输出 (28)选件YAV Y轴输出 (29)通用端口技术指标 (29)屏幕视频 (29)对数视频输出 (29)线性视频输出 (29)订货信息 (30)硬件 (30)应用软件 (30)附件 (31)保修和服务 (31)校准 (31)其他信息 (31)安捷伦面向未来的PXA是现有高性能信号分析仪的更新换代产品。
Keysight TechnologiesN9320B RF Spectrum AnalyzerConfiguration GuideThe Keysight Technologies, Inc. N9320B is a general purpose spectrum analyzer from 9 kHz to 3 GHz. Its standard features include:–Frequency power measurements–One-button power suite, auto tune, and frequency counter –AM/FM tune and listen–12 markers, 4 traces, and 2 customer-definable limit lines –U2000 Series USB power sensor support–USB and LAN connectivity This step-by-step process will help you to configure yourN9320B RF spectrum analyzer by tailoring its options to meet your requirements.For detailed specifications, refer to the N9320B spectrum analyzer data sheet (5990-8119EN). For a product overview, refer to the N9320B spectrum analyzer brochure (5990-8118EN).Ordering informationmodulation rate, AM depth, frequency deviation, SINAD1, and carrierfrequency offsetASK and FSK demodulation metrics N9320B-DMA Provides modulation metrics of an ASK or FSK signal: Carrier power,ASK error, depth, and index, FSK deviation, FSK error, magnitude error,and carrier frequency offset1.Signal-to-noise and distortion ratio200 Hz, 9 kHz, 120 kHz, and 1 MHz pre-compliance measurementsGPIB interface N9320B-G01IEEE-488 bus connector, used in test automation systems Customized save-last utility N9320B-C20N9320B automatically saves its settings and status once any changes aremade. After the power cycle, the N9320B recovers the prior setups beforepowering offInstrument power-on utility at AC power cycle N9320B-C30N9320B powers on directly at AC power cycle without the user pushingthe power-on button on the unit’s front panel. A solution designed for testautomation systemsPrepared for RF teaching labs or training agenciesHard transit case (D x W x H)N9320B-1TC–645 x 444 x 268 mm, 13 kg nominal–25.4 x 17.5 x 10.6 in, 29 lb nominalRack mount kit N9320B-1CM Includes a rackmount flange and front handle kit. Fits standard 19-inch rackand occupies three units of rack spaceHandle and bumper N9320B-1HB Available for ordering only at time of initial instrument purchaseNeed more RF and microwave accessories? Visit /find/accessoriesprovides measurement resultsSelect Keysight Calibration Plan3-year calibration assurance plan (return to Keysight)R-50C-011-3Priority calibration service covering all calibration costs for3 years; 15% cheaper than buying stand-alone calibrations5-year calibration assurance plan (return to Keysight)R-50C-011-5Priority calibration service covering all calibration costs for5 years; 20% cheaper than buying stand-alone calibrationsOther calibration options may available, for more information on calibration, go to: /find/calibration. For more information on training and application support services, go to: /find/training.Instrument UpgradesMost of the Keysight N9320B RF spectrum analyzer options are available for post-sales retrofit.For license-key upgrades that do not require additional hardware:1. Place an order for the upgrade with Keysight and requestto receive the software entitlement certificate through email2. Install the license key in the N9320B. Upgrade firmware tothe latest revision if required 3. Restart the N9320B4. Begin using the new capabilityDescriptionUpgrade number Additional informationAdd preamplifier, 3.0 GHz N9320BK-PA3Add AM/FM demodulation metrics N9320BK-AMA Add ASK/FSK demodulation metrics N9320BK-DMA Add tracking generator, 100 kHz to 3.0 GHz N9320BK-TG3The tracking generator is additional hardware that is installed inside the N9320B. Upgrade is performed at Keysight’s local service center Add GPIB interface N9320BK-G01Requires additional hardware be installed inside the N9320BAdd EMC filter (-6 dB down)N9320BK-EMF Add hard transit case N9320BK-1TC Add rack mount kitN9320BK-1CM Add customized save-last utilityN9320BK-C20Add instrument power-on utility at AC power cycle N9320BK-C30Upgrade performed at Keysight’s local service center Revision to currentN9320BK-R2CEnables the latest feature set for the instrumentA comprehensive summary about the N9320B upgrades is also available at: /find/n9320b_upgrade .Other InformationKeysight product registrationRegister your instruments for service notifications, firmware update alerts, application notes and more. You have the Keysight edge. Register today and keep it sharp: /find/register .Keysight education cornerYour one-stop education resource for college and university engineering educators, researchers and students: /find/edu .Related LiteraturePublication number Publication title5990-8116ENKeysight N9310A RF Signal Generator , Data SheetmyKeysight/find/mykeysightA personalized view into the information most relevant to you.Keysight Infoline/find/InfolineKeysight’s insight to best in class information management. Free access toyour Keysight equipment company reports and e-library.Keysight Services/find/service sOur deep offering in design, test, and measurement services deploys anindustry-leading array of people, processes, and tools. The result? We helpyou implement new technologies and engineer improved processes thatlower costs.Three-Year Warranty/find/ThreeYearWarrantyKeysight’s committed to superior product quality and lower total costof ownership. Keysight is the only test and measurement company withthree-year warranty standard on all instruments, worldwide. And, we providea one-year warranty on many accessories, calibration devices, systems andcustom products.Keysight Assurance Plans/find/AssurancePlansUp to ten years of protection and no budgetary surprises to ensure yourinstruments are operating to specification, so you can rely on accuratemeasurements.Keysight Channel Partners/find/channelpartnersGet the best of both worlds: Keysight’s measurement expertise and productbreadth, combined with channel partner convenience./find/n9310bFor more information on KeysightTechnologies’ products, applications orservices, please contact your local Keysightoffice. The complete list is available at:/find/contactusAmericasCanada(877) 894 4414Brazil55 11 3351 7010Mexico001 800 254 2440United States(800) 829 4444Asia PacificAustralia 1 800 629 485China800 810 0189Hong Kong800 938 693India 1 800 11 2626Japan0120 (421) 345Korea080 769 0800Malaysia 1 800 888 848Singapore180****8100Taiwan0800 047 866Other AP Countries(65) 6375 8100Europe & Middle EastAustria0800 001122Belgium0800 58580Finland0800 523252France0805 980333Germany***********Ireland1800 832700Israel 1 809 343051Italy800 599100Luxembourg+32 800 58580Netherlands0800 0233200Russia8800 5009286Spain800 000154Sweden0200 882255Switzerland0800 805353Opt. 1 (DE)Opt. 2 (FR)Opt. 3 (IT)United Kingdom0800 0260637For other unlisted countries:/find/contactus(BP-06-08-16)/go/qualityKeysight Technologies, Inc.DEKRA Certified ISO 9001:2015Quality Management SystemThis information is subject to change without notice.© Keysight Technologies, 2013 - 2016Published in USA, October 13, 20165990-8120ENEvolvingOur unique combination of hardware, software, support, and people can helpyou reach your next breakthrough. We are unlocking the future of technology.From Hewlett-Packard to Agilent to Keysight。
字体大小：大| 中| 小2009-05-11 13:26 - 阅读：125 - 评论：0关于安捷伦的N9330A/B天馈线测试仪的简易操作一、硬键说明：1、MODE----测量模式键：用于选择仪表的测量模式。
2、FREQ/DIST---频率/距离设定键：用于设定模式下的起始频率（或距离）和终止频率（或距离）。
3、AMPTD---显示幅度设定键：用于设定测试模式下的显示幅度。
4、MEAS/VIEW---测量/图视键：用于开始测量和观察不同情况下的曲线视图。
5、SYS----系统设置键：用于对系统参数的设置。
6、HOLD/RUN---测量停止/开始键：用于在测试过程中的立即停止和继续开始。
7、LIMIT---界线设置键：用于设置测试结果的Y轴极限界线。
8、MARKER---光标设定键：用于设置曲线上的光标位置。
9、AUTO-SCALE---Y轴刻度的自动设置键：此键将根据测试曲线的结果自动设置比较理想的刻度。
10、CAL---校准键：按动此键仪表将会进入到校准状态。
11、ESC/CLR---返回及清除键：在进行相关参数设置中，按动ESC键将返回前页的显示界面。
按动CLR键将会对目前的相关参数进行删除。
12、ENTER---确认键：无论是模式选择还是参数修改，按动此键将会对选择的模式或参数加以确认。
13、数字几字母键：数字键用于设定或修改相关参数。
字母键用于文件的存储或文件的调用。
二、硬键/软键的结合功能：A、MODE—测量模式键：包括：1、FREQ（频率模式）：该模式下包括：1.1 驻波比1.2 回波损耗1.3 电缆损耗2、DTF（故障定位模式）：该模式下包括：2.1 驻波比2.2 回波损耗1、FREQ（频率模式）：1.1、FREQ—驻波比：在这种模式下，按动下列硬键，将会分别出现相关的软键，其功能分别为：1.1.1 FREQ/DIST—频率设置键（此时只能设置频率）：此时的软键分为：起始---用于设置测试的起始频率。

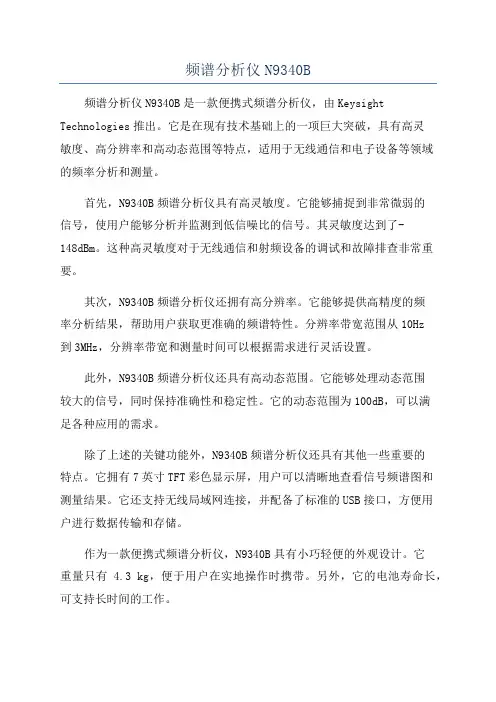

频谱分析仪N9340B频谱分析仪N9340B是一款便携式频谱分析仪，由Keysight Technologies推出。
它是在现有技术基础上的一项巨大突破，具有高灵敏度、高分辨率和高动态范围等特点，适用于无线通信和电子设备等领域的频率分析和测量。
首先，N9340B频谱分析仪具有高灵敏度。
它能够捕捉到非常微弱的信号，使用户能够分析并监测到低信噪比的信号。
其灵敏度达到了-148dBm。
这种高灵敏度对于无线通信和射频设备的调试和故障排查非常重要。
其次，N9340B频谱分析仪还拥有高分辨率。
它能够提供高精度的频率分析结果，帮助用户获取更准确的频谱特性。
分辨率带宽范围从10Hz到3MHz，分辨率带宽和测量时间可以根据需求进行灵活设置。
此外，N9340B频谱分析仪还具有高动态范围。
它能够处理动态范围较大的信号，同时保持准确性和稳定性。
它的动态范围为100dB，可以满足各种应用的需求。
除了上述的关键功能外，N9340B频谱分析仪还具有其他一些重要的特点。
它拥有7英寸TFT彩色显示屏，用户可以清晰地查看信号频谱图和测量结果。
它还支持无线局域网连接，并配备了标准的USB接口，方便用户进行数据传输和存储。
作为一款便携式频谱分析仪，N9340B具有小巧轻便的外观设计。
它重量只有 4.3 kg，便于用户在实地操作时携带。
另外，它的电池寿命长，可支持长时间的工作。
总结起来，N9340B频谱分析仪在高灵敏度、高分辨率和高动态范围等方面具有突出的优势。
它不仅非常适用于无线通信和电子设备的频率分析和测量，而且便携轻便的特点使得它非常适合实地操作。
无论是在实验室环境中还是在现场应用中，N9340B都能提供精准、稳定和可靠的测量结果，为用户提供了一个非常强大的工具。
Agilent N9330BHandheld Cable and Antenna Tester25 MHz to 4.0 GHzTechnical OverviewYour perfect solution for testing cables and antennas in today’s communication networksToday, the increasing range of wireless applications provides end users on the move with faster and more diverse services.Broadband mobile data and telephony are now becoming ubiquitous, with coverage in most urban and many rural areas.The number of base stations (BTS) needing fast, efficient installation continues to grow. Moreover, the vast numbers of existing installed base stations need periodic maintenance and, from time to time, trouble shooting and repair.Whether you do your own maintenance test or rely on third-party contractors, you need well-maintained antenna networks and cables to ensure:• Better voice and data quality • Fewer dropped calls • Less dropped links An efficient and effective cable and antenna tester is an essential basic test tool for network engineers and technicans for wireless network installation and maintenance.• New site installation and deployment• Routine maintenance• Trouble shootingVerity performance and trouble-shoot base station cable and antenna systems: test wide band or narrow band from 25 MHz to 4 GHz.Ensure the Reliability of Your Cable and Antenna System Easy to use and convenient to carry to any siteKey measurements:Frequency domain • Return loss vs. frequency• VSWR vs. frequency• Cable loss testDistance to fault (DTF)• Return loss vs. distance• VSWR vs. distance• Fault locationHigh accuracy power measurement • Support Agilent U2000 series USB power sensor• Wireless service providers:Base station cable & antennasystem I&M• Aerospace and defense:Radio and radar cable andantenna system I&M• Broadcasting and radiolinks:Cable and antenna systemI&M• Utilities, emergency andsecurity services• Contractors for all the aboveEarly identification of potential problemsDeteriorating cable and antenna conditions, such as a loose or corrodedconnector, a pinched or restricted cable, or damaged lightning arrestors causemeasurable RF impedance changes. Slight changes in VSWR, power loss andantenna bandwidth drift are early indications of system deterioration.Distance-To-Fault testing uses frequency domain reflectrometry (FDR)techniques that readily detects and locates these slight changes in RFimpedance. With routine DTF testing as part of a preventative maintenance plan,you can find and fix these problems before the system fails and repairs becomecostly. Agilent’s N9330B provides fast startup time, so technicians are ready totest in seconds.It’s small size and light weight make it easy to handle and it stands up to roughfield use and all weather conditions.Fast measurement speed means your technicians can evaluate one of thetrouble spots in a matter of minutes.N9330B speeds up installation of cables and antennas at new site, too.Whatever your tasks, speed is important, with N9330B you can test more sitesper day.And USB data storage lets you save all of the results for post-test analysis.You will find the Agilent N9330B tester useful and reliable, in rugged fieldenvironments for rapid installation of a new cellular network infrastructure,2-way radio communication system or any type of communication system.The N9330B supports U2000 series USB power sensor for high accuracy power measurement.High accuracy power measurement (option PWM)The N9330B now supports high-accuracy, USB plug-and-play power measure-ments when connected to an Agilent U2000 series USB power sensor. Make true average power measurements for all signal types with wide dynamic range up to 18 GHz with just the push of a button. The Agilent U2000 USB sensors require no external power supplies and with internal zeroing eliminate the need for external calibration. Without the need for additional boxes, the user can easily set up, calibrate and control the power meter/sensor via the analyzer’s USB port.The N9330B can collect, display and save the power meter results. The analyzer also provides Pass/Fail testing with user set upper and lower limits and a Pass/Fail indicator. Test results are shown in dBm and W when making absolute measurements and in dB and percentage when measurements are relative. Two display modes are available: Meter or the Chart mode to log power measurements over time.Meter modeEasier OperationN9330B optimized usability:• Long battery life • Modern USB connectivity • Sunlight-viewable LCD • Multi-language UI • Rugged design for field use A fast job, well done A busy technician needs fast tester setup, quick calibration, and a straightfor-ward, repeatable test procedure.Agilent N9330B gives you:• Fast startup time • Auto calibration • Test set-up recall • USB memory stick support • USB connectivity for PC software • More direct-access hard keys • Rapid cursor control and marker movement using scroll knob • Easy data storage • Customized, unmistakably named data files and auto-sequential file naming • Comprehensive results saved in a an easy-to-use format • Auto pass/fail test comparisons The Agilent N9330B is easy to use, so it minimizes the need for training. Technicians will get up to speed fast – and get their work done quickly.The optimum combination of hardkeys and softkeys provides an intuitive interface for all measurements.The most-used functions are conveniently selectable, via large, front-panel keys.The front-panel knob provides a simple scroll function, allowing rapid cursor movement to access data points across scan displays, or data entries.Well organized front-panel with more hard buttons and function keys for faster access to essential test functions.Powerful functions:• Smart and fast electronic calibrator• Powerful post analysis PCsoftware'T-combo' open/short/50 Ω load N9330B-203 Electronic calibratorSmart, fast calibrationAt the start of any new test setup, a three-step calibration is necessary, using an open, a short, and a calibrated test load.The most accurate calibration method is to use mechanical calibration stan-dards, an optional special ‘T-combo’ open/shot/load, makes it easy for use in the field.For fast and automatic calibration, you can choose the N9330B-203 electronic calibrator. Simply connect the electronic calibrator and press a key to run the electronic calibration.Use sensible archive file names related to each site tested The N9330B lets you choose meaningful names for your stored data: names that you customize and relate to your site.You no longer have to tolerate anonymous file names with no linkage to your site. It is easy to recognise and recall archived data files without the need for cross-referencing.And you can use sequential file names as you store successive files. Powerful PC based post analysis softwareEffective cable and antenna testing is more than just the measurements. Agilent provides a powerful PC based post-analysis tool. This software tool, standard with every Agilent N9330B, provides trace analysis, trace comparison, customized reports and data file management.The USB connection makes it fast and easy to transfer the measurement data to the PC for analysis.Take a closer look and see where Agilent puts the emphasis on usabilityPressing the front panel “Save” function key displays the soft key, “Save DATA as”. This then allows you to enter an appropriate file name.Subsequently, press the “Save DATA” soft key, each new file name automatically increments, as in example: CHICAG_SITE2, CHICAG_SITE3,...Store data and setup configurationWhen you take the tester out into the field, and have a large number of sites and installations to check, you need sufficient storage capacity for previous, historic data. The internal memory stores up to 200 traces, and you can save screen images.For fast instrument set up, you can store up to 15 stored configurations in the internal memory.If you need even more, simply use a USB memory stick for external storage of configurations, traces and screen images.N9330B Handheld Cable and Antenna Tester1. Test port, with connector protection cap.2. Modern USB connectivity for both remote control and memory stick. Support high accuracy power measurement with Agilent U2000 USB power sensor.3. Rapid marker positioning to measurement points using the fast-scroll rotary control.4. The protective soft carrying case with it’s ergonomic design provides further protection for the Agilent N9330B.5. Robust, comfortable, quick-grab hand strap.6. The 6.5“ transflective LCD gives sharp and clear display of results even working in direct sunlight with the high resolution of 640 x 480 pixels.7. Easy access to most common tests and settings using keypad.8.Easy results comparisonfast recall of stored data.64578Agilent Reliable Field UseTesting in the field means working in remote locations and out in the open:sometimes carrying test equipment up towers, or possibly working in small, cramped buildings with no direct access to AC power on site.You may have to test:• Under temperature extremes•I n bright sunlight or in the dark • In poor weather conditionsNone of these is the best operating environment for precision electronic test equipment.Agilent designed the N9330B cable and antenna tester.See traces clearly indoors and outdoorsAs with all the newest Agilent portable field equipment, operating under challenging bright sunlight or other difficult natural lighting conditions is not a problem. The bright new 6.5’’ TFT display with resolution of 640 x 480 pixels provides a superior, bright and clear trace for indoor and outdoor use.Back-lit keys for night use The new back-lit keys in the N9330B make it easy to see the keys clearly, even in the dark. The user can adjust the brightness of the keys and the duration of the key light, making it easy to use in light or dark, day or night.Carry-case options provide safe, comfortable transportThe soft carrying case provides added protection. A convenient shoulder strap leaves hands free for carrying other tools and equipment, or for safe climbing of access towers and gangways.For further protection of the tester when storing or transporting it in more harsh environments, an optional hard transit case is available.The tester itself has a strong hand strap for a sure grip when carried without thecase.Outstanding display technology provides superior performance under the mostdemanding lighting conditionsLow-cost, with Agilent worldwide supportSuperior battery performanceBased on customer inputs, Agilent understands that good battery life is essen-tial for remote, on-site testing.There is often no convenient conventional AC power line connection available atremote BTS or antenna sites.Agilent N9330B incorporates advanced battery pack technology with intelligentcharging technology, to provide you with up to four hours of continuous use.To maximize useful instrument test time when on site, each tester incorporatessmart power management to help conserve battery power.The long-life lithium-ion batteries in the N9330B have no ‘memory’, which is animportant improvement over earlier battery types.When extended operation is necessary, you simply switch batteries which onlytakes seconds.Earlier battery technology used in some portable testers allowed only limitedtester operating time before needing recharging.Worldwide service supportOf course, when you buy an Agilent tester, you are confident that should youneed it you have the best worldwide support.The Agilent N9330B Cable and AntennaTester – The newest in Agilent’s lineup oflow cost handheld instruments.N9330B Handheld Cable and Antenna Tester Specifications Display 6.5” 640 x 480 transflective color LCD with adjustable backlightSize (W x H x D)317 mm x 207 mm x 69 mm (12.5 in x 8.1 in x 2.7 in) Weight Net weight: 2.6 kg (5.73 lbs)Weight with battery: 2.9 kg (6.39 lbs)N9330B handheld cable and antenna testerRechargeable battery Automotive 12 V DC adaptorPhase-stable extension cable Electronic calibratorHard transit caseSoft carrying caseT-combo’ open/short/50 Ω loadOrdering InformationN9330B25 MHz to 4 GHz handheld cable and antenna testerAccessories supplied as standard with the tester:• Soft carrying case• Rechargeable battery• AC-DC adaptor with power cord• USB cable• Quick-start tutorial• Documentation CD (also includes measurement analysis PCSelect Agilent calibration planR-50C-011-33-year calibration assurance plan (return to Agilent):Priority calibration service covering all calibration costs for 3 years; 15% cheaper than buying stand-alonecalibrations.R-50C-011-55-year calibration assurance plan (return to Agilent):Priority calibration service covering all calibration costs for 5 years; 20% cheaper than buying stand-alonecalibrations./find/ThreeYearWarrantyBeyond product specification, changing the ownership experience.Agilent is the only test and measurement company that offers three-year warranty on all instruments, worldwide.Agilent Assurance Plans/find/AssurancePlansFive years of protection and no budgetary surprises to ensure your instruments are operating to specifications and you can continuallyrely on accurate measurements./qualityAgilent Electronic Measurement Group DEKRA Certified ISO 9001:2008 Quality Management SystemAgilent Channel Partners/find/channelpartnersGet the best of both worlds: Agilent’s measurement expertise and product breadth, combined with channel partner convenience./find/n9330bFor more information on AgilentTechnologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:/find/contactus AmericasCanada (877) 894 4414 Brazil (11) 4197 3600Mexico 01800 5064 800 United States (800) 829 4444Asia PacificAustralia 1 800 629 485China 800 810 0189Hong Kong 800 938 693India 1 800 112 929Japan 0120 (421) 345Korea 080 769 0800Malaysia 1 800 888 848Singapore 180****8100Taiwan 0800 047 866Other AP Countries (65) 375 8100Europe & Middle EastBelgium 32 (0) 2 404 93 40 Denmark 45 45 80 12 15Finland 358 (0) 10 855 2100France 0825 010 700* *0.125 €/minute Germany 49 (0) 7031 464 6333 Ireland 1890 924 204Israel 972-3-9288-504/544Italy 39 02 92 60 8484Netherlands 31 (0) 20 547 2111Spain 34 (91) 631 3300Sweden 0200-88 22 55United Kingdom 44 (0) 118 927 6201For other unlisted countries:/find/contactus(BP-09-27-13)Product specifications and descriptions in this document subject to change without notice.© Agilent Technologies, Inc. 2014Published in USA, February 26, 20145989-8567EN。
不論您的應用是電子產品製造、工作台上的維修、研發專案或RF相關教育，您都需要一款價格經濟，且配備必要功能與效能的頻譜分析儀。
Agilent N9320B正是為了滿足您的這項需求而設計。
，可讓您執行頻率響應量測。
(50 MHz，-10 dBm)，供高阻抗RF探棒使用RF(N型，母座)Kensington TTL當您需要速度更快且更符合成本效益的RF分析工具，來測試現今的消費性電子產品與元件時，不必再考慮了！5當您發現自己必須反覆執行同一種複雜的量測或量測程序時，擁有一些捷徑能讓您聰明地提高效率。
這也是我們在Agilent N9320B 頻譜分析儀中，為您準備的功能。
Agilent N9320B 頻譜分析儀延續了安捷倫一貫堅持的傳統，就是測試設備應該具有容易設定且簡單好用的功能。
熟悉安捷倫其他頻譜分析儀的使用者會發現，Agilent N9320B 採用了類似的使用者介面，對於縮短學習曲線及簡化操作很有幫助。
單鍵自動調諧功能可以讓您在分析儀的頻率範圍內，迅速找到最高位準的信號，並且準確地加以分析。
將該信號置於螢幕中央，分析儀可同時將頻距、解析度和影像頻寬調整到最佳狀態，並且自動調整振幅的刻度、在信號峰值設定標記、及顯示量測結果。
單鍵功率量測功能簡化了按鍵/功能表的選擇，可以縮短例行的測試設定時間。
直接從軟鍵功能表選擇這些量測功能，也有助於確保不論是誰按的鍵，都不影響測試設定與量測的準確度和重測穩定度。
使用頻譜分析儀所執行的其中一項最基本的量測，就是在頻域中量測RF 功率。
但要詳細分析信號，通常需要進行標準所定義的頻譜遮罩測試，或更複雜的功率/頻寬/偵測器量測組合。
利用RMS 平均運算偵測器，精確而快速地計算出通道功率和功率頻譜密度。
選擇要量測的信號功率的百分比，即可將標記放在代表該功率百分比所使用頻寬的波形之高頻和低頻位置。
(ACP)可同時在最多6個偏移頻帶或通道，針對載波相對於載波洩漏，進行快速又準確的濾波式RMS 功率量測。
安捷伦N9340B的简易操作步骤-直放站测试●准备工作－设置中文操作界面、显示幅度刻度和信号电平的测量单位1.按左下角的电源开关键开机。
2.设置中文操作界面：按屏幕下方的【SYS】-> {F3 Setting Language}-> {F2 LanguageEnglish} ->{F2简体中文}。
注：仅在第一次开机使用时设置，以后测量时不需要再设置。
3.显示幅度刻度：按下【AMPTD】->{F7 更多 1 of 2}->{F4 Grid Scale 开}。
4.设置Y轴单位：按下【AMPTD】->{F7 更多 1 of 2}->{F2 Y轴单位}->根据测试需要选择相应的单位即可。
●指标测试操作步骤1.信道功率测量-以WCDMA整个下行通道的功率测试为例1)按下屏幕右下角的复位键。
2)进入功率测量模式：按下【MEAS】->{F2 Channel Power}。
3)设置中心频率和测量带宽：按下{F1 中心频率}->2140,{F2 MHz}->{F2 积分带宽}->60，{F2 MHz}。
4)设置参考电平偏移（外接衰减器和电缆的损耗，比如31dB）：按下【AMPTD】->{F7 更多1 of 2}->{F1 参考偏移}->31，{F1 dB}。
5)设置功率平均类型：按下【BW/SWP】->{F4 平均类型}->{F2，功率}。
6)设置单次测量：按下{F7 单次扫描}。
注：在测试CDMA整个下行通道功率时，在第三步的操作中，中心频率为875MHz，积分带宽为10MHz，同时也修改信道带宽为10MHz即可。
2.信道带宽测量－以WCDMA的下行信道带宽为例1)按下屏幕右下角的复位键。
2)进入信道带宽测量模式：按下【MEAS】->{F4 OBW}。
3)设置测量带宽：按下【FREQ】->{F3 终止频率}->2170,{F2 MHz}->{F2 起始频率}->2110，{F2 MHz}。
安捷伦N9330B使用说明N9330B天馈线测试仪使用指南字体大小：大 | 中 | 小 2009-05-11 13:26 - 阅读：125 - 评论：0关于安捷伦的N9330A/B天馈线测试仪的简易操作一、硬键说明：1、MODE----测量模式键：用于选择仪表的测量模式。
2、FREQ/DIST---频率/距离设定键：用于设定模式下的起始频率（或距离）和终止频率（或距离）。
3、AMPTD---显示幅度设定键：用于设定测试模式下的显示幅度。
4、MEAS/VIEW---测量/图视键：用于开始测量和观察不同情况下的曲线视图。
5、SYS----系统设置键：用于对系统参数的设置。
6、HOLD/RUN---测量停止/开始键：用于在测试过程中的立即停止和继续开始。
7、LIMIT---界线设置键：用于设置测试结果的Y轴极限界线。
8、MARKER---光标设定键：用于设置曲线上的光标位置。
9、AUTO-SCALE---Y轴刻度的自动设置键：此键将根据测试曲线的结果自动设置比较理想的刻度。
10、CAL---校准键：按动此键仪表将会进入到校准状态。
11、ESC/CLR---返回及清除键：在进行相关参数设置中，按动ESC键将返回前页的显示界面。
按动CLR键将会对目前的相关参数进行删除。
12、ENTER---确认键：无论是模式选择还是参数修改，按动此键将会对选择的模式或参数加以确认。
13、数字几字母键：数字键用于设定或修改相关参数。
字母键用于文件的存储或文件的调用。
二、硬键/软键的结合功能：A、MODE—测量模式键：包括：1、FREQ（频率模式）：该模式下包括：1.1 驻波比1.2 回波损耗1.3 电缆损耗2、DTF（故障定位模式）：该模式下包括：2.1 驻波比2.2 回波损耗1、FREQ（频率模式）：1.1、FREQ—驻波比：在这种模式下，按动下列硬键，将会分别出现相关的软键，其功能分别为：1.1.1 FREQ/DIST—频率设置键（此时只能设置频率）：此时的软键分为：起始---用于设置测试的起始频率。
是德科技PXA X 系列信号分析仪，多点触控 N9030B 3 Hz 至 3.6、8.4、13.6、26.5、44 或 50 GHz技术资料目录利用杰出的全方位信号分析，促进对信号的深入了解PXA 是可加快苛刻应用创新的性能基准。
凭借从优秀到卓越的测量选件，PXA 让您一路领先。
分析高达 510 MHz 分析带宽、超过 70 dB SFDR 的最新信号，并发现此前由本底噪声扩展（NFE ）所隐藏的信号。
通过添加是德科技获得专利的基于 DDS 的 LO,看到器件的真实行为，获得业内领先的相位噪声性能。
利用向后代码兼容性和紧凑的 4U 外形，简化从传统安捷伦/惠普频谱分析仪的过渡。
定义与条件 ..............................................................................3频率和时间技术指标 ..................................................................4幅度精度和范围技术指标 ............................................................6动态范围技术指标 .....................................................................9PowerSuite 测量技术指标 ............................................................15一般技术指标 ...........................................................................16输入和输出 ..............................................................................17其他输出选件 ...........................................................................20I/Q 分析仪 .................................................................................21I/Q 分析仪――选件 B40 ...............................................................24I/Q 分析仪——选件 B85 或 B1X ...................................................25实时频谱分析仪（RTSA ） ............................................................27相关文献 (27)本技术资料是 PXA 信号分析仪完整技术指标和条件的摘要。
请访问以下网站，获取完整的技术指标指南：/find/pxa_specifications定义与条件技术指标是指产品保证中所包括的参数性能，除非特别注明，这些技术指标只在 0 至55℃的温度范围内有效。
95% 表示环境温度在 20 至 30℃之间时，在 95% 的情况下有 95% 的把握预计能够达到性能容限范围（～ 2σ）。
除了仪器样品的统计观测数据之外，这些值还包括外部校准参考的不确定度影响。
但是不保证所有仪器都能达到这些值。
如果生产仪器的统计观测特性出现重大变化，这些值可能不定期更新。
典型值是指不在产品保证范围之内的其他产品性能信息，指的是在 20℃至30℃的温度范围内80%的设备单元可以表现出 95% 的置信度的性能指标。
典型性能不包括测量不确定度。
标称值是指预计的性能，或描述在产品应用中有用但不包含在产品保证范围内的产品性能。
在下列条件下，分析仪能够达到其技术指标：– 分析仪处于校准周期内。
– 除 Auto Sweep Time Rules（自动扫描时间规则）=Accy（精确）外，分析仪处于自动耦合控制下。
– 信号频率 < 10 MHz 时，应用直流耦合。
– 如果分析仪是在允许的储存温度范围内但超出允许的工作温度范围的环境中存放，则在启动分析仪之前，必须将其放在允许的工作温度范围内至少两小时。
– 如果 Auto Align（自动校正）设置为 Normal（正常），则分析仪必须开机预热至少30 分钟；如果 Auto Align 设置为 Off（关闭）或 Partial（部分），则必须在近期进行过校正，以避免出现告警消息。
一旦告警条件从 Time and Temperature（时间和温度）变成禁用的时间长度之一，则该分析仪可能达不到相关技术指标，并且不会通知用户。
如果 Auto Align（自动校正）设置为 Light（光），则性能无法得到保证，额定性能将会下降，任何技术指标都会因为校正变为原来的 1.4 倍，例如幅度容限。
术语“混频器电平”可用作本文档中很多技术指标的一个条件。
该术语是一个概念性的数量，定义如下：混频器电平（dBm）＝射频输入功率电平（dBm）－（电子 + 机械）衰减（dB）。
请访问以下网站，获取完整的技术指标指南：/find/pxa_specifications频率和时间技术指标量程0 Hz（零扫宽），10 Hz 至仪器最高频率分辨率 2 Hz精度扫描FFT ±（0.1% x 扫宽 + 水平分辨率）±（0.1% x 扫宽 + 水平分辨率）1.水平分辨率 = 扫宽/（扫描点数 –1）。
频率和时间技术指标（续）1.分析带宽是中心频率附近可用的瞬时带宽，输入信号可以在该带宽上转换成数字信息，以便在时域、频域或调制域中进行深入分析或处理。
量程 1 Hz 至 3 MHz （10% 步进），4、5、6、8 MHz 和宽开（标记 50 MHz ）精度± 6% 标称值（扫描模式和零扫宽）幅度精度和范围技术指标射频/微波（选件 503、508、513、526）9 至 100 kHz100 kHz 至 50 MHz50 MHz 至 3.6 GHz3.5 至 8.4 GHz8.3 至 13.6 GHz13.5 至 17.1 GHz17.0 至 22.0 GHz22.0 至 26.5 GHz± 0.68 dB± 0.55 dB± 2.0 dB± 2.3 dB± 2.5 dB± 3.0 dB± 3.5 dB± 0.36 dB± 0.26 dB± 0.28 dB± 0.64 dB± 0.76 dB± 0.95 dB± 1.41 dB± 1.61 dB毫米波（选件 544、550）9 至 100 kHz100 kHz 至 50 MHz50 MHz 至 3.6 GHz3.5 至 5.2 GHz5.2 至 8.4 GHz8.3 至 13.6 GHz13.5 至 17.1 GHz17.0 至 22.0 GHz22.0 至 26.5 GHz26.4 至 34.5 GHz± 0.68 dB± 0.60 dB± 2.0 dB± 2.0 dB± 2.3 dB± 2.5 dB± 3.0 dB± 3.5 dB± 3.0 dB± 4.1 dB± 0.40 dB± 0.34 dB± 0.31 dB± 0.81 dB± 0.70 dB± 0.79 dB± 0.88 dB± 1.07 dB± 1.03 dB± 1.35 dB± 1.69 dB（10 dB 输入衰减）50 MHz10 MHz 至 3.6 GHz3.5 至 8.4 GHz8.3 至 13.6 GHz13.5 至 17.1 GHz17.0 至 26.5 GHz26.4 至 34.5 GHz34.4 至 50 GHz 1.07 标称值1.139（95%）1.290（95%）1.388（95%）1.41（95%）1.48（95%）不适用不适用1.025 标称值1.134（95%）1.152（95%）1.178（95%）1.204（95%）1.331（95%）1.321（95%）1.378（95%）前置放大器接通（0 dB 输入衰减）(选件 P03。
P08、P13、P26、P44 和 P50）10 MHz 至 3.6 GHz3.5 至 8.4 GHz8.3 至 13.6 GHz13.5 至 17.1 GHz17.0 至 26.5 GHz26.4 至 34.5 GHz34.4 至 50 GHz1.45（95%）1.54（95%）1.57（95%）1.48（95%）1.54（95%）不适用不适用1.393 标称值1.50（95%）1.310（95%）1.330（95%）1.339（95%）1.41（95%）1.42（95%）频率范围1选件 P03选件 P08选件 P13选件 P26选件 P44选件 P509 kHz 至 3.6 GHz 9 kHz 至 8.4 GHz 9 kHz 至 13.6 GHz 9 kHz 至 26.5 GHz 9 kHz 至 44 GHz 9 kHz 至 50 GHz增益9 kHz 至 3.6 GHz3.6 至 26.5 GHz26.5 至 50 GHz +20 dB 标称值+35 dB 标称值+40 dB 标称值1.低于 100 kHz 时，仅提供 95%（～ 2 σ）的频率响应值。
动态范围技术指标射频/微波（选件 503、508、513、526）前置放大器断开前置放大器接通启用 LNP 2、3频段 0，f > 20 MHz 频段 1频段 2频段 3频段 49 dB10 dB10 dB9 dB10 dB10 dB9 dB10 dB10 dB8 dB不适用10 dB10 dB10 dB10 dB有效的 DANL 实例20 至 30 °C 前置放大器断开前置放大器接通启用 LNP 2、3中频段 0（1.8 GHz）中频段 1（5.95 GHz）中频段 2（10.95 GHz）中频段 3（15.3 GHz）中频段 4（21.75 GHz）-161 dBm-158 dBm-159 dBm-152 dBm-149 dBm-171 dBm-172 dBm-168 dBm-165 dBm-160 dBm不适用-162 dBm-162 dBm-160 dBm-160 dBm1.在 NFE（本底噪声扩展）“关闭”的情况下。
