群晖DS1515+快速安装指南

快速安装指南目录第 1 章：开始进行之前的准备包装内容3 Synology DiskStation 概观4安全须知5第 2 章：硬件安装安装硬盘所需的工具和零件6安装硬盘6启动您的 DiskStation 8第 3 章：为 DiskStation 安装 DSM使用 Web Assistant 来安装 DSM 9更多信息9附录 A：产品规格附录 B： LED 指示灯表Synology_QIG_DS415+_201408041开始进行之前的准备感谢您购买 Synology 产品！在您开始设置 DiskStation 前，请先检查包装盒内容来确认是否已收到下列项目。

此外，使用前请仔细阅读以下安全须知，避免让自己或 DiskStation 遭受损伤。

包装内容交流电源适配器 x 1RJ-45 网络线 x 2适用于 2.5 吋硬盘的螺丝 x 18概观Synology DiskStation安全须知请勿将产品放置在直接受阳光曝晒或靠近化学药剂的场所。

并确保其所在环境恒定的温度与湿度。

请确保正确的一面朝上，勿将产品倒置。

请勿放置于任何液体附近。

进行清洁前，请先拔除电源线。

请使用湿纸巾擦拭。

请勿使用化学或喷雾式清洁剂来进行清洁。

请勿将设备置于手推车或任何不稳定的表面上，以避免掉落而损毁。

与此产品连接的线路以及设备必须提供稳定的电量。

请确认是否供应稳定的电量以确保装置运作正常。

若要完全断开装置的电流，请确认所有电源线皆从插座拔除。

请更换正确的电池类型并适当处理旧电池，以避免发生爆炸的危险。

2安装硬盘所需的工具和零件• 螺丝刀（仅用于 2.5 吋硬盘）• 至少一颗 3.5 吋或 2.5 吋 SATA 硬盘（请参见 来查询兼容的硬盘型号。

）安装硬盘1从前面板卸下硬盘插槽盖。

2向上推动卡榫并拉动把手，将硬盘托盘取出。

硬件安装3 将硬盘置于硬盘托盘中。

•对于 3.5 吋硬盘：卸下硬盘托盘侧面的紧固板。

将硬盘置于托盘上，再插入紧固板来固定硬盘。

快速安装指南Synology_QIG_18Bay_20130321目录章节 1：开始之前包装内容 (3)Synology DiskStation 概观 (4)安全须知 (5)章节 2：硬件设置安装硬盘所需的工具和零件 (6)安装硬盘 (6)启动您的 DiskStation (9)为 DiskStation 加装内存模块 (10)更换散热风扇 (12)章节 3：为 DiskStation 安装 DSM使用 Web Assistant安装 DSM (14)更多信息 (14)附录 A：技术规格附录 B：LED 指示表1 开始之前在您开始设置 DiskStation 前，请检查包装内容来确认是否已收到下列项目。

在使用前，请先仔细阅读安全须知，避免让 DiskStation 遭受损毁。

包装内容RJ-45 网线 x 2Synology DiskStation 概观-----1更多 DiskStation 支持之 Synology 扩充设备的相关信息，请参访。

安全须知2 硬件设置安装硬盘所需的工具和零件▪螺丝刀▪至少一颗 3.5 吋或 2.5 吋 SATA 硬盘（请访问取得兼容的硬盘列表。

）安装硬盘1 请将硬盘托盘钥匙插入硬盘托盘锁，以逆时钟方向旋转钥匙来解锁硬盘托盘的把手，然后取下钥匙。

2 按下硬盘托盘的下半部来弹出把手。

3 请按照下图指示的方向拉开硬盘托盘的把手，然后取出硬盘托盘。

4 将硬盘装在硬盘驱动器托架中。

▪对于 3.5 吋硬盘：从硬盘托盘的侧面卸下紧固板。

将硬盘装在硬盘驱动器托盘中。

然后插入紧固板来固定硬盘。

▪对于 2.5 吋硬盘：从硬盘托盘的侧面卸下紧固板。

将硬盘放入硬盘托盘的蓝色区域（如下所示），将托盘翻面，然后锁紧螺丝来固定硬盘。

5 将装好的硬盘托盘放入空的硬盘插槽。

6 按下把手使其与前面板齐平，藉此固定硬盘托盘。

7 将硬盘托盘钥匙插入硬盘托盘锁，以顺时钟方向旋转钥匙（至“I” 位）来锁住硬盘托盘的把手，然后取下钥匙。

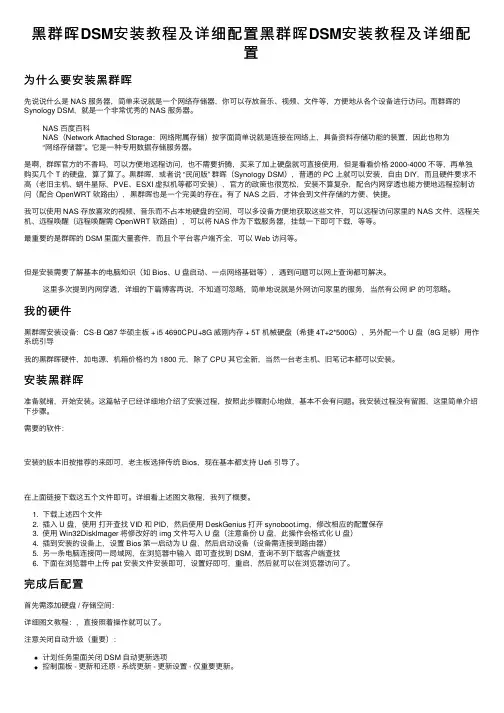

⿊群晖DSM安装教程及详细配置⿊群晖DSM安装教程及详细配置为什么要安装⿊群晖先说说什么是 NAS 服务器，简单来说就是⼀个⽹络存储器，你可以存放⾳乐、视频、⽂件等，⽅便地从各个设备进⾏访问。

⽽群晖的Synology DSM，就是⼀个⾮常优秀的 NAS 服务器。

NAS 百度百科NAS（Network Attached Storage：⽹络附属存储）按字⾯简单说就是连接在⽹络上，具备资料存储功能的装置，因此也称为“⽹络存储器”。

它是⼀种专⽤数据存储服务器。

是啊，群晖官⽅的不⾹吗，可以⽅便地远程访问，也不需要折腾，买来了加上硬盘就可直接使⽤，但是看看价格 2000-4000 不等，再单独购买⼏个 T 的硬盘，算了算了。

⿊群晖，或者说 “民间版” 群晖（Synology DSM），普通的 PC 上就可以安装，⾃由 DIY，⽽且硬件要求不⾼（⽼旧主机、蜗⽜星际，PVE、ESXI 虚拟机等都可安装），官⽅的政策也很宽松，安装不算复杂，配合内⽹穿透也能⽅便地远程控制访问（配合 OpenWRT 软路由），⿊群晖也是⼀个完美的存在。

有了 NAS 之后，才体会到⽂件存储的⽅便、快捷。

我可以使⽤ NAS 存放喜欢的视频、⾳乐⽽不占本地硬盘的空间，可以多设备⽅便地获取这些⽂件，可以远程访问家⾥的 NAS ⽂件，远程关机、远程唤醒（远程唤醒需 OpenWRT 软路由），可以将 NAS 作为下载服务器，挂载⼀下即可下载，等等。

最重要的是群晖的 DSM ⾥⾯⼤量套件，⽽且个平台客户端齐全，可以 Web 访问等。

但是安装需要了解基本的电脑知识（如 Bios、U 盘启动、⼀点⽹络基础等），遇到问题可以⽹上查询都可解决。

这⾥多次提到内⽹穿透，详细的下篇博客再说，不知道可忽略，简单地说就是外⽹访问家⾥的服务，当然有公⽹ IP 的可忽略。

我的硬件⿊群晖安装设备：CS-B Q87 华硕主板 + i5 4690CPU+8G 威刚内存 + 5T 机械硬盘（希捷 4T+2*500G），另外配⼀个 U 盘（8G ⾜够）⽤作系统引导我的⿊群晖硬件，加电源、机箱价格约为 1800 元，除了 CPU 其它全新，当然⼀台⽼主机、旧笔记本都可以安装。

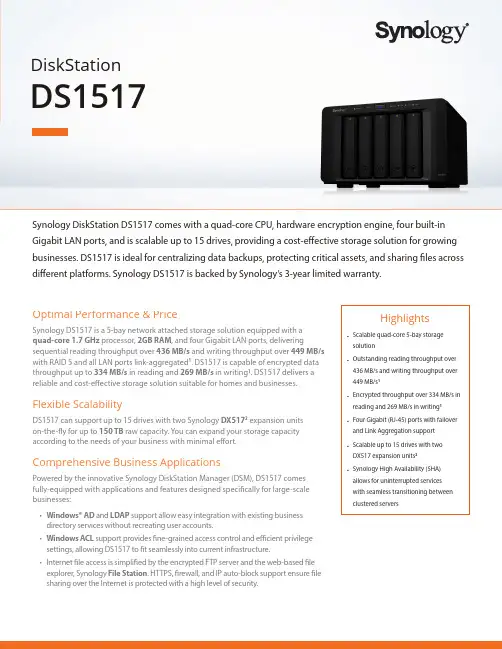

Synology DiskStation DS1517 comes with a quad-core CPU, hardware encryption engine, four built-in Gigabit LAN ports, and is scalable up to 15 drives, providing a cost-effective storage solution for growing businesses. DS1517 is ideal for centralizing data backups, protecting critical assets, and sharing files across different platforms. Synology DS1517 is backed by Synology’s 3-year limited warranty.DiskStationDS1517Highlights• Scalable quad-core 5-bay storage solution• Outstanding reading throughput over 436 MB/s and writing throughput over 449 MB/s 1• Encrypted throughput over 334 MB/s in reading and 269 MB/s in writing 1• Four Gigabit (RJ-45) ports with failover and Link Aggregation support • Scalable up to 15 drives with two DX517 expansion units 2• Synology High Availability (SHA) allows for uninterrupted services with seamless transitioning between clustered serversOptimal Performance & PriceSynology DS1517 is a 5-bay network attached storage solution equipped with a quad-core 1.7 GHz processor, 2GB RAM , and four Gigabit LAN ports, deliveringsequential reading throughput over 436 MB/s and writing throughput over 449 MB/s with RAID 5 and all LAN ports link-aggregated 1. DS1517 is capable of encrypted data throughput up to 334 MB/s in reading and 269 MB/s in writing 1. DS1517 delivers a reliable and cost-effective storage solution suitable for homes and businesses.Flexible ScalabilityDS1517 can support up to 15 drives with two Synology DX5172 expansion units on-the-fly for up to 150 TB raw capacity. You can expand your storage capacity according to the needs of your business with minimal effort.Comprehensive Business ApplicationsPowered by the innovative Synology DiskStation Manager (DSM), DS1517 comes fully-equipped with applications and features designed specifically for large-scale businesses:• Windows® AD and LDAP support allow easy integration with existing business directory services without recreating user accounts.• Windows ACL support provides fine-grained access control and efficient privilege settings, allowing DS1517 to fit seamlessly into current infrastructure.• Internet file access is simplified by the encrypted FTP server and the web-based file explorer, Synology File Station . HTTPS, firewall, and IP auto-block support ensure file sharing over the Internet is protected with a high level of security.Effective Sync & Backup SolutionDS1517 can serve as a centralized backup destination, making it easy to create your own private cloud. Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu, and Box storages in sync with DS1517 at home. Cloud Station Suite allows you to sync files among multiple devices, including Windows PC, Mac, Linux, and Android/ iOS tablets and phones, effortlessly keeping everything up-to-date.With block-level incremental backup and cross-version deduplication, Synology Hyper Backup provides multi-version backup with optimized storage utilization and allowsdata backup to multiple destinations–local shared folders, external hard drives, network shared folders, rsync servers, and public cloud services.24/7 Smart Security SolutionFeaturing user-friendly video management tools and an intuitive desktop-like interface, Synology Surveillance Station is a reliable private-security solution that can support multiple IP cameras connected to DS1517. Surveillance Station features optimized live view together with streamlined real-time monitoring. Its powerful analytics, such as motion detection and alert notification, allows you to stay informed of any suspicious activity with triggers sent via SMS, e-mail, and DS cam mobile application. Reliability & AvailabilityDS1517 features failover and Link Aggregation support. The built-in four Gigabit LAN ports provide enhanced resiliency against unexpected network or cabling failure. Hot swappable drives minimize system downtime by allowing simplified and rapid drive replacement.Uninterrupted availability is a critical goal for all businesses. Synology High Availability (SHA) ensures a seamless transition between clustered servers in the event of unexpected disasters and ensuring your services remain online.Optional 5-year warranty3 is available in select regions.Energy Efficient and Easy ManagementSynology DS1517 is designed and developed with energy efficiency in mind. DS1517 consumes only 39.5 W in regular operation. Wake on LAN/WAN and scheduled power on/off can further reduce power consumption and operational cost. With HDD hibernation, hard drives can enter the energy-saving mode automatically when the system has been idle for a specified period of time.Effective Sync & Backup Solution Synology DS1517 can serve as a centralized backup destination, allowing you to back up files from multiple devicesvia Cloud Station Backup.Reliability, Availability & Disaster RecoveryHigh Availability Manager ensures a seamless transition between clustered servers in the event of server failure withminimal impact on businesses.Hardware OverviewTechnical SpecificationsHardwareCPUAnnapurna Labs Alpine AL-314 quad-core 1.7GHz Hardware encryption engine Yes Memory2 GB DDR3LCompatible drive type 5 x 3.5" or 2.5" SATA SSD / HDD (drives not included)External port • 2 x USB 3.0 port • 2 x eSATA port Size (HxWxD)157 x 248 x 233 mm Weight 4.15 kg LAN4 x 1GbE (RJ-45)Wake on LAN/WAN Yes Scheduled power on/off YesSystem fan2 (80 x 80 x 20 mm)AC input power voltage 100V to 240V AC Power frequency 50/60Hz, single phase Operating temperature 5°C to 40°C (40°F to 104°F)Storage temperature -20°C to 60°C (-5°F to 140°F)Relative humidity5% to 95% RH Maximum operating altitude3,048 m (10,000 ft)1Status indicator 2Alert indicator 3Power button 4LAN indicator5Drive status indicator 6Drive tray 7Power port 8Kensington Security Slot 9eSATA port 10RESET button11Fan12USB 3.0 port131GbE RJ-45 port98General DSM SpecificationNetworking protocol SMB, AFP , NFS, FTP , WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP , VPN (PPTP , OpenVPN ™ , L2TP)File system• Internal: ext4• External: ext4, ext3, FAT, NTFS, HFS+ (read only), exFAT 4Supported RAID typeSynology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10Storage management• Maximum single volume size: 108 TB • Maximum internal volume: 256• Maximum iSCSI target: 32• Maximum iSCSI LUN: 256• iSCSI LUN clone/snapshot supportSSD cache SSD read-write cache supportFile sharing capability• Maximum local user account: 2,048• Maximum local group: 256• Maximum shared folder: 256•Maximum concurrent SMB/NFS/AFP/FTP connection: 512Privilege Windows Access Control List (ACL), application privilegesDirectory service Windows ® AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integrationSecurity Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP , rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite)Supported client Windows 7 onwards, Mac OS X ® 10.10 onwardsSupported browser Chrome ®, Firefox ®, Internet Explorer ® 9 onwards, Safari ® 8 onwards; Safari (iOS 7 onwards), Chrome (Android™ 4.0 onwards) on tabletsInterface languagePackages and ApplicationsFile Station Virtual drives, remote folders, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users/groups, creating sharing links, transfer logsFTP Server Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP , FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs Universal Search Offer global search into applications and filesHyper BackupSupport local backup, network backup, and data backup to public clouds Active Backup for Server Centralize data backup for Windows and Linux servers without client installation Backup toolDSM configuration backup, macOS Time Machine support, Cloud Station Backup Shared folder sync - maximum task number: 4Cloud Station SuiteSync data between multiple platforms by installing the client utilities on Windows, Mac, Linux, Android and iOS devices, while retaining up to 32 historical versions of filesMaximum concurrent file transfer: 512Cloud SyncOne or two-way synchronization with public cloud storage providers including Amazon Drive, Amazon S3-compatible storage, Baidu cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers, Yandex DiskSurveillance Station Maximum IP camera: 30 (total of 900 FPS at 720p, H.264) (including two free camera licenses; additional cameras require the purchasing of additional licenses)High Availability Manager Reduce service downtime by setting up two identical NAS into one high-availability cluster VPN Server Maximum connection: 15, supported VPN protocol: PPTP , OpenVPN™, L2TP/IPSec Mail Server Supported Mail Server protocol: POP3, SMTP , IMAP , support LDAP/AD accountMail Station Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server Collaboration Suite • Chat maximum user: 150• Office maximum user: 150, maximum simultaneous editing user: 40• Calendar: support CalDAV and access via mobile devicesNote Station Rich-text note organization and versioning, encryption, sharing, media embedding and attachmentsStorage Analyzer Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified filesSecurity Advisor Malware detection/removal, user account/password, network, system-related security scan Antivirus Essential Full system scan, scheduled scan, white list customization, virus definition auto update Download Station Supported download protocol: BT, HTTP , FTP , NZB, eMule, Thunder, FlashGet, QQDL Maximum concurrent download task: 50Web Station Virtual host (up to 30 websites), PHP/MariaDB®, third-party application supportOther packageVideo Station, Photo Station, Audio Station, DNS Server, RADIUS Server, iTunes® Server, Log Center, third-party packages available on Package CenteriOS/Android™ application DS audio, DS cam, DS cloud, DS file, DS finder, DS get, DS note, DS photo, DS video Windows Phone® applicationDS audio, DS file, DS finder, DS get, DS photo, DS videoEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český,SYNOLOGY INC.Synology is dedicated to taking full advantage of the latest technologies to bring businesses and home users reliable and affordable ways to centralize data storage, simplify data backup, share and sync files across different platforms, and access data on-the-go. Synology aims to deliver products with forward-thinking features and the best in class customer services.Copyright © 2017, Synology Inc. All rights reserved. Synology, the Synology logo are trademarks or registered trademarks of Synology Inc. Other product and company names mentioned herein may be trademarks of their respective companies. Synology may make changes to specification and product descriptions at anytime, without notice.DS1517-2017-ENU-REV001HeadquartersSynology Inc. 3F-3, No. 106, Chang An W. Rd., Taipei, Taiwan Tel: +886 2 2552 1814 Fax: +886 2 2552 1824ChinaSynology Shanghai 200070, Room 516, No. 638 Hengfeng Rd., Zhabei Dist. Shanghai, ChinaUnited KingdomSynology UK Ltd.Unit C, Denbigh WestBusiness Park, Third AvenueBletchley, Milton KeynesMK1 1DH, UKTel: +44 1908 366380GermanySynology GmbHGrafenberger Allee125 40237 DüsseldorfDeutschlandTel: +49 211 9666 9666North & South AmericaSynology America Corp.3535 Factoria Blvd SE #200Bellevue, WA 98006, USATel: +1 425 818 1587FranceSynology France SARL39 rue Louis Blanc, 92400Courbevoie, FranceTel: +33 147 176288Environment and Packaging Environment safety RoHS compliantPackage content • DS1517 main unit x 1• Quick Installation Guide x 1• Accessory pack x 1• AC power cord x 1• RJ-45 LAN cable x 2Optional accessories • Synology Expansion Unit DX517• Synology VS360HD• Surveillance Device License PackWarranty 3 years*Model specifications are subject to change without notice. Please refer to for the latest information.1. Performance figures may vary depending on environment, usage, and configuration.2. DS1517 supports up to two Synology DX517, sold separately.3. 5-year warranty is available as an optional bundle with EW201, 2-year Extended Warranty service add-on. Visit https:///en-global/products/Extended_Warrantyfor more information on availability.4. exFAT Access is purchased separately in Package Center.。

黑群晖 用法黑群晖，即未经授权的群晖 Synology）NAS 网络附加存储）系统，是一种基于开源软件和硬件的存储解决方案。

尽管它未经官方认可，但由于其高度的可定制性和低成本，黑群晖在许多场景中得到了广泛应用。

下面我们将详细介绍黑群晖的使用方法。

首先，你需要一个群晖的硬件设备。

确保设备能够满足黑群晖的硬件要求，比如处理器速度、内存大小、硬盘类型等。

在安装之前，建议仔细阅读硬件设备的技术规格和兼容性说明。

接下来，你需要下载并安装黑群晖的操作系统。

这一步需要从可靠的源获取操作系统镜像文件，并按照官方的安装指南进行操作。

在安装过程中，你可能需要创建多个系统账户，包括管理员和访客账户。

一旦操作系统安装完成，你就可以开始配置存储空间、网络和其他必要的系统设置。

黑群晖提供了图形化的管理界面，使得这些任务变得相对简单。

确保为存储空间创建适当的卷或分区，并根据需要配置网络设置，包括IP地址、子网掩码、网关等。

在配置好基础设置之后，你可以开始安装必要的软件套件，例如文件服务器、媒体服务器、备份解决方案等。

这些软件套件可以提供各种功能，如文件共享、媒体流媒体服务、数据备份等。

根据你的需求选择适当的套件，并按照界面指示进行安装。

要使用黑群晖的文件和媒体服务，你需要在客户端计算机或移动设备上安装相应的软件或应用程序。

这些软件通常可以通过设备的官方应用商店或黑群晖的官方网站下载。

安装完成后，通过提供的账户凭据登录到你的黑群晖系统，并开始使用各种存储和媒体服务。

此外，为了确保黑群晖系统的安全和稳定性，建议定期进行系统和软件的更新。

这些更新可能包括安全补丁、性能改进和错误修复。

黑群晖提供了自动更新功能，确保你的系统始终保持最新状态。

总的来说，黑群晖的使用方法涉及多个步骤，包括硬件准备、操作系统安装、系统配置、软件套件安装以及客户端设置。

尽管这个过程可能看起来有些复杂，但只要你按照官方指南和社区支持进行操作，就能够顺利地建立起自己的黑群晖系统。

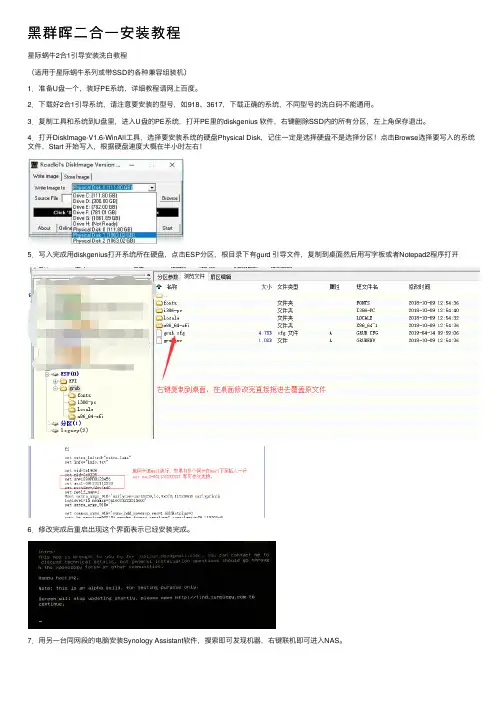

⿊群晖⼆合⼀安装教程
星际蜗⽜2合1引导安装洗⽩教程
（适⽤于星际蜗⽜系列或带SSD的各种兼容组装机）
1．准备U盘⼀个，装好PE系统，详细教程请⽹上百度。

2．下载好2合1引导系统，请注意要安装的型号，如918、3617，下载正确的系统，不同型号的洗⽩码不能通⽤。

3．复制⼯具和系统到U盘⾥，进⼊U盘的PE系统，打开PE⾥的diskgenius 软件，右键删除SSD内的所有分区，左上⾓保存退出。

4．打开DiskImage-V1.6-WinAll⼯具，选择要安装系统的硬盘Physical Disk，记住⼀定是选择硬盘不是选择分区！点击Browse选择要写⼊的系统⽂件，Start 开始写⼊，根据硬盘速度⼤概在半⼩时左右！
5．写⼊完成⽤diskgenius打开系统所在硬盘，点击ESP分区，根⽬录下有gurd 引导⽂件，复制到桌⾯然后⽤写字板或者Notepad2程序打开
6．修改完成后重启出现这个界⾯表⽰已经安装完成。

7．⽤另⼀台同⽹段的电脑安装Synology Assistant软件，搜索即可发现机器，右键联机即可进⼊NAS。

PS：传统安装⽅式同理，区别在于写完引导后需要在Synology Assistant软件上搜索安装对应的系统！。

与时俱进，提升居家生活品质（篇四）：3分钟搞定SSD黑群晖安装作者：smzdm网站ID 无敌稻草人【背景介绍】：在《与时俱进，提升居家生活品质（篇三）：不到300元打造超低成本NAS》（如下）中介绍了搭车蜗牛星际搞定NAS的经过。

我买的蜗牛星际配置是J1900+4G+16G SSD+单网口（实测千兆），车相当稳，接下来就开始安装黑群晖了，因为自带16G SSD，就打算把黑群晖安装在SSD上。

【方案设计】：采用的是网友wjq_xp提供的黑群晖镜像，介绍如下：1、采用JUN'S大神的1.02b引导配合老骥伏枥的启动文件外加自制的GRLDR制作。

2、完美支持固态硬盘、移动硬盘或U盘。

3、已进行半洗白（可以生成缩略图、在线转码、离线转码；不可以登录和使用QC）。

4、IMG包已经整合系统（型号为DS3617xs，版本6.17）并且完成安装，开机即可进入设置界面。

需要16G的固态硬盘、移动硬盘或者U盘才能使用，可使用大于16G的介质，但是内部可用存储只有9G。

因分区列表固定无法调整，推荐用16G的就好了，这样不会造成浪费。

正好合适装在我的NAS上。

【实施过程】：首先准备一个通用PE的U盘启动盘，这个我有，没有的值友可以做一个，制作方法可以参考官方的教程，接下来，把通用PE的U盘启动盘插到NAS上，开机，按下F7键（一开机就快速的连续按，以免跳过），出现“Please select boot device”的对话框，选择UEFI开头的那个USB DISK 作为启动盘，按回车键启动图1 选择启动盘启动后进入PE桌面图2 PE桌面打开桌面上的“DiskGenius 分区工具”，找到“HD0：MV-16（15GB）”，这就是我要装黑群晖的SSD，删除下面的所有分区图3 删除SSD的分区下载DiskImage-V1.6-WinAll（提取码：hwwj）和镜像文件3617-6.17-16G（提取码：y2wc），把这两个文件放在通用PE的U 盘启动盘的根目录下，打开DiskImage-V1.6-WinAll，用Roadkil's DiskImg把镜像文件3617-6.17-16G.7z写入SSD。

TM Quick Start Guide of Hikvision IP Camera & Synology NASConnectionIndex1. Adding DS112j to DS-2CD2112-I5 via NFS Mount Type (4)2. Notes of using NFS mount type on DS112j (7)3. Adding DS112j to DS-2CD2112-I5 via CIFS Mount Type (9)4. Notes of using CIFS mount type on DS112j: (13)About this DocumentThis manual applies to the following devices and Hikvision IP camera DS-2CD2211-I5 and Synology NAS DS112j are used as examples in it.[1]DS-2CD63xx series IP cameras do not support Synology NAS connection via CIFS mount type.1.Adding DS112j to DS-2CD2112-I5 via NFS Mount TypeMain Steps:1.Log in the web page of the DS112j. The IP address of DS112j in US office is http://10.102.103.206:5000 anduser name/password is admin/12345.2.Click Control Panel, and in the pop-up message box, click File Services. Under Win/Mac/NFS tab, enable theNFS by tick the box in front of Enable NFS and click Apply to save the settings.3.Create a Shared Folder:Then click Shared Folder and create a shared folder. In this case, we named it“TestNas” and click OK.4.Then go to NFS Permissions tab and click Create button. In pop-up message box, enter the IP address. In thiscase, my IP address is 10.102.103.x, so I entered 10.102.103.0/24 (Note:/24 means that the subnet mask is 255.255.255.0). And then all the IP cameras in this segment can be mounted on this directory. Please also select No mapping for Squash option. Click OK to save the settings.5.And under NFS permission tab, you will see the mount path (file path) is /volume1/TestNas6.Add NAS to an IP camera: Go to web client of DS-2CD2112-I5 and select NFS as the mounting type andinput the server address and file path, then click save.Note: NFS mounting type does not require user name and password.7.Go back to Storage Management, tick the checkbox of the HDD No. and click Format. After it is formatted,the NAS can be used for recording.2.Notes of using NFS mount type on DS112j1.DS112j only supports adding one HDD so it does not support disk group management as shown in the figurebelow.2.DS112j only supports creating one volume (as shown in the figure below) and a volume can only be attachedto one IP camera when using NFS mount type. There might be confliction that causes HDD error and video loss if a volume is attached to more than one IP camera.3. A shared folder can be only attached to one IP camera. There might be confliction that causes HDD error andvideo loss if a shared folder is attached to more than one IP camera.4.When using NFS mount type, a shared folder will use up all the space in a volume, so it is suggested thatcreating only one shared folder in a volume for only one IP camera to use.5.NFS mount type does not require user name/password when it is attached to an IP camera, so there is noneed to create user on the Synology NAS as well.6.When assign the NFS permission for NFS mount type, please select No mapping for Squash option as shownin the figure below.7.When using NFS mount type, the file path format filled in an IP camera is /volume id/name of shared folder.For example, if the volume id is 1 and the name of shared folder is TestNas, the file path is /volume3/TestNas.3.Adding DS112j to DS-2CD2112-I5 via CIFS Mount TypeMain Steps:1.Log in the web page of the DS112j. The IP address of DS112j in US office is http://10.102.103.206:5000 anduser name/password is admin/12345.2.Create a Shared Folder: Click Control Panel, and in the pop-up message box, click Shared Folder. Input thename of the new folder and click OK. In this case, we named it “TestCIFS” under General tab and click OK.The file path is /TestCIFS in this case then.3.Create a User: Click Control Panel, and in the pop-up message box, click User and click Add button. Then youwill see the message box below, input the user name and password under Info tab. In this case, ipc_test is the user name and 12345 is the password for the newly added user. Click OK to save the settings.4.Then go to User groups tab and select users by ticking the box on the right side. Click OK to go to next step.5.Go to Permissions and assign the Read/Write permission of TestCIFS folder to the newly added user –ipc_test and click OK.6.In the following interface, you can configure the upper limit of the storage space. Quota control is only validwhen using CIFS protocol and quota size cannot be zero or empty (For NFS protocol, it is invalid). In this case, we tick the checkbox of Enable Quota, and enter the number 200, then the user ipc_test is able to use 200G space on the volume 1. If you want the ipc_test to use all the storage space of the volume 1, you can leave the Enable Quota unchecked which is as known as No Quota Mode. After configuration, click OK to finish.7.Add NAS to an IP camera: In the web client of DS-2CD2212-I5, select SMB/CIFS as the mounting type andinput the file path, user info and server address, and then click save.8.Go back to Storage Management, tick the checkbox of the HDD No. and click Format. After it is formatted,the HDD can be used for recording.4.Notes of using CIFS mount type on DS112j:1.DS112j only supports adding one HDD so it does not support disk group management as shown in the figurebelow.2.DS112j only supports creating one volume (as shown in the figure below). If you want to attach more thanone IP camera to a volume, please create multiple shared folders and users on DS112j. Note that quota mode must be enabled on every single user and the total quota size of all users must be smaller than the volume size. After that you should assign each shared folder to each user and then input each shared folder (file path) and user info in the web client of each IP camera.3. A shared folder can be only attached to one IP camera. There might be confliction that causes HDD error andvideo loss if a shared folder is attached to more than one IP camera.4.In quota mode, if the quota size of a user is changed, you have to format the HDD again on the web client ofthe IP camera before use it again.5.CIFS mount type requires user name/password when it is attached to an IP camera, so you need to create auser on the Synology NAS.6.When using CIFS mount type, the file path format filled in an IP camera is /name of shared folder. Forexample, if the name of shared folder is TestCIFS, the file path is /TestCIFS.。

纯新手向：群晖（NAS）的安装、使用详尽介绍本文将分为几个目录来进行：1、大概介绍2、硬件组装3、系统安装4、端口映射5、远程下载6、视频播放7、综合使用（cloud、photo、file、note等）8、综合问答----------------------------------------------------------------------------------------------------------------------------NAS（Network Attached Storage：网络附属存储）按字面简单说就是连接在网络上，具备资料存储功能的装置，因此也称为“网络存储器”。

它是一种专用数据存储服务器。

它以数据为中心，将存储设备与服务器彻底分离，集中管理数据，从而释放带宽、提高性能、降低总拥有成本、保护投资。

其成本远远低于使用服务器存储，而效率却远远高于后者。

目前国际著名的NAS企业有Netapp、EMC、OUO等。

以上，来自百度百科复制的资料，如果用比较人类的话来说一次NAS，其实也就是一台电脑，功能性比较局限的电脑，通过特定的系统完成大家的一些文件（相片）储存，影音存储的需求，并通过外部软件来完成读取（播放）。

例如来说：（云）储存？有个好东西要放起来？在外现了一个好资源（番号？），家里网络空着也是浪费，下载吧。

躺在沙发上电视播放硬盘内的大片：又或是用平板、手机之类的躺在床上看下回来的电影？还是看些漫画？还是说你有很多东西需要移动存储？又或有更多的玩法？•2#月亮上梦游•2015-9-12 19:54:54本帖最后由月亮上梦游于 2015-9-12 21:18 编辑以上是我感觉对于NAS来说，大家最常用到的一些功能了。

NAS其实就是以上所说的功能的汇集体，他是一个网络存储服务。

可以通过路由器加移动硬盘搭成简易的服务（卡，慢），可以购买专业公司开发的（系统）完成，可以自己用一些普通的电脑配件通过一些灰色手段（其实就是非法）去使用专业公司系统。

家庭NAS部署指南群晖篇二——那些“用了就回不去”的群晖套件大家好，上次给大家介绍了黑群晖的安装方法。

家庭NAS部署指南（二）——如何自己动手安装一台黑群晖主机安装好了群晖系统后接下来就是使用了。

我们今天就来介绍下几个群晖常用的套件使用。

群晖套件数量非常众多，且有官方套件和第三方套件之分。

我们这里主要介绍的是常用几款官方套件，目的是让大家快速上手玩起来。

相信看了我介绍的这几款套件之后，喜欢上群晖Nas的。

以下内容白群和黑群都适用，适合初级群晖玩家阅读。

懒人目录：1、相册——DS Photo+Moments2、文件管理——photo station3、视频管理——Video Station4、Cloud Sync ——云同步工具5、玩物下载——Nas版迅雷6、多用户账号设置管理Nas空间7、USB外接设备共享一、群晖相册——DS Photo+Moments 正确的使用方法应该说群晖用户有80%都是冲着相册管理来的。

一旦你习惯了群晖相册功能，我确定八成的人都离不开群晖了。

因此我最先推荐的DS Photo和Moments这两个照片管理套件。

首先我们来了解下群晖套件的安装：打开桌面上的“套件中心”——搜索你想要安装的套件“photo station”——点击“安装套件”即可。

非常简单，比在win10下装个软件要轻松多了。

安装成功以后，我们就可以在左上角的“主菜单”中找到刚刚新增的套件。

群晖的所有套件安装方法。

点击“photo station”就可以进入相册的设置页面。

1、photo station“photo station”安装好以后一般不用做过多设置。

你只要按我的上一个教程建立过一个共享空间，并且处于激活状态就可以了。

具体在“控制面板”＞“用户账号”＞“高级设置”＞启动家目录服务。

一般建立好共享空间后会自动激活。

之后我们只要打开我的电脑，进入Nas目录。

就可以看到photo 文件夹，把照片拷贝到这个文件夹下。

synologyNAS存储安装DSM的⽅法
synology NAS存储安装DSM
⼀：这步操作的前提是，你已经可以通过使⽤软件（）找到你⽹络中的NAS设备。

接下来我们来安装DSM系统。

⼆：启动你的Assistant软件，点击搜索。

如下图1所⽰第⼀步：
图1
三：选中状态信息为“DSM未安装”NAS设备如图1中第⼆步，这时候联机那⾥会显⽰安装。

如图2中第三步。

图2
四：点击安装之后，出现如下图3所⽰。

点击浏览查找你的dsm系统⽂件，后缀名为“.pat”的⽂件，这⾥⼀定要选对你的系统型号跟你的NAS设备型号匹配，要不可能出现系统安装不成功。

图3
五：点击之后出来如下图4所⽰情况，查找匹配的DSM⽂件，选中匹配的DSM⽂件后，点击“open”打开，进⼊后⾯的操作。

图4
六：之后进⼊如下图5所⽰：如果你发现你的dsm选择错了，点击第七步那⾥取消掉安装，回到开始的地⽅从新安装。

图5
七：⼤约等⼏分钟（这个时间跟你的⽹络和设备硬件性能硬盘数量有关）等上⾯完成之后确认，点击完成结束DSM的安装。

FAQ
1：安装等很久了，还是没有提⽰安装成功，这个你⾸先要检查⼀下你的设备型号是否跟你选择的DSM版本号匹配，这个很重要，⼀定要匹配，如果使⽤笔记本，你需要接⼊有线的⽹络，使⽤⽆线可能也会引发这个问题。

最后成功⼀步忘了截屏，但是如果成功了没什么可做的确认，关闭。
