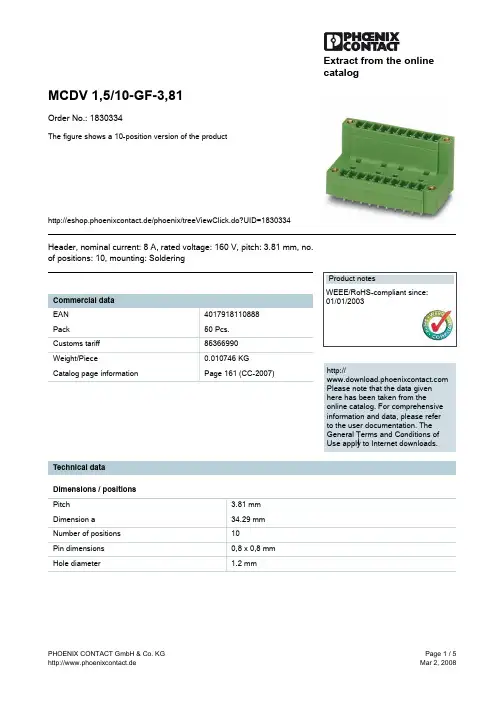

Extract from the onlinecatalogMCDV 1,5/10-GF-3,81Order No.: 1830334The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1830334Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 10, mounting: Solderinghttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 3.81 mmDimension a34.29 mmNumber of positions10Pin dimensions0,8 x 0,8 mmHole diameter 1.2 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 2.5 kVRated surge voltage (III/2) 2.5 kVRated surge voltage (II/2) 2.5 kVRated voltage (III/2)160 VRated voltage (II/2)250 VConnection in acc. with standard EN-VDENominal current I N8 ANominal voltage U N160 VMaximum load current8 AInsulating material PBTInflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCSANominal voltage U N300 VNominal current I N8 ACULNominal voltage U N300 VNominal current I N8 AULNominal voltage U N300 VNominal current I N8 ACertification CB, CSA, CUL, GOST, UL, VDE-PZIAccessoriesItem Designation DescriptionMarking0804109SK 3,81/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section markerstrip, 14 identical decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for 140 terminal blocksPlug/Adapter1734634CP-MSTB Coding profile, is inserted into the slot on the plug or invertedheader, red insulating materialAdditional productsItem Designation DescriptionGeneral1851313FK-MCP 1,5/10-STF-3,81Plug, with screw flange, nominal current: 8 A, rated voltage: 160V, pitch: 3.81 mm, no. of positions: 10, type of connection: Spring-cage connection1850932FRONT-MC 1,5/10-STF-3,81Plug with screw flange, nominal current: 8 A, rated voltage: 160V, pitch: 3.81 mm, no. of positions: 10, type of connection: Screwconnection1827787MC 1,5/10-STF-3,81Plug component, nominal current: 8 A, rated voltage: 160 V,pitch: 3.81 mm, no. of positions: 10, type of connection: Screwconnection1852448MCC 1/10-STZF-3,81Plug component, nominal current: 8 A, rated voltage: 160 V,pitch: 3.81 mm, no. of positions: 10, type of connection: Crimpconnection1828427MCVR 1,5/10-STF-3,81Plug component, nominal current: 8 A, rated voltage: 160 V,pitch: 3.81 mm, no. of positions: 10, type of connection: Screwconnection1828579MCVW 1,5/10-STF-3,81Plug component, nominal current: 8 A, rated voltage: 160 V,pitch: 3.81 mm, no. of positions: 10, type of connection: Screwconnection1897623QC 0,5/10-STF-3,81Plug, nominal current: 6 A, rated voltage: 320 V, pitch: 3.81mm, number of positions: 10, connection method: Insulationdisplacement connection QUICKONDrawingsDrilling diagramDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
产品简介LM Gateway101-B 数据采集网关，基于稳固的硬件平台设计，完善的软件内核。
提供1个RS-485串口，1个10/100Mbps 以太网口，网关内嵌Modbus,DLT645，PPI,Mbus 等数据采集驱动，提供私有协议驱动集成，网关作为BACnet IP 和BACnet MS/TP 服务器对外提供数据。
硬件规格LM Gateway101硬件参数：CPU ARM926EJ,主频为300MHz 内存64MByte 高性能内存Nand Flash 128MByte SLC Flash 串口1个全隔离RS485接口网口1个100M/10M 以太网接口WIFI可选配USB 无线网卡电源DC9V ～48V ，支持防反接，抗雷，过流等保护整机重量280g 外壳防护等级IP51安装尺寸98.5mm ×96mm ×27mm(L ×W ×H)含挂耳机械安装DIN 导轨卡槽固定LM Gateway101环境参数：功耗主板最大功耗≤2W 工作温度工作相对湿度-40～85℃20～90％无凝露接口定义1．POWER 电源座信号说明Vin+电源正Vin-电源负E 安全地线2.DC 座，5.5*2.1mm在电源质量不佳的环境下，建议使用开关电源供电，能有效提高网关抗干扰的能力。
3．网口10/100M 高速自适应网卡；采用双级防雷防静电保护，能抵抗2KV 雷击；唯一MAC 地址。
LAN 口默认IP 子网掩码Eth0192.168.1.233255.255.255.04．CON 功能座RS485：全隔离RS485接口，采用三级防护；支持GB/T 17626.5-2008标准中10/700uS 测试的最高等级4KV 防护；±15kV 人体放电模式；±15kV IEC1000-4-2气隙放电；通讯参数可配置，默认通讯参数：9600，8-1-N 。
5．LEDx-灯组PIN 号标记说明1POWER 电源指示，上电灯亮2SYS系统运行指示3TX1串口发送指示4RX1串口接收指示接口标记数据服务网关作为BACnet IP ,BACnet MS/TP 服务器对外提供数据，支持AI,AO,AV,BI,BO,BV,MSI,MSO,MSV 等属性，可配置数据单位。
Extract from the onlinecatalogCCA 2,5/11-GR-5,08P26THRR88Order No.: 1959367The illustration shows a 6-position versionhttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1959367Taped modular headers, right, pin length: 2.6 mm, tape width: 88 mm, 5.08 mm pitch, 11-pos.http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a50.8 mmNumber of positions11Pin dimensions 1 x 1 mmPin spacing 5.08 mmHole diameter 1.4 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 4 kVRated surge voltage (III/2) 4 kVRated surge voltage (II/2) 4 kVRated voltage (III/2)320 VRated voltage (II/2)400 VConnection in acc. with standard EN-VDENominal current I N12 ANominal voltage U N250 VMaximum load current12 A (per position)Insulating material LCPInflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N300 VNominal current I N10 AULNominal voltage U N300 VNominal current I N10 ACertification CUL, ULAccessoriesItem Designation DescriptionGeneral1954362CR-MSTB NAT HT HT coding section, is pushed into the recess on the header beforethe reflow process, made of highly temperature-resistant, beigeinsulating materialMarking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm0804293SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805085SK 5,08/3,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 12 identical marker strips per card, max.25-position labeling per strip, color: white0805412SK 5,08/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive, 10-section marker strips, 12 strips per card, can be labeled with theM-PENPlug/Adapter1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialDrawingsApplication drawingDrilling diagramDimensioned drawingBottom view, free space for solder paste, 0.5mm deepDirection of the arrow = feeding directionAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
•All specifications are subject to change without notice.•Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific Common Mode FiltersFor general signal line/power line ZJY seriesType:Issue date:ZJY51R5September 2011Common Mode FiltersFor General Signal Line / Power LineZJY Series ZJY51R5FEATURES• A common mode filter for distortion-free removal of noise from transmitted signals. Best common mode filter for transmission of high quality signals.•Best filter for countering the common mode noise resulting from data signal processing by PCs, phone equipment, etc.•Highly appropriate for IC board mounting due to DIP type struc-ture.•Due to a maximum current tolerance of 2A, can also be used to counter power line noise.APPLICATIONSPersonal computers, telephones, LANs, ISDNs, digital PBXs, elec-tronic games, CTVs, CD-ROM drives, 8mm video equipment, and other electronic devicesPACKAGING STYLE AND QUANTITIES (Tube style)RECOMMENDED SOLDERING CONDITIONRECOMMENDED FLOW TEMPERATURE PROFILE FOR LEAD-FREE SOLDERSHAPES AND DIMENSIONS TRANSFER MOLDPLASTIC CASE ZJY51R5-2P-01, -2PB-01, -2PL-01ZJY51R5-4P-01, -M4PA-01ZJY51R5-8PA-01Dimensions in mmCIRCUIT DIAGRAMSZJY51R5-2P-01, -2PB-01, -2PL-01ZJY51R5-4P-01, -M4PA-01ZJY51R5-8PA-01Conformity to RoHS DirectiveZJY51R5-2PB-0180 pieces ZJY51R5-2PL-0180 pieces ZJY51R5-4P-0140 pieces ZJY51R5-M4PA-0140 pieces ZJY51R5-8PA-0120 piecesPart No. A max. B max. C max. D max.E F±0.25G H I ZJY51R5-2P-01, -2PB-01, -2PL-01∗ 5.5 6.86 4.57 5.840.5 2.547.620.25 2.54ZJY51R5-4P-01, -M4PA-0110.5 6.86 4.57 5.840.5 2.547.620.25 2.54ZJY51R5-8PA-0123.57 4.6 6.30.52.547.620.252.54•Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specificELECTRICAL CHARACTERISTICS∗1 This type has improved low-range characteristics.∗2 This type is wrapped separately (for communication lines).TYPICAL ELECTRICAL CHARACTERISTICSIMPEDANCE CHARACTERISTICS (for 1 element)ZJY51R5-2P-01, -4P-01, -8PA-01ZJY51R5-2PB-01ZJY51R5-2PL-01ZJY51R5-M4PA-01MEASURING CIRCUITTYPICAL APPLICATIONAn application example showing how radiation noise is prevented when transmitter and receiver are connected via twisted pair cables.Part No.ZJY51R5-2P-01, -4P-01ZJY51R5-2PB-01∗1ZJY51R5-2PL-01∗2ZJY51R5-M4P A-01ZJY51R5-8P A-01Rated voltage Edc(V)5050505050Rated current (A)2220.50.5T est voltage Edc(V)[Between terminals for 5s]125125*********[Between terminals at DC.50V for 1min]100 min.100 min.100 min.100 min.100 min.DC resistance (Ω) [Each line]0.12 max.0.12 max.0.10 max.0.25 max.0.07 max.Operating temperature range (°C)–25 to +85–25 to +85–25 to +85–25 to +85–25 to +85Storage temperature range(After mount)(°C)–25 to +85–25 to +85–25 to +85–25 to +85–25 to +85Impedance (Ω) [+5 to +35°C][20 to 300MHz][6 to 20MHz][20 to 100MHz][20 to 300MHz][20 to 300MHz]分销商库存信息:TDKZJY51R5-2P-01ZJY51R5-2PB-01ZJY51R5-2PL-01 ZJY51R5-M4PA-01ZJY51R5-4P-01。
