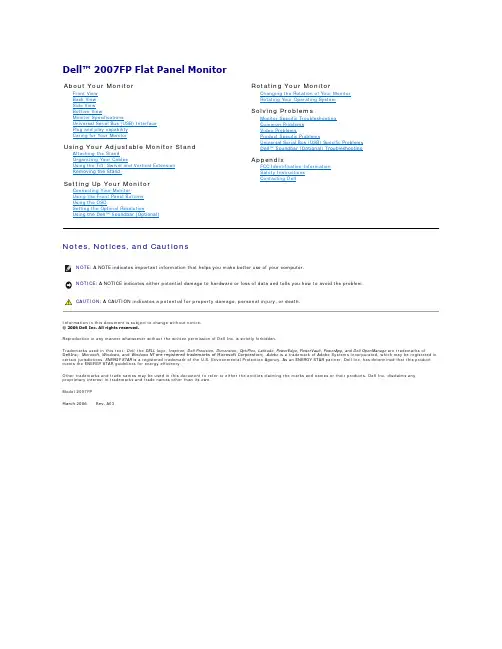

Back to Contents PageAbout Your MonitorDell™ 2007FP Flat Panel MonitorFront ViewBack ViewFront ViewBack ViewSide ViewBottom View Monitor Specifications Universal Serial Bus (USB) Interface Plug and play capability Caring for Your Monitor1Input indicators 2Input Source Select 3OSD Menu / Select 4Down (-) 5Up (+) 6 Power button (with power light indicator)Side ViewRight side1VESA mounting holes (100mm) (Behind attached base plate) Use to mount the monitor. 2Connectors label Indicate the positions and types of connectors.3Barcode serial number label Refer to this label if you need to contact Dell for technical support.4Security lock slot Use a security lock with the slot to help secure your monitor.5Monitor Lock/Release Button Press to release the stand from the monitor.6Regulatory rating label List the regulatory approvals.7Dell Soundbar mounting brackets Attach the optional Dell Soundbar.8 Lock down/release buttonPush the monitor down, press the button to unlock the monitor, and then lift the monitor to the desired height. 9Cable management hole Help organize cables by placing them through thehole.Left sideBottom ViewMonitor Specifications1USB downstream ports1AC power cord connector2DVI connector3VGA connector4Composite video connector5S-Video connector6USB upstream port7USB downstream ports8DC power connector for Dell™ SoundbarGeneralModel number 2007FPFlat PanelScreen type Active matrix - TFT LCD-compliant as well as TCO '99/ TCO '03 power management compatible.* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.Pin Number15-pin Side of the Connected Signal Cable 1Video-RedPin Number24-pin Side of the Connected Signal CablePin Number1USB Upstream ConnectorPin Number1NOTE:NOTE:attached peripherals may take a few seconds to resume normal functionality.LAMP(S) INSIDE THIS PRODUCT CONTAIN(S) MERCURY AND MUST BE RECYCLED OR DISPOSED OFF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, GO TONOTE:NOTE: In certain countries, support specific to DellIf you do not see a telephone number listed that is specific for XPS computers, you may contact Dell through the support number listed and your call will be routed appropriately.NOTE:NOTE:To take advantage of the "Display Rotation" function (Landscape versus Portrait view) an updated graphics driver is required for your Dell™ Computer not included with this monitor. Please download the graphics driver from and refer to the "download" section for "Video Drivers" for latest driver updates.NOTE: When in "Portrait View Mode", you may experience performance degradation in graphic-intensive applications (3D Gaming etc.)Rotating Your Operating SystemAfter you have rotated your monitor, you need to complete the procedure below to rotate your operating system.NOTE: If you are using the monitor with a non-Dell computer, you need to go to the graphics driver website or your computer manufacturer website for information on rotating your operating system.Back to Contents PageSetting Up Your MonitorDell™ 2007FP Flat Panel MonitorConnecting Your MonitorUsing the Front Panel ButtonsUsing the OSDSetting the Optimal ResolutionUsing the Dell™ Soundbar (Optional)Connecting Your MonitorCAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions.1AC power cord connector2DVI connector3VGA connector4Composite video connector 5S-Video connectorAInput Source SelectUse Input Source Select button to select between four different video signals that may be connected to your monitor.1.VGA input2.DVI-D input3.S- Video inputposite video inputIf either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown beorororOSD Menu / SelectDown (-) and Up (+)Power button(with power light indicator)Using the OSDAccessing the Menu SystemIf you change the settings and then either proceed to another menu, or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and then wait for the OSD menu to disappear.Push the MENU button to launch the OSD menu and display the main menu.NOTE: AUTO ADJUST is only available when you are using the analog (VGA) connector.Push the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the table for a complete list of all the options available for the monitor.Push and button to select the desired parameter.Push MENU to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.Push to select Back to go back to the main menu.Brightness adjusts the luminance of the backlight.Push the button to increase brightness and push the button to decrease brightness (min 0 ~ max 100).Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.Push to exit the OSD main menu.NOTE: In most cases, Auto Adjust produces the best image for your configuration.Push to select Back to go back to the main menu.Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.Select S-Video input when you are using S-Video connector. Push to select the S-Video input source.Select Composite input when you are using composite video connector. Push to select the composite input source.Push button to scan for available input signals.Push to exit the OSD main menu.Push to select Back to go back to the main menu.NOTE:'Red') favor blue and red accordingly. Select each one to see how each range suits your eye....or utilize the 'Custom Colo to customize the color settings to your exact choice.Push to exit the OSD main menu.Image mode submenu for VGA/DVI-D input Image mode submenu for Video inputNOTE: Image modes are different between the VGA/DVI-D and Video inputsPush to select Back to go back to the main menu.Push to exit the OSD main menu.Push to select Back to go back to the main menu.Adjust the image ratio as 1:1, aspect or full screen.NOTE:Wide Mode adjustment is not required at optimal preset resolution 1600 x 1200.When making changes to either the 'Horizontal' or 'Vertical' settings, no changes will occur to the size of the viewing area: th will simply be shifted in response to your selection/change.Use the and buttons to adjust image to left/right and up/down. Minimum is '0' (-). Maximum is '100' (+).This feature can make the image look sharper or softer. Use or to adjust the sharpness from '0' to '100' .Use the Zoom function to zoom in to specific area of interest.Using the and keys to zoom in and out.When using the zoom function.Use the and buttons to adjust image to left/right and up/down. Minimum is '0' (-). Maximum is '100' (+).main OSD menu, by selecting 'Image Settings'.the and buttons to adjustPush to exit the OSD main menu.Push to select Back to go back to the main menu.Language option to set the OSD display to one of five languages (English, Espanol, Francais, Deutsch, Japanese).and buttons move OSD to the left and right.and buttons move OSD up and down.OSD Hold Time: Sets the length of time the OSD will remain active after the last time you pressed a button.Use the and buttons to adjust the slider in 5 second increments, from 5 to 60 seconds.Controls user access to adjustments. When 'Yes' (+) is selected, no user adjustments are allowed. All buttons are locked ex menu button.Push to exit the OSD main menu.input)orPIP submenu when PIP ON (main source is VGA/DVI-D input)input)orNOTE:available.Push to select Back to go back to the main menu.There is one mode: PIP (Picture in Picture)Use and to browse and to select "Off" or "PIP".Select an input signal for PIP. (VGA/DVI/S-Video/Composite)Use and to browse and to select.Select PIP window position.Use and to browse and to select.Select PIP window size.Use and to browse and to select.Adjust the contrast level of the picture in PIP Mode.reduce the contrastincreases the contrastThis function shifts the color of PIP image to green or purple. This is used to adjust for desired flesh tone color.shifts image color towards greenshifts image color towards purpleAdjust the color saturation of PIP image.makes the image look more monochromemakes the image look more colorfulPush to exit the OSD main menu.See Solving Problems for more information.message:This means that the monitor cannot synchronize with the signal that it is receiving from the computer. Either the signal is too high or too low for the monitor to use. See MonitorSpecifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 1600 X 1200 @ 60Hz.You will see the following message before the DDC/CI function is disabled.When monitor get into Power Save mode, one of the following messages will appear depending upon the selected input.Activate the computer and wake up the monitor to gain access to the OSDIf either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown below will appear. orWhen the monitor does not sense the selected video input, one of the following messages will appear depending upon the selected input as long as you press any button other than power button.VGA / DVI-D input Video Inputor Occasionally, no warning message appears, but the screen is blank: this could also indicate that the monitor is not synchronizing with the computer or themonitor is in a power save mode.In PIP mode, when the monitor does not sense the selected second signal input, one of the following messages will appear depending upon the selected input as long as the OSD screen is closed.1. VGA2. DVI-D3. S-Video4. CompositeorororNOTE: When the cable is connected back to the input of the monitor, any active PIP window will disappear. Please enter PIP submenu to bring back the PIPSetting the Optimal Resolution1.Right-click on the desktop and select Properties .2.Select the Settings tab.3.Set the screen resolution to 1600 x 1200.4.Click OK .If you do not see 1600 x 1200 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures.If you have a Dell™ desktop or portable computer:¡Go to , enter your service tag, and download the latest driver for your graphics card.If you are using a non-Dell™ computer (portable or desktop):¡Go to the support site for your computer and download the latest graphic drivers. ¡Go to your graphics card website and download the latest graphic drivers.Using the Dell™ Soundbar (Optional)Soundbar Attachment to the Monitor1.Attach mechanism2. Headphone connectors3.Power indicator4. Power/Volume controlBack to Contents PageNOTE: Soundbar Power Connector - 12V DC output is for optional Dell™ Soundbar only. NOTICE: DO NOT USE WITH ANY DEVICE OTHER THAN DELL Soundbar. 1.Working from the rear of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom rear of the monitor.2. Slide the Soundbar to the left until it snaps into place.3. Connect the Soundbar with the DC power connector.4.Insert the mini stereo plug from the rear of the Soundbar into the computer's audio output jack.CAUTION:orBack to Contents PageUsing Your Adjustable Monitor StandDell™ 2007FP Flat Panel MonitorAttaching the StandOrganizing Your CablesUsing the Tilt, Swivel and Vertical ExtensionRemoving the StandAttaching the Stand1.Place the stand on a flat surface.2.Fit the groove on the back of the monitor onto the 2 tabs of upper stand.3.Lower the monitor so that the monitor mounting area snaps on or locks to stand.Organizing Your CablesAfter attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the Cable management hole to neatly organize all cables as shown above.Using the Tilt, Swivel and Vertical ExtensionTilt/SwivelWith the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle.Vertical ExtensionStand extends vertically up to 130mm via the Lock down / release button.Removing the StandAfter placing the monitor panel on a soft cloth or cushion, press and hold the Monitor Lock / Release Button, and then remove the stand.NOTE: Stand is detached and extended when the monitor is shipped from the factory.NOTE: If locked in the down position, press the Lock down / release button on the bottom rear of stand. Lift the front panel up and extend the stand to the desired height.NOTICE: Before relocating or moving the monitor to a different location, make sure that the stand is LOCKED DOWN. To lock it down, lower the height of the panel until it clicks and is locked into place.Back to Contents PageNOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a clean surface.。
