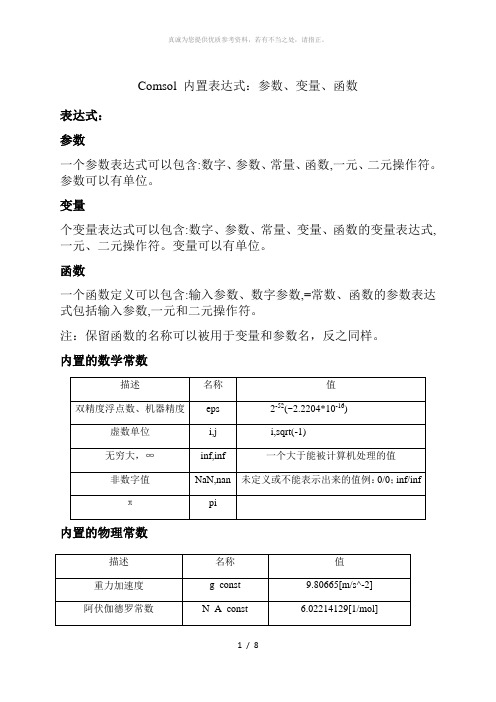

Comsol 内置表达式：参数、变量、函数
表达式：
参数
一个参数表达式可以包含:数字、参数、常量、函数,一元、二元操作符。

参数可以有单位。

变量
个变量表达式可以包含:数字、参数、常量、变量、函数的变量表达式,一元、二元操作符。

变量可以有单位。

函数
一个函数定义可以包含:输入参数、数字参数,=常数、函数的参数表达式包括输入参数,一元和二元操作符。

注：保留函数的名称可以被用于变量和参数名，反之同样。

内置的数学常数
内置的物理常数
变量：主要有两种类型变量：内部保留变量和用户自定义变量，变量可以是标量也可以是字段，可以有单位。

有一组有趣的变量，即空间坐标变量和因变量，这些基于空间维度和所选物理场的变量有默认的名称，comsol会创建一张变量表来表示这些变量。

内置变量
T表示2D空间维度时的温度，按时间传热的模型。

X、Y是空间坐标的名称。

所以可以生产下列变量：Tx、Ty、Txx、Txy
Tyx、Tyy、Tt、Txt、Tyt、Txxt、Txyt、Tyxt、Tyyt、Ttt、Txtt、Tytt、Txxtt、Txytt、Tyxtt、Tyytt.其中Tx是T对x的导数，Ttt是T对t的二阶导数，如果空间坐标系有其他的名字，同理置换相应变量。

内置数字函数
acosh,acoth,acsch,asech,asinh,atanh,besselj,bessely,besseli,besselk,
erf,gamma,和psi。

内置操作函数：
这些内置的函数不同于内置的数学函数，详细见用户指南。

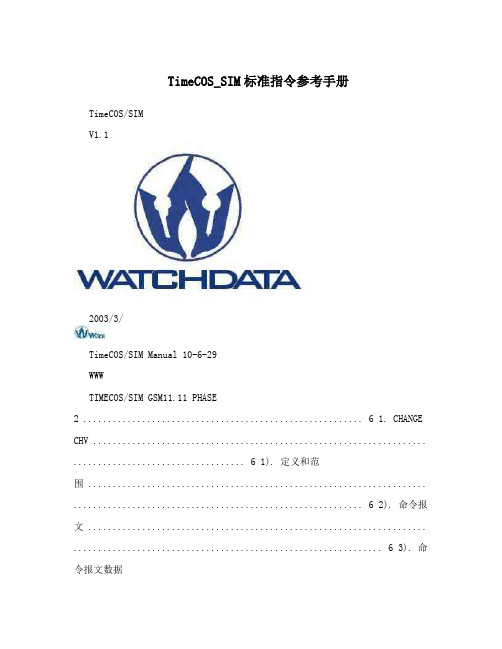

TimeCOS_SIM标准指令参考手册TimeCOS/SIMV1.12003/3/TimeCOS/SIM Manual 10-6-29WWWTIMECOS/SIM GSM11.11 PHASE2 ......................................................... 6 1. CHANGE CHV .................................................................... ................................... 6 1). 定义和范围 ..................................................................... ........................................................... 6 2). 命令报文 ..................................................................... ............................................................... 6 3). 命令报文数据域 ..................................................................... (7)4). 响应报文数据域 ..................................................................... (7)5). 响应报文状态码 ..................................................................... (7)2. DISABLECHVCHV ................................................................. ................................. 8 1). 定义和范围 ..................................................................... ........................................................... 8 2). 命令报文 ..................................................................... ............................................................... 8 3). 命令报文数据域 ..................................................................... (8)4). 响应报文数据域 ..................................................................... (9)5). 响应报文状态码 ..................................................................... (9)3. ENABLECHVCHV ................................................................. ................................ 10 1). 定义和范围 ..................................................................... ......................................................... 10 2). 命令报文 ..................................................................... ............................................................. 10 3). 命令报文数据域 ..................................................................... . (10)4). 响应报文数据域 ..................................................................... . (11)5). 响应报文状态码 ..................................................................... . (11)4. GETRESPONSE() ............................................................. ...................................... 12 1). 定义和范围 ..................................................................... ......................................................... 12 2). 命令报文 ..................................................................... ............................................................. 12 3). 命令报文数据域 ..................................................................... . (12)4). 响应报文数据域 ..................................................................... . (12)5). 响应报文状态码 ..................................................................... . (12)5.INCREASE ............................................................... ..................................................... 14 1). 定义和范围 ..................................................................... ......................................................... 14 2). 命令报文 ..................................................................... ............................................................. 14 3). 命令报文数据域 ..................................................................... . (14)4). 响应报文数据域 ..................................................................... . (14)2TimeCOS/SIM Manual 10-6-29WWW5). 响应报文状态码 ..................................................................... . (14)6.INVALIDATE ............................................................. ...................................... 16 1). 定义和范围 ..................................................................... ......................................................... 16 2). 命令报文 ..................................................................... ............................................................. 16 3). 命令报文数据域 ..................................................................... . (16)4). 响应报文数据域 ..................................................................... . (16)5). 响应报文状态码 ..................................................................... . (16)7. READBINARY ................................................................. ........................... 18 1). 定义和范围 ..................................................................... ......................................................... 18 2). 命令报文 ..................................................................... ............................................................. 18 3). 命令报文数据域 ..................................................................... . (18)4). 响应报文数据域 ..................................................................... . (18)5). 响应报文状态码 ..................................................................... . (18)8. READRECORD ................................................................. ............................. 20 1). 定义和范围 ..................................................................... ......................................................... 20 2). 命令报文 ..................................................................... ............................................................. 20 3). 命令报文数据域 ..................................................................... . (20)4). 响应报文数据域 ..................................................................... . (21)5). 响应报文状态码 ..................................................................... . (21)9.REHABILITATE ........................................................... .................................. 22 1). 定义和范围 ..................................................................... ......................................................... 22 2). 命令报文 ..................................................................... ............................................................. 22 3). 命令报文数据域 ..................................................................... . (22)4). 响应报文数据域 ..................................................................... . (22)5). 响应报文状态码 ..................................................................... . (22)10. RUN GSMALGORITHMGSM ........................................................... ..................... 24 1). 定义和范围 ..................................................................... ......................................................... 24 2). 命令报文 ..................................................................... ............................................................. 24 3). 命令报文数据域 ..................................................................... . (24)4). 响应报文数据域 ..................................................................... . (24)5). 响应报文状态码 ..................................................................... . (24)11. SEEK.................................................................... ................................................ 26 1). 定义和范围 ..................................................................... ......................................................... 26 2). 命令报文 ..................................................................... . (26)3TimeCOS/SIM Manual 10-6-29WWW3). 命令报文数据域 ..................................................................... . (27)4). 响应报文数据域 ..................................................................... . (27)5). 响应报文状态码 ..................................................................... . (27)12. SELECTFILE ................................................................... ................................. 28 1). 定义和范围 ..................................................................... ......................................................... 28 2). 命令报文 ..................................................................... ............................................................. 28 3). 命令报文数据域 ..................................................................... . (28)4). 响应报文数据域 ..................................................................... . (28)5). 响应报文状态码 ..................................................................... . (31)13.SLEEP .......................................................................................................................... 32 1). 定义和范围 ..................................................................... ......................................................... 32 2). 命令报文 ..................................................................... ............................................................. 32 3). 命令报文数据域 ..................................................................... . (32)4). 响应报文数据域 ..................................................................... . (32)5). 响应报文状态码 ..................................................................... . (32)14.STATUS ................................................................. ................................. 34 1). 定义和范围 ..................................................................... ......................................................... 34 2). 命令报文 ..................................................................... ............................................................. 34 3). 命令报文数据域 ..................................................................... . (34)4). 响应报文数据域 ..................................................................... . (34)5). 响应报文状态码 ..................................................................... . (34)15. UNBLOCKCHV .................................................................... ............................ 36 1). 定义和范围 ..................................................................... ......................................................... 36 2). 命令报文 ..................................................................... ............................................................. 36 3). 命令报文数据域 ..................................................................... . (36)4). 响应报文数据域 ..................................................................... . (36)5). 响应报文状态码 ..................................................................... . (37)16. UPDATEBINARY ..................................................................................... 38 1). 定义和范围 ..................................................................... ......................................................... 38 2). 命令报文 ..................................................................... ............................................................. 38 3). 命令报文数据域 ..................................................................... . (38)4). 响应报文数据域 ..................................................................... . (38)5). 响应报文状态码 ..................................................................... . (38)17. UPDATERECORD ................................................................. . (40)4TimeCOS/SIM Manual 10-6-29WWW1). 定义和范围 ..................................................................... (40)2). 命令报文 ..................................................................... . (40)3). 命令报文数据域 ..................................................................... . (41)4). 响应报文数据域 ..................................................................... . (41)5). 响应报文状态码 ..................................................................... . (41)18. VERIFYCHV .................................................................... . (42)1). 定义和范围 ..................................................................... (42)2). 命令报文 ..................................................................... . (42)3). 命令报文数据域 ..................................................................... . (42)4). 响应报文数据域 ..................................................................... . (42)5). 响应报文状态码 ..................................................................... . (43)5TimeCOS/SIM Manual 10-6-29WWWTimeCOS/SIM GSM11.11 PHASE 2 1. CHANGE CHV1). 定义和范围CHANGE CHV（Card Holder Verification information）命令用于修改持卡人口令，并将安全状态寄存器设置成相应的值。

算符 d(f,x)f 对x 方向的微分1. 使用d 算符来计算一个变量对另一个变量的导数，如：d(T,x)指变量T 对x 求导,而d(u^2,u)=2*u 等；2. 如果模型中含有任何独立变量，建模中使用d 算符会使模型变为非线性；3. 在解的后处理上使用d 算符，可以使用一些预置的变量，如：uxx,d(ux,x),d(d(u,x),x)都是等效的；4. pd 算符与d 算符类似，但对独立变量不使用链式法则；5. d(E,TIME)求解表达式E 的时间导数；6. dtang 算符可以计算表达式在边界上的切向微分（d 算符无法计算），在求解域上使用dtang 等价于d ，dtang 只求解对坐标变量的微分，但需要注意的是并不是所有的量都有切向微分。

pd(f,x)f 对x 方向的微分 pd 和d 的区别：d(u+x,x)=ux+1，d(u,t)=ut ，u 和x,t 等有关pd(u+x,x)=1，pd(u,t)=0，u 是独立的和x,t 无关dtang(f,x)边界上f 对x 的切向微分在边界上d(u,x)不能定义，但是可以使用dtang(u,x)，dtang 付出基本的微分法则，如乘积法则和链式法则，但是需要指出的是，dtang(x,x)不一定等于1。

test(expr)试函数用于方程弱形式的算符，test(F(u,∇u))等价于：var(expr,fieldnam e1,fieldname2, ...)变异算子用于弱形式，它和test 算符功能相同，但是仅用于某些特定的场中； 如var(F(u,∇u, v,∇v),a)，变量u 是a 场的变量，而v 不是。

试函数之只作用于变量u 。

nojac(expr)对Jacobian 矩阵没有贡献将表达式排除在Jacobian 计算外，这对那些对Jacobian 贡献不大，但是计算消耗很大的变量是否有效；k -e 湍流模型就是利用 nojac 算符来提高计算性能的例子。
