常见的D/A和A/DPart Number D escriptionDAC5571 具有高速I2C 输入的低功耗8 位DACDAC5573 具有I2C 接口的8 位四路DACDAC5574 具有I2C 接口的8 位四路数模转换器DAC908 8 位165MSPS SpeedPlus(TM) DAC，可伸缩电流输出在2mA 与20mA 之间THS5641A 8 位、100MSPS、CommsDAC(TM) DAC、介于2mA 至20mA 的可伸缩电流输出TLC5602 8 位，30MSPS 单DACTLC5620 8 位、10us 四路DAC，串行输入、1x 或2x 输出可编程、同步更新、低功耗TLC5628 8 位，10us 八路DAC，串行输入，1x 或2x 输出可编程，同步更新，低功耗TLC7225 8 位5us 四路DAC 并行输入同步更新二进制输入编码TLC7226 8 位，5us 四路DAC，并行输入、单/双电源TLC7524 8 位，0.1us MDAC，并行输入，DSP 快速控制信号，简单微接口TLC7528 8 位，0.1us 双路MDAC，并行输入，DSP 快速控制信号，简单微I/FTLC7628 8 位，0.1us 双路MDAC，并行输入，DSP 快速控制信号TLV5620 8 位、10us DAC 串行输入四路DAC 可编程 1x 或2x 输出，同步更新TLV5621 8 位、10us 四路DAC，串行输入、简单2 线接口、可编程 1x 或2x 输出、断电功能TLV5623 8 位3us DAC，具有串行输入、可编程稳定时间/功耗、超低功耗TLV5624 8 位1.0 至3.5us DAC，具有串行输入、可编程内部参考和稳定时间TLV5625 8 位2.5 或12us 双路DAC，具有串行输入、可编程稳定时间TLV5626 8 位1us 双路DAC，具有串行输入、可编程内部参考和稳定时间TLV5627 8 位3us 四路DAC，具有串行输入、低功耗、H/W 或S/W 关断状态TLV5628 8 位，10us 八路DAC，串行输入，可编程 1x 或2x 输出，低功耗TLV5629 8 位8 通道1/3 us DAC，具有串行输入、可编程建立时间/功耗、低功耗和电源关闭功能TLV5632 8 位8 通道1/3us DAC，串行输入、可编程建立时间/功耗、低功耗、自动断电、内部参考10 位分辨率数模转换器DAC (15)Part Number D escriptionDAC2900 双路10 位125Msps 数模转换器DAC5652 双路10 位200MSPS 数模转换器DAC6571 DAC6571：10 位数模转换器DAC6573 具有I2C 接口的10 位四路DACDAC6574 具有I2C 接口的10 位4 路数模转换器DAC900 10 位165MSPS SpeedPlus(TM) DAC，可伸缩电流输出在2mA 与20mA 之间THS5651A 10 位、100MSPS、CommsDAC、差动介于2mA 至20mA 的可伸缩电流输出TLC5615 10 位，12.5us DAC，串行输入，低功耗TLV5604 10 位3us 四路DAC，具有串行输入、同步更新、可编程稳定时间和断电功能TLV5606 10 位、3 或9 us DAC、串行输入、可编程建立时间/功耗、超低功耗TLV5608 2.7V 至5.5V 10 位8 通道串行DACTLV5608IYE 采用晶圆芯片级封装的2.7V 至5.5V、12 位和10 位八路DACTLV5617A 10 位2.5 双路DAC，具有串行输入、可编程稳定时间TLV5631 具有内部参考的2.7V 至5.5V 10 位8 通道串行DACTLV5637 10 位1us DAC，具有串行输入、双路DAC、可编程内部参考和稳定时间12 位分辨率数模转换器DAC (55)Part Number D escriptionDAC2902 双路12 位125Msps 数模转换器DAC2932 超低功耗29mW 12 位双路40MSPS D/A，具有 4 个附加的控制DAC 用于进行发送/接收路径控制DAC5662 12 位200MSPS 双DACDAC7512 低功耗轨至轨输出12 位串行输入DACDAC7513 低功耗轨至轨输出12 位串行输入DACDAC7541 低成本12 位CMOS 四象限乘法D/A 转换器DAC7545 CMOS 12 位乘法位数模转换器，与微处理器兼容DAC7551 12 位超低短时脉冲波形干扰电压输出数模转换器DAC7552 12 位、双路、超低短时脉冲波形干扰、电压输出数模转换器DAC7553 12 位、双路、超低短时脉冲波形干扰、电压输出数模转换器DAC7554 低功耗低短时脉冲波形干扰12 位DACDAC7558 12 位、八路、超低短时脉冲波形干扰、电压输出数模转换器DAC7571 低功耗轨至轨输出12 位I2C 输入DACDAC7573 具有I2C 数字接口的四路12 位10us 数模转换器DAC7574 具有I2C 接口的12 位四路电压输出数模转换器DAC7611 12 位串行输入数模转换器DAC7612 双路12 位串行输入数模转换器DAC7613 12 位电压输出数模转换器DAC7614 四路串行输入12 位电压输出数模转换器DAC7615 四路串行输入，12 位电压输出数模转换器DAC7616 四路串行输入12 位电压输出数模转换器DAC7617 四路串行输入12 位电压输出数模转换器DAC7621 12 位并行输入数模转换器DAC7624 12 位四路电压输出数模转换器DAC7625 12 位四路电压输出数模转换器DAC7714 四路串行输入12 位电压输出数模转换器DAC7715 四路串行输入，12 位电压输出数模转换器DAC7724 12 位四路电压输出数模转换器DAC7725 12 位四路电压输出数模转换器DAC7800 双路单片CMOS 12 位乘数模转换器DAC7801 双路单片CMOS 12 位乘数模转换器DAC7802 双路单片CMOS 12 位乘数模转换器DAC7811 12 位串行输入乘法数模转换器DAC7821 12 位串行输入乘法DACDAC7822 双路12 位串行输入乘法DACDAC8043 CMOS 12 位串行输入乘法数模转换器DAC811 兼容微处理器的12 位数模转换器DAC813 兼容微处理器的12 位数模转换器DAC902 12 位165MSPS SpeedPlus(TM) DAC，可伸缩电流输出在2mA 与20mA 之间THS5661A 12 位、125MSPS、CommsDAC、差动介于2mA 至20mA 的可变电流输出TLC5618A 12 位、2.5us 二路DAC、串行输入、可编程稳定时间、同步更新、低功耗TLV5610 2.7V 至5.5V 12 位8 通道串行DACTLV5610IYE 采用晶圆芯片级封装的2.7V 至5.5V、12 位和10 位八路DACTLV5610IYZ 采用晶圆芯片级封装的2.7V 至5.5V、12 位和10 位八路DACTLV5613 12 位，DAC，并行电压输出，可编程设定时间/功耗，自动断电TLV5614 12 位3us 四路DAC，具有串行输入、可编程稳定时间、低功耗和H/W 或S/W 断电功能TLV5614Y 采用晶圆芯片级封装的2.7V 至5.5V 12 位DACTLV5616 12 位3us DAC 串行输入可编程设置时间/功耗，电压O/P 范围= 2x 基准电压TLV5618A 12 位2.5us 双路DAC，具有串行输入、可编程稳定时间、在Q temp 温度范围内运行TLV5619 12 位单通道并行DAC，具有电压输出、低功耗和异步更新TLV5630 具有内部参考的2.7V 至5.5V 12 位8 通道串行DACTLV5633 12 位DAC，具有并行电压输出可编程内部参考设置时间、功耗、8 位微控制器兼容接口TLV5636 12 位1us DAC，具有串行输入、可编程内部参考和稳定时间TLV5638 12 位、1 或3.5us DAC，具有串行输入、双路DAC、可编程内部参考和稳定时间、功耗TLV5639 12 位，DAC，并行，电压输出，可编程内部参考，建立时间、功耗、1 通道14 位分辨率数模转换器DAC (11)Part Number D escriptionDAC2904 14 位125MSPS 双路通信DACDAC5672 数模转换器DAC5674 具有2x/4x 插值滤波器的14 位400 CommsDACDAC5675A 14 位400MSPS 数模转换器DAC8801 14 位串行输入乘法数模转换器DAC8802 二路、串行输入14 位乘法DACDAC8803 14 位、四路、串行输入乘法数模转换器DAC8805 Dual, Parallel Input, 14-Bit, Multiplying Digital-to-Analog ConverterDAC8806 14 位并行输入乘法DACDAC904 可伸缩电流输出在2mA 与20mA 之间的14 位165MSPS SpeedPlus(TM) DAC THS5671A 14 位125 MSPS CommsDAC，差动介于2mA 至20mA 的可伸缩电流输出16 位分辨率数模转换器DAC (45)Part Number D escriptionDAC1221 16 位低功耗数模转换器DAC5686 具有16x 内插的高性能16 位 500MSPS 双DACDAC5687 16 位500 MSPS 2x-8x 内插双通道数模转换器(DAC)DAC712 具有16 位总线接口的16 位数模转换器DAC714 具有串行数据接口的16 位数模转换器DAC715 具有16 位总线接口的16 位数模转换器DAC716 具有串行数据接口的16 位数模转换器DAC7631 串行输入16 位电压输出数模转换器DAC7632 具有串行接口的16 位双路电压输出DACDAC7634 16 位四路电压输出数模转换器DAC7641 16 位电压输出数模转换器DAC7642 具有并行接口和复位到中间等级功能的16 位双路电压输出DACDAC7643 具有并行接口和复位到最小等级功能的16 位双路电压输出DACDAC7644 16 位四路电压输出数模转换器DAC7654 16 位四路电压输出数模转换器DAC7664 数模转换器；四路、16 位、12uS 稳定时间、+/- 1 LSB DNLDAC7731 具有内部+10V 参考和串行I/F 的16 位单通道数模转换器DAC7734 16 位四路电压输出串行输入数模转换器DAC7741 具有内部+10V 参考和并行I/F 的16 位单通道数模转换器DAC7742 具有内部参考的16 位单通道并行接口DAC7744 16 位四路电压输出数模转换器DAC8501 乘法、低功耗、轨至轨输出、16 位串行输入数模转换器DAC8531 低功耗轨至轨输出16 位串行输入数模转换器DAC8532 具有串行接口和轨至轨电压输出的16 位双通道低功耗模数转换器DAC8534 2.7V 至5.5V 四通道16 位串行输入DACDAC8541 具有1.8V 兼容并行接口和轨至轨电压输出的低功耗16 位数模转换器DAC8544 四路16 位四路轨至轨电压输出并行接口数模转换器DAC8550 16 位、超低短时脉冲波形干扰、电压输出DACDAC8551 16 位、超低短时脉冲波形干扰、电压输出数模转换器DAC8552 DAC8552：16 位双路电压输出数模转换器DAC8554 16 位、四通道、超低短时脉冲波形干扰、电压输出数模转换器DAC8555 16 位、四通道、超低短时脉冲波形干扰、电压输出数模转换器DAC8560 DAC8560DAC8571 低功耗轨至轨输出16 位I2C 输入DACDAC8574 低功耗四路轨至轨输出16 位I2C 输入DACDAC8580 16 位高速低噪声电压输出数模转换器DAC8581 16 位高速低噪声电压输出数模转换器DAC8811 16 位串行输入乘法数模转换器DAC8812 16 位、双串行输入乘法数模转换器DAC8814 16 位、四路、串行输入乘法数模转换器DAC8820 16 位并行输入乘法DACDAC8822 Dual, Parallel Input, 16-Bit, Multiplying Digital-to-Analog Converter DAC8830 16 位超低功耗电压输出数模转换器DAC8831 16 位、超低功耗、电压输出数模转换器DAC8832 16 位、超低功耗、电压输出数模转换器20 位分辨率数模转换器DAC (1)Part Number D escriptionDAC1220 20 位低功耗数模转换器10 位通用A/D 转换器（转换速率<1MSPS ）。

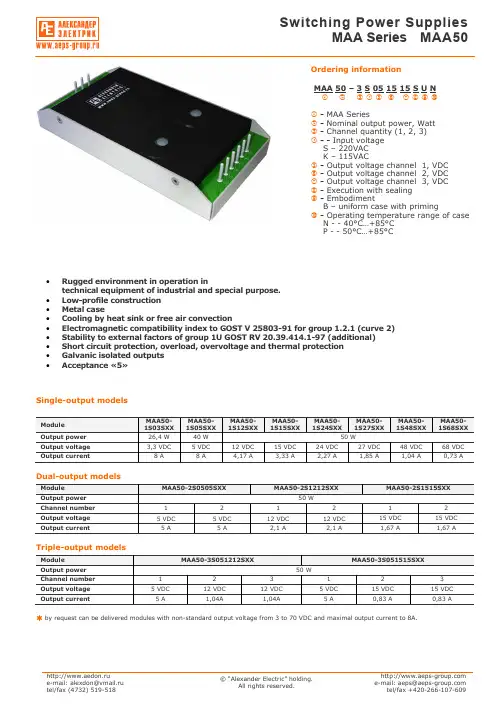

Single-output modelsModule МАА50- 1S03S ХХ МАА50- 1S05S ХХ МАА50- 1S12S ХХ МАА50- 1S15S ХХ МАА50- 1S24S ХХ МАА50- 1S27S ХХМАА50- 1S48S ХХ МАА50- 1S68S ХХ Output power 26,4 W 40 W 50 W Output voltage 3,3 VDC 5 VDC12 VDC15 VDC24 VDC27 VDC48 VDC68 VDCOutput current8 A8 А 4,17 А 3,33 А 2,27 А 1,85 А 1,04 А 0,73 АDual-output modelsModule МАА50-2S0505S ХХ МАА50-2S1212S ХХМАА50-2S1515S ХХOutput power 50 WChannel number 1 2 1 2 1 2 Output voltage 5 VDC 5 VDC 12 VDC 12 VDC15 VDC 15 VDC Output current5 А 5 А 2,1 А 2,1 А 1,67 А 1,67 АTriple-output modelsModule МАА50-3S051212S ХХМАА50-3S051515S ХХOutput power 50 WChannel number 1 2 3 1 2 3Output voltage 5 VDC12 VDC12 VDC5 VDC15 VDC15 VDCOutput current5 А 1,04А 1,04А 5 А 0,83 А 0,83 Аby request can be delivered modules with non-standard output voltage from 3 to 70 VDC and maximal output current to 8А.Ordering informationМАА 50 – 3 S 05 15 15 S U Nc d e f g h i j k lc - MAA Seriesd - Nominal output power, Watte - Channel quantity (1, 2, 3)f - - Input voltageS – 220VAC K – 115VACg - Output voltage channel 1, VDC h - Output voltage channel 2, VDC i - Output voltage channel 3, VDC j - Execution with sealing k - EmbodimentB – uniform case with primingl - Operating temperature range of caseN - - 40°С…+85°С P - - 50°С…+85°С• Rugged environment in operation intechnical equipment of industrial and special purpose. • Low-profile construction • Metal case• Cooling by heat sink or free air convection• Electromagnetic compatibility index to GOST V 25803-91 for group 1.2.1 (curve 2) • Stability to external factors of group 1U GOST RV 20.39.414.1-97 (additional) • Short circuit protection, overload, overvoltage and thermal protection • Galvanic isolated outputs •Acceptance «5»Температура окружающей среды Токр, С9080706050403020100-10-20-30-40-50Выходная мощность, Вт6050403020100Input specificationsParameter Conditions of dimensions MIN NOM MAX UnitS 187 220 242 VACSteady-state deviationК 80 115 140 VAC S 176 264 VACInput voltageTransient deflection, 1 secК 80 150 VAC SInput frequencyК47 400 440 HzOutput specificationsParameterConditions of dimensions MIN NOM MAX Unit Single-output execution (Inom 10 – 100%) ±3 % Output 1 multi-output execution(Inom 10 – 100%) ±3 %Uout2&3 differs from Uout1 less than 20% Output 2 and 3 multi-output execution(Inom 10 – 100%)±13 %Output 1 multi-output execution (Inom 30 – 100%) ±3 %Total output voltage instabilityUout2&3differs fromUout1 more than 20% Output 2 and 3 multi-output execution(Inom 50-100%) ±15 %Output voltage pulsations ripple(peak-to-peak)Dimension by device for pulsation control2% Uout.nom.Current overload protection actuation level110 % Iout.nom. Short circuit protection Autorepair 150 % Iout.nom. Overvoltage protection 120 % Uout.nom.Thermal protection90-95°CGeneral specificationsParameterConditions of dimensions MIN NOM MAX Unit- operating of case N P – 40 – 50 +85+85°C– power loss See diagram Temperature– storage – 50 +85 °CEfficiency 78 % Conversion frequency 50 kHz~ in/out 1500 VAC ~ in/case 1500 VAC~ out/case 500 VDC Isolation~ out/out 500 VDCInsulation resistance Voltage 500VDC 20 Ohm High humidity Temperature 35°С 98 % Cyclic overpatching of temperature – 60 +85 °C Multiple mechanical shocks Speeding-up 15g 2 15 ms Sinusoidal vibration Speeding-up 5g 50 500 Hz Atmosphere pressure 6х104 1,2х105 Pa Time to failure Temperature 35°C 105 hour Mass 0,4 kg all specifications redused for normal climatic conditions, Uin.nom., Iout.nom., if it is not specified differently.Power loss diagramFree airconvectionWith heat sinkAmbient temperature Tamb, °CO u t p u t p o w e r , WOutput settings№ pin1 2 3 4 5 6 7 8 9 Single-channel case ~IN (N) ~IN (L) +out1 +out1 +out1 -out1 -out1 -out1 Dual-channel case ~IN (N) ~IN (L) +out1 +out1 -out1 -out1 -out2 +out2 Triple-channelcase~IN (N)~IN (L)-out3+out3+out1-out1-out2+out2Switching on standart diagramFU in – current safety device 1A for input voltage 220VAC, 2A for input voltage 115VAC.S out – ceramic condenser capacity 0,47-15 mcF with corresponding operating voltage to decrease high-frequency noise level.S out2 – electronic condenser capacity 22-100 mcF in consideration with operating voltage and polarity. It makes for purpose to decrease dynamic instability when module work at dynamic load.+Out -Out ~In (L) ~In (N) Power module R heat CaseСout1 Сout2~In (L)~In (N)ground FU inSingle, Dual, and Triple-output execution SBNSingle, Dual, and Triple-output execution SVN (with flexible erection joints)The Flexible erection fjoints by length (100±5)mm is executed by wire section (0,5...1,5)mm2.。

A540 SERIES GROUND CLAMPContentsOverview (2)Features (2)Technical Specifications (3)Installation (6)Maintenance (8)Replacement parts (8)Operation (9)Warranty (9)Sales and Service Contacts (10)OverviewThe A540 Series ground clamps are key to creating a quality temporary connection for antistatic grounding applications. The clamp features three teeth to penetrate dirt, corrosion, and road grime when in use. The teeth are constructed of stainless steel to ensure lasting operation, and isolated from the clamp handle to allow operators to establish ground and a ground-verification signal in a single clamp action. The A540 also includes a high durability cable and junction box for convenient wiring access during installation and maintenance.Common applications for the A540 series ground clamp include:•Tank truck and Rail car loading facilities•Drum and barrel filling sites•Loading of stationary tanksFeatures•Clamp tethered to cable by stainless steel strap to protects connection from strain and wear. •Pull-out resistant cord grip on junction box holds cable tighter the harder it is pulled. •Junction box creates convenient service point for hazardous location installations.•Coiled cable for compact storage.•Strong clamping force to penetrate grime and remain connected during loading process. •Can provide ground and a ground-verification signal in a single clampTechnical SpecificationsMIN MAX NOMINAL AMBIENT TEMPERATURE -40°C 90°C -JUNCTION BOXHEIGHT 10.75 in. [27.3cm] INCLUDES STRAIN RELIEFWIDTH 3.0 in. [7.62cm]DEPTH 3.0 in. [7.62cm]WEIGHT 5 lbs. (2.27 kg)INGRESS PROTECTION Weatherproof, raintight, and dust tightCONDUIT ENTRIES ONE ¾” TRADE SIZE HOLE + FACTORY INSTALLED CABLE ONBOTTOMSUITABLE FOR INSTALL IN HAZARDOUS LOCATIONS: Class I, Division 1 & 2, Groups B, C, and D hazardous locationsClass II, Division 1 & 2, Groups E, F, and G hazardous locationsClass III hazardous locationsSUITABLE FOR CONNECTION TO HAZARDOUS LOCATIONS: Class I, Division 1 & 2, Groups A, B, C, and D hazardous locationsClass I, Zone 0, 1 & 2, Groups IIC, IIB, and IIA hazardous locationsCABLELENGTH 25 ft. stretched [7.6m] (Standard; other lengths available) DIAMETER 0.4 in. [1.0cm]WEIGHT 2.5 lbs. [1.13kg]; 0.1 lbs. PER FOOT [0.15g per meter] JACKET MATERIAL Thermoplastic Elastomer, resistant to harsh environments. RESISTANCE 0.14Ω (6mΩ/foot)RECOMMENDED WIREBETWEEN CONTROLLER ANDA54018 GA Stranded copper wire (THHN)AccessoriesGround Verification Monitor:The A240 series ground verification monitors are designed to mitigate the danger of static buildup by verifying the presence of a high quality and reliable earth-ground bond. With the presence of a ground path for static to dissipate, loading and unloading of flammable or combustible liquids can be done safely. The A240 monitor verifies the bond is of sufficient quality to prevent static buildup. Internal indicators inform the operator whether the process connection is safely grounded and internal relay contacts may be used to interlock operations until a safe earth bonding has been established.Sealing Fitting:Sealing fittings are required within 18 inches of each enclosure entry used. These seal conduits from passing hazardous vapors or propagating flame. Sealing fittings are installed in-line with conduit, then filled with sealing compound once wiring has been installed and verified. Downstream junction boxes containing Intrinsically Safe circuits may be serviced without danger.¾” NPT Vertical Seal fitting with nipple; P/N: 30192ALNote: Actual color may differWiring DiagramInstallationINSTALLATION MUST BE COMPLETED BY QUALIFIED PROFESSIONALA540 Series ground clamps are suitable for installation and use in ordinary and specific hazardous locations (listed in technical specifications section) as defined by NEC NFPA70 and IECEx standard 60079. Installation to be performed by a qualified professional.MechanicalIt is recommended to wall mount the unit using stainless steel or galvanized steel hardware suitable for the monitor’s weight and wall material.ing the bolt pattern provided below, locate a sturdy area, large enough to install the junctionbox.For greatest environmental resistance it is recommended to mount the junction box in theorientation shown. Keep in mind the coiled cable will hang below the box, and the clamp must be stored in an ungrounded position. The enclosure can withstand rain and sun exposure butwill last longer when protected from the elements.2.Level the bolt pattern and drill two holes marked on the pattern.3.Have another person lift the junction box into position in front of the drilled holes.4.Insert the two anchors or bolts into the two mounting holes shown below.5.Tighten all the screws and ensure that the junction box is secure.Electrical•To be installed per NEC NFPA70 requirements for U.S. installations.•Installation in other regions must conform to local electrical codes. Instructions provided below are general guidelines and may not cover local requirements.1.Remove the lid from the A540 junction box.2.Run conduit to junction box. Ensure conduit has sealing fitting at feeder end if installation is inhazardous location.Conduit connection should be sealed from water intrusion through either rubber washers,caulking, or other sealing means.3.Pull cable from process controller into A540 junction box.4.Refer to wiring diagram above, as well as documentation for process controller to properly wirethe process controller to the A540 ground cable.5.Reinstall lid onto junction box.6.Designate an ungrounded location to store the ground clamp while not in use. It is critical thatthe ground clamp be ungrounded while not in use. Storing in a grounded state can lead tounsafe loading conditions.7.Verify proper functionality of system by testing before putting into service.MaintenanceSERVICE SHOULD BE COMPLETED ONLY BY A QUALIFIED HAZARDOUS LOCATION TECHNICIAN. REPLACE PARTS WITH GENUINE DIXON OR APPROVED EQUIVALENT PARTS; SUBSTITUTION MAY IMPAIR INTRINSIC SAFETY.The A540 has few parts that will require regular maintenance and is designed for long service periods. Unsheltered units should be serviced in dry weather to prevent rainwater from entering the enclosure and minimize moisture exposure.1.If the ground connection is becoming intermittent, it is advised to inspect the clamp and cable.2.Dulling of the clamp teeth may be a sign that the clamp has reached the end of its usable lifeand should be replaced. Contact Dixon for replacement parts.3.Checking the cable for a failing conductor can be done by clamping to a known grounded pieceof metal, then flexing the cable. If the ground controller’s indicator changes while flexing thecable, the cable has reached the end of its usable life and should be replaced. Do not attempt to repair the cable. Contact Dixon for replacement parts.a.In the event that the cable does need to be replaced, it can be removed while energized.b.Open the A540 junction box and note the wire positions for each conductor in the A540cable on the terminal block.c.Remove the wires from the terminal block.press the mesh cordgrip by pushing it toward the bottom of the junction box.e.With the cordgrip compressed, the old cable may be pulled out, and new cable installed.f.Once the new cable has been installed into the mesh cordgrip, re-wire the cable into theA540 junction box terminal strip.g.Close the A540 junction box.h.Verify proper functionality of system by testing before putting into service. Replacement partsDescription Part NumberRack Cable with clamp 30585Cord Grip 30708Sealing Fitting; ¾” Vertical 30129ALSealing Compound 30339 for 5 lbs. or 30339-002 for 1 lb.OperationWARNING - USING THE A540 IN A MANNER NOT DEFINED IN THIS MANUAL MAY IMPAIR SAFETY.1.Verify process controller is powered on and idle.2.Test the controller’s operation by clamping to a known grounded piece of metal. Verify thecontroller’s indicator changes from RED to GREEN. Remove the clamp from the test point.3.Before any other electrical connections are made, secure the A540 clamp to the processconnection that is to be loaded.4.Verify the process controller’s indicator changes from RED to GREEN.plete any other process connections.6.Once all other safety measures are active, begin the loading process.7.Once loading is complete, remove all other process connections, then the A540 last.8.Return the A540 clamp to the isolated storage facility, verifying the indicator remains red. WarrantyFor warranty claims and information regarding coverage, please contact Dixon Support at+1 (877) 582-3569Sales and Service ContactsEurope:Dixon Group Europe Ltd.Preston, EnglandPhone: +44 (0) 1772 323529Fax: +44 (0) 1772 314664Email: ************************.ukCanada:Dixon Group Canada Limited Innisfil (Barrie), OntarioPhone: 705-436-1125Fax: 705-436-6251Toll Free: 877-963-4966E-mail: ***************************USA:Dixon Bayco USAChestertown, MarylandPhone: 410-778-2000Fax: 410-778-4702Toll Free: 800-355-1991E-mail: *************************Mexico:Dixva, S. de R.L. de C.V.Monterrey, N.LPhone: 01-800-00-DIXON (34966)Fax: 01-81-8354-8197E-mail: **************************.mxAsia Pacific:Dixon (Asia Pacific) Pty Ltd Wingfield, South AustraliaPhone: +61 8 8202 6000Fax: +61 8 8202 6099E-mail: ************************.au。
