A3211-12-Datasheet

APPLICATIONS
Hybrid Passenger Vehicles
Hybrid Buses
Hybrid Trucks
Off-Highway Vehicles

©2011 A123 Systems, Inc. All rights reserved. MD100103-04
CORPORATE HEADQUARTERS A123 Systems, Inc. 200 West Street Waltham, MA 02451 (617) 778-5700

700
800
900
©2011 A123 Systems, Inc. All rights reserved. MD100103-04

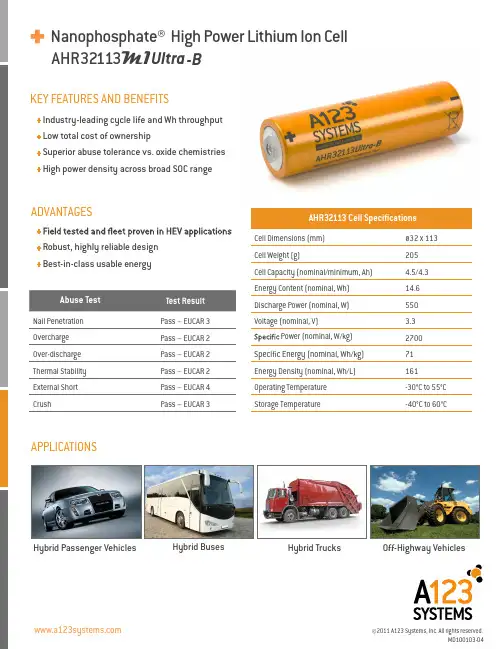

Nanophosphate® High Power Lithium Ion Cell AHR32113M1Ultra -B
Power (Watts)
POWER
700 600 500 400 300 200 100
0 0%
CYCLE LIFE
100%
90%
10s Pulse Power Capability at 23°C, Using FreedomCAR HPPC
Power (nominal, W/kg) Speci c Energy (nominal, Wh/kg) Energy Density (nominal, Wh/L) Operating Temperature Storage Temperature
32 x 113 205 4.5/4.3 14.6 550 3.3 2700 71 161 -30°C to 55°C -40°C to 60°C
Test Result
