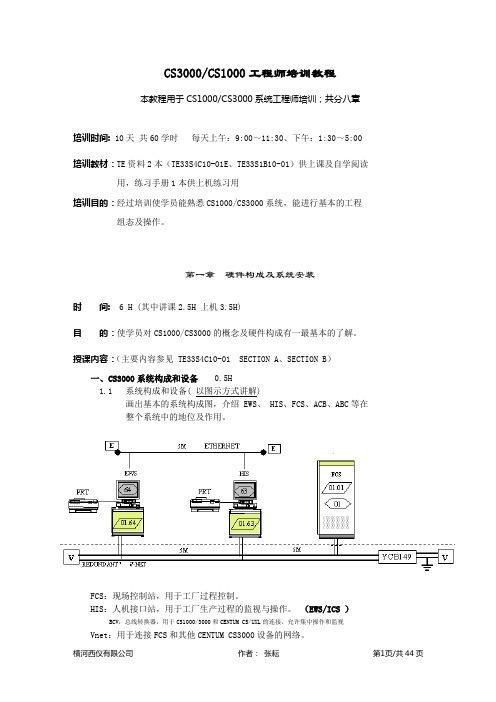

CS3000/CS1000工程师培训教程本教程用于CS1000/CS3000系统工程师培训；共分八章培训时间:10天共60学时每天上午：9:00～11:30、下午：1:30～5:00 培训教材：TE资料2本（TE33S4C10-01E、TE33S1B10-01）供上课及自学阅读用，练习手册1本供上机练习用培训目的：经过培训使学员能熟悉CS1000/CS3000系统，能进行基本的工程组态及操作。
第一章硬件构成及系统安装时间: 6 H (其中讲课2.5H 上机3.5H)目的：使学员对CS1000/CS3000的概念及硬件构成有一最基本的了解。
授课内容：（主要内容参见 TE33S4C10-01 SECTION A、SECTION B）一、CS3000系统构成和设备0.5H1.1 系统构成和设备( 以图示方式讲解)画出基本的系统构成图，介绍 EWS、 HIS、FCS、ACB、ABC等在整个系统中的地位及作用。
FCS：现场控制站，用于工厂过程控制。
HIS：人机接口站，用于工厂生产过程的监视与操作。
（EWS/ICS ）BCV：总线转换器，用于CS1000/3000和CENTUM CS/UXL的连接，允许集中操作和监视Vnet：用于连接FCS和其他CENTUM CS3000设备的网络。
（VF701通讯卡，T型头，50欧堵头，10Base-5/2电缆）1.2 网络介绍Ethernet、 V-net/VLnet的功能及相关参数。
传送：10-Base2/5标准，50欧同轴电缆连接：BNC口同轴连接器，T型头，连接方式：总线型，多点连接冗余：是传送距离：185m/500m（用中继器1.6Km,用光缆中继器20Km）速率:10MbpsVnet 特征:规格遵循:IEEE802.4标准令牌环方式二、HIS 硬件构成0.5H2.1 HIS类型及区别（通用PC型、专用落地型）2.2HIS硬件构成及相关参数：对于通用PC机的配置要求，VF701卡及其地址、操作员键盘等硬件要求:CPU :Pentium 主频:266MHz主存: 96MHz以上适用监视和操作128MHz以上适用于组态,监视和操作实际：128MB/256MB内存条硬盘: 2GB(以上)软驱: 3.5”CD-ROM驱动器: 1个或多个总线槽: 1个PCI槽(VF701通讯卡用)并行口: 25针D-SUB口1个(打印机用)串口 : RD-232-C口1个以上(供操作员键盘接口 COM1 )CRT: 17”以上,1024*768(256色)或更多键盘: 106键盘PS2（小口）鼠标口: PS2接口,2键VF701卡及其地址:Control Bus Interface Card.域号DOMAIN /站号STATION的DIP开关拨号：务必使处于ON状态位的个数为奇数个，否则拨第一位校验位务必为ON凑为奇数。
