IP65lED点光源

DescriptionThe P-5 is the most well-known and reputed IP65 LED wash in the lighting industry. It has created new standards of color consistency, even coverage, light output, and smooth dynamic color balance. The P-5 employs 16bit dimming performance with no color shift, it is completely upgradeable through firmware updates, and it offers a full variety of beam angles for medium-to-longer throw applications via precise, interchangeable lenses. Its unique light projection and color mixing has made the P-5 the standard reference for lighting designers all around the world.Features and benefitsHigh-performance IP65 RGBW LED light source43º, 21º, and 15º interchangeable lenses20031 lumens in 420W DMX, RDM, and wireless control2000K - 10000K CTC control Accurate 16bit dimming performancePractically maintenance-free Flicker-free / Programmable scenesCertifications & classificationsPhotometricReportPage 1of 1Manufacturer SGMLuminaireP-543deg All on raw peak Measurement Date 09-08-2017Power Consumption 462W Light Output 19104lm Field Angle 76.4deg Beam Angle 34.2degLuxDiagram PolarDistributionBeamProfile SpectralDistributionSpecificationOptical Data LED expected lifetime50,000 hoursLens15°21°43°Lightsource44 x high-power 10W RGBW LEDs Photometric Beam angle(s)14° (with 15° lens)26° (with 21° lens)35° (with 43° lens)Color temperature range2000K - 10000KCRI typical86Efficacy44 lm/WLight output all LEDs on20031 lmLight output blue1353 lmLight output green5806 lmLight output red4725 lmLux @ 10m1993 luxLux @ 3m22142 luxLux @ 5m7971 luxMaximum Field Angle76 °Minimum Field Angle30 °Physical Color options Black - RAL 9004Custom color - Any RALWhite - RAL 9010Effective Projected Area 1.51 Square ftIP class IP65Lens material PE and tempered glass frontMaterial AluminiumNet dimensions497 x 268 x 122 mmNet dimensions inches19.6 x 10.6 x 4.8 inchesNet weight8.9 kg (19.6 lbs)Features Dimming ElectronicStrobe Ultra-high-speed strobe effectsTilt0 - 190°Electrical AC power, max.190 - 264V 50/60HzAC Power, nominal208 - 240V 50/60HzElectrical Protection Overload protectionMax Inrush Current45 AMax power consumption450 WPower factor0.98 PF (230 V)Power Supply Unit Auto-ranging electronic switch-modeStandby power consumption8 WTypical power consumption420 WProgramming and Control16-bit control Dimmer, Red, Green, BlueCabled DMX 5 pin XLR input/outputDMX channels3, 4, 6, 8, 9 or 10DMX modes7Protocol USITT DMX512AWireless DMX (LumenRadio)RDM ANSI E1.20Setting and addressing OLED graphical display / 4 buttonsRDM ANSI E1.20RFIDStandalone modeStandalone mode Quick ColorStandalone mode programmable viaRFIDUp to 24 programmable scenesWireless DMX Lumen Radio with RDMConnections DMX data in/out IP65 XLR 5-pin cable 0.5mPower Power cable 1 meter with bare endsInstallation Mounting point 2 x 2 quarter-turn locking points for one or two Omega bracketsOrientation AnyRigging possibilities Floor stand (included) or hanging (Omega clamps included)Safety features Bottom mount for safety wireMinimum distance to combutiblematerials: 0.3 meter (11 in).Thermal Cooling Active, Forced Air, Temperature-regulatedHumidity (max.)98 %Temperature range, Operating-40°C to 50°CTemperature range, Start-up-20°C to 50°CTemperature range, Storage-40°C to 80°CThermal Protection Automatic overtemperature protection Included items Included items Wireless DMX antennaMounting bracket (incl. screws)2 Omega bracket with quater-turnfastenersSafety instructions and installationquick guideConforms To CE - 2014/30/EU: EMC Directive EN 55103-1EN 55103-2EN 55015EN 61547EN 61000-3-2EN 61000-3-3CE - 2014/35/EU: Low VoltageEN 60598-1DirectiveEN 60598-2-17EN 62471EN 60529RoHS2 Directive2011/65/EUUL UL Std. 1573Certified To CSA CSA Std. C22.2 No. 166NOTES:Due to continuous improvements and innovations, specifications may change without notice.LEDs' expected lifetime provided by manufacturer and obtained under manufacturer’s test conditions.Zoom range defined as a minimum beam angle to a maximum field angle.Photometric measurements obtained with Goniometer Scan / SGM Illumination Lab 1.6.0.0.Lumen output in pixel products is calculated.Headquarter +45 70 20 74 00 Mail ***************** Website 。

鞍山市希尔顿逸林酒店灯具参数表项目名称鞍山希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L1灯具名24洗墙灯具型灯具数29灯具外观灯具外形尺寸Lamp picturShape Siz灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：1000*38*37mm灯珠：24*1W功率：24W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源24pcs/1m功率（W）24W电压（V）AC220V颜色白光（5000K）发光角度30度平均寿命h50000小时驱动方式LED恒流电源动控制模式单色灯具备选品牌：芯片：灯具品牌、型号在满足技术参数基础上自行选择；灯具外观、外形尺寸图仅供参考。

项目名称鞍山希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L-2灯具名称24W洗墙灯灯具型号灯具数量16套灯具外观灯具外形尺寸Lamp picturShape Siz灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：800*38*37mm灯珠：19*1W功率：19W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源19pcs/800mm功率（W）19W电压（V）AC220V颜色白光（5000K）发光角度30度平均寿命h50000小时驱动方式LED恒流电源动控制模式单色灯具备选品牌：芯片：灯具品牌、型号在满足技术参数基础上自行选择；灯具外观、外形尺寸图仅供参考。

LED光源专业词汇中英文收集LED光源系列专业词汇面板灯（panel light)球泡灯（LED bowl)白炽灯（incandescence lamp）荧光灯（fluorescence lamp）节能灯（energy-saving lamp）卤素灯（halogen lamp）钠灯（sodium lamp）氖灯（neon lamp）高强放电灯（High-intensity discharge）石英灯（quartz lamp）发光二极管（led）霓虹灯（neon light）汽车灯（auto lamp）背光灯（backlight）碘钨灯（iodine-tungsten lamp）汞灯（mercury lamp）单端灯（single end lamp）低压灯（low voltage lamp）杀菌灯（sterilizing lamps）灭蚊灯（mosquito-killing lamp）日光灯（daylight lamp）脉冲灯（impulse lamp）紫外线灯（ultraviolet lamp）车间灯（workshop lamp）光源配件（lamp fittings）PAR灯（Parabolic aluminized reflectors）溴钨灯（bromine-tungsten lamp）放电管（discharge tube）植物生长灯（Lamps for plant growing）特种灯泡（special type bulb）专业照明 illumination防爆灯 explosion-proof lamp/light室内灯 residential lamp台灯 table desk lamp/light壁灯 wall lamp/light落地灯 floor lamp/light吸顶灯 ceiling lamp/light镜前灯 mirror front lamp/light户外灯 outdoor lamp路灯 street lamp/light庭院灯 garden lamp/light草坪灯 lawn lamp/light防水灯 waterproof /under water lamp应急灯 emergency light工具灯 utility light浴室灯 bathroom light灯饰附件 lighting accessories灯饰配件 light fittings灯泡 bulb白炽灯泡 incandescent light bulbs开关 switch光源 light source节能灯 energy saving lamp荧光灯 fluorescent light/lamp荧光灯管 linear fluorescent light tube 环形荧光灯fluorescent circular lamp发光二级管LED三极管 audion/dynatron灯杯 lamp cup灯罩 lamp shade/cover灯头/灯座 lamp holder灯头/灯座 lamp base灯头型号base’s type灯盘 lamp house灯盘 lamp plate/metal pan灯柱 lamp pole压克力配件acrylic fitting塑胶配件 plastic fitting五金配件 hardware fitting玻璃配件 glass fitting压铸件 die-casting fitting电线 electric wire/power cored 插头 Pin/plug插座 socket螺丝 screw螺母 nut十字螺丝philip’s head screw 扁头螺丝 flat head screw方螺帽 square nut螺栓杆 bolt bar螺栓盖 bolt cover金属面板 metal surface面板 bezel panel底板 back plane镇流器 ballast电子镇流器electronic ballast 感应镇流器inductive ballast适配器 adapter变压器 transformer调节器 adjustment连接器 connector调光器 dimmer接线端子 terminal接线盒 connection box电池 battery光电池 photocell备用电池 emergency battery保险丝 fuse调光器 dimmer传感器 sensor电线 electric wire电镀 plating抛光 finish/polish铬 chrome镍 nickel铁 iron钢 steel铝 aluminum银 silver黄铜 brass不锈钢 stainless steel古铜色 antique brass抛光铜色 polish brass图纸 drawing电路图 circuit diagram玻璃备品 glass spare part防水 waterproof防尘 dustproof落下测试 drop test电器测试 electric test老化测试 aging test壁盘 back plate / disk配件 component绝缘 insulation斑点 spots刮痕 scratch验货 inspection对接 butt joint对接焊接 butt weld光色 light color瓦特 watt电压（伏特数）voltage光强度 luminous intensity, I光强度单位：坎德拉 candela, cd照度 Illuminance, E照度单位：勒克斯 Lux, lx辉度 Luminance, L光通量 Luminous flux, ф色温 color temperature三基色 tri-phosphor三基色稀土荧光粉 tri-phosphor Fluorescent Powder 三基色灯管 tri-phosphor tube light三基色发光二极管 tri-phosphor LED工作环境温度：Working temperature工作电压：Supply voltage额定电源频率Rated power frequency额定功率Rated power驱动电源效率Power supply efficiency功率因数Power-factor(PF)LED发光效率LED luminoue efficiency灯具初始光通量Luminous flux灯具出光效率 Lamp Flux色温Color temperature显色指数CRI: Ra>75防护等级IP rating:IP65使用寿命 Working life外壳材质Shell material character产品尺寸 Size(A*B*C mm)重量 Net weight (kg)包装尺寸 Packing dimensions(mm)LED护栏管: LED Hurdle LampLED点光源: LED Point SourceLED大功率洗墙灯: LED High Power wash wall LED大功率投光灯: LED High PowerLED光纤 LED optical fiberLED柔性灯带 LED Soft Rope LightLED柔性霓虹灯 LED Soft NoLED灯饰 LED lighting accessorizeLED显示屏 LED panelLED喷绘屏LED Picture ModuleLED背景屏 LED Backdrop screen。

景观照明灯具技术要求一、LED 数码管1、全彩管：由集成电路和进口超高亮RGB 三色LED 光源组成, 是一种新型的高级装饰LED 照明产品。

在专用软件的支持下，LED 全彩管可以接收和识别计算机发出的信号和指令。

一条灯管就可以达到七彩动态效果, 并可以实现实时传输数据, 播放各种动态画面.LED 全彩管支持DMX512控制台控制花样变化, 支持声控和可视化音频, 支持实时播放动态效果.LED 全彩管已广泛应用花园, 舞台, 酒吧, 大楼轮廓, 桥梁, 景观灯照明，以及城市亮化照明工程等.2、每支管长度有1米；0.5米；也可以按客户要订做, 采用德国进口PC 管，透明高, 厚度为1.5mm.3、紧固件螺钉、螺栓、螺母均不锈钢件。

4、光源: 144颗进口超高亮RGB 三色LED 光源组成。

5、额定电压：DC24V ±10% ，防护等级:IP65，低压恒流供电, 产品寿命更长更稳定。

6、管内过底导线规格不小于0.75mm 2, 管间串接可达24条.7、专利堵头和公母插线, 不可渗水. 保证产品的户外使用.8、功率：14W产品图片:二、LED 地埋灯1. 颜色：单色，RGB 全彩动画、渐变、追逐、流水效果.2. 镜面：玻璃反光透镜，透光率为98-98%，不易雾化，能抗UV 辐射3. 尺寸规格：高60mm 直径250mm4. 面盖：不锈钢5. 额定功率：18W6. 光源：大功率LED, 白光达1560-1620LM7. 额定电压： AC12-24V,低压供电更安全.8. 芯片：采用美国晶元LED 大功率芯片9. 防护等级：IP65产品图片:三、LED 点光源1. LED 点光源采用超高亮度的进口芯片为光源, DC24V 电压，单色有红，绿，黄，蓝，紫，蓝，白，LED 点光源具有低功率，超长寿命等特点，广泛应用于建筑物轮廓，游乐园，广告牌，广场街道，舞台等场所的装饰。

LED全彩点光源： LED 全彩点光源内置微电脑芯片，可任意编程控制，多个同步变化，超低功率，超长寿命，可实现同步七色渐变，跳变，扫描，流水等。

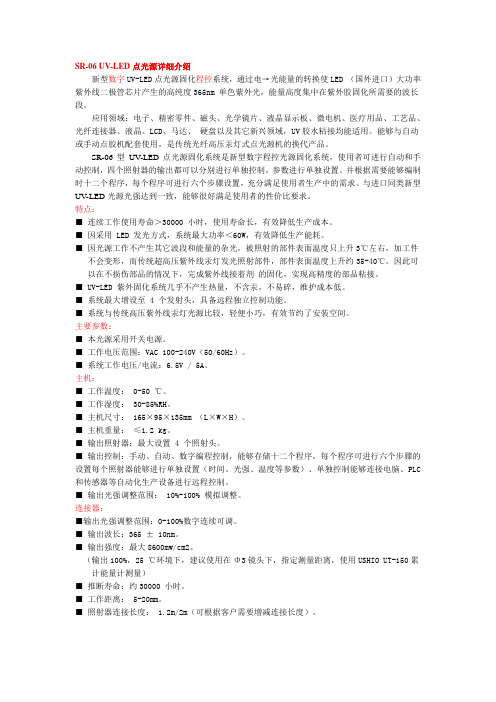

SR-06 UV-LED点光源详细介绍新型数字UV-LED点光源固化程控系统，通过电→光能量的转换使LED （国外进口）大功率紫外线二极管芯片产生的高纯度365nm 单色紫外光，能量高度集中在紫外胶固化所需要的波长段。

应用领域：电子、精密零件、磁头、光学镜片、液晶显示板、微电机、医疗用品、工艺品、光纤连接器、液晶、LCD、马达、硬盘以及其它新兴领域，UV胶水粘接均能适用。

能够与自动或手动点胶机配套使用，是传统光纤高压汞灯式点光源机的换代产品。

SR-06型UV-LED点光源固化系统是新型数字程控光源固化系统，使用者可进行自动和手动控制，四个照射器的输出都可以分别进行单独控制，参数进行单独设置。

并根据需要能够编制时十二个程序，每个程序可进行六个步骤设置，充分满足使用者生产中的需求。

与进口同类新型UV-LED光源光强达到一致，能够很好满足使用者的性价比要求。

特点：■ 连续工作使用寿命＞30000 小时，使用寿命长，有效降低生产成本。

■ 因采用 LED 发光方式，系统最大功率＜60W，有效降低生产能耗。

■ 因光源工作不产生其它波段和能量的杂光，被照射的部件表面温度只上升3℃左右，加工件不会变形，而传统超高压紫外线汞灯发光照射部件，部件表面温度上升约35-40℃。

因此可以在不损伤部品的情况下，完成紫外线接着剂的固化，实现高精度的部品粘接。

■ UV-LED 紫外固化系统几乎不产生热量，不含汞，不易碎，维护成本低。

■ 系统最大增设至 4 个发射头，具备远程独立控制功能。

■ 系统与传统高压紫外线汞灯光源比较，轻便小巧，有效节约了安装空间。

主要参数：■ 本光源采用开关电源。

■ 工作电压范围：VAC 100-240V（50/60Hz）。

■ 系统工作电压/电流：6.5V / 5A。

主机：■ 工作温度： 0-50 ℃。

■ 工作湿度： 30-85%RH。

■ 主机尺寸：165×95×135mm （L×W×H）。

The Extube Series is a modular system of IP65-rated linearLED luminaires designed for the dynamic illumination offacades, bridges and structures. With RGBW color mixing anda choice of diffusers, Extube is ideal for floodlighting,wall-grazing or creating continuous, decorative lines of color,inside or outside.·12 or 48 LEDs in 4 colors: Red, Green, Blue and White·RGBW color mixing·Choice of optical diffuser films - narrow, medium, wide·Simple click-together system: cable-less loop-through of power and data·Easy installation: slides onto DIN rail·Tiltable for precise optical aiming·Weatherproof rating: IP65·Slim, inconspicuous design·Available in two lengths: 300 mm (12 in.) / 1200 mm (47.2 in.)·No need for any external power supply, it s all built-in·Choice of DMX control modes: RGB, RGBW, HSI, HSIC·Auto-addressing during set-upPhysical Length: 300 mm (11.8 in.) / 1200 mm (47.2 in.), plus end cap 15 mm (0.6 in.) andconnections cap 55 mm (2.2 in.) if installedWidth: 89 mm (3.5 in.)Height: 90 mm (3.5 in.) including mounting bracket for DIN railWeight: 300mm model 1.5 kg (3.3 lbs.), 1200mm model 5 kg (11.0 lbs.)Dynamic Effects Color mixing: RGBWRed: 0 - 100%Green: 0 - 100%Blue: 0 - 100%White: 0 - 100%Color temperature control: 2 000 - 10 000 K continuous mixingOptics Light source: Luxeon Rebel high power emittersWhite LED: Neutral white, 3500 - 4500 K, CRI 75Total LED power: 300mm models approx. 25 W, 1200mm models approx. 100 WVery Narrow (no diffuser), Narrow, Medium and Wide beam angles availableControl and Programming Color control modes: RGB, RGBW, HSI, HSICControl system: DMXDMX channels: 3 or 4 on 300mm models, 3, 4, 12 or 16 on 1200mm modelsGrouped pixel control options: 1 x 3 (all as one group) on 300mm models, 1 x 12 (all as onegroup) or 4 x 3 on 1200mm modelsDMX address setting: Martin MUM application, cascading auto-addressing26-bit control (internal): RGB, RGBW, HSI, HSICProtocol: USITT DMX512-AReceiver: RS-485Firmware update: Serial upload via DMX linkConstruction Housing: AluminumFinish: Clear anodized, black or whiteFront glass: UV-resistant clear polycarbonateEnd covers: PA6 nylonMounting brackets: PA6 nylonProtection rating: IP65Installation Orientation: AnyAiming: +/- 90° in 25 steps of approx. 7°Mounting: 35 mm (1.4 in.) DIN top-hat railMaximum interconnected length per power input: 26 m (85.3 ft.) at 230-240 V, 22 m (72.2ft.) at 208 V, 13 m (42.7 ft.) at 110-120 V,or 11 m (36.1 ft.) at 100 VConnections Power connection: 1.8 m (5.9 ft.) cable tailData connection: 1.8 m (5.9 ft.) cable tailFixture-to-fixture: Quick IP65 plug-in systemElectrical AC power: 100-120/200-240 V nominal, 50/60 HzMax. peak inrush current: 300mm models 250 mA; 1200mm models 1 AStandby power: 300mm models 3 W; 1200mm models 12 WPower supply unit: Integrated, auto-sensing multi-voltageThermal Cooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F), power must be maintained below 0° C(32° F)Maximum surface temperature, steady state, Ta=40° C (104° F): 90° C (194° F)Total heat dissipation (calculated, +/- 10%): 300mm models 110 BTU/hr.; 1200mm models440 BTU/hr.ApprovalsEU safety: EN 60598-1, EN 60598-2-1LED Safety: IEC 60825-1, 2001; IEC 62471, 2006EU EMC: EN 55 015, EN 55 103, EN 61 000-3US safety (pending): UL 1598Canadian safety (pending): CAN/CSA C.22.2 No. 250Included Items Extube 300 mm2 x adjustable brackets for mounting on DIN rail2 x Extube locking clips300mm diffuser, Medium: P/N 41600115300mm diffuser, Wide: P/N 41600116Extube 1200 mm2 x adjustable brackets for mounting on DIN rail2 x Extube locking clipsFour 300mm diffusers, MediumFour 300mm diffusers, WideExtube Power Connection Kit, EU and US typesInput cap with 1.8 m (5.9 ft.) power and data cable tailsEnd cap with integral DMX terminationUser manual: P/N 350002124 x Extube locking clipsAccessories250 mm (9.8 in.) Extension Kit (output cap, cable and input cap),EU/US: P/N 916100942000 mm (78.7 in.) Extension Kit (output cap, cable and input cap),EU/US: P/N 91610095300mm diffuser, Medium: P/N 41600115300mm diffuser, Wide: P/N 41600116Four 300mm diffusers, Narrow: P/N 91610098Four 300mm diffusers, Medium: P/N 91610099Four 300mm diffusers, Wide: P/N 91610100DIN rail set (ten 2 m (6.6 ft.) lengths): P/N 916020091200mm models use 4 x 300mm diffusersOrdering Information Extube Power Connection Kit, EU type: P/N 91610086Extube Power Connection Kit, US type: P/N 91610087Extube 300mm, Aluminum, Narrow: P/N 90352200Extube 300mm, Black, Narrow: P/N 90352201Extube 300mm, White, Narrow: P/N 90352202Extube 1200mm, Aluminum, Narrow: P/N 90352210Extube 1200mm, Black, Narrow: P/N 90352211Extube 1200mm, White, Narrow: P/N 90352212 Photometric Data1200mm, Very Narrow (Balanced white 5600Kelvin) Efficacy: 9.3 lumens per watt Half-peak angle: 19°Total output: 1200 lm1200mm, Very Narrow (All LEDs on) Efficacy: 8.1 lumens per wattHalf-peak angle: 19°Total output: 1000 lm1200mm, Very Narrow (Only 12 x blue LEDson) Efficacy: 1.7 lumens per watt Half-peak angle: 19°Total output: 120 lm1200mm, Very Narrow (Only 12 x white LEDson) Efficacy: 10 lumens per watt Half-peak angle: 19°Total output: 680 lm1200mm, Very Narrow (Only 12 x green LEDson) Efficacy: 9.9 lumens per watt Half-peak angle: 20°Total output: 670 lm1200mm, Very Narrow (Only 12 x red LEDson) Efficacy: 5.9 lumens per watt Half-peak angle: 20°Total output: 280 lm1200mm, Narrow (Only 12 x white LEDs on) Efficacy: 9.6 lumens per wattHalf-peak angle: 26°Total output: 650 lm1200mm, Narrow (Balanced white 5600Kelvin) Efficacy: 9 lumens per watt Half-peak angle: 27°Total output: 1200 lm1200mm, Narrow (All LEDs on) Efficacy: 7.9 lumens per wattHalf-peak angle: 27°Total output: 1000 lm1200mm, Narrow (Only 12 x blue LEDs on) Efficacy: 1.7 lumens per wattHalf-peak angle: 27°Total output: 110 lm1200mm, Narrow (Only 12 x red LEDs on) Efficacy: 5.7 lumens per wattHalf-peak angle: 27°Total output: 270 lm1200mm, Narrow (Only 12 x green LEDs on) Efficacy: 9.5 lumens per wattHalf-peak angle: 28°Total output: 650 lm1200mm, Medium (Only 12 x white LEDs on) Efficacy: 9 lumens per wattHalf-peak angle: 32°Total output: 610 lm1200mm, Medium (All LEDs on) Efficacy: 7.5 lumens per wattHalf-peak angle: 33°Total output: 960 lm1200mm, Medium (Only 12 x blue LEDs on) Efficacy: 1.6 lumens per wattHalf-peak angle: 33°Total output: 110 lm1200mm, Medium (Only 12 x red LEDs on) Efficacy: 5.4 lumens per wattHalf-peak angle: 33°Total output: 260 lm1200mm, Medium (Balanced white 5600Kelvin) Efficacy: 8.7 lumens per watt Half-peak angle: 33°Total output: 1100 lm1200mm, Medium (Only 12 x green LEDs on) Efficacy: 9.2 lumens per wattHalf-peak angle: 34°Total output: 630 lm1200mm, Wide (Only 12 x white LEDs on) Efficacy: 8.7 lumens per wattHalf-peak angle: 39°Total output: 590 lm1200mm, Wide (Balanced white 5600Kelvin) Efficacy: 8.4 lumens per watt Half-peak angle: 40°Total output: 1100 lm1200mm, Wide (All LEDs on) Efficacy: 7.2 lumens per wattHalf-peak angle: 40°Total output: 930 lm1200mm, Wide (Only 12 x red LEDs on) Efficacy: 5.1 lumens per wattHalf-peak angle: 40°Total output: 250 lm1200mm, Wide (Only 12 x blue LEDs on) Efficacy: 1.5 lumens per wattHalf-peak angle: 41°Total output: 100 lm1200mm, Wide (Only 12 x green LEDs on) Efficacy: 8.7 lumens per wattHalf-peak angle: 42°Total output: 590 lm300mm, Very Narrow (All LEDs on) Efficacy: 8.1 lumens per wattHalf-peak angle: 19°Total output: 260 lm300mm, Very Narrow (Balanced white5600K) Efficacy: 9.3 lumens per watt Half-peak angle: 19°Total output: 300 lm300mm, Very Narrow (Only 3 x blue LEDson) Efficacy: 1.7 lumens per watt Half-peak angle: 19°Total output: 30 lm300mm, Very Narrow (Only 3 x white LEDs Efficacy: 10 lumens per watton) Half-peak angle: 19°Total output: 170 lm300mm, Very Narrow (Only 3 x green LEDson) Efficacy: 9.8 lumens per watt Half-peak angle: 20°Total output: 170 lm300mm, Very Narrow (Only 3 x red LEDson) Efficacy: 5.9 lumens per watt Half-peak angle: 20°Total output: 70 lm300mm, Narrow (Only 3 x white LEDs on) Efficacy: 9.6 lumens per wattHalf-peak angle: 26°Total output: 160 lm300mm, Narrow (Only 3 x red LEDs on.) Efficacy: 5.7 lumens per wattHalf-peak angle: 27°Total output: 70 lm300mm, Narrow (All LEDs on) Efficacy: 7.8 lumens per wattHalf-peak angle: 27°Total output: 250 lm300mm, Narrow (Balanced white 5600K) Efficacy: 9 lumens per wattHalf-peak angle: 27°Total output: 290 lm300mm, Narrow (Only 3 x blue LEDs on) Efficacy: 1.6 lumens per wattHalf-peak angle: 27°Total output: 30 lm300mm, Narrow (Only 3 x green LEDs on) Efficacy: 9.5 lumens per wattHalf-peak angle: 28°Total output: 160 lm300mm, Medium (Only 3 x white LEDs on) Efficacy: 9.1 lumens per wattHalf-peak angle: 32°Total output: 150 lm300mm, Medium (Only 3 x red LEDs on) Efficacy: 5.3 lumens per wattHalf-peak angle: 33°Total output: 60 lm300mm, Medium (All LEDs on) Efficacy: 7.6 lumens per wattHalf-peak angle: 33°Total output: 240 lm300mm, Medium (Balanced white 5600K) Efficacy: 8.7 lumens per wattHalf-peak angle: 33°Total output: 280 lm300mm, Medium (Only 3 x blue LEDs on) Efficacy: 1.6 lumens per wattHalf-peak angle: 33°Total output: 30 lm300mm, Medium (Only 3 x green LEDs on) Efficacy: 9.2 lumens per wattHalf-peak angle: 34°Total output: 160 lm300mm, Wide (Only 3 x white LEDs on) Efficacy: 8.7 lumens per wattHalf-peak angle: 39°Total output: 150 lm 300mm, Wide (Only 3 x red LEDs on) Efficacy: 5 lumens per wattHalf-peak angle: 40°Total output: 60 lm300mm, Wide (All LEDs on) Efficacy: 7.2 lumens per wattHalf-peak angle: 40°Total output: 230 lm300mm, Wide (Balanced white 5600K) Efficacy: 8.3 lumens per wattHalf-peak angle: 40°Total output: 270 lm300mm, Wide (Only 3 x blue LEDs on) Efficacy: 1.4 lumens per wattHalf-peak angle: 40°Total output: 20 lm300mm, Wide (Only 3 x green LEDs on) Efficacy: 8.5 lumens per wattHalf-peak angle: 42°Total output: 140 lmPublished on: 29 Oct 2009. © 2008-2009 Martin Professional A/S. Specifications subject to change without notice。

LED点光源媒体幕墙方案随着科技的发展，LED点光源媒体幕墙方案在建筑设计中扮演着越来越重要的角色。

LED点光源媒体幕墙是一种通过在建筑物表面嵌入LED点光源，形成一个可变化的图像或视频播放设备。

下面将介绍一种基于LED点光源的媒体幕墙方案。

首先，LED点光源媒体幕墙方案的设计需要考虑到建筑物的外部形状和结构。

LED点光源可以根据需要布置在建筑物的不同位置，并利用点光源的高亮度和可调节的颜色，使建筑物呈现出丰富多样的灯光效果。

这种方案不仅可以让建筑物在夜间变得更加美丽和引人注目，还可以利用这些灯光效果来展示各种各样的视觉内容，如广告信息、艺术作品和活动信息等。

其次，LED点光源媒体幕墙方案的设计需要考虑到节能环保的原则。

LED点光源具有高效、低能耗和长寿命等特点，相比传统的照明设备，LED点光源的能耗更低，且不含有汞等有害物质。

通过合理布置LED点光源，可以最大限度地提供所需的光照强度，并降低能源浪费。

此外，LED点光源媒体幕墙方案的设计需要考虑到图像或视频的播放效果。

LED点光源可以根据预先设计的图像或视频内容，通过调整每个点光源的亮度和颜色，产生出高分辨率和流畅的图像或视频效果。

通过使用控制系统，可以实现图像或视频的无缝连接和自动更新，提供更加出色的视觉体验。

最后，LED点光源媒体幕墙方案的设计需要考虑到可靠性和安全性。

点光源的固定和保护设施需要在设计方案中考虑到，以确保点光源的稳定和安全。

此外，控制系统需要具备灵活性和可靠性，能够适应各种不同的操作需求，并提供相关的安全保护措施。

综上所述，LED点光源媒体幕墙方案是一种创新的建筑设计方案，能够给建筑物带来独特的灯光效果，并为观众提供丰富多样的视觉体验。

在实施这种方案时，需要考虑到建筑物的外部形状和结构、节能环保、图像或视频的播放效果，以及可靠性和安全性等方面的要求。

只有综合考虑这些因素，才能设计出成功的LED点光源媒体幕墙方案。

近年来，随着技术的不断发展，LED点光源媒体幕墙方案在建筑设计中的应用愈发普遍。

市希尔顿逸林酒店灯具参数表项目名称希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L1 灯具名称24W洗墙灯灯具型号灯具数量290套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：1000*38*37mm灯珠：24*1W功率：24W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源24pcs/1m功率（W）24W电压（V）AC220V颜色白光（5000K）发光角度30度平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色灯具品牌、型号在满足技术参数基础上自行选择；灯具外观、外形尺寸图仅供参考。

项目名称希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L-2 灯具名称24W洗墙灯灯具型号灯具数量16套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：800*38*37mm灯珠：19*1W功率：19W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源19pcs/800mm功率（W）19W电压（V）AC220V颜色白光（5000K）发光角度30度平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色灯具品牌、型号在满足技术参数基础上自行选择；灯具外观、外形尺寸图仅供参考。

项目名称希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L2 灯具名称24W洗墙灯灯具型号灯具数量249套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：1000*38*37mm灯珠：24*1W功率：24W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源24pcs/1m功率（W）24W电压（V）AC220V颜色琥珀色发光角度30度平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色项目名称希尔顿逸林酒店泛光照明工程灯具品牌灯具编号L2-2 灯具名称19W洗墙灯灯具型号灯具数量5套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：800*36*32mm灯珠：19颗功率：19W材质：挤型铝灯体+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：30度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源CREE/24pcs/1m功率（W）19W电压（V）AC220V颜色琥珀色发光角度30度平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色灯具名称三度炮灯具型号灯具数量35套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：348*145*105mm灯珠：CREE/24颗功率：48W材质：压铸铝材+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：3度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源CREE/24颗功率（W）48W电压（V）AC220V颜色白光（5000K）发光角度3°平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色灯具名称三度炮灯具型号灯具数量12套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description尺寸：348*145*105mm灯珠：CREE/24颗功率：48W材质：压铸铝材+钢化玻璃防水等级：IP65寿命：50000小时输入电压：AC220V角度：3度环境温度：-35～+60℃IP/防水等级IP65光源技术参数Lamp Performance光源CREE/24颗功率（W）48W电压（V）AC220V颜色琥珀色发光角度3°平均寿命h 50000小时驱动方式LED恒流电源动控制模式单色项目名称泛光亮化工程灯具品牌灯具编号T2 灯具名称70W窄光型钠灯灯具型号灯具数量47套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构DescriptionIP/防水等级IP65光源技术参数Lamp Performance光源HST-DE功率（W）70W电压（V）220V颜色2000K发光角度15°平均寿命h 9000小时驱动方式控制模式项目名称泛光亮化工程灯具品牌灯具编号T3 灯具名称250W投光钠灯灯具型号灯具数量9套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构DescriptionIP/防水等级IP65光源技术参数Lamp Performance光源Rx7s-24功率（W）250W电压（V）220V颜色2000K发光角度60°平均寿命h 9000小时驱动方式控制模式灯具备选品牌：备选光源：项目名称希尔顿逸林酒店泛光亮化工程灯具品牌定制灯具编号TYD1 灯具名称庭院投光灯灯具型号定制灯具数量7套灯具外观图灯具外形尺寸图Lamp picture Shape Size灯具技术参数配光曲线图Luminaire Performance Light distribution curve材质结构Description灯杆定制IP/防水等级IP65光源技术参数Lamp Performance光源18W节能+250W钠灯功率（W）18W*2+250W*2=536W电压（V）220V颜色暖白+2000K发光角度60°平均寿命h 9000小时驱动方式控制模式。

一、 LED 显示屏及相关产品技术参数序列号1产品名称P5 全彩屏体部分技术参数★点间距： 5mm （LED 显示屏需供给检经CNAS 国家检测机构认同的检测报告并加盖公章）灯管封装为： SMD2727采纳一线厂产业品★防范等级： IP65（供给第三方检测证明并加盖厂家鲜章）单元板分辨率：宽 32 点×高 32 点单元板尺寸 :320mm ×160mm箱体尺寸： 960mm × 960mm★箱体材质：全密封压铸铝箱★屏体尺寸：净尺寸：（宽） *3.84m （高）★屏体像素数：1152 点（宽） *768 点（高）屏体显示面积：22.12 ㎡视角 : 水平： 140 °垂直： 130°存贮温度 -20℃～ +50℃工作温度： -20℃～ +50℃相对湿度： 10%～90%驱动器件：恒流驱动驱动方式： 1/8 扫刷新频率：≥ 1920Hz帧频：≥ 60Hz灰度 / 颜色： 16bits ，43980 亿种颜色亮度：≥ 5500cd/m2 . 亮度调理方式：软件256 级可调均匀无故障时间：10000 小时寿命： 10 万小时屏幕水平坦度：≤1mm/m2 ；屏幕垂直整度＜1mm/m2；均匀性：像素光强、单元板亮度均匀盲点率：＜，出厂时为 0.★L ED 模组需经过“防高低温、盐雾、紫外线、阻燃”测试，并供给相关行业威望机构的测试报告（供给厂家证明并加盖厂家鲜章）★招标人需出具生产厂商针对本项目的受权书和售后服务承诺函原件★L ED显示屏产品获取 CCC、CE、ROHS认证，不接受组装产品与贴牌产品（以上认证上的生产厂家与招标品牌受权厂家需一致）；★L ED 显示屏生产厂家获取 ISO9001、ISO14001、OHSAS18001 认证证书和安全生产允许证。

数目单价金额7200 元 /159264平方米平方米元2 3★1.为保证控制系统产品的兼容性，要求显示屏、控制软件、控制系统和视频办理器一定为同一品牌。
