西门子交换机 SCALANCE X 路由用户指导手册SIEMENS Switch SCALANCE X Route User GuideUser GuideEdition（2007-1)SIEMENS A&D CS摘 要 随着 PROFINET 和 SCALANCE 在中国市场的不断深入，越来越多的用户选择和使用 PROFINET 和 SCALANCE。

SCALANCE X414-3E 是西门子全新推出的高性能交换机，全 面支持 PROFINET，支持冗余管理 RM，支持热备 STBY。

除了交换机的基本功能外，还支 持 IT 标准的通讯，例如：TFTP，SMTP 等等。

SCALANCE X414-3E 同样支持 VLAN 和路 由。

VLAN 可以隔离网络上的广播域，但 VLAN 之间通讯只能通过路由。

所以有 VLAN，必 有路由。

SCALANCE X414-3E 具有 3 层交换的路由功能，这样它就可以成为网络上的核心 部件-----路由器。

除了支持静态路由外，还支持动态的路由协议，例如 RIPv2 和 OSPFv2。

这样可以满足用户各种各样的控制要求和网络要求。

本手册全面讲述了 SCALANCE X4143E 的各种路由，用户可以根据本手册了解和掌握 SCALACNE X400 的路由组态，并应用到 工业控制和工业网络中。

关键词 SCALANCE X414-3E，路由，本地路由，静态路由，RIP，OSPF Key words SCALANCE X414-3E，Route，Local Route，Static Route，RIP，OSPFA&D Service & SupportPage 2-34目 录 第一章SCALANCE X-400 路由概述 ......................................................................................4 1.1 VLAN概述....................................................................................................................4 1.2 路由概述......................................................................................................................4 1.3 SCALANCE X-400 路由概述 .......................................................................................5 第二章SCALANCE X-400 本地路由 ......................................................................................5 2.1 本地路由概述...............................................................................................................5 2.2 本地路由组态...............................................................................................................6 第三章SCALANCE X-400 静态路由 ......................................................................................8 3.1 静态路由概述...............................................................................................................8 3.2 静态路由组态...............................................................................................................8 第四章SCALANCE X-400 RIP路由 ..................................................................................... 11 4.1 RIP路由概述.............................................................................................................. 11 4.2 RIP路由组态.............................................................................................................. 11 第五章SCALANCE X-400 OSPF路由 .................................................................................16 5.1 OSPF路由概述 ..........................................................................................................16 5.2 OSPF标准路由组态 ...................................................................................................16 5.3 OSPF虚连接组态.......................................................................................................21 5.4 OSPF路由聚合组态 ...................................................................................................27A&D Service & SupportPage 3-34第一章 SCALANCE X-400 路由概述 1.1 VLAN 概述 工业 LAN 可以是由少数几台 PLC 或工控机构成的网络，也可以是数以百计的计算机、工控 机、服务器和 PLC 构成的企业网络。

基于SCALANCE 管理型三层交换机静态路由原理介绍及配置指南SIMATIC XM400 路由Siemens Industry Online© S i e m e n s A G c o p y r i g h t y e a r A l l r i g h t s r e s e r v e dThis entry is from the Siemens Industry Online Support. The general terms of use (/terms_of_use ) apply.安全性信息Siemens 为其产品及解决方案提供了工业信息安全功能，以支持工厂、系统、机器和网络的安全运行。

为了防止工厂、系统、机器和网络受到网络攻击，需要实施并持续维护先进且全面的工业信息安全保护机制。

Siemens 的产品和解决方案仅构成此类概念的其中一个要素。

客户负责防止其工厂、系统、机器和网络受到未经授权的访问。

只有在必要时并采取适当安全措施（例如，使用防火墙和网络分段）的情况下，才能将系统、机器和组件连接到企业网络或 Internet 。

此外，应考虑遵循 Siemens 有关相应信息安全措施的指南。

更多有关工业信息安全的信息，请访问 /industrialsecurity 。

Siemens 不断对产品和解决方案进行开发和完善以提高安全性。

Siemens 强烈建议您及时更新产品并始终使用最新产品版本。

如果使用的产品版本不再受支持，或者未能应用最新的更新程序，客户遭受网络攻击的风险会增加。

要及时了解有关产品更新的信息，请订阅 Siemens 工业信息安全 RSS 源，网址为 /industrialsecurity 。

© S i e m e n s A G c o p y r i g h t y e a r A l l r i g h t s r e s e r v e d目录1.1 路由的概念 ......................................................... 4 1.2 静态路由的原理 ..................................................... 5 1.3 静态路由配置指南 ................................................... 6 配置样例 ................................................................ 6 配置说明 ................................................................ 6 配置步骤 . (6)© S i e m e n s A G c o p y r i g h t y e a r A l l r i g h t s r e s e r v e d1.1 路由的概念路由是指路由器提供在不同网络中的互联机制，实现从一个接口上收到数据包，根据数据包的目的地址进行定向并转发到另一个接口的过程；路由发生在第三层（网络层），就是指导IP 数据包发送的路径信息。

SIEMENS Hipath 3800交换机HiPath3800数字程控交换机是德国西门子公司最新一代推向市场的为中小企业提供通讯服务IP PBX功能的多媒体交换机，它可以提供最优的，多种多样的数字，模拟以及IP中继和用户线路接口。

Hipath3800程控交换机：最大384端口西门子HiPath 3800产品简介HiPath 3800 IP集成系统通过易用的高质量终端设备，为中型企业（可多达1000个用户）提供可靠的语音通信。

如果HiPath 3800作为独立系统使用，可支持达500个工作点。

64个HiPath 3800系统可进行透明联网。

HiPath 3800是新的一代具有改进性能的高端硬件平台。

可通过HiPath ComScendo为所有系统提供丰富的功能。

在HiPath3000/4000的组网当中，可做为HiPath4000可自愈的远端模块。

在无线移动语音应用中，可通过DECT及VoWLAN两种解决方案来实现，其中VoWLAN为真正意义上的IP层解决方案。

HiPath3800系统为用户在远距离工作，移动通信，多媒体应用，CTI方案等新的应用领域提供了解决方法。

HiPath3800采用统一的一个软件平台，可以适应不同规模公司的功能需求，其数字话机采用统一的optipoint 系列，其支持最佳经济路由选择，具有CornetN,Q-sig等多种组网信令，可为用户应用提供开发接口，具有综合无线通信方案，综合LAN解决方案。

HiPath3800交换机处理机采用IBM 专用通讯处理芯片，每端口话务量为0.54Erl，BHCA值为25000。

由于采用了现代通信，微电子和计算机技术，具有大规模集成度，因此该设备具有以下特点：体积小，处理能力强，接口品种多。

具有ISDN功能，可提供DSS1，CORNET，2B＋D等多种信令。

操作方便，易于维护。

故障处理能力强，无风扇，功耗低HiPath 3800系统功能:（1）应答前语音提示。

西门子X400配置说明:

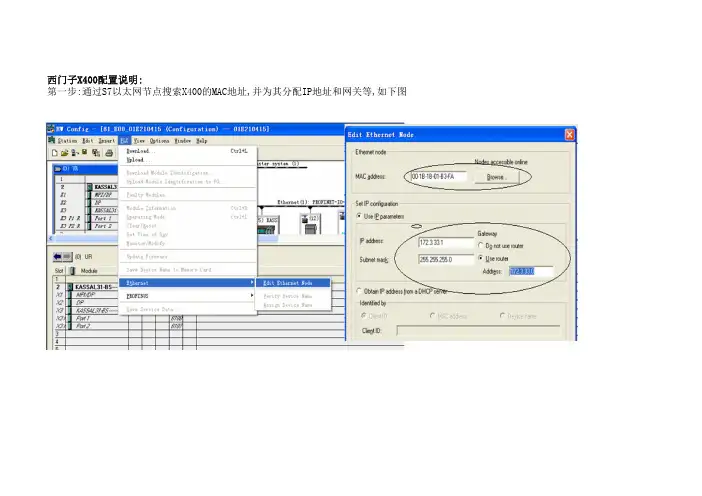

第一步:通过S7以太网节点搜索X400的MAC地址,并为其分配IP地址和网关等,如下图
第二步:打开电脑或西门子PC677设置TCP/IP地址和网关.如下图
第三步:打开相对应的那套PLC硬件组态设置网关,如下图:
第四步:打开INTERNET浏览器,在址栏输入为X400设置的IP地址出现X400设置画面.如下图:
第五步:选择X400 Ring Config将Redundancy Mode设置为禁用.如下图:
第六步:点击SWITCH选择VLAN新建一个ID并为其分配地址(下图的地址是6.1)如下图:
第七步:选择Router下的Subnets为刚建立的ID号设置IP地址(此IP地址是根据X400刚设置的ID号的地址口6.1所对应的光纤连接到的那套PLC的网关)等,如下图:
第八步:选择VLAN下的Ports点击对应的地址6.1为其设置对应的ID号.如下图
第九步:ID号所对应的地址需要点击成U状后才会生效,但是由于系统默认的ID号把所有的地址都设置为生效了这样我们新建的这个就会和默认的冲突而报错,因此需要将默认的地址取消掉如下图:(最上面的是系统默认的ID号)。

西门子交换机 SCALANCE X VLAN 组态1 VLAN 概述 1.1 虚拟网络支持 (基于端口的 VLAN) 虚拟网络(VLAN)和普通 LAN 没有物理区别。

VLAN 的特性是设备在配置时可以被分配到设备组。

若干设备组使 用现存的唯一物理网络基础设施。

若干"虚拟网络"存在于一个物理网络上。

数据交换甚至广播传输只在一个 VLAN 内发生。

对 VLAN 的分配通过在 MAC 帧中添加 VLAN Tag 来完成。

即在目的和源地址后插入了四个字节的附加 VLAN 信 息。

为了能够在虚拟网络中集成不支持 VLAN 的终端设备和子网，交换机担负起增加和删除附加的 VLAN 信息的职责。

SCALANCE X 300/400 支持基于设备所连端口的 VLAN 分配（基于端口的 VLAN）。

最多可以配置 62 个基于端 口的 VLAN 和两个预定义的 VLAN。

VLAN 在 IEEE 802.1Q 标准中定义。

1.2 VLAN 的作用 VLAN (Virtual LAN) 是可以不管物理位置而分配节点的网络。

多播和广播帧只能在逻辑网络结构设置的限制内活 动，限制的帧不能够发送到虚拟网络中。

由于这个原因，VLAN 也被看做广播域。

VLAN 的特殊优点是为节点和 其它 VLAN 网段降低网络负载。

1.3 VLAN 的种类 有各种类型的 VLAN： • 基于端口的 VLAN (第 2 层) • 基于 MAC 地址的 VLAN (第 2 层) • 基于 IP 地址的 VLAN (第 3 层) SCALANCE X 300/400 支持基于端口的 VLAN。

这使得为 SCALANCE X 300/400 设置参数和配置它使用 GVRP 帧成为可能。

1.4 配置基于端口的 VLAN 对于配置，你可以使用任何支持基于端口 VLAN 的程序。

遵从以下步骤配置你的 VLAN： 1. 设置形成一个或多个 VLAN 的标准。

西门子X400配置说明:
第一步:通过S7以太网节点搜索X400的MAC地址,并为其分配IP地址和网关等,如下图
第二步:打开电脑或西门子PC677设置TCP/IP地址和网关.如下图
第三步:打开相对应的那套PLC硬件组态设置网关,如下图:
第四步:打开INTERNET浏览器,在址栏输入为X400设置的IP地址出现X400设置画面.如下图:
第五步:选择X400 Ring Config将Redundancy Mode设置为禁用.如下图:
第六步:点击SWITCH选择VLAN新建一个ID并为其分配地址(下图的地址是6.1)如下图:
第七步:选择Router下的Subnets为刚建立的ID号设置IP地址(此IP地址是根据X400刚设置的ID号的地址口6.1所对应的光纤连接到的那套PLC的网关)等,如下图:
第八步:选择VLAN下的Ports点击对应的地址6.1为其设置对应的ID号.如下图
第九步:ID号所对应的地址需要点击成U状后才会生效,但是由于系统默认的ID号把所有的地址都设置为生效了这样我们新建的这个就会和默认的冲突而报错,因此需要将默认的地址取消掉如下图:(最上面的是系统默认的ID号)。

西门子交换机SCALANCE X VLAN组态SIEMENS Switch SCALANCE X VLAN ConfigurationSIEMENS A&D CS网络结构设置的限制内活动，限制的帧不能够发送到虚拟网络中。

VLAN的特殊优点是为节点和其它VLAN网段降低网络负载。

SCALANCE X 300/400支持基于设备所连端口的VLAN分配（基于端口的VLAN）。

本文例举了西门子高端交换机SCALANCE X414-3E，通过VLAN组态以及GVRP，帮助用户快速的了解VLAN和配置VLAN。

关键字虚拟网络，交换机，工业以太网，SCALANCE X414-3E，PST，GVRPKey words VLAN, Switch, Industrial Ethernet, SCALANCE X414-3E, PST, GVRPA&D Service & Support Page 2-20目录1 VLAN概述 (4)1.1虚拟网络支持 (基于端口的VLAN) (4)1.2 VLAN的作用 (4)1.3 VLAN的种类 (4)1.4 配置基于端口的VLAN (4)1.5 通用VLAN注册协议 (5)1.6 VLAN的重要规则 (5)1.7 VLAN数据的处理 (6)2 本例设备简介 (7)3. SCALANCE X400 VLAN的组态步骤 (8)3.1 使用PST为SCALANCE X400配置IP地址 (8)3.2 静态VLAN组态 (12)3.3 动态VLAN组态 (17)A&D Service & Support Page 3-201 VLAN概述1.1虚拟网络支持 (基于端口的VLAN)虚拟网络(VLAN) 和普通LAN没有物理区别。

VLAN的特性是设备在配置时可以被分配到设备组。

若干设备组使用现存的唯一物理网络基础设施。

若干"虚拟网络"存在于一个物理网络上。

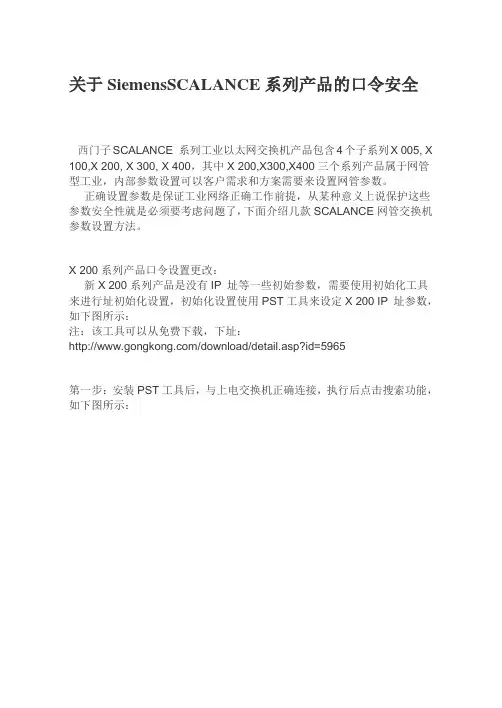

关于SiemensSCALANCE系列产品的口令安全西门子SCALANCE 系列工业以太网交换机产品包含4个子系列X 005, X 100,X 200, X 300, X 400，其中X 200,X300,X400三个系列产品属于网管型工业，内部参数设置可以客户需求和方案需要来设置网管参数。

正确设置参数是保证工业网络正确工作前提，从某种意义上说保护这些参数安全性就是必须要考虑问题了，下面介绍几款SCALANCE网管交换机参数设置方法。

X 200系列产品口令设置更改：新X 200系列产品是没有IP 址等一些初始参数，需要使用初始化工具来进行址初始化设置，初始化设置使用PST工具来设定X 200 IP 址参数，如下图所示：注：该工具可以从免费下载，下址：/download/detail.asp?id=5965第一步：安装PST工具后，与上电交换机正确连接，执行后点击搜索功能，如下图所示：第二步：浏览器，登陆该交换机设置网页，如下图所示：注：初始登陆用户名和密码都是admin(有大小写之分)第三步：更改新用户名和密码，点击设置保存。

如下图所示X 400系列产品口令设置更改：X 400系列产平交换机没有网页中设计更改用户名和密码项目，这种型号交换机密码更改是telnet 运程登陆方式来实现，下面分步介绍。

第一步：X400 交换机也需要进行与X 200系列交换机相同初始化步骤。

第二步：使用TELNET 登陆，如下图所示运行窗口中执行telnet 指令，命令格式为telent <目标交换机IP 址> ，如下图所示：第三步，进入目标X400交换机远程登录画面后，输入初始化用户名和初始化口令，并按提示输入system 指令，如下图所示：password 指令就可进行口令修改了。

网络交换机设备说明书项目：_____________________________________________________________1.2 方案简介根据要求，西门子（中国）有限公司选用新一代模块化千兆工业以太网交换机SCALANCE X－400，实现整个中心网络的配置。

3. 设备性能及特点3.1 产品概述SCALANCE X－400 是西门子全新一代工业以太网交换机，设计用于工厂控制层的骨干网络。

SCALANCE X-400交换机的主要特点如下：－模块化：SCALANCE X-400一改以往普通交换机端口数固定的缺点，提供模块化的设计，用户可以根据需要灵活的选择所需要的交换机的端口数量，最多可提供26个端口。

－ 1000Mbit/s通讯速率：随着工厂控制系统的日趋庞大以及三网合一（控制网、视频网、音频网）概念的不断普及，传统的100Mbit/s的网络已经越来越难以满足用户的需求，控制层的骨干网络已经进入千兆以太网时代，使用SCALANCE X-400构成的千兆光纤骨干环网是最佳的解决方案－虚拟局域网技术（VLAN）：使用虚拟局域网技术，通过将网络划分为独立的子网，可以有效的降低网络的负荷，提高网络的通讯效率－快速冗余环：使用SCALANCE X-400可以构成1000Mbit/s或100Mbit/s的光纤冗余环网，其网络重构时间严格小于300ms－网络管理及实时故障诊断： SCALANCE X-400支持SNMP协议，可实现远程实时在线故障诊断，因此，用户可实现对全厂网络的远程监控，当故障发生时，用户可在第一时间实现故障的诊断和定位。

－流量限制：交换机端口支持流量限制功能，防止广播风暴－其他特性：冗余24V供电、多播过滤功能（IGMP），使用C-Plug备份参数，模块可热插拔3.2 性能指标3.2.1 允许环境条件• 工作温度0 ℃ - +60 ℃• 运输/ 贮存温度-20 ℃ - +80 ℃• 工作时相对湿度< 95%3.2.2 结构• 外形尺寸（W x H x D）， [mm] 344 x 145 x 112• 重量3.4 kg• 安装可使用S7-300 组合导轨或 DIN 导轨•防护等级IP203.2.3 供电•冗余24V DC (18 – 32 V DC) 供电•电源接口为1×4针端子排3.2.4 接口数量•模块化结构，最多可获得26个工业以太网接口•基本模板（SCALANCE X414-3E）提供2×1000Mbit/s RJ45接口＋12×100Mbit/s RJ45接口•基本模板配合光纤接口模块，可提供2×1000Mbit/s ST光纤接口＋4×100Mbit/s SC/BFOC光纤接口•使用扩展模板，可获得额外8×100Mbit/s RJ45接口；或者配合使用光纤接口模块，可获得额外8×100Mbit/s SC/BFOC光纤接口3.2.5 网络扩展参数• 0 - 100 m，双绞线• 0 - 3,000 m，62.5/125 μm或50/125 μm多模光纤，通讯速率100Mbit/s ；配合光纤接口模块MM491-2使用；≤ 1 dB/km， 1300 nm 时；≥ 600 MHz x km• 0 - 750 m，50/125 μm多模光纤，通讯速率1000Mbit/s；配合光纤接口模块MM492-2使用；≤ 2.7 dB/km， 850 nm 时；≥ 600 MHz x km• 0 - 26 km，10/125 μm或9/125 μm单模光纤，通讯速率100Mbit/s；配合光纤接口模块MM491-2 LD使用；≤ 0.5 dB/km， 1300 nm 时；• 0 - 10 km，10/125 μm或9/125 μm单模光纤，通讯速率1000Mbit/s；配合光纤接口模块MM492-2 LD使用；≤ 0.5 dB/km， 1300 nm 时3.3 产品说明3.3.1 产品描述SCALANCE X-400 产品线包括模块化工业以太网交换机、介质模板以及扩展器。
